STIHL KM 56 RC-E Instruction Manual

STIHL KM 56 R
WARNING
Read Instruction Manual thoroughly
before use and follow all safety precautions – improper use can cause serious or fatal injury.
Antes de usar la máquina lea y siga todas las precauciones de seguridad dadas en el manual de instrucciones – el uso incorrecto puede causar lesiones graves o mortales.
{
Instruction Manual Manual de instrucciones
Instruction Manual 1 - 34
Manual de instrucciones 35 - 71
Contents
English
KombiSystem 2 Guide to Using this Manual 2 Safety Precautions and Working

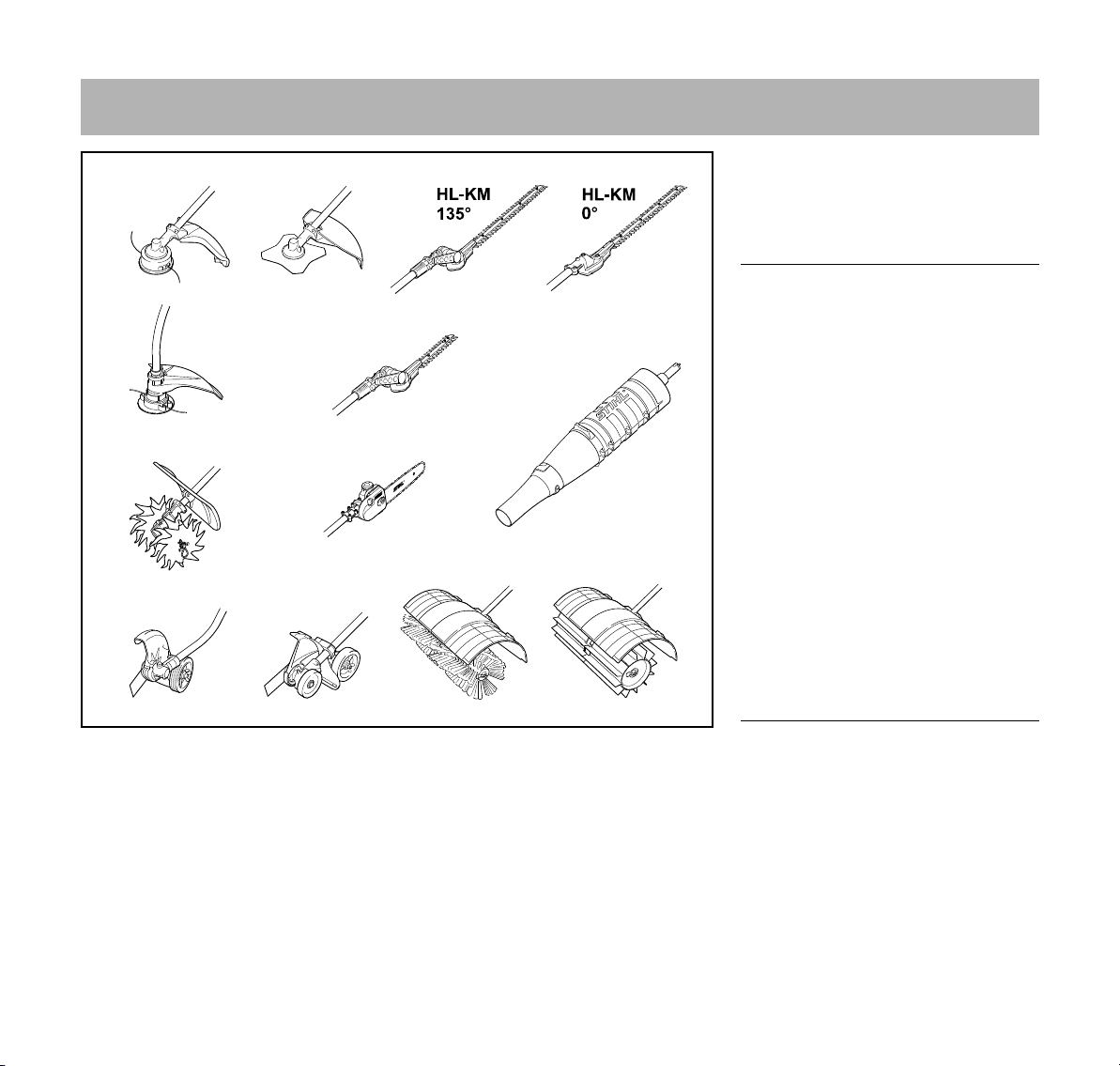

Techniques 3 Approved KombiTools 11 Mounting the Loop Handle 12 Carrying ring 14 Fuel 14
Original Instruction ManualPrinted on chlorine-free paper
Fueling 15 Starting / Stopping the Engine 18 Operating Instructions 20 Cleaning the Air Filter 20 Engine Management 21 Adjusting the Carburetor 21 Spark Plug 22 Engine Running Behavior 23 Rewind Starter 23 Storing the Machine 23 Inspections and Maintenance by
Dealer 24 Maintenance and Care 25 Main Parts 26
Printing inks contain vegetable oils, paper can be recycled.
Specifications 27 Maintenance and Repairs 28 Disposal 28 STIHL Incorporated Federal
Emission Control Warranty Statement 29
STIHL Incorporated California Exhaust and Evaporative Emissions Control Warranty Statement 31
Trademarks 33
Allow only persons who fully understand the manuals of the KombiEngine and the KombiTool to operate this power tool combination.
To receive maximum performance and satisfaction from your STIHL power tool, it is important that you read, understand and follow the safety precautions and the operating and maintenance instructions in chapter "Safety Precautions and Working Techniques" before using your power tool. For further information you can go to www.stihlusa.com.
Contact your STIHL dealer or the STIHL distributor for your area if you do not understand any of the instructions in the two manuals.
WARNING
Because this KombiEngine is the engine for a high-speed power tool, some special safety precautions must be observed to reduce the risk of personal injury. Careless or improper use may cause serious or even fatal injury.
{
© ANDREAS STIHL AG & Co. KG, 2014
0458-540-8621-C. VA2.K14.
0000001054_016_GB
KM 56 R, KM 56 RC
This instruction manual is protected by copyright. All rights reserved, especially the rights to reproduce, translate and process with electronic systems.
1
English
. . . .
002BA530 KN
+
+
KombiSystem
In the STIHL KombiSystem a number of different KombiEngines and KombiTools can be combined to produce a power tool. In this instruction manual the functional unit formed by the KombiEngine and KombiTool is referred to as the power tool.
Therefore, the separate instruction manuals for the KombiEngine and KombiTool should be used together for the power tool.
Always read and and make sure you understand both instruction manuals before using your power tool for the first time and keep them in a safe place for future reference.
Guide to Using this Manual
Pictograms
The meanings of the pictograms attached to or embossed on the machine are explained in this manual.
Depending on the model concerned, the following pictograms may be on your machine.
Fuel tank for gasoline and engine oil mixture
Press to operate decom pression valve
Manual fuel pump
Press to operate manual fuel pump
Filler hole for gear lubricant
Air intake summer mode
Air intake winter mode
Symbols in Text
Many operating and safety instructions are supported by illustrations.
The individual steps or procedures described in the manual may be marked in different ways:
N A bullet marks a step or procedure. A description of a step or procedure that
refers directly to an illustration may contain item numbers that appear in the illustration. Example:
N Loosen the screw (1). N Lever (2) ...
-
In addition to the operating instructions, this manual may contain paragraphs that require your special attention. Such paragraphs are marked with the symbols and signal words described below:
DANGER
Indicates an imminent risk of severe or fatal injury.
WARNING
Indicates a hazardous situation which, if not avoided, could result in severe or fatal injury.
NOTICE
Indicates a risk of property damage, including damage to the machine or its individual components.
2
Handle heating
KM 56 R, KM 56 RC
English
Engineering Improvements
STIHL’s philosophy is to continually improve all of its products. As a result, engineering changes and improvements are made from time to time. Therefore, some changes, modifications and improvements may not be covered in this manual. If the operating characteristics or the appearance of your machine differs from those described in this manual, please contact your STIHL dealer or the STIHL distributor for your area for assistance.
Safety Precautions and Working Techniques
Because this KombiEn gine is the engine for a high-speed, power tool, special safety precau tions must be observed to reduce the risk of per sonal injury.
It is important that you read, fully understand and observe the following safety precautions and warnings. Read the instruction manuals and the safety precautions of your KombiEngine and KombiTool periodically. Careless or improper use may cause serious or fatal injury.
Have your STIHL dealer show you how to operate your power tool. Observe all applicable local safety regulations, standards and ordinances.
WARNING
Do not lend or rent your power tool without the instruction manuals. Be sure that anyone using it understands the information contained in these manuals.
Use your power tool only for the applications described in the instruction manual of the KombiTool you are using.
-
-
-
WARNING
Do not use it for other purposes, since misuse may result in personal injury or property damage, including damage to the machine.
WARNING
Minors should never be allowed to use this power tool. Bystanders, especially children, and animals should not be allowed in the area where it is in use.
WARNING
To reduce the risk of injury to bystanders and damage to property, never let your power tool run unattended. When it is not in use (e.g. during a work break), shut it off and make sure that unauthorized persons do not use it.
Most of these safety precautions and warnings apply to the use of all STIHL power tools. Different models may have different parts and controls. See the appropriate section of your KombiEngine and KombiTool instruction manuals for a description of the controls and the function of the parts of your model.
Do not clean your machine with a pressure washer. The solid jet of water may damage parts of the machine.
Safe use of KombiEngine involves
1. the operator
2. the power tool
3. the use of the power tool.
KM 56 R, KM 56 RC
3
English
THE OPERATOR
Physical Condition You must be in good physical condition
and mental health and not under the influence of any substance (drugs, alcohol, etc.) which might impair vision, dexterity or judgment. Do not operate this machine when you are fatigued.
WARNING
Be alert – if you get tired, take a break. Tiredness may result in loss of control. Working with any power tool can be strenuous. If you have any condition that might be aggravated by strenuous work, check with your doctor before operating this machine.
WARNING
Prolonged use of a power tool (or other machines) exposing the operator to vibrations may produce whitefinger disease (Raynaud's phenomenon) or carpal tunnel syndrome.
These conditions reduce the hand's ability to feel and regulate temperature, produce numbness and burning sensations and may cause nerve and circulation damage and tissue necrosis.
All factors which contribute to whitefinger disease are not known, but cold weather, smoking and diseases or physical conditions that affect blood vessels and blood transport, as well as high vibration levels and long periods of
exposure to vibration are mentioned as factors in the development of whitefinger disease. In order to reduce the risk of whitefinger disease and carpal tunnel syndrome, please note the following:
Most STIHL power tools are
available with an anti-vibration ("AV") system designed to reduce the transmission of vibrations created by the machine to the operator's hands. An AV system is recommended for those persons using power tools on a regular or sustained basis.
Wear gloves – not while using
KombiTool BG-KM – and keep your hands warm.
Keep the AV system well
maintained. A power tool with loose components or with damaged or worn AV elements will tend to have higher vibration levels.
Maintain a firm grip at all times, but
do not squeeze the handles with constant, excessive pressure. Take frequent breaks.
All the above-mentioned precautions do not guarantee that you will not sustain whitefinger disease or carpal tunnel syndrome. Therefore, continual and regular users should closely monitor the condition of their hands and fingers. If any of the above symptoms appear, seek medical advice immediately.
WARNING
The ignition system of the STIHL unit produces an electromagnetic field of a very low intensity. This field may interfere with some pacemakers. To reduce the risk of serious or fatal injury,
persons with a pacemaker should consult their physician and the pacemaker manufacturer before operating this tool.
Proper Clothing
WARNING
To reduce the risk of injury, the operator should wear proper protective apparel.
WARNING
Power tool noise may damage your hearing. Wear sound barriers (ear plugs or ear mufflers) to protect your hearing. Continual and regular users should have their hearing checked regularly.
Be particularly alert and cautious when wearing hearing protection because your ability to hear warnings (shouts, alarms, etc.) is restricted.
For further instructions on proper clothing see the safety precautions in the instruction manual of the KombiTool you are using.
THE POWER TOOL
For illustrations and definitions of the power tool parts see the chapter on "Main Parts."
WARNING
Never modify this power tool in any way. Only attachments supplied by STIHL and expressly approved by STIHL for
4
KM 56 R, KM 56 RC
English
001BA220 KN
use with the specific STIHL model are authorized. Although certain unauthorized attachments are useable with STIHL power tools, their use may, in fact, be extremely dangerous.
If this tool is subjected to unusually high loads for which it was not designed (e.g. heavy impact or a fall), always check that it is in good condition before continuing work. Check in particular that the fuel system is tight (no leaks) and that the controls and safety devices are working properly. Do not continue operating this machine if it is damaged. In case of doubt, have it checked by your STIHL servicing dealer.
THE USE OF THE POWER TOOL
Transporting the Power Tool
WARNING
Always switch off the engine and make sure the working tool has stopped before putting a power tool down. When transporting your power tool in a vehicle, properly secure it to prevent turnover, fuel spillage and damage to the power tool.
Fuel Your STIHL power tool uses an oil-
gasoline mixture for fuel (see the chapter on "Fuel" of your instruction manual).
WARNING
Gasoline is an extremely flammable fuel. If spilled and ignited by a spark or other ignition source, it can cause fire and seri
-
ous burn injury or property damage. Use extreme caution when handling gasoline or fuel mix. Do not smoke or bring any fire or flame near the fuel or the power tool. Note that combusti
-
ble fuel vapor may escape from the fuel system.
Fueling Instructions
WARNING
To reduce the risk of serious injury from burns, never attempt to refuel the unit until it has been completely removed from the operator.
WARNING
Fuel your power tool in well-ventilated areas, outdoors. Always shut off the engine and allow it to cool before refueling. Gasoline vapor pressure may build up inside the fuel tank depending on the fuel used, the weather conditions and the tank venting system.
In order to reduce the risk of burns and other personal injury from escaping gas vapor and fumes, remove the fuel filler cap on your power tool carefully so as to allow any pressure build-up in the tank to release slowly. Never remove the fuel filler cap while the engine is running.
Select bare ground for fueling and move at least 10 feet (3 m) from the fueling spot before starting the engine. Wipe off any spilled fuel before starting your machine.
WARNING
Check for fuel leakage while refueling and during operation. If fuel leakage is found, do not start or run the engine until the leak is fixed and any spilled fuel has been wiped away. Take care not to get fuel on your clothing. If this happens, change your clothing immediately.
WARNING
In order to reduce the risk of fuel spillage and fire from an improperly tightened fuel cap, correctly position and tighten the fuel cap in the fuel tank opening.
Different models may be equipped with different fuel caps.
Toolless cap with grip
To do this with this STIHL cap, raise the grip on the top of the cap until it is upright at a 90° angle. Insert the cap in the fuel
KM 56 R, KM 56 RC
5
English
001BA227 KN
001BA226 KN
tank opening with the raised positioning marks on the grip of the cap and on the fuel tank opening lining up. Using the grip, press the cap down firmly while turning it clockwise as far as it will go (approx. 1/4 turn).
Fold the grip flush with the top of the cap. Grip the cap and check for tightness. If the grip does not lie completely flush with the cap and the detent on the grip does not fit in the correspond
-
ing recess in the filler opening, or if the cap is loose in the filler opening, the cap is not properly seated and tightened and you must repeat the above steps.
Misaligned, damaged or broken cap N If the cap does not drop fully into the
opening when the positioning marks line up and/or if the cap does not tighten properly when twisted, the base of the cap may be prematurely rotated (in relation to the top) to the closed position. Such misalignment can result from handling, cleaning or an improper attempt at tightening.
Left: Base of cap in closed posi
tion (with open space)
Right: Base of cap correctly posi
tioned for installation
N To return the cap to the open
position for installation, turn the cap (with the grip up) until it drops fully into the tank opening. Next, twist the cap counterclockwise as far as it will go (approx. 1/4 turn) – this will twist the base of the cap into the correct position. Then, twist the cap clockwise, closing it normally.
N If your cap still does not tighten
properly, it may be damaged or broken; immediately stop use of the unit and take it to your authorized STIHL dealer for repair.
Screw Cap
WARNING
Unit vibrations can cause an improperly tightened fuel filler cap to loosen or come off and spill quanti
-
ties of fuel. In order to
-
reduce the risk of fuel spillage and fire, tighten the fuel filler cap by hand
-
as securely as possible.
See also the "Fueling" chapter in your Instruction Manual for additional information.
Before Starting
WARNING
Always check your power tool for proper condition and operation before starting, particularly the throttle trigger, throttle trigger lockout, stop switch, cutting attachment, deflector and harness. The throttle trigger must move freely and always spring back to the idle position. Never attempt to modify the controls or safety devices.
WARNING
Check fuel system for leaks, especially the visible parts, e.g., filler cap, hose connections, manual fuel pump (only for power tools equipped with a manual fuel pump). Do not start the engine if there are leaks or damage – risk of fire! Have the machine repaired by a servicing dealer before using it.
6
KM 56 R, KM 56 RC
English
002BA054 KN
WARNING
Never operate your power tool if it is damaged, improperly adjusted or maintained, or not completely or securely assembled.
WARNING

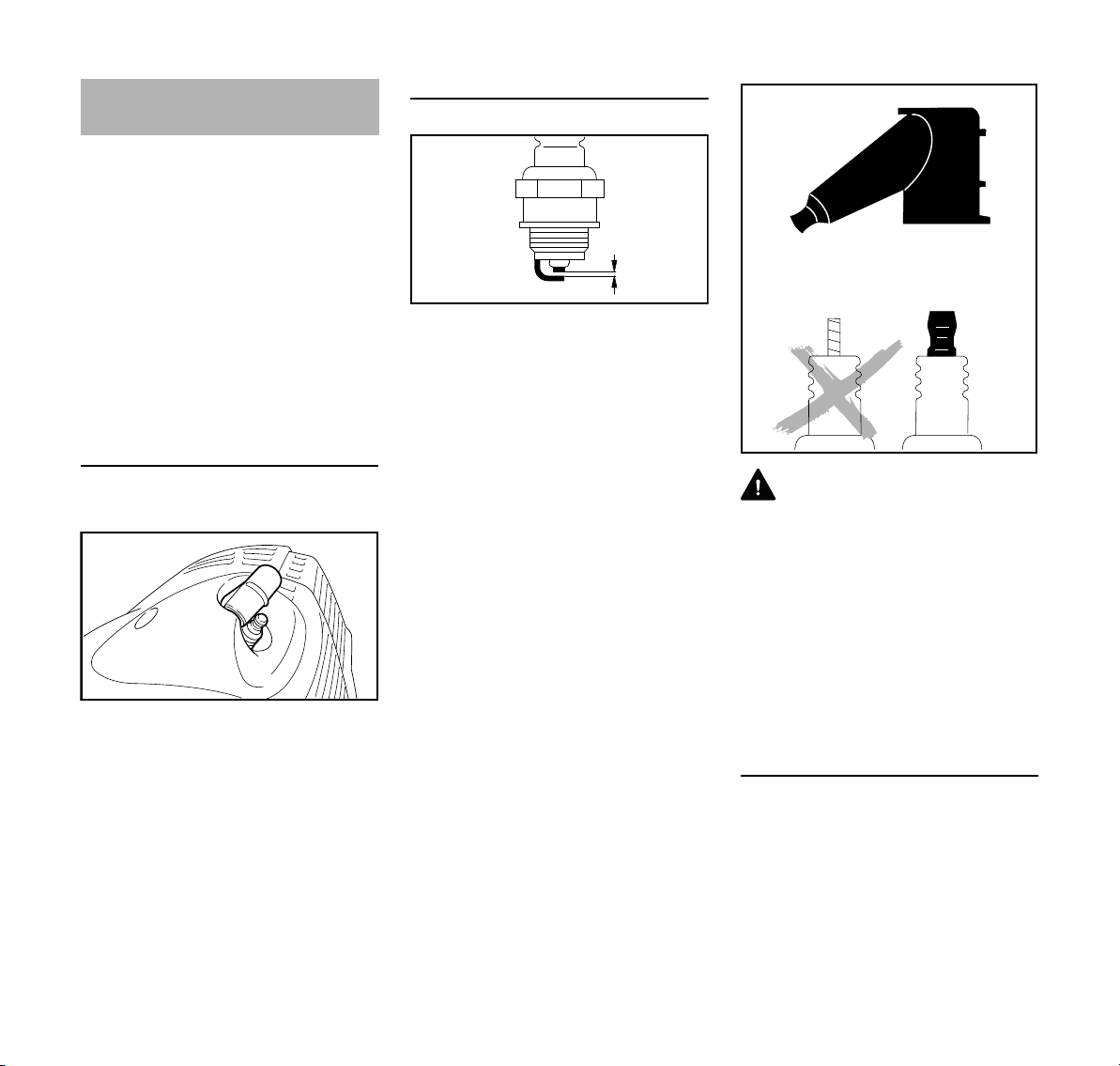

Check that the spark plug boot is securely mounted on the spark plug – a loose boot may cause arcing that could ignite combustible fumes and cause a fire.
Keep the handles clean and dry at all times; it is particularly important to keep them free of moisture, pitch, oil, fuel mix, grease or resin in order for you to maintain a firm grip and properly control your power tool.
Starting
WARNING
Start the engine at least 10 feet (3 m) from the fueling spot, outdoors only.
For specific starting instructions, see the appropriate section of your KombiEngine and KombiTool manuals. Place the power tool on firm ground or other solid surface in an open area. Maintain good balance and secure footing.
WARNING
To reduce the risk of injury from loss of control, be absolutely sure that the working tool is clear of you and all other obstructions and objects, including the ground, because when the engine starts
at starting-throttle, engine speed will be fast enough for the clutch to engage and move the working tool.
Once the engine has started, immediately blip the throttle trigger, which should release the starting throttle and allow the engine to slow down to idle.
WARNING
Your power tool is a one-person machine. Do not allow other persons in the general work area, even when starting.
WARNING
To reduce the risk of injury from loss of control, do not attempt to "drop start " your power tool
WARNING
When you pull the starter grip, do not wrap the starter rope around your hand. Do not let the grip snap back, but guide the starter rope to rewind it properly. Failure to follow this procedure may result in injury to your hand or fingers and may damage the starter mechanism.
See also the safety precautions on Starting in the instruction manual of the KombiTool.
Important Adjustments
WARNING
To reduce the risk of personal injury from loss of control or contact with the running working tool, do not use a power tool with incorrect idle adjustment. At
correct idle speed, the working tool should not move. For directions on how to adjust idle speed, see the appropriate section of your instruction manual.
If you cannot set the correct idle speed, have your STIHL dealer check your power tool and make proper adjustments and repairs.
WARNING
This unit is equipped with an ignition system that is normally in operational readiness. After the setting lever is used to stop the engine, it automatically springs back to the "on" position. If the engine is warm, it may be possible to start it by simply pulling the starter rope, with no further adjustments. To reduce the risk of injury, be particularly alert to keep children away from the unit.
During Operation Holding and Controlling the Power Tool
Always hold the unit firmly with both hands on the handles while you are working. Wrap your fingers and thumbs around the handles.
Your right hand should grip the rear handle.This also applies to left-handers.
KM 56 R, KM 56 RC
7
English
WARNING
To reduce the risk of injury from loss of control, never work on a ladder or on any other insecure support.
Working Conditions Operate and start your power tool only
outdoors in a well ventilated area. Operate it under good visibility and daylight conditions only. Work carefully.
WARNING
As soon as the engine is running, this product gen erates toxic exhaust fumes containing chemi cals, such as unburned hydrocarbons (including benzene) and carbon monoxide, that are known to cause respira tory problems, cancer, birth defects, or other reproductive harm. Some of the gases (e.g. carbon monoxide) may be color less and odorless. To reduce the risk of serious or fatal injury / illness from inhaling toxic fumes, never run the machine indoors or in poorly venti lated locations.
WARNING
Inhalation of certain dusts, especially organic dusts such as mold or pollen, can cause susceptible persons to have an allergic or asthmatic reaction.
-
-
Substantial or repeated inhalation of dust and other airborne contaminants, in particular those with a smaller particle size, may cause respiratory or other illnesses. Control dust at the source where possible. Use good work practices, such as operating the unit so that the wind or operating process directs any dust raised by the power tool away from the operator. Follow the recommendations of EPA/OSHA/NIOSH and occupational and trade associations with respect to dust ("particulate matter"). When the inhalation of dust cannot be substantially controlled, i.e., kept at or
-
near the ambient (background) level, the operator and any bystanders should wear a respirator approved by NIOSH/MSHA for the type of dust encountered.
Operating Instructions
WARNING
Do not operate your power tool using the starting throttle lock, as you do not have
-
control of the engine speed. In the event of an emergency, switch off
the engine immediately – move the slide control / stop switch to 0 or STOP.
-
WARNING
Never modify your muffler. Any modification could cause an increase in heat radiation, sparks or sound level, thereby increasing the risk of fire, burn injury or hearing loss. You may also permanently damage the engine. Have your muffler serviced and repaired by your STIHL servicing dealer only.
WARNING
The muffler and other parts of the engine (e.g. fins of the cylinder, spark plug) become hot during operation and remain hot for a while after stopping the engine. To reduce risk of burns, do not touch the muffler and other parts while they are hot. Keep the area around the muffler clean. Remove excess lubricant and all debris such as pine needles, branches or leaves. Let the engine cool down sitting on concrete, metal, bare ground or solid wood away from any combustible substances.
WARNING
An improperly mounted or damaged cylinder housing or a damaged/deformed muffler shell may interfere with the cooling process of the muffler. To reduce the risk of fire or burn injury, do not continue work with a damaged or improperly mounted cylinder housing or a damaged/deformed muffler shell.
Your muffler is furnished with a spark arresting screen designed to reduce the risk of fire from the emission of hot particles. Never operate your unit with a missing or damaged spark arresting screen. If your gas/oil mix ratio is correct (i.e., not too rich), this screen will normally stay clean as a result of the heat from the muffler and need no service or maintenance. If you experience loss of performance and you suspect a clogged screen, have your muffler maintained by a STIHL servicing dealer. Some state or federal laws or regulations may require a properly maintained spark arrestor for certain
8
KM 56 R, KM 56 RC
English
uses. See the "Maintenance, Repair and Storing" section of these Safety Precautions. Remember that the risk of a brush or forest fire is greater in hot or dry conditions.
WARNING
Some STIHL power tools are equipped with a cata lytic converter, which is designed to reduce the exhaust emissions of the engine by a chemical process in the muffler. Due to this process, the muffler does not cool down as rapidly as con
-
ventional mufflers when the engine returns to idle or is shut off. To reduce the risk of fire and burn injuries when using a cat alytic converter, always set your power tool down in the upright position and never locate it where the muffler is near dry brush, grass, wood chips or other combustible materi als while it is still hot.
MAINTENANCE, REPAIR AND STORING
Maintenance, replacement, or repair of the emission control devices and systems may be performed by any nonroad engine repair establishment or individual. However, if you make a warranty claim for a component which has not been serviced or maintained
properly or if nonapproved replacement parts were used, STIHL may deny coverage.
WARNING
Use only identical STIHL replacement parts for maintenance and repair. Use of non-STIHL parts may cause serious or
-
fatal injury. Strictly follow the maintenance and
repair instructions in the appropriate section of your KombiEngine and KombiTool instruction manuals. Please refer to the maintenance charts respectively the maintenance notes in these manuals.
WARNING
Always stop the engine and make sure that the working tool is stopped before
-
doing any maintenance or repair work or cleaning the power tool. Do not attempt any maintenance or repair work not described in your KombiEngine and KombiTool instruction manuals. Have such work performed by your STIHL servicing dealer only.
-
WARNING
Use the specified spark plug and make sure it and the ignition lead are always clean and in good condition. Always press spark plug boot snugly onto spark plug terminal of the proper size. (Note: If terminal has detachable SAE adapter nut, it must be attached.) A loose connection between spark plug boot and the ignition wire connector in the boot may create arcing that could ignite combustible fumes and cause a fire.
WARNING
Never test the ignition system with the ignition wire boot removed from the spark plug or with a removed spark plug, since uncontained sparking may cause a fire.
WARNING
Do not operate your power tool if the muffler is damaged, missing or modified. An improperly maintained muffler will increase the risk of fire and hearing loss. Your muffler is equipped with a spark­arresting screen to reduce the risk of fire; never operate your power tool if the screen is missing, damaged or clogged. Remember that the risk of a brush or forest fire is greater in hot or dry weather.
In California, it is a violation of § 4442 or
§ 4443 of the Public Resources Code to use or operate gasoline-powered tools on forest-covered, brush-covered or grass-covered land unless the engine’s exhaust system is equipped with a complying spark arrester that is maintained in effective working order. The owner/operator of this product is responsible for properly maintaining the spark arrester. Other states or governmental entities/agencies, such as the U.S. Forest Service, may have similar requirements. Contact your local fire agency or forest service for the laws or regulations relating to fire protection requirements.
Store the power tool in a dry and high or locked location out of reach of children.
KM 56 R, KM 56 RC
9
English
Before storing for longer than a few days, always empty the fuel tank. See chapter "Storing the machine" in this manual.
10
KM 56 R, KM 56 RC
Approved KombiTools
HT-KM
BF-KM
470BA018 KN
FCS-KM
FCB-KM
KW-KM
KB-KM
FH-KM
FS-KM
FS-KM
FSB-KM
BG-KM
English
The following STIHL KombiTools may be mounted on the KombiEngine:
KombiTool Purpose FS-KM Brushcutter with
mowing head
FS-KM Brushcutter with
grass cutting blade
FSB-KM Brushcutter with
mowing head
HL-KM 135° Hedge trimmer,
adjustable HL-KM 0° Hedge trimmer FH-KM 135° Power scythe BG-KM Blower HT-KM Pole pruner BF-KM Pick tines FCB-KM Power edger FCS-KM Power edger KB-KM Bristle brush KW-KM PowerSweep
The barrier bar supplied with the machine must be mounted to the loop handle – see also "Mounting the Loop Handle".
KM 56 R, KM 56 RC
11
English
540BA003 KN
540BA004 KN
540BA008 KN
1
2
3
(5,3 mm)
0.2 in
540BA006 KN
A
002BA586 KN
Mounting the Loop Handle
The loop handle comes in two different versions.
Version A
A factory-new machine comes with the loop handle already mounted.
Using the Barrier Bar
Mounting the Barrier Bar
N Fit the washer (1) on the M5x23
screw (2).
N Hold the barrier bar (3) against the
loop handle and insert the screw with washer.
N Tighten down the screw (2) firmly. Leave the barrier bar permanently
mounted to the loop handle.
Line up the loop handle.
The loop handle can be adjusted to suit the height and reach of the operator and the application by changing distance (A).
N Loosen the screw on the handle. N Slide the handle to the required
position.
N Tighten down the screw so that the
handle cannot be rotated on the drive tube.
Version B
The barrier bar comes standard with the machine and must be mounted to the loop handle.
12
A factory-new machine comes with the loop handle already mounted.
KM 56 R, KM 56 RC
Using the Barrier Bar
002BA587 KN
4
002BA588 KN
3
5
3
5
1 2
1 2
2
002BA098 KN
1
1
5
2
4
002BA589 KN
3
6
7
7
The barrier bar comes standard with the machine and must be mounted to the loop handle.

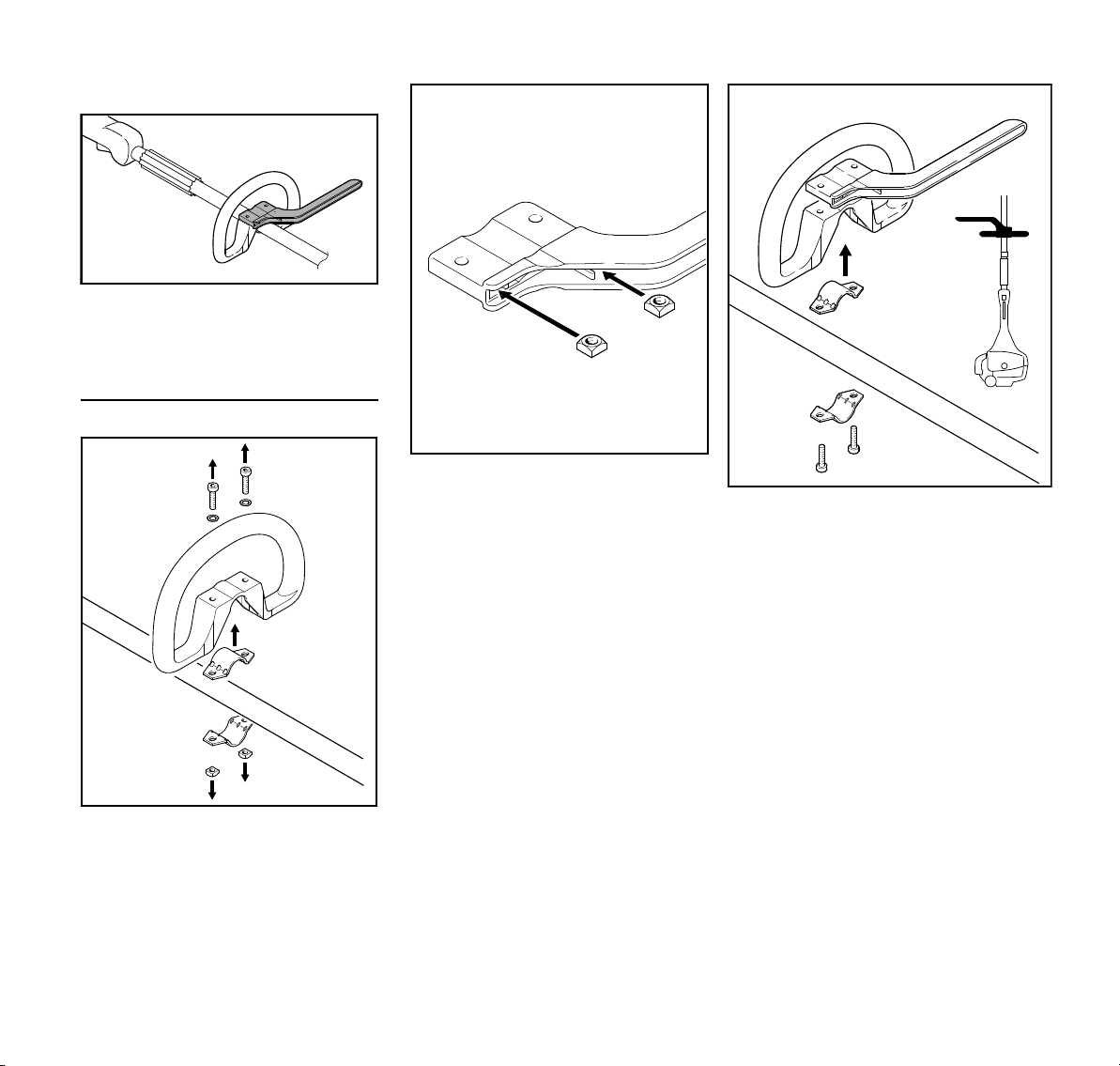

Mounting the Barrier Bar
N Take out the screws (1) and remove
along with washers (2) and nuts (3).
N Remove the loop handle (4) and
clamps (5).
N Fit the square nuts (1) in the barrier
bar (2); the holes must line up.
English
N Place the clamp (3) in the loop
handle (4) and position them both against the drive tube (5).
N Place the clamp (6) against the
drive tube.
N Place the barrier bar (2) in position
as shown.
N Line up the holes. N Insert the screws (7) in the holes
and screw them into the barrier bar (2) as far as stop.
N Go to "Adjusting and Securing the
Loop Handle".
Leave the barrier bar permanently mounted to the loop handle.
KM 56 R, KM 56 RC
13
English
A
002BA598 KN
547BA008 KN

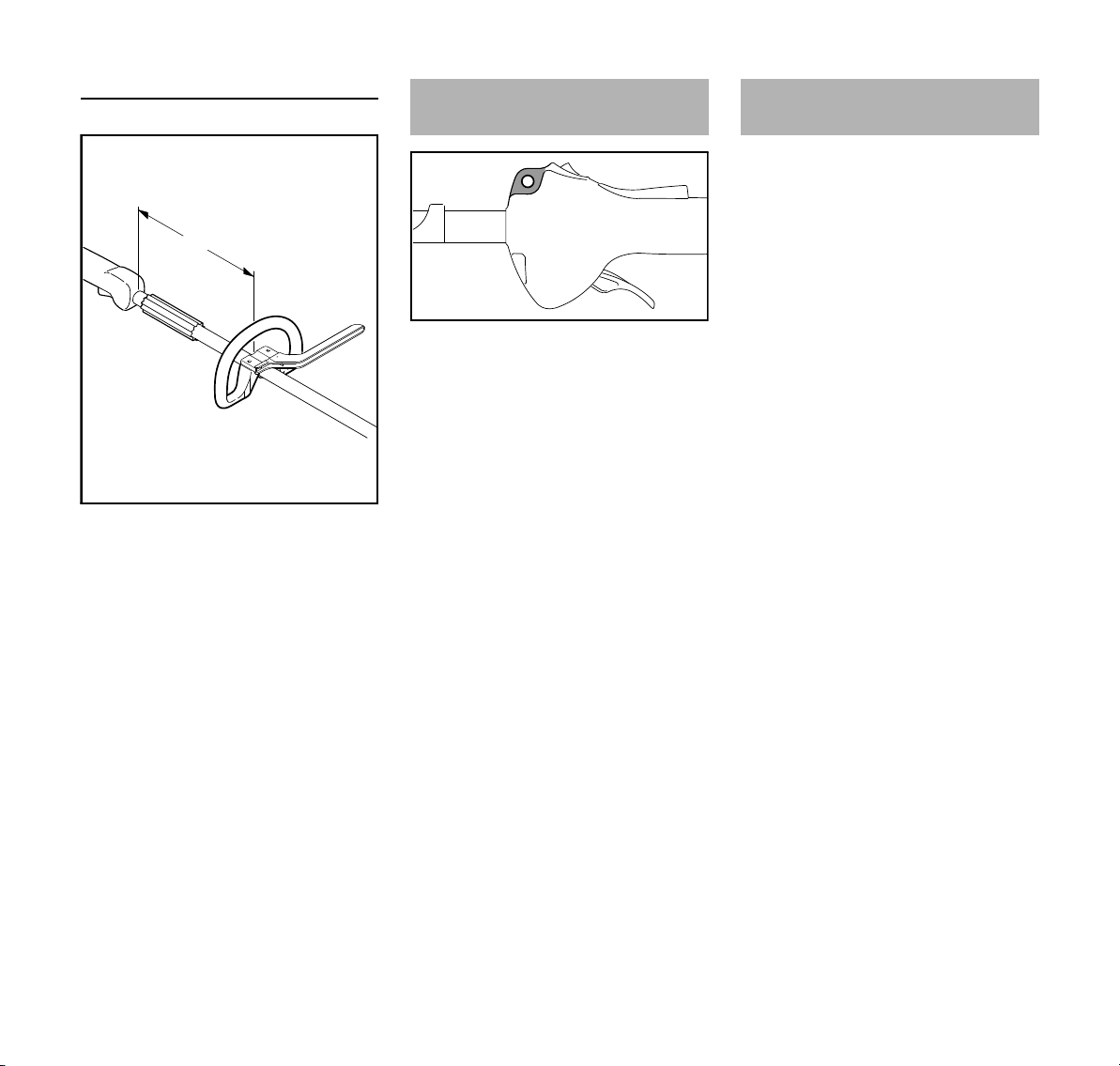

Adjusting and Securing the Loop Handle
The loop handle can be adjusted to suit the height and reach of the operator and the application by changing distance (A).
N Securing the Loop Handle N Line up the loop handle. N Tighten down the screws firmly –
lock the nuts if necessary.
Carrying ring
The carrying ring is integrated in the front end of the control handle.
Fuel
This engine is certified to operate on unleaded gasoline and the STIHL two­stroke engine oil at a mix ratio of 50:1.
Your engine requires a mixture of high­quality gasoline and two-stroke air cooled engine oil.
Use mid-grade unleaded gasoline with a minimum octane rating of 89 ((R+M)/2) and no more than 10% ethanol content.
Fuel with a lower octane rating may increase engine temperatures. This, in turn, increases the risk of piston seizure and damage to the engine.
The chemical composition of the fuel is also important. Some fuel additives not only detrimentally affect elastomers (carburetor diaphragms, oil seals, fuel lines, etc.), but magnesium castings and catalytic converters as well. This could cause running problems or even damage the engine. For this reason STIHL recommends that you use only high-quality unleaded gasoline!
Gasoline with an ethanol content of more than 10% can cause running problems and major damage in engines and should not be used.
The ethanol content in gasoline affects engine running speed – it may be necessary to readjust the carburetor if you use fuels with various ethanol contents.
14
WARNING
To reduce the risk of personal injury from loss of control and/or contact with the running cutting tool, do not use your
KM 56 R, KM 56 RC
English
547BA045 KN
unit with incorrect idle adjustment. At correct idle speed, the cutting tool should not move.
If your power tool shows an incorrect idle adjustment, have your STIHL dealer check your power tool and make proper adjustments and repairs.
The idle speed and maximum speed of the engine change if you switch from a fuel with a certain ethanol content to another fuel with a much higher or lower ethanol content.
This problem can be avoided by always using fuel with the same ethanol content.
Use only STIHL two-stroke engine oil or equivalent high-quality two-stroke engine oils that are designed for use only in air cooled two-cycle engines.
We rec ommend STIH L HP Ultra 2-Cyc le Engine Oil since it is specially formulated for use in STIHL engines.
Do not use BIA or TCW rated (two­stroke water cooled) mix oils or other mix oils that state they are for use in both water cooled and air cooled engines (e.g., outboard motors, snowmobiles, chain saws, mopeds, etc.).
WARNING
Take care when handling gasoline. Avoid direct contact with the skin and avoid inhaling fuel vapor. When filling at the pump, first remove the container from your vehicle and place the container on the ground before filling. To reduce the risk of sparks from static discharge and resulting fire and/or explosion, do not fill fuel containers that are sitting in or on a vehicle or trailer.
The container should be kept tightly closed in order to limit the amount of moisture that gets into the mixture.
The machine‘s fuel tank should be cleaned as necessary.
Fuel mix ages
Only mix sufficient fuel for a few days work, not to exceed 30 days of storage. Store in approved fuel-containers only. When mixing, pour oil into the container first, and then add gasoline. Close the container and shake it vigorously by hand to ensure proper mixing of the oil with the fuel.
Gaso line
-
Oil (STIHL 50:1 or equiva lent high-quality oils)
-
US gal. US fl.oz.
12.6 2 1/2 6.4 5 12.8
Dispose of empty mixing-oil containers only at authorized disposal locations.
Fueling
Preparations
N Before fueling, clean the filler cap
and the area around it to ensure that no dirt falls into the tank.
Always thoroughly shake the mixture in the canister before fueling your machine.
N Position the machine so that the
filler cap is facing up.
WARNING
In order to reduce the risk of fire and personal injury from escaping gas vapor and fumes, remove the fuel filler cap carefully so as to allow any pressure build-up in the tank to release slowly.
One of two different filler caps is installed as standard at the factory.
KM 56 R, KM 56 RC
15
English
002BA418 KN
002BA419 KN
001BA218 KN
001BA219 KN
001BA224 KN
001BA220 KN
001BA221 KN
001BA222 KN
N Insert the cap – positioning marks
on the cap and the fuel tank opening must line up.
N The cap should drop fully into the
opening in this position.
Toolless filler cap (with folding grip)
Threaded filler cap
Opening the toolless filler cap
N Raise the grip into an upright
position.
N Turn the cap counterclockwise
(approx. 1/4 turn).
N While pressing the cap down, twist it
firmly clockwise as far as it will go (approx. 1/4 turn).
N Remove fuel filler cap.
Refueling
Take care not to spill fuel while fueling and do not overfill the tank.
N Fold down the grip.
Closing the toolless filler cap
16
With grip in an upright position:
KM 56 R, KM 56 RC
English
001BA223 KN
001BA225 KN
001BA227 KN
001BA226 KN
002BA447 KN
002BA448 KN
Checking for proper closure
N The lug on the grip must engage
entirely in the recess (arrow), and the grip must lie completely flush with the top of the cap.
N Grip the cap and check for
tightness.
N If the cap can be moved, it is not
properly installed.
Misalignment of the cap parts
N If the cap does not drop fully into the
opening when the positioning marks line up and/or if the cap does not tighten properly when twisted, the base of the cap may be rotated out of position vis-à-vis the top.
N Such misalignment can result from
handling, cleaning or an improper attempt at tightening.
Left: Base of improperly aligned
cap (with open space)
Right: Base of cap correctly posi
-
tioned for installation
N To correct a misalignment, turn the
cap (with the grip up) until it drops fully into the tank opening.
N Twist the cap counterclockwise as
far as it will go (approx. 1/4 turn) – this will twist the base of the cap into the correct position.
N Twist the cap clockwise, closing it
normally – see the sections "Closing" and "Checking for proper closure."
N If your cap still does not tighten
properly, it may be damaged or broken; immediately stop use of the unit and take it to your authorized STIHL dealer for repair.
Opening the threaded filler cap
N Turn the cap counterclockwise until
it can be removed from the tank opening.
N Remove the filler cap.
Refueling
Take care not to spill fuel while fueling and do not overfill the tank.
Closing the threaded filler cap
N Position cap. N Turn the cap clockwise as far as it
will go and tighten it as securely as possible by hand.
KM 56 R, KM 56 RC
17
English
002BA269 KN
1
3
2
4
547BA015 KN
5
547BA016 KN
5
547BA017 KN
547BA018 KN
Starting / Stopping the Engine
Controls
1 Throttle trigger lockout 2 Throttle trigger 3 Stop switch with Run and 0 = Stop
positions.
Function of stop switch and ignition system
The stop switch is normally in the Run position, i.e. when it is not depressed: The ignition is switched on – the engine is ready to start. If the stop switch is moved to the 0 position, the ignition is switched off. The ignition is switched on again automatically after the engine stops.

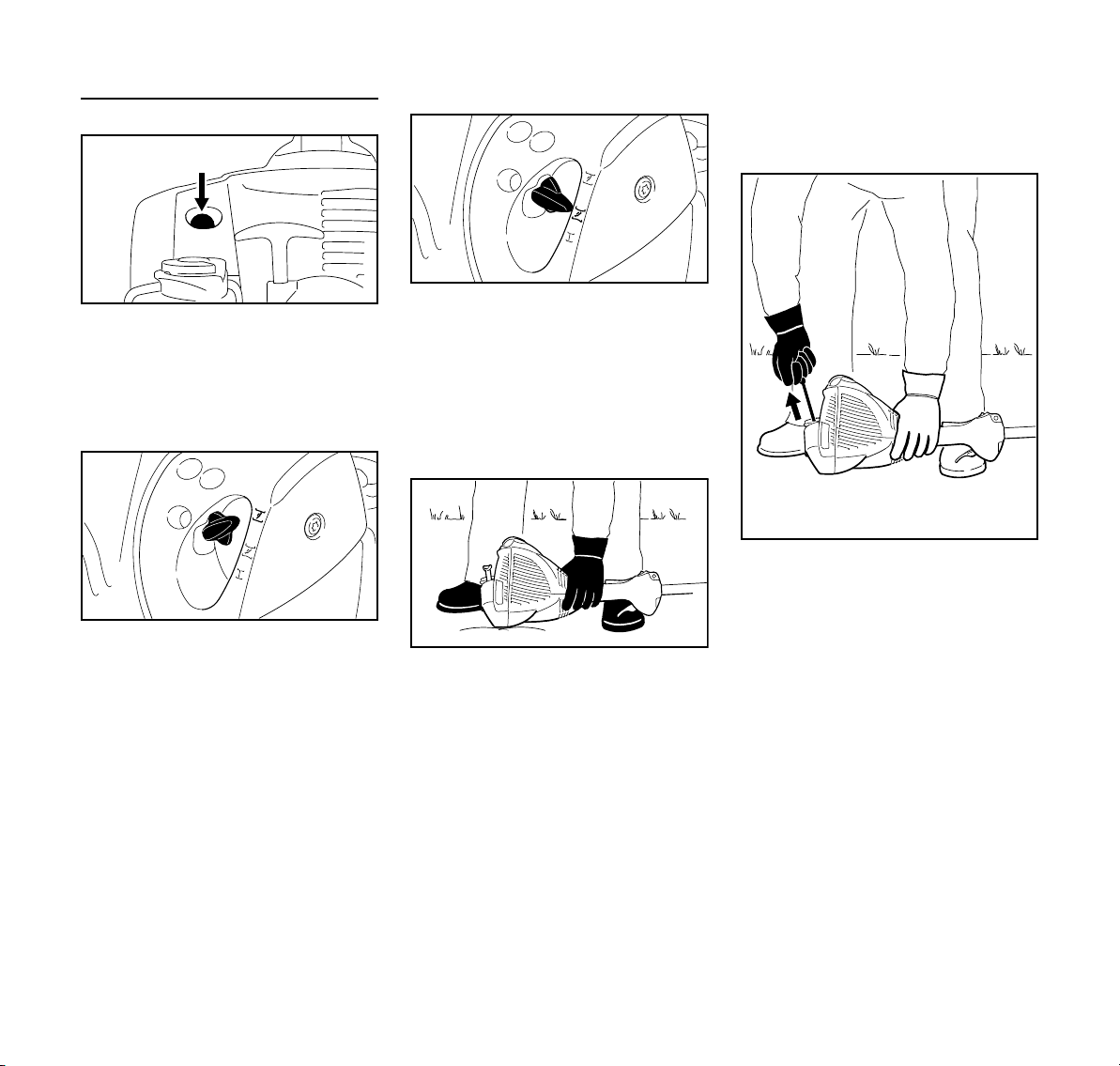

Starting the Engine
N Press the manual fuel pump
bulb (4) at least five times – even if the bulb is filled with fuel.
Cold engine (cold start)
N Press in the choke lever (5) and turn
it to g at the same time.
Warm engine (warm start)
N Press in the choke lever (5) and turn
it to < at the same time.
Also use this setting if the engine has been running but is still cold.
Cranking
N Place the unit on the ground: Check
that the working tool is not touching the ground or any other obstacles – see also "Starting / Stopping the Engine" in the KombiTool instruction manual.
N Make sure you have a safe and
secure footing.
N Hold the unit firmly on the ground
with your left hand and press down – do not touch the throttle trigger or lockout lever.
NOTICE
Do not stand or kneel on the drive tube.
18
KM 56 R, KM 56 RC
English
547BA020 KN
547BA021 KN
N Hold the starter grip with your right
hand.
Version without Easy2Start N Pull the starter grip slowly until you
feel it engage and then give it a brisk strong pull.
Version with Easy2Start N Pull the starter grip steadily.
NOTICE
Do not pull out the starter rope all the way – it might otherwise break.
N Do not let the starter grip snap back.
Guide it slowly back into the housing so that the starter rope can rewind properly.
N Continue cranking until engine runs.
As soon as the engine runs
N Press down the throttle trigger
lockout and open the throttle – the choke lever moves to the run position F. After a cold start, warm up the engine by opening the throttle several times.
WARNING
Make sure the carburetor is correctly adjusted. The working tool must not rotate when the engine is idling.
Your machine is now ready for operation.
Stopping the Engine
N Move the stop switch in the direction
of 0 – the engine stops – release the stop switch – it springs back to the run position.
Other Hints on Starting
Engine stalls in cold start position g or under acceleration
N Move the choke lever to < and
continue cranking until the engine runs.
Engine does not start in warm start position <
N Move the choke lever to g and
continue cranking until the engine runs.
If the engine does not start
N Check that all settings are correct. N Check that there is fuel in the tank
and refuel if necessary.
N Check that the spark plug boot is
properly connected.
N Repeat the starting procedure. Fuel tank run until completely dry N After refueling, press the manual
fuel pump bulb at least five times – even if the bulb is filled with fuel.
N Set the choke lever to suit the
engine temperature.
N Now start the engine.
KM 56 R, KM 56 RC
19
English
1
547BA022 KN
2
3
547BA023 KN
4
Operating Instructions Cleaning the Air Filter
During break-in period
A factory-new machine should not be run at high revs (full throttle off load) for the first three tank fillings. This avoids unnecessary high loads during the break-in period. As all moving parts have to bed in during the break-in period, the frictional resistances in the engine are greater during this period. The engine develops its maximum power after about 5 to 15 tank fillings.
During Operation
After a long period of full throttle operation, allow the engine to run for a short while at idle speed so that engine heat can be dissipated by the flow of cooling air. This protects engine­mounted components (ignition, carburetor) from thermal overload.
After Finishing Work
Storing for a short period: Wait for the engine to cool down. Empty the fuel tank and keep the machine in a dry place, well away from sources of ignition, until you need it again. For longer out-of­service periods – see "Storing the Machine".
If there is a noticeable loss of engine power
N Move the choke lever (1) to <. N Turn the screw (2) in the filter
cover (3) counterclockwise until the cover is loose.
N Ease the filter cover (3) over the
choke lever and lift it away.
N Clean away loose dirt from around
the filter.
N Reach into the recess (4) in the filter
housing and take out the felt filter (5).
N Fit a new felt filter element (5). As a
temporary measure you can knock it out on the palm of your hand or blow it out with compressed air. Do not wash.
NOTICE
Replace damaged parts. N Fit the felt filter (5) in the filter
housing, make sure it is properly seated – the arrow points to the recess.
N Move the choke lever (1) to <. N Fit the filter cover in position,
making sure the screw is square. Tighten down the screw.
20
KM 56 R, KM 56 RC
English
0815BA006 KN
Engine Management Adjusting the Carburetor
Exhaust emissions are controlled by the design of the fundamental engine parameters and components (e.g. carburation, ignition, timing and valve or port timing) without the addition of any major hardware.
The carburetor comes from the factory with a standard setting.
On this machine it is no longer necessary to adjust the carburetor.
It has been set at the factory to provide an optimum fuel-air mixture in all locations and operating conditions.
Adjusting Idle Speed
Engine stops while idling
N Warm up the engine for about
3 minutes.
N Turn the idle speed screw (LA)
slowly clockwise until the engine runs smoothly – the cutting attachment must not move.
Cutting attachment runs when engine is idling
N Turn the idle speed screw (LA)
counterclockwise until the cutting attachment stops running and then turn the screw about another 1/2 to 3/4 turn in the same direction.
WARNING
If the working tool or cutting attachment continues to run when the engine is idling, have your machine checked and repaired by your servicing dealer.
KM 56 R, KM 56 RC
21
English
1
547BA041 KN
2
000BA039 KN
A
1
2
000BA071 KN
Spark Plug
If engine is down on power, difficult to start or runs poorly at idling speed, first check the spark plug.
Fit a new spark plug after approx. 100 operating hours or earlier if the electrodes are badly eroded.
Wrong fuel mix (too much engine oil in the gasoline), a dirty air filter and unfavorable running conditions (mostly at part throttle etc.) affect the condition of the spark plug. These factors cause deposits to form on the insulator nose which may result in trouble in operation.
Removing the Spark Plug
N Shut off the engine.
N Remove the spark plug boot (1). N Unscrew the spark plug (2).
Checking the Spark Plug
N Clean dirty spark plug. N Check electrode gap (A) and
readjust if necessary – see "Specifications."
N Use only resistor type spark plugs of
the approved range.
Rectify problems that have caused fouling of spark plug:
too much oil in fuel mix, dirty air filter, unfavorable running conditions, e.g.
operating at part load.
WARNING
To reduce the risk of fire and burn injury, use only spark plugs authorized by STIHL. Always press spark plug boot (1) snugly onto spark plug terminal (2) of the proper size. (Note: If terminal has detachable SAE adapter nut, it must be securely attached.) A loose connection between spark plug boot and ignition wire connector in the boot may create arcing that could ignite combustible fumes and cause a fire.
Installing the Spark Plug
22
N Screw the spark plug into the
cylinder.
N Press the boot firmly onto the spark
plug.
KM 56 R, KM 56 RC
Engine Running Behavior Rewind Starter Storing the Machine
English
If engine running behavior is unsatisfactory even though the air filter is clean and the carburetor is properly adjusted, the cause may be the muffler.
Have the muffler checked for contamination (carbonization) by your servicing dealer.
STIHL recommends that you have servicing and repair work carried out exclusively by an authorized STIHL servicing dealer.
To help prolong the wear life of the starter rope, observe the following points:
N Pull the starter rope only in the
direction specified.
N Do not pull the rope over the edge of
the guide bushing.
N Do not pull out the rope more than
specified.
N Do not allow the starter grip to snap
back, guide it back into the housing slowly – see chapter on "Starting / Stopping the Engine."
Have a damaged starter rope replaced by your dealer before it breaks completely. STIHL recommends that you have servicing and repair work carried out exclusively by an authorized STIHL servicing dealer.
For periods of 3 months or longer N Drain and clean the fuel tank in a
well ventilated area.
N Dispose of fuel properly in
accordance with local environmental requirements.
N Run the engine until the carburetor
is dry – this helps prevent the carburetor diaphragms sticking together.
N Thoroughly clean the machine – pay
special attention to the air filter.
N Remove, clean and check the
attachment. Coat metal parts with corrosion inhibiting oil.
N Store the machine in a dry and
secure location Keep out of the reach of children and other unauthorized persons.
KM 56 R, KM 56 RC
23
English
Inspections and Maintenance by Dealer
Spark arresting screen in muffler
N If the engine is down on power,
check the spark arresting screen in the muffler.
STIHL recommends that you have servicing and repair work carried out exclusively by an authorized STIHL servicing dealer.
24
KM 56 R, KM 56 RC
Maintenance and Care
English
The following intervals apply to normal operating conditions only. If your daily work ing time is longer or operating conditions are difficult (very dusty work area, etc.), shorten the specified intervals accordingly.
Complete machine
Control handle Check operation XX
Air filter
Manual fuel pump
Pickup body in fuel tank
Fuel tank Clean XX
Carburetor
Spark plug
Cooling inlets
Spark arresting screen in muffler
All accessible screws and nuts (not adjust ing screws)
Safety labels Replace X
1)
STIHL recommends an authorized STIHL servicing dealer.
Visual inspection (condition, leaks) XX
Clean X
Clean XX
Replace X
Check X
Have repaired by servicing dealer
Check X
Replace XXX
Check idle adjustment – the working/cut ting attachment must not move
Readjust idle X
Readjust electrode gap X
Replace after every 100 operating hours
Visual inspection X
Clean X
Have checked by servicing dealer
Have cleaned or replaced by servicing
1)
dealer
-
Retighten X
-
before starting work
after finishing work or daily
after each refueling stop
weekly
monthly
every 12 months
if problem
if damaged
as required
1)
-
XX
1)
X
X
XX
KM 56 R, KM 56 RC
25
English
12
13
14
15
19
19
18
16
17
15
8
7
6
9
11
#
2
1
4
5
3
540BA010 KN
10
18
16
17
20
Main Parts
1 Manual Fuel Pump 2 Fuel Filler Cap 3 Fuel Tank 4 Starter Grip 5 Muffler with Spark Arresting Screen 6 Carburetor Adjusting Screws 7 Choke Lever 8 Air Filter Cover 9 Spark Plug Boot 10 Machine Support 11 Throttle Trigger 12 Throttle Trigger Lockout 13 Stop Switch 14 Carrying Ring 15 Loop Handle 16 Barrier Bar 17 Drive Tube 18 Coupling Sleeve 19 Wing Screw 20 Sleeve # Serial Number
26
KM 56 R, KM 56 RC
English
Definitions
1. Manual Fuel Pump Provides additional fuel feed for a
cold start.
2. Fuel Filler Cap For closing the fuel tank.
3. Fuel Tank For fuel and oil mixture.
4. Starter Grip The grip of the pull starter, for
starting the engine.
5. Muffler with Spark Arresting Screen Muffler reduces exhaust noises and
diverts exhaust gases away from operator. Spark arresting screen is designed to reduce the risk of fire.
6. Carburetor Adjusting Screws For tuning the carburetor.
7. Choke Lever Eases engine starting by enriching
mixture.
8. Air Filter Cover Covers and protects the air filter
element.
9. Spark Plug Boot Connects the spark plug with the
ignition lead.
10. Machine Support For resting machine on the ground.
11. Throttle Trigger Controls the speed of the engine.
12. Throttle Trigger Lockout Must be depressed before the
throttle trigger can be activated.
13. Stop Switch Switches the engine's ignition off
and stops the engine.
14. Carrying Ring Connects the trimmer/brushcutter to
the harness.
15. Loop Handle For easy control of machine during
cutting work.
16. Barrier Bar Helps keep user's feet and legs
clear of the cutting attachment.
17. Drive Tube Encloses and protects the drive
shaft between the engine and coupling sleeve.
18. Coupling Sleeve Connects drive tube to lower part of
drive tube (stub shaft).
19. Wing Screw Secures lower part of the drive tube
(stub shaft).
20. Sleeve Maintains minimum clearance
between control handle and loop handle.
Specifications
EPA / CEPA
The Emission Compliance Period referred to on the Emissions Compliance Label indicates the number of operating hours for which the engine has been shown to meet Federal emission requirements.
Category
A = 300 hours B = 125 hours C= 50hours
CARB
The Emission Compliance Period used on the CARB-Air Index Label indicates the terms:
Extended = 300 hours Intermediate = 125 hours Moderate = 50 hours
Engine
Single cylinder two-stroke engine Displacement: 1.66 cu.in
(27.2 cm Bore: 1.34 in (34 mm) Stroke: 1.18 in (30 mm) Engine power to
ISO 8893: Idle speed: 2,800 rpm Cut-off speed (rated): 10,000 rpm
1.1 bhp (0.8 kW)
at 8,500 rpm
3
)
KM 56 R, KM 56 RC
27
English
000BA073 KN
Ignition System
Electronic magneto ignition
Spark plug (resistor type): NGK CMR 6 H
Electrode gap: 0.02 in (0.5 mm)
Fuel System
All position diaphragm carburetor with integral fuel pump
Fuel tank capacity: 11.5 fl.oz (0.34 l)
Weight
dry, without KombiTool
Version with Easy2Start KM 56 RC: 9.5 lbs (4.3 kg)
Maintenance and Repairs Disposal
Users of this unit should carry out only the maintenance operations described in this manual. STIHL recommends that other repair work be performed only by authorized STIHL servicing dealers.
Warranty claims following repairs can be accepted only if the repair has been performed by an authorized STIHL servicing dealer using genuine STIHL replacement parts.
Genuine STIHL parts can be identified by the STIHL part number, the { logo and, in some cases, by the STIHL parts symbol K. The symbol may appear alone on small parts.
Observe all country-specific waste disposal rules and regulations.
STIHL products must not be thrown in the garbage can. Take the product, accessories and packaging to an approved disposal site for environment­friendly recycling.
Contact your STIHL servicing dealer for the latest information on waste disposal.
28
KM 56 R, KM 56 RC
English
STIHL Incorporated Federal Emission Control Warranty Statement
Not for California
Your Warranty Rights and Obligations The U.S. Environmental Protection
Agency (EPA) and STIHL Incorporated are pleased to explain the Emission Control System Warranty on your equipment type engine. In the U.S. new 1997 and later model year small off-road equipment engines must be designed, built and equipped, at the time of sale, to meet the U.S. EPA regulations for small non road engines. The equipment engine must be free from defects in materials and workmanship which cause it to fail to conform with U.S. EPA standards for the first two years of engine use from the date of sale to the ultimate purchaser.
STIHL Incorporated must warrant the emission control system on your small off-road engine for the period of time listed below provided there has been no abuse, neglect or improper maintenance of your small off-road equipment engine.
Your emission control system includes parts such as the carburetor and the ignition system. Also included may be hoses, and connectors and other emission-related assemblies.
Where a warrantable condition exists, STIHL Incorporated will repair your small off-road equipment engine at no cost to you, including diagnosis (if the diagnostic work is performed at an authorized dealer), parts, and labor.
Manufacturer's Warranty Coverage In the U.S., 1997 and later model year
small off-road equipment engines are warranted for two years. If any emission­related part on your engine is defective, the part will be repaired or replaced by STIHL Incorporated free of charge.
Owner's Warranty Responsibilities As the small off-road equipment engine
owner, you are responsible for the performance of the required maintenance listed in your instruction manual. STIHL Incorporated recommends that you retain all receipts covering maintenance on your small off­road equipment engine, but STIHL Incorporated cannot deny warranty solely for the lack of receipts or for your failure to ensure the performance of all scheduled maintenance.
Any replacement part or service that is equivalent in performance and durability may be used in non-warranty maintenance or repairs, and shall not reduce the warranty obligations of the engine manufacturer.
As the small off-road equipment engine owner, you should be aware, however, that STIHL Incorporated may deny you warranty coverage if your small off-road equipment engine or a part has failed due to abuse, neglect, improper maintenance or unapproved modifications.
You are responsible for presenting your small off-road equipment engine to a STIHL service center as soon as a problem exists. The warranty repairs will be completed in a reasonable amount of time, not to exceed 30 days.
If you have any questions regarding your warranty rights and responsibilities, please contact a STIHL customer service representative at 1-800-467­8445 or you can write to
STIHL Inc., 536 Viking Drive, P.O. Box 2015, Virginia Beach, VA 23450-2015
www.stihlusa.com
Coverage by STIHL Incorporated STIHL Incorporated warrants to the
ultimate purchaser and each subsequent purchaser that your small off-road equipment engine will be designed, built and equipped, at the time of sale, to meet all applicable regulations. STIHL Incorporated also warrants to the initial purchaser and each subsequent purchaser that your engine is free from defects in materials and workmanship which cause the engine to fail to conform with applicable regulations for a period of two years.
Warranty Period The warranty period will begin on the
date the utility equipment engine is purchased by the initial purchaser and you have signed and sent back the warranty card to STIHL.
If any emission-related part on your engine is defective, the part will be replaced by STIHL Incorporated at no cost to the owner. Any warranted part which is not scheduled for replacement as required maintenance, or which is scheduled only for regular inspection to the effect of "repair or replace as necessary" will be warranted for the warranty period. Any warranted part which is scheduled for replacement as
KM 56 R, KM 56 RC
29
English
required maintenance will be warranted for the period of time up to the first scheduled replacement point for that part.
Diagnosis You, as the owner, shall not be charged
for diagnostic labor which leads to the determination that a warranted part is defective. However, if you claim warranty for a component and the machine is tested as non-defective, STIHL Incorporated will charge you for the cost of the emission test. Mechanical diagnostic work will be performed at an authorized STIHL servicing dealer. Emission test may be performed either at STIHL Incorporated or at any independent test laboratory.
Warranty Work STIHL Incorporated shall remedy
warranty defects at any authorized STIHL servicing dealer or warranty station. Any such work shall be free of charge to the owner if it is determined that a warranted part is defective.
Any manufacturer-approved or equivalent replacement part may be used for any warranty maintenance or repairs on emission-related parts and must be provided without charge to the owner. STIHL Incorporated is liable for damages to other engine components caused by the failure of a warranted part still under warranty.
The following list specifically defines the emission-related warranted parts:
Air Filter Carburetor (if applicable) Fuel Pump
Choke (Cold Start Enrichment
System) (if applicable)
Control Linkages Intake Manifold Magneto or Electronic Ignition
System (Ignition Module or Electronic Control Unit)
Fly Wheel Spark Plug Injection Valve (if applicable) Injection Pump (if applicable) Throttle Housing (if applicable) Cylinder Muffler Catalytic Converter (if applicable) Fuel Tank Fuel Cap Fuel Line Fuel Line Fittings Clamps Fasteners
Where to make a Claim for Warranty Service
Bring the product to any authorized STIHL servicing dealer and present the signed warranty card.
Maintenance Requirements The maintenance instructions in this
manual are based on the application of the recommended 2-stroke fuel-oil mixture (see also instruction "Fuel"). Deviations from this recommendation
regarding quality and mixing ratio of fuel and oil may require shorter maintenance intervals.
Limitations This Emission Control Systems
Warranty shall not cover any of the following:
N repair or replacement required
because of misuse, neglect or lack of required maintenance,
N repairs improperly performed or
replacements not conforming to STIHL Incorporated specifications that adversely affect performance and/or durability, and alterations or modifications not recommended or approved in writing by STIHL Incorporated,
and N replacement of parts and other
services and adjustments necessary for required maintenance at and after the first scheduled replacement point.
30
KM 56 R, KM 56 RC
English
STIHL Incorporated California Exhaust and Evaporative Emissions Control Warranty Statement
For California only
Your Warranty Rights and Obligations The California Air Resources Board
(CARB) and STIHL Incorporated are pleased to explain the emission control system warranty on your 2014 and later small off-road equipment engine.
In California, new equipment that uses small off-road engines must be designed, built, and equipped to meet the State's stringent anti-smog standards. STIHL Incorporated must warrant the emissions control system on your small off-road engine for the period listed below provided there has been no abuse, neglect or improper maintenance of your small off-road engine.
Your emissions control system may include parts such as the carburetor or fuel-injection system, the ignition system, and catalytic converter. Also included may be hoses, belts, connectors or other emission-related assemblies.
Where a warrantable condition exists, STIHL Incorporated will repair your small off-road equipment engine at no cost to you including diagnosis, parts and labor.
Manufacturer’s Warranty Responsibilities
This emissions control system is warranted for two years in California. If any emissions-related part on your equipment is defective, the part will be repaired or replaced by STIHL Incorporated free of charge.
Owner’s Warranty Responsibilities As the small off-road equipment engine
owner, you are responsible for performance of the required maintenance listed in your instruction manual. STIHL Incorporated recommends that you retain all receipts covering maintenance on your small off­road equipment engine, but STIHL Incorporated cannot deny warranty solely for the lack of receipts or your failure to ensure the performance of all scheduled maintenance.
As the small off-road equipment engine owner, you should however be aware that STIHL Incorporated may deny you warranty coverage if your small off-road equipment engine or a part has failed due to abuse, neglect, or improper maintenance or unapproved modifications.
You are responsible for presenting your small off-road equipment engine to a STIHL servicing dealer as soon as the problem exists. The warranty repairs should be completed in a reasonable amount of time, not to exceed 30 days. If you have any questions regarding your warranty rights and responsibilities, please contact a STIHL customer service representative at 1-800-467­8445 or you can write to
STIHL Inc., 536 Viking Drive, P.O. Box 2015, Virginia Beach, VA 23450-2015.
www.stihlusa.com
Coverage by STIHL Incorporated STIHL Incorporated warrants to the
ultimate purchaser and each subsequent purchaser that your small off-road equipment engine is designed, built and equipped, at the time of sale, to meet all applicable emission regulations.
STIHL Incorporated also warrants to the initial purchaser and each subsequent purchaser that your engine is free from defects in materials and workmanship which cause the engine to fail to conform to applicable emission regulations for a period of two years.
Defects Warranty Period The warranty periods will begin on the
date the utility equipment engine is purchased by the initial purchaser. If any emission-related part on your engine is defective, the part will be replaced by STIHL Incorporated at no cost to the owner.
Add-on or modified parts that are not exempted by CARB may not be used. The use of any non-exempted add-on or modified parts will be grounds for disallowing a warranty claim. STIHL Incorporated will not be liable to warrant failures of warranted parts caused by the use of a non-exempted add-on or modified part.
KM 56 R, KM 56 RC
31
English
The warranty on emissions-related parts will be interpreted as follows:
1. Any warranted part that is not scheduled for replacement as required maintenance in the written instructions required in the Emission Warranty Parts List (see below) must be warranted for the warranty period defined in Subsection COVERAGE BY STIHL INCORPORATED, see above. If any such part fails during the period of warranty coverage, it must be repaired or replaced by the manufacturer according to Subsection (4) below. Any such part repaired or replaced under the warranty must be warranted for the remaining warranty period.
2. Any warranted part that is scheduled only for regular inspection in the written instructions required by the Emission Warranty Parts List (see below) must be warranted for the warranty period defined in Subsection COVERAGE BY STIHL INCORPORATED, see above. A statement in such written instructions to the effect of "repair or replace as necessary" will not reduce the period of warranty coverage. Any such part repaired or replaced under warranty must be warranted for the remaining warranty period.
3. Any warranted part that is scheduled for replacement as required maintenance in the written instructions required by the Emission Warranty Parts List (see below) must be warranted for the period of time prior to the first scheduled replacement point for
that part. If the part fails prior to the first scheduled replacement, the part must be repaired or replaced by the engine manufacturer according to Subsection (4) below. Any such part repaired or replaced under warranty must be warranted for the remainder of the period prior to the first scheduled replacement point for the part.
4. Repair or replacement of any warranted part under the warranty must be performed at a warranty station at no charge to the owner.
5. Notwithstanding the provisions of Subsection (4) above, warranty services or repairs will be provided at all manufacturer distribution centers that are authorized to service the subject engines.
6. The owner must not be charged for diagnostic labor that leads to the determination that a warranted part is in fact defective, provided that such diagnostic work is performed at a warranty station.
Warranty Work STIHL Incorporated shall remedy
warranty defects at any authorized STIHL servicing dealer or warranty station. Any such work shall be free of charge to the owner if it is determined that a warranted part is defective. Any manufacturer approved or equivalent replacement part may be used for any warranty maintenance or repairs on emission-related parts and must be provided without charge to the owner. STIHL Incorporated is liable for
damages to other engine components caused by the failure of a warranted part still under warranty.
Emission Warranty Parts List Air Filter, Carburetor (if applicable), Fuel
Pump, Choke (Cold Start Enrichment System) (if applicable), Control Linkages, Intake Manifold, Magneto or Electronic Ignition System (Ignition Module or Electronic Control Unit), Fly Wheel, Spark Plug, Injection Valve (if applicable), Injection Pump (if applicable), Throttle Housing (if applicable), Cylinder, Muffler, Catalytic Converter (if applicable), Fuel Tank, Fuel Cap, Fuel Line, Fuel Line Fittings, Clamps, Fasteners.
Where to make a Claim for Warranty Service
Bring the STIHL product to any authorized STIHL servicing dealer and present the signed STIHL product registration card, or the print-out of the electronic product registration.
Limitations The repair or replacement of any
warranted part otherwise eligible for warranty coverage may be excluded from such warranty coverage if STIHL Incorporated demonstrates that the STIHL product has been abused, neglected, or improperly maintained, and that such abuse, neglect, or improper maintenance was the direct cause of the need for repair or replacement of the part. That notwithstanding, any adjustment of a component that has a factory installed,
32
KM 56 R, KM 56 RC
English
TM
STIHL Injection
and properly operating, adjustment limiting device is still eligible for warranty coverage.
Trademarks
STIHL Registered Trademarks
®
STIHL
{ K
The color combination orange-grey (U.S. Registrations #2,821,860; #3,010,057, #3,010,058, #3,400,477; and #3,400,476)
OILOMATIC ROCK BOSS STIHL Cutquik STIHL DUROMATIC STIHL Quickstop STIHL ROLLOMATIC STIHL WOOD BOSS TIMBERSPORTS WOOD BOSS YARD BOSS
®
®
®
®
®
®
®
®
®
®
Some of STIHL’s Common Law Trademarks
KM 56 R, KM 56 RC
AUTOCUT EASYSTART FARM BOSS iCademy MAGNUM
®
®
®
®
®
MasterWrench Service MotoMix
®
4-MIX ™ BioPlus ™ Easy2Start ™ EasySpool ™ ElastoStart ™ Ematic ™ FixCut ™ HT Plus ™ IntelliCarb ™
®
Master Control Lever ™ Micro ™ Pro Mark ™
33
English
Quad Power ™ Quiet Line ™ STIHL Arctic ™ STIHL Compact ™ STIHL HomeScaper Series ™ STIHL Interchangeable Attachment
Series ™ STIHL M-Tronic ™ STIHL MiniBoss ™ STIHL MotoPlus 4 ™ STIHL Multi-Cut HomeScaper Series ™ STIHL OUTFITTERS ™ STIHL PICCO ™ STIHL PolyCut ™ STIHL PowerSweep ™ STIHL Precision Series ™ STIHL Protech ™ STIHL RAPID ™ STIHL SuperCut ™ STIHL Territory ™ TapAction ™ TrimCut ™ This listing of trademarks is subject to
change. Any unauthorized use of these
trademarks without the express written consent of ANDREAS STIHL AG & Co. KG, Waiblingen is strictly prohibited.
34
KM 56 R, KM 56 RC
Contenido
español / EE.UU
Sistema KombiSystem 36 Acerca de este manual de
instrucciones 36 Medidas de seguridad y técnicas
de manejo 37 Herramientas KombiTool
aprobadas 46 Montaje del mango tórico 47 Argolla de transporte 49
Manual de instrucciones originalImpreso en papel libre de cloro.
Combustible 49 Llenado de combustible 51 Arranque / parada del motor 53 Instrucciones para el uso 55 Limpieza del filtro de aire 56 Gestión del motor 57 Ajuste del carburador 57 Bujía 58 Funcionamiento del motor 59 Dispositivo de arranque 59 Almacenamiento de la máquina 59 Inspección y mantenimiento por el
concesionario 60
Las tintas contienen aceites vegetales, el papel es reciclable.
Información para mantenimiento 61 Componentes importantes 63 Especificaciones 64 Información de reparación 65 Desecho 65 Declaración de garantía de STIHL
Incorporated sobre sistemas de control de emisiones según normas Federales 66
Declaración de garantía de STIHL Incorporated sobre el control de emisiones de gases de escape y emisiones por evaporación para el Estado de California 68
Marcas comerciales 71
Permita que solamente las personas que comprenden la materia tratada en los manuales del motor KombiEngine y del accesorio KombiTool manejen esta herramienta motorizada combinada.
Para obtener el rendimiento y satisfacción máximos de la herramienta motorizada STIHL, es importante que lea, comprenda y respete las medidas de seguridad y las instrucciones de uso y mantenimiento dadas en el capítulo "Medidas de seguridad y técnicas de uso", antes de usar su herramienta motorizada. Para obtener información adicional, visite www.stihlusa.com.
Comuníquese con el concesionario o distribuidor de STIHL si no se entiende alguna de las instrucciones dadas en los dos manuales.
ADVERTENCIA
Dado que este motor KombiEngine es el motor para una herramienta motorizada que funciona a gran velocidad, es necesario tomar algunas medidas especiales de seguridad para reducir el riesgo de lesiones personales. El uso descuidado o inadecuado puede causar lesiones graves e incluso mortales.
{
© ANDREAS STIHL AG & Co. KG, 2014
0458-540-8621-C. VA2.K14.
0000001054_016_EA
KM 56 R, KM 56 RC
Este manual de instrucciones está protegido por derechos de propiedad intelectual. Todos los derechos reservados, especial mente los derechos de reproducción, traducción y procesamiento con sistemas electrónicos.
-
35
español / EE.UU
. . . .
002BA530 KN
+
+
Sistema KombiSystem
Con el sistema KombiSystem de STIHL, varios motores KombiEngine y accesorios KombiTool pueden combinarse para formar una herramienta motorizada. En este manual de instrucciones la unidad formada por el motor KombiEngine y la herramienta KombiTool se identifica como la herramienta motorizada.
Por lo tanto, para esta herramienta motorizada es necesario usar juntos los manuales de instrucciones para el motor KombiEngine y la herramienta KombiTool.
Siempre lea y entienda los dos manuales de instrucciones antes de usar la herramienta motorizada por primera vez y guarde los mismos en un lugar seguro para referencia futura.
Acerca de este manual de instrucciones
Pictogramas
Todos los pictogramas que se encuentran fijados o grabados en la máquina se explican en este manual.
Según el modelo, los pictogramas siguientes pueden aparecer en su máquina.
Tanque de combustible que contiene la mezcla de combustible y aceite
Presione para accionar la válvula de descompresión
Bomba de combustible manual
Presione para accionar la bomba manual de combustible
Orificio de llenado para lubricante de engranajes
Toma de aire para modo de verano
Toma de aire para modo de invierno
Calentador de manillar
Símbolos en el texto
Muchas de las instrucciones de uso y seguridad vienen acompañadas de ilustraciones.
Los pasos individuales o procedimientos descritos en el manual pueden estar señalados en diferentes maneras:
N Se usa un punto para denotar un
paso o procedimiento.
Una descripción de un paso o procedimiento que se refiere directamente a una ilustración puede contener números de referencia que aparecen en la ilustración. Ejemplo:
N Suelte el tornillo (1). N Palanca (2) ...
Además de las instrucciones de uso, en este manual pueden encontrarse párrafos a los que usted debe prestar atención especial. Tales párrafos están marcados con los símbolos y las palabras identificadoras que se describen a continuación.
PELIGRO
Indica un riesgo inminente de lesiones graves o mortales.
ADVERTENCIA
Identifica una situación de peligro que, al no evitarse, puede resultar en lesiones graves o mortales.
36
KM 56 R, KM 56 RC
español / EE.UU
INDICACIÓN
Indica el riesgo de daños a la propiedad, incluyendo a la máquina o sus componentes.
Mejoramientos técnicos
La filosofía de STIHL es mejorar continuamente todos sus productos. Como resultado de ello, periódicamente se introducen cambios de diseño y mejoras. Por lo tanto, es posible que algunos cambios, modificaciones y mejoras no se describen en este manual. Si las características de funcionamiento o la apariencia de su máquina difieren de las descritas en este manual, comuníquese con el concesionario STIHL para obtener la ayuda que requiera.
Medidas de seguridad y técnicas de manejo
Dado que este motor KombiEngine es el motor para una herramienta motorizada que funciona a gran velocidad, es necesario tomar medi das especiales de seguridad para reducir el riesgo de lesiones personales.
Es importante que usted lea, comprenda bien y respete las siguientes advertencias y medidas de seguridad. Lea perio dicamente los manuales de instrucciones y las ins trucciones de seguridad de su motor y accesorio Combi. El uso descui dado o inadecuado puede causar lesiones graves o incluso la muerte.
Pida a su concesionario STIHL que le enseñe el manejo de la herramienta motorizada. Respete todas las disposiciones, reglamentos y normas de seguridad locales del caso.
ADVERTENCIA
No preste ni alquile nunca su herramienta motorizada sin entregar los manuales de instrucciones. Asegúrese que todas las personas que utilicen la máquina lean y comprendan la información contenida en estos manuales.
-
-
-
Utilice su herramienta motorizada solamente para las aplicaciones descritas en el manual de instrucciones del accesorio KombiTool que está usando.
ADVERTENCIA
No debe usarse para ningún otro propósito ya que el uso indebido puede resultar en lesiones personales o daños a la propiedad, incluso daños de la máquina.
ADVERTENCIA
Nunca se debe permitir a los niños que usen esta herramienta motorizada. No se debe permitir la proximidad de otras personas, especialmente de niños, ni de animales en los lugares donde se esté
-
utilizando la máquina.
ADVERTENCIA
Para reducir el riesgo de ocasionar lesiones a las personas en la cercanía y daños a la propiedad, nunca deje la herramienta motorizada en marcha desatendida. Cuando no está en uso (por ejemplo durante el descanso), apáguela y asegúrese que las personas no autorizadas no puedan usarla.
Las medidas de seguridad y avisos contenidos en este manual se refieren al uso de todas las herramientas motorizadas STIHL. Los distintos modelos pueden contar con piezas y controles diferentes. Vea la sección correspondiente de sus manuales de instrucciones del motor KombiEngine y accesorio KombiTool para tener una descripción de los controles y la función de los componentes de su modelo.
KM 56 R, KM 56 RC
37
español / EE.UU
No limpie la máquina con una lavadora a presión. El chorro fuerte de agua puede dañar las piezas de la máquina.
El uso seguro de un motor KombiEngine atañe a
1. el operador
2. la herramienta motorizada
3. el uso de la herramienta motorizada.
EL OPERADOR
Condición física Usted debe estar en buenas
condiciones físicas y psíquicas y no encontrarse bajo la influencia de ninguna sustancia (drogas, alcohol, etc.) que le pueda restar visibilidad, destreza o juicio. No maneje esta máquina cuando está fatigado.
ADVERTENCIA
Esté alerta. Si se cansa, tómese un descanso. El cansancio puede provocar una pérdida del control. El uso de cualquier herramienta motorizada es fatigoso. Si usted padece de alguna dolencia que pueda ser agravada por la fatiga, consulte a su médico antes de utilizar esta máquina.
ADVERTENCIA
El uso prolongado de una herramienta motorizada (u otras máquinas) expone al operador a vibraciones que pueden provocar el fenómeno de Raynaud (dedos blancos) o el síndrome del túnel carpiano.
Estas condiciones reducen la capacidad de las manos de sentir y regular la temperatura, producen entumecimiento y ardor y pueden provocar trastornos nerviosos y circulatorios, así como necrosis de los tejidos.
No se conocen todos los factores que contribuyen a la enfermedad de Raynaud, pero el clima frío, el fumar y las enfermedades o condiciones físicas que afectan los vasos sanguíneos y la circulación de la sangre, como asimismo los niveles altos de vibración y períodos prolongados de exposición a la vibración son mencionados como factores en el desarrollo de la enfermedad de Raynaud. Por lo tanto, para reducir el riesgo de la enfermedad de dedos blancos y del síndrome del túnel carpiano, sírvase notar lo siguiente:
La mayor parte de las herramientas
motorizadas de STIHL se ofrecen con un sistema antivibración ("AV") cuyo propósito es reducir la transmisión de las vibraciones creadas por la máquina a las manos del operador. Se recomienda el uso del sistema AV a aquellas personas que utilizan herramientas motorizadas en forma constante y regular.
Use guantes – no durante el uso del
la herramienta KombiTool BG-KM – y mantenga las manos abrigadas.
Mantenga el sistema AV en buen
estado. Una herramienta motorizada con los componentes flojos o con elementos AV dañados o desgastados también tendrá tendencia a tener niveles más altos de vibración.
Agarre firmemente los mangos en
todo momento, pero no los apriete con fuerza constante y excesiva. Tómese descansos frecuentes.
Todas las precauciones antes mencionadas no le garantizan que va a estar totalmente protegido contra la enfermedad de Raynaud o el síndrome del túnel carpiano. Por lo tanto, los operadores constantes y regulares deben revisar con frecuencia el estado de sus manos y dedos. Si aparece alguno de los síntomas arriba mencionados, consulte inmediatamente al médico.
ADVERTENCIA
El sistema de encendido de la máquina STIHL produce un campo electromagnético de intensidad muy baja. El mismo puede interferir con algunos tipos de marcapasos. Para reducir el riesgo de lesiones graves o mortales, las personas portadoras de marcapasos deben consultar a sus médicos y al fabricante del marcapasos antes de usar esta máquina.
Vestimenta adecuada
ADVERTENCIA
Para reducir el riesgo de lesiones el operador debe usar el equipo protector adecuado.
38
KM 56 R, KM 56 RC
español / EE.UU
ADVERTENCIA
El ruido de la herramienta motorizada puede dañar los oídos. Siempre use amortiguadores del ruido (tapones u orejeras) para protegerse los oídos. Los usuarios constantes y regulares deben some terse con frecuencia a un examen o control auditivo.
Esté especialmente alerta y tenga cuidado cuando se usa protectores de oídos, ya que los mismos reducen la posibilidad de oír señales de advertencia (gritos, alarmas, etc.).
Para instrucciones adicionales acerca de la ropa adecuada, vea las precauciones de seguridad, en el manual de instrucciones del accesorio KombiTool que está usando.
LA HERRAMIENTA MOTORIZADA
Para las ilustraciones y definiciones de los componentes de la herramienta motorizada, vea el capítulo sobre "Piezas principales".
ADVERTENCIA
Nunca modifique, de ninguna manera, esta herramienta motorizada. Utilice únicamente los accesorios y repuestos suministrados por STIHL y expresamente autorizados por STIHL para usarse con el modelo específico de STIHL. Si bien es posible conectar a la herramienta motorizada de STIHL
-
ciertos accesorios no autorizados, su uso puede ser, en la práctica, extremadamente peligroso.
Si la máquina experimenta cargas excesivas para las cuales no fue diseñada (por ejemplo, impactos severos o una caída), siempre asegúrese que esté en buenas condiciones antes de seguir con el trabajo. Inspeccione específicamente la integridad del sistema de combustible (ausencia de fugas), y asegúrese de que los controles y dispositivos de seguridad funcionen como corresponde. No siga manejando esta máquina si está dañada. En caso de dudas, pida que el concesionario de servicio de STIHL la revise.
USO DE LA HERRAMIENTA MOTORIZADA
Transporte de la herramienta motorizada
ADVERTENCIA
Antes de apoyar la herramienta motorizada en el suelo, siempre apague el motor y asegúrese de que el accesorio ha dejado de girar. Cuando transporte la herramienta motorizada en un vehículo, sujétela firmemente para impedir su vuelco, el derrame de combustible y el daño a la herramienta motorizada.
Combustible La herramienta motorizada STIHL utiliza
una mezcla de aceite-gasolina como combustible (vea el capítulo "Combustible" en el manual del propietario).
ADVERTENCIA
La gasolina es un com bustible muy inflamable. Si se derrama y arde a causa de una chispa u otra fuente de ignición, puede provocar un incen dio y quemaduras graves o daños a la propiedad. Tenga sumo cuidado cuando manipule gaso lina o la mezcla de combustible. No fume cerca del combustible o la herramienta motori zada, ni acerque ningún fuego o llama a ellos. Puede escapar vapor inflamable del sistema de combustible.
Instrucciones para el llenado de combustible
ADVERTENCIA
Para reducir el riesgo de lesiones graves causadas por quemaduras, nunca intente abastecer la máquina con combustible sin que el operador se haya despojado de la misma.
-
-
-
-
KM 56 R, KM 56 RC
39
español / EE.UU
001BA220 KN
ADVERTENCIA
Cargue de combustible su herramienta motorizada en lugares al aire libre bien ventilados. Siempre apague el motor y deje que se enfríe antes de llenar de combustible. Dependiendo del combustible utilizado, de las condiciones climáticas y del sistema de ventilación del depósito, es posible que se forme vapor de gasolina a presión dentro del depósito de combustible.
Para reducir el riesgo de quemaduras, así como otras lesiones corporales ocasionadas por los escapes de vapor de gasolina y otras emanaciones, quite la tapa de llenado de combustible de la herramienta motorizada cuidadosamente de modo que la presión que se pueda haber acumulado en el depósito se disipe lentamente. Nunca quite la tapa de llenado de combustible mientras el motor esté funcionando.
Elija una superficie despejada para llenar el depósito y aléjese 3 m (10 pies) por lo menos del lugar en que lo haya llenado antes de arrancar el motor. Limpie todo el combustible derramado antes de arrancar la máquina.
ADVERTENCIA
Compruebe que no exis ten fugas de combustible mientras llena el depósito y durante el funciona
-
miento de la máquina. Si detecta alguna fuga de combustible, no arran
-
que el motor ni lo haga funcionar sin antes repa rar la fuga y limpiar el combustible derramado. Tenga cuidado de no mancharse la ropa con combustible. Si la man
-
cha, cámbiesela inmediatamente.
ADVERTENCIA
Para reducir el riesgo de derramar combustible y provocar un incendio debido a una tapa de combustible mal apretada, coloque la tapa en la posición correcta y apriétela en la boca de llenado del tanque.
El tipo de tapa de llenado difiere con los distintos modelos.
Tapa sin herramientas con empuñadura
a un ángulo de 90°. Inserte la tapa en la boca de llenado del tanque, alineando las marcas de posición en la
-
empuñadura de la tapa y en la boca del tanque. Utilice la empuñadura para oprimir la tapa firmemente hacia abajo mientras la gira en sentido horario hasta que tope (aprox. un cuarto de vuelta).
Doble la empuñadura dejándola a ras con la
-
parte superior de la tapa. Sujete la tapa y com pruebe que esté bien apretada. Si la empuñadura no queda completamente a ras con la tapa y el tope de la empuñadura no encaja en la hendidura corres pondiente de la abertura de llenado, o si la tapa está suelta en la boca de llenado, la tapa no está debidamente asentada ni apretada y es necesario repetir los pasos previa mente descritos.
Tapa desalineada, dañada o rota N Si la tapa no encaja completamente
en la abertura cuando se alinean las marcas de posición y/o si la tapa no se aprieta debidamente al girarla, la base de la tapa puede haber girado prematuramente (con relación a la parte superior) hasta la posición cerrada. Tal desalineación puede ser resultado de la manipulación, limpieza o un intento incorrecto de apriete.
-
-
-
40
Para hacer esto con esta tapa STIHL, levante la empuñadura en la parte superior de la tapa hasta dejarla vertical
KM 56 R, KM 56 RC
español / EE.UU
001BA227 KN
001BA226 KN
A izquierda:
Base de la tapa en posición cerrada (con espacio vacío)
A derecha: Base de la tapa correcta
-
mente colocada para la instalación
N Para volver a colocar la tapa en
posición abierta para instalarla, gírela (con la empuñadura hacia arriba) hasta que caiga completamente en la abertura del tanque. A continuación, gire la tapa en sentido contrahorario hasta que tope (aprox. 1/4 de vuelta) – esto gira la base de la tapa a la posición correcta. Luego gire la tapa en sentido horario, cerrándola de modo normal.
N Si aún no es posible apretar la tapa
de modo debido, la misma podría estar averiada o rota; ponga la máquina fuera de servicio de
inmediato y llévela a un concesionario STIHL autorizado para repararla.
Tapa roscada
ADVERTENCIA
Las vibraciones de la máquina pueden aflojar una tapa de combustible que ha quedado mal apretada, o simplemente soltarla y derramar com
-
bustible. Para reducir el riesgo de derrames e incendio, apriete la tapa de llenado de combusti
-
ble a mano tan firmemente como sea posible.
Consulte también el capítulo "Combustible" del Manual de instrucciones para obtener información adicional.
Antes de arrancar
ADVERTENCIA
Siempre revise la herramienta motorizada para comprobar que está en buenas condiciones y que funciona correctamente antes de arrancarla, en particular el gatillo de aceleración, el bloqueo de gatillo de aceleración, el interruptor de parada, el accesorio de corte, el deflector y el arnés. El gatillo de aceleración debe moverse libremente y siempre debe regresar a la posición de marcha en vacío por la acción de resorte. Nunca intente modificar los controles o los dispositivos de seguridad.
ADVERTENCIA
Revise el sistema de combustible en busca de fugas, especialmente las partes visibles, por ejemplo, la tapa de llenado, conexiones de mangueras y la bomba de combustible manual (únicamente para herramientas motorizadas equipadas con una bomba de combustible de mano). No arranque el motor si se observan fugas o daños – ¡Riesgo de incendios! Solicite al concesionario que repare la máquina antes de usarla.
ADVERTENCIA
No maneje nunca una herramienta motorizada que esté dañada, mal ajustada o mantenida o que no fue armada completa y debidamente.
ADVERTENCIA
Asegúrese de que el casquillo de la bujía esté firmemente colocado – un casquillo suelto puede crear un arco voltaico y encender los vapores del combustible, provocando un incendio.
Mantenga los mangos limpios y secos en todo momento; es particularmente importante mantenerlos libres de humedad, aceite, combustible, grasa o resinas para garantizar que la máquina pueda empuñarse firmemente para mantenerla bajo control seguro.
Arranque
ADVERTENCIA
Arranque el motor solamente al aire libre, por lo menos 3 m (10 pies) del lugar en que lo haya llenado.
KM 56 R, KM 56 RC
41
español / EE.UU
002BA054 KN
Para las instrucciones específicas de arranque, vea la sección correspondiente de los manuales del motor y accesorio Kombi. Coloque la herramienta motorizada sobre suelo firme u otra superficie sólida en un lugar abierto. Mantenga el equilibrio y elija un buen punto de apoyo para los pies.
ADVERTENCIA
Para reducir el riesgo de lesiones debido a la pérdida de control, esté absolutamente seguro que la herramienta motorizada se encuentra lejos de su cuerpo y de todas las obstrucciones y objetos, incluido el suelo, porque al arrancar el motor acelerado, su velocidad será lo suficientemente rápida para que el embrague se engrane y haga funcionar la herramienta motorizada.
Tan pronto arranque, accione inmediatamente por un breve momento el gatillo de aceleración para desconectarlo de la posición de arranque y permitir que el motor se desacelere a la marcha en vacío.
ADVERTENCIA
Su herramienta motorizada es una máquina que debe ser manejada por solamente una persona. No deje que otras personas estén en el lugar de trabajo, aun durante el arranque.
ADVERTENCIA
Para reducir el riesgo de sufrir lesiones causadas por la pérdida de control, no intente arrancar el motor de la herramienta "por lanzamiento".
ADVERTENCIA
Cuando tire del mango de arranque, no enrolle la cuerda de arranque alrededor de la mano. No deje que el mango retroceda bruscamente, sino guíe la cuerda de arranque para que se enrolle debidamente. Si no ejecuta este procedimiento puede lastimarse la mano o los dedos y también dañar el mecanismo de arranque.
Vea también las precauciones de seguridad de arranque en el manual de instrucciones del accesorio KombiTool.
Ajustes importantes
ADVERTENCIA
Para reducir el riesgo de lesiones personales debido a la pérdida de control o al contacto con la herramienta motorizada en movimiento, no use una herramienta cuyo ajuste de marcha en vacío está mal regulado. Cuando la velocidad de marcha en vacío está correctamente regulada, la herramienta no debe girar. Para instrucciones acerca de cómo ajustar el régimen de marcha en vacío, vea la sección correspondiente del manual de instrucciones.
Si no puede regular correctamente la marcha en vacío, pida a su concesionario STIHL que revise la herramienta motorizada y haga los ajustes o reparaciones correspondientes.
ADVERTENCIA
Esta unidad tiene un sistema de encendido que normalmente está listo para usar en todo momento. Después de usar la palanca de ajuste para detener el motor, la misma regresa automáticamente a la posición "activada". Si el motor está caliente, puede ser posible arrancarlo tirando de la cuerda de arranque sin ajustes adicionales. Para evitar el riesgo de lesiones, tenga sumo cuidado y mantenga alejados a los niños de la máquina.
Durante el funcionamiento Sujeción y control de la herramienta
motorizada
Al trabajar, siempre sujete la máquina firmemente con ambas manos en los mangos. Cierre firmemente los dedos y pulgares sobre los mangos.
La mano derecha debe sujetar el mango trasero. Esto también corresponde a personas zurdas.
42
KM 56 R, KM 56 RC
español / EE.UU
ADVERTENCIA
Para reducir el riesgo de lesiones causadas por la pérdida del control, nunca trabaje sobre una escalera o cualquier otra superficie de soporte poco seguro.
Condiciones de trabajo Maneje y arranque su herramienta
motorizada solamente al aire libre en un lugar bien ventilado. Manéjela solamente en condiciones de buena visibilidad y a la luz del día. Trabaje con mucho cuidado.
ADVERTENCIA
Tan pronto arranca, este producto genera vapores de escape tóxicos que contienen productos químicos (tales como hidrocarburos sin quemar y monóxido del carbono, incluyendo el benceno) considerados como cau santes de enfermedades respiratorias, cáncer, defectos de nacimiento u otra toxicidad reproduc tora. Algunos de estos gases (por ej., monóxido de carbono) pueden ser incoloros e inodoros. Para reducir el riesgo de sufrir lesiones graves o mortales por respirar gases tóxicos, nunca haga funcionar la máquina puertas adentro o en lugares mal ventilados.
-
ADVERTENCIA
La inhalación de ciertos polvos, especialmente los polvos orgánicos, tales como el moho o polen, puede provocar reacciones alérgicas o asmáticas en las personas sensibles.
La inhalación repetida o de grandes cantidades de polvo u otros contaminantes del aire, especialmente los de partículas pequeñas puede causar enfermedades respiratorias o de otro tipo. Controle el polvo en su fuente, siempre que sea posible. Utilice buenas prácticas de trabajo, tal como trabajar de manera que el viento o el proceso de corte dirija el polvo producido por la herramienta motorizada en sentido opuesto del operador. Observe las recomendaciones emitidas por EPA/OSHA/NIOSH y las asociaciones de trabajo y los sindicatos con respecto al polvo ("materia particulada"). Cuando sea imposible eliminar significativamente la inhalación del polvo, es decir mantener el nivel cerca
-
del valor ambiente, el operador y las personas que se encuentren en la cercanía siempre deberán usar un respirador aprobado por NIOSH/MSHA para el tipo de polvo presente en el lugar.
Instrucciones de manejo
ADVERTENCIA
No maneje la herramienta motorizada usando el bloqueo de acelerador para arranque, pues no tendrá control de la velocidad del motor.
En caso de emergencia, apague el motor inmediatamente – mueva el control deslizante / interruptor de parada a 0 o STOP
ADVERTENCIA
Nunca modifique el silenciador. La modificación del silenciador podría causar el aumento del calor irradiado, de las chispas y del nivel de ruido, lo que aumentará el riesgo de incendios, lesiones por quemadura o la pérdida auditiva. Además, se podría dañar permanentemente el motor. Haga reparar el silenciador únicamente por el concesionario de servicio STIHL.
ADVERTENCIA
El silenciador y otros componentes del motor (por ej., aletas del cilindro, bujía) se calientan durante el funcionamiento y permanecen calientes por un buen rato después de apagar el motor. Para reducir el riesgo de quemaduras, no toque el silenciador ni los otros componentes mientras están calientes. Mantenga limpia la zona alrededor del silenciador. Quite el lubricante excesivo y toda la basura tal como las agujas de pinos, ramas u hojas. Deje que el motor se enfríe apoyado sobre una superficie de hormigón, metal, suelo raso o madera maciza, lejos de toda sustancia combustible.
ADVERTENCIA
Una caja de cilindro dañada o mal instalada, o una envuelta del silenciador dañada o deformada, puede perjudicar el proceso de enfriamiento del silenciador. Para reducir el riesgo de incendio o lesiones por quemadura, no
KM 56 R, KM 56 RC
43
español / EE.UU
continúe trabajando con una caja de cilindro dañada o mal instalada, o una envuelta del silenciador dañada o deformada.
El silenciador tiene un chispero diseñado para reducir el riesgo de incendio debido a la emisión de partículas calientes. Nunca haga funcionar la unidad sin tener instalado el chispero. Si la mezcla de gasolina y aceite está correcta (no es demasiado rica), en condiciones normales el chispero quedará limpio como resultado del calor del silenciador y no necesitará servicio ni mantenimiento. Si el rendimiento de su máquina comienza a disminuir y sospecha que las rejillas están obstruidas, haga reparar el silenciador por un concesionario de servicio STIHL. Para ciertas aplicaciones, las leyes o los reglamentos estatales o federales pueden requerir el uso de un chispero en buenas condiciones. Consulte la sección "Mantenimiento, Reparación y Almacenamiento" de estas Medidas de seguridad. Recuerde que el riesgo de incendios de matorrales o forestales es mayor durante las estaciones calurosas y secas.
ADVERTENCIA
Algunas herramientas motorizadas STIHL están equipadas con un con vertidor catalítico, el que
-
está diseñado para redu cir las emisiones de escape del motor mediante un proceso químico en el silenciador. Debido a este proceso, el silenciador no se enfría tan rápidamente como los del tipo convencional cuando el motor vuelve a marchar en vacío o se apaga. Para reducir el riesgo de incendios y lesiones por quemadura al usar un convertidor catalítico, apoye siempre su herramienta motori
-
zada en posición vertical y no la coloque nunca donde el silenciador quede cerca de material seco como por ejemplo matorrales, pasto, viru
-
tas de madera u otros materiales combustibles mientras todavía está caliente.
MANTENIMIENTO, REPARACIÓN Y ALMACENAMIENTO
Los trabajos de mantenimiento, reemplazo o reparación de los dispositivos y sistemas de control de emisiones de escape pueden ser realizados por cualquier taller o técnico de motores no diseñados para
vehículos. Sin embargo, si usted está reclamando cobertura de garantía para algún componente que no ha sido reparado o mantenido debidamente, o cuando se utilizan repuestos no autorizados, STIHL puede denegar la garantía.
-
ADVERTENCIA
Utilice solamente piezas de repuesto de STIHL para el mantenimiento y la reparación. El uso de piezas no fabricadas por STIHL puede causar lesiones graves o mortales.
Siga precisamente las instrucciones de mantenimiento y reparación dadas en la sección correspondiente de los manuales de instrucciones del motor KombiEngine y del accesorio KombiTool. Consulte las tablas de mantenimiento y las notas de mantenimiento en estos manuales.
ADVERTENCIA
Siempre apague el motor y verifique que el accesorio está parado antes de llevar a cabo cualquier trabajo de mantenimiento, reparación o limpieza del accesorio motorizado. No intente hacer ningún trabajo de mantenimiento o reparación que no esté descrito en su manual de instrucciones del motor KombiEngine o del accesorio KombiTool. Este tipo de trabajo debe ser realizado únicamente por el concesionario de servicio de STIHL.
ADVERTENCIA
Use la bujía especificada y asegúrese de que ella y el cable de encendido estén limpios y en buen estado. Siempre
44
KM 56 R, KM 56 RC
español / EE.UU
inserte el casquillo de la bujía bien apretado en el borne de la bujía del tamaño adecuado. (Nota: Si el borne tiene una tuerca adaptadora SAE desmontable, tiene que ser instalada.) Una conexión suelta entre el casquillo de la bujía y el conector del cable de encendido en el casquillo puede crear un arco voltaico y encender los vapores del combustible, provocando un incendio.
ADVERTENCIA
No pruebe nunca el sistema de encendido con el casquillo del cable de encendido desconectado de la bujía, o sin tener instalada la bujía, ya que las chispas al descubierto pueden causar un incendio.
ADVERTENCIA
Nunca maneje su herramienta motorizada si el silenciador está dañado, se ha perdido o si fue modificado. Un silenciador mal cuidado aumenta el riesgo de incendio y puede causar pérdida de audición. El silenciador está equipado con un chispero para reducir el riesgo de incendio; no maneje nunca su herramienta motorizada si le falta el chispero o está dañado. Recuerde que el riesgo de incendios de matorrales o forestales es mayor durante las estaciones calurosas y secas.
En California, es una violación de los acápites § 4442 o § 4443 o del Código de Recursos Públicos el uso de herramientas con motor de gasolina en tierras cubiertas por bosques, arbustos o pasto a menos que el sistema de escape del motor cuente con un
chispero que satisfaga los requisitos legales y que reciba el mantenimiento adecuado para estar en buenas condiciones de funcionamiento. El propietario/operador de este producto es responsable del mantenimiento adecuado del chispero. Otras entidades/agencias estatales o gubernamentales, tales como el Servicio Forestal de los EE.UU., pueden tener requisitos similares. Comuníquese con el cuerpo de bomberos de su localidad o con el servicio forestal para informarse en cuanto a las leyes y reglamentos relacionados con los requisitos de protección contra incendios.
Guarde la herramienta motorizada en un lugar seco y elevado o con llave lejos del alcance de los niños.
Antes de guardar la máquina durante un período de más de algunos días, siempre vacíe el tanque de combustible. Consulte el capítulo "Almacenamiento de la máquina" en este manual.
KM 56 R, KM 56 RC
45
español / EE.UU
HT-KM
BF-KM
470BA018 KN
FCS-KM
FCB-KM
KW-KM
KB-KM
FH-KM
FS-KM
FS-KM
FSB-KM
BG-KM
Herramientas KombiTool aprobadas
Los siguientes accesorios KombiTool de STIHL pueden instalarse en el motor KombiEngine:
Accesorio KombiTool Propósito
FSKM Cortadora de mato
-
rrales con cabeza segadora
FSKM Cortadora de mato
-
rrales con cuchilla para recortar pasto
FSBKM Cortadora de mato
-
rrales con cabeza
segadora HLKM 135° Cortasetos ajustable HLKM 0° Cortasetos FHKM 135° Motoguadaña BGKM Soplador HTKM Podador de varilla BFKM Púas ganzúas FCBKM Bordeadora FCSKM Bordeadora KBKM Cepillo barredor KW-KM Barredora
PowerSweep La barra de defensa suministrada con la
máquina debe instalarse en el mango tórico – vea "Instalación del mango tórico".
46
KM 56 R, KM 56 RC
español / EE.UU
540BA003 KN
540BA004 KN
540BA008 KN
1
2
3
(5,3 mm)
0.2 in
540BA006 KN
A
002BA586 KN
Montaje del mango tórico
El mango tórico viene en dos versiones distintas.
Versión A
Las máquinas nuevas se despachan de la fábrica con el mango tórico ya instalado.
Uso de la barra de defensa
Montaje de la barra de defensa
N Coloque la arandela (1) en el
tornillo M5x23 (2).
N Mantenga la barra de defensa (3)
contra el mango tórico e inserte el tornillo con la arandela.
N Apriete el tornillo (2) firmemente. Deje la barra de defensa
permanentemente instalada en el mango tórico.
Alinee el mango tórico.
El mango tórico puede ajustarse de acuerdo con la talla y el alcance del operador y el uso, por medio de variar la distancia (A).
N Afloje el tornillo en el mango. N Deslice el mango a la posición
requerida.
N Apriete el tornillo hasta que no sea
posible girar el mango en el tubo de mando.
Versión B
La barra de defensa se suministra como equipo estándar y debe colocarse en el mango tórico.
KM 56 R, KM 56 RC
Las máquinas nuevas se despachan de la fábrica con el mango tórico ya instalado.
47
español / EE.UU
002BA587 KN
4
002BA588 KN
3
5
3
5
1 2
1 2
2
002BA098 KN
1
1
5
2
4
002BA589 KN
3
6
7
7
Uso de la barra de defensa
La barra de defensa se suministra como equipo estándar y debe colocarse en el mango tórico.
Montaje de la barra de defensa
N Saque y retirar los tornillos (1) junto
con las arandelas (2) y las tuercas (3).
N Retirar el mango tórico (4) y las
abrazaderas (5).
N Coloque las tuercas cuadradas (1)
en la barra de defensa (2); los agujeros deben quedar alineados.
N Coloque la abrazadera (3) en el
mango tórico (4) y ponga los dos en posición contra el tubo de mando (5).
N Coloque la abrazadera (6) contra el
tubo de mando.
N Coloque la barra de defensa (2) en
su lugar, tal como se muestra.
N Alinee los agujeros. N Inserte los tornillos (7) en los
agujeros y atorníllelos en la barra de defensa (2) hasta donde topen.
N Prosiga a "Ajuste y fijación del
mango tórico".
Deje la barra de defensa permanentemente instalada en el mango tórico.
48
KM 56 R, KM 56 RC
español / EE.UU
A
002BA598 KN
547BA008 KN
Ajuste y fijación del mango tórico
El mango tórico puede ajustarse de acuerdo con la talla y el alcance del operador y el uso, por medio de variar la distancia (A).
N Fijación del mango tórico N Alinee el mango tórico. N Apriete los tornillos firmemente y, si
es necesario, trabe las tuercas.
Argolla de transporte
La argolla de transporte está incorporada en la parte delantera del mango de control.
Combustible
Este motor está certificado para funcionar con una mezcla de 50 a 1 de gasolina sin plomo y aceite STIHL para motores de dos tiempos.
Su motor requiere una mezcla de gasolina de alta calidad y aceite para motores de dos tiempos enfriados por aire.
Utilice gasolina sin plomo de grado intermedio con un octanaje mínimo de 89 ((R+M)/2) y un contenido de etanol no mayor que el 10%.
El combustible de octanaje bajo puede aumentar la temperatura de funcionamiento del motor. Esto, a su vez, aumenta el riesgo de que se agarrote el pistón y se dañe el motor.
La composición química del combustible también es importante. Algunos aditivos de combustible no solamente tienen efectos perjudiciales en los elastómeros (diafragmas de carburador, sellos de aceite, tuberías de combustible, etc.), sino también en las piezas fundidas de magnesio y en los convertidores catalíticos. Esto podría causar problemas de funcionamiento e incluso daño del motor. Por esta razón, STIHL recomienda el uso exclusivo de gasolina sin plomo reconocida de buena calidad.
La gasolina con un contenido de etanol mayor que el 10% puede causar problemas de funcionamiento y averías graves en motores, por lo cual no debe utilizarse.
KM 56 R, KM 56 RC
49
español / EE.UU
El contenido de etanol en la gasolina afecta el régimen de marcha del motor – podría resultar necesario reajustar el carburador si se utilizan combustibles con diversos niveles de contenido de etanol.
ADVERTENCIA
Para reducir el riesgo de lesiones personales debido a la pérdida de control y/o al contacto con la herramienta de corte en movimiento, no use una máquina cuyo régimen de marcha en vacío está mal regulado. Cuando el marcha en vacío está correctamente regulado, la herramienta de corte no debe moverse.
Si su herramienta motorizada indica que el régimen de marcha en vacío está mal regulado, pida a su representante de STIHL que revise la herramienta motorizada y haga los ajustes o reparaciones correspondientes.
Las velocidades de ralentí y máxima del motor varían si se cambia el combustible por otro con un contenido mayor o menor de etanol.
Este problema se evita si siempre se utiliza combustible con un mismo contenido de etanol..
Use solamente el aceite STIHL para motores de dos tiempos o un aceite de marca equivalente para motores de dos tiempos diseñado para usar exclusivamente con los motores de dos tiempos enfriados por aire.
Se recomienda usar aceite STIHL HP Ultra para motores de 2 tiempos, puesto que éste ha sido formulado especialmente para uso en motores STIHL.
No use aceites para mezclar con designaciones BIA o TCW (para motores de dos tiempos enfriados por agua) ni otros aceites para mezclar diseñados para usar en motores enfriados por agua o por aire (por ejemplo, en motores marinos fuera de borda, motonieves, sierras de cadenas, bicimotos, etc.).
ADVERTENCIA
Manipule la gasolina con sumo cuidado. Evite el contacto directo con la piel y evite inhalar los vapores de combustible. Cuando se reabastece de combustible, quite primero el envase del vehículo y colóquelo en el suelo antes de llenarlo. Para reducir el riesgo de la formación de chispas causadas por la descarga de electricidad estática y un posible incendio y/o explosión, no llene los envases de combustible cuando están colocados dentro de un vehículo o remolque.
Mantenga el envase bien cerrado para limitar la cantidad de humedad que penetre en la mezcla.
Limpie el tanque de combustible de la máquina según sea necesario.
Duración de la mezcla de combustible
Mezcle una cantidad suficiente de combustible para trabajar unos pocos días, no lo guarde por más de 30 días. Guárdelo únicamente en envases aprobados para combustible. Para el proceso de mezclado, vierta el aceite en el envase primero y luego agregue la gasolina. Cierre el envase y agítelo
vigorosamente a mano para asegurar que se mezclen bien el aceite y la gasolina.
-
Gaso lina
gal EE.UU.
12,6 2 1/2 6,4 5 12,8
Deseche los envases vacíos usados para mezclar el aceite únicamente en vertederos autorizados para ello.
Aceite (STIHL 50:1 ó aceite de alta calidad equivalente)
oz fl EE.UU.
50
KM 56 R, KM 56 RC
español / EE.UU
547BA045 KN
002BA418 KN
002BA419 KN
001BA218 KN
001BA219 KN
001BA224 KN
Llenado de combustible
Preparaciones
N Antes de llenar la máquina con
combustible, limpie a fondo la tapa de llenado y la zona alrededor del mismo para evitar la entrada de tierra al depósito.
Siempre agite bien la mezcla en el recipiente antes de llenar la máquina con combustible.
N Coloque la máquina de modo que la
tapa de llenado quede orientada hacia arriba.
En la fábrica se instala una de dos tipos diferentes de tapas.
Tapa de llenado sin necesidad de herramientas (con empuñadura plegable)
Tapa de llenado roscada
Apertura de la tapa de llenado sin herramientas
N Gire la tapa en sentido
contrahorario (aprox. 1/4 de vuelta).
N Quite la tapa de llenado de
combustible.
Carga de combustible
Tenga cuidado de no derramar el combustible y no llene en exceso el tanque.
ADVERTENCIA
Para reducir el riesgo de quemaduras, así como de incendios y de lesiones corporales ocasionadas por los escapes de vapor de gasolina y otras emanaciones, quite la tapa de llenado de combustible cuidadosamente de modo que la presión que se pueda haber acumulado en el depósito se disipe lentamente.
KM 56 R, KM 56 RC
N Levante la empuñadura a la
posición vertical.
51
español / EE.UU
001BA220 KN
001BA221 KN
001BA222 KN
001BA223 KN
001BA225 KN
001BA227 KN
Cierre de la tapa de llenado sin herramientas
Con la empuñadura en posición vertical: N Inserte la tapa – las marcas de
posición de la tapa deberán quedar alineadas con las marcas de la abertura del tanque de combustible.
N La tapa deberá caer
completamente en la abertura en esta posición.
N Pliegue la empuñadura.
Comprobación del cierre
N La orejeta de la empuñadura
deberá encajar completamente en la hendidura (flecha) y la empuñadura debe quedar completamente a ras con la parte superior de la tapa.
Desalineación de la tapa
N Si la tapa no encaja completamente
en la abertura cuando se alinean las marcas de posición y/o si la tapa no se aprieta debidamente al girarla, la base de la tapa puede haber girado fuera de su posición correcta con relación a la parte superior.
N Tal desalineación puede ser
resultado de la manipulación, limpieza o un intento incorrecto de apriete.
A izquierda: Base de tapa incorrec
-
tamente alineada (con espacio vacío)
A derecha: Base de la tapa correc
tamente colocada para la instalación
-
N Mientras presiona la tapa hacia
abajo con firmeza, gírela en sentido horario hasta que tope (aprox. 1/4 de vuelta).
52
N Sujete la tapa y compruebe que
esté bien apretada.
N Si es posible mover la tapa, no se
encuentra debidamente instalada.
KM 56 R, KM 56 RC
español / EE.UU
001BA226 KN
002BA447 KN
002BA448 KN
002BA269 KN
1
3
2
N Para corregir la desalineación, gire
la tapa (con la empuñadura hacia arriba) hasta que encaje completamente en la abertura del tanque.
N Gire la tapa en sentido
contrahorario hasta donde sea posible (aprox. 1/4 de vuelta) – esto gira la base de la tapa a la posición correcta.
N Gire la tapa en sentido horario,
cerrándola de modo normal – consulte las secciones "Cierre" y "Comprobación del cierre."
N Si aún no es posible apretar la tapa
de modo debido, la misma podría estar averiada o rota; ponga la máquina fuera de servicio de inmediato y llévela a un concesionario STIHL autorizado para repararla.
Apertura de la tapa de llenado roscada
N Gire la tapa en sentido
contrahorario hasta quitarla de la boca de llenado del tanque.
N Quite la tapa de llenado.
Carga de combustible
Tenga cuidado de no derramar el combustible y no llene en exceso el tanque.
Cierre de la tapa de llenado roscada
N Coloque la tapa en posición. N Gire la tapa en sentido horario hasta
que tope y apriétela hasta donde sea posible con la mano.
Arranque / parada del motor
Controles
1 Bloqueo de gatillo de aceleración 2 Gatillo de aceleración 3 Interruptor de parada con
posiciones Run (Marcha) y 0(Parada).
Funcionamiento del interruptor de parada y sistema de encendido
El interruptor de parada normalmente está en la posición de Marcha, es decir, cuando el interruptor no está oprimido: – el encendido está conectado y el motor está listo para arrancar. Cuando el interruptor de parada se mueve a la posición 0, se desconecta el encendido. El sistema de encendido se activa otra vez después de apagar el motor.
KM 56 R, KM 56 RC
53
español / EE.UU
4
547BA015 KN
5
547BA016 KN
5
547BA017 KN
547BA018 KN
547BA020 KN
Arranque del motor
N Oprima el bulbo (4) de la bomba de
combustible manual por lo menos cinco veces, aunque el bulbo esté lleno de combustible.
Motor frío (arranque en frío)
N Empujar la palanca del
estrangulador (5) y gírela a g al mismo tiempo.
Motor caliente (arranque en caliente)
N Empujar la palanca del
estrangulador (5) y gírela a < al mismo tiempo.
También utilice esta posición si el motor ha estado en marcha, pero todavía se encuentra frío.
Arranque
N Coloque la máquina sobre el suelo:
Asegúrese que la herramienta no está tocando el suelo ni otros obstáculos. Vea también el capítulo "Arranque/parada del motor" en el manual de instrucciones de la herramienta KombiTool.
N Asegúrese de tener los pies
apoyados de modo seguro y firme.
N Sujete la máquina firmemente en el
suelo usando la mano izquierda y empujando hacia abajo – no toque el gatillo de aceleración ni la palanca de bloqueo.
INDICACIÓN
No se pare ni se arrodille sobre el tubo de mando.
N Sujete el mango de arranque con la
mano derecha.
Versión sin Easy2Start N Tire lentamente del mango de
arranque hasta que sienta el enganche del mismo y en seguida dele un tirón fuerte y rápido.
Versión con Easy2Start N Tire uniformemente del mango de
arranque.
INDICACIÓN
No tire de la cuerda de arranque totalmente hasta fuera, se podría romper.
54
KM 56 R, KM 56 RC
español / EE.UU
547BA021 KN
N No deje que el mango de arranque
salte bruscamente hacia atrás. Guíelo lentamente hacia el interior de la caja para que la cuerda de arranque se enrolle correctamente.
N Continúe haciendo girar el motor
hasta que arranque.
Tan pronto arranca
N Empuje el bloqueo del gatillo de
aceleración hacia abajo y abra el acelerador – la palanca del estrangulador se mueve a la posición de marcha F. Después de un arranque en frío, caliente el motor accionando varias veces el acelerador.
ADVERTENCIA
Asegúrese de que el carburador esté correctamente ajustado. La herramienta no debe girar cuando el motor está funcionando a marcha en vacío.
Su máquina está lista para trabajar.
Parada del motor
N Mueva el interruptor de parada
hacia 0 – el motor se para – suelte el interruptor de parada – el mismo regresa a la posición de marcha.
Sugerencias adicionales para el arranque
El motor se cala en la posición de arranque en frío g o durante la aceleración
N Mueva la palanca del estrangulador
a < y continúe haciendo girar el motor hasta que arranque.
El motor no arranca en la posición de arranque en caliente <
N Mueva la palanca del estrangulador
a g y continúe haciendo girar el motor hasta que arranque.
Si el motor no arranca N Compruebe que todos los ajustes
sean correctos.
N Verifique que haya combustible en
el depósito y agregue combustible de ser necesario.
N Verifique que el casquillo de la bujía
esté correctamente conectado.
N Repita el procedimiento de
arranque.
Se agotó completamente el combustible en el depósito
N Después de llenar el tanque, oprima
el bulbo de la bomba de combustible por lo menos cinco veces, aunque el bulbo esté lleno de combustible.
N Ajuste la palanca del estrangulador
según la temperatura del motor.
N Ahora arranque el motor.
Instrucciones para el uso
Durante el período de rodaje
Una máquina nueva de fábrica no debe hacerse funcionar a velocidad alta (aceleración máxima sin carga) por el lapso que tome llenar el tanque tres veces. Esto evita la imposición de cargas innecesariamente altas durante el período de rodaje. Ya que todas las piezas móviles deben asentarse durante el período de rodaje inicial, durante este tiempo la resistencia causada por fricción en el motor es más elevada. El motor desarrolla su potencia máxima después de haber llenado el tanque de 5 a 15 veces.
Durante el trabajo
Después de un período largo de funcionamiento con el acelerador a fondo, deje funcionar el motor por un rato en ralentí de modo que el calor en el motor sea disipado por la corriente de aire de enfriamiento. Esto ayuda a evitar que los componentes montados en el motor (encendido, carburador) sufran sobrecargas térmicas.
Después de terminar el trabajo
Almacenamiento por corto tiempo: Espere hasta que el motor se enfríe. Vacíe el tanque de combustible y guarde la máquina en un lugar seco, alejada de fuentes de encendido, hasta que la vuelva a utilizar. Para los
KM 56 R, KM 56 RC
55
español / EE.UU
1
547BA022 KN
2
3
547BA023 KN
4
intervalos de almacenamiento por tiempo prolongado – vea "Almacenamiento de la máquina".
Limpieza del filtro de aire
Si se nota una pérdida considerable de la potencia del motor
N Ponga la palanca del
estrangulador (1) en <.
N Gire el tornillo (2) en la cubierta del
filtro (3) en sentido contrahorario hasta que la cubierta esté suelta.
N Levante cuidadosamente la
cubierta del filtro (3) encima de la lengüeta y quítela.
N Limpie toda la suciedad de
alrededor del filtro.
golpeándolo en la palma de la mano o soplándolo con aire comprimido. No lo lave.
INDICACIÓN
Siempre sustituya las piezas dañadas. N Instale el filtro de fieltro (5) en la
caja y asegúrese que esté bien asentado – la flecha debe apuntar hacia el rebajo.
N Ponga la palanca del
estrangulador (1) en <.
N Coloque la cubierta del filtro en su
lugar y asegúrese que el tornillo esté recto. Apriete el tornillo.
56
N Extraiga el filtro de fieltro (5) del
rebajo (4) en la caja del filtro.
N Coloque un elemento de filtro de
fieltro (5) nuevo. Como una medida provisoria, es posible limpiarlo
KM 56 R, KM 56 RC
español / EE.UU
0815BA006 KN
Gestión del motor Ajuste del carburador
Las emisiones de gases de escape son controladas por el diseño de parámetros y componentes fundamentales del motor (por ej. carburación, encendido, regulación y regulación de las válvulas o la lumbrera) sin la adición de ningún equipo importante.
El carburador se ajusta en la fábrica al ajuste estándar.
En esta máquina ya no es necesario ajustar el carburador.
Ha sido ajustada en fábrica para formar una mezcla óptima de combustible-aire en todas las ubicaciones y condiciones de funcionamiento.
Ajuste de marcha en vacío
El motor se para cuando funciona a marcha en vacío
luego gire el tornillo de 1/2 a 3/4 de vuelta adicional en el mismo sentido.
ADVERTENCIA
Si la herramienta o el accesorio de corte sigue girando cuando el motor está funcionando a marcha en vacío, pida a su concesionario de servicio que revise y repare la máquina.
KM 56 R, KM 56 RC
N Caliente el motor por
aproximadamente 3 minutos.
N Gire el tornillo de ajuste de marcha
en vacío (LA) lentamente en sentido horario hasta que el motor funcione de modo suave - el accesorio de corte no debe moverse.
El accesorio de corte funciona cuando el motor está en marcha en vacío
N Gire el tornillo de ajuste de marcha
en vacío (LA) lentamente en sentido contrahorario hasta que el accesorio de corte se detenga y
57
español / EE.UU
1
547BA041 KN
2
000BA039 KN
A
1
2
000BA071 KN
Bujía
Si el motor pierde potencia, es difícil arrancarlo o funciona de modo irregular a ralentí, revise la bujía primero.
Instale una bujía nueva después de aprox. 100 horas de funcionamiento, o más temprano si los electrodos están muy gastados.
Si la mezcla del combustible es incorrecta (demasiado aceite en la gasolina), el filtro de aire está sucio, y las condiciones de trabajo no son favorables (especialmente a aceleraciones intermedias) se afecta la condición de la bujía. Estos factores permiten la formación de depósitos en la punta aislante, los cuales pueden perjudicar el rendimiento.
Retiro de la bujía
N apague el motor.
N Quite el casquillo de la bujía (1). N Destornille la bujía (2).
Revisión de la bujía
N Limpie la bujía si está sucia. N Revise la separación entre
electrodos (A) y ajústela de ser necesario – vea "Especificaciones".
N Utilice únicamente bujías tipo
resistencia cuyo margen de rendimiento sea el aprobado.
Corrija los problemas que hayan causado la contaminación de la bujía:
demasiado aceite en la mezcla de
combustible,
filtro de aire sucio, condiciones desfavorables de
funcionamiento, por ejemplo, funcionando bajo carga parcial.
ADVERTENCIA
Para reducir el riesgo de incendio y de quemaduras, utilice solamente las bujías autorizadas por STIHL. Siempre empuje el casquillo (1) de la bujía firmemente en el borne (2) del tamaño adecuado. (Nota: Si el borne tiene una tuerca adaptadora SAE desmontable, tiene que ser firmemente instalada). Una conexión suelta entre el casquillo de la bujía y el conector del cable de encendido en el casquillo puede crear un arco voltaico y encender los vapores del combustible, provocando un incendio.
Instalación de la bujía
58
N Atornille la bujía en el cilindro. N Presione el casquillo firmemente
sobre la bujía
KM 56 R, KM 56 RC
español / EE.UU
Funcionamiento del motor Dispositivo de arranque Almacenamiento de la
máquina
Si el funcionamiento del motor es insatisfactorio aunque el filtro de aire está limpio y el carburador ha sido debidamente ajustado, la causa puede hallarse en el silenciador.
Solicite al concesionario que revise si hay contaminación (coquización) en el silenciador.
STIHL recomienda que un concesionario STIHL autorizado efectúe los trabajos de mantenimiento y reparación.
Para prolongar la vida útil de la cuerda de arranque, siempre observe los puntos siguientes:
N Tire de la cuerda de arranque
solamente en el sentido especificado.
N No tire de la cuerda sobre el borde
del buje guía.
N No tire de la cuerda más de lo
especificado.
N No deje que el mango de arranque
retroceda bruscamente, guíelo lentamente hacia el interior de la caja – vea el capítulo "Arranque/Parada del motor."
Pida que el concesionario de servicio sustituya la cuerda de arranque dañada oportunamente. STIHL recomienda que un concesionario STIHL autorizado efectúe los trabajos de mantenimiento y reparación.
Para intervalos de 3 meses o más N Vacíe y limpie el tanque de
combustible en una zona bien ventilada.
N Deseche el combustible de acuerdo
con los requerimientos locales de protección del medio ambiente.
N Haga funcionar el motor hasta que
el carburador se seque. Esto ayuda a evitar que los diafragmas del carburador se peguen.
N Limpie la máquina a fondo – preste
atención especial al filtro de aire.
N Retire, limpie e revise el accesorio.
Cubra los componentes metálicos con aceite inhibidor de corrosión
N Guarde la máquina en un lugar seco
y bajo llave, fuera del alcance de los niños y de otras personas no autorizadas.
KM 56 R, KM 56 RC
59
español / EE.UU
Inspección y mantenimiento por el concesionario
Chispero en silenciador
N Si el motor pierde potencia, revise el
chispero del silenciador.
STIHL recomienda que un concesionario STIHL autorizado efectúe los trabajos de mantenimiento y reparación.
60
KM 56 R, KM 56 RC
Información para mantenimiento
español / EE.UU
Los intervalos que se indican a continuación corresponden únicamente a condicio nes normales de funcionamiento. Si la jornada diaria es más prolongada que lo normal, o bien si las condiciones son extremas (zonas con demasiado polvo, etc.), acorte apropiadamente los intervalos indicados.
Inspección visual (condición general,
Máquina completa
Mango de control Comprobar el funcionamiento XX
Filtro de aire
Bomba de combustible manual
Recogedor en depósito de combustible
Depósito de combustible Limpiar XX
Carburador
Bujía
Entradas de enfriamiento
fugas)
Limpiar X
Limpiar XX
Reemplazar X
Revisar X
Solicitar al concesionario de servicio su reparación
Revisar X
Reemplazar XXX
Comprobar el ajuste de marcha en vacío – la herramienta/el accesorio de corte no debe desplazarse
Ajustar la marcha en vacío X
Ajustar la distancia entre electrodos X
Cambiar después de aprox. cada 100 horas de funcionamiento
Inspección visual X
Limpiar X
1)
-
antes de comenzar el trabajo
después de completar el tra-bajo o diariamente
después de cada parada
para cargar combustible
XX
XX
semanalmente
mensualmente
cada 12 meses
si hay problemas
si presenta daños
según se requiera
X
KM 56 R, KM 56 RC
61
español / EE.UU
Los intervalos que se indican a continuación corresponden únicamente a condicio nes normales de funcionamiento. Si la jornada diaria es más prolongada que lo normal, o bien si las condiciones son extremas (zonas con demasiado polvo, etc.), acorte apropiadamente los intervalos indicados.
Solicitar al concesionario de servicio su
1)
Chispero en silenciador
Todos los tornillos y tuercas accesibles (salvo los tornillos de ajuste)
Etiquetas de seguridad Reemplazar X
1)
STIHL recomienda acudir a un concesionario STIHL autorizado para servicio.
revisión
Solicitar al concesionario de servicio su limpieza o sustitución
Volver a apretar X
1)
-
antes de comenzar el trabajo
después de completar el tra-bajo o diariamente
después de cada parada
para cargar combustible
semanalmente
mensualmente
cada 12 meses
si hay problemas
X
si presenta daños
según se requiera
XX
62
KM 56 R, KM 56 RC
Componentes importantes
12
13
14
15
19
19
18
16
17
15
8
7
6
9
11
#
2
1
4
5
3
540BA010 KN
10
18
16
17
20
español / EE.UU
1 Bomba de combustible manual 2 Tapa de llenado de combustible 3 Tanque de combustible 4 Mango de arranque 5 Silenciador con chispero 6 Tornillos de ajuste del carburador 7 Palanca del estrangulador 8 Cubierta del filtro de aire 9 Casquillo de bujía 10 Apoyo de la máquina 11 Gatillo de aceleración 12 Bloqueo de gatillo de aceleración 13 Interruptor de parada 14 Argolla de transporte 15 Mango tórico 16 Barra de defensa 17 Tubo de mando 18 Manguito de acoplamiento 19 Tornillo mariposa 20 Manguito # Número de serie
KM 56 R, KM 56 RC
63
español / EE.UU
Definiciones
1. Bomba de combustible manual Suministra alimentación adicional
de combustible para el arranque en frío.
2. Tapa de llenado de combustible Para tapar el depósito de
combustible.
3. Tanque de combustible Contiene la mezcla de combustible
y aceite.
4. Mango de arranque El mango del arrancador usado
para arrancar el motor.
5. Silenciador con chispero El silenciador reduce los ruidos del
tubo de escape y desvía los gases de escape lejos del operador. El chispero está diseñado para reducir el riesgo de incendios.
6. Tornillos de ajuste del carburador Para afinar el carburador.
7. Palanca del estrangulador Facilita el arranque del motor al
enriquecer la mezcla.
8. Cubierta del filtro de aire Cubre y protege el elemento del
filtro de aire.
9. Casquillo de bujía Conecta la bujía al alambre de
encendido.
10. Apoyo de la máquina Para apoyar la máquina en el suelo.
11. Gatillo de aceleración Regula la velocidad del motor.
12. Bloqueo de gatillo de aceleración Debe ser oprimido antes de poder
activar el gatillo de aceleración.
13. Interruptor de parada Apaga el sistema de encendido del
motor y para el motor.
14. Argolla de transporte Conecta la orilladora/cortadora de
matorrales al arnés.
15. Mango tórico Para facilitar el control de la
máquina durante el proceso de corte.
16. Barra de defensa Ayuda a mantener los pies y piernas
del usuario lejos del accesorio de corte.
17. Tubo de mando Encierra y protege el eje impulsor
entre el motor y el manguito de acoplamiento.
18. Manguito de acoplamiento Conecta el tubo de mando a la parte
inferior del tubo de mando (eje corto).
19. Tornillo mariposa Sujeta la parte inferior del tubo de
mando (eje corto).
20. Manguito Mantiene un espacio mínimo entre
el mango tórico y el mango de control.
Especificaciones
EPA / CEPA
El período de cumplimiento de emisiones indicado en la etiqueta de cumplimiento de emisiones es la cantidad de horas de funcionamiento para la cual la máquina ha demostrado la conformidad con los requerimientos de emisiones del Gobierno federal de los EE.UU.
Categoría
A = 300 horas B = 125 horas C= 50horas
CARB
El período de cumplimiento de emisiones empleado en la etiqueta del índice de aire CARB tiene las siguientes definiciones:
Extended = 300 horas Intermediate = 125 horas Moderate = 50 horas
64
KM 56 R, KM 56 RC
español / EE.UU
000BA073 KN
Motor
Motor de un cilindro, dos tiempos Cilindrada: 27,2 cm
3
(1,66 pulg cúb.)
Diámetro: 34 mm
(1,34 pulg)
Carrera: 30 mm
(1,18 pulg)
Potencia del motor según ISO 8893:
0,8 kW (1,1 bhp)
a 8.500 rpm Marcha en vacío: 2800 r/min Velocidad de corte
(nominal): 10.000 r/min
Sistema de encendido
Encendido por magneto electrónico
Bujía (tipo resistencia): NGK CMR 6 H
Distancia entre electrodos:
0,5 mm
(0,02 pulg)
Sistema de combustible
Información de reparación Desecho
Los usuarios de esta máquina deben efectuar únicamente los trabajos de mantenimiento descritos en este manual. STIHL recomienda que un concesionario de servicio STIHL efectúe los demás trabajos de reparación.
Los reclamos de garantía presentados después de realizadas las reparaciones serán aceptados únicamente si las mismas fueron ejecutadas por un concesionario de servicio autorizado STIHL utilizando piezas de repuesto genuinas de STIHL.
Los repuestos genuinos STIHL se identifican por medio del número de pieza STIHL, el logotipo { y el símbolo de piezas STIHL K. El símbolo aparece solo en algunas piezas pequeñas.
Respete todas las leyes y los reglamentos sobre eliminación de desechos que correspondan a su país.
No se debe botar los aparatos STIHL en el basurero. Lleve el producto, los accesorios y el embalaje a un vertedero autorizado para reciclarlos y contribuir al cuidado del medio ambiente.
Comuníquese con un concesionario de servicio de STIHL para obtener la información más actualizada sobre la eliminación de desechos.
Carburador de diafragma de todas posiciones con bomba de combustible integral
Capacidad del depósito de combustible: 0,34 l (11,5 oz. fl.)
Peso
seco, sin accesorio KombiTool
Versión con Easy2Start KM 56 RC: 4,3 kg (9,5 lb)
KM 56 R, KM 56 RC
65
español / EE.UU
Declaración de garantía de STIHL Incorporated sobre sistemas de control de emisiones según normas Federales
No para California
Sus derechos y obligaciones de garantía
La Agencia de Protección del Medio Ambiente (EPA) de los EE.UU. y STIHL Incorporated se complacen en explicarle la garantía del sistema de control de emisiones instalado en el motor de su equipo. En los EE.UU., los nuevos motores pequeños para equipos de uso fuera de carretera modelos 1997 y posteriores deben estar diseñados, construidos y equipados, al tiempo de la venta, de conformidad con los reglamentos de la EPA de los EE.UU. para los motores pequeños de uso fuera de carretera. El motor del equipo debe carecer de defectos en el material y la fabricación que puedan causar el incumplimiento de las normas de la EPA de los EE.UU. durante los primeros dos años de uso del motor a partir de la fecha de compra por el último comprador.
STIHL Incorporated debe garantizar el sistema de control de emisiones en el motor pequeño para uso fuera de carretera por el intervalo mencionado más arriba, siempre que dicho motor no haya estado sujeto a maltrato, negligencia o cuidado inapropiado.
El sistema de control de emisiones de su máquina incluye piezas tales como el carburador y el sistema de encendido. Además puede incluir mangueras, conectores y otros conjuntos asociados con el control de emisiones.
En los casos de existir una condición amparada bajo garantía, STIHL Incorporated reparará el motor pequeño para equipo de uso fuera de carretera sin costo alguno, incluido el diagnóstico (si el trabajo de diagnóstico fue realizado por un concesionario autorizado), las piezas y la mano de obra.
Cobertura de garantía del fabricante En los EE.UU., los motores pequeños
para equipos de uso fuera de carretera modelos 1997 y posteriores también están garantizados por dos años. En el caso de encontrarse defectos en cualquiera de las piezas del motor relacionadas con el sistema de control de emisiones, la pieza será reparada o sustituida por STIHL Incorporated sin costo alguno.
Responsabilidades del usuario relativas a la garantía
Como propietario de motor pequeño para equipo de uso fuera de carretera, usted tiene la responsabilidad de realizar el mantenimiento requerido descrito en su manual de instrucciones. STIHL Incorporated le recomienda guardar todos los recibos comprobantes de los trabajos de mantenimiento hechos a su motor pequeño para equipo de uso fuera de carretera, pero STIHL Incorporated no puede negar garantía basado en el solo hecho de faltar los
recibos o del incumplimiento del propietario de realizar todos los trabajos de mantenimiento programados.
El uso de cualquier pieza de repuesto o servicio cuyo comportamiento y durabilidad sean equivalentes está permitido en trabajos de mantenimiento o reparación no contemplados en la garantía, y no reducirá las obligaciones de la garantía del fabricante del motor.
Sin embargo, como propietario del motor pequeño para equipo de uso fuera de carretera usted debe ser consciente de que STIHL Incorporated puede negarle cobertura de garantía si dicho motor o una pieza del mismo ha fallado debido a maltrato, descuido, mantenimiento inadecuado o modificaciones no autorizadas.
Usted es responsable de llevar el motor pequeño para equipo de uso fuera de carretera a un centro de servicio STIHL tan pronto surja el problema. Las reparaciones bajo garantía serán realizadas en un tiempo razonable, sin exceder de 30 días.
Ante cualquier duda respecto a sus derechos y responsabilidades bajo esta garantía, sírvase contactar al representante de atención al cliente STIHL llamando al 1-800-467-8445, o si lo prefiere puede escribir a
STIHL Inc., 536 Viking Drive, P.O. Box 2015, Virginia Beach, VA 23450-2015 EE.UU.
www.stihlusa.com
Cobertura por STIHL Incorporated STIHL Incorporated garantiza al último
comprador y a cada comprador subsiguiente que el motor pequeño para
66
KM 56 R, KM 56 RC
español / EE.UU
equipo de uso fuera de carretera está diseñado, construido y equipado, al tiempo de la venta, de conformidad con todos los reglamentos aplicables. Además, STIHL Incorporated garantiza al comprador inicial y a cada comprador subsiguiente que el motor está libre de defectos en el material y fabricación que puedan causar el incumplimiento de los reglamentos aplicables durante un período de dos años.
Período de garantía El período de garantía comienza en la
fecha en que el motor del equipo utilitario es entregado a usted y usted firma y remite la tarjeta de garantía a STIHL.
Si cualquier componente relacionado con el sistema de control de emisiones está defectuoso, el mismo será sustituido por STIHL Incorporated sin costo alguno para el propietario. Cualquier pieza garantizada cuyo reemplazo no está programado como mantenimiento requerido, o que debe recibir únicamente inspección regular en el sentido de "reparar o sustituir según sea necesario", estará garantizada por el período de garantía. Cualquier pieza cuyo reemplazo está programado como mantenimiento requerido estará garantizada por el intervalo hasta el primer punto de reemplazo programado para esa pieza.
Diagnóstico Como propietario, a usted no se le debe
cobrar la mano de obra por los diagnósticos que determinen que una pieza garantizada está defectuosa. No obstante, si usted reclama garantía para un componente y se comprueba que la
máquina no está defectuosa, STIHL Incorporated le cobrará el costo de la prueba del sistema de control de emisiones. El trabajo de diagnóstico mecánico se realiza en un centro de servicio autorizado por STIHL. La prueba del sistema de control de emisiones se realiza ya sea en la fábrica de STIHL Incorporated o en un laboratorio de ensayos independiente.
Trabajo bajo garantía STIHL Incorporated reparará los
defectos amparados por la garantía en cualquier estación de garantía o centro de servicio autorizado por STIHL. Todo trabajo de este tipo se hará gratis para el propietario siempre que se determine que la pieza cubierta por la garantía está defectuosa.
Se puede usar cualquier pieza de repuesto aprobada por el fabricante o equivalente en las piezas relacionadas con el sistema de control de emisiones, y debe ser suministrada gratis al propietario. STIHL Incorporated es responsable por daños a otros componentes del motor causados por la falla de una pieza garantizada que todavía está bajo garantía.
La lista siguiente define específicamente las piezas garantizadas y relacionadas con las emisiones:
Filtro de aire Carburador (si corresponde) Bomba de combustible Estrangulador (sistema de
enriquecimiento de arranque en frío) (si corresponde)
Varillajes de control Múltiple de admisión Sistema de encendido por magneto
o electrónico (Módulo de encendido o unidad de control electrónica)
Volante Bujía Válvula de inyección (si
corresponde)
Bomba de inyección (si
corresponde)
Carcasa del acelerador (si
corresponde)
Cilindro Silenciador Convertidor catalítico (si lo tiene) Tanque de combustible Tapa de tanque de combustible Línea de combustible Adaptadores de línea de
combustible
Abrazaderas Sujetadores/pernos
Dónde presentar el reclamo para servicio bajo garantía
Lleve el producto a cualquier centro de servicio autorizado por STIHL y presente la tarjeta de garantía firmada.
Requerimientos de mantenimiento Las instrucciones presentadas en este
manual se basan en la aplicación de la mezcla recomendada para motores de 2 tiempos (vea también la instrucción "Combustible"). Las discrepancias de
KM 56 R, KM 56 RC
67
español / EE.UU
estas recomendaciones con respecto a la calidad y la proporción de la mezcla de combustible y aceite pueden exigir intervalos de mantenimiento más cortos.
Limitaciones Esta garantía de los sistemas de control
de emisiones no cubrirá ninguno de los puntos siguientes:
N reparación o sustitución requerida
debido a maltrato, negligencia o falta del mantenimiento requerido,
N reparaciones mal hechas o
sustituciones contrarias a las especificaciones de STIHL Incorporated que afecten desfavorablemente el funcionamiento y/o la durabilidad, y las alteraciones o modificaciones no recomendadas o aprobadas por escrito por STIHL Incorporated,
y N la sustitución de piezas y otros
servicios y ajustes necesarios para el mantenimiento requerido en y después del primer punto de reemplazo programado.
Declaración de garantía de STIHL Incorporated sobre el control de emisiones de gases de escape y emisiones por evaporación para el Estado de California
Solamente para California
Sus derechos y obligaciones de garantía
El Consejo de Recursos del Aire del Estado de California (CARB) y STIHL Incorporated se complacen en explicarle la Garantía del sistema de control de emisiones instalado en el motor de su equipo de uso fuera de carretera para el año 2014 y posteriores.
En California, el equipo nuevo que tiene motores pequeños para uso fuera de carretera debe estar diseñado, construido y equipado de conformidad con las rigurosas normas de contaminación del aire del estado. STIHL Incorporated debe garantizar el sistema de control de emisiones en el motor pequeño para uso fuera de carretera por el intervalo mencionado más arriba, siempre que dicho motor pequeño para uso fuera de carretera no haya estado sujeto a maltrato, negligencia o cuidado inapropiado.
Su sistema de control de emisiones puede incluir piezas tales como el carburador y el sistema de inyección de combustible, el sistema de encendido y el convertidor catalítico. Además puede incluir mangueras, correas, conectores y otros conjuntos asociados con el control de emisiones.
En los casos de existir una condición amparada bajo garantía, STIHL Incorporated reparará el motor pequeño para equipo de uso fuera de carretera sin costo alguno, incluido el diagnóstico, las piezas y la mano de obra.
Responsabilidades del fabricante relativas a la garantía
El sistema de control de emisiones tiene una garantía de dos años en California. En el caso de encontrarse defectos en cualquiera de los componentes del motor relacionados con el sistema de control de emisiones, el mismo será reparado o sustituido por STIHL Incorporated sin costo alguno.
Responsabilidades del propietario relativas a la garantía
Como propietario de motor pequeño para equipo de uso fuera de carretera, usted tiene la responsabilidad de realizar el mantenimiento requerido descrito en su manual de instrucciones. STIHL Incorporated le recomienda guardar todos los recibos comprobantes de los trabajos de mantenimiento hechos a su motor pequeño para equipo de uso fuera de carretera, pero STIHL Incorporated no puede negar garantía basado en el solo hecho de faltar los recibos o de su incumplimiento de realizar todos los trabajos de mantenimiento programados.
Sin embargo, como propietario del motor pequeño para equipo de uso fuera de carretera usted debe ser consciente de que STIHL Incorporated puede negarle cobertura de garantía si dicho motor o un componente del mismo
68
KM 56 R, KM 56 RC
español / EE.UU
ha fallado debido a maltrato, descuido, mantenimiento inadecuado o modificaciones no autorizadas.
Usted es responsable de llevar el motor pequeño para equipo de uso fuera de carretera a un concesionario de servicio STIHL tan pronto surja el problema. Las reparaciones bajo garantía deben realizarse en un tiempo razonable, sin exceder de 30 días. Ante cualquier duda respecto a sus derechos y responsabilidades bajo esta garantía, sírvase contactar al representante de atención al cliente STIHL llamando al 1­800-467-8445, o si lo prefiere puede escribir a
STIHL Inc., 536 Viking Drive, P.O. Box 2015, Virginia Beach, VA 23450-2015 EE.UU.
www.stihlusa.com
Cobertura por STIHL Incorporated STIHL Incorporated garantiza al último
comprador y a cada comprador subsiguiente que el motor pequeño para equipo de uso fuera de carretera está diseñado, construido y equipado, al tiempo de la venta, de conformidad con todos los reglamentos acerca de emisiones aplicables.
Además, STIHL Incorporated garantiza al comprador inicial y a cada comprador subsiguiente que el motor está libre de defectos en el material y fabricación que puedan causar el incumplimiento de los reglamentos acerca de emisiones aplicables durante un período de dos años.
Período de garantía contra defectos Los períodos de garantía comenzarán el
día en que el motor de equipo utilitario es comprado por el comprador inicial. Si cualquier componente relacionado con el sistema de control de emisiones está defectuoso, el mismo será sustituido por STIHL Incorporated sin costo alguno para el propietario.
No se permite usar componentes adicionales o modificados que no hayan sido eximidos por el Consejo de Recursos del Aire (CARB). El uso de cualquier componente adicional o modificado no eximido será motivo para la denegación del reclamo bajo garantía. STIHL Incorporated no es responsable por las fallas de los componentes garantizados causadas por el uso de un componente adicional o modificado no eximido.
La garantía de los componentes relacionados con el control de emisiones se interpretará de la manera siguiente:
1. Cualquier componente garantizado cuyo reemplazo no está programado como mantenimiento requerido en las instrucciones escritas requeridas en la Lista de Piezas bajo la Garantía de Control de Emisiones (vea más abajo) debe garantizarse por el período de garantía definido en la subsección COBERTURA POR STIHL INCORPORATED, vea más arriba. Si uno de estos componentes falla durante el período de garantía, el fabricante debe reparar o sustituir el mismo de acuerdo con la
subsección (4) más abajo. Un componente reparado o sustituido bajo la garantía debe garantizarse durante el resto del período de garantía.
2. Cualquier componente garantizado que solamente debe inspeccionarse periódicamente de acuerdo con las instrucciones escritas requeridas en la Lista de Piezas bajo la Garantía de Control de Emisiones (vea más abajo) debe garantizarse por el período de garantía definido en la subsección COBERTURA POR STIHL INCORPORATED, vea más arriba. Una declaración en las instrucciones escritas tal como "reparar o sustituir según sea necesario" no acortará el período de cobertura de garantía. Un componente de este tipo reparado o sustituido bajo la garantía debe garantizarse durante el resto del período de garantía.
3. Cualquier componente garantizado que debe sustituirse como un elemento de mantenimiento requerido en las instrucciones escritas requeridas por la lista de piezas bajo la garantía de control de emisiones (vea más abajo) debe garantizarse por el intervalo antes del primer punto de sustitución programado para este componente. Si el componente falla antes del primer punto de sustitución programado, el fabricante del motor debe reparar o sustituir el mismo de acuerdo con la subsección (4) más abajo. Un componente de este tipo reparado o sustituido bajo la
KM 56 R, KM 56 RC
69
español / EE.UU
garantía debe garantizarse durante el resto del período de garantía antes del primer punto de sustitución programado para el componente.
4. La reparación o sustitución de cualquier componente garantizado debe llevarse a cabo en una estación de reparaciones bajo garantía sin costo alguno para el propietario.
5. No obstante lo expuesto en la subsección (4) de arriba, los servicios o las reparaciones bajo garantía pueden obtenerse en todos los centros de distribución del fabricante autorizados para dar servicio a los motores en cuestión.
6. Al propietario no se le debe cobrar el trabajo del diagnóstico que establece que el componente garantizado es de hecho defectuoso, a condición de que tal trabajo de diagnóstico se realice en una estación de reparaciones bajo garantía.
Trabajo bajo garantía STIHL Incorporated reparará los
defectos amparados por la garantía en cualquier estación de garantía o centro de servicio autorizado por STIHL. Todo trabajo de este tipo se hará gratis para el propietario siempre que se determine que la pieza cubierta por la garantía está defectuosa. Se puede usar cualquier pieza de repuesto aprobada por el fabricante o equivalente para el mantenimiento o la reparación de los componentes relacionados con el sistema de control de emisiones, y la misma debe ser suministrada gratis al
propietario. STIHL Incorporated es responsable por daños a otros componentes del motor causados por la falla de una pieza garantizada que todavía está bajo garantía.
Lista de piezas bajo la garantía de emisiones
Filtro de aire, carburador (si corresponde), bomba de combustible, estrangulador (sistema de enriquecimiento para arranque en frío) (si corresponde), varillajes de control, múltiple de admisión, sistema de encendido por magneto o electrónico (Módulo de encendido o unidad de control electrónica), volante, bujía, válvula de inyección (si corresponde), bomba de inyección (si corresponde), carcasa del acelerador (si corresponde), cilindro, silenciador, convertidor catalítico (si corresponde), tanque de combustible, tapa de combustible, tubería de combustible, adaptadores de tubería de combustible, abrazaderas, fijaciones.
Dónde presentar el reclamo para servicio bajo garantía
Lleve el producto de STIHL a cualquier concesionario de servicio autorizado por STIHL y presente la tarjeta de registro de producto STIHL firmado o la copia impresa del registro electrónico del producto.
Limitaciones La reparación o la sustitución de
cualquier componente garantizado y normalmente abarcado por la garantía se puede excluir de la garantía si STIHL Incorporated demuestra el maltrato, negligencia o mantenimiento incorrecto
del producto de STIHL, y que tal maltrato, negligencia, o mantenimiento incorrecto era la causa directa de la necesidad de reparación o sustitución del componente. A pesar de lo anterior, el ajuste de un componente que tiene un dispositivo limitador instalado en fábrica y funcionando correctamente no perjudicará la cobertura bajo garantía.
70
KM 56 R, KM 56 RC
español / EE.UU
TM
STIHL Injection
Marcas comerciales
Marcas registradas de STIHL
®
STIHL
{ K
La combinación de colores anaranjado­gris (Números de registro EE.UU. 2,821,860; 3,010,057, 3,010,058, 3,400,477; y 3,400,476)
AUTOCUT EASYSTART FARM BOSS iCademy MAGNUM MasterWrench Service MotoMix
®
®
®
®
®
®
®
OILOMATIC ROCK BOSS STIHL Cutquik STIHL DUROMATIC STIHL Quickstop STIHL ROLLOMATIC STIHL WOOD BOSS TIMBERSPORTS WOOD BOSS YARD BOSS
®
®
®
®
®
®
®
®
®
®
Algunos de las marcas comerciales de STIHL por ley común
4-MIX ™ BioPlus ™ Easy2Start ™ EasySpool ™ ElastoStart ™ Ematic ™ FixCut ™ HT Plus ™ IntelliCarb ™ Master Control Lever ™ Micro ™ Pro Mark ™
Quad Power ™ Quiet Line ™ STIHL Arctic ™ STIHL Compact ™ STIHL HomeScaper Series ™ STIHL Interchangeable Attachment
Series ™ STIHL M-Tronic ™ STIHL MiniBoss ™ STIHL MotoPlus 4 ™ STIHL Multi-Cut HomeScaper Series ™ Stihl Outfitters ™ STIHL PICCO ™ STIHL PolyCut ™ STIHL PowerSweep ™ STIHL Precision Series ™ STIHL Protech ™ STIHL RAPID ™ STIHL SuperCut ™ STIHL Territory ™ TapAction ™ TrimCut ™ Esta lista de marcas comerciales está
sujeta a cambios. Queda terminantemente prohibido todo
uso de estas marcas comerciales sin el consentimiento expreso por escrito de ANDREAS STIHL AG & Co. KG, Waiblingen.
KM 56 R, KM 56 RC
71
español / EE.UU
72
KM 56 R, KM 56 RC
WARNING
ADVERTENCIA
The engine exhaust from this product
contains chemicals known to the State
of California to cause cancer, birth
defects or other reproductive harm.
0458-540-8621-C
englisch / spanisch USA
englisch / spanisch USA
G U
U
www.stihl.com
El gas de escape del motor de esta máquina
contiene productos químicos que en el estado de
California son considerados como causantes de
cáncer, defectos de nacimiento u otros efectos
nocivos para los órganos de la reproducción.
*04585408621C*
0458-540-8621-C
Loading...
