Stihl KM 130 R User Manual

STIHL KM 130 R
WARNING
Read Instruction Manual thoroughly before use and follow all safety precautions – improper use can cause serious or fatal injury.
Antes de usar la máquina lea y siga todas las precauciones de seguridad dadas en el manual de instrucciones – el uso incorrecto puede causar lesiones graves o mortales.
{
Instruction Manual Manual de instrucciones
Instruction Manual 1 - 32
Manual de instrucciones 33 - 67
Contents
English
KombiSystem 2 Guide to Using this Manual 2 Safety Precautions and Working
Techniques 3 Approved KombiTools 10 Mounting the Loop Handle 11 Adjusting the Throttle Cable 12 4-MIX Engine 12
Original Instruction ManualPrinted on chlorine-free paper
Fuel 12 Fueling 13 Starting / Stopping the Engine 14 Operating Instructions 16 Replacing the Air Filter 17 Engine Management 17 Adjusting the Carburetor 17 Spark Arresting Screen in Muffler 18 Spark Plug 19 Rewind Starter 20 Storing the Machine 20 Inspections and Maintenance by
Dealer 21 Maintenance and Care 22
Printing inks contain vegetable oils, paper can be recycled.
Main Parts 24 Specifications 25 Special Accessories 26 Maintenance and Repairs 26 Disposal 27 STIHL Incorporated Federal
Emission Control Warranty Statement 27
STIHL Incorporated California Exhaust and Evaporative Emissions Control Warranty Statement 29
Trademarks 31
Allow only persons who fully understand the manuals of the KombiEngine and the KombiTool to operate this power tool combination.
To receive maximum performance and satisfaction from your STIHL power tool, it is important that you read, understand and follow the safety precautions and the operating and maintenance instructions in chapter "Safety Precautions and Working Techniques" before using your power tool. For further information you can go to www.stihlusa.com.
Contact your STIHL dealer or the STIHL distributor for your area if you do not understand any of the instructions in the two manuals.
WARNING
Because this KombiEngine is the engine for a high-speed power tool, some special safety precautions must be observed to reduce the risk of personal injury. Careless or improper use may cause serious or even fatal injury.
{
© ANDREAS STIHL AG & Co. KG, 2014
0458-466-8621-A. VA4.D14.
0000006266_005_GB
KM 130 R
This instruction manual is protected by copyright. All rights reserved, especially the rights to reproduce, translate and process with electronic systems.
1
English
. . . .
002BA530 KN
+
+
KombiSystem
In the STIHL KombiSystem a number of different KombiEngines and KombiTools can be combined to produce a power tool. In this instruction manual the functional unit formed by the KombiEngine and KombiTool is referred to as the power tool.
Therefore, the separate instruction manuals for the KombiEngine and KombiTool should be used together for the power tool.
Always read and and make sure you understand both instruction manuals before using your power tool for the first time and keep them in a safe place for future reference.
Guide to Using this Manual
Pictograms
The meanings of the pictograms attached to or embossed on the machine are explained in this manual.
Depending on the model concerned, the following pictograms may be on your machine.
Fuel tank for gasoline and engine oil mixture
Press to operate decom­pression valve
Manual fuel pump
Press to operate manual fuel pump
Filler hole for gear lubricant
Air intake summer mode
Air intake winter mode
Symbols in Text
Many operating and safety instructions are supported by illustrations.
The individual steps or procedures described in the manual may be marked in different ways:
N A bullet marks a step or procedure. A description of a step or procedure that
refers directly to an illustration may contain item numbers that appear in the illustration. Example:
N Loosen the screw (1). N Lever (2) ...
In addition to the operating instructions, this manual may contain paragraphs that require your special attention. Such paragraphs are marked with the symbols and signal words described below:
DANGER
Indicates an imminent risk of severe or fatal injury.
WARNING
Indicates a hazardous situation which, if not avoided, could result in severe or fatal injury.
NOTICE
Indicates a risk of property damage, including damage to the machine or its individual components.
2
Handle heating
KM 130 R
English
Engineering Improvements
STIHL’s philosophy is to continually improve all of its products. As a result, engineering changes and improvements are made from time to time. Therefore, some changes, modifications and improvements may not be covered in this manual. If the operating characteristics or the appearance of your machine differs from those described in this manual, please contact your STIHL dealer or the STIHL distributor for your area for assistance.
Safety Precautions and Working Techniques
Because this KombiEn­gine is the engine for a high-speed power tool, special safety precau­tions must be observed to reduce the risk of per­sonal injury.
It is important that you read, fully understand and observe the following safety precautions and warnings. Read the instruction manuals and the safety precautions of your KombiEngine and KombiTool periodically. Careless or improper use may cause serious or fatal injury.
Have your STIHL dealer show you how to operate your power tool. Observe all applicable local safety regulations, standards and ordinances.
WARNING
Do not lend or rent your power tool without the instruction manuals. Be sure that anyone using it understands the information contained in these manuals.
Use your power tool only for the applications described in the instruction manual of the KombiTool you are using.
WARNING
Do not use it for other purposes, since misuse may result in personal injury or property damage, including damage to the machine.
WARNING
Minors should never be allowed to use this power tool. Bystanders, especially children, and animals should not be allowed in the area where it is in use.
WARNING
To reduce the risk of injury to bystanders and damage to property, never let your power tool run unattended. When it is not in use (e.g. during a work break), shut it off and make sure that unauthorized persons do not use it.
Most of these safety precautions and warnings apply to the use of all STIHL power tools. Different models may have different parts and controls. See the appropriate section of your KombiEngine and KombiTool instruction manuals for a description of the controls and the function of the parts of your model.
Do not clean your machine with a pressure washer. The solid jet of water may damage parts of the machine.
Safe use of a KombiEngine involves
1. the operator
2. the power tool
3. the use of the power tool
KM 130 R
3
English
THE OPERATOR
Physical Condition You must be in good physical condition
and mental health and not under the influence of any substance (drugs, alcohol, etc.) which might impair vision, dexterity or judgment. Do not operate this machine when you are fatigued.
WARNING
Be alert – if you get tired, take a break. Tiredness may result in loss of control. Working with any power tool can be strenuous. If you have any condition that might be aggravated by strenuous work, check with your doctor before operating this machine.
WARNING
Prolonged use of a power tool (or other machines) exposing the operator to vibrations may produce whitefinger disease (Raynaud's phenomenon) or carpal tunnel syndrome.
These conditions reduce the hand's ability to feel and regulate temperature, produce numbness and burning sensations and may cause nerve and circulation damage and tissue necrosis.
All factors which contribute to whitefinger disease are not known, but cold weather, smoking and diseases or physical conditions that affect blood vessels and blood transport, as well as high vibration levels and long periods of
exposure to vibration are mentioned as factors in the development of whitefinger disease. In order to reduce the risk of whitefinger disease and carpal tunnel syndrome, please note the following:
Most STIHL power tools are
available with an anti-vibration ("AV") system designed to reduce the transmission of vibrations created by the machine to the operator's hands. An AV system is recommended for those persons using power tools on a regular or sustained basis.
Wear gloves – not while using
KombiTool BG-KM – and keep your hands warm.
Keep the AV system well
maintained. A power tool with loose components or with damaged or worn AV elements will tend to have higher vibration levels.
Maintain a firm grip at all times, but
do not squeeze the handles with constant, excessive pressure. Take frequent breaks.
All the above-mentioned precautions do not guarantee that you will not sustain whitefinger disease or carpal tunnel syndrome. Therefore, continual and regular users should closely monitor the condition of their hands and fingers. If any of the above symptoms appear, seek medical advice immediately.
WARNING
The ignition system of the STIHL unit produces an electromagnetic field of a very low intensity. This field may interfere with some pacemakers. To reduce the risk of serious or fatal injury,
persons with a pacemaker should consult their physician and the pacemaker manufacturer before operating this tool.
Proper Clothing
WARNING
To reduce the risk of injury, the operator should wear proper protective apparel.
WARNING
Power tool noise may damage your hearing. Wear sound barriers (ear plugs or ear mufflers) to protect your hearing. Continual and regular users should have their hearing checked regularly.
Be particularly alert and cautious when wearing hearing protection because your ability to hear warnings (shouts, alarms, etc.) is restricted.
Avoid loose-fitting jack­ets, scarfs, neckties, jewelry, flared or cuffed pants, unconfined long hair or anything that could become caught on branches, brush or the moving parts of the unit. Secure hair so it is above shoulder level.
For further instructions on proper clothing see the safety precautions in the instruction manual of the KombiTool you are using.
4
KM 130 R
English
THE POWER TOOL
For illustrations and definitions of the power tool parts see the chapter on "Main Parts."
WARNING
Never modify this power tool in any way. Only attachments supplied by STIHL or expressly approved by STIHL for use with the specific STIHL KombiEngine model are authorized. Although certain unauthorized attachments are useable with STIHL power tools, their use may, in fact, be extremely dangerous.
If this tool is subjected to unusually high loads for which it was not designed (e.g. heavy impact or a fall), always check that it is in good condition before continuing work. Check in particular that the fuel system is tight (no leaks) and that the controls and safety devices are working properly. Do not continue operating this machine if it is damaged. In case of doubt, have it checked by your STIHL servicing dealer.
THE USE OF THE POWER TOOL
Transporting the Power Tool
WARNING
Always switch off the engine and make sure the working tool has stopped before putting a power tool down. When transporting your power tool in a vehicle, properly secure it to prevent turnover, fuel spillage and damage to the power tool.

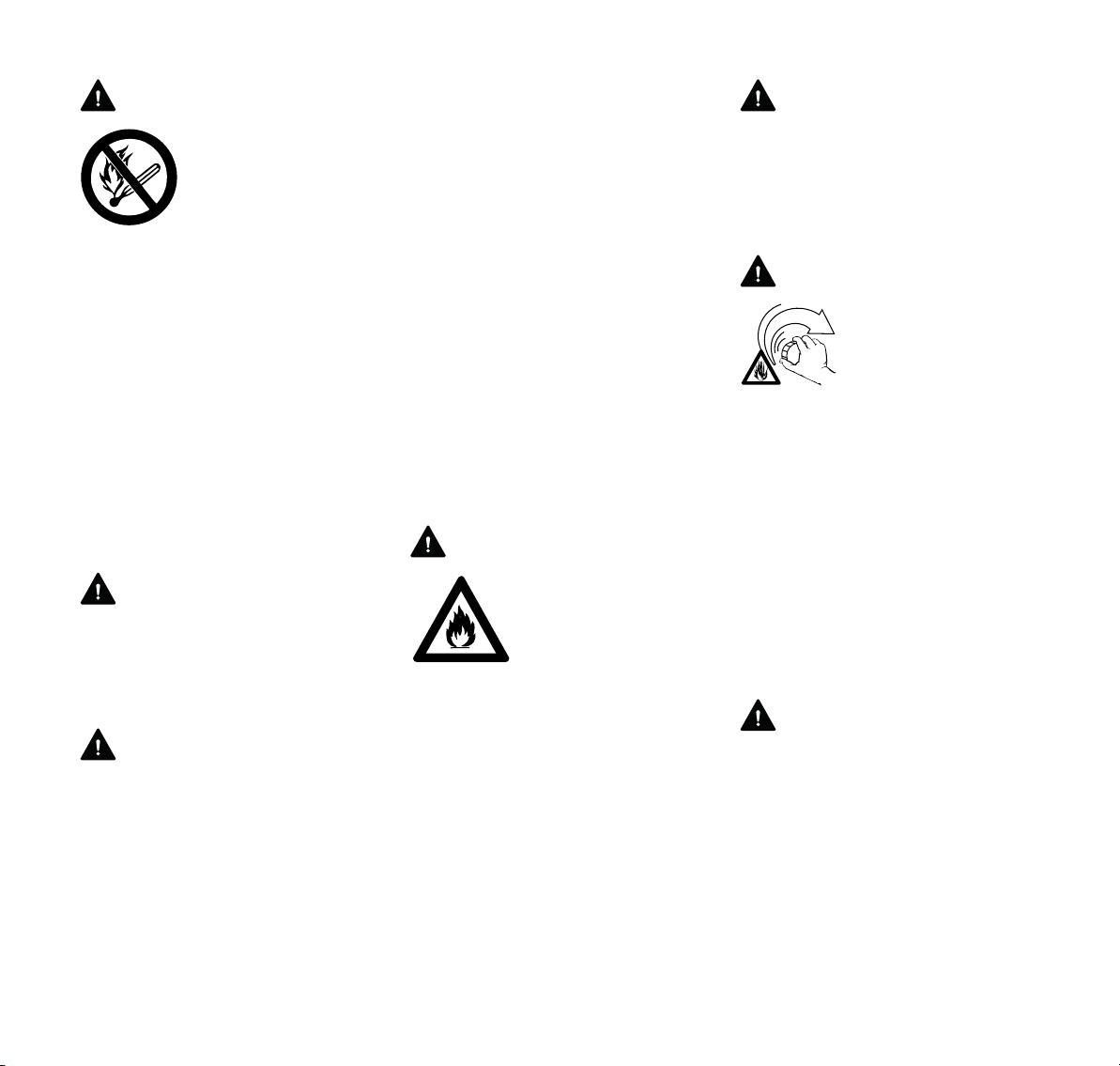

Fuel Your STIHL power tool uses an oil-
gasoline mixture for fuel (see the chapter on "Fuel" of your instruction manual).
WARNING
Gasoline is an extremely flammable fuel. If spilled and ignited by a spark or other ignition source, it can cause fire and seri­ous burn injury or property damage. Use extreme caution when handling gasoline or fuel mix. Do not smoke or bring any fire or flame near the fuel or the power tool. Note that combusti­ble fuel vapor may escape from the fuel system.
Fueling Instructions
WARNING
To reduce the risk of serious injury from burns, never attempt to refuel the unit until it has been completely removed from the operator.
WARNING
Fuel your power tool in well-ventilated areas, outdoors. Always shut off the engine and allow it to cool before refueling. Gasoline vapor pressure may build up inside the fuel tank depending on the fuel used, the weather conditions and the tank venting system.
In order to reduce the risk of burns and other personal injury from escaping gas vapor and fumes, remove the fuel filler cap on your power tool carefully so as to allow any pressure build-up in the tank to release slowly. Never remove the fuel filler cap while the engine is running.
Select bare ground for fueling and move at least 10 feet (3 m) from the fueling spot before starting the engine. Wipe off any spilled fuel before starting your machine.
WARNING
Check for fuel leakage while refueling and during operation. If fuel leakage is found, do not start or run the engine until the leak is fixed and any spilled fuel has been wiped away. Take care not to get fuel on your clothing. If this happens, change your clothing immediately.
WARNING
In order to reduce the risk of fuel spillage and fire from an improperly tightened fuel cap, correctly position and tighten the fuel cap in the fuel tank opening.
KM 130 R
5
English
WARNING
Unit vibrations can cause an improperly tightened fuel filler cap to loosen or come off and spill quanti­ties of fuel. In order to reduce the risk of fuel spillage and fire, tighten the fuel filler cap by hand as securely as possible.
See also the "Fueling" chapter in your Instruction Manual for additional information.
Before Starting
WARNING
Always check your power tool for proper condition and operation before starting, particularly the throttle trigger, throttle trigger lockout, stop switch, cutting attachment, deflector and harness. The throttle trigger must move freely and always spring back to the idle position. Never attempt to modify the controls or safety devices.
WARNING
Check fuel system for leaks, especially the visible parts, e.g., filler cap, hose connections, manual fuel pump (only for power tools equipped with a manual fuel pump). Do not start the engine if there are leaks or damage – risk of fire! Have the machine repaired by a servicing dealer before using it.
WARNING
Never operate your power tool if it is damaged, improperly adjusted or maintained, or not completely or securely assembled.
WARNING
Check that the spark plug boot is securely mounted on the spark plug – a loose boot may cause arcing that could ignite combustible fumes and cause a fire.
Keep the handles clean and dry at all times; it is particularly important to keep them free of moisture, pitch, oil, fuel mix, grease or resin in order for you to maintain a firm grip and properly control your power tool.
Starting Start the engine at least 10 feet (3 m)
from the fueling spot, outdoors only. For specific starting instructions, see the
appropriate section of your KombiEngine and KombiTool manuals. Place the power tool on firm ground or other solid surface in an open area. Maintain good balance and secure footing.
WARNING
To reduce the risk of injury from loss of control, be absolutely sure that the working tool is clear of you and all other obstructions and objects, including the ground, because when the engine starts at starting-throttle, engine speed will be fast enough for the clutch to engage and move the working tool.
Once the engine has started, immediately blip the throttle trigger, which should release the starting throttle and allow the engine to slow down to idle.
WARNING
Your power tool is a one-person machine. Do not allow other persons in the general work area, even when starting.
WARNING
To reduce the risk of injury from loss of control, do not attempt to "drop start" your power tool.
WARNING
When you pull the starter grip, do not wrap the starter rope around your hand. Do not let the grip snap back, but guide the starter rope to rewind it properly. Failure to follow this procedure may result in injury to your hand or fingers and may damage the starter mechanism.
See also the safety precautions on Starting in the instruction manual of the KombiTool.
Important Adjustments
WARNING
To reduce the risk of personal injury from loss of control or contact with the running working tool, do not use a power tool with incorrect idle adjustment. At correct idle speed, the working tool
6
KM 130 R
English
002BA057 KN
should not move. For directions on how to adjust idle speed, see the appropriate section of your instruction manual.
If you cannot set the correct idle speed, have your STIHL dealer check your power tool and make proper adjustments and repairs.

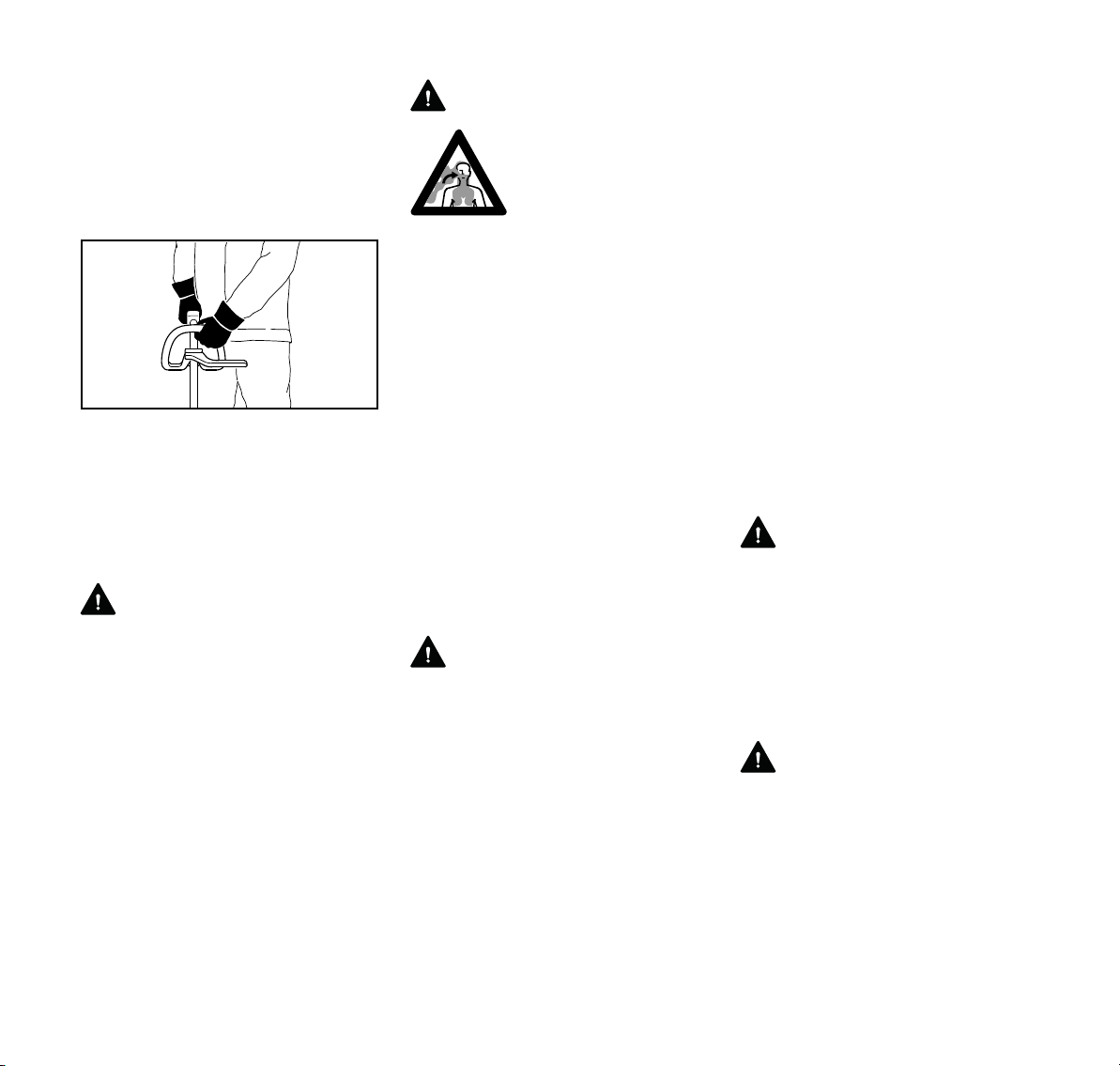

During Operation Holding and Controlling the Power Tool
Always hold the unit firmly with both hands on the handles while you are working. Wrap your fingers and thumbs around the handles.
Your right hand should grip the rear handle. This also applies to left-handers.
WARNING
To reduce the risk of injury from loss of control, never work on a ladder or on any other insecure support.
Working Conditions Operate and start your power tool only
outdoors in a well ventilated area. Operate it under good visibility and daylight conditions only. Work carefully.
WARNING
As soon as the engine is running, this product gen­erates toxic exhaust fumes containing chemi­cals, such as unburned hydrocarbons (including benzene) and carbon monoxide, that are known to cause respira­tory problems, cancer, birth defects, or other reproductive harm. Some of the gases (e.g. carbon monoxide) may be color­less and odorless. To reduce the risk of serious or fatal injury/illness from inhaling toxic fumes, never run the machine indoors or in poorly venti­lated locations.
WARNING
Inhalation of certain dusts, especially organic dusts such as mold or pollen, can cause susceptible persons to have an allergic or asthmatic reaction.
Substantial or repeated inhalation of dust and other airborne contaminants, in particular those with a smaller particle size, may cause respiratory or other illnesses. Control dust at the source where possible. Use good work practices, such as operating the unit so that the wind or operating process directs any dust raised by the power tool
away from the operator. Follow the recommendations of EPA/OSHA/NIOSH and occupational and trade associations with respect to dust ("particulate matter"). When the inhalation of dust cannot be substantially controlled, i.e., kept at or near the ambient (background) level, the operator and any bystanders should wear a respirator approved by NIOSH/MSHA for the type of dust encountered.
Operating Instructions
WARNING
Do not operate your power tool using the starting throttle lock, as you do not have control of the engine speed.
In the event of an emergency, switch off the engine immediately – move the slide control / stop switch to 0 or STOP.
WARNING
Never modify your muffler. Any modification could cause an increase in heat radiation, sparks or sound level, thereby increasing the risk of fire, burn injury or hearing loss. You may also permanently damage the engine. Have your muffler serviced and repaired by your STIHL servicing dealer only.
WARNING
The muffler and other parts of the engine (e.g. fins of the cylinder, spark plug) become hot during operation and remain hot for a while after stopping the engine.
KM 130 R
7
English
To reduce risk of burns, do not touch the muffler and other parts while they are hot. Keep the area around the muffler clean. Remove excess lubricant and all debris such as pine needles, branches or leaves. Let the engine cool down sitting on concrete, metal, bare ground or solid wood away from any combustible substances.
WARNING
An improperly mounted or damaged cylinder housing or a damaged/deformed muffler shell may interfere with the cooling process of the muffler. To reduce the risk of fire or burn injury, do not continue work with a damaged or improperly mounted cylinder housing or a damaged/deformed muffler shell.
Your muffler is furnished with a spark arresting screen designed to reduce the risk of fire from the emission of hot particles. Never operate your unit with a missing or damaged spark arresting screen. If your gas/oil mix ratio is correct (i.e., not too rich), this screen will normally stay clean as a result of the heat from the muffler and need no service or maintenance. If you experience loss of performance and you suspect a clogged screen, have your muffler maintained by a STIHL servicing dealer. Some state or federal laws or regulations may require a properly maintained spark arrestor for certain uses. See the "Maintenance, Repair and Storing" section of these Safety Precautions. Remember that the risk of a brush or forest fire is greater in hot or dry conditions.
WARNING
Some STIHL power tools are equipped with a cata­lytic converter, which is designed to reduce the exhaust emissions of the engine by a chemical process in the muffler. Due to this process, the muffler does not cool down as rapidly as con­ventional mufflers when the engine returns to idle or is shut off. To reduce the risk of fire and burn injuries when using a cat­alytic converter, always set your power tool down in the upright position and never locate it where the muffler is near dry brush, grass, wood chips or other combustible materi­als while it is still hot.
MAINTENANCE, REPAIR AND STORING
Maintenance, replacement, or repair of the emission control devices and systems may be performed by any nonroad engine repair establishment or individual. However, if you make a warranty claim for a component which has not been serviced or maintained properly or if nonapproved replacement parts were used, STIHL may deny coverage.
WARNING
Use only identical STIHL replacement parts for maintenance and repair. Use of non-STIHL parts may cause serious or fatal injury.
Strictly follow the maintenance and repair instructions in the appropriate section of your KombiEngine and KombiTool instruction manuals. Please refer to the maintenance charts respectively the maintenance notes in these manuals.
WARNING
Always stop the engine and make sure that the working tool is stopped before doing any maintenance or repair work or cleaning the power tool. Do not attempt any maintenance or repair work not described in your KombiEngine and KombiTool instruction manuals. Have such work performed by your STIHL servicing dealer only.
WARNING
Use the specified spark plug and make sure it and the ignition lead are always clean and in good condition. Always press spark plug boot snugly onto spark plug terminal of the proper size. (Note: If terminal has detachable SAE adapter nut, it must be attached.) A loose connection between spark plug boot and the ignition wire connector in the boot may create arcing that could ignite combustible fumes and cause a fire.
8
KM 130 R
English
WARNING
Never test the ignition system with the ignition wire boot removed from the spark plug or with a removed spark plug, since uncontained sparking may cause a fire.
WARNING
Do not operate your power tool if the muffler is damaged, missing or modified. An improperly maintained muffler will increase the risk of fire and hearing loss. Your muffler is equipped with a spark­arresting screen to reduce the risk of fire; never operate your power tool if the screen is missing, damaged or clogged. Remember that the risk of a brush or forest fire is greater in hot or dry weather.
In California, it is a violation of § 4442 or
§ 4443 of the Public Resources Code to use or operate gasoline-powered tools on forest-covered, brush-covered or grass-covered land unless the engine’s exhaust system is equipped with a complying spark arrester that is maintained in effective working order. The owner/operator of this product is responsible for properly maintaining the spark arrester. Other states or governmental entities/agencies, such as the U.S. Forest Service, may have
similar requirements. Contact your local fire agency or forest service for the laws or regulations relating to fire protection requirements.
Store the power tool in a dry and high or locked location out of reach of children.
Before storing for longer than a few days, always empty the fuel tank. See chapter "Storing the machine" in this manual.
KM 130 R
9
English
HT-KM
BF-KM
464BA002 KN
FCS-KM
FCB-KM
KW-KM
KB-KM
FH-KM
FS-KM
FS-KM
FSB-KM
BG-KM
FBD-KM
Approved KombiTools
The following STIHL KombiTools may be mounted on the KombiEngine:
KombiTool Application FS-KM Brushcutter with
mowing head
FS-KM Brushcutter with
grass cutting blade
FSB-KM Brushcutter with
mowing head
HL-KM 135° Hedge trimmer,
adjustable HL-KM 0° Hedge trimmer FH-KM 135° Power scythe BG-KM Blower HT-KM Pole pruner BF-KM Pick tines FBD-KM Redefining bed
edges FCB-KM Lawn edging FCS-KM Lawn edging KB-KM Bristle brush KW-KM PowerSweep
The barrier bar supplied with the machine must be mounted to the loop handle – see also "Mounting the Loop Handle".
10
KM 130 R
Mounting the Loop Handle
2
002BA098 KN
1
1
5
4
002BA099 KN
2
3
6
7
A
9
8
4
002BA353 KN
A barrier bar is supplied with the machine. Attach the barrier bar to the loop handle.
English
N Insert square nuts (1) in the barrier
bar (2) – the holes must line up
KM 130 R
N Insert the clamp (3) in the loop
handle (4) and position them together on the shaft (5)
N Position clamp (6) N Position barrier bar (2) – note
position!
N Line up the holes N Insert bolts (7) in the holes – and
screw them into the barrier bar as far as possible
N Fit the loop handle (4) at a distance
of (A) approx. 20 cm (8 in) forward of the control handle (8)
N Orient the loop handle N Tighten the bolts – lock the nuts if
necessary
The sleeve (9) is present depending on the country and must be located between the loop handle and control handle.
Always leave the barrier bar attached.
11
English
002BA163 KN
2
1
002BA161 KN
Adjusting the Throttle Cable
A properly adjusted throttle cable is the precondition for correct operation in the full throttle, starting throttle and idle positions.
N Adjust the throttle cable only when
the unit is completely and properly assembled.
N Use a suitable tool to push the slide
to the end of the slot (see illustration).
N Press down the throttle trigger
lockout (1) and squeeze the throttle trigger (2) (full throttle) – this sets the throttle cable correctly.
4-MIX Engine Fuel
The STIHL 4-MIX engine features mixture lubrication and must be run on a fuel mixture of gasoline and engine oil.
It operates otherwise on the 4-stroke principle.
This engine is certified to operate on unleaded gasoline and the STIHL two­stroke engine oil at a mix ratio of 50:1.
Your engine requires a mixture of high­quality gasoline and two-stroke air cooled engine oil.
Use mid-grade unleaded gasoline with a minimum octane rating of 89 ((R+M)/2) and no more than 10% ethanol content.
Fuel with a lower octane rating may increase engine temperatures. This, in turn, increases the risk of piston seizure and damage to the engine.
The chemical composition of the fuel is also important. Some fuel additives not only detrimentally affect elastomers (carburetor diaphragms, oil seals, fuel lines, etc.), but magnesium castings and catalytic converters as well. This could cause running problems or even damage the engine. For this reason STIHL recommends that you use only high-quality unleaded gasoline!
Gasoline with an ethanol content of more than 10% can cause running problems and major damage in engines and should not be used.
The ethanol content in gasoline affects engine running speed – it may be necessary to readjust the carburetor if you use fuels with various ethanol contents.
12
KM 130 R
English
266BA028 KN
WARNING
To reduce the risk of personal injury from loss of control and / or contact with the running cutting tool, do not use your unit with incorrect idle adjustment. At correct idle speed, the cutting tool should not move.
If your power tool shows an incorrect idle adjustment, have your STIHL dealer check your power tool and make proper adjustments and repairs.
The idle speed and maximum speed of the engine change if you switch from a fuel with a certain ethanol content to another fuel with a much higher or lower ethanol content.
This problem can be avoided by always using fuel with the same ethanol content.
Use STIHL HP Ultra oil or ask your dealer for an equivalent high quality oil to ensure the maximum performance of the product for the full lifetime.
To meet the requirements of EPA 40CFR90/1054 we recommend to use STIHL HP Ultra oil.
Do not use BIA or TCW rated (two­stroke water cooled) mix oils or other mix oils that state they are for use in both water cooled and air cooled engines (e.g., outboard motors, snowmobiles, chain saws, mopeds, etc.).
Take care when handling gasoline. Avoid direct contact with the skin and avoid inhaling fuel vapor. When filling at the pump, first remove the container from your vehicle and place the
container on the ground before filling. To reduce the risk of sparks from static discharge and resulting fire and/or explosion, do not fill fuel containers that are sitting in or on a vehicle or trailer.
The container should be kept tightly closed in order to limit the amount of moisture that gets into the mixture.
The machine’s fuel tank should be cleaned as necessary.
Fuel mix ages
Only mix sufficient fuel for a few days work, not to exceed 30 days of storage. Store in approved fuel-containers only. When mixing, pour oil into the container first, and then add gasoline. Close the container and shake it vigorously by hand to ensure proper mixing of the oil with the fuel.
Gasoline Oil (STIHL 50:1 or equiva-
lent high-quality oils)
Liters Liters (ml)
10.02(20) 5 0.10 (100) 10 0.20 (200) 20 0.40 (400)
US gal. US fl.oz.
12.6 2 1/2 6.4
512.8 Dispose of empty mixing-oil containers
only at authorized disposal locations.
Fueling
Preparations
N Before fueling, clean the filler cap
and the area around it to ensure that no dirt falls into the tank.
Always thoroughly shake the mixture in the canister before fueling your machine.
N Position the machine so that the
filler cap is facing up.
WARNING
In order to reduce the risk of fire and personal injury from escaping gas vapor and fumes, remove the fuel filler cap carefully so as to allow any pressure build-up in the tank to release slowly.
KM 130 R
13
English
2709BA003 KN
2709BA004 KN
3
STOP
2
5 6
4
7
002BA181 KN
START
STOP-
1
249BA057 KN
9
8
Opening the filler cap
N Turn the cap counterclockwise until
it can be removed from the tank opening.
N Remove the filler cap.
Refueling
Take care not to spill fuel while fueling and do not overfill the tank.
Closing the filler cap
Starting / Stopping the Engine
Controls
1 Throttle trigger lockout 2 Throttle trigger 3 Slide control
Symbol on slide control 7 h – stop symbol and arrow. To stop
the engine, push the slide control in the direction of the arrow on the stop symbol (h) to STOP-0.
Starting
N Press down the trigger lockout lever
and squeeze the throttle trigger
N and hold them in that position. N Move the slide control to START
and hold it there.
N Now release the throttle trigger,
slide control and trigger lockout in that order. This is the starting throttle position.
N Position cap. N Turn the cap clockwise as far as it
will go and tighten it as securely as possible by hand.
14
Positions of slide control 4STOP-0 – engine off – ignition is
switched off
5 F – normal run position – the engine
is running or can start
6START – ignition is switched on –
the engine can start
N Set the choke knob (8)
KM 130 R
English
552BA014 KN
552BA015 KN
552BA016 KN
g If the engine is cold e for warm start – also use this posi-
tion if the engine has been running but is still cold.
N Press the manual fuel pump
bulb (9) at least five times – even if the bulb is filled with fuel.
Cranking
N Place the power tool on the ground
so that it rests on the machine support: Check that the working tool is not touching the ground or any
other obstacles – see also "Starting / Stopping the Engine" in the KombiTool instruction manual.
N Make sure you have a firm footing,
either standing, stooping or kneeling.
N Hold the unit firmly on the ground
with your left hand and press down – thumb under the fan housing – do not touch the throttle trigger or trigger lockout.
NOTICE
Do not stand or kneel on the drive tube.
N Hold the starter grip with your right
hand.
N Pull the starter grip slowly until you
feel it engage and then give it a brisk strong pull.
NOTICE
Do not pull out the starter rope all the way – it might otherwise break.
N Do not let the starter grip snap back.
Guide it slowly back into the housing so that the starter rope can rewind properly.
N Continue cranking. N After no more than five pulls, move
the choke knob to e.
When engine begins to fire N Continue cranking.
As soon as the engine runs N Blip the throttle trigger immediately.
The slide control moves to the normal run position F – and the engine settles down to idle speed.
WARNING
Make sure the carburetor is correctly adjusted. The working tool must not move when the engine is idling.
Your machine is now ready for operation.
Stopping the Engine
N Push the slide control in the
direction of the arrow on the stop symbol (h) to STOP-0.
At very low outside temperatures
KM 130 R
As soon as the engine runs:
15
English
N Blip the throttle trigger to disengage
the starting throttle position. The slide control moves to the normal run position F – and the engine settles down to idle speed.
N Open the throttle slightly. N Warm up the engine for a short
period.
If engine does not start
Choke knob If you did not turn the choke knob to e
quickly enough after the engine began to fire, the combustion chamber is flooded.
N Turn the choke knob to e N Set the slide control, lockout lever
and throttle trigger to the starting throttle position.
N Start the engine by pulling the
starter rope briskly – 10 to 20 pulls may be necessary.
If the engine still does not start
N Move the slide control to STOP-0. N Remove the spark plug – see
"Spark Plug".
N Dry the spark plug. N Crank the engine several times with
the starter to clear the combustion chamber.
N Refit the spark plug – see "Spark
Plug".
N Move the slide control to START. N Set the choke knob to e – even if
the engine is cold.
N Now start the engine.
Throttle cable adjustment N Check adjustment of throttle cable –
see chapter on "Adjusting the Throttle Cable".
Fuel tank run until completely dry N After refueling, press the manual
fuel pump bulb at least five times – even if the bulb is filled with fuel.
N Set the choke knob according to
engine temperature.
N Now start the engine.
Operating Instructions
During break-in period
A factory-new machine should not be run at high revs (full throttle off load) for the first three tank fillings. This avoids unnecessary high loads during the break-in period. As all moving parts have to bed in during the break-in period, the frictional resistances in the engine are greater during this period. The engine develops its maximum power after about 5 to 15 tank fillings.
During Operation
After a long period of full throttle operation, allow the engine to run for a short while at idle speed so that engine heat can be dissipated by the flow of cooling air. This protects engine­mounted components (ignition, carburetor) from thermal overload.
After Finishing Work
Storing for a short period: Wait for the engine to cool down. Empty the fuel tank and keep the machine in a dry place, well away from sources of ignition, until you need it again. For longer out-of­service periods – see "Storing the Machine".
16
KM 130 R
English
3
1
273BA005 KN
2
4
249BA066 KN
LA
H L
Replacing the Air Filter
Filters have an average life of more than a year. Do not remove the filter cover or replace the air filter as long as there is no noticeable loss of power.
If there is a noticeable loss of engine power
N Turn the choke knob to g. N Take out the screw (1). N Remove the filter cover (2). N Clean away loose dirt from around
the filter.
N Remove the filter element (3). N Replace dirty or damaged filters. N Replace any damaged parts. N Fit the new air filter in the filter
housing (4).
N Fit the filter cover. N Insert the screw and tighten it down
firmly.
Engine Management Adjusting the Carburetor
Exhaust emissions are controlled by the design of the fundamental engine parameters and components (e.g. carburation, ignition, timing and valve or port timing) without the addition of any major hardware.
The carburetor comes from the factory with a standard setting.
On this machine it is no longer necessary to adjust the carburetor.
It has been set at the factory to provide an optimum fuel-air mixture in all locations and operating conditions.
Adjusting Idle Speed
Engine stops while idling
N Warm up the engine for about
3 minutes.
N Turn the idle speed screw (LA)
slowly clockwise until the engine runs smoothly – the cutting attachment must not move.
Cutting attachment runs when engine is idling
N Turn the idle speed screw (LA)
counterclockwise until the cutting attachment stops running and then turn the screw about another 1/2 to 3/4 turn in the same direction.
KM 130 R
17
English
249BA059 KN
1
2
3
2
249BA060 KN
WARNING
If the working tool or cutting attachment continues to run when the engine is idling, have your machine checked and repaired by your servicing dealer.
Spark Arresting Screen in Muffler
The muffler is equipped with a spark arresting screen.
N If the engine is down on power,
check the spark arresting screen in the muffler.
N Wait for the muffler to cool down. N Move the slide control to STOP-0.
N Take out the screw (1).
N Take out the screw (4). N Lift the spark arresting screen (5)
and pull it out.
N Clean the spark arresting screen. If
the screen is damaged or heavily carbonized, fit a new one.
N Refit the spark arresting screen. N Insert screw and tighten it down
firmly.
N Install the shroud.
18
N Take out the screws (2) and remove
the shroud (3).
KM 130 R
English
1
249BA063 KN
000BA039 KN
A
2
1
002BA363 KN
Spark Plug
If engine is down on power, difficult to start or runs poorly at idling speed, first check the spark plug.
Fit a new spark plug after approx. 100 operating hours or earlier if the electrodes are badly eroded.
Wrong fuel mix (too much engine oil in the gasoline), a dirty air filter and unfavorable running conditions (mostly at part throttle etc.) affect the condition of the spark plug. These factors cause deposits to form on the insulator nose which may result in trouble in operation.
Removing the spark plug
N Move the slide control to STOP-0.
N Pull off the spark plug boot (1). N Unscrew the spark plug.
Checking the Spark Plug
N Clean dirty spark plug. N Check electrode gap (A) and
readjust if necessary – see chapter "Specifications."
N Use only resistor type spark plugs of
the approved range.
Rectify problems which have caused fouling of spark plug:
too much oil in fuel mix, dirty air filter, unfavorable running conditions, e.g.
operating at part load.
WARNING
To reduce the risk of fire and burn injury, use only spark plugs authorized by STIHL. Always press spark plug boot (1) snugly onto spark plug terminal (2) of the proper size. (Note: If terminal has detachable SAE adapter nut, it must be securely attached.) A loose connection between spark plug boot and ignition wire connector in the boot may create arcing that could ignite combustible fumes and cause a fire.
KM 130 R
19
English
2
002BA446 KN
1
Installing the Spark Plug
N Screw the spark plug (2) into the
cylinder and fit the boot (1) (press it down firmly).
Rewind Starter Storing the Machine
To help prolong the wear life of the starter rope, observe the following points:
N Pull the starter rope only in the
direction specified.
N Do not pull the rope over the edge of
the guide bushing.
N Do not pull out the rope more than
specified.
N Do not allow the starter grip to snap
back, guide it back into the housing slowly – see chapter on "Starting / Stopping the Engine."
Have a damaged starter rope replaced by your dealer before it breaks completely. STIHL recommends that you have servicing and repair work carried out exclusively by an authorized STIHL servicing dealer.
For periods of about 3 months or longer N Drain and clean the fuel tank in a
well ventilated area.
N Dispose of fuel properly in
accordance with local environmental requirements.
N Run the engine until the carburetor
is dry – this helps prevent the carburetor diaphragms sticking together.
N Thoroughly clean the machine. N Remove, clean and check the
attachment. Coat metal parts with corrosion inhibiting oil.
N Store the machine in a dry and
secure location Keep out of the reach of children and other unauthorized persons.
20
KM 130 R
Inspections and Maintenance
465BA002 KN
by Dealer
Maintenance Work
STIHL recommends that you have servicing and repair work carried out exclusively by an authorized STIHL servicing dealer.
Fuel Pickup Body in Tank
N Check the pickup body in the fuel
tank every year and have it replaced if necessary.
The pickup body should be positioned in the area of the tank shown in the illustration.
English
KM 130 R
21
English
Maintenance and Care
The following intervals apply to normal operating conditions only. If your daily work­ing time is longer or operating conditions are difficult (very dusty work area, etc.), shorten the specified intervals accordingly.
before starting work
after finishing work or daily
after each refueling stop
weekly
monthly
every 12 months
if problem
if damaged
as required
Visual inspection (condition, leaks) XX
Complete machine
Control handle Check operation XX
Air filter
Manual fuel pump
Pickup body in fuel tank
Fuel tank Clean XX
Carburetor
Spark plug
Cooling inlets
Cylinder fins
Valve clearance
Combustion chamber
3)
2)
2)
EPA
Clean X
Replace any damaged parts X
Visual inspection XX
1)
Replace
Check X
Have repaired by servicing dealer
Have checked by servicing dealer
Have replaced by servicing dealer
Check idle adjustment – the working/cut­ting attachment must not move
Adjust idle speed X
Adjust electrode gap X
Replace after every 100 operating hours
Visual inspection X
Clean X
Clean X
Check and, if necessary, have adjusted by dealer after first 139 hours of operation
Clean and decoke after first 139 hours of operation, then every 150 hours of operation
2)
2)
2)
XX
XXX
X
X
X
X
X
22
KM 130 R
The following intervals apply to normal operating conditions only. If your daily work­ing time is longer or operating conditions are difficult (very dusty work area, etc.), shorten the specified intervals accordingly.
before starting work
after finishing work or daily
after each refueling stop
weekly
monthly
every 12 months
if problem
Combustion chamber
2)
CARB
Spark arresting screen in muffler
All accessible screws and nuts (not adjust­ing screws)
Anti-vibration elements
Clean after first 139 hours of operation, then every 150 hours of operation
Check XX
Clean or replace XX
Retighten X
Check XXX
Have replaced by servicing dealer
2)
Safety labels Replace X
1)
Only if there is a noticeable loss of engine power
2)
STIHL recommends an authorized STIHL servicing dealer.
3)
Remove shroud - see "Spark Arresting Screen in Muffler"
if damaged
X
English
as required
X
KM 130 R
23
English
14
11
16
13
9
7
1
3
4
17
18
8
10
466BA003 KN
#
2
5
6
12
15
Main Parts
1 Fuel Filler Cap 2 Carburetor Adjusting Screws 3 Manual Fuel Pump 4 Starter Grip 5 Muffler with Spark Arresting Screen 6 Coupling Sleeve 7 Wing Screw 8 Loop Handle 9 Barrier Bar 10 Carrying Ring 11 Slide Control 12 Throttle Trigger Lockout 13 Throttle Trigger 14 Spark Plug Boot 15 Choke Knob 16 Air Filter Cover 17 Fuel Tank 18 Machine Support # Serial Number
24
KM 130 R
English
Definitions
1 Fuel Filler Cap
For closing the fuel tank.
2 Carburetor Adjusting Screws
For tuning the carburetor.
3 Manual Fuel Pump
Provides additional fuel feed for a cold start.
4 Starter Grip
The grip of the pull starter, for starting the engine.
5 Muffler with Spark Arresting Screen
Muffler reduces exhaust noises and diverts exhaust gases away from operator. Spark arresting screen is designed to reduce the risk of fire.
6 Coupling Sleeve
Connects drive tube to lower part of drive tube (stub shaft).
7Wing Screw
Secures lower part of the drive tube (stub shaft).
8 Loop Handle
For easy control of machine during cutting work.
9 Barrier Bar
Helps keep user's feet and legs clear of the cutting attachment.
10 Carrying Ring
Connects the unit to the harness.
11 Slide Control
For starting throttle, run and stop. Keeps the choke partially open during starting and switches off the ignition to stop the engine.
12 Throttle Trigger Lockout
Must be depressed before the throttle trigger can be activated.
13 Throttle Trigger
Controls the speed of the engine.
14 Spark Plug Boot
Connects the spark plug with the ignition lead.
15 Choke Knob
Eases engine starting by enriching mixture.
16 Air Filter Cover
Covers and protects the air filter element.
17 Fuel Tank
For fuel and oil mixture.
18 Machine Support
For resting machine on the ground.
Specifications
EPA / CEPA
The Emission Compliance Period referred to on the Emissions Compliance Label indicates the number of operating hours for which the engine has been shown to meet Federal emission requirements.
Category
A = 300 hours B = 125 hours C= 50hours
CARB
The Emission Compliance Period used on the CARB-Air Index Label indicates the terms:
Extended = 300 hours Intermediate = 125 hours Moderate = 50 hours
Engine
Single cylinder four-stroke engine with mixture lubrication
KM 130 R
25
English
Displacement: 36.3 cc
(2.22 cu.in) Bore: 43 mm (1.69 in) Stroke: 25 mm (0.98 in) Engine power to
ISO 8893:
Idle speed: 2,800 rpm Cut-off speed (rated): 10,200 rpm Valve clearance Inlet valve: 0.10 mm
Exhaust valve: 0.10 mm
Ignition System
Electronic magneto ignition
Spark plug (resistor type): NKG CMR 6H
Electrode gap: 0.5 mm (0.02 in)
Fuel System
1.4 kW
(1.90 bhp)
at 8,500 rpm
(0.004 in)
(0.004 in)
Special Accessories Maintenance and Repairs
Contact your STIHL dealer for information regarding special accessories that may be available for your product.
Users of this unit should carry out only the maintenance operations described in this manual. STIHL recommends that other repair work be performed only by authorized STIHL servicing dealers.
Warranty claims following repairs can be accepted only if the repair has been performed by an authorized STIHL servicing dealer using genuine STIHL replacement parts.
Genuine STIHL parts can be identified by the STIHL part number, the { logo and, in some cases, by the STIHL parts symbol K. The symbol may appear alone on small parts.
All position diaphragm carburetor with integral fuel pump
Fuel tank capacity: 0.53 l (17.9 fl.oz)
Weight
dry, without KombiTool: 4.9 kg (10.8 lbs)
26
KM 130 R
English
000BA073 KN
Disposal
Observe all country-specific waste disposal rules and regulations.
STIHL products must not be thrown in the garbage can. Take the product, accessories and packaging to an approved disposal site for environment­friendly recycling.
Contact your STIHL servicing dealer for the latest information on waste disposal.
STIHL Incorporated Federal Emission Control Warranty Statement
Not for California
Your Warranty Rights and Obligations The U.S. Environmental Protection
Agency (EPA) and STIHL Incorporated are pleased to explain the Emission Control System Warranty on your equipment type engine. In the U.S. new 1997 and later model year small off-road equipment engines must be designed, built and equipped, at the time of sale, to meet the U.S. EPA regulations for small non road engines. The equipment engine must be free from defects in materials and workmanship which cause it to fail to conform with U.S. EPA standards for the first two years of engine use from the date of sale to the ultimate purchaser.
STIHL Incorporated must warrant the emission control system on your small off-road engine for the period of time listed below provided there has been no abuse, neglect or improper maintenance of your small off-road equipment engine.
Your emission control system includes parts such as the carburetor and the ignition system. Also included may be hoses, and connectors and other emission-related assemblies.
Where a warrantable condition exists, STIHL Incorporated will repair your small off-road equipment engine at no cost to you, including diagnosis (if the diagnostic work is performed at an authorized dealer), parts, and labor.
Manufacturer's Warranty Coverage In the U.S., 1997 and later model year
small off-road equipment engines are warranted for two years. If any emission­related part on your engine is defective, the part will be repaired or replaced by STIHL Incorporated free of charge.
Owner's Warranty Responsibilities As the small off-road equipment engine
owner, you are responsible for the performance of the required maintenance listed in your instruction manual. STIHL Incorporated recommends that you retain all receipts covering maintenance on your small off­road equipment engine, but STIHL Incorporated cannot deny warranty solely for the lack of receipts or for your failure to ensure the performance of all scheduled maintenance.
Any replacement part or service that is equivalent in performance and durability may be used in non-warranty maintenance or repairs, and shall not reduce the warranty obligations of the engine manufacturer.
As the small off-road equipment engine owner, you should be aware, however, that STIHL Incorporated may deny you warranty coverage if your small off-road equipment engine or a part has failed due to abuse, neglect, improper maintenance or unapproved modifications.
You are responsible for presenting your small off-road equipment engine to a STIHL service center as soon as a problem exists. The warranty repairs will be completed in a reasonable amount of time, not to exceed 30 days.
KM 130 R
27
English
If you have any questions regarding your warranty rights and responsibilities, please contact a STIHL customer service representative at 1-800-467­8445 or you can write to
STIHL Inc., 536 Viking Drive, P.O. Box 2015, Virginia Beach, VA 23450-2015
www.stihlusa.com
Coverage by STIHL Incorporated STIHL Incorporated warrants to the
ultimate purchaser and each subsequent purchaser that your small off-road equipment engine will be designed, built and equipped, at the time of sale, to meet all applicable regulations. STIHL Incorporated also warrants to the initial purchaser and each subsequent purchaser that your engine is free from defects in materials and workmanship which cause the engine to fail to conform with applicable regulations for a period of two years.
Warranty Period The warranty period will begin on the
date the utility equipment engine is purchased by the initial purchaser and you have signed and sent back the warranty card to STIHL.
If any emission-related part on your engine is defective, the part will be replaced by STIHL Incorporated at no cost to the owner. Any warranted part which is not scheduled for replacement as required maintenance, or which is scheduled only for regular inspection to the effect of "repair or replace as necessary" will be warranted for the warranty period. Any warranted part which is scheduled for replacement as
required maintenance will be warranted for the period of time up to the first scheduled replacement point for that part.
Diagnosis You, as the owner, shall not be charged
for diagnostic labor which leads to the determination that a warranted part is defective. However, if you claim warranty for a component and the machine is tested as non-defective, STIHL Incorporated will charge you for the cost of the emission test. Mechanical diagnostic work will be performed at an authorized STIHL servicing dealer. Emission test may be performed either at STIHL Incorporated or at any independent test laboratory.
Warranty Work STIHL Incorporated shall remedy
warranty defects at any authorized STIHL servicing dealer or warranty station. Any such work shall be free of charge to the owner if it is determined that a warranted part is defective.
Any manufacturer-approved or equivalent replacement part may be used for any warranty maintenance or repairs on emission-related parts and must be provided without charge to the owner. STIHL Incorporated is liable for damages to other engine components caused by the failure of a warranted part still under warranty.
The following list specifically defines the emission-related warranted parts:
Air Filter Carburetor (if applicable) Fuel Pump
Choke (Cold Start Enrichment
System) (if applicable)
Control Linkages Intake Manifold
Magneto or Electronic Ignition System (Ignition Module or Electronic Control Unit)
Fly Wheel Spark Plug Injection Valve (if applicable) Injection Pump (if applicable) Throttle Housing (if applicable) Cylinder Muffler Catalytic Converter (if applicable) Fuel Tank Fuel Cap Fuel Line Fuel Line Fittings Clamps Fasteners
Where to make a Claim for Warranty Service
Bring the product to any authorized STIHL servicing dealer and present the signed warranty card.
Maintenance Requirements The maintenance instructions in this
manual are based on the application of the recommended 2-stroke fuel-oil mixture (see also instruction "Fuel"). Deviations from this recommendation
28
KM 130 R
English
regarding quality and mixing ratio of fuel and oil may require shorter maintenance intervals.
Limitations This Emission Control Systems
Warranty shall not cover any of the following:
N repair or replacement required
because of misuse, neglect or lack of required maintenance,
N repairs improperly performed or
replacements not conforming to STIHL Incorporated specifications that adversely affect performance and/or durability, and alterations or modifications not recommended or approved in writing by STIHL Incorporated,
and N replacement of parts and other
services and adjustments necessary for required maintenance at and after the first scheduled replacement point.
STIHL Incorporated California Exhaust and Evaporative Emissions Control Warranty Statement
For California only
Your Warranty Rights and Obligations The California Air Resources Board
(CARB) and STIHL Incorporated are pleased to explain the emission control system warranty on your 2013 and later small off-road equipment engine.
In California, new equipment that uses small off-road engines must be designed, built, and equipped to meet the State's stringent anti-smog standards. STIHL Incorporated must warrant the emissions control system on your small off-road engine for the period listed below provided there has been no abuse, neglect or improper maintenance of your small off-road engine.
Your emissions control system may include parts such as the carburetor or fuel-injection system, the ignition system, and catalytic converter. Also included may be hoses, belts, connectors or other emission-related assemblies.
Where a warrantable condition exists, STIHL Incorporated will repair your small off-road equipment engine at no cost to you including diagnosis, parts and labor.
Manufacturer’s Warranty Responsibilities
This emissions control system is warranted for two years in California. If any emissions-related part on your equipment is defective, the part will be repaired or replaced by STIHL Incorporated free of charge.
Owner’s Warranty Responsibilities As the small off-road equipment engine
owner, you are responsible for performance of the required maintenance listed in your instruction manual. STIHL Incorporated recommends that you retain all receipts covering maintenance on your small off­road equipment engine, but STIHL Incorporated cannot deny warranty solely for the lack of receipts or your failure to ensure the performance of all scheduled maintenance.
As the small off-road equipment engine owner, you should however be aware that STIHL Incorporated may deny you warranty coverage if your small off-road equipment engine or a part has failed due to abuse, neglect, or improper maintenance or unapproved modifications.
You are responsible for presenting your small off-road equipment engine to a STIHL servicing dealer as soon as the problem exists. The warranty repairs should be completed in a reasonable amount of time, not to exceed 30 days. If you have any questions regarding your
KM 130 R
29
English
warranty rights and responsibilities, please contact a STIHL customer service representative at 1-800-467­8445 or you can write to
STIHL Inc., 536 Viking Drive, P.O. Box 2015, Virginia Beach, VA 23450-2015.
www.stihlusa.com
Coverage by STIHL Incorporated STIHL Incorporated warrants to the
ultimate purchaser and each subsequent purchaser that your small off-road equipment engine is designed, built and equipped, at the time of sale, to meet all applicable emission regulations.
STIHL Incorporated also warrants to the initial purchaser and each subsequent purchaser that your engine is free from defects in materials and workmanship which cause the engine to fail to conform to applicable emission regulations for a period of two years.
Defects Warranty Period The warranty periods will begin on the
date the utility equipment engine is purchased by the initial purchaser. If any emission-related part on your engine is defective, the part will be replaced by STIHL Incorporated at no cost to the owner.
Add-on or modified parts that are not exempted by CARB may not be used. The use of any non-exempted add-on or modified parts will be grounds for disallowing a warranty claim. STIHL Incorporated will not be liable to warrant failures of warranted parts caused by the use of a non-exempted add-on or modified part.
The warranty on emissions-related parts will be interpreted as follows:
1. Any warranted part that is not scheduled for replacement as required maintenance in the written instructions required in the Emission Warranty Parts List (see below) must be warranted for the warranty period defined in Subsection COVERAGE BY STIHL INCORPORATED, see above. If any such part fails during the period of warranty coverage, it must be repaired or replaced by the manufacturer according to Subsection (4) below. Any such part repaired or replaced under the warranty must be warranted for the remaining warranty period.
2. Any warranted part that is scheduled only for regular inspection in the written instructions required by the Emission Warranty Parts List (see below) must be warranted for the warranty period defined in Subsection COVERAGE
BY STIHL INCORPORATED, see above. A statement in such written instructions to the effect of "repair or replace as necessary" will not reduce the period of warranty coverage. Any such part repaired or replaced under warranty must be warranted for the remaining warranty period.
3. Any warranted part that is scheduled for replacement as required maintenance in the written instructions required by the Emission Warranty Parts List (see below) must be warranted for the period of time prior to the first scheduled replacement point for that part. If the part fails prior to the first scheduled replacement, the part must be repaired or replaced by the engine manufacturer according to Subsection (4) below. Any such part repaired or replaced under warranty must be warranted for the remainder of the period prior to the first scheduled replacement point for the part.
4. Repair or replacement of any warranted part under the warranty must be performed at a warranty station at no charge to the owner.
30
KM 130 R
English
5. Notwithstanding the provisions of Subsection (4) above, warranty services or repairs will be provided at all manufacturer distribution centers that are authorized to service the subject engines.
6. The owner must not be charged for diagnostic labor that leads to the determination that a warranted part is in fact defective, provided that such diagnostic work is performed at a warranty station.
Warranty Work STIHL Incorporated shall remedy
warranty defects at any authorized STIHL servicing dealer or warranty station. Any such work shall be free of charge to the owner if it is determined that a warranted part is defective. Any manufacturer approved or equivalent replacement part may be used for any warranty maintenance or repairs on emission-related parts and must be provided without charge to the owner. STIHL Incorporated is liable for damages to other engine components caused by the failure of a warranted part still under warranty.
Emission Warranty Parts List Air Filter, Carburetor (if applicable), Fuel
Pump, Choke (Cold Start Enrichment System) (if applicable), Control Linkages, Intake Manifold, Magneto or
Electronic Ignition System (Ignition Module or Electronic Control Unit), Fly Wheel, Spark Plug, Injection Valve (if applicable), Injection Pump (if applicable), Throttle Housing (if applicable), Cylinder, Muffler, Catalytic Converter (if applicable), Fuel Tank, Fuel Cap, Fuel Line, Fuel Line Fittings, Clamps, Fasteners.
Where to make a Claim for Warranty Service
Bring the STIHL product to any authorized STIHL servicing dealer and present the signed STIHL product registration card, or the print-out of the electronic product registration.
Limitations The repair or replacement of any
warranted part otherwise eligible for warranty coverage may be excluded from such warranty coverage if STIHL Incorporated demonstrates that the STIHL product has been abused, neglected, or improperly maintained, and that such abuse, neglect, or improper maintenance was the direct cause of the need for repair or replacement of the part. That notwithstanding, any adjustment of a component that has a factory installed, and properly operating, adjustment limiting device is still eligible for warranty coverage.
Trademarks
STIHL Registered Trademarks
®
STIHL
{ K
The color combination orange-grey (U.S. Registrations #2,821,860; #3,010,057, #3,010,058, #3,400,477; and #3,400,476)
AUTOCUT EASYSTART
®
®
KM 130 R
31
English
TM
STIHL Injection
FARM BOSS iCademy MAGNUM MasterWrench Service MotoMix OILOMATIC ROCK BOSS STIHL Cutquik STIHL DUROMATIC STIHL Quickstop STIHL ROLLOMATIC STIHL WOOD BOSS TIMBERSPORTS WOOD BOSS YARD BOSS
®
®
®
®
®
®
®
®
®
®
®
®
®
®
®
Some of STIHL’s Common Law Trademarks
4-MIX ™ BioPlus ™
Easy2Start ™ EasySpool ™ ElastoStart ™ Ematic ™ FixCut ™ HT Plus ™ IntelliCarb ™ Master Control Lever ™ Micro ™ Pro Mark ™ Quad Power ™ Quiet Line ™ STIHL Arctic ™ STIHL Compact ™ STIHL HomeScaper Series ™ STIHL Interchangeable Attachment
Series ™ STIHL M-Tronic ™ STIHL MiniBoss ™ STIHL MotoPlus 4 ™ STIHL Multi-Cut HomeScaper Series ™ STIHL OUTFITTERS ™ STIHL PICCO ™ STIHL PolyCut ™ STIHL PowerSweep ™ STIHL Precision Series ™
STIHL Protech ™ STIHL RAPID ™ STIHL SuperCut ™ STIHL Territory ™ TapAction ™ TrimCut ™ This listing of trademarks is subject to
change. Any unauthorized use of these
trademarks without the express written consent of ANDREAS STIHL AG & Co. KG, Waiblingen is strictly prohibited.
32
KM 130 R
Contenido
español / EE.UU
Sistema KombiSystem 34 Acerca de este manual de
instrucciones 34 Medidas de seguridad y técnicas
de manejo 35 Herramientas KombiTool
aprobadas 43 Montaje del mango tórico 44 Ajuste del cable del acelerador 45
Manual de instrucciones originalImpreso en papel libre de cloro.
Motor 4-MIX 45 Combustible 45 Llenado de combustible 47 Arranque / parada del motor 47 Instrucciones para el uso 50 Sustitución del filtro de aire 51 Gestión del motor 51 Ajuste del carburador 51 Chispero en el silenciador 52 Bujía 53 Dispositivo de arranque 54 Almacenamiento de la máquina 54 Inspección y mantenimiento por el
Las tintas contienen aceites vegetales, el papel es reciclable.
concesionario 55 Información para mantenimiento 56 Componentes importantes 58 Especificaciones 59 Accesorios especiales 60 Información de reparación 61 Desecho 61
Declaración de garantía de STIHL Incorporated sobre sistemas de control de emisiones según normas Federales 61
Declaración de garantía de STIHL Incorporated sobre el control de emisiones de gases de escape y emisiones por evaporación para el Estado de California 64
Marcas comerciales 66
Permita que solamente las personas que comprenden la materia tratada en los manuales del motor KombiEngine y del accesorio KombiTool manejen esta herramienta motorizada combinada.
Para obtener el rendimiento y satisfacción máximos de la herramienta motorizada STIHL, es importante que lea, comprenda y respete las medidas de seguridad y las instrucciones de uso y mantenimiento dadas en el capítulo "Medidas de seguridad y técnicas de uso", antes de usar su herramienta motorizada. Para obtener información adicional, visite www.stihlusa.com.
Comuníquese con el concesionario o distribuidor de STIHL si no se entiende alguna de las instrucciones dadas en los dos manuales.
ADVERTENCIA
Dado que este motor KombiEngine es el motor para una herramienta motorizada que funciona a gran velocidad, es necesario tomar algunas medidas especiales de seguridad para reducir el riesgo de lesiones personales. El uso descuidado o inadecuado puede causar lesiones graves e incluso mortales.
{
© ANDREAS STIHL AG & Co. KG, 2014
0458-466-8621-A. VA4.D14.
0000006266_005_EA
KM 130 R
Este manual de instrucciones está protegido por derechos de propiedad intelectual. Todos los derechos reservados, especial­mente los derechos de reproducción, traducción y procesamiento con sistemas electrónicos.
33
español / EE.UU
. . . .
002BA530 KN
+
+
Sistema KombiSystem
Con el sistema KombiSystem de STIHL, varios motores KombiEngine y accesorios KombiTool pueden combinarse para formar una herramienta motorizada. En este manual de instrucciones la unidad formada por el motor KombiEngine y la herramienta KombiTool se identifica como la herramienta motorizada.
Por lo tanto, para esta herramienta motorizada es necesario usar juntos los manuales de instrucciones para el motor KombiEngine y la herramienta KombiTool.
Siempre lea y entienda los dos manuales de instrucciones antes de usar la herramienta motorizada por primera vez y guarde los mismos en un lugar seguro para referencia futura.
Acerca de este manual de instrucciones
Pictogramas
Todos los pictogramas que se encuentran fijados o grabados en la máquina se explican en este manual.
Según el modelo, los pictogramas siguientes pueden aparecer en su máquina.
Tanque de combustible que contiene la mezcla de combustible y aceite
Presione para accionar la válvula de descompresión
Bomba de combustible manual
Presione para accionar la bomba manual de combustible
Orificio de llenado para lubricante de engranajes
Toma de aire para modo de verano
Toma de aire para modo de invierno
Calentador de manillar
Símbolos en el texto
Muchas de las instrucciones de uso y seguridad vienen acompañadas de ilustraciones.
Los pasos individuales o procedimientos descritos en el manual pueden estar señalados en diferentes maneras:
N Se usa un punto para denotar un
paso o procedimiento.
Una descripción de un paso o procedimiento que se refiere directamente a una ilustración puede contener números de referencia que aparecen en la ilustración. Ejemplo:
N Suelte el tornillo (1). N Palanca (2) ...
Además de las instrucciones de uso, en este manual pueden encontrarse párrafos a los que usted debe prestar atención especial. Tales párrafos están marcados con los símbolos y las palabras identificadoras que se describen a continuación.
PELIGRO
Indica un riesgo inminente de lesiones graves o mortales.
ADVERTENCIA
Identifica una situación de peligro que, al no evitarse, puede resultar en lesiones graves o mortales.
34
KM 130 R
español / EE.UU
INDICACIÓN
Indica el riesgo de daños a la propiedad, incluyendo a la máquina o sus componentes.
Mejoramientos técnicos
La filosofía de STIHL es mejorar continuamente todos sus productos. Como resultado de ello, periódicamente se introducen cambios de diseño y mejoras. Por lo tanto, es posible que algunos cambios, modificaciones y mejoras no se describen en este manual. Si las características de funcionamiento o la apariencia de su máquina difieren de las descritas en este manual, comuníquese con el concesionario STIHL para obtener la ayuda que requiera.
Medidas de seguridad y técnicas de manejo
Dado que este motor KombiEngine es el motor para una herramienta motorizada que funciona a gran velocidad, es necesario tomar medi­das especiales de seguridad para reducir el riesgo de lesiones personales.
Es importante que usted lea, comprenda bien y respete las siguientes advertencias y medidas de seguridad. Lea perio­dicamente los manuales de instrucciones y las ins­trucciones de seguridad de su motor y accesorio Combi. El uso descui­dado o inadecuado puede causar lesiones graves o incluso la muerte.
Pida a su concesionario STIHL que le enseñe el manejo de la herramienta motorizada. Respete todas las disposiciones, reglamentos y normas de seguridad locales del caso.
ADVERTENCIA
No preste ni alquile nunca su herramienta motorizada sin entregar los manuales de instrucciones. Asegúrese que todas las personas que utilicen la máquina lean y comprendan la información contenida en estos manuales.
Utilice su herramienta motorizada solamente para las aplicaciones descritas en el manual de instrucciones del accesorio KombiTool que está usando.
ADVERTENCIA
No debe usarse para ningún otro propósito ya que el uso indebido puede resultar en lesiones personales o daños a la propiedad, incluso daños de la máquina.
ADVERTENCIA
Nunca se debe permitir a los niños que usen esta herramienta motorizada. No se debe permitir la proximidad de otras personas, especialmente de niños, ni de animales en los lugares donde se esté utilizando la máquina.
ADVERTENCIA
Para reducir el riesgo de ocasionar lesiones a las personas en la cercanía y daños a la propiedad, nunca deje la herramienta motorizada en marcha desatendida. Cuando no está en uso (por ejemplo durante el descanso), apáguela y asegúrese que las personas no autorizadas no puedan usarla.
Las medidas de seguridad y avisos contenidos en este manual se refieren al uso de todas las herramientas motorizadas STIHL. Los distintos modelos pueden contar con piezas y controles diferentes. Vea la sección correspondiente de sus manuales de instrucciones del motor KombiEngine y accesorio KombiTool para tener una descripción de los controles y la función de los componentes de su modelo.
KM 130 R
35
español / EE.UU
No limpie la máquina con una lavadora a presión. El chorro fuerte de agua puede dañar las piezas de la máquina.
El uso seguro de un motor KombiEngine atañe a
1. el operador
2. la herramienta motorizada
3. el uso de la herramienta motorizada
EL OPERADOR
Condición física Usted debe estar en buenas
condiciones físicas y psíquicas y no encontrarse bajo la influencia de ninguna sustancia (drogas, alcohol, etc.) que le pueda restar visibilidad, destreza o juicio. No maneje esta máquina cuando está fatigado.
ADVERTENCIA
Esté alerta. Si se cansa, tómese un descanso. El cansancio puede provocar una pérdida del control. El uso de cualquier herramienta motorizada es fatigoso. Si usted padece de alguna dolencia que pueda ser agravada por la fatiga, consulte a su médico antes de utilizar esta máquina.
ADVERTENCIA
El uso prolongado de una herramienta motorizada (u otras máquinas) expone al operador a vibraciones que pueden provocar el fenómeno de Raynaud (dedos blancos) o el síndrome del túnel carpiano.
Estas condiciones reducen la capacidad de las manos de sentir y regular la temperatura, producen entumecimiento y ardor y pueden provocar trastornos nerviosos y circulatorios, así como necrosis de los tejidos.
No se conocen todos los factores que contribuyen a la enfermedad de Raynaud, pero el clima frío, el fumar y las enfermedades o condiciones físicas que afectan los vasos sanguíneos y la circulación de la sangre, como asimismo los niveles altos de vibración y períodos prolongados de exposición a la vibración son mencionados como factores en el desarrollo de la enfermedad de Raynaud. Por lo tanto, para reducir el riesgo de la enfermedad de dedos blancos y del síndrome del túnel carpiano, sírvase notar lo siguiente:
La mayor parte de las herramientas
motorizadas de STIHL se ofrecen con un sistema antivibración ("AV") cuyo propósito es reducir la transmisión de las vibraciones creadas por la máquina a las manos del operador. Se recomienda el uso del sistema AV a aquellas personas que utilizan herramientas motorizadas en forma constante y regular.
Use guantes – no durante el uso del
la herramienta KombiTool BG-KM – y mantenga las manos abrigadas.
Mantenga el sistema AV en buen
estado. Una herramienta motorizada con los componentes flojos o con elementos AV dañados o desgastados también tendrá tendencia a tener niveles más altos de vibración.
Agarre firmemente los mangos en
todo momento, pero no los apriete con fuerza constante y excesiva. Tómese descansos frecuentes.
Todas las precauciones antes mencionadas no le garantizan que va a estar totalmente protegido contra la enfermedad de Raynaud o el síndrome del túnel carpiano. Por lo tanto, los operadores constantes y regulares deben revisar con frecuencia el estado de sus manos y dedos. Si aparece alguno de los síntomas arriba mencionados, consulte inmediatamente al médico.
ADVERTENCIA
El sistema de encendido de la máquina STIHL produce un campo electromagnético de intensidad muy baja. El mismo puede interferir con algunos tipos de marcapasos. Para reducir el riesgo de lesiones graves o mortales, las personas portadoras de marcapasos deben consultar a sus médicos y al fabricante del marcapasos antes de usar esta máquina.
36
KM 130 R
español / EE.UU
Vestimenta adecuada
ADVERTENCIA
Para reducir el riesgo de lesiones el operador debe usar el equipo protector adecuado.
ADVERTENCIA
El ruido de la herramienta motorizada puede dañar los oídos. Siempre use amortiguadores del ruido (tapones u orejeras) para protegerse los oídos. Los usuarios constantes y regulares deben some­terse con frecuencia a un examen o control auditivo.
Esté especialmente alerta y tenga cuidado cuando se usa protectores de oídos, ya que los mismos reducen la posibilidad de oír señales de advertencia (gritos, alarmas, etc.).
Evite el uso de chaquetas sueltas, bufandas, corba­tas, joyas, pantalones acampanados o con vueltas, pelo largo suelto o cualquier cosa que pueda engancharse en las ramas, matorrales o piezas en movimiento de la máquina. Sujétese el pelo de modo que quede sobre los hombros.
Para instrucciones adicionales acerca de la ropa adecuada, vea las precauciones de seguridad, en el manual de instrucciones del accesorio KombiTool que está usando.
LA HERRAMIENTA MOTORIZADA
Para las ilustraciones y definiciones de los componentes de la herramienta motorizada, vea el capítulo sobre "Piezas principales".
ADVERTENCIA
Nunca modifique, de ninguna manera, esta herramienta motorizada. Utilice únicamente los accesorios suministrados por STIHL o expresamente autorizados por STIHL para usarse con el modelo específico de motor Combi de STIHL. Si bien es posible conectar a la herramienta motorizada de STIHL ciertos accesorios no autorizados, su uso puede ser, en la práctica, extremadamente peligroso.
Si la máquina experimenta cargas excesivas para las cuales no fue diseñada (por ejemplo, impactos severos o una caída), siempre asegúrese que esté en buenas condiciones antes de seguir con el trabajo. Inspeccione específicamente la integridad del sistema de combustible (ausencia de fugas), y asegúrese de que los controles y dispositivos de seguridad funcionen como corresponde. No siga manejando esta máquina si está dañada. En caso de dudas, pida que el concesionario de servicio de STIHL la revise.
USO DE LA HERRAMIENTA MOTORIZADA
Transporte de la herramienta motorizada
ADVERTENCIA
Antes de apoyar la herramienta motorizada en el suelo, siempre apague el motor y asegúrese de que el accesorio ha dejado de girar. Cuando transporte la herramienta motorizada en un vehículo, sujétela firmemente para impedir su vuelco, el derrame de combustible y el daño a la herramienta motorizada.
Combustible La herramienta motorizada STIHL utiliza
una mezcla de aceite-gasolina como combustible (vea el capítulo "Combustible" en el manual del propietario).
KM 130 R
37
español / EE.UU
ADVERTENCIA
La gasolina es un com­bustible muy inflamable. Si se derrama y arde a causa de una chispa u otra fuente de ignición, puede provocar un incen­dio y quemaduras graves o daños a la propiedad. Tenga sumo cuidado cuando manipule gaso­lina o la mezcla de combustible. No fume cerca del combustible o la herramienta motori­zada, ni acerque ningún fuego o llama a ellos. Puede escapar vapor inflamable del sistema de combustible.
Instrucciones para el llenado de combustible
ADVERTENCIA
Para reducir el riesgo de lesiones graves causadas por quemaduras, nunca intente abastecer la máquina con combustible sin que el operador se haya despojado de la misma.
ADVERTENCIA
Cargue de combustible su herramienta motorizada en lugares al aire libre bien ventilados. Siempre apague el motor y deje que se enfríe antes de llenar de combustible. Dependiendo del combustible utilizado, de las condiciones climáticas y del sistema de
ventilación del depósito, es posible que se forme vapor de gasolina a presión dentro del depósito de combustible.
Para reducir el riesgo de quemaduras, así como otras lesiones corporales ocasionadas por los escapes de vapor de gasolina y otras emanaciones, quite la tapa de llenado de combustible de la herramienta motorizada cuidadosamente de modo que la presión que se pueda haber acumulado en el depósito se disipe lentamente. Nunca quite la tapa de llenado de combustible mientras el motor esté funcionando.
Elija una superficie despejada para llenar el depósito y aléjese 3 m (10 pies) por lo menos del lugar en que lo haya llenado antes de arrancar el motor. Limpie todo el combustible derramado antes de arrancar la máquina.
ADVERTENCIA
Compruebe que no exis­ten fugas de combustible mientras llena el depósito y durante el funciona­miento de la máquina. Si detecta alguna fuga de combustible, no arran­que el motor ni lo haga funcionar sin antes repa­rar la fuga y limpiar el combustible derramado. Tenga cuidado de no mancharse la ropa con combustible. Si la man­cha, cámbiesela inmediatamente.
ADVERTENCIA
Para reducir el riesgo de derramar combustible y provocar un incendio debido a una tapa de combustible mal apretada, coloque la tapa en la posición correcta y apriétela en la boca de llenado del tanque.
ADVERTENCIA
Las vibraciones de la máquina pueden aflojar una tapa de combustible que ha quedado mal apretada, o simplemente soltarla y derramar com­bustible. Para reducir el riesgo de derrames e incendio, apriete la tapa de llenado de combusti­ble a mano tan firmemente como sea posible.
Consulte también el capítulo "Combustible" del Manual de instrucciones para obtener información adicional.
Antes de arrancar
ADVERTENCIA
Siempre revise la herramienta motorizada para comprobar que está en buenas condiciones y que funciona correctamente antes de arrancarla, en particular el gatillo de aceleración, el bloqueo de gatillo de aceleración, el interruptor de parada, el accesorio de corte, el deflector y el arnés. El gatillo de aceleración debe moverse libremente y siempre debe regresar a la posición de marcha en vacío por la acción de
38
KM 130 R
español / EE.UU
resorte. Nunca intente modificar los controles o los dispositivos de seguridad.
ADVERTENCIA
Revise el sistema de combustible en busca de fugas, especialmente las partes visibles, por ejemplo, la tapa de llenado, conexiones de mangueras y la bomba de combustible manual (únicamente para herramientas motorizadas equipadas con una bomba de combustible de mano). No arranque el motor si se observan fugas o daños – ¡Riesgo de incendios! Solicite al concesionario que repare la máquina antes de usarla.
ADVERTENCIA
No maneje nunca una herramienta motorizada que esté dañada, mal ajustada o mantenida o que no fue armada completa y debidamente.
ADVERTENCIA
Asegúrese de que el casquillo de la bujía esté firmemente colocado – un casquillo suelto puede crear un arco voltaico y encender los vapores del combustible, provocando un incendio.
Mantenga los mangos limpios y secos en todo momento; es particularmente importante mantenerlos libres de humedad, aceite, combustible, grasa o resinas para garantizar que la máquina pueda empuñarse firmemente para mantenerla bajo control seguro.
Arranque Arranque el motor solamente al aire
libre, por lo menos 3 m (10 pies) del lugar en que lo haya llenado.
Para las instrucciones específicas de arranque, vea la sección correspondiente de los manuales del motor y accesorio Kombi. Coloque la herramienta motorizada sobre suelo firme u otra superficie sólida en un lugar abierto. Mantenga el equilibrio y elija un buen punto de apoyo para los pies.
ADVERTENCIA
Para reducir el riesgo de lesiones debido a la pérdida de control, esté absolutamente seguro que la herramienta motorizada se encuentra lejos de su cuerpo y de todas las obstrucciones y objetos, incluido el suelo, porque al arrancar el motor acelerado, su velocidad será lo suficientemente rápida para que el embrague se engrane y haga funcionar la herramienta motorizada.
Tan pronto arranque, accione inmediatamente por un breve momento el gatillo de aceleración para desconectarlo de la posición de arranque y permitir que el motor se desacelere a la marcha en vacío.
ADVERTENCIA
Su herramienta motorizada es una máquina que debe ser manejada por solamente una persona. No deje que otras personas estén en el lugar de trabajo, aun durante el arranque.
ADVERTENCIA
Para reducir el riesgo de sufrir lesiones causadas por la pérdida de control, no intente arrancar el motor de la herramienta "por lanzamiento".
ADVERTENCIA
Cuando tire del mango de arranque, no enrolle la cuerda de arranque alrededor de la mano. No deje que el mango retroceda bruscamente, sino guíe la cuerda de arranque para que se enrolle debidamente. Si no ejecuta este procedimiento puede lastimarse la mano o los dedos y también dañar el mecanismo de arranque.
Vea también las precauciones de seguridad de arranque en el manual de instrucciones del accesorio KombiTool.
Ajustes importantes
ADVERTENCIA
Para reducir el riesgo de lesiones personales debido a la pérdida de control o al contacto con la herramienta motorizada en movimiento, no use una herramienta cuyo ajuste de marcha en vacío está mal regulado. Cuando la velocidad de marcha en vacío está correctamente regulada, la herramienta no debe girar. Para instrucciones acerca de cómo ajustar el régimen de marcha en vacío, vea la sección correspondiente del manual de instrucciones.
Si no puede regular correctamente la marcha en vacío, pida a su concesionario STIHL que revise la
KM 130 R
39
español / EE.UU
002BA057 KN
herramienta motorizada y haga los ajustes o reparaciones correspondientes.
Durante el funcionamiento Sujeción y control de la herramienta
motorizada
Al trabajar, siempre sujete la máquina firmemente con ambas manos en los mangos. Cierre firmemente los dedos y pulgares sobre los mangos.
La mano derecha debe sujetar el mango trasero. Esto también corresponde a personas zurdas.
ADVERTENCIA
Para reducir el riesgo de lesiones causadas por la pérdida del control, nunca trabaje sobre una escalera o cualquier otra superficie de soporte poco seguro.
Condiciones de trabajo Maneje y arranque su herramienta
motorizada solamente al aire libre en un lugar bien ventilado. Manéjela solamente en condiciones de buena visibilidad y a la luz del día. Trabaje con mucho cuidado.
ADVERTENCIA
Tan pronto arranca, este producto genera vapores de escape tóxicos que contienen productos químicos (tales como hidrocarburos sin quemar y monóxido del carbono, incluyendo el benceno) considerados como cau­santes de enfermedades respiratorias, cáncer, defectos de nacimiento u otra toxicidad reproduc­tora. Algunos de estos gases (por ej., monóxido de carbono) pueden ser incoloros e inodoros. Para reducir el riesgo de sufrir lesiones graves o mortales por respirar gases tóxicos, nunca haga funcionar la máquina puertas adentro o en lugares mal ventilados.
ADVERTENCIA
La inhalación de ciertos polvos, especialmente los polvos orgánicos, tales como el moho o polen, puede provocar reacciones alérgicas o asmáticas en las personas sensibles.
La inhalación repetida o de grandes cantidades de polvo u otros contaminantes del aire, especialmente los de partículas pequeñas puede causar enfermedades respiratorias o de
otro tipo. Controle el polvo en su fuente, siempre que sea posible. Utilice buenas prácticas de trabajo, tal como trabajar de manera que el viento o el proceso de corte dirija el polvo producido por la herramienta motorizada en sentido opuesto del operador. Observe las recomendaciones emitidas por EPA/OSHA/NIOSH y las asociaciones de trabajo y los sindicatos con respecto al polvo ("materia particulada"). Cuando sea imposible eliminar significativamente la inhalación del polvo, es decir mantener el nivel cerca del valor ambiente, el operador y las personas que se encuentren en la cercanía siempre deberán usar un respirador aprobado por NIOSH/MSHA para el tipo de polvo presente en el lugar.
Instrucciones de manejo
ADVERTENCIA
No maneje la herramienta motorizada usando el bloqueo de acelerador para arranque, pues no tendrá control de la velocidad del motor.
En caso de emergencia, apague el motor inmediatamente – mueva el control deslizante / interruptor de parada a 0 o STOP
ADVERTENCIA
Nunca modifique el silenciador. La modificación del silenciador podría causar el aumento del calor irradiado, de las chispas y del nivel de ruido, lo que aumentará el riesgo de incendios,
40
KM 130 R
español / EE.UU
lesiones por quemadura o la pérdida auditiva. Además, se podría dañar permanentemente el motor. Haga reparar el silenciador únicamente por el concesionario de servicio STIHL.
ADVERTENCIA
El silenciador y otros componentes del motor (por ej., aletas del cilindro, bujía) se calientan durante el funcionamiento y permanecen calientes por un buen rato después de apagar el motor. Para reducir el riesgo de quemaduras, no toque el silenciador ni los otros componentes mientras están calientes. Mantenga limpia la zona alrededor del silenciador. Quite el lubricante excesivo y toda la basura tal como las agujas de pinos, ramas u hojas. Deje que el motor se enfríe apoyado sobre una superficie de hormigón, metal, suelo raso o madera maciza, lejos de toda sustancia combustible.
ADVERTENCIA
Una caja de cilindro dañada o mal instalada, o una envuelta del silenciador dañada o deformada, puede perjudicar el proceso de enfriamiento del silenciador. Para reducir el riesgo de incendio o lesiones por quemadura, no continúe trabajando con una caja de cilindro dañada o mal instalada, o una envuelta del silenciador dañada o deformada.
El silenciador tiene un chispero diseñado para reducir el riesgo de incendio debido a la emisión de partículas calientes. Nunca haga funcionar la unidad sin tener instalado el chispero. Si la mezcla de gasolina y aceite está correcta (no es demasiado rica), en condiciones normales el chispero quedará limpio como resultado del calor del silenciador y no necesitará servicio ni mantenimiento. Si el rendimiento de su máquina comienza a disminuir y sospecha que las rejillas están obstruidas, haga reparar el silenciador por un concesionario de servicio STIHL. Para ciertas aplicaciones, las leyes o los reglamentos estatales o federales pueden requerir el uso de un chispero en buenas condiciones. Consulte la sección "Mantenimiento, Reparación y Almacenamiento" de estas Medidas de seguridad. Recuerde que el riesgo de incendios de matorrales o forestales es mayor durante las estaciones calurosas y secas.
ADVERTENCIA
Algunas herramientas motorizadas STIHL están equipadas con un con­vertidor catalítico, el que está diseñado para redu­cir las emisiones de escape del motor mediante un proceso químico en el silenciador. Debido a este proceso, el silenciador no se enfría tan rápidamente como los del tipo convencional cuando el motor vuelve a marchar en vacío o se apaga. Para reducir el riesgo de incendios y lesiones por quemadura al usar un convertidor catalítico, apoye siempre su herramienta motori­zada en posición vertical y no la coloque nunca donde el silenciador quede cerca de material seco como por ejemplo matorrales, pasto, viru­tas de madera u otros materiales combustibles mientras todavía está caliente.
KM 130 R
41
español / EE.UU
MANTENIMIENTO, REPARACIÓN Y ALMACENAMIENTO
Los trabajos de mantenimiento, reemplazo o reparación de los dispositivos y sistemas de control de emisiones de escape pueden ser realizados por cualquier taller o técnico de motores no diseñados para vehículos. Sin embargo, si usted está reclamando cobertura de garantía para algún componente que no ha sido reparado o mantenido debidamente, o cuando se utilizan repuestos no autorizados, STIHL puede denegar la garantía.
ADVERTENCIA
Utilice solamente piezas de repuesto de STIHL para el mantenimiento y la reparación. El uso de piezas no fabricadas por STIHL puede causar lesiones graves o mortales.
Siga precisamente las instrucciones de mantenimiento y reparación dadas en la sección correspondiente de los manuales de instrucciones del motor KombiEngine y del accesorio KombiTool. Consulte las tablas de mantenimiento y las notas de mantenimiento en estos manuales.
ADVERTENCIA
Siempre apague el motor y verifique que el accesorio está parado antes de llevar a cabo cualquier trabajo de mantenimiento, reparación o limpieza del accesorio motorizado. No intente hacer ningún trabajo de mantenimiento o reparación que no esté descrito en su manual de instrucciones del motor
KombiEngine o del accesorio KombiTool. Este tipo de trabajo debe ser realizado únicamente por el concesionario de servicio de STIHL.
ADVERTENCIA
Use la bujía especificada y asegúrese de que ella y el cable de encendido estén limpios y en buen estado. Siempre inserte el casquillo de la bujía bien apretado en el borne de la bujía del tamaño adecuado. (Nota: Si el borne tiene una tuerca adaptadora SAE desmontable, tiene que ser instalada.) Una conexión suelta entre el casquillo de la bujía y el conector del cable de encendido en el casquillo puede crear un arco voltaico y encender los vapores del combustible, provocando un incendio.
ADVERTENCIA
No pruebe nunca el sistema de encendido con el casquillo del cable de encendido desconectado de la bujía, o sin tener instalada la bujía, ya que las chispas al descubierto pueden causar un incendio.
ADVERTENCIA
Nunca maneje su herramienta motorizada si el silenciador está dañado, se ha perdido o si fue modificado. Un silenciador mal cuidado aumenta el riesgo de incendio y puede causar pérdida de audición. El silenciador está equipado con un chispero para reducir el riesgo de incendio; no maneje nunca su herramienta motorizada si le falta el chispero o está dañado. Recuerde que
el riesgo de incendios de matorrales o forestales es mayor durante las estaciones calurosas y secas.
En California, es una violación de los acápites § 4442 o § 4443 o del Código de Recursos Públicos el uso de herramientas con motor de gasolina en tierras cubiertas por bosques, arbustos o pasto a menos que el sistema de escape del motor cuente con un chispero que satisfaga los requisitos legales y que reciba el mantenimiento adecuado para estar en buenas condiciones de funcionamiento. El propietario/operador de este producto es responsable del mantenimiento adecuado del chispero. Otras entidades/agencias estatales o gubernamentales, tales como el Servicio Forestal de los EE.UU., pueden tener requisitos similares. Comuníquese con el cuerpo de bomberos de su localidad o con el servicio forestal para informarse en cuanto a las leyes y reglamentos relacionados con los requisitos de protección contra incendios.
Guarde la herramienta motorizada en un lugar seco y elevado o con llave lejos del alcance de los niños.
Antes de guardar la máquina durante un período de más de algunos días, siempre vacíe el tanque de combustible. Consulte el capítulo "Almacenamiento de la máquina" en este manual.
42
KM 130 R
Herramientas KombiTool aprobadas
HT-KM
BF-KM
464BA002 KN
FCS-KM
FCB-KM
KW-KM
KB-KM
FH-KM
FS-KM
FS-KM
FSB-KM
BG-KM
FBD-KM
español / EE.UU
Los siguientes accesorios KombiTool de STIHL pueden instalarse en el motor KombiEngine:
Accesorio KombiTool Aplicación
FS-KM Cortadora de mato-
rrales con cabeza segadora
FS-KM Cortadora de mato-
rrales con cuchilla para recortar pasto
FSB-KM Cortadora de mato-
rrales con cabeza
segadora HL-KM 135° Cortasetos ajustable HL-KM 0° Cortasetos FH-KM 135° Motoguadaña BG-KM Soplador HT-KM Podador de varilla BF-KM Púas ganzúas FBD-KM Redefinición de bor-
des en macizos FCB-KM Bordeado de
céspedes FCS-KM Bordeado de
céspedes KB-KM Cepillo barredor KW-KM Barredora
PowerSweep La barra de defensa suministrada con la
máquina debe instalarse en el mango tórico – vea "Instalación del mango tórico".
KM 130 R
43
español / EE.UU
2
002BA098 KN
1
1
5
4
002BA099 KN
2
3
6
7
A
9
8
4
002BA353 KN
Montaje del mango tórico
Se suministra una barra de defensa con la máquina. Fije la barra de defensa al mango tórico.
N Introduzca las tuercas
cuadradas (1) en la barra de defensa (2) – los orificios deben quedar alineados
44
N Introduzca la abrazadera (3) en el
mango tórico (4) y colóquelos juntos en el eje (5)
N Posicione la abrazadera (6) N Posicione la barra de defensa (2) –
¡observe la posición!
N Alinee los orificios N Introduzca los pernos (7) en los
orificios – y atorníllelos a fondo en la barra de defensa
N Instale el mango tórico (4) a una
distancia de (A) aprox. 20 cm (8 in) delante del mango de control (8)
N Posicione el mango tórico N Apriete los pernos – bloquee las
tuercas de ser necesario
El uso del manguito (9) depende del país, y el mismo debe colocarse entre el mango tórico y el mango de control.
Siempre deje la barra de defensa conectada.
KM 130 R
español / EE.UU
002BA163 KN
2
1
002BA161 KN
Ajuste del cable del acelerador
El ajuste correcto del cable del acelerador es necesario para el funcionamiento correcto en las posiciones de máxima aceleración, arranque y marcha en vacío.
N Ajuste el cable del acelerador
solamente cuando la unidad esté completa y correctamente armada.
N Utilice una herramienta adecuada
para empujar la pieza deslizante hasta el extremo de la ranura (vea la ilustración).
N Pulse el bloqueo (1) y oprima el
gatillo de aceleración (2) (aceleración máxima) – esto ajusta el cable del acelerador correctamente.
Motor 4-MIX Combustible
El motor STIHL 4-MIX se lubrica con gasolina y aceite y debe funcionar con una mezcla de gasolina y aceite para motor.
Por lo demás, es un motor de cuatro tiempos.
Este motor está certificado para funcionar con una mezcla de 50 a 1 de gasolina sin plomo y aceite STIHL para motores de dos tiempos.
Su motor requiere una mezcla de gasolina de alta calidad y aceite para motores de dos tiempos enfriados por aire.
Utilice gasolina sin plomo de grado intermedio con un octanaje mínimo de 89 ((R+M)/2) y un contenido de etanol no mayor que el 10%.
El combustible de octanaje bajo puede aumentar la temperatura de funcionamiento del motor. Esto, a su vez, aumenta el riesgo de que se agarrote el pistón y se dañe el motor.
La composición química del combustible también es importante. Algunos aditivos de combustible no solamente tienen efectos perjudiciales en los elastómeros (diafragmas de carburador, sellos de aceite, tuberías de combustible, etc.), sino también en las piezas fundidas de magnesio y en los convertidores catalíticos. Esto podría causar problemas de funcionamiento e incluso daño del motor. Por esta razón, STIHL recomienda el uso exclusivo de gasolina sin plomo reconocida de buena calidad.
KM 130 R
45
español / EE.UU
La gasolina con un contenido de etanol mayor que el 10% puede causar problemas de funcionamiento y averías graves en motores, por lo cual no debe utilizarse.
El contenido de etanol en la gasolina afecta el régimen de marcha del motor – podría resultar necesario reajustar el carburador si se utilizan combustibles con diversos niveles de contenido de etanol.
ADVERTENCIA
Para reducir el riesgo de lesiones personales debido a la pérdida de control y / o al contacto con la herramienta de corte en movimiento, no use una máquina cuyo régimen de marcha en vacío está mal regulado. Cuando el marcha en vacío está correctamente regulado, la herramienta de corte no debe moverse.
Si su herramienta motorizada indica que el régimen de marcha en vacío está mal regulado, pida a su representante de STIHL que revise la herramienta motorizada y haga los ajustes o reparaciones correspondientes.
Las velocidades de ralentí y máxima del motor varían si se cambia el combustible por otro con un contenido mayor o menor de etanol.
Este problema se evita si siempre se utiliza combustible con un mismo contenido de etanol..
Utilice aceite STIHL HP Ultra o consulte con su concesionario para obtener un aceite equivalente de alta calidad que asegure el rendimiento y la vida útil plena del producto.
Para satisfacer los requisitos de la norma EPA 40CFR90/1054 recomendamos el uso del aceite STIHL HP Ultra.
No use aceites para mezclar con designaciones BIA o TCW (para motores de dos tiempos enfriados por agua) ni otros aceites para mezclar diseñados para usar en motores enfriados por agua o por aire (por ejemplo, en motores marinos fuera de borda, motonieves, sierras de cadenas, bicimotos, etc.).
Manipule la gasolina con sumo cuidado. Evite el contacto directo con la piel y evite inhalar los vapores de combustible. Cuando se reabastece de combustible, quite primero el envase del vehículo y colóquelo en el suelo antes de llenarlo. Para reducir el riesgo de la formación de chispas causadas por la descarga de electricidad estática y un posible incendio y/o explosión, no llene los envases de combustible cuando están colocados dentro de un vehículo o remolque.
Mantenga el envase bien cerrado para limitar la cantidad de humedad que penetre en la mezcla.
Limpie el tanque de combustible de la máquina según sea necesario.
Duración de la mezcla de combustible
Mezcle una cantidad suficiente de combustible para trabajar unos pocos días, no lo guarde por más de 30 días. Guárdelo únicamente en envases aprobados para combustible. Para el proceso de mezclado, vierta el aceite en el envase primero y luego agregue la gasolina. Cierre el envase y agítelo vigorosamente a mano para asegurar que se mezclen bien el aceite y la gasolina.
Gasolina Aceite (STIHL 50:1 ó
aceite de alta calidad equi­valente)
Litros Litros (ml) 1 0,02 (20) 5 0,10 (100) 10 0,20 (200) 20 0,40 (400)
gal EE.UU. oz fl EE.UU. 12,6 2 1/2 6,4 512,8
Deseche los envases vacíos usados para mezclar el aceite únicamente en vertederos autorizados para ello.
46
KM 130 R
español / EE.UU
266BA028 KN
2709BA003 KN
2709BA004 KN
3
STOP
2
5 6
4
7
002BA181 KN
START
STOP-
1
Llenado de combustible
Preparaciones
N Antes de llenar la máquina con
combustible, limpie a fondo la tapa de llenado y la zona alrededor del mismo para evitar la entrada de tierra al depósito.
Siempre agite bien la mezcla en el recipiente antes de llenar la máquina con combustible.
N Coloque la máquina de modo que la
tapa de llenado quede orientada hacia arriba.
ADVERTENCIA
Para reducir el riesgo de quemaduras, así como de incendios y de lesiones corporales ocasionadas por los escapes de vapor de gasolina y otras emanaciones, quite la tapa de llenado de combustible cuidadosamente de modo que la presión que se pueda haber acumulado en el depósito se disipe lentamente.
Apertura de la tapa de llenado
N Gire la tapa en sentido
contrahorario hasta quitarla de la boca de llenado del tanque.
N Quite la tapa de llenado.
Carga de combustible
Tenga cuidado de no derramar el combustible y no llene en exceso el tanque.
Cierre de la tapa de llenado
N Coloque la tapa en posición. N Gire la tapa en sentido horario hasta
que tope y apriétela hasta donde sea posible con la mano.
Arranque / parada del motor
Controles
1 Bloqueo de gatillo de aceleración 2 Gatillo de aceleración 3 Control deslizante
Posiciones del control deslizante 4STOP-0 – motor apagado – el
encendido está apagado
5 F – posición de funcionamiento
normal – el motor está en marcha o puede arrancarse
6START – el encendido está
conectado y es posible arrancar el motor
KM 130 R
47
español / EE.UU
249BA057 KN
9
8
552BA014 KN
552BA015 KN
Símbolo en el control deslizante 7 h – símbolo de parada y flecha.
Para apagar el motor – empuje el control deslizante en el sentido de la flecha en el símbolo de parada (h) a STOP-0.
Arranque
N Pulse el bloqueo del gatillo y oprima
el gatillo de aceleración.
N Manténgalos en esa posición. N Mueva el control deslizante a
START y manténgalo en esa posición.
N Ahora suelte el gatillo de
aceleración, el control deslizante y el bloqueo del gatillo, en el orden indicado. Esta es la posición de arranque del acelerador.
N Ajuste la perilla del
estrangulador (8):
g Si el motor está frío e para arranque en caliente –
también utilice esta posición si el motor ha estado en marcha, pero todavía se encuentra frío.
N Oprima el bulbo (9) de la bomba de
combustible manual por lo menos cinco veces, aunque el bulbo esté lleno de combustible.
Arranque
N Coloque la herramienta motorizada
sobre el suelo de modo que quede apoyada en el soporte de la máquina. Asegúrese que la herramienta no está tocando el suelo ni otros obstáculos. Vea también el capítulo "Arranque/parada del motor" en el manual de instrucciones de la herramienta KombiTool.
N Asegúrese de tener los pies bien
apoyados – ya sea de estar a pie, agacharse o arrodillarse.
N Sujete la máquina firmemente en el
suelo usando la mano izquierda y empuje hacia abajo, con el pulgar debajo de la carcasa del ventilador. No toque el gatillo de aceleración ni el bloqueo del gatillo de aceleración.
48
KM 130 R
español / EE.UU
552BA016 KN
INDICACIÓN
No se pare ni se arrodille sobre el tubo de mando.
N Sujete el mango de arranque con la
mano derecha.
N Tire lentamente del mango de
arranque hasta que sienta el enganche del mismo y en seguida dele un tirón fuerte y rápido.
INDICACIÓN
No tire de la cuerda de arranque totalmente hasta fuera, se podría romper.
N No deje que el mango de arranque
salte bruscamente hacia atrás. Guíelo lentamente hacia el interior de la caja para que la cuerda de arranque se enrolle correctamente.
N Siga intentando el arranque. N Después de no más que cinco
intentos, mueva la perilla del estrangulador (8) a e.
Cuando el motor empieza a encenderse N Siga intentando el arranque.
Tan pronto arranca N Accione inmediatamente el gatillo
de aceleración. El control deslizante se desplaza a la posición de marcha F y el motor regresa a marcha en vacío.
ADVERTENCIA
Asegúrese de que el carburador esté correctamente ajustado. La herramienta no debe moverse cuando el motor está funcionando a marcha en vacío.
Su máquina está lista para trabajar.
Parada del motor
N Empuje el control deslizante en el
sentido de la flecha en el símbolo de parada (h) a STOP-0.
A temperaturas ambiente muy bajas
Tan pronto arranca N Accione momentáneamente el
gatillo de aceleración para desconectarlo de la posición de arranque. El control deslizante se desplaza a la posición de marcha F y el motor regresa a marcha en vacío.
N Abra el acelerador ligeramente. N Caliente el motor durante un
intervalo corto.
Si el motor no arranca:
Perilla de estrangulador Si no se movió la perilla del
estrangulador a e en un tiempo suficientemente corto después que el motor empezó a encenderse, la cámara de combustión se encuentra "ahogada".
N Gire la perilla del estrangulador a
e.
N Ponga el control deslizante, la
palanca de bloqueo y el gatillo de aceleración en la posición de arranque.
N Arranque el motor tirando de la
cuerda de arranque rápidamente, pueden ser necesarios unos 10 a 20 tirones.
Si el motor todavía no arranca N Mueva el control deslizante a
STOP-0.
N Quite la bujía – vea "Bujía". N Seque la bujía. N Haga girar el motor varias veces
con el arrancador para despejar la cámara de combustión.
N Vuelva a colocar la bujía – vea
"Bujía".
N Mueva el control deslizante a
START.
N Ponga la perilla del estrangulador
en e – aun si el motor está frío.
N Ahora arranque el motor.
KM 130 R
49
español / EE.UU
Ajuste del cable del acelerador N Revise el ajuste del cable del
acelerador – vea el capítulo "Ajuste del cable del acelerador".
Se agotó completamente el combustible en el depósito
N Después de llenar el tanque, oprima
el bulbo de la bomba de combustible por lo menos cinco veces, aunque el bulbo esté lleno de combustible.
N Ajuste la perilla del estrangulador
según la temperatura del motor.
N Ahora arranque el motor.
Instrucciones para el uso
Durante el período de rodaje
Una máquina nueva de fábrica no debe hacerse funcionar a velocidad alta (aceleración máxima sin carga) por el lapso que tome llenar el tanque tres veces. Esto evita la imposición de cargas innecesariamente altas durante el período de rodaje. Ya que todas las piezas móviles deben asentarse durante el período de rodaje inicial, durante este tiempo la resistencia causada por fricción en el motor es más elevada. El motor desarrolla su potencia máxima después de haber llenado el tanque de 5 a 15 veces.
Durante el trabajo
Después de un período largo de funcionamiento con el acelerador a fondo, deje funcionar el motor por un rato en ralentí de modo que el calor en el motor sea disipado por la corriente de aire de enfriamiento. Esto ayuda a evitar que los componentes montados en el motor (encendido, carburador) sufran sobrecargas térmicas.
Después de terminar el trabajo
Almacenamiento por corto tiempo: Espere hasta que el motor se enfríe. Vacíe el tanque de combustible y guarde la máquina en un lugar seco, alejada de fuentes de encendido, hasta que la vuelva a utilizar. Para los intervalos de almacenamiento por tiempo prolongado – vea "Almacenamiento de la máquina".
50
KM 130 R
español / EE.UU
3
1
273BA005 KN
2
4
249BA066 KN
LA
H L
Sustitución del filtro de aire
La vida útil promedio de los filtros es más de 1 año. No quite la cubierta del filtro a menos que se produzca una pérdida notable de potencia del motor.
Si se nota una pérdida considerable de la potencia del motor
N Gire la perilla del estrangulador a
g. N Saque el tornillo (1). N Quite la cubierta del filtro (2). N Limpie toda la suciedad de
alrededor del filtro.
N Quite el elemento del filtro (3). N Sustituya los filtros sucios o
dañados.
N Sustituya las piezas dañadas. N Coloque el nuevo filtro de aire en la
caja del filtro (4).
N Coloque la cubierta del filtro. N Inserte el tornillo y apriételo bien
firme.
Gestión del motor Ajuste del carburador
Las emisiones de gases de escape son controladas por el diseño de parámetros y componentes fundamentales del motor (por ej. carburación, encendido, regulación y regulación de las válvulas o la lumbrera) sin la adición de ningún equipo importante.
El carburador se ajusta en la fábrica al ajuste estándar.
En esta máquina ya no es necesario ajustar el carburador,
ya que se lo ha ajustado en fábrica para garantizar una mezcla óptima de combustible/aire en todas las ubicaciones y condiciones de funcionamiento.
Ajuste de marcha en vacío
El motor se para cuando funciona a marcha en vacío
N Caliente el motor por
aproximadamente 3 minutos.
N Gire el tornillo de ajuste de marcha
en vacío (LA) lentamente en sentido horario hasta que el motor funcione de modo suave - el accesorio de corte no debe moverse.
KM 130 R
51
español / EE.UU
249BA059 KN
1
2
3
2
249BA060 KN
El accesorio de corte funciona cuando el motor está en marcha en vacío
N Gire el tornillo de ajuste de marcha
en vacío (LA) en sentido
contrahorario hasta que el
accesorio de corte se detenga, y
luego vuelva a girar el tornillo de 1/2
a 3/4 de vuelta en el mismo sentido.
ADVERTENCIA
Si la herramienta o el accesorio de corte siguen girando cuando el motor está funcionando a marcha en vacío, pida a su concesionario de servicio que revise y repare la máquina.
Chispero en el silenciador
El silenciador tiene un chispero. N Si el motor pierde potencia, revise el
chispero del silenciador.
N Espere hasta que el silenciador se
enfríe.
N Mueva el control deslizante a
STOP-0.
N Saque el tornillo (1).
N Saque el tornillo (4). N Levante el chispero (5) y tire del
mismo para sacarlo.
N Limpie el chispero. Si el chispero
está dañado o con depósitos gruesos de carbón, instale uno nuevo.
N Vuelva a instalar el chispero. N Inserte el tornillo y apriételo bien
firme.
N Vuelva a instalar la envuelta
52
N Saque los tornillos (2) y quite la
cubierta (3).
KM 130 R
español / EE.UU
1
249BA063 KN
000BA039 KN
A
2
1
002BA363 KN
Bujía
Si el motor pierde potencia, es difícil arrancarlo o funciona de modo irregular a ralentí, revise la bujía primero.
Instale una bujía nueva después de aprox. 100 horas de funcionamiento, o más temprano si los electrodos están muy gastados.
Si la mezcla del combustible es incorrecta (demasiado aceite en la gasolina), el filtro de aire está sucio, y las condiciones de trabajo no son favorables (especialmente a aceleraciones intermedias) se afecta la condición de la bujía. Estos factores permiten la formación de depósitos en la punta aislante, los cuales pueden perjudicar el rendimiento.
Retiro de la bujía
N Mueva el control deslizante a
STOP-0.
N Quite el casquillo de la bujía (1). N Destornille la bujía.
Revisión de la bujía
N Limpie la bujía si está sucia. N Revise la separación entre
electrodos (A) y ajústela de ser necesario – vea el capítulo "Especificaciones".
N Utilice únicamente bujías tipo
resistencia cuyo margen de rendimiento sea el aprobado.
Corrija los problemas que hayan causado la contaminación de la bujía:
demasiado aceite en la mezcla de
combustible,
filtro de aire sucio, condiciones desfavorables de
funcionamiento, por ejemplo, funcionando bajo carga parcial.
ADVERTENCIA
Para reducir el riesgo de incendio y de quemaduras, utilice solamente las bujías autorizadas por STIHL. Siempre empuje el casquillo (1) de la bujía firmemente en el borne (2) del tamaño adecuado. (Nota: Si el borne tiene una tuerca adaptadora SAE desmontable, la misma tiene que ser firmemente instalada.) Una conexión suelta entre el casquillo de la bujía y el conector del cable de encendido en el casquillo puede crear un arco voltaico y encender los vapores del combustible, provocando un incendio.
KM 130 R
53
español / EE.UU
2
002BA446 KN
1
Instalación de la bujía
N Atornille la bujía (2) en el cilindro y
coloque el casquillo (1) (empújelo
firmemente).
Dispositivo de arranque Almacenamiento de la
máquina
Para prolongar la vida útil de la cuerda de arranque, siempre observe los puntos siguientes:
N Tire de la cuerda de arranque
solamente en el sentido especificado.
N No tire de la cuerda sobre el borde
del buje guía.
N No tire de la cuerda más de lo
especificado.
N No deje que el mango de arranque
retroceda bruscamente, guíelo lentamente hacia el interior de la caja – vea el capítulo "Arranque/Parada del motor."
Pida que el concesionario de servicio sustituya la cuerda de arranque dañada oportunamente. STIHL recomienda que un concesionario STIHL autorizado efectúe los trabajos de mantenimiento y reparación.
Para intervalos de 3 meses o más N Vacíe y limpie el tanque de
combustible en una zona bien ventilada.
N Deseche el combustible de acuerdo
con los requerimientos locales de protección del medio ambiente.
N Haga funcionar el motor hasta que
el carburador se seque. Esto ayuda a evitar que los diafragmas del carburador se peguen.
N Limpie a fondo la máquina. N Retire, limpie e revise el accesorio.
Cubra los componentes metálicos con aceite inhibidor de corrosión
N Guarde la máquina en un lugar seco
y bajo llave, fuera del alcance de los niños y de otras personas no autorizadas.
54
KM 130 R
Inspección y mantenimiento
465BA002 KN
por el concesionario
Trabajos de mantenimiento
STIHL recomienda que un concesionario STIHL autorizado efectúe los trabajos de mantenimiento y reparación.
Captador de combustible en el tanque
N Revise anualmente el recogedor en
el tanque de combustible y pida que
el concesionario lo sustituye de ser
necesario. El cuerpo del recogedor debe quedar en
el tanque en la posición que se muestra en la ilustración.
español / EE.UU
KM 130 R
55
español / EE.UU
Información para mantenimiento
Los intervalos que se indican a continuación corresponden únicamente a condicio­nes normales de funcionamiento. Si la jornada diaria es más prolongada que lo normal, o bien si las condiciones son extremas (zonas con demasiado polvo, etc.), acorte apropiadamente los intervalos indicados.
antes de comenzar el trabajo
después de completar el tra-
bajo o diariamente
después de cada parada
para cargar combustible
semanalmente
mensualmente
cada 12 meses
si hay problemas
si presenta daños
según se requiera
Inspección visual (condición general,
Máquina completa
Mango de control Comprobar el funcionamiento XX
Filtro de aire
Bomba de combustible manual
Recogedor en depósito de combustible
Depósito de combustible Limpiar XX
Carburador
Bujía
Entradas de enfriamiento
Aletas de cilindro
Juego libre de válvulas
3)
2)
fugas)
Limpiar X
Sustituya las piezas dañadas. X
Inspección visual XX
Reemplazar
Revisar X
Solicitar al concesionario de servicio su reparación
Solicitar al concesionario de servicio su revisión
Solicitar al concesionario de servicio su sustitución
Comprobar el ajuste de marcha en vacío – la herramienta/el accesorio de corte no debe desplazarse
Ajustar la velocidad de marcha en vacío X
Ajustar la distancia entre electrodos X
Cambiar después de aprox. cada 100 horas de funcionamiento
Inspección visual X
Limpiar X
Limpiar X
Revisar y ajustar de ser necesario, después de las primeras 139 horas de funcionamiento
1)
2)
2)
2)
XX
X
X
X
XXX
XX
X
56
KM 130 R
español / EE.UU
Los intervalos que se indican a continuación corresponden únicamente a condicio­nes normales de funcionamiento. Si la jornada diaria es más prolongada que lo normal, o bien si las condiciones son extremas (zonas con demasiado polvo, etc.), acorte apropiadamente los intervalos indicados.
antes de comenzar el trabajo
después de completar el tra-
bajo o diariamente
después de cada parada
para cargar combustible
semanalmente
mensualmente
cada 12 meses
si hay problemas
Cámara de combustión2)E.P.A.
Cámara de combustión
2)
CARB
Chispero en silenciador
Todos los tornillos y tuercas accesibles (salvo los tornillos de ajuste)
Elementos antivibración
Etiquetas de seguridad Reemplazar X
1)
Solamente si hay una pérdida notable de la potencia del motor
2)
STIHL recomienda acudir a un concesionario STIHL autorizado para servicio.
3)
Retiro de la envuelta - vea "Chispero en silenciador"
Limpiar y descarbonizar después de las primeras 139 horas de funcionamiento, y luego cada 150 horas
Limpiar después de las primeras 139 horas de funcionamiento, y luego cada 150 horas
Revisar XX
Limpiar o reemplazar XX
Volver a apretar X
Revisar XXX
Solicitar al concesionario de servicio su sustitución
2)
si presenta daños
según se requiera
X
X
X
KM 130 R
57
español / EE.UU
14
11
16
13
9
7
1
3
4
17
18
8
10
466BA003 KN
#
2
5
6
12
15
Componentes importantes
1 Tapa de llenado de combustible 2 Tornillos de ajuste del carburador 3 Bomba de combustible manual 4 Mango de arranque 5 Silenciador con chispero 6 Manguito de acoplamiento 7 Tornillo mariposa 8 Mango tórico 9 Barra de defensa 10 Argolla de transporte 11 Control deslizante 12 Bloqueo de gatillo de aceleración 13 Gatillo de aceleración 14 Casquillo de bujía 15 Perilla de estrangulador 16 Cubierta del filtro de aire 17 Tanque de combustible 18 Apoyo de la máquina # Número de serie
58
KM 130 R
español / EE.UU
Definiciones
1 Tapa de llenado de combustible
Para tapar el depósito de
combustible. 2 Tornillos de ajuste del carburador
Para afinar el carburador. 3 Bomba de combustible manual
Suministra alimentación adicional
de combustible para el arranque en
frío. 4 Mango de arranque
El mango del arrancador usado
para arrancar el motor. 5 Silenciador con chispero
El silenciador reduce los ruidos del
tubo de escape y desvía los gases
de escape lejos del operador.
El chispero está diseñado para
reducir el riesgo de incendios. 6 Manguito de acoplamiento
Conecta el tubo de mando a la parte
inferior del tubo de mando (eje
corto). 7 Tornillo mariposa
Sujeta la parte inferior del tubo de
mando (eje corto). 8 Mango tórico
Para facilitar el control de la
máquina durante el proceso de
corte.
9 Barra de defensa
Ayuda a mantener los pies y piernas del usuario lejos del accesorio de corte.
10 Argolla de transporte
Conecta la unidad al arnés.
11 Control deslizante
Para aceleración de arranque, marcha y parada. Mantiene el estrangulador parcialmente abierto durante el arranque y apaga el encendido del motor para detener su marcha.
12 Bloqueo de gatillo de aceleración
Debe ser oprimido antes de poder activar el gatillo de aceleración.
13 Gatillo de aceleración
Regula la velocidad del motor.
14 Casquillo de bujía
Conecta la bujía al alambre de encendido.
15 Perilla de estrangulador
Facilita el arranque del motor al enriquecer la mezcla.
16 Cubierta del filtro de aire
Cubre y protege el elemento del filtro de aire.
17 Tanque de combustible
Contiene la mezcla de combustible y aceite.
18 Apoyo de la máquina
Para apoyar la máquina en el suelo.
Especificaciones
EPA / CEPA
El período de cumplimiento de emisiones indicado en la etiqueta de cumplimiento de emisiones es la cantidad de horas de funcionamiento para la cual la máquina ha demostrado la conformidad con los requerimientos de emisiones del Gobierno federal de los EE.UU.
Categoría
A = 300 horas B = 125 horas C= 50horas
CARB
El período de cumplimiento de emisiones empleado en la etiqueta del índice de aire CARB tiene las siguientes definiciones:
Extended = 300 horas Intermediate = 125 horas Moderate = 50 horas
Motor
Motor de un cilindro, cuatro tiempos, lubricado por una mezcla de gasolina con aceite
KM 130 R
59
español / EE.UU
Cilindrada: 36,3 cm³
(2,22 pulg³)
Diámetro: 43 mm
(1,69 pulg)
Carrera: 25 mm
(0,98 pulg)
Potencia del motor según ISO 8893:
Marcha en vacío: 2800 r/min Velocidad de corte
(nominal): 10.200 r/min Juego de las válvulas Válvula de admisión: 0,10 mm
Válvula de escape: 0,10 mm
Sistema de encendido
Encendido por magneto electrónico
Bujía (tipo resistencia): NKG CMR 6H
Distancia entre electrodos:
1,4 kW (1,90 bhp) a 8.500 rpm
(0,004 pulg)
(0,004 pulg)
0,5 mm (0,02 pulg)
Sistema de combustible
Carburador de diafragma de todas posiciones con bomba de combustible integral
Capacidad del depósito de combustible: 0,53 l (17,9 oz fl)
Peso
seco, sin accesorio KombiTool: 4,9 kg (10,8 lb)
Accesorios especiales
Comuníquese con su concesionario STIHL para información acerca de accesorios especiales que pueden estar disponibles para su producto.
60
KM 130 R
español / EE.UU
000BA073 KN
Información de reparación Desecho
Los usuarios de esta máquina deben efectuar únicamente los trabajos de mantenimiento descritos en este manual. STIHL recomienda que un concesionario de servicio STIHL efectúe los demás trabajos de reparación.
Los reclamos de garantía presentados después de realizadas las reparaciones serán aceptados únicamente si las mismas fueron ejecutadas por un concesionario de servicio autorizado STIHL utilizando piezas de repuesto genuinas de STIHL.
Los repuestos genuinos STIHL se identifican por medio del número de pieza STIHL, el logotipo { y el símbolo de piezas STIHL K. El símbolo aparece solo en algunas piezas pequeñas.
Respete todas las leyes y los reglamentos sobre eliminación de desechos que correspondan a su país.
No se debe botar los aparatos STIHL en el basurero. Lleve el producto, los accesorios y el embalaje a un vertedero autorizado para reciclarlos y contribuir al cuidado del medio ambiente.
Comuníquese con un concesionario de servicio de STIHL para obtener la información más actualizada sobre la eliminación de desechos.
Declaración de garantía de STIHL Incorporated sobre sistemas de control de emisiones según normas Federales
No para California
Sus derechos y obligaciones de garantía
La Agencia de Protección del Medio Ambiente (EPA) de los EE.UU. y STIHL Incorporated se complacen en explicarle la garantía del sistema de control de emisiones instalado en el motor de su equipo. En los EE.UU., los nuevos motores pequeños para equipos de uso fuera de carretera modelos 1997 y posteriores deben estar diseñados, construidos y equipados, al tiempo de la venta, de conformidad con los reglamentos de la EPA de los EE.UU. para los motores pequeños de uso fuera de carretera. El motor del equipo debe carecer de defectos en el material y la fabricación que puedan causar el incumplimiento de las normas de la EPA de los EE.UU. durante los primeros dos años de uso del motor a partir de la fecha de compra por el último comprador.
STIHL Incorporated debe garantizar el sistema de control de emisiones en el motor pequeño para uso fuera de carretera por el intervalo mencionado más arriba, siempre que dicho motor no haya estado sujeto a maltrato, negligencia o cuidado inapropiado.
KM 130 R
61
español / EE.UU
El sistema de control de emisiones de su máquina incluye piezas tales como el carburador y el sistema de encendido. Además puede incluir mangueras, conectores y otros conjuntos asociados con el control de emisiones.
En los casos de existir una condición amparada bajo garantía, STIHL Incorporated reparará el motor pequeño para equipo de uso fuera de carretera sin costo alguno, incluido el diagnóstico (si el trabajo de diagnóstico fue realizado por un concesionario autorizado), las piezas y la mano de obra.
Cobertura de garantía del fabricante En los EE.UU., los motores pequeños
para equipos de uso fuera de carretera modelos 1997 y posteriores también están garantizados por dos años. En el caso de encontrarse defectos en cualquiera de las piezas del motor relacionadas con el sistema de control de emisiones, la pieza será reparada o sustituida por STIHL Incorporated sin costo alguno.
Responsabilidades del usuario relativas a la garantía
Como propietario de motor pequeño para equipo de uso fuera de carretera, usted tiene la responsabilidad de realizar el mantenimiento requerido descrito en su manual de instrucciones. STIHL Incorporated le recomienda guardar todos los recibos comprobantes de los trabajos de mantenimiento hechos a su motor pequeño para equipo de uso fuera de carretera, pero STIHL Incorporated no puede negar garantía basado en el solo hecho de faltar los
recibos o del incumplimiento del propietario de realizar todos los trabajos de mantenimiento programados.
El uso de cualquier pieza de repuesto o servicio cuyo comportamiento y durabilidad sean equivalentes está permitido en trabajos de mantenimiento o reparación no contemplados en la garantía, y no reducirá las obligaciones de la garantía del fabricante del motor.
Sin embargo, como propietario del motor pequeño para equipo de uso fuera de carretera usted debe ser consciente de que STIHL Incorporated puede negarle cobertura de garantía si dicho motor o una pieza del mismo ha fallado debido a maltrato, descuido, mantenimiento inadecuado o modificaciones no autorizadas.
Usted es responsable de llevar el motor pequeño para equipo de uso fuera de carretera a un centro de servicio STIHL tan pronto surja el problema. Las reparaciones bajo garantía serán realizadas en un tiempo razonable, sin exceder de 30 días.
Ante cualquier duda respecto a sus derechos y responsabilidades bajo esta garantía, sírvase contactar al representante de atención al cliente STIHL llamando al 1-800-467-8445, o si lo prefiere puede escribir a
STIHL Inc., 536 Viking Drive, P.O. Box 2015, Virginia Beach, VA 23450-2015 EE.UU.
www.stihlusa.com
Cobertura por STIHL Incorporated STIHL Incorporated garantiza al último
comprador y a cada comprador subsiguiente que el motor pequeño para
equipo de uso fuera de carretera está diseñado, construido y equipado, al tiempo de la venta, de conformidad con todos los reglamentos aplicables. Además, STIHL Incorporated garantiza al comprador inicial y a cada comprador subsiguiente que el motor está libre de defectos en el material y fabricación que puedan causar el incumplimiento de los reglamentos aplicables durante un período de dos años.
Período de garantía El período de garantía comienza en la
fecha en que el motor del equipo utilitario es entregado a usted y usted firma y remite la tarjeta de garantía a STIHL.
Si cualquier componente relacionado con el sistema de control de emisiones está defectuoso, el mismo será sustituido por STIHL Incorporated sin costo alguno para el propietario. Cualquier pieza garantizada cuyo reemplazo no está programado como mantenimiento requerido, o que debe recibir únicamente inspección regular en el sentido de "reparar o sustituir según sea necesario", estará garantizada por el período de garantía. Cualquier pieza cuyo reemplazo está programado como mantenimiento requerido estará garantizada por el intervalo hasta el primer punto de reemplazo programado para esa pieza.
Diagnóstico Como propietario, a usted no se le debe
cobrar la mano de obra por los diagnósticos que determinen que una pieza garantizada está defectuosa. No obstante, si usted reclama garantía para un componente y se comprueba que la
62
KM 130 R
español / EE.UU
máquina no está defectuosa, STIHL Incorporated le cobrará el costo de la prueba del sistema de control de emisiones. El trabajo de diagnóstico mecánico se realiza en un centro de servicio autorizado por STIHL. La prueba del sistema de control de emisiones se realiza ya sea en la fábrica de STIHL Incorporated o en un laboratorio de ensayos independiente.
Trabajo bajo garantía STIHL Incorporated reparará los
defectos amparados por la garantía en cualquier estación de garantía o centro de servicio autorizado por STIHL. Todo trabajo de este tipo se hará gratis para el propietario siempre que se determine que la pieza cubierta por la garantía está defectuosa.
Se puede usar cualquier pieza de repuesto aprobada por el fabricante o equivalente en las piezas relacionadas con el sistema de control de emisiones, y debe ser suministrada gratis al propietario. STIHL Incorporated es responsable por daños a otros componentes del motor causados por la falla de una pieza garantizada que todavía está bajo garantía.
La lista siguiente define específicamente las piezas garantizadas y relacionadas con las emisiones:
Filtro de aire Carburador (si corresponde) Bomba de combustible Estrangulador (sistema de
enriquecimiento de arranque en
frío) (si corresponde)
Varillajes de control Múltiple de admisión Sistema de encendido por magneto
o electrónico (Módulo de encendido o unidad de control electrónica)
Volante Bujía Válvula de inyección (si
corresponde)
Bomba de inyección (si
corresponde)
Carcasa del acelerador (si
corresponde)
Cilindro Silenciador Convertidor catalítico (si lo tiene) Tanque de combustible Tapa de tanque de combustible Línea de combustible Adaptadores de línea de
combustible
Abrazaderas Sujetadores/pernos
Dónde presentar el reclamo para servicio bajo garantía
Lleve el producto a cualquier centro de servicio autorizado por STIHL y presente la tarjeta de garantía firmada.
Requerimientos de mantenimiento Las instrucciones presentadas en este
manual se basan en la aplicación de la mezcla recomendada para motores de 2 tiempos (vea también la instrucción "Combustible"). Las discrepancias de
estas recomendaciones con respecto a la calidad y la proporción de la mezcla de combustible y aceite pueden exigir intervalos de mantenimiento más cortos.
Limitaciones Esta garantía de los sistemas de control
de emisiones no cubrirá ninguno de los puntos siguientes:
N reparación o sustitución requerida
debido a maltrato, negligencia o falta del mantenimiento requerido,
N reparaciones mal hechas o
sustituciones contrarias a las especificaciones de STIHL Incorporated que afecten desfavorablemente el funcionamiento y/o la durabilidad, y las alteraciones o modificaciones no recomendadas o aprobadas por escrito por STIHL Incorporated,
y N la sustitución de piezas y otros
servicios y ajustes necesarios para el mantenimiento requerido en y después del primer punto de reemplazo programado.
KM 130 R
63
español / EE.UU
Declaración de garantía de STIHL Incorporated sobre el control de emisiones de gases de escape y emisiones por evaporación para el Estado de California
Solamente para California
Sus derechos y obligaciones de garantía
El Consejo de Recursos del Aire del Estado de California (CARB) y STIHL Incorporated se complacen en explicarle la Garantía del sistema de control de emisiones instalado en el motor de su equipo de uso fuera de carretera para el año 2013 y posteriores.
En California, el equipo nuevo que tiene motores pequeños para uso fuera de carretera debe estar diseñado, construido y equipado de conformidad con las rigurosas normas de contaminación del aire del estado. STIHL Incorporated debe garantizar el sistema de control de emisiones en el motor pequeño para uso fuera de carretera por el intervalo mencionado más arriba, siempre que dicho motor pequeño para uso fuera de carretera no haya estado sujeto a maltrato, negligencia o cuidado inapropiado.
Su sistema de control de emisiones puede incluir piezas tales como el carburador y el sistema de inyección de combustible, el sistema de encendido y el convertidor catalítico. Además puede incluir mangueras, correas, conectores y otros conjuntos asociados con el control de emisiones.
En los casos de existir una condición amparada bajo garantía, STIHL Incorporated reparará el motor pequeño para equipo de uso fuera de carretera sin costo alguno, incluido el diagnóstico, las piezas y la mano de obra.
Responsabilidades del fabricante relativas a la garantía
El sistema de control de emisiones tiene una garantía de dos años en California. En el caso de encontrarse defectos en cualquiera de los componentes del motor relacionados con el sistema de control de emisiones, el mismo será reparado o sustituido por STIHL Incorporated sin costo alguno.
Responsabilidades del propietario relativas a la garantía
Como propietario de motor pequeño para equipo de uso fuera de carretera, usted tiene la responsabilidad de realizar el mantenimiento requerido descrito en su manual de instrucciones. STIHL Incorporated le recomienda guardar todos los recibos comprobantes de los trabajos de mantenimiento hechos a su motor pequeño para equipo de uso fuera de carretera, pero STIHL Incorporated no puede negar garantía basado en el solo hecho de faltar los recibos o de su incumplimiento de realizar todos los trabajos de mantenimiento programados.
Sin embargo, como propietario del motor pequeño para equipo de uso fuera de carretera usted debe ser consciente de que STIHL Incorporated puede negarle cobertura de garantía si dicho motor o un componente del mismo
ha fallado debido a maltrato, descuido, mantenimiento inadecuado o modificaciones no autorizadas.
Usted es responsable de llevar el motor pequeño para equipo de uso fuera de carretera a un concesionario de servicio STIHL tan pronto surja el problema. Las reparaciones bajo garantía deben realizarse en un tiempo razonable, sin exceder de 30 días. Ante cualquier duda respecto a sus derechos y responsabilidades bajo esta garantía, sírvase contactar al representante de atención al cliente STIHL llamando al 1­800-467-8445, o si lo prefiere puede escribir a
STIHL Inc., 536 Viking Drive, P.O. Box 2015, Virginia Beach, VA 23450-2015 EE.UU.
www.stihlusa.com
Cobertura por STIHL Incorporated STIHL Incorporated garantiza al último
comprador y a cada comprador subsiguiente que el motor pequeño para equipo de uso fuera de carretera está diseñado, construido y equipado, al tiempo de la venta, de conformidad con todos los reglamentos acerca de emisiones aplicables.
Además, STIHL Incorporated garantiza al comprador inicial y a cada comprador subsiguiente que el motor está libre de defectos en el material y fabricación que puedan causar el incumplimiento de los reglamentos acerca de emisiones aplicables durante un período de dos años.
64
KM 130 R
español / EE.UU
Período de garantía contra defectos Los períodos de garantía comenzarán el
día en que el motor de equipo utilitario es comprado por el comprador inicial. Si cualquier componente relacionado con el sistema de control de emisiones está defectuoso, el mismo será sustituido por STIHL Incorporated sin costo alguno para el propietario.
No se permite usar componentes adicionales o modificados que no hayan sido eximidos por el Consejo de Recursos del Aire (CARB). El uso de cualquier componente adicional o modificado no eximido será motivo para la denegación del reclamo bajo garantía. STIHL Incorporated no es responsable por las fallas de los componentes garantizados causadas por el uso de un componente adicional o modificado no eximido.
La garantía de los componentes relacionados con el control de emisiones se interpretará de la manera siguiente:
1 Cualquier componente garantizado
cuyo reemplazo no está
programado como mantenimiento
requerido en las instrucciones
escritas requeridas en la Lista de
Piezas bajo la Garantía de Control
de Emisiones (vea más abajo) debe
garantizarse por el período de
garantía definido en la subsección
COBERTURA POR STIHL
INCORPORATED, vea más arriba.
Si uno de estos componentes falla
durante el período de garantía, el
fabricante debe reparar o sustituir el
mismo de acuerdo con la
subsección (4) más abajo. Un componente reparado o sustituido bajo la garantía debe garantizarse durante el resto del período de garantía.
2 Cualquier componente garantizado
que solamente debe inspeccionarse periódicamente de acuerdo con las instrucciones escritas requeridas en la Lista de Piezas bajo la Garantía de Control de Emisiones (vea más abajo) debe garantizarse por el período de garantía definido en la subsección COBERTURA POR STIHL INCORPORATED, vea más arriba. Una declaración en las instrucciones escritas tal como "reparar o sustituir según sea necesario" no acortará el período de cobertura de garantía. Un componente de este tipo reparado o sustituido bajo la garantía debe garantizarse durante el resto del período de garantía.
3 Cualquier componente garantizado
que debe sustituirse como un elemento de mantenimiento requerido en las instrucciones escritas requeridas por la lista de piezas bajo la garantía de control de emisiones (vea más abajo) debe garantizarse por el intervalo antes del primer punto de sustitución programado para este componente. Si el componente falla antes del primer punto de sustitución programado, el fabricante del motor debe reparar o sustituir el mismo de acuerdo con la subsección (4) más abajo. Un componente de este tipo reparado o sustituido bajo la
garantía debe garantizarse durante el resto del período de garantía antes del primer punto de sustitución programado para el componente.
4 La reparación o sustitución de
cualquier componente garantizado debe llevarse a cabo en una estación de reparaciones bajo garantía sin costo alguno para el propietario.
5 No obstante lo expuesto en la
subsección (4) de arriba, los servicios o las reparaciones bajo garantía pueden obtenerse en todos los centros de distribución del fabricante autorizados para dar servicio a los motores en cuestión.
6 Al propietario no se le debe cobrar
el trabajo del diagnóstico que establece que el componente garantizado es de hecho defectuoso, a condición de que tal trabajo de diagnóstico se realice en una estación de reparaciones bajo garantía.
Trabajo bajo garantía STIHL Incorporated reparará los
defectos amparados por la garantía en cualquier estación de garantía o centro de servicio autorizado por STIHL. Todo trabajo de este tipo se hará gratis para el propietario siempre que se determine que la pieza cubierta por la garantía está defectuosa. Se puede usar cualquier pieza de repuesto aprobada por el fabricante o equivalente para el mantenimiento o la reparación de los componentes relacionados con el sistema de control de emisiones, y la misma debe ser suministrada gratis al
KM 130 R
65
español / EE.UU
propietario. STIHL Incorporated es responsable por daños a otros componentes del motor causados por la falla de una pieza garantizada que todavía está bajo garantía.
Lista de piezas bajo la garantía de emisiones
Filtro de aire, carburador (si corresponde), bomba de combustible, estrangulador (sistema de enriquecimiento para arranque en frío) (si corresponde), varillajes de control, múltiple de admisión, sistema de encendido por magneto o electrónico (Módulo de encendido o unidad de control electrónica), volante, bujía, válvula de inyección (si corresponde), bomba de inyección (si corresponde), carcasa del acelerador (si corresponde), cilindro, silenciador, convertidor catalítico (si corresponde), tanque de combustible, tapa de combustible, tubería de combustible, adaptadores de tubería de combustible, abrazaderas, fijaciones.
Dónde presentar el reclamo para servicio bajo garantía
Lleve el producto de STIHL a cualquier concesionario de servicio autorizado por STIHL y presente la tarjeta de registro de producto STIHL firmado o la copia impresa del registro electrónico del producto.
Limitaciones La reparación o la sustitución de
cualquier componente garantizado y normalmente abarcado por la garantía se puede excluir de la garantía si STIHL Incorporated demuestra el maltrato, negligencia o mantenimiento incorrecto del producto de STIHL, y que tal maltrato, negligencia, o mantenimiento incorrecto era la causa directa de la necesidad de reparación o sustitución del componente. A pesar de lo anterior, el ajuste de un componente que tiene un dispositivo limitador instalado en fábrica y funcionando correctamente no perjudicará la cobertura bajo garantía.
Marcas comerciales
Marcas registradas de STIHL
®
STIHL
{ K
La combinación de colores anaranjado­gris (Números de registro EE.UU. 2,821,860; 3,010,057, 3,010,058, 3,400,477; y 3,400,476)
AUTOCUT EASYSTART
®
®
66
KM 130 R
español / EE.UU
TM
STIHL Injection
FARM BOSS iCademy MAGNUM MasterWrench Service MotoMix OILOMATIC ROCK BOSS STIHL Cutquik STIHL DUROMATIC STIHL Quickstop STIHL ROLLOMATIC STIHL WOOD BOSS TIMBERSPORTS WOOD BOSS YARD BOSS
®
®
®
®
®
®
®
®
®
®
®
®
®
®
®
Algunos de las marcas comerciales de STIHL por ley común
4-MIX ™
BioPlus ™ Easy2Start ™ EasySpool ™ ElastoStart ™ Ematic ™ FixCut ™ HT Plus ™ IntelliCarb ™ Master Control Lever ™ Micro ™ Pro Mark ™ Quad Power ™ Quiet Line ™ STIHL Arctic ™ STIHL Compact ™ STIHL HomeScaper Series ™ STIHL Interchangeable Attachment
Series ™ STIHL M-Tronic ™ STIHL MiniBoss ™ STIHL MotoPlus 4 ™ STIHL Multi-Cut HomeScaper Series ™ Stihl Outfitters ™ STIHL PICCO ™
STIHL PolyCut ™ STIHL PowerSweep ™ STIHL Precision Series ™ STIHL Protech ™ STIHL RAPID ™ STIHL SuperCut ™ STIHL Territory ™ TapAction ™ TrimCut ™ Esta lista de marcas comerciales está
sujeta a cambios. Queda terminantemente prohibido todo
uso de estas marcas comerciales sin el consentimiento expreso por escrito de ANDREAS STIHL AG & Co. KG, Waiblingen.
KM 130 R
67
español / EE.UU
68
KM 130 R
WARNING
ADVERTENCIA
The engine exhaust from this product
contains chemicals known to the State
of California to cause cancer, birth
defects or other reproductive harm.
0458-466-8621-A
englisch / spanisch USA
englisch / spanisch USA
G U
U
www.stihl.com
El gas de escape del motor de esta máquina
contiene productos químicos que en el estado de
California son considerados como causantes de
cáncer, defectos de nacimiento u otros efectos
nocivos para los órganos de la reproducción.
*04584668621A*
0458-466-8621-A
Loading...
