Stihl HSA 56 User Manual

STIHL HSA 56

{

Instruction Manual Manual de instrucciones

WARNING

Read Instruction Manual thoroughly before use and follow all safety precautions – improper use can cause serious or fatal injury.

ADVERTENCIA

Antes de usar la máquina lea y siga todas las precauciones de seguridad dadas en el manual de instrucciones – el uso incorrecto puede causar lesiones graves o mortales.

Instruction Manual 1 - 34

Manual de instrucciones 35 - 70

Contents

English

1 Introduction 2 Guide to Using this Manual

2.1 Signal Words

2.2 Symbols in Text 3 Main Parts

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

. . . . . . . . . . . . . . . . . . . . . . . . . .

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

3.1 Hedge Trimmer, Battery and Charger 4 Safety Symbols on the Products

4.1 Hedge Trimmer, Battery and Charger

Original Instruction ManualPrinted on chlorine-free paper

5 General Power Tool Safety Warnings

5.1 Introduction

5.2 Work Area Safety

5.3 Electrical Safety

5.4 Personal Safety

5.5 Power Tool Use and Care

5.6 Battery Tool Use and Care

5.7 Service

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

. . . . . . . . . . . . . . . . . . . . . . . . . . .

. . . . . . . . . . . . . . . . . . . . . . . . . .

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

5.8 Hedge Trimmer Safety Warnings 6 IMPORTANT SAFETY INSTRUCTIONS

6.1 Intended Use

6.2 Operator

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

6.3 Personal Protective Equipment

6.4 Hedge Trimmer

6.5 Using the Hedge Trimmer

Printing inks contain vegetable oils, paper can be recycled.

7 Battery Safety

7.1 Warnings and Instructions 8 Charger Safety

8.1 Warnings and Instructions

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

. . . . . . . . . . . . . . . . . . . . . . . . . .

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

. . . . . . . . . . . . . . . . . . . . . . . . . .

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

. . . . . . . . . . . . . . . . . . . . . . . . . .

9 Maintenance, Repair and Storage

9.1 Warnings and Instructions 10 Before Starting Work

. . . . . . . . . . . . . . . . . . . . . . . . . .

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

10.1 Preparing the Hedge Trimmer for Operation 11 Charging the Battery

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

. . . . . . . . . . . . . . . .

. . . . . . . . . . . . . . . . . . . . .

. . . . . . . . . . . . . . . .

. . . . . . . . . . . . . . . . . . . .

. . . . . . . . . . . . .

. . . . . . . . . . . . . . . . . . . . . .

. . . . . . . . . . . . . . . . . .

. . . . . . . .

11.1 Setting up the Charger

11.2 Charging

12 LED Diagnostics

12.1 LEDs on the Battery

12.2 LED on the Charger

13 Inserting and Removing the Battery

13.1 Inserting the Battery

13.2 Removing the Battery

14 Switching the Hedge Trimmer On and Off

14.1 Switching On

14.2 Switching Off

15 Checking the Controls

15.1 Testing the Controls

16 During Operation

16.1 Using the Hedge Trimmer

7 7

17 After Finishing Work

17.1 Preparing for Transportation or Storage

18 Transporting the Hedge Trimmer and Battery

18.1 Hedge Trimmer

18.2 Battery

19 Storing the Hedge Trimmer, Battery and Charger

19.1 Hedge Trimmer

19.2 Battery

19.3 Charger

20 Cleaning

20.1 Cleaning the Hedge Trimmer, Battery and

16 17

17 18

18 18

Charger

20.2 Cleaning the Cutting Blades 21 Inspection and Maintenance

21.1 Inspecting and Maintaining the Hedge Trimmer

21.2 Inspecting and Maintaining the Cutting Blades 22 Troubleshooting Guide

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

22.1 Hedge Trimmer and Battery

. . . . . . . . . . . . . . . . . . . . . . . . . . . . .

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

. . . . . . . . . . . . . . . . . . . . . . . . . .

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

. . . . . . . . . . . . . . . . . . . . . . .

. . . . . . . . . . . . . . . . . . . . . . . . . . . . .

. . . . . . . . . . . . . . . . . . . . . . . .

. . . . . . . . . . . . . . . .

. . . . . . . . . .

. . . . . . . . . . . .

. . . . . . .

. . .

. . . .

. . . . .

18 19

20 20 20

21 21 21

22 22 23

23 23

24 24

25 25

25 25 25

26 26 26 26

27 27

27 27 28

29 29

{

0458-714-8621-A. VA2.C17.

0000007546_004_GB

0458-714-8621-A

English

1 Introduction

22.2 Charger 23 Specifications

23.1 STIHL HSA 56

23.2 Cutting Blades

23.3 STIHL AK Series Battery

23.4 STIHL AL 101

23.5 Symbols on the Hedge Trimmer, Battery and Charger

23.6 FCC 15 Compliance Statement

24 Replacement Parts and Equipment

24.1 Genuine STIHL Replacement Parts

25 Disposal

25.1 Disposal of the Hedge Trimmer and Charger

25.2 Battery Recycling

26 Limited Warranty

26.1 STIHL Incorporated Limited Warranty Policy

27 Trademarks

27.1 Registered Trademarks

27.2 Common Law Trademarks

28 Addresses

28.1 STIHL Incorporated

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

. . . . . . . . . . . . . . . . . . . . . . . . . . .

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

. . . . . . . . . . . . . . . . . . . .

. . . . . . . . . . . . . . . . .

. . . . . . . . . . . . . . . .

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

. . . . . . . . . . . . . . . . . . . . . . . . . . . .

. . . . . . . . . . . . . . . . . . . . . . . . .

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

. . . . . . .

1 Introduction

31 31

Thank you for your purchase. The information contained in

this manual will help you receive maximum performance and

satisfaction from your hedge trimmer and, if followed, reduce

the risk of injury from its use. SAVE THIS MANUAL!

31 32

32 32

32 32 32

33 33

Have your authorized STIHL servicing dealer show you how

to operate your power tool.

Do not lend or rent the hedge trimmer without this instruction manual. Allow only persons who fully understand the

information in this manual to operate the hedge trimmer.

For further information, or if you do not understand any of the instructions in this manual, please go to www.stihlusa.com (for Canada: www.stihl.ca) or contact your authorized STIHL servicing dealer.

Because a hedge trimmer is a high-speed cutting tool, special safety precautions must be observed to reduce the risk of personal injury.

Read this instruction manual thoroughly before use and periodically thereafter. Follow all safety precautions. Careless or improper use of the hedge trimmer can cause serious or fatal injury.

2 Guide to Using this Manual

2.1 Signal Words

This manual contains safety information that requires your special attention. Such information is introduced with the following symbols and signal words:

DANGER

Indicates a hazardous situation that, if not avoided, will result in death or serious injury.

0458-714-8621-A

3 Main Parts

English

WARNING

Indicates a hazardous situation that, if not avoided, could result in death or serious injury.

NOTICE

Indicates a risk of property damage, including damage to the machine or its individual components.

2.2 Symbols in Text

The following symbol is included to assist you with the use of the manual:

Refers to a designated chapter or sub-chapter in this instruction manual.

3 Main Parts

3.1 Hedge Trimmer, Battery and Charger

0458-714-8621-A

1 Loop Handle

Handle for the operator's front hand.

2 Switch Lever

Activates the cutting attachment when depressed in combination with the trigger switch.

3 Battery Compartment

Holds the battery.

0000-GXX-1451-A0

English

4 Safety Symbols on the Products

4 Locking Lever

Secures the battery in the battery compartment.

5 Retaining Latch

Locks/unlocks the trigger switch.

6 Trigger Switch Lockout

Must be depressed while the retaining latch is unlocked to allow activation of the trigger switch.

7 Control Handle

Hedge trimmer's rear handle.

8 Trigger Switch

Activates the cutting attachment when depressed in combination with the switch lever.

9 Hand Guard

Helps protect the operator's front hand from projecting branches and other materials and contact with the cutting blades.

10 Cutting Blades

Steel blades for cutting hedges, shrubs and bushes.

11 Charger

Charges the battery.

12 Charger LED

Indicates the operating status of the charger.

13 Plug

Connects the power supply cord to a wall outlet.

14 Power Supply Cord

Supplies the charger with electricity when plugged into a wall outlet.

15 Battery

Supplies electrical power to the motor.

16 Battery LEDs

Indicate the battery's state of charge and display error messages regarding potential malfunctions in the battery or power tool.

17 Push Button

Activates the battery's LEDs.

# Rating Plate

Contains electrical information and the product's serial number.

4 Safety Symbols on the Products

4.1 Hedge Trimmer, Battery and Charger

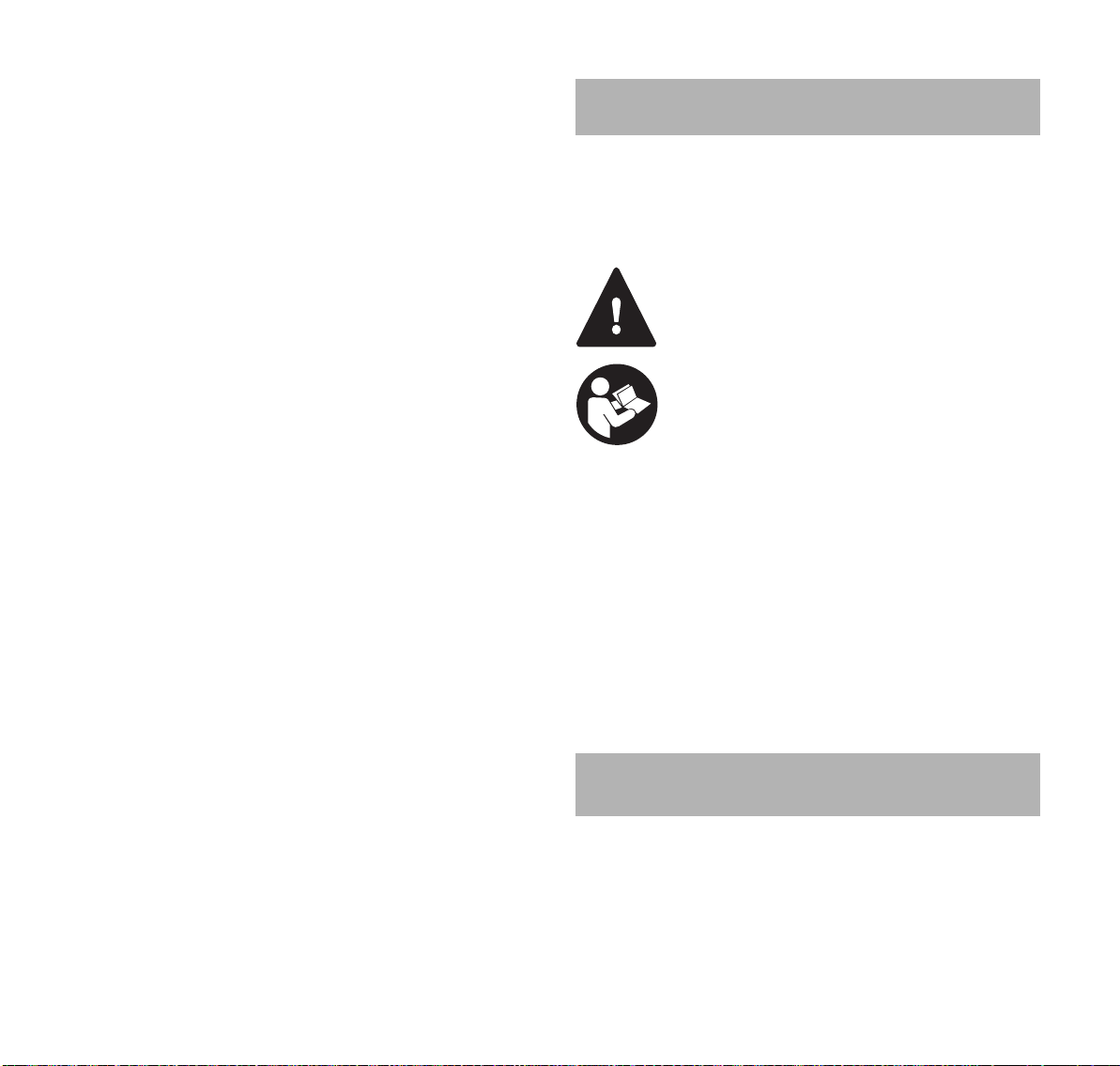

The following safety symbols are found on the hedge trimmer, battery and/or charger:

To reduce the risk of injury, follow the specified safety precautions.

Read and follow all safety precautions in the instruction manual. Improper use can lead to serious or fatal personal injury or property damage.

To reduce the risk of eye injury, always wear proper eye protection, @ 6.3.

To reduce the risk of cut injuries, keep hands, feet and other body parts away from the cutting blades, @ 6.5.4.

To reduce the risk of injury or property damage from unintended activation, remove the battery any time the hedge trimmer is not in use, @ 6.4.

0458-714-8621-A

5 General Power Tool Safety Warnings

English

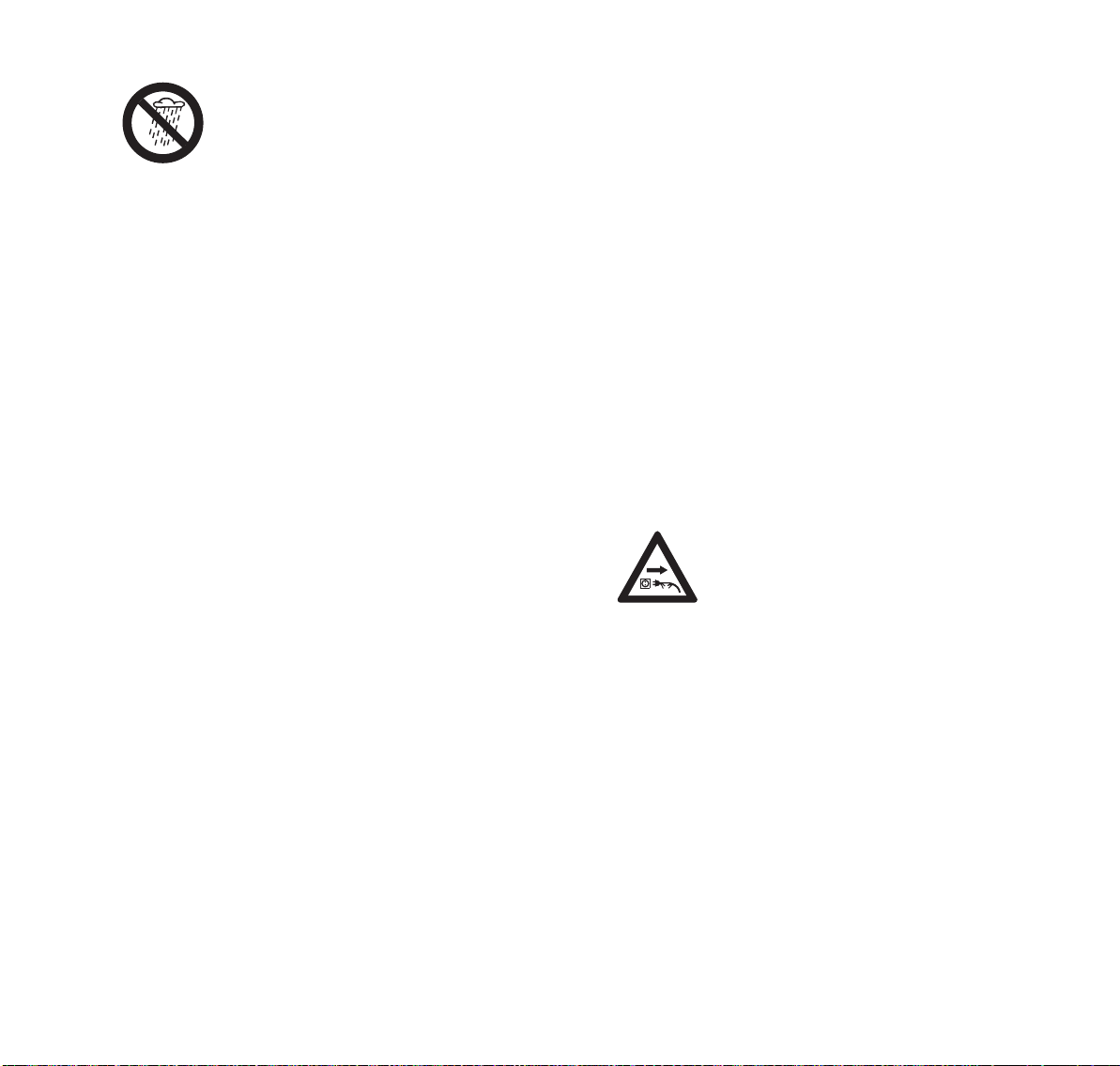

To reduce the risk of electric shock, do not expose the hedge trimmer to rain, water or excessive moisture. Store it indoors. If it is exposed to rain or very damp conditions, take it to your authorized STIHL servicing dealer before further operation, @ 6.4.

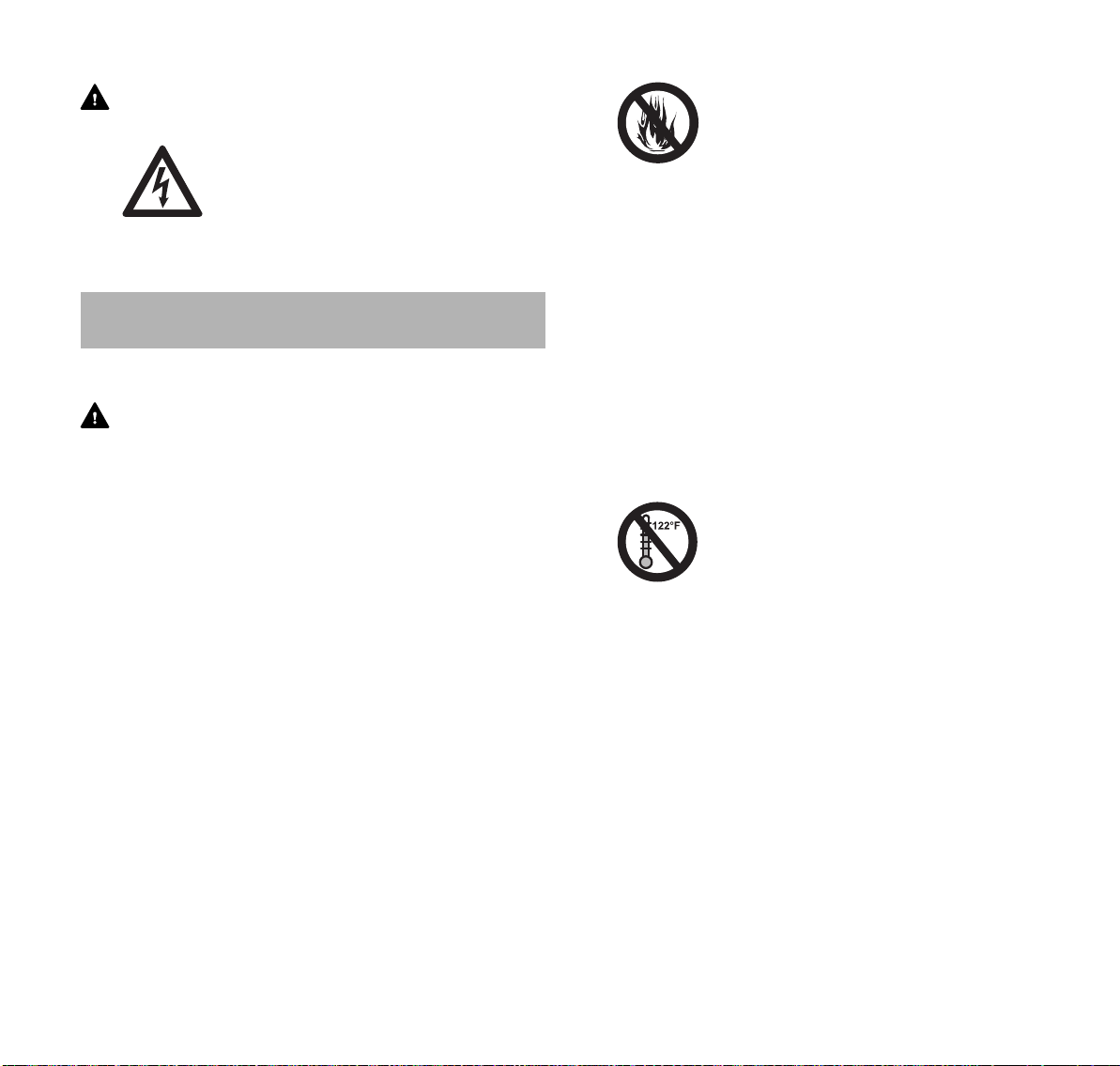

To reduce the risk of personal injury or property damage from fire or electric shock, keep the charger dry. Protect it from rain, water, liquids and damp conditions. For indoor use only, @ 8.

To reduce the risk of personal injury or property damage from fire, explosion or burns, including chemical burns, do not disassemble, crush, drop, damage or heat the battery above 212 °F (100 °C). Never expose it to fire or incinerate, @ 7.

To reduce the risk of personal injury or property damage from a short circuit, fire or explosion, keep the battery dry. Protect it from rain, water, liquids and damp conditions. Never immerse the battery in water or other liquids, @ 7.

To reduce the risk of personal injury or property damage from fire, use and store the battery only within an ambient temperature range of 14 °F to 122 °F (- 10 °C to 50 °C), @ 7.

5 General Power Tool Safety Warnings

5.1 Introduction

This chapter contains the prescribed general safety warnings and instructions for handheld, motor-operated electric power tools and motor-operated electric hedge trimmers. Additional important warnings and instructions are provided in subsequent chapters of this manual.

WARNING

￭ Read all safety warnings and all instructions. Failure to

follow the warnings and instructions may result in electric shock, fire and/or serious injury.

￭ Save all warnings and instructions for future reference.

The term “power tool” in the warnings refers to your mainsoperated (corded) power tool or battery-operated (cordless) power tool.

5.2 Work Area Safety

a)Keep work area clean and well lit. Cluttered or dark areas

invite accidents.

b)Do not operate power tools in explosive atmospheres,

such as in the presence of flammable liquids, gases or dust. Power tools create sparks which may ignite the dust or fumes.

c) Keep children and bystanders away while operating a

power tool. Distractions can cause you to lose control.

5.3 Electrical Safety

a)Power tool plugs must match the outlet. Never modify the

plug in any way. Do not use any adapter plugs with earthed (grounded) power tools. Unmodified plugs and matching outlets will reduce the risk of electric shock.

b)Avoid body contact with earthed or grounded surfaces,

such as pipes, radiators, ranges and refrigerators. There is an increased risk of electric shock if your body is earthed or grounded.

c) Do not expose power tools to rain or wet conditions. Water

entering a power tool will increase the risk of electric shock.

d)Do not abuse the cord. Never use the cord for carrying,

pulling or unplugging the power tool. Keep cord away from heat, oil, sharp edges or moving parts. Damaged or entangled cords increase the risk of electric shock.

e)When operating a power tool outdoors, use an extension

cord suitable for outdoor use. Use of a cord suitable for outdoor use reduces the risk of electric shock.

f) If operating a power tool in a damp location is

unavoidable, use a residual current device (RCD) protected supply. Use of an RCD reduces the risk of electric shock.

0458-714-8621-A

English

5 General Power Tool Safety Warnings

5.4 Personal Safety

a)Stay alert, watch what you are doing and use common

sense when operating a power tool. Do not use a power tool while you are tired or under the influence of drugs, alcohol or medication. A moment of inattention while operating power tools may result in serious personal injury.

b)Use personal protective equipment. Always wear eye

protection. Protective equipment such as dust mask, nonskid safety shoes, hard hat, or hearing protection used for appropriate conditions will reduce personal injuries.

c) Prevent unintentional starting. Ensure the switch is in the

off-position before connecting to power source and/or battery pack, picking up or carrying the tool. Carrying power tools with your finger on the switch or energizing power tools that have the switch on invites accidents.

d)Remove any adjusting key or wrench before turning the

power tool on. A wrench or a key left attached to a rotating part of the power tool may result in personal injury.

e)Do not overreach. Keep proper footing and balance at all

times. This enables better control of the power tool in unexpected situations.

f) Dress properly. Do not wear loose clothing or jewellery.

Keep your hair, clothing and gloves away from moving parts. Loose clothes, jewellery or long hair can be caught in moving parts.

g)If devices are provided for the connection of dust

extraction and collection facilities, ensure these are connected and properly used. Use of dust collection can reduce dust-related hazards.

h)Do not let familiarity gained from frequent use of tools

allow you to become complacent and ignore tool safety principles. A careless action can cause severe injury within a fraction of a second.

5.5 Power Tool Use and Care

a)Do not force the power tool. Use the correct power tool for

your application. The correct power tool will do the job better and safer at the rate for which it was designed.

b)Do not use the power tool if the switch does not turn it on

and off. Any power tool that cannot be controlled with the switch is dangerous and must be repaired.

c) Disconnect the plug from the power source and/or remove

the battery pack, if detachable, from the power tool before making any adjustments, changing accessories, or storing power tools. Such preventive safety measures reduce the risk of starting the power tool accidentally.

d)Store idle power tools out of the reach of children and do

not allow persons unfamiliar with the power tool or these instructions to operate the power tool. Power tools are dangerous in the hands of untrained users.

e)Maintain power tools and accessories. Check for

misalignment or binding of moving parts, breakage of parts and any other condition that may affect the power tool's operation. If damaged, have the power tool repaired before use. Many accidents are caused by poorly maintained power tools.

f) Keep cutting tools sharp and clean. Properly maintained

cutting tools with sharp cutting edges are less likely to bind and are easier to control.

g)Use the power tool, accessories and tool bits etc. in

accordance with these instructions, taking into account the working conditions and the work to be performed. Use of the power tool for operations different from those intended could result in a hazardous situation.

h)Keep handles and grasping surfaces dry, clean and free

from oil and grease. Slippery handles and grasping surfaces do not allow for safe handling and control of the tool in unexpected situations.

0458-714-8621-A

6 IMPORTANT SAFETY INSTRUCTIONS

English

5.6 Battery Tool Use and Care

a)Recharge only with the charger specified by the

manufacturer. A charger that is suitable for one type of battery pack may create a risk of fire when used with another battery pack.

b)Use power tools only with specifically designated battery

packs. Use of any other battery packs may create a risk of injury and fire.

c) When battery pack is not in use, keep it away from other

metal objects, like paper clips, coins, keys, nails, screws or other small metal objects that can make a connection from one terminal to another. Shorting the battery terminals together may cause burns or a fire.

d)Under abusive conditions, liquid may be ejected from the

battery; avoid contact. If contact accidentally occurs, flush with water. If liquid contacts eyes, additionally seek medical help. Liquid ejected from the battery may cause irritation or burns.

e)Do not use a battery pack or tool that is damaged or

modified. Damaged or modified batteries may exhibit unpredictable behaviour resulting in fire/explosion or risk of injury.

f) Do not expose a battery pack or tool to fire or excessive

temperature. Exposure to fire or temperatures above 100 °C may cause explosion.

g)Follow all charging instructions and do not charge the

battery pack or tool outside the temperature range specified in the instructions. Charging improperly or at temperatures outside the specified range may damage the battery and increase the risk of fire.

5.7 Service

a)Have your power tool serviced by a qualified repair person

using only identical replacement parts. This will ensure that the safety of the power tool is maintained.

b)Never service damaged battery packs. Service of battery

packs should only be performed by the manufacturer or authorized service provider.

5.8 Hedge Trimmer Safety Warnings

a)Keep all parts of the body away from the cutter blade. Do

not remove cut material or hold material to be cut when blades are moving. Make sure the switch is off when clearing jammed material. Blades coast after turn off. A moment of inattention while operating the hedge trimmer may result in serious personal injury.

b)Carry the hedge trimmer by the handle with the cutter

blade stopped. Proper handling of the hedge trimmer will reduce possible personal injury from the cutter blades.

c) Hold the power tool by insulated gripping surfaces only,

because the cutter blade may contact hidden wiring. Cutter blades contacting a "live" wire may make exposed metal parts of the power tool "live" and could give the operator an electric shock.

DANGER

￭ Keep hands away from blade. Contact with blade will

result in serious personal injury.

6 IMPORTANT SAFETY

INSTRUCTIONS

6.1 Intended Use

WARNING

￭ This hedge trimmer is designed for light-duty trimming of

hedges, shrubs and bushes in yards and gardens around the home. Use of the hedge trimmer for operations different than intended could result in serious injury or death.

– Use the hedge trimmer only for light-duty trimming

tasks around the home and garden.

– Do not use it for any other purposes. Misuse may

result in personal injury or property damage, including damage to the hedge trimmer.

￭ The STIHL AK series battery is designed for use only with

compatible STIHL power tools.

0458-714-8621-A

English

6 IMPORTANT SAFETY INSTRUCTIONS

￭ The STIHL AL series charger is designed for charging

STIHL AK and AP series batteries only.

￭ Improper use could result in personal injury or property

damage.

– Use the hedge trimmer, battery and charger only as

described in this manual.

6.2 Operator

WARNING

￭ Working with the hedge trimmer can be strenuous. The

operator must be in good physical condition and mental health. To reduce the risk of personal injury from fatigue and loss of control:

– Check with your doctor before using the hedge

trimmer if you have any health condition that may be aggravated by strenuous work.

– Do not operate the hedge trimmer while under the

influence of any substance (drug, alcohol or medication, etc.) that might impair vision, balance, dexterity or judgment.

– Be alert. Do not operate the hedge trimmer when

you are tired. Take a break if you become tired.

– Do not permit minors to use the hedge trimmer.

￭ According to STIHL's current knowledge, the electric

motor of this hedge trimmer should not interfere with a pacemaker.

– However, persons with a pacemaker should consult

their physician and pacemaker manufacturer before operating this hedge trimmer.

6.3 Personal Protective Equipment

WARNING

￭ To reduce the risk of personal injury:

– Always wear proper clothing and protective apparel,

including proper eye protection.

￭ Loss of control and severe cut injuries may result if hair,

clothing or apparel make contact with the moving cutting blades or otherwise become entangled in the components of the hedge trimmer. To reduce the risk of severe personal injury:

– Wear sturdy and snug-fitting clothing that

also allows complete freedom of movement.

– Wear overalls or long pants made of

heavy material to help protect your legs.

Do not wear shorts. – Wear a long-sleeve shirt or jacket. – Avoid loose-fitting jackets, scarves, neckties, flared

or cuffed pants, jewelry and any other apparel that could be caught on branches, brush or the moving cutting attachment.

– Secure hair above shoulder level before starting

work.

￭ To reduce the risk of eye injury:

– Always wear goggles or close-fitting

protective glasses with adequate side

protection that are impact-rated and

marked as complying with ANSI Z87 "+"

(for Canada: CSA Z94).

￭ To help maintain a secure footing and reduce the risk of

injury while working:

– Wear substantial footwear with non-slip

soles. Do not wear sandals, flip-flops,

open-toed or similar footwear.

￭ To improve your grip and help protect your hands:

0458-714-8621-A

6 IMPORTANT SAFETY INSTRUCTIONS

English

– Always wear heavy-duty non-slip work

gloves made of leather or another wearresistant material when handling the hedge trimmer or its cutting blades.

6.4 Hedge Trimmer

WARNING

￭ To reduce the risk of electric shock:

– Do not expose the hedge trimmer to rain,

water or excessive moisture.

– Store the hedge trimmer indoors.

￭ The cutting blades have many sharp cutters. If the cutters

contact you, it will result in serious cut injuries, even if the cutting blades are not moving. To reduce the risk injuries:

– Keep hands, feet and other parts of your body away

from the cutting blades.

– Wear heavy-duty work gloves when handling the

hedge trimmer or its cutting blades.

– Never touch the moving cutting blades with your

hand or any other part of your body.

– Cover the cutting blades with a blade scabbard

before transporting or storing the hedge trimmer to reduce the risk of inadvertent contact.

￭ This battery-powered hedge trimmer is intended only for

light-duty garden and landscape maintenance around the home. Use for other purposes may increase the risk of personal injury and property damage.

– Do not attempt to cut any material other than

hedges, shrubs, bushes or similar soft vegetation. Do not cut stems, branches or other vegetation greater than 0.55 in. (14 mm) thick.

– Read and follow the operating instructions in this

manual for approved applications, @ 16.

￭ To reduce the risk of personal injury to the operator and

bystanders:

– Always release the trigger switch and

remove the battery before assembling,

transporting, adjusting, inspecting,

cleaning, servicing, maintaining or

storing the hedge trimmer and any time it

is not in use.

￭ Although certain unauthorized attachments may fit STIHL

hedge trimmers, their use may be extremely dangerous. Only attachments supplied by STIHL or expressly approved by STIHL for use with this specific model are authorized.

– Use only attachments supplied or expressly

approved by STIHL.

– Never modify this hedge trimmer in any way.

￭ If the hedge trimmer is dropped or subjected to similar

heavy impacts:

– Check that it is undamaged, in good condition and

functioning properly before continuing work.

– Check that the controls and safety devices are

working properly.

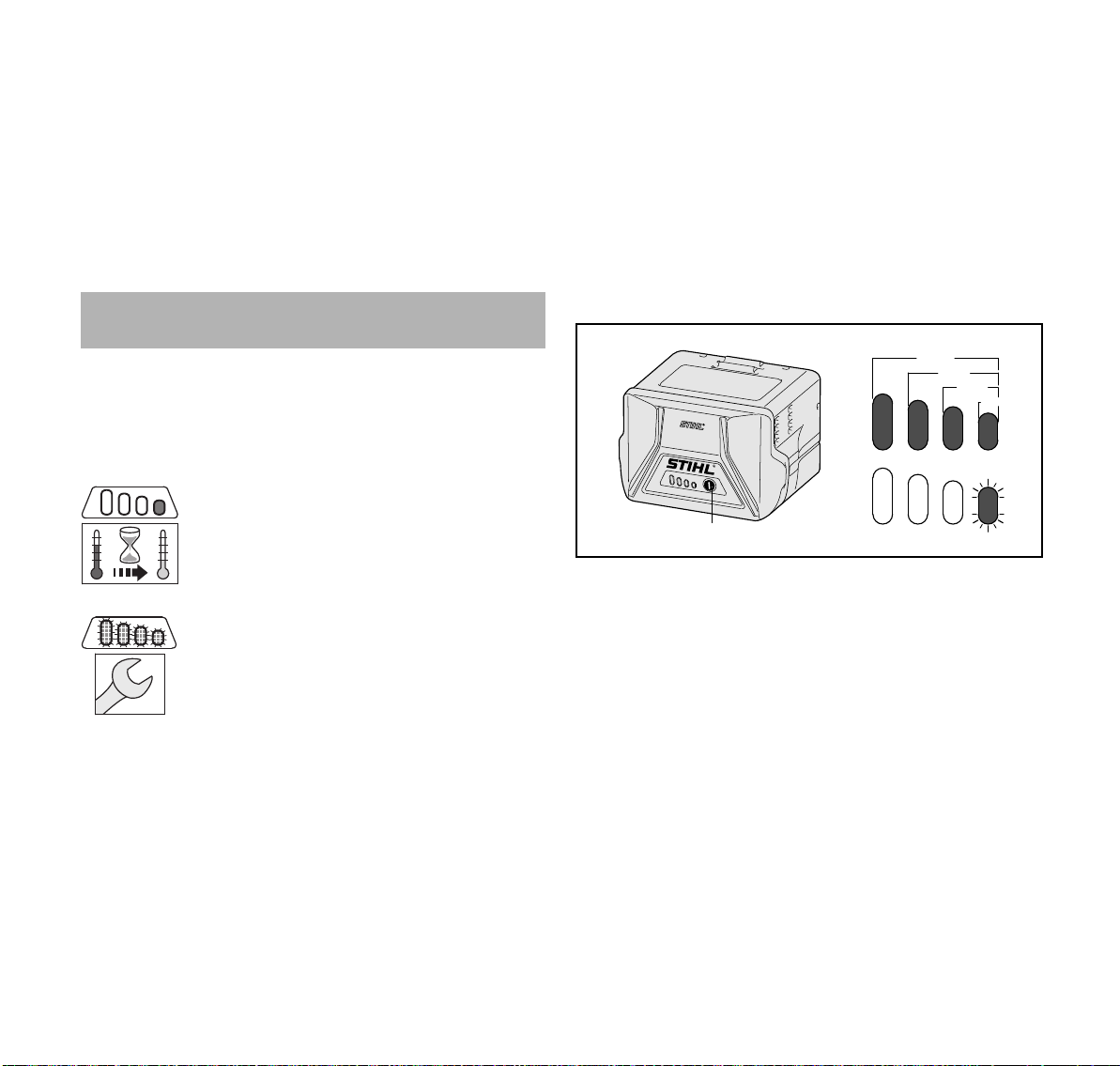

– Check the LEDs for error messages, @ 12.1.2. – Check that the battery has not been damaged.

Never use or charge a malfunctioning, damaged, cracked, leaking or deformed battery.

– Never work with a damaged or malfunctioning hedge

trimmer or battery. In case of doubt, have it checked by your authorized STIHL servicing dealer.

￭ If the hedge trimmer is damaged, not working properly,

has been left outdoors, exposed to rain or damp conditions or dropped into water or other liquid, its

0458-714-8621-A

English

6 IMPORTANT SAFETY INSTRUCTIONS

components may no longer function properly and safety devices may be inoperative. To reduce the risk of personal injury and property damage:

– Take the hedge trimmer to your authorized STIHL

servicing dealer to be checked before further operation.

￭ Genuine STIHL replacement parts are specifically

designed to match your hedge trimmer model and meet safety and performance requirements. Use of parts that are not authorized or approved by STIHL may cause serious or fatal injury or property damage.

– STIHL recommends that only identical STIHL

replacement parts be used for repair or maintenance.

6.5 Using the Hedge Trimmer

6.5.1 Before Operation

WARNING

￭ Misuse may result in personal injury and property

damage.

– Use the hedge trimmer only as described in this

instruction manual.

￭ Using a hedge trimmer that is modified, damaged,

improperly adjusted or maintained, or not completely and securely assembled can lead to a malfunction and increase the risk of serious personal injury or death.

– Never operate a hedge trimmer that is modified

damaged, improperly maintained or not completely and securely assembled.

– Always check your hedge trimmer for proper

condition and operation before starting work, particularly the retaining latch, trigger switch lockout, trigger switch, switch lever, front hand guard and cutting blades.

– Ensure that the retaining latch, trigger switch

lockout, trigger switch and switch lever move freely and always spring back to the stop position when

released. The trigger switch must not engage until the retaining latch is unlocked and the trigger switch lockout is depressed.

– Never attempt to modify or override the controls or

safety devices in any way.

– The cutting blades must move only when the battery

is inserted, the retaining latch is unlocked and the trigger switch lockout, trigger switch and switch lever are depressed.

– If your hedge trimmer or any part is damaged or

does not function properly, take it to your authorized STIHL servicing dealer. Do not use the hedge trimmer until the problem has been corrected.

￭ Before inserting the battery:

– Check the contacts in the battery compartment for

corrosion or other foreign matter and keep clean.

– Never insert or use a malfunctioning, damaged,

cracked, leaking or deformed battery.

– Read and follow the instructions on switching on the

hedge trimmer, @ 14.1.

￭ To help reduce the risk of serious personal injury or death

from unintentional starting:

– Be sure the retaining latch is in the locked position

and the trigger switch is in the off position before inserting the battery.

– Never carry the hedge trimmer with your finger on

the trigger switch.

– Release the trigger switch before removing the

battery.

– Remove the battery before assembling,

transporting, adjusting, inspecting,

cleaning, servicing, maintaining or

storing the hedge trimmer and any other

time it is not in use. – Never leave the hedge trimmer unattended when the

battery is inserted.

– Never store the battery in the hedge trimmer.

0458-714-8621-A

6 IMPORTANT SAFETY INSTRUCTIONS

0000-GXX-1455-A0

English

￭ Before switching on your hedge trimmer, take the

following steps to reduce the risk of personal injury, loss of control or inadvertent contact:

– Be sure that the cutting blades are clear of you and

all other obstructions and objects, including the ground.

– Never switch on the hedge trimmer with material

between the cutting blades.

– Read and follow the instructions on switching on the

hedge trimmer, @ 14.1.

6.5.2 Holding and Controlling the Hedge Trimmer

WARNING

￭ To maintain a firm grip and properly control your hedge

trimmer:

– Keep the handles clean and dry at all times. Keep

them free of moisture, pitch, oil, grease and resin.

￭ To reduce the risk of serious or fatal injuries to the

operator or bystanders from loss of control:

– Always hold the hedge trimmer firmly with both

hands when you are working.

– Wrap your fingers tightly around the handles,

keeping the handles cradled between your thumb and forefinger (see illustration above).

– Position the hedge trimmer in such a way that all

parts of your body are clear of the cutting attachment whenever the motor is running.

￭ Operating the hedge trimmer with one hand may lead to

loss of control and is therefore extremely dangerous. To reduce the risk of serious or fatal injury to the operator or bystanders from loss of control:

– Never attempt to operate the hedge

trimmer with one hand.

￭ To reduce the risk of serious or fatal cut injuries to the

operator or bystanders from loss of control, keep proper footing and balance at all times:

– Never work on a ladder, roof, in a tree or while

standing on any other insecure support. – Do not work in wet grass or terrain. – Take special care in overgrown terrain and always

watch for hidden obstacles such as tree stumps,

roots, rocks, holes and ditches to avoid stumbling or

falling. – Be extremely cautious when working on slopes or

uneven ground. – For better footing, always clear away fallen

branches, scrub, cuttings and other material, objects

or vegetation that can increase the danger of

slipping, tripping or falling. – Never operate the hedge trimmer above shoulder

height. – Do not overreach. Keep proper footing and balance

at all times.

￭ To reduce the risk of serious or fatal cut injuries to the

operator or bystanders from blade contact:

– Keep hands, feet and other body parts

away from the cutting blades.

– Do not touch the cutting blades while the battery is

inserted. – Never touch moving cutting blades with your hand or

any other part of your body.

0458-714-8621-A

English

6 IMPORTANT SAFETY INSTRUCTIONS

– If the cutting blades become jammed by

thick branches or other obstructions, release the trigger switch, trigger switch lockout and switch lever immediately and remove the battery before attempting to free the blades.

6.5.3 Working Conditions

WARNING

￭ Operate your hedge trimmer only under good visibility

during favorable daylight conditions.

– Postpone the work if the weather is windy, foggy,

rainy or inclement.

￭ Your hedge trimmer is a one-person machine.

– Switch off the hedge trimmer immediately if you are

approached.

￭ To reduce the risk of injury to bystanders and

unauthorized users:

– Never leave the hedge trimmer unattended when the

battery is inserted.

– Switch off the hedge trimmer and remove the battery

during work breaks and any other time the hedge trimmer is not in use.

￭ Sparks generated from operation of the hedge trimmer

may be capable of igniting combustible gases, liquids, vapors, dusts or other combustible materials and substances. To reduce the risk of fire and explosion:

– Never operate the hedge trimmer in a location where

combustible gases, liquids, vapors, dusts or other combustible materials and substances are present.

– Read and follow recommendations issued by

government authorities (e.g., OSHA; for Canada: CCOHS) for identifying and avoiding the hazards of combustible gases, liquids, vapors, dusts or other combustible materials and substances.

￭ Use of this hedge trimmer (including sharpening the

cutting blades) can generate dust and other substances containing chemicals known to cause respiratory problems, cancer, birth defects and other reproductive harm.

– Consult governmental agencies such as EPA,

OSHA, CARB and NIOSH (for Canada: ECCC,

CCOHS and PHAC) and other authoritative sources

on hazardous materials if you are unfamiliar with the

risks associated with the particular substances you

are cutting or with which you are working.

￭ Inhalation of certain dusts, especially organic dusts such

as mold or pollen, can cause susceptible persons to have an allergic or asthmatic reaction. Substantial or repeated inhalation of dust or other airborne contaminants, especially those with a smaller particle size, may cause respiratory or other illnesses.

– Control dust at the source where possible. – Always work with properly sharpened cutting blades. – To the extent possible, operate the hedge trimmer so

that the wind or operating process directs any dust,

mist or other particulate matter raised by the hedge

trimmer away from the operator. – When respirable dust or other particulate matter

cannot be kept at or near background levels, always

wear an approved and properly rated respirator and

follow the recommendations of governmental

authorities (e.g., OSHA/NIOSH/MSHA; for Canada:

CCOHS/PHAC/MSHA) and occupational and trade

associations.

￭ If the vegetation being cut or the surrounding ground is

coated with a chemical substance, such as pesticide or herbicide:

– Read and follow the instructions and warnings that

accompanied the substance coating the vegetation

or surrounding ground.

0458-714-8621-A

6 IMPORTANT SAFETY INSTRUCTIONS

English

6.5.4 Operating Instructions

WARNING

￭ To reduce the risk of serious or fatal cut injuries to the

operator or bystanders from blade contact:

– Keep hands, feet and other body parts

away from the cutting blades.

– Do not touch the cutting blades while the

battery is inserted.

– Never touch moving cutting blades with

your hand or any other part of your body.

￭ To reduce the risk of severe personal injuries from

unintentional starting:

– Never touch the cutting blades with your hand or any

other part of your body when the battery is inserted, even when the cutting blades are not moving.

– If the cutting blades become jammed by branches or

other obstructions, switch off the hedge trimmer immediately and remove the battery before attempting to free the blades.

￭ The cutting blades continue to move for a short period

after the trigger switch or switch lever is fully released.

– Wait for the cutting blades to stop before walking

with the hedge trimmer or putting it down.

￭ In the event of an emergency:

– Switch off the motor immediately and remove the

battery.

￭ Contacting foreign objects while cutting could damage the

cutting blades and may cause them to crack, chip, break or jam. To reduce the risk of severe personal injury or death from loss of control, and to reduce the risk of damage to the hedge trimmer:

– Inspect the material to be cut and the surrounding

area for stones, fence wire, metal or other foreign

objects before starting work. Do not use the hedge

trimmer in areas where the cutting blades could

contact such objects. – Take particular care when cutting next to, against or

near wire fences. Do not touch the wire with the

cutting blades. – When working close to the ground, make sure that

no sand, grit or stones get between the cutting

blades. – Do not cut any areas of the hedge, bush, shrub or

other vegetation that you cannot see.

￭ To reduce the risk of injury to bystanders:

– Do not allow other persons in the general work area. – If cutting the top of a taller hedge, check the other

side of the hedge frequently for bystanders, animals

and obstructions.

￭ Check the cutting blades at regular short intervals during

operation, or immediately if there is a change in cutting behavior:

– Switch off the hedge trimmer and remove the

battery. – Check the condition, tightness and sharpness of the

cutting blades.

0458-714-8621-A

English

7 Battery Safety

– Inspect the hedge trimmer for loose parts (nuts,

screws, etc.) and for cracked, bent, warped or damaged cutting blades. Replace damaged cutting blades before using the hedge trimmer.

– Always keep the cutting blades sharp.

￭ To reduce blade friction as well as the agressive effects of

sap and the buildup of dirt particles, which can impair the proper functioning of the hedge trimmer:

– STIHL recommends that you spray the cutting

blades with a resin solvent, such as STIHL Resin Remover and Lubricant, before starting work.

DANGER

￭ To reduce risk of electrocution:

– Never operate this hedge trimmer in the

vicinity of any wires or cables that may be carrying electric current.

– Do not rely on the hedge trimmer's

insulation against electric shock.

7 Battery Safety

7.1 Warnings and Instructions

WARNING

￭ Use of unauthorized batteries can damage the hedge

trimmer and result in fire, explosion and personal injury and property damage.

– Use only genuine STIHL AK series batteries.

￭ Use of STIHL AK series batteries for any purpose other

than powering STIHL power tools could be extremely dangerous.

– Use STIHL AK series batteries only to power

compatible STIHL power tools.

￭ Use of unauthorized chargers can damage the battery and

result in fire, explosion and personal injury and property damage.

– Use only genuine STIHL AL series chargers to

charge STIHL AK series batteries.

￭ The battery contains safety features and devices which, if

damaged, may allow the battery to generate heat, rupture, leak, ignite or explode.

– Never heat the battery above 212 °F

(100 °C).

– Never incinerate or place the battery on

or near fires, stoves or other hightemperature locations.

– Never use or charge a malfunctioning, damaged,

cracked, leaking or deformed battery. – Never open, disassemble, crush, drop, subject to

heavy impact or otherwise damage the battery. – Never expose the battery to microwaves or high

pressures. – Never insert objects into the battery's cooling slots.

0458-714-8621-A

7 Battery Safety

English

￭ High temperatures may cause the battery to generate

heat, rupture, leak, ignite or explode, resulting in severe or fatal personal injury and property damage. Exposure to temperatures outside the recommended temperature range may also reduce battery life and performance.

– Use and store the battery only within an

ambient temperature range of 14 °F to 122°F (-10°C to 50°C).

– Never store the battery in direct sunlight

or inside a vehicle in hot weather.

￭ To reduce the risk of personal injury and property damage

in the event the battery emits smoke, an unusual smell or feels unusually hot while using, charging or storing:

– Immediately discontinue using or charging the

battery. Prepare to contact the authorities in the event of fire or explosion.

￭ To reduce the risk of a short circuit, which could lead to

electric shock, fire and explosion:

– Keep the battery dry. Protect it from rain,

water, liquids and damp conditions.

– Never immerse the battery in water or

other liquids.

– Never bridge the battery terminals with wires or

other metallic objects.

– Keep a battery that is not in use away from metal

objects (e.g., paper clips, nails, coins, keys).

– Never transport or store the battery in a metal

container. – Store the battery indoors in a dry room. – Never store the battery in damp or corrosive

environments or in conditions that could lead to

corrosion of its metal components. – Never store the battery in the hedge trimmer or

charger. – Protect the battery from exposure to corrosive

agents such as garden chemicals and de-icing salts. – Do not attempt to repair, open or disassemble the

battery. There are no user-serviceable parts inside.

￭ Leaking battery fluid is potentially harmful and can cause

skin and eye irritation, chemical burns and other serious personal injury.

– Avoid contact with skin and eyes. – Use an inert absorbent such as sand on spilled

liquids.

– In the event of accidental contact, immediately rinse

the contact area thoroughly with mild soap and water.

– If fluid gets into your eye(s): Do not rub. Rinse water

over the open eye(s) for at least 15 minutes and seek medical attention.

￭ A battery fire can be dangerous. To reduce the risk of

severe personal injury and property damage in the event of fire:

– Evacuate the area. Fire can spread rapidly. Stay

clear of any vapors generated and maintain a safe

distance. – Contact the fire department. – Although water can be used to put out a battery fire,

use of a multi-purpose dry chemical fire extinguisher

is preferable. – Consult the fire department regarding proper

disposal of the burned battery.

￭ Dropping the battery could result in personal injury or

property damage. To prevent the battery from falling during removal:

– Place the hedge trimmer on a level surface. – Use care when ejecting the battery.

0458-714-8621-A

English

8 Charger Safety

8.1 Warnings and Instructions

WARNING

￭ To reduce the risk of fire, electric shock and other

personal injury or property damage:

– Read and follow all cautionary markings on the

charger, battery and hedge trimmer and all instructions in this manual before using the charger.

– Charge only genuine STIHL AK or STIHL AP series

batteries. Other batteries may burst, catch fire or explode, resulting in personal injury and property damage.

– For indoor use only. – Keep the charger dry. Protect it from

rain, water, liquids and damp conditions. Never insert a wet battery or use a wet charger.

– Do not handle the charger, including power supply

cord and plug, with wet hands. – Never use a damaged charger. – Never charge malfunctioning, damaged, cracked,

leaking or deformed batteries. – Never store a battery in the charger. – Operate the charger only indoors, in dry rooms and

within an ambient temperature range of 41 °F to

104 °F (5 °C to 40 °C). – Keep the charger out of the reach of children. – Always plug the charger into a properly installed wall

outlet matching the voltage and electrical frequency

stated on the charger. – Never use power strips to operate multiple chargers

or other devices from the same outlet or on the same

circuit.

– Do not operate a charger that has received a sharp

or heavy blow, has been dropped or is otherwise damaged in any way.

– Do not attempt to repair, open or disassemble the

charger. There are no user-serviceable parts inside.

￭ To reduce the risk of electric shock or fire from a short

circuit:

– Make sure the battery and charger are completely

dry before starting the charging process.

– Never bridge the contacts of the charger with wires

or other metallic objects.

– Do not insert any objects into the charger's cooling

slots.

￭ The charger heats up during the charging process. To

reduce the risk of fire:

– Do not operate on a combustible surface (e.g.,

paper, cardboard, textiles) or in a combustible environment.

– Allow the charger to cool down normally. Do not

cover it.

￭ Chargers can produce sparks which may ignite

combustible gases, liquids, vapors, dusts or other combustible materials. To reduce the risk of fire and explosion:

– Do not operate in a location where combustible

gases, liquids, vapors, dusts or other combustible materials are present.

￭ Using a damaged power supply cord or plug may result in

fire, electric shock and other personal injury or property damage. To reduce these risks:

– Check the charger’s power supply cord

and plug regularly for damage. If damaged, immediately disconnect the plug from the wall outlet.

– Replace the charger if the power supply cord

becomes damaged. The power supply cord cannot be repaired or replaced.

0458-714-8621-A

9 Maintenance, Repair and Storage

English

– Unplug the power supply cord from the outlet when

the charger is not in use. – Never jerk the power supply cord to disconnect it

from the wall outlet. To unplug, grasp the plug, not

the power supply cord. – Do not use the power supply cord for any other

purpose, e.g., for carrying or hanging up the charger. – Make sure the power supply cord is located or

marked so that it will not be stepped on, tripped over,

come in contact with sharp objects or moving parts,

or otherwise be subjected to damage or stress.

￭ An extension cord should not be used unless absolutely

necessary. Overloading an extension cord can result in overheating and fire. If an extension cord must be used:

– Use only a properly wired 16 gauge (AWG 16) or

heavier gauge extension cord. – Never connect more than one charger or other

device to an extension cord. – Never use an extension cord with a wattage rating

lower than the wattage on your charger's rating

plate. – Never use an extension cord if the blades on its plug

are different from the blades on the charger plug in

number, size or shape. – Do not link (chain) extension cords.

￭ In case of fire, or if the charger or the battery it is charging

emits smoke, an unusual smell, feels hot or appears abnormal in any other way:

– Immediately disconnect the charger from the outlet

and prepare to contact the authorities in the event of

fire or explosion.

9 Maintenance, Repair and Storage

9.1 Warnings and Instructions

WARNING

￭ There are no user-authorized repairs for the hedge

trimmer, battery or charger. To reduce the risk of fire, electric shock or other personal injury and property damage:

– Users may carry out only the cleaning and

maintenance operations described in this manual. Users must not attempt any other cleaning, maintenance or repair.

– Strictly follow the cleaning and maintenance

instructions in the appropriate sections of this instruction manual.

– STIHL recommends that all repair work be

performed by authorized STIHL servicing dealers.

￭ Unintentional starting may result in personal injury or

property damage. To reduce the risk of personal injury and property damage from unintentional starting:

– Remove the battery before inspecting

the hedge trimmer or carrying out any cleaning, maintenance or repair work, before storing, and any other time the hedge trimmer is not in use.

￭ The cutting blades are the only user-serviceable parts of

the hedge trimmer. Proper maintenance will help maintain cutting performance and reduce the risk of personal injury.

– Wear gloves when handling the cutting blades. – Keep the cutting blades clean and sharp. – Tighten all nuts, bolts and screws after each use. – Never repair damaged cutting blades by welding,

straightening or modifying the shape. This may cause parts of the cutting blades to experience uneven or excessive wear or other damage that can lead to a malfunction or breakage during operation, resulting in serious or fatal injuries.

0458-714-8621-A

English

10 Before Starting Work

￭ Use of parts that are not authorized or approved by STIHL

may cause serious or fatal injury or property damage.

– STIHL recommends that only identical authorized

STIHL replacement parts be used for repair or

maintenance.

￭ To reduce the risk of electric shock:

– Unplug the charger from the wall outlet before

inspecting or cleaning the charger. – Regularly check the charger and ensure that the

insulation of the power supply cord and plug are in

good condition and show no signs of aging

(brittleness), wear or damage. – Replace the charger if the power supply cord

becomes worn or damaged. The power supply cord

cannot be repaired or replaced.

￭ To reduce the risk of short circuit and fire:

– Keep the battery guides free of foreign matter. Clean

as necessary with a dry cloth or soft, dry brush.

￭ Improper storage can result in unauthorized use, damage

to the hedge trimmer, battery and charger, and an increased risk of fire, electric shock and other personal injury or property damage.

– Remove the battery from the hedge trimmer before

storing. – Never store the hedge trimmer and charger with the

battery inserted. – Before storing, always unplug the charger from the

wall outlet and remove the battery. – Store the hedge trimmer, battery and charger

indoors in a dry, secure place out of the reach of

children and other unauthorized users. – Never store the battery in the hedge trimmer, in the

charger, in a metal container or in a container with

metal objects (e.g., paper clips, nails, coins, keys).

10 Before Starting Work

10.1 Preparing the Hedge Trimmer for Operation

Before starting work: ► Fully charge the battery, @ 11.

► Check the controls for proper function and condition,

@ 15.1.

► Check the cutting attachment for damage or other

problems.

11 Charging the Battery

11.1 Setting up the Charger

WARNING

Read and follow the battery and charger safety precautions and instructions in this manual, @ 7 and @ 8. To reduce the risk of short circuit, which could lead to electric shock, fire and explosion, make sure the charger and its components are dry and not damaged; operate the charger indoors at an appropriate ambient temperature, @ 8.

WARNING

Since the battery and charger heat up during the charging process, do not operate the charger on a combustible surface or in a location where combustible gases, liquids, vapors, dusts or other materials and substances are present, @ 8.

0458-714-8621-A

11 Charging the Battery

0000-GXX-0636-A1

0000-GXX-0637-A0

English

To set up the charger:

► Insert the plug (3) into a properly installed wall outlet (4)

matching the voltage and electrical frequency stated on the charger's rating plate on the back of the charger. The charger runs a self-test immediately after it is plugged in. The charger LED (1) will glow green for about 1 second, then it will glow red briefly before going out. Once the self-test is complete, the charger is ready to charge the battery.

► Position the power supply cord (2) so that it will not be

stepped on, tripped over, come in contact with sharp objects or moving parts or otherwise present a tripping hazard or be subjected to damage or stress.

11.2 Charging

WARNING

STIHL batteries contain safety features and devices which, if damaged, may allow the battery to generate heat, rupture, leak, ignite or explode. Never charge a malfunctioning, damaged, cracked, leaking or deformed battery or use a charger that has been damaged. For indoor use only. Keep the charger dry. Protect it from rain, water, liquids and damp conditions. Never insert a wet battery or use a wet charger, @ 8.

To charge the battery:

► Push the battery (2) into the charger (3) until it stops.

The LED on the charger (4) glows green when the battery is being charged.

The LEDs (1) on the battery glow green and show the state of charge.

The charging process is complete when the LED on the charger and the LEDs on the battery go out.

The charger turns itself off when the battery is fully charged.

► Remove the battery from the charger and disconnect the

power supply cord from the wall outlet when charging is complete.

A new battery is not fully charged. STIHL recommends that you fully charge the battery before using it for the first time.

Operate the charger only indoors, in dry rooms and within an ambient temperature range of 41 °F to 104 °F (5 °C to 40 °C).

The battery heats up during operation of the hedge trimmer. If a hot battery is inserted into the charger, it may be necessary for it to cool down before charging. The charging process begins only after the battery has cooled down sufficiently.

Charging time depends on a number of factors, including battery condition and ambient temperature. For a complete list of approximate charging times, see www.stihl.com/ charging-times.

0458-714-8621-A

English

0000-GXX-0629-A0

20-40%

40-60%

60-80%

80-100%

0-20%

12 LED Diagnostics

12.1 LEDs on the Battery

12.1.1 Battery Status Four LEDs show the status of the battery. These LEDs can

glow or flash green or red.

If one LED glows red continuously: the battery is either too hot or too cold. Allow the battery to warm up or cool down gradually at an ambient temperature of about 50 °F to 68 °F (10 °C to 20 °C).

If all 4 LEDs flash red: the battery has a malfunction and must be replaced. Do not attempt to charge, use or store the battery.

12.1.2 Hedge Trimmer Status

When the battery is inserted in the hedge trimmer, the same LEDs on the battery will indicate the status of the hedge trimmer.

If three LEDs glow red continuously: the hedge trimmer motor is too hot. Allow the motor to cool down.

If three LEDs flash red when you activate the switch lever and trigger switch: the hedge trimmer has an electrical malfunction. Do not operate the hedge trimmer. Have it checked by an authorized STIHL servicing dealer before use or storage.

For troubleshooting information, @ 22.1.

12.1.3 Charge Status

The LEDs on the battery also show the battery's state of charge.

To determine the battery's state of charge:

► Press the button (1) on the battery.

The LEDs on the battery will glow or flash green for about 5 seconds and indicate the state of charge (see illustration).

For example: If four green LEDs glow continuously: full charge. If one green LED is flashing: less than 20 % charge.

12.2 LED on the Charger

One LED shows the status of the charger. The LED can glow green or flash red.

If the LED glows green continuously: the battery is being charged.

or The battery is too hot or too cold for charging. To

determine, check the LEDs on the battery. If there is one glowing red light, allow the battery to warm up or cool down gradually at an ambient temperature of about 50 °F to 68 °F (10 °C to 20 °C).

0458-714-8621-A

13 Inserting and Removing the Battery

0000-GXX-1452-A0

English

If the LED flashes red: there is no electric contact between the battery and the charger. Remove and reinsert the battery.

or The battery has a malfunction and must be

replaced. Check the LEDs on the battery. Do not use or charge a battery if its LEDs indicate a malfunction.

or The charger has a malfunction. Have it checked

by an authorized STIHL servicing dealer before use.

For more information, @ 22.2.

13 Inserting and Removing the Battery

13.1 Inserting the Battery

WARNING

Never use a malfunctioning, damaged, cracked, leaking or deformed battery, @ 7. Use and store the battery only within an ambient temperature range of 14 °F to 122 °F (- 10 °C to 50 °C), @ 7.

WARNING

To reduce the risk of unintended activation, never store the battery in the hedge trimmer, @ 19.2.

To insert the battery:

► Place the hedge trimmer on a level surface. ► Insert the battery (1) into the battery compartment (2) until

you hear an audible click. In this position, the arrows (3) on the battery are still visible and the battery is locked in the battery compartment. There is no electrical contact between the battery and the hedge trimmer, however.

► To supply power to the hedge trimmer, push the battery

into the battery compartment until it stops. The battery is properly inserted when you hear a second audible click and the battery is flush with the top of the housing. In this position, there is electrical contact between the battery and the hedge trimmer.

Since a new battery is not fully charged, STIHL recommends that you fully charge the battery before using it the first time, @ 11.

13.2 Removing the Battery

WARNING

To reduce the risk of severe personal injury from unintended activation, always remove the battery before assembling, transporting, adjusting, cleaning, servicing, maintaining or

0458-714-8621-A

storing the hedge trimmer and any other time it is not in use.

WARNING

Use care when ejecting the battery to prevent it from falling and causing personal injury or property damage.

English

14 Switching the Hedge Trimmer On and Off

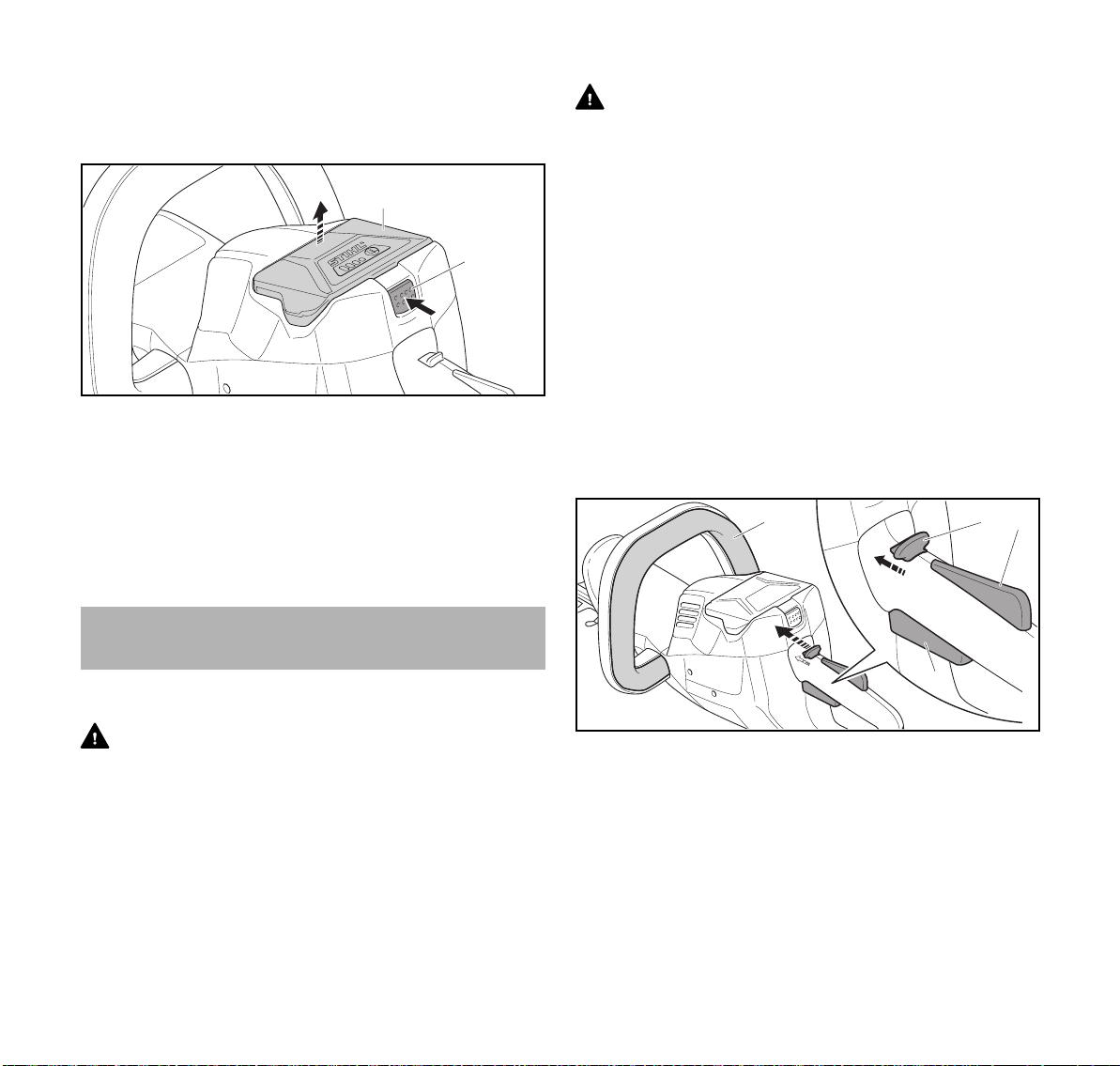

To remove the battery: ► Release the trigger switch.

► Place the hedge trimmer on a level surface.

► Press down on the locking lever (1) to eject the battery (2)

from the battery compartment.

NOTICE

Avoid exposing the battery to excessive heat or prolonged periods of direct sunlight. Use or storage outside the recommended ambient temperature range can reduce the performance and/or service life of the battery.

14 Switching the Hedge Trimmer On and

Off

14.1 Switching On

WARNING

To reduce the risk of serious or fatal injuries to the operator or bystanders from blade contact, keep hands, feet and other parts of the body away from the cutting blades, @ 6.5.2. Do not touch the cutting blades while the battery is inserted. Never touch moving cutting blades with your hand or any part of your body, @ 6.5.4.

WARNING

Never operate your hedge trimmer if it is modified, damaged, improperly adjusted or maintained, not completely and securely assembled or not functioning properly, @ 6.4. To reduce the risk of personal injury, always wear proper clothing and protective apparel, including proper eye protection, when operating your hedge trimmer, @ 6.3. To reduce the risk of serious or fatal injury from loss of control, always hold the hedge trimmer with both hands when you are working, @ 6.5.2.

When switching the hedge trimmer on: ► Make sure you have a secure and firm footing.

► Stand upright.

0000-GXX-1453-A0

► Always hold and operate the hedge trimmer with one hand

firmly on the rear or control handle and the other hand firmly on the front or loop handle.

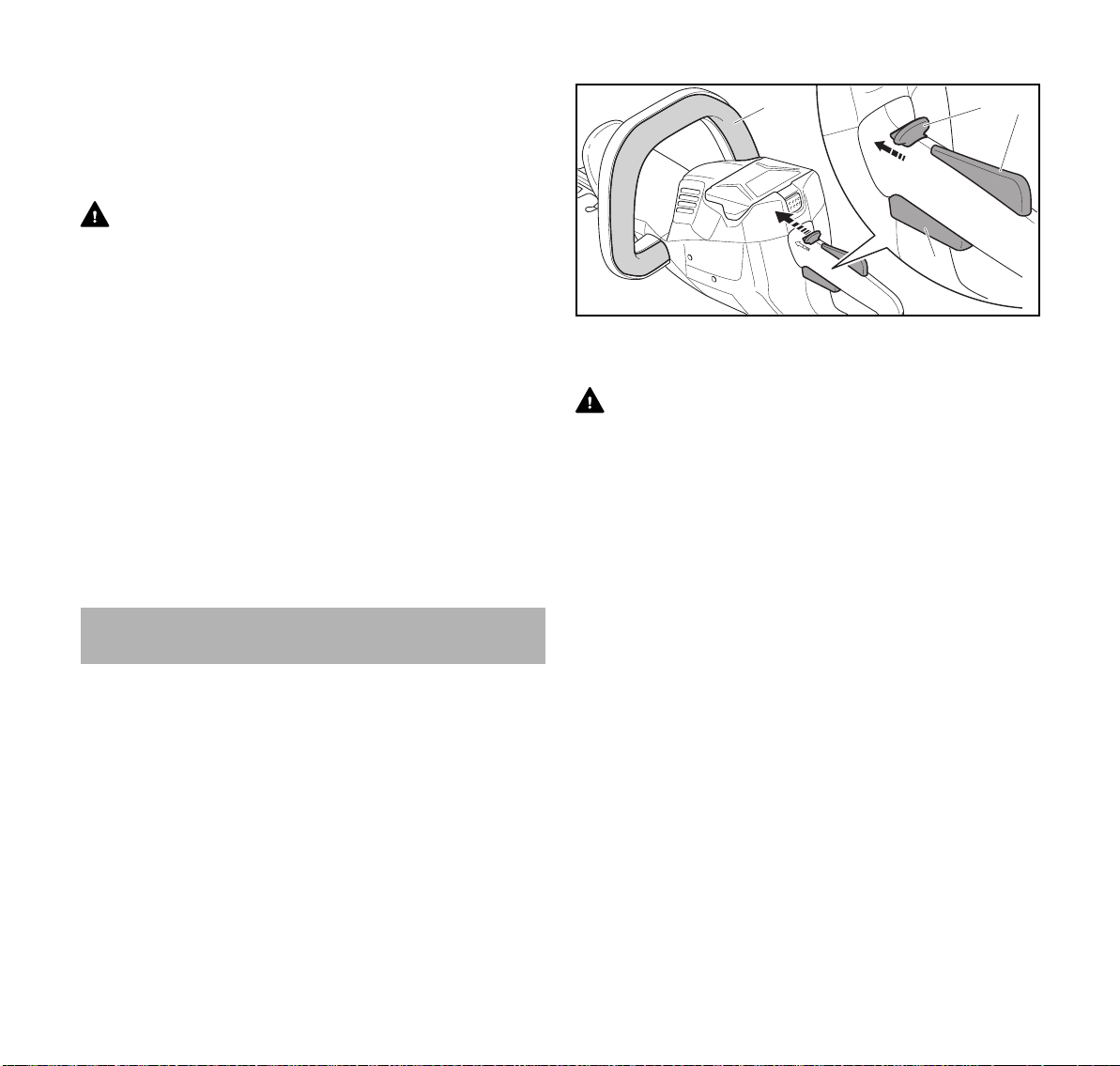

To switch the hedge trimmer on:

► Depress and hold the switch lever (1). ► Unlock the retaining latch (2) by pushing it forward with

your thumb. Hold it in this unlocked position.

► Depress and hold the trigger switch lockout (3).

The retaining latch can be released and will stay in the unlocked position.

► Squeeze the trigger switch (4) with your index finger.

The cutting blades will start moving.

0000-GXX-1474-A0

0458-714-8621-A

15 Checking the Controls

English

The motor will not switch on unless the retaining latch is unlocked and the switch lever, trigger switch lockout and trigger switch are pressed at the same time.

14.2 Switching Off

WARNING

The cutting blades continue to move for a short while after the trigger switch or switch lever is released. To avoid serious or fatal injury, avoid contact with the moving cutting blades. To reduce the risk of personal injury from unintended activation or unauthorized use, switch off the motor, ensure the cutting blades have stopped and remove the battery before transporting or putting the hedge trimmer down.

To switch the hedge trimmer off: ► Release the trigger switch and trigger switch lockout.

Once the trigger switch and trigger switch lockout have been released, the retaining latch will return to its locked position and activation of the trigger switch will be blocked.

The cutting blades will continue to move for a short time after the trigger switch or switch lever is released.

15 Checking the Controls

15.1 Testing the Controls

Before starting work, confirm that the switch lever (1), retaining latch (2), trigger switch lockout (3) and trigger switch (4) are undamaged and functioning properly:

Retaining Latch (2), Trigger Switch Lockout (3) and Trigger Switch (4)

WARNING

To reduce the risk of serious or fatal injuries, keep hands, feet and other parts of the body away from the cutting blades. Do not touch the cutting blades while the battery is inserted. Never touch moving cutting blades with your hand or any part of your body, @ 6.5.2. Keep bystanders out of the area while testing the controls.

To test the retaining latch, trigger switch lockout and trigger switch:

► Remove the battery. ► Unlock the retaining latch by pushing it forward with your

thumb. ► Hold the retaining latch in the unlocked position. ► Depress the trigger switch lockout and the trigger switch

momentarily. ► Release the retaining latch, trigger switch lockout and

trigger switch.

The retaining latch, trigger switch lockout and trigger

switch should return to their respective locked positions. If

they do not, take the hedge trimmer to an authorized

STIHL servicing dealer to be repaired before use.

If you can depress the trigger switch without first unlocking

the retaining latch and depressing the trigger switch

lockout, take the hedge trimmer to an authorized STIHL

servicing dealer to be repaired before use.

0000-GXX-1474-A0

0458-714-8621-A

English

0-10°

0000-GXX-1456-A0

16 During Operation

Switch Lever (1)

WARNING

To test the switch lever: ► Insert the battery.

► Unlock the retaining latch by pushing it forward with your

thumb. ► Hold the retaining latch in the unlocked position. ► Depress the trigger switch lockout and the trigger switch

only. Do not depress the switch lever.

The cutting blades should not start moving. If they do start

moving, take the hedge trimmer to an authorized STIHL

servicing dealer to be repaired before use. ► Hold the hedge trimmer firmly with both hands, your

fingers wrapped tightly around the handles. Now switch on

the hedge trimmer by depressing the trigger switch

lockout, the trigger switch and the switch lever

momentarily. Then release the trigger switch or switch

lever.

If the cutting blades do not stop after you release the

trigger switch or switch lever, remove the battery and take

the hedge trimmer to an authorized STIHL servicing

dealer to be repaired before use.

16 During Operation

16.1 Using the Hedge Trimmer

WARNING

To avoid serious or fatal injury, avoid contact with the moving cutting blades, @ 6.5.4.

WARNING

To reduce the risk of personal injury, never work with the hedge trimmer in the rain or in wet or damp conditions, @ 6.4. Always wear proper clothing and protective apparel, including proper eye protection, @ 6.3. Work carefully and maintain proper control of the hedge trimmer, @ 6.5.2.

The hedge trimmer is designed for two-handed operation. ► Before starting work with the hedge trimmer, remove thick

branches with a hand pruning saw, loppers, chain saw or other appropriate tool.

Cutting in a Vertical Plane ► Swing the cutting attachment from the bottom of the hedge

upwards in an arc (see illustration above).

► Lower the nose of the cutting attachment, move along the

hedge and swing the cutting attachment up again in an

arc. Cutting in a Horizontal Plane ► Hold the cutting attachment at an angle of 0° to 10° as you

move the cutting attachment horizontally, using both sides

of the cutting attachment (see illustration above). Do not cut stems, branches or other vegetation greater than

0.55 in. (14 mm) thick. Observe all applicable laws, regulations, standards and

ordinances.

0458-714-8621-A

17 After Finishing Work

English

17 After Finishing Work

17.1 Preparing for Transportation or Storage

WARNING

To reduce the risk of personal injury from unintended activation or unauthorized use, switch off the motor, ensure the cutting blades have stopped and remove the battery before transporting the hedge trimmer or putting it down.

To prepare the hedge trimmer for transportation or storage: ► Switch off the hedge trimmer, @ 14.2.

► Remove the battery, @ 13.2. ► Slide a blade scabbard over the cutting blades so that it

covers the entire cutting attachment.

► If the hedge trimmer or battery became wet during

operation, allow them to dry completely before charging or storing.

18 Transporting the Hedge Trimmer and

Battery

18.1 Hedge Trimmer

WARNING

Cover the entire length of the cutting blades with a blade scabbard before transporting or storing the hedge trimmer to reduce the risk of cut injuries from inadvertent contact.

When transporting the hedge trimmer: ► Slide a blade scabbard over the cutting blades so that it

covers the entire cutting attachment.

0000-GXX-1475-A0

► When transporting the hedge trimmer by hand, hold it by

the loop handle with the cutting blades pointing

backwards, opposite the direction in which you are

walking. ► When transporting the hedge trimmer in a vehicle, cover

the entire length of the cutting blades with a blade

scabbard. Secure and position the hedge trimmer to

prevent turnover, impact and damage. Your hedge trimmer comes standard with a blade scabbard.

18.2 Battery

WARNING

To reduce the risk of a short circuit, which could lead to electric shock, fire and explosion, never transport the battery in a metal container or near metal objects (e.g., paper clips, nails, coins, keys), @ 7.

0458-714-8621-A

When transporting the battery: ► Place the battery in a non-metal container or carton and

secure it against impact or damage. Never transport the

battery in a metal or other container that is capable of

conducting electricity, or near metal objects (e.g., paper

clips, nails, coins, keys). ► If you are transporting the battery in a vehicle, secure it

and its container to prevent turnover, impact and damage.

English

19 Storing the Hedge Trimmer, Battery and Charger

STIHL batteries comply with the requirements set forth in UN-Manual ST/SG/AC.10/11/Rev.5/Part III, Subsection

38.3. Commercial air, vessel and ground transportation of lithium

ion cells and batteries is regulated. The battery is classified as a UN 3480, Class 9, packaging group II product. Shipping it, either as a complete tool or the battery, requires compliance with all applicable shipping regulations. Check with the ground, vessel, air cargo or passenger airline to determine if transport is prohibited or subject to restrictions or exemptions prior to shipping or travel.

Normally, no further conditions have to be met by the user in order to transport STIHL batteries by road to the power tool's operating site. Check and comply with any special regulations that may apply to your situation.

For further information please go to www.stihlusa.com/ battery-transportation-safety (for Canada: www.stihl.ca).

19 Storing the Hedge Trimmer, Battery

and Charger

19.1 Hedge Trimmer

WARNING

Store the hedge trimmer indoors in a dry, secure place that is inaccessible to children and other unauthorized users, @ 9.1. Never store the battery in the hedge trimmer or charger. Improper storage can result in unauthorized use and damage to the hedge trimmer that can lead to fire and explosion, and otherwise increase the risk of severe personal injury and property damage, @ 9.1.

When storing the hedge trimmer: ► Clean the hedge trimmer, @ 20.1.

► Clean the cutting blades, @ 20.2. ► Store the hedge trimmer indoors in a dry and secure

location, out of the reach of children and other unauthorized persons.

19.2 Battery

WARNING

To reduce the risk of a short circuit, which could lead to electric shock, fire and explosion, never store the battery in a metal container or near metal objects, @ 7. If the battery is damp or wet, allow it to dry thoroughly before storing, @ 7.

WARNING

High temperatures can damage the battery and result in loss of performance and a shortened battery life. It may also cause the battery to generate heat, rupture, leak, ignite or explode, resulting in severe or fatal personal injury or property damage. Use and store the battery only within an ambient temperature range of 14 °F to 122 °F (- 10 °C to 50 °C), @ 7. Never store the battery in direct sunlight or inside a vehicle in hot weather, @ 7.

To properly store the battery: ► Take the battery out of the hedge trimmer or the charger.

► Make sure the battery is dry and store it indoors in a dry

and secure location. ► Keep it out of the reach of children and other unauthorized

persons. ► Protect the battery against dampness and corrosive

agents such as garden chemicals and de-icing salts. ► For maximum battery life, store the battery at an ambient

temperature between 50 °F and 68 °F (10 °C and 20 °C)

with a charge between 40 % and 60 % (2 green LEDs). ► Do not leave spare batteries unused. Use them in rotation.

19.3 Charger

WARNING

Store the charger indoors, in a dry, secure place that is inaccessible to children and other unauthorized users, @ 8. Improper storage can result in unauthorized use, misuse or damage to the charger that can lead to fire and otherwise increase the risk of severe personal injury and property damage, @ 8.

0458-714-8621-A

20 Cleaning

0000-GXX-0592-A0

English

To properly store the charger: ► Remove the battery from the charger.

► Disconnect the charger from the wall outlet.

► Keep the battery housing and guides free from foreign

matter and clean as necessary with a soft brush or soft,

dry cloth. ► Keep the charger housing and electrical contacts free

from foreign matter. Clean as necessary with a soft brush

or soft, dry cloth. Always unplug the charger before

cleaning.

20.2 Cleaning the Cutting Blades

WARNING

To reduce the risk of personal injury from unintended activation, remove the battery before carrying out any cleaning work, @ 9.1. Users of this hedge trimmer should carry out only the cleaning described in this manual. To help

► Wrap the power supply cord and attach it to the charger. ► Store the charger indoors in a dry and secure location. ► Keep it out of the reach of children and other unauthorized

persons.

20 Cleaning

prevent injuries, always wear heavy-duty work gloves when handling the hedge trimmer or its cutting blades, @ 6.3.

To clean the cutting blades: ► Spray both sides of the cutting blades with a resin solvent,

such as STIHL Resin Remover and Lubricant. ► Switch on the hedge trimmer for a few seconds to evenly

distribute the resin solvent throughout the cutting blades. ► Do not use a pressure washer to clean the cutting blades

or otherwise spray them with water or other liquids.

20.1 Cleaning the Hedge Trimmer, Battery and Charger

21 Inspection and Maintenance

WARNING

To clean the hedge trimmer, battery and charger: ► Clean the hedge trimmer's plastic components with a

slightly dampened cloth. Do not use detergents or solvents. They may damage the polymer components.

► Do not use a pressure washer to clean the hedge trimmer

or otherwise spray it with water or other liquids.

21.1 Inspecting and Maintaining the Hedge Trimmer

WARNING

To reduce the risk of personal injury from unintended activation, remove the battery before inspecting the hedge trimmer or carrying out any maintenance, @ 9.1. Carry out only the maintenance operations described in this manual. There are no user-authorized repairs. STIHL recommends that repair work be performed by authorized STIHL servicing dealers.

0458-714-8621-A

English

0000-GXX-1426-A0

21 Inspection and Maintenance

To properly maintain the hedge trimmer: ► Have worn cutting blades replaced by an authorized

STIHL servicing dealer.

► Have missing or damaged safety labels replaced by an

authorized STIHL servicing dealer.

If you make a warranty claim for a component that has not been serviced or maintained properly, coverage may be denied.

21.2 Inspecting and Maintaining the Cutting Blades

WARNING

To reduce the risk of personal injury from unintended activation, remove the battery before inspecting the cutting blades or carrying out any maintenance, @ 9.1. STIHL recommends having the cutting blades sharpened by an authorized STIHL servicing dealer.

Although it is best to have the cutting blades resharpened by a dealer on a workshop sharpener, it is possible to use a flat crosscut sharpening file.

Sharpen the cutting blades when cutting performance begins to deteriorate, i.e., blades frequently snag on branches or fail to cut material cleanly.

To sharpen the cutting blades with a file:

► Only sharpen the cutting edges. Do not file blunt

projecting parts of the cutting attachment, or the cutting blade guard. Make sure your sharpening stroke matches the sharpening angle, @ 23.2.

► Turn the hedge trimmer over and sharpen the cutting

edges of the lower cutting blade.

► Use a whetstone to remove any burrs from the cutting

edges. Remove as little material as possible.

► After sharpening, wipe away filing or grinding dust with a

dry or slightly dampened cloth and then spray the cutting blades with a resin solvent, such as STIHL Resin Remover and Lubricant.

If you make a warranty claim for a component which has not been serviced or maintained properly, coverage may be denied.

NOTICE

Operating the machine with dull or damaged cutting blades may overload the motor. Keeping the cutting blades sharp helps maintain cutting performance and the expected life of the product.

► Sharpen each cutting edge of the upper cutting blade with

a sharpening file. Always file toward the cutting edge with a forward motion. The file only sharpens on the forward stroke. Lift off the blade on the backstroke.

0458-714-8621-A

22 Troubleshooting Guide

22.1 Hedge Trimmer and Battery

Always remove the battery before carrying out any inspection, cleaning or maintenance.

Condition LEDs on

Battery

Hedge trimmer does not start when switched on.

1 LED flashes green.

1 LED glows red.

4 LEDs flash red.

3 LEDs glow red.

3 LEDs flash red.

Hedge trimmer cuts out during operation.

1 LED glows red.

3 LEDs glow red.

Cause Remedy

No electrical contact between hedge trimmer and battery.

Battery has low charge.

Battery too hot / too cold.

Malfunction in battery.

Hedge trimmer too hot.

Malfunction in hedge trimmer.

Battery too hot / too cold.

Hedge trimmer too hot.

► Remove the battery, @ 13.2. ► Visually check the electrical contacts in the battery

compartment and on the battery.

► Reinsert the battery, @ 13.1. ► Charge the battery, @ 11.

► Allow the battery to warm up or cool down gradually at

ambient temperatures of about 50 °F to 68 °F (10 °C to 20 °C).

► Remove the battery and reinsert it, @ 13. ► Switch on the hedge trimmer, @ 14.1. ► If the LEDs continue to flash, do not attempt to use.

The battery has a malfunction and must be replaced.

► Allow the hedge trimmer to cool down.

► Remove the battery and reinsert it, @ 13 ► Switch on the hedge trimmer, @ 14.1. ► If the LEDs still flash, do not attempt to use.

The hedge trimmer has a malfunction and must be checked by a servicing dealer.

► Remove the battery, @ 13.2. ► Allow the hedge trimmer and battery to cool down gradually

at ambient temperatures of about 50 °F to 68 °F (10 °C to 20 °C).

English

0458-714-8621-A

English

Always remove the battery before carrying out any inspection, cleaning or maintenance.

Condition LEDs on

Battery

Runtime is too short. Battery not fully

Battery is not being charged even though LED on charger glows green.

1 LED glows red.

Cause Remedy

charged. Useful life of battery

has been reached or exceeded.

Battery too hot / too cold.

22.2 Charger

Condition LEDs on

Charger

LED on charger flashes red.

LED flashes red.

Cause Remedy

No electrical contact between charger and battery.

Malfunction in battery.

Malfunction in charger.

22 Troubleshooting Guide

► Charge the battery, @ 11.

► Have the battery checked by an authorized STIHL servicing

dealer.

► Allow the battery to warm up or cool down gradually at

ambient temperatures of about 50 °F to 68 °F (10 °C to 20 °C).

► Operate the charger only in enclosed, dry rooms at ambient

temperatures of 41 °F to 104 °F (5 °C to 40 °C).

► Remove the battery and reinsert it into the charger.

► Remove the battery and reinsert it into the charger. ► If the LED continues to flash, do not attempt to charge.

If 4 LEDs on the battery are flashing, it has a malfunction and must be replaced. Otherwise, have the battery checked by an authorized STIHL servicing dealer.

► Have the charger checked by an authorized STIHL

servicing dealer.

0458-714-8621-A

23 Specifications

English

23 Specifications

23.1 STIHL HSA 56

Intended for household use. – Approved battery type: STIHL AK series – Weight without battery: 6.4 lbs. (2.9 kg)

23.2 Cutting Blades

– Tooth spacing: 1.04 in. (26.5 mm) – Cutting length: 17.7 in. (450 mm) – Sharpening angle: 40°

23.3 STIHL AK Series Battery

Approved charger type: STIHL AL series. – Battery technology: Lithium-Ion – Voltage: 36 V – Capacity in Ah: See rating plate – Energy content in Wh: See rating plate – Weight in kg: See rating plate – Permissible ambient temperature range during use or

storage: 14 °F to 122 °F (- 10 °C to 50 °C)

For a complete list of approximate charging times, see www.stihl.com/charging-times.

23.4 STIHL AL 101

– Mains voltage: 120 V – Rated current: 1.3 A – Frequency: 60 Hz – Charging current: 1.5 A – Rated power: 75 W – Insulation: Class II (Double Insulation)

– Permissible ambient temperature range during charging:

41 °F to 104 °F (5 °C to 40 °C)

23.5 Symbols on the Hedge Trimmer, Battery and Charger

Symbol Explanation VVolt Hz Hertz A Ampere Ah Ampere hour WWatt Wh Watt hour AC Alternating current IP20 Degree of electrical protection

Push and hold the retaining latch in this direction to unlock.

Certification mark of the CSA-Group. Products bearing this mark have been certified based on national standards by the CSA third party Certification Body.

STIHL products must not be disposed of in the household trash, but only in accordance with local, state and federal laws and regulations and as provided in this manual, @ 25.

Direct current

Number of cells and energy content according to cell manufacturer's specification. The energy content available in specific applications is lower.

The RBRC seal indicates that STIHL has prepaid for battery recycling.

Read the manual.

Insulation: Class II (Double Insulation)

0458-714-8621-A

English

24 Replacement Parts and Equipment

Use and store charger only indoors in dry rooms.

California Energy Commission. This battery system complies with the California Energy Commission efficiency requirements.

Manufacturer Code

):*%

23.6 FCC 15 Compliance Statement

This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: – this device may not cause harmful interference. – this device must accept any interference received,

including interference that may cause undesired operation.

Note: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation.

If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

– reorient or relocate the receiving antenna, – increase the separation between the equipment and

receiver,

– connect the equipment into an outlet on a circuit different

from that to which the receiver is connected,

– consult an authorized STIHL servicing dealer or an

experienced radio/TV technician for help.

Do not change or modify this product in any way unless specifically allowed in this manual, since this could void your authority to operate it.

24 Replacement Parts and Equipment

24.1 Genuine STIHL Replacement Parts

STIHL recommends the use of genuine STIHL replacement parts. Genuine STIHL parts can be identified by the STIHL part number, the logo and, in some cases, by the STIHL parts symbol . The symbol may appear alone on small parts.

25 Disposal

25.1 Disposal of the Hedge Trimmer and Charger

STIHL products must not be thrown in household trash or disposed of except as outlined in this manual.

► Take the hedge trimmer, charger, accessories and

packaging to an approved disposal site for environmentally friendly recycling.

► Contact your authorized STIHL

latest information on disposal and recycling.

25.2 Battery Recycling

WARNING

Handle discharged/depleted batteries carefully. Even if believed to be discharged, lithium ion batteries may never totally discharge and still may deliver a dangerous short circuit current. If damaged or exposed to high temperatures, they may leak, generate heat, catch fire or explode.

► Observe all federal, state and local disposal rules and

regulations.

► Contact your authorized STIHL servicing dealer for the

latest information on waste disposal.

► Recycle depleted batteries promptly.

servicing dealer for the

0458-714-8621-A

26 Limited Warranty

STIHL Injection

English

► Keep batteries away from children. Do not disassemble

and do not dispose of in fire.

STIHL is committed to the development of products that are environmentally responsible. This commitment does not stop when the product leaves the authorized STIHL servicing dealer. STIHL has partnered with the RBRC (Rechargeable Battery Recycling Corporation) to promote the collection and recycling of spent STIHL lithium ion batteries in the United States and Canada.

The RBRC seal indicates that STIHL has prepaid for battery recycling. RBRC has a toll free phone number (1-800-822-

8837) that connects you to information on battery recycling locations and information on battery disposal bans or restrictions in your area. You can also return your spent battery to any authorized STIHL servicing dealer for recycling free of charge.

26 Limited Warranty

26.1 STIHL Incorporated Limited Warranty Policy

This product is sold subject to the STIHL Incorporated Limited Warranty Policy, available at http:// www.stihlusa.com/warranty.html. It can also be obtained from your authorized STIHL dealer or by calling 1-800-GO-STIHL (1-800-467-8445).

27 Trademarks

27.1 Registered Trademarks

STIHL

FARM BOSS iCademy

MAGNUM

The color combination orange-grey (U.S. Registrations #2,821,860; #3,010,057, #3,010,058, #3,400,477; and #3,400,476)

AutoCut YARD BOSS STIHL ROLLOMATIC WOOD BOSS

MasterWrench Service MotoMix OILOMATIC Rock Boss STIHL Cutquik

STIHL DUROMATIC STIHL Quickstop STIHL WOOD BOSS TIMBERSPORTS

27.2 Common Law Trademarks

4-MIX ™ HT Plus ™ BioPlus ™ STIHL PowerSweep ™ Easy2Start ™ STIHL Protech ™ EasySpool ™ STIHL MiniBoss ™ ElastoStart ™ STIHL MotoPlus 4 ™ Ematic ™ Master Control Lever ™ STIHL Precision Series ™ STIHL OUTFITTERS ™ FixCut ™ STIHL PICCO ™ Micro ™ TrimCut ™ Pro Mark ™ STIHL M-Tronic ™ Quad Power ™ STIHL HomeScaper Series ™ Quiet Line ™ STIHL PolyCut ™ STIHL Arctic ™ STIHL RAPID ™ STIHL Compact ™ STIHL SuperCut ™ STIHL Interchangeable

Attachment Series ™ TapAction ™ STIHL Territory ™

STIHL Multi-Cut HomeScaper Series ™

0458-714-8621-A

This listing of trademarks is subject to change.

English

Any unauthorized use of these trademarks without the express written consent of ANDREAS STIHL AG & Co. KG, Waiblingen is strictly prohibited.

28 Addresses

28.1 STIHL Incorporated

STIHL Incorporated 536 Viking Drive P.O. Box 2015 Virginia Beach, VA 23452-2015

28 Addresses

0458-714-8621-A

Contenido

español / EE.UU

1 Introducción

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

2 Acerca de este manual de instrucciones

2.1 Palabras identificadoras

2.2 Símbolos en el texto 3 Componentes importantes

3.1 Cortasetos, batería y cargador

. . . . . . . . . . . . . . . . . . . . . . . . . . . .

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

. . . . . . . . . . . . . . . . . . . . . . . . .

. . . . . . . . . . . . . . . . . . . . .

4 Símbolos de seguridad en los productos

4.1 Cortasetos, batería y cargador

Manual de instrucciones originalImpreso en papel libre de cloro.

5 Advertencias generales de seguridad para

herramientas motorizadas

5.1 Introducción

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

. . . . . . . . . . . . . . . . . . . . .

. . . . . . . . . . . . . . . . . . . . . . . . . .

5.2 Seguridad en la zona de trabajo

5.3 Seguridad eléctrica

5.4 Seguridad personal

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

5.5 Uso y cuidado de la herramienta eléctrica

5.6 Uso y cuidado de la herramienta de baterías

5.7 Mantenimiento

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

5.8 Advertencias de seguridad del cortasetos 6 INSTRUCCIONES IMPORTANTES DE

SEGURIDAD

6.1 Uso previsto

6.2 Operador

6.3 Equipos de protección personal

Las tintas contienen aceites vegetales, el papel es reciclable.

6.4 Cortasetos

6.5 Uso del cortasetos 7 Seguridad de la batería

7.1 Advertencias e instrucciones 8 Seguridad del cargador

8.1 Advertencias e instrucciones

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

. . . . . . . . . . . . . . . . . . . .

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

. . . . . . . . . . . . . . . . . . . . . . . . . . . .

. . . . . . . . . . . . . . . . . . . . . . .

. . . . . . . . . . . . . . . . . . . . . . . . . . . .

. . . . . . . . . . . . . . . . . . . . . . .

9 Mantenimiento, reparación y almacenamiento

9.1 Advertencias e instrucciones 10 Antes de empezar a trabajar

. . . . . . . . . . . . . . . . . . . . . . .

. . . . . . . . . . . .

. . . . . . . . . . .

. . . . . . . . . . . . . . . . . . . .

. . . . . . . . . .

. . . . . . .

. . . . . . . . . .

. . . . . .

10.1 Preparación del cortasetos para el

36 36

36 37

37 37

38 38

funcionamiento

11 Carga de la batería

11.1 Preparación del cargador para el funcionamiento

11.2 Carga

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

12 Diagnóstico de LED

12.1 LED en la batería

12.2 LED en el cargador 13 Colocación y extracción de la batería.

13.1 Colocación de la batería

13.2 Extracción de la batería

14 Encendido y apagado del cortasetos

14.1 Encendido

14.2 Apagado

15 Revisión de los controles

15.1 Prueba de los controles

41 42

16 Durante el funcionamiento

16.1 Uso del cortasetos 17 Después de completar el trabajo

17.1 Preparación para el transporte o el

42 42 43 43 45

49 49

50 50

52 52

almacenamiento

18 Transporte del cortasetos y de la batería

18.1 Cortasetos

18.2 Batería

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

19 Almacenamiento del cortasetos, la batería y el

cargador

19.1 Cortasetos

19.2 Batería

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

19.3 Cargador 20 Limpieza

20.1 Limpieza del cortasetos, la batería y el cargador

20.2 Limpieza de las cuchillas de corte 21 Inspección y mantenimiento

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

. . . . . . . . . . . . . . . . . . . . . . . . . . .

. . . . . . . . . . . . . . . . . . . . . . . . . . . .

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

. . . . . . . . . . . . . . . . . . . . . . . . . . .

. . . . . . . . . . . . . . . . . . . . . . . . . . . .

. . . . . . . . . . . . . . . . . . . . . . . . .

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

. . . . . . . . . . . . . . . . . . .

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

. . . . . . . . . . . . . . . . . . . . . . . .

. . .

. . . . . . . . . . . . . .

. . . . . . . . . . . . . . .

. . . . . . . . . . .

. . .

. . . . . . . . . . . . . . . . . .

53 53

53 54

55 55 55

56 56 57

57 57 58

58 58

59 59

60 60

60 61

61 61 61 62

62 62 63

{

0458-714-8621-A. VA2.C17.

0000007546_004_EA

0458-714-8621-A

Este manual de instrucciones está protegido por derechos de propiedad intelectual. Todos los derechos reservados, especialmente los derechos de reproducción, traducción y procesamiento con sistemas electrónicos.

español / EE.UU

1 Introducción

21.1 Inspección y mantenimiento del cortasetos

21.2 Inspección y mantenimiento de las cuchillas de corte

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

22 Guía de solución de problemas

22.1 Cortasetos y batería

22.2 Cargador

23 Especificaciones

23.1 STIHL HSA 56

23.2 Cuchillas de corte

23.3 Batería STIHL serie AK

23.4 STIHL AL 101

23.5 Símbolos en el cortasetos, la batería y el cargador

23.6 Declaración de cumplimiento con norma FCC 15

24 Piezas y equipos de repuesto

24.1 Piezas de repuesto originales de STIHL

25 Eliminación

25.1 Desecho del cortasetos y el cargador

25.2 Reciclado de las baterías

26 Garantía limitada

26.1 Política de garantía limitada de STIHL Incorporated

27 Marcas comerciales

27.1 Marcas comerciales registradas

27.2 Marcas comerciales por ley común

28 Direcciones
