CAUTION

LIMITED 1 YEAR WARRANTYLIMITED 1 YEAR WARRANTY

LIMITED 1 YEAR WARRANTYLIMITED 1 YEAR WARRANTY

LIMITED 1 YEAR WARRANTY

Manufacturer warrants to the original retail purchaser, this product to be free from defects in
material and workmanship for a period of one (1) year from the date of purchase. Should this
product become defective due to material or workmanship within the warranty period, contact our
Customer Service Department. If defective by the terms of this warranty, we will, at our option,
repair or replace the product. This warranty is not transferable and does not cover normal wear
and tear, or damage caused by improper handling, installation or use of this product. This warranty
is also void if product is in any way abused, damaged, or modified from its original state, or if used
for other than residential use. This warranty gives you specific legal rights, and you may have other
rights which vary from state to state.

When ordering repair
parts, always give the
following:

n Part Name
n Part Number
n Model Number
n Part Description

Table Tennis Table

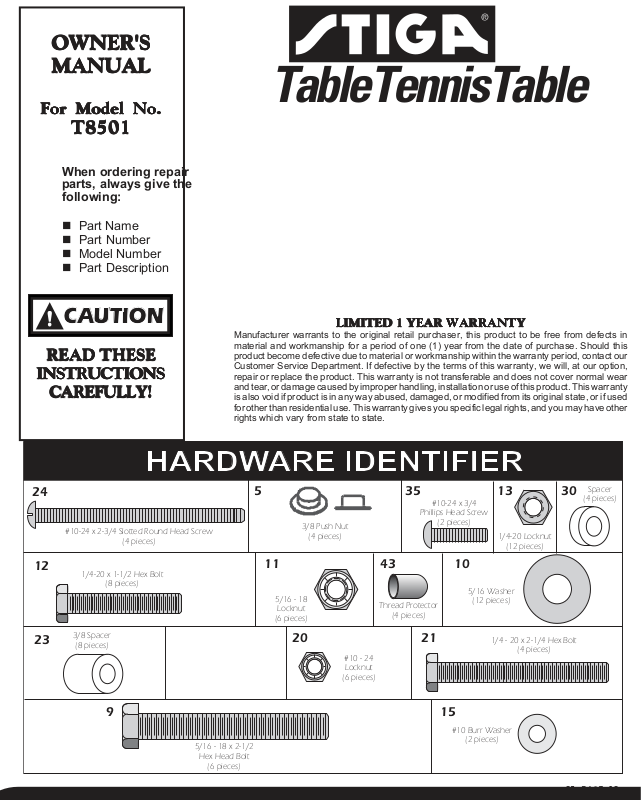

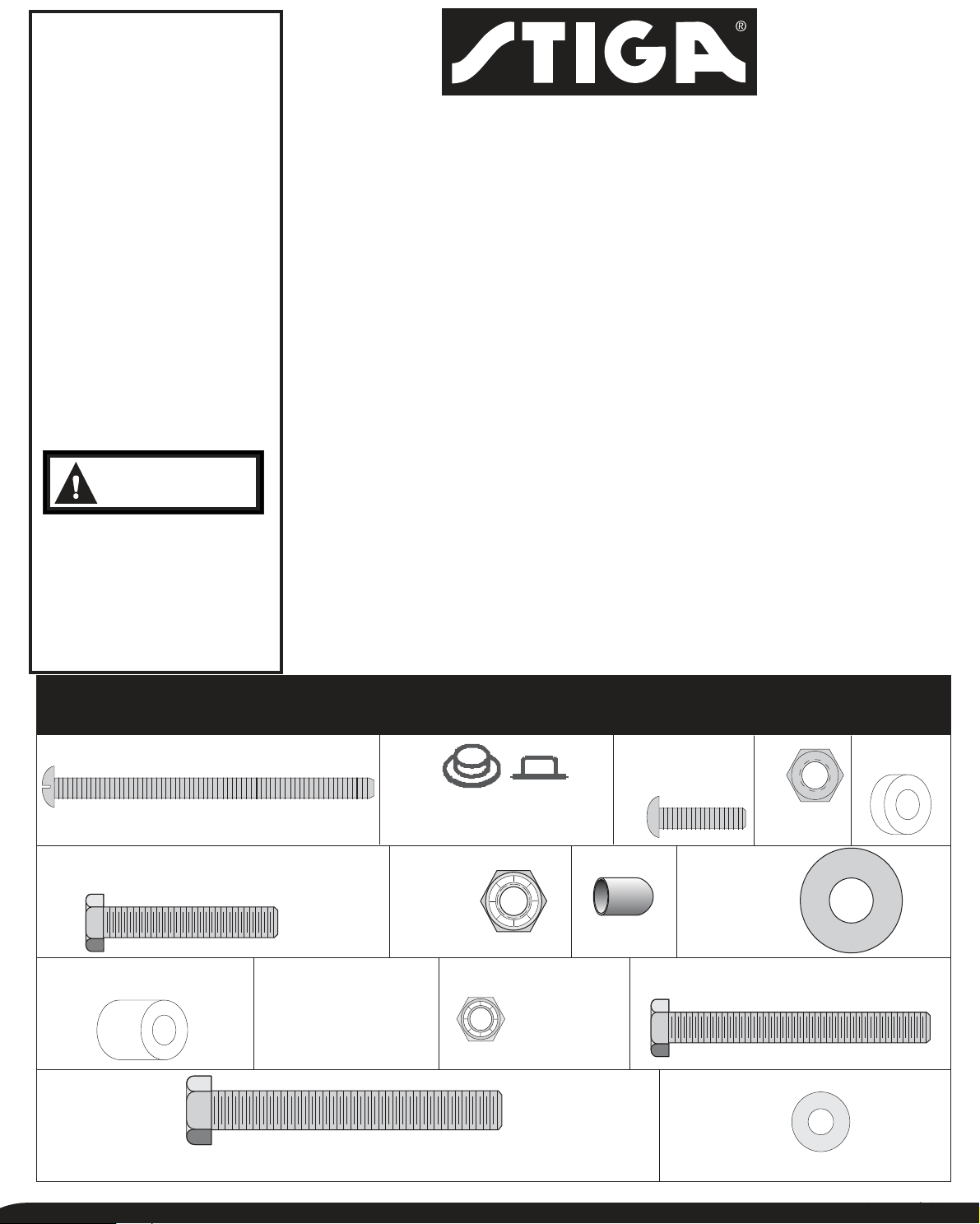

HARDWARE IDENTIFIER

43

Thread Protector

(4 pieces)

#10-24 x 3/4

Phillips Head Screw

(2 pieces)

35

1/4-20 Locknut

(12 pieces)

3/8 Push Nut

(4 pieces)

3/8 Spacer

(8 pieces)

Spacer

(4 pieces)

1/4-20 x 1-1/2 Hex Bolt

(8 pieces)

12

15

24

21

9

#10 - 24
Locknut

(6 pieces)

20

10

13

5/16 - 18 x 2-1/2

Hex Head Bolt

(6 pieces)

#10-24 x 2-3/4 Slotted Round Head Screw

(4 pieces)

1/4 - 20 x 2-1/4

(4 pieces)

Hex Bolt

11

5

23

30

5/16 - 18

Locknut

(6 pieces)

5/16 Washer

(12 pieces)

#10 Burr Washer

(2 pieces)

29

8

DimplesUp

Dimples To
Inside

9

10

10

11

1

3

3

5

4

4

5

12

13

14

14

13

8

8

12

TOOLS NEEDED FOR ASSEMBLYTOOLS NEEDED FOR ASSEMBLY

TOOLS NEEDED FOR ASSEMBLY

TOOLS NEEDED FOR ASSEMBLYTOOLS NEEDED FOR ASSEMBLY

CAUTION

Tools Needed:Tools Needed:

Tools Needed:n3/8 Open or Boxed End Wrench (2) n Rachet (optional)

Tools Needed:Tools Needed:

n 7/16 Open or Boxed End Wrench (2) n 3/8 Socket (If using rachet)
n 1/2 Open or Boxed End Wrench (2) n 9/16 Open or Boxed End Wrench (2)
n Phillips Screwdriver n 9/16 Socket (If using rachet)
n Standard Screwdriver n Hammer

FRAME ASSEMBLYFRAME ASSEMBLY

FRAME ASSEMBLY

FRAME ASSEMBLYFRAME ASSEMBLY

AT LEAST TWO ADULTS ARE NEEDED TO COMPLETE THE ASSEMBLY!
DO NOT LEAVE TABLE UNATTENDED UNTIL ASSEMBLY IS COMPLETE!

1. Open the hardware kit and sort all the hardware.

For your help in identifying hardware, see the
hardware identifier on the front of this manual.

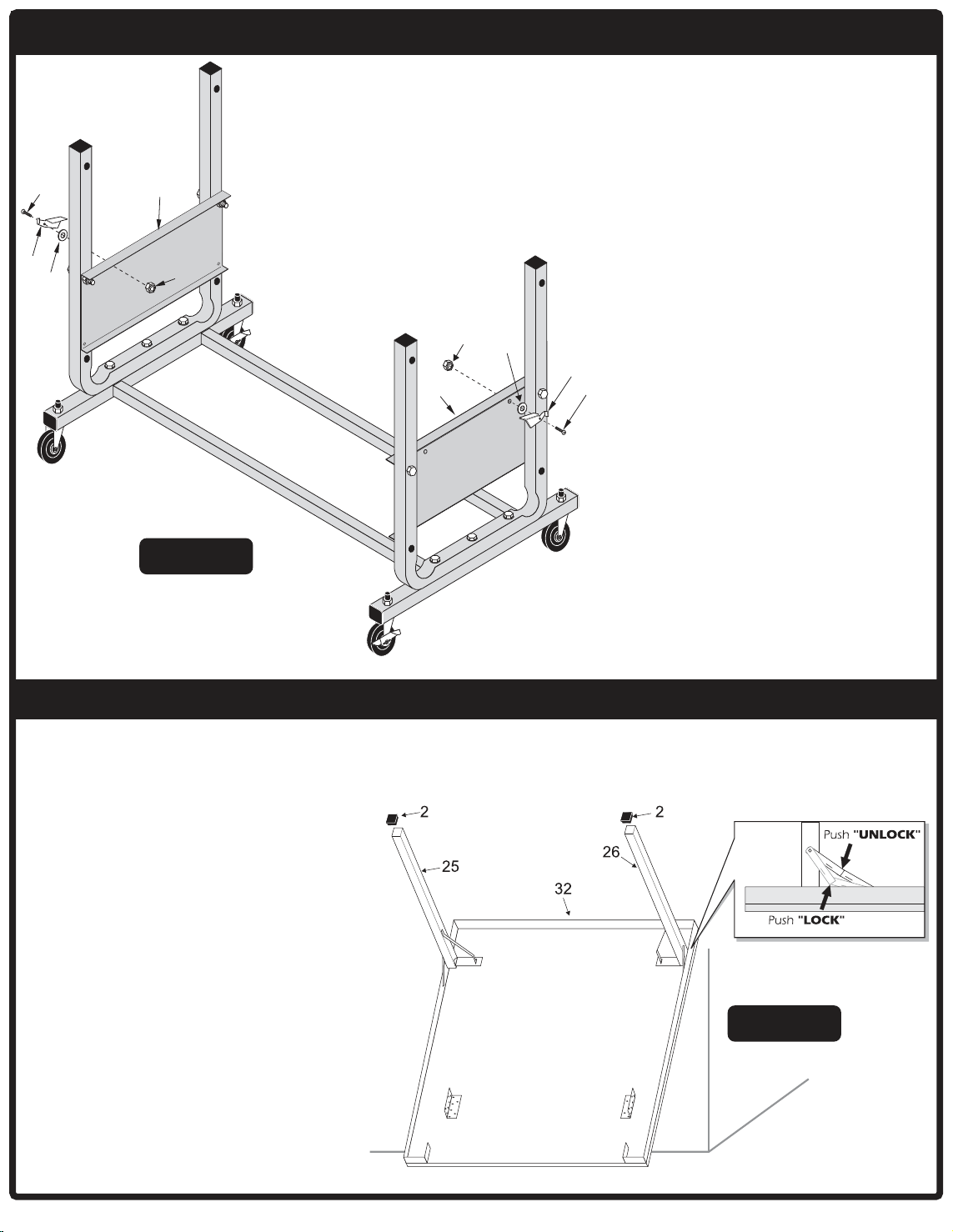

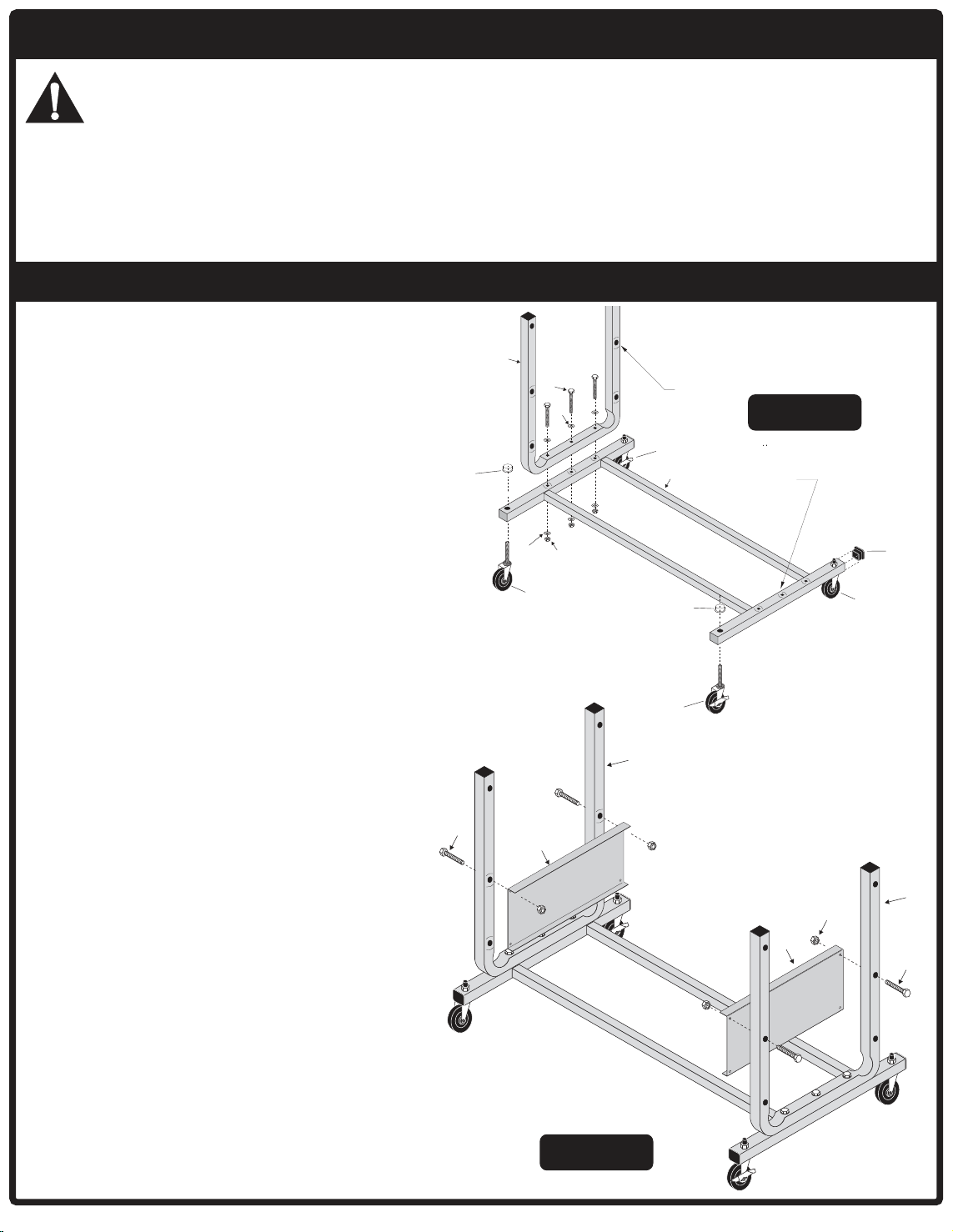

2. Attach two non-locking casters #3 and two
locking casters #4 to frame base #1. NOTE:

Dimples in frame base should face up.
(See figure 1) Locking casters #4 must be
on opposite corners from each other.
Secure casters using Push nuts #5. Use a
hammer to tap push nuts onto caster stems
securely.

FIGURE 1FIGURE 1

FIGURE 1

FIGURE 1FIGURE 1

3. Put tube end caps #29 in the ends of the base
frame tubes #1. (See figure 1)

4. Attach "U" uprights #8 to base frame #1, with
dimples facing inward, using three bolts #9,
six washers #10 and three locknuts #11. (See
figure 1) Do not over tighten bolts crushing

tubes.

Note: One washer goes on top of "U"
uprights, and one goes under the base

frame. (See figure 1)

5. Attach name plate #14 to inside of "U" uprights

#8 using two bolts #12 and two locknuts #13.

Tighten these nuts securely BUT do not
over tighten them crushing tubes.

FIGURE 2FIGURE 2

FIGURE 2

FIGURE 2FIGURE 2

2

20

15

35

18

Do notovertighten
nuts.Safetylatches
must be free to pivot.

35

18

15

20

14

14

ATTACHING SAFETY LATCHESATTACHING SAFETY LATCHES

ATTACHING SAFETY LATCHES

ATTACHING SAFETY LATCHESATTACHING SAFETY LATCHES

6. Install the Safety Latches #18 to the
Name Plates #14 using two screws
#35, safety latch #18, washer #15 and
locknut #20. Safety Latches must

be installed opposite each other
on both sides of the assembly.

(See figure 3)

Do not over tighten nuts #20.
Safety latch #18 must be free to
pivot.

IMPORTANT: SAFETY LATCHES
MUST BE INSTALLED AS SHOWN
WITH FLANGE ON LATCH OVER
TOP OF NAME PLATE.

FIGURE 3FIGURE 3

FIGURE 3

FIGURE 3FIGURE 3

7. You may want to place a towel
between table top and wall to keep
from scratching wall. Take either

table half #32 and lean it up against a
wall. Turn it so that the two legs with
hinges are up farthest from the floor.
Place the bottom of the table about 12
inches away from the wall. (See
figure 4)

Note: If you desire, table can be placed
on the floor, if carpeted, or on the
shipping carton, with the playing

surface down. (Take care not to
damage the playing surface).

FIGURE 4FIGURE 4

FIGURE 4

FIGURE 4FIGURE 4

8. Open legs #25 and #26 and lock leg
hinges.

9. Place leg caps #2 on ends of legs #25
and #26. (See figure 4)

3

12

8

8

30

40

40

40

LegHinge

LOCKED

MountLeg
tothisHole

Table Top

LegBracket#40

LegHinge

LOCKED

13

Boltgoesin
middlehole

ATTACHING TABLE HALF TO BASE FRAME AND ATTACHING LINKAGESATTACHING TABLE HALF TO BASE FRAME AND ATTACHING LINKAGES

ATTACHING TABLE HALF TO BASE FRAME AND ATTACHING LINKAGES

ATTACHING TABLE HALF TO BASE FRAME AND ATTACHING LINKAGESATTACHING TABLE HALF TO BASE FRAME AND ATTACHING LINKAGES

CAUTION

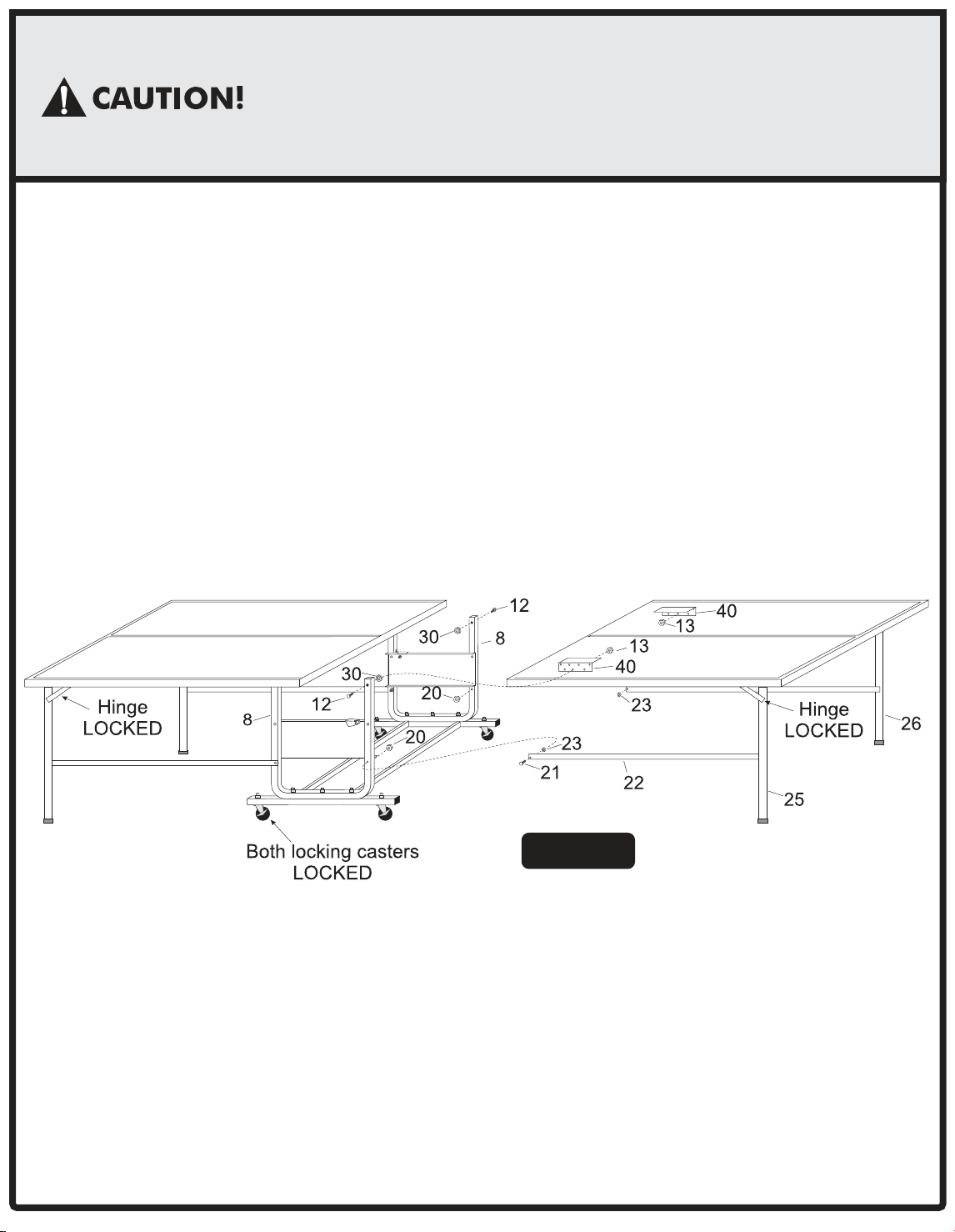

10. Find bolts #12, spacer #30, and locknut

#13. Place them on the floor next to
caster wheels so they will be handy for
next step.

Make sure legs #25 and #26 are open
and the leg hinges are locked. With

one person on each side of this table half,
lift it and set it on legs. (See figure 5)

While holding table half near net end, pull
the frame under this table half until hole in
"U" upright #8 is aligned with the lower
middle hole in the leg mounting bracket
#40

Secure table half to leg mounting brackets
#40 using bolts #12, spacer #30, and
locknut #13. Make sure that spacer #30
is between "U" upright #8 and leg
mounting bracket #40. (See figure 5)

ARE NEEDED TO COMPLETE THE REMAINDER OF ASSEMBLY

LOCK LEG HINGES ON BOTH LEGS. AT LEAST TWO ADULTS

FIGURE 5FIGURE 5

FIGURE 5

FIGURE 5FIGURE 5

Do not attempt to raise this half until other half top is attached
and you have read and understand operating instructions

FIGURE 6FIGURE 6

FIGURE 6

FIGURE 6FIGURE 6

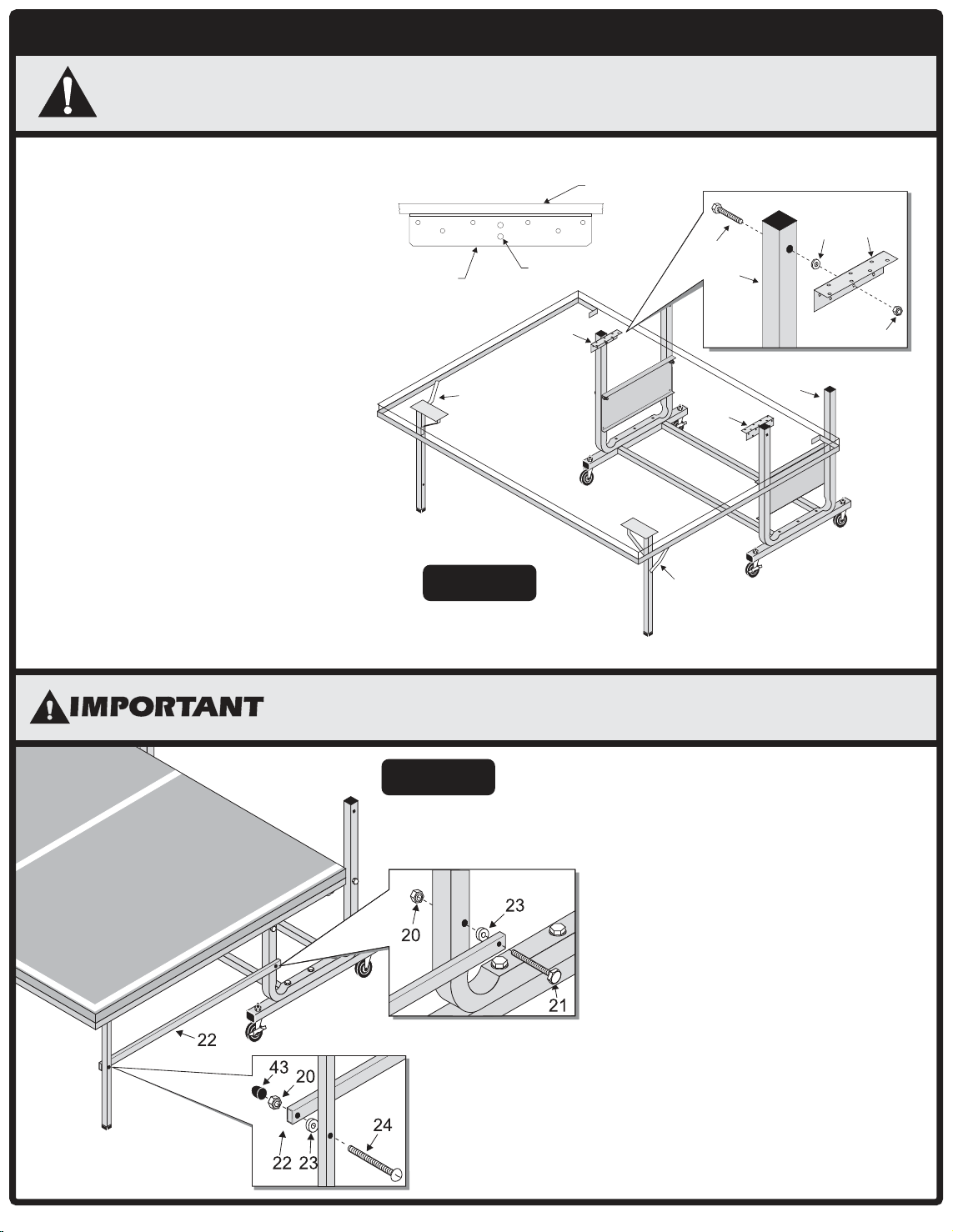

11. Install linkages #22 as shown with linkage
on the outside of "U" upright #8 and on
the inside of the legs #25 and #26.

Secure linkage #22 to legs #25 and #26
with one screw #24, one spacer #23
(between the linkage and the leg), one
locknut #20 and one thread protector #43.

Do not over tighten these nuts. Tubes
MUST be free to pivot.

Attach linkage #22 to "U" upright #8 with one
bolt #21, one spacer #23 (between the

linkage and the leg), one locknut #20.
Do not over tighten these nuts. Tubes
MUST be free to pivot.

4

DO NOT FOLD TABLE HALVES UP IN THE
STORAGE POSITION UNTIL BOTH TABLE
HALVES ARE INSTALLED AND ALL OPERATING
INSTRUCTIONS ARE UNDERSTOOD.

12. Make sure legs #25 and #26 are open and the leg

hinges are locked. With one person on each side of this

table half, lift it and set it on legs. (See figure 7)

While holding table half near net end, pull the frame under
this table half until hole in "U" upright #8 is aligned with
middle hole in the leg mounting bracket #40

Secure table half to base frame to leg mounting brackets
#40 using bolts #12, spacer #30, and locknut #13. Make
sure that spacer #30 is between "U" upright #8 and leg
mounting bracket #40.

13. Install linkages #22 as shown with linkage on the outside
of "U" upright #8 and on the inside of the legs #25 and

#26.

Secure linkage #22 to legs #25 and #26 with one screw #24,
one spacer #23 (between the linkage and the leg), one
locknut #20. Do not over tighten these nuts. Tubes

MUST be free to pivot.

Attach linkage #22 to "U" upright #8 with one bolt #21, one
spacer #23 (between the linkage and the leg), one
locknut #20. Do not over tighten these nuts. Tubes

MUST be free to pivot.

FIGURE 7

5

ATTACHING NET AND BRACKETATTACHING NET AND BRACKET

27

ATTACHING NET AND BRACKET

ATTACHING NET AND BRACKETATTACHING NET AND BRACKET

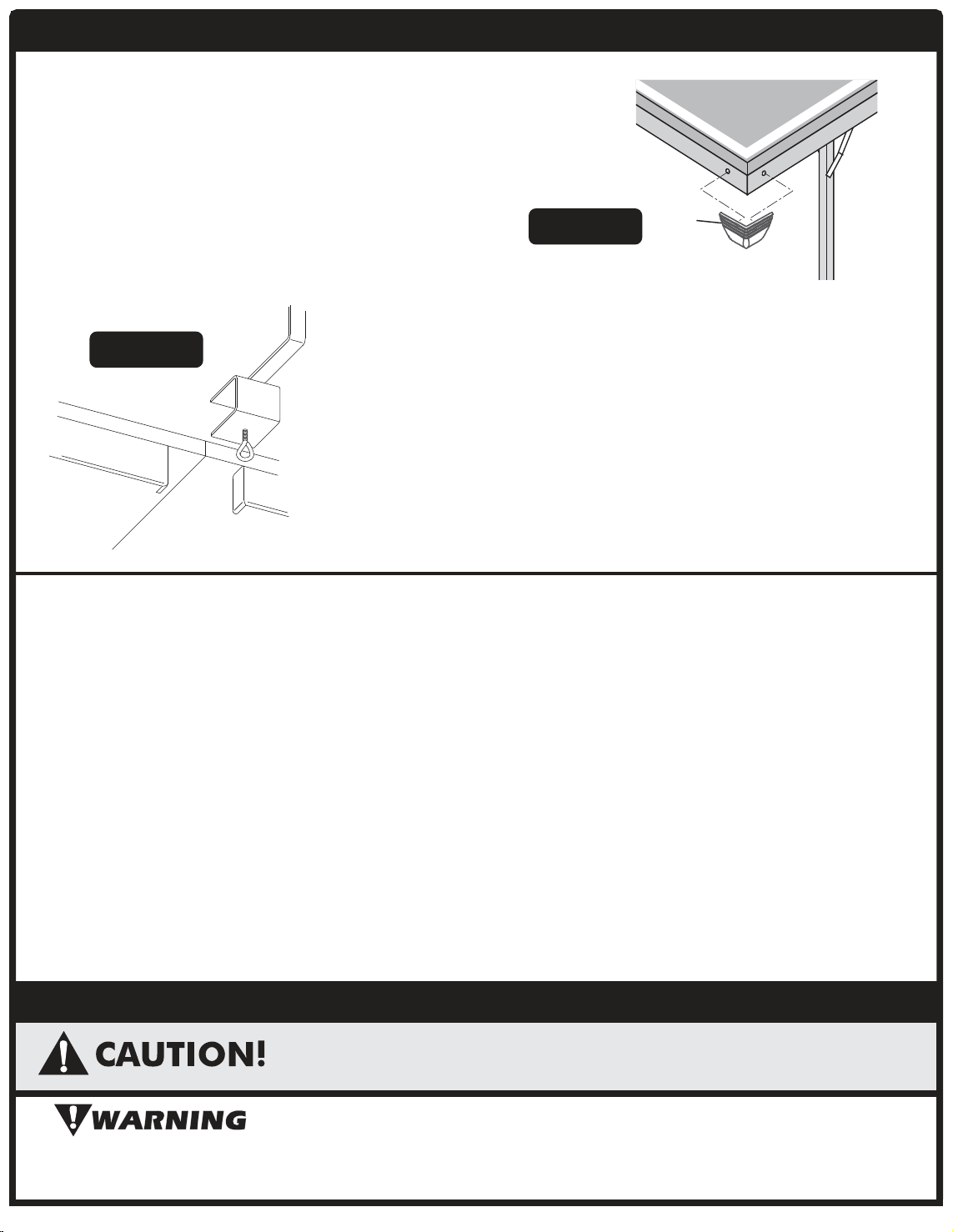

14. Attach the four corner protectors (#27) to rails. See
Figure 8.

FIGURE 9FIGURE 9

FIGURE 9

FIGURE 9FIGURE 9

FIGURE 8FIGURE 8

FIGURE 8

FIGURE 8FIGURE 8

15. Secure net posts to center of table and slide
net down over posts. See Figure 9.

CARE AND MAINTENANCE

You have purchased a quality product that will give you years of
enjoyment. By following these simple maintenance steps you
will add to the life of your new table.

THE TABLE TOP

The top (playing surface) of your table is made of particle board.
Like all products made of wood, it can be affected by atmospheric
changes in both temperature and humidity. This may cause a
slight sag of distortion as the top expands of contracts. This is
normal and should not cause concern as it does not detract from
the play or utility value of the table. After assembly of the table,
you can minimize the effects of temperature and humidity
changes by storing the table in the folded up position in a dry area
when table is not in use.

STORAGE OF YOUR TABLE.

This table must be stored indoors to prevent damage to the
playing surface. Dampness and extreme temperature changes
can cause the wood to warp, swell, crack, or blister. When your

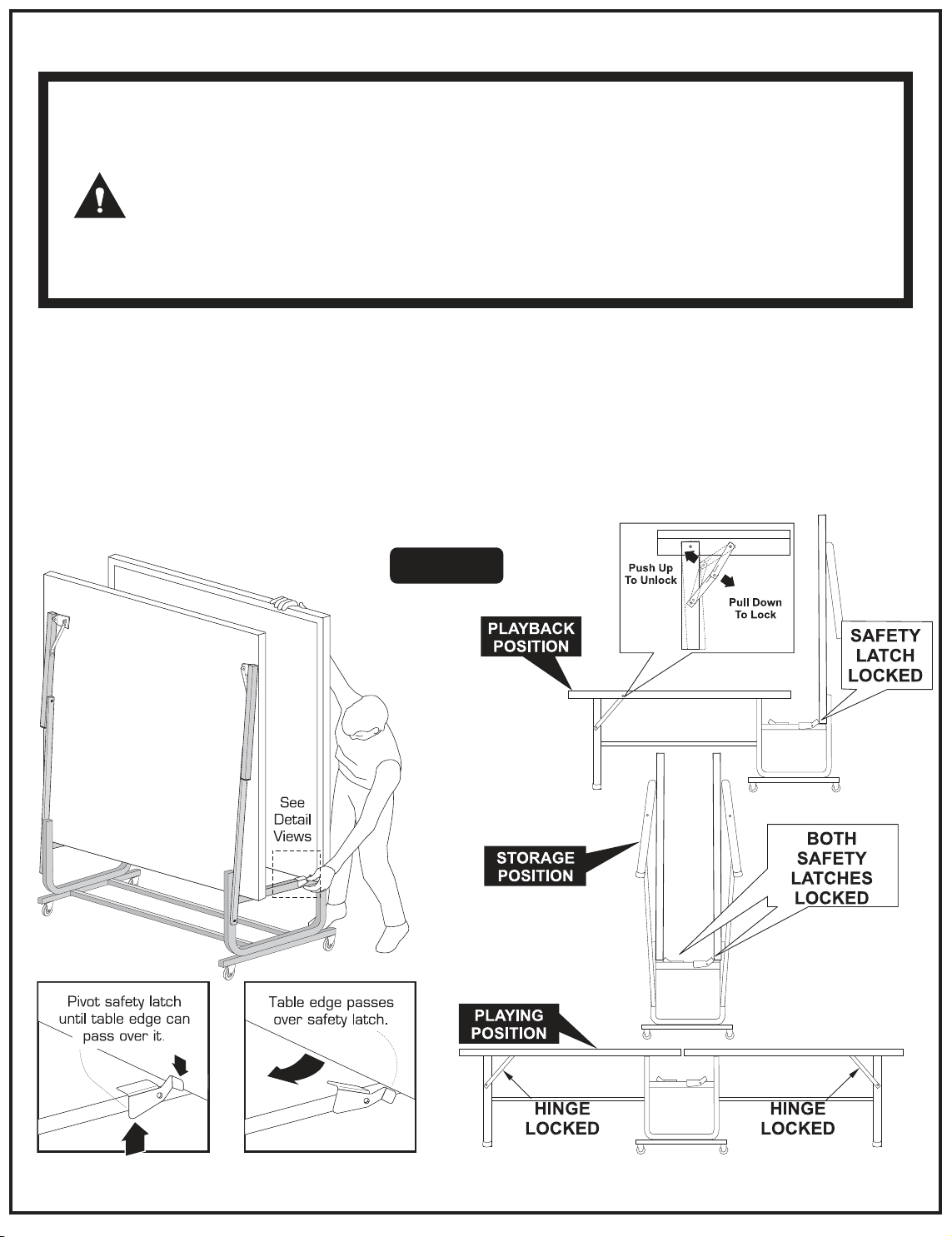

OPERATING INSTRUCTIONSOPERATING INSTRUCTIONS

OPERATING INSTRUCTIONS

OPERATING INSTRUCTIONSOPERATING INSTRUCTIONS

READ THESE INSTRUCTIONS ON THE FOLLOWING PAGES
BEFORE BEGINNING PLAY ON THIS TABLE!

table is not in use, it should be folded up in a dry area. Due to the
nature of particle board, table top may bow. Damp and humid
conditions will amplify this. This is normal and will not affect
playability of the table.

CLEANING YOUR TABLE.

To clean your table use a soft damp NOT WET cloth only. To
prevent damage to your table's playing surface DO NOT use any
chemicals, abrasive, or cleaning products on your table's playing
surface.

This table must be kept indoors to prevent damage to the playing
surface. Dampness and extreme temperature changes which
occur on patios or similar areas can cause wood to warp, swell,
crack, or blister.

UNLEVEL FLOORS

If table does bot seem level, it is probably due to uneven or unlevel
floors. Set the table in its playing position and move table several
inches in different directions to find the best location for the table.
If the floor is extremely unlevel, table may not play or operate
properly. If table is high in the center, shim up under the outer legs.

This is not a toy. Table is to be opened or closed under close

adult supervision. Failure to comply with opening and closing instructions could
result in personal injury or property damage.

6

OPENING AND CLOPENING AND CL

CAUTION:

OPENING AND CL

OPENING AND CLOPENING AND CL

OSING INSTRUCTIONSOSING INSTRUCTIONS

OSING INSTRUCTIONS

OSING INSTRUCTIONSOSING INSTRUCTIONS

READ OPERAREAD OPERA

READ OPERA

READ OPERAREAD OPERA
OPERAOPERA

OPERA

OPERAOPERA

DO NODO NO

DO NO

DO NODO NO
INJURY MAINJURY MA

INJURY MA

INJURY MAINJURY MA
OR CLOR CL

OR CL

OR CLOR CL
AND CLAND CL

AND CL

AND CLAND CL
OR PROPERTY DAMAGE.OR PROPERTY DAMAGE.

OR PROPERTY DAMAGE.

OR PROPERTY DAMAGE.OR PROPERTY DAMAGE.

TO OPEN:TO OPEN:

TO OPEN:

TO OPEN:TO OPEN:

1. Stand behind the table near the safety latch.

2. Pull legs out slightly from table top.

3. Hold table half with one hand and pivot safety latch enough to
allow the edge of the table half to pass over it.

4. While keeping an eye on the safety latch, pivot table half until it
moves past the safety latch. Once edge of table has passed
over safety latch, stop pivoting table half.

5. With both hands on the table half, center yourself along the
table half and lower the table half to the floor.

6. Lock leg hinges on both legs. (see figure 9).

7. Repeat for the other table half.

TING TTING T

TING T

TING TTING T

T CLIMB, STT CLIMB, ST

T CLIMB, ST

T CLIMB, STT CLIMB, ST

OSED BY ADULOSED BY ADUL

OSED BY ADUL

OSED BY ADULOSED BY ADUL

OSING INSTRUCTIONS COULD RESULOSING INSTRUCTIONS COULD RESUL

OSING INSTRUCTIONS COULD RESUL

OSING INSTRUCTIONS COULD RESULOSING INSTRUCTIONS COULD RESUL

ABLE!ABLE!

ABLE!

ABLE!ABLE!

Y RESULY RESUL

Y RESUL

Y RESULY RESUL

FIGURE 9FIGURE 9

FIGURE 9

FIGURE 9FIGURE 9

TING INSTRUCTIONS CAREFULLTING INSTRUCTIONS CAREFULL

TING INSTRUCTIONS CAREFULL

TING INSTRUCTIONS CAREFULLTING INSTRUCTIONS CAREFULL

OW CHILDREN TOW CHILDREN T

DO NO DO NO

DO NO

DO NO DO NO

AND OR JUMP ON TAND OR JUMP ON T

AND OR JUMP ON T

AND OR JUMP ON TAND OR JUMP ON T
T! THIS IS NOT! THIS IS NO

T! THIS IS NO

T! THIS IS NOT! THIS IS NO

TS ONLTS ONL

TS ONL

TS ONLTS ONL

O CLO CL

TT

O CL

T

O CLO CL

TT

1. Unlock hinges from both legs (see figure 9).

2. Lift table half upward and inward to vertical position.

3. Check to be sure that table half is locked in the safety latch.

4. Repeat for the other table half.

T ALLT ALL

T ALL

T ALLT ALL

Y! FY! F

Y! F

Y! FY! F

OSEOSE

OSE

OSEOSE

OW CHILDREN T

OW CHILDREN TOW CHILDREN T

ABLE! SERIOUS OR FABLE! SERIOUS OR F

ABLE! SERIOUS OR F

ABLE! SERIOUS OR FABLE! SERIOUS OR F

Y! TY! T

OO

T A TT A T

T A T

T A TT A T

AILURE TAILURE T

AILURE T

AILURE TAILURE T

::

:

::

Y! T

O

Y! TY! T

OO

O COMPLO COMPL

O COMPL

O COMPLO COMPL

ABLE IS TABLE IS T

ABLE IS T

ABLE IS TABLE IS T

Y WITH OPENINGY WITH OPENING

Y WITH OPENING

Y WITH OPENINGY WITH OPENING

T IN PERSONAL INJURYT IN PERSONAL INJURY

T IN PERSONAL INJURY

T IN PERSONAL INJURYT IN PERSONAL INJURY

Y BEFOREY BEFORE

Y BEFORE

Y BEFOREY BEFORE

O OPEN TO OPEN T

O OPEN T

O OPEN TO OPEN T

O BE OPENEDO BE OPENED

O BE OPENED

O BE OPENEDO BE OPENED

ABLE!ABLE!

ABLE!

ABLE!ABLE!

ALAL

TT

AA

AL

T

A

ALAL

TT

AA

13

32

28

34

26

2

27

31

33

36

8

5

4

9

9

12

30

10

10

10

10

3

11

1

11

11

23

5

8

12

13

14

35

18

29

20

15

12

30

13

32

13

40

40

13

23

24

22

20

28

25

21

34

31

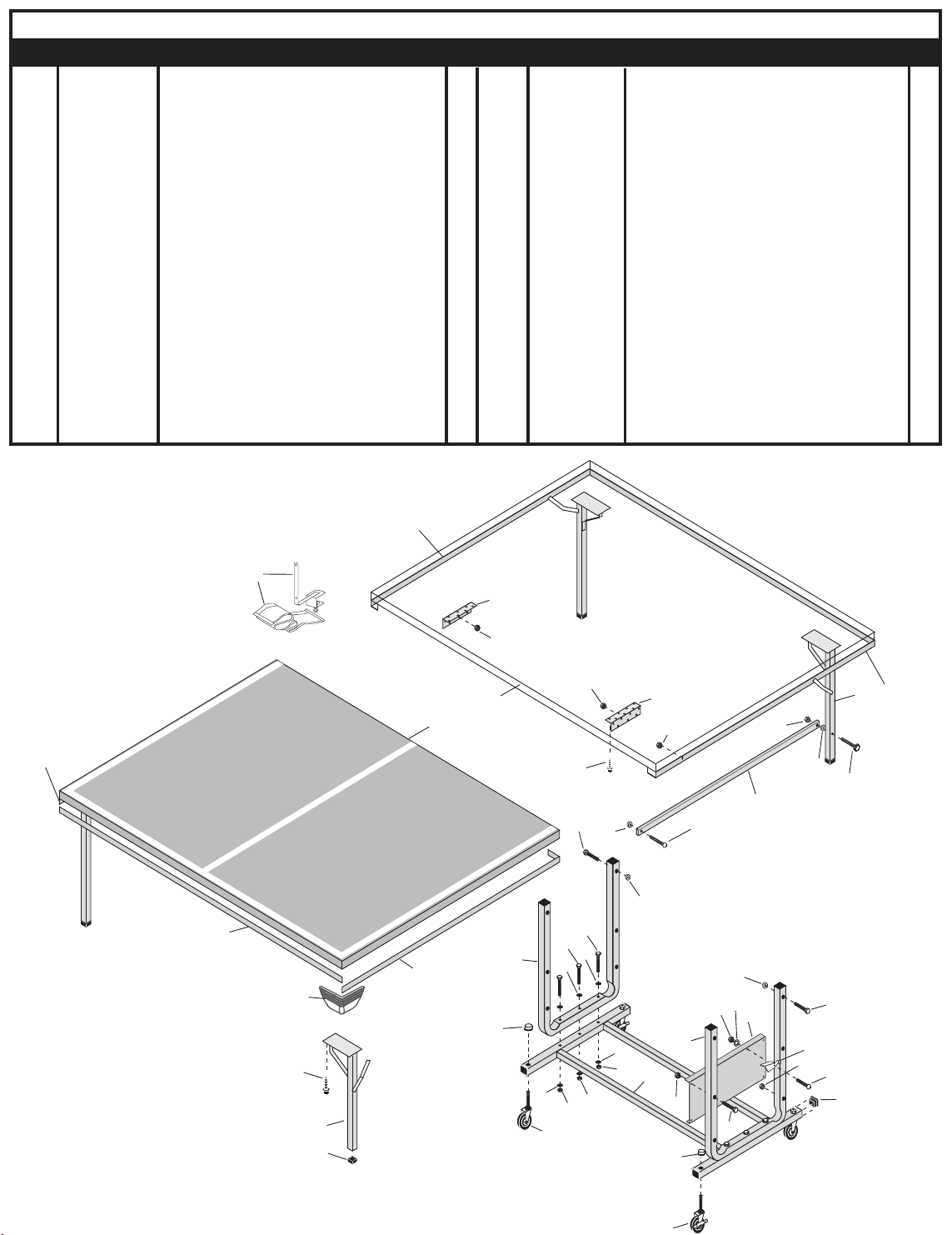

Replacement Parts List for T8501

Key # Part No. Description Qty. Key # Part No. Description Qty.

1 1A-6130-01 Base Frame 1
2 3M-4116-00 Leg Cap 4
3 2Q-6457-00 Caster without brake 2
4 2Q-6458-00 Caster with brake 2
5 601-84 3/8 Push nut 4
6 Number not used 4
8 8S-6505-01 “U” Upright 2

9 1B-6140-00 5/16 - 18 x 2 1/2 Hex Head Bolt 6
10 2B-6024-00 5/16 Washer 12
11 2B-6009-02 5/16- 18 Locknut 6
12 701-47 1/4 - 20 x 1 1/2 Hex Head Bolt 8
13 701-26 1/4 - 20 Locknut 12
14 2S-6136-06 Name Panel 2
15 701-1 #10 Burr Washer 2
18 2S-6264-01 Safety Latch 2
20 601-80 #10 - 24 Locknut 6
21 701-35 1/4 - 20 x 2 1/4 Hex Head Bolt 4
22 8S-6506-02 Linkage 4

23 7B-6161-00 3/8'’ Spacer 8
24 1B-6138-00 #10 - 24 x 2 3/4 Sltd Hd Screw 4
25 1A-6251-00 Left Leg Assembly 2
26 1A-6250-00 Right Leg Assembly 2
27 3M-6715-00 Corner Protector 4
28 701-105 #8 x 9/16 Screw 100
29 704-140 Tube End Cap 4
30 704-104 Spacer 4
31 2S-6856-01 Left Hand Side Rail 2
32 4A-6407-00 Table Top 2
33 2S-6714-00 End Rail 2
34 2S-6855-01 Right Hand Side Rail 4
35 801-120B #10 - 24 x 3/4 Phill Hd Screw 2
36 5A-6700-00 Net & Post Kit 1
40 2S-6139-01 Leg Mounting Bracket 4
42 2L-7115-00 This Owner’s Manual 1
43 704-58 Thread Protector 4

8

2L-7115-00Copyright © 2007 ESCALADE SPORTS
