When ordering repair
parts, always give the
following:
n Part Name
n Part Number
n Model Number
n Part Description
Table Tennis Table
CAUTION
READ THESEREAD THESE
READ THESE
READ THESEREAD THESE
INSTRUCTIONSINSTRUCTIONS
INSTRUCTIONS
INSTRUCTIONSINSTRUCTIONS
CAREFULLY!CAREFULLY!
CAREFULLY!
CAREFULLY!CAREFULLY!

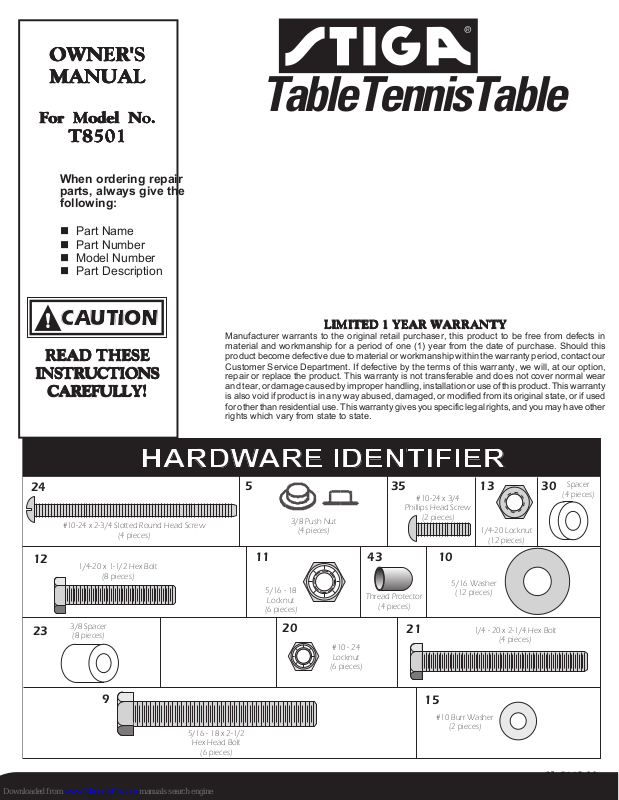

HARDWARE IDENTIFIER
24
#10-24 x 2-3/4 Slotted Round Head Screw
12
23
1/4-20 x 1-1/2 Hex Bolt
3/8 Spacer
(8 pieces)
(4 pieces)
(8 pieces)
LIMITED 1 YEAR WARRANTYLIMITED 1 YEAR WARRANTY
LIMITED 1 YEAR WARRANTY
LIMITED 1 YEAR WARRANTYLIMITED 1 YEAR WARRANTY
Manufacturer warrants to the original retail purchaser, this product to be free from defects in
material and workmanship for a period of one (1) year from the date of purchase. Should this
product become defective due to material or workmanship within the warranty period, contact our
Customer Service Department. If defective by the terms of this warranty, we will, at our option,
repair or replace the product. This warranty is not transferable and does not cover normal wear
and tear, or damage caused by improper handling, installation or use of this product. This warranty
is also void if product is in any way abused, damaged, or modified from its original state, or if used
for other than residential use. This warranty gives you specific legal rights, and you may have other
rights which vary from state to state.
5
11
5/16 - 18
Locknut
(6 pieces)
3/8 Push Nut
(4 pieces)
20
#10 - 24
Locknut
(6 pieces)
35
Phillips Head Screw
43
Thread Protector
(4 pieces)
21
#10-24 x 3/4
(2 pieces)
10
5/16 Washer
13
1/4-20 Locknut
(12 pieces)
1/4 - 20 x 2-1/4
(12 pieces)
Hex Bolt
(4 pieces)
30
Spacer
(4 pieces)
9
5/16 - 18 x 2-1/2
Hex Head Bolt
(6 pieces)
15
#10 Burr Washer
(2 pieces)
2L-7115-002L-7115-00
2L-7115-00
2L-7115-002L-7115-00
29
8
DimplesUp
Dimples To
Inside
9
10
10
11
1
3
3
5
4
4
5
12
13
14
14
13
8
8
12
TOOLS NEEDED FOR ASSEMBLYTOOLS NEEDED FOR ASSEMBLY
TOOLS NEEDED FOR ASSEMBLY
TOOLS NEEDED FOR ASSEMBLYTOOLS NEEDED FOR ASSEMBLY
CAUTION
Tools Needed:Tools Needed:
Tools Needed:n3/8 Open or Boxed End Wrench (2) n Rachet (optional)
Tools Needed:Tools Needed:
n 7/16 Open or Boxed End Wrench (2) n 3/8 Socket (If using rachet)
n 1/2 Open or Boxed End Wrench (2) n 9/16 Open or Boxed End Wrench (2)
n Phillips Screwdriver n 9/16 Socket (If using rachet)
n Standard Screwdriver n Hammer
FRAME ASSEMBLYFRAME ASSEMBLY
FRAME ASSEMBLY
FRAME ASSEMBLYFRAME ASSEMBLY
AT LEAST TWO ADULTS ARE NEEDED TO COMPLETE THE ASSEMBLY!
DO NOT LEAVE TABLE UNATTENDED UNTIL ASSEMBLY IS COMPLETE!
1. Open the hardware kit and sort all the hardware.
For your help in identifying hardware, see the
hardware identifier on the front of this manual.
2. Attach two non-locking casters #3 and two
locking casters #4 to frame base #1. NOTE:
Dimples in frame base should face up.
(See figure 1) Locking casters #4 must be
on opposite corners from each other.
Secure casters using Push nuts #5. Use a
hammer to tap push nuts onto caster stems
securely.
FIGURE 1FIGURE 1
FIGURE 1
FIGURE 1FIGURE 1
3. Put tube end caps #29 in the ends of the base
frame tubes #1. (See figure 1)
4. Attach "U" uprights #8 to base frame #1, with
dimples facing inward, using three bolts #9,
six washers #10 and three locknuts #11. (See
figure 1) Do not over tighten bolts crushing
tubes.
Note: One washer goes on top of "U"
uprights, and one goes under the base
frame. (See figure 1)
5. Attach name plate #14 to inside of "U" uprights
#8 using two bolts #12 and two locknuts #13.
Tighten these nuts securely BUT do not
over tighten them crushing tubes.
FIGURE 2FIGURE 2
FIGURE 2
FIGURE 2FIGURE 2
2
20
15
35
18
Do notovertighten
nuts.Safetylatches
must be free to pivot.
35
18
15
20
14
14

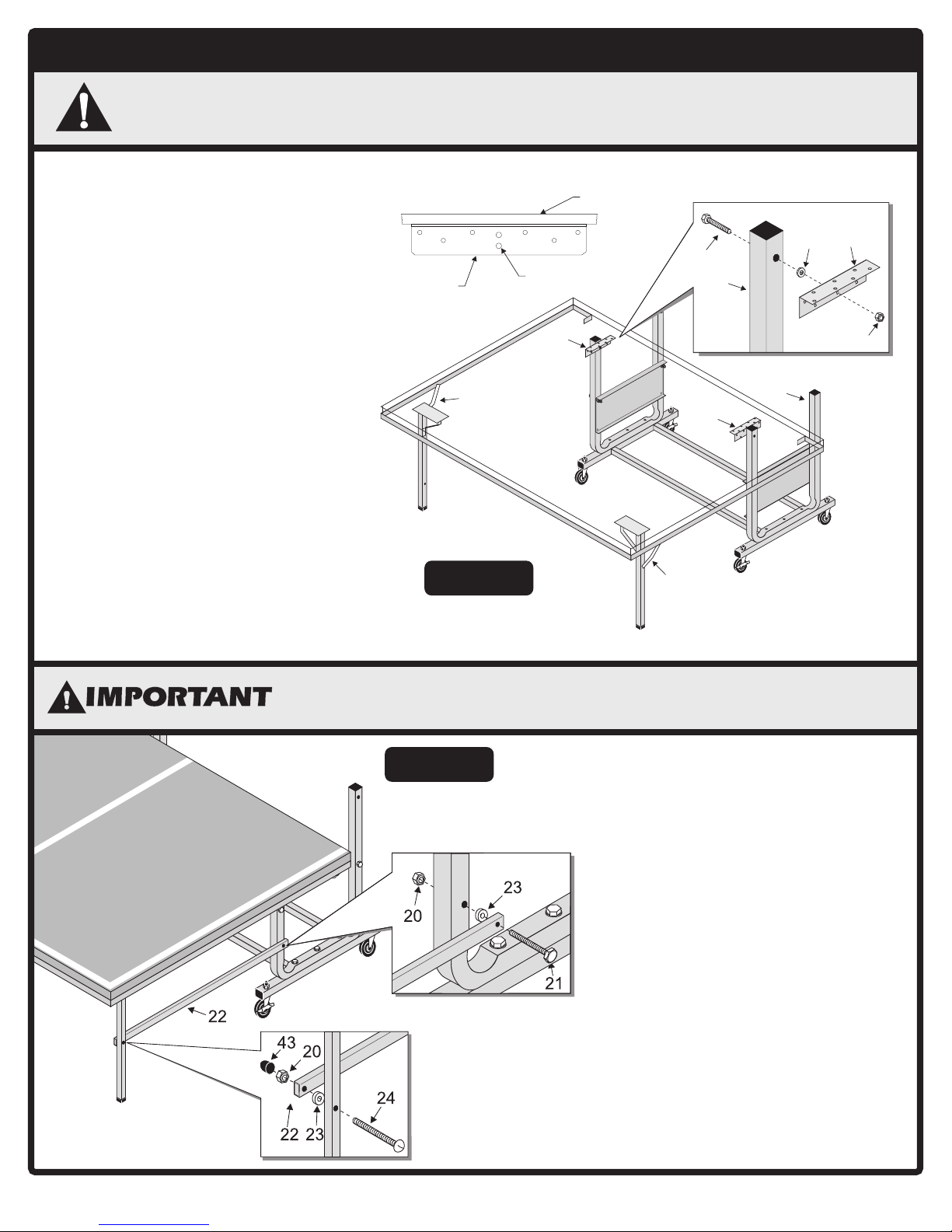

ATTACHING SAFETY LATCHESATTACHING SAFETY LATCHES
ATTACHING SAFETY LATCHES
ATTACHING SAFETY LATCHESATTACHING SAFETY LATCHES
6. Install the Safety Latches #18 to the
Name Plates #14 using two screws
#35, safety latch #18, washer #15 and
locknut #20. Safety Latches must
be installed opposite each other
on both sides of the assembly.
(See figure 3)
Do not over tighten nuts #20.
Safety latch #18 must be free to
pivot.
IMPORTANT: SAFETY LATCHES
MUST BE INSTALLED AS SHOWN
WITH FLANGE ON LATCH OVER
TOP OF NAME PLATE.
FIGURE 3FIGURE 3
FIGURE 3
FIGURE 3FIGURE 3
7. You may want to place a towel
between table top and wall to keep
from scratching wall. Take either
table half #32 and lean it up against a
wall. Turn it so that the two legs with
hinges are up farthest from the floor.
Place the bottom of the table about 12
inches away from the wall. (See
figure 4)
Note: If you desire, table can be placed
on the floor, if carpeted, or on the
shipping carton, with the playing
surface down. (Take care not to
damage the playing surface).
FIGURE 4FIGURE 4
FIGURE 4
FIGURE 4FIGURE 4

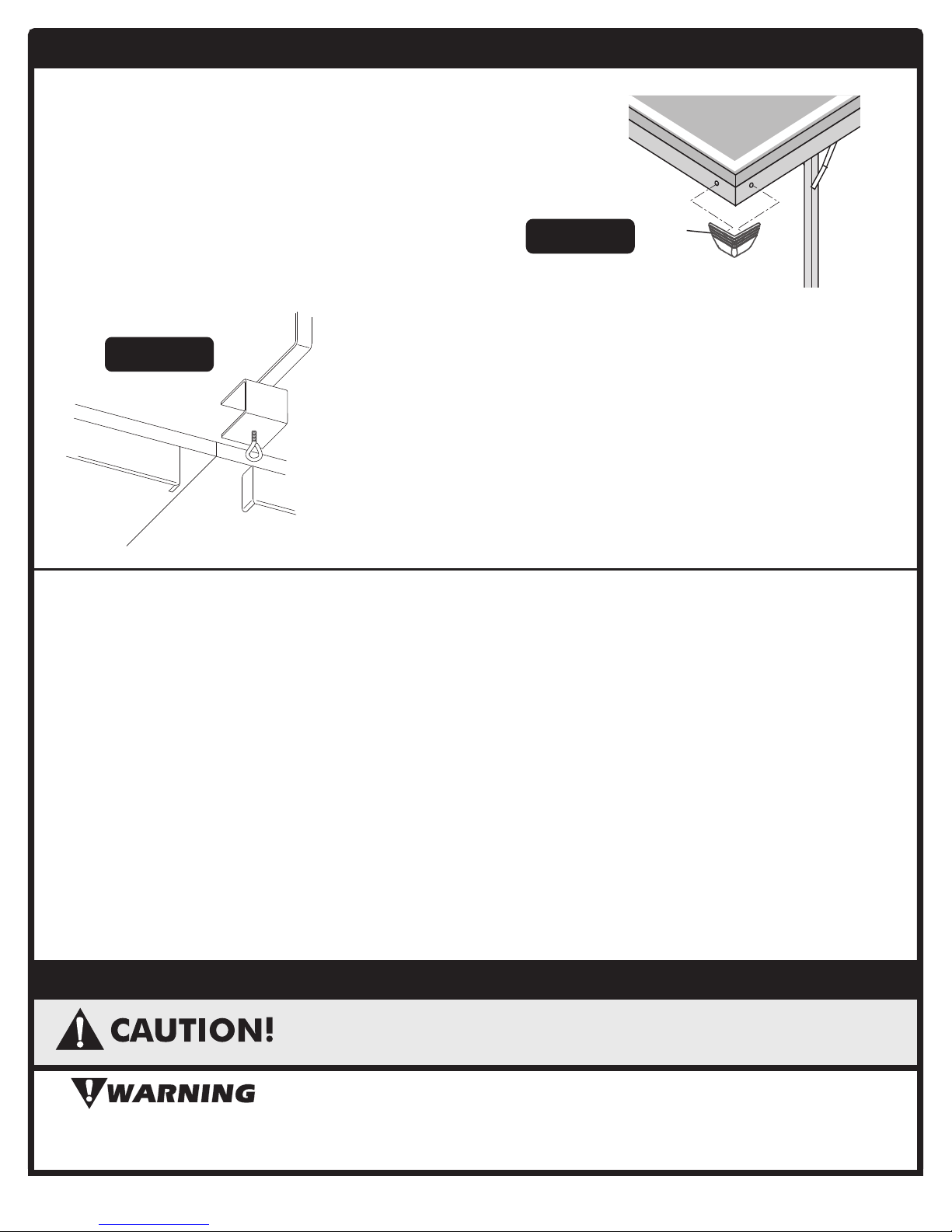

8. Open legs #25 and #26 and lock leg
hinges.
9. Place leg caps #2 on ends of legs #25
and #26. (See figure 4)
