Page 1
October 21 , 2004

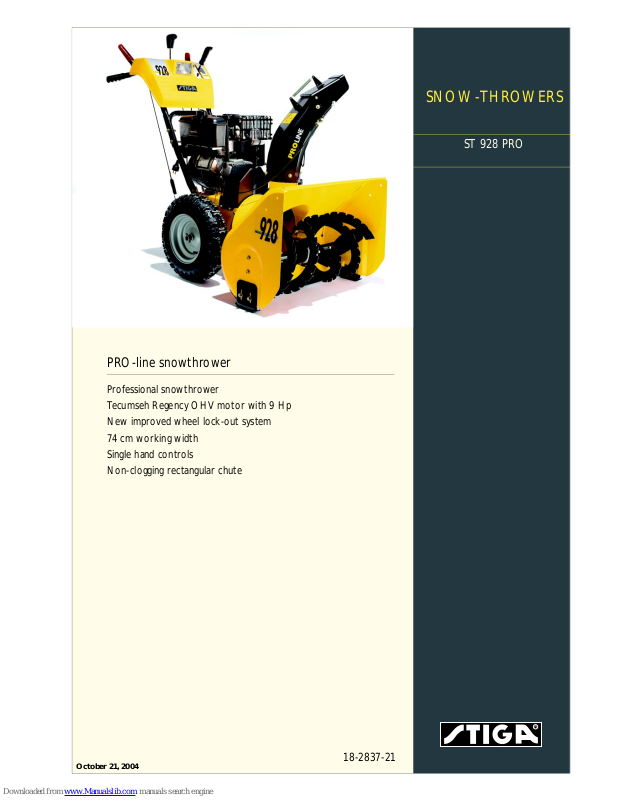

PRO-line snowthrower
18-2837-21
SNOW-THROWERS
ST 928 PRO
Professional snowthrower
Tecumseh Regency OHV motor with 9 Hp
New improved wheel lock-out system
74 cm working width
Single hand controls
Non-clogging rectangular chute
Page 2
ST 928 PRO (18-2837-21)
MOTOR
Brand Tecumseh Regency OHV
Power 9 Hp/6,7 kW
Cylinders 1
FUEL
Type of fuel Unleade petrol
Tank volume 3,8 l
SPEED CONTROL
Type of transmission Friction disc
Number of gears 6 forward, reverse
WHEELS
Type of wheels Snow Hog tyres
Wheel size 40 cm
Bearings Ballbearings
Snow chains Accessory
VIBRATIONS & SOUND LEVELS
Sound power level 92,7 dB(A)
Vibrations 12,3 m/s2
CONTROLS
Electric start Yes, 230 V conn ec tio n ne dded
Head light Yes, integrated
Handle bar Adjustable in height
Choke Manual
Type of switch Plastic key
Throttle lever On motor
Turnable chute Hor. and vert, controlled from handlebar
COLOUR & MATERIA L
Colour of chassis Yellow
Material of chassis Metal
MEASURES & WEIGHT
Weight 100 kg
Gross weight 120 kg
Package size W*H*L 130x81x88 cm
Type of package Wodden frame, board on sides
Working width 74 cm
Auger, diameter 30 cm, serrated type
Impeller diameter 30 cm
OTHER FACTS
CE-mark Yes
Instructions for use 8218-2201-06
EAN bar code UPC
