Stiga Primo Specifications

January 24, 2008

www.stiga.com

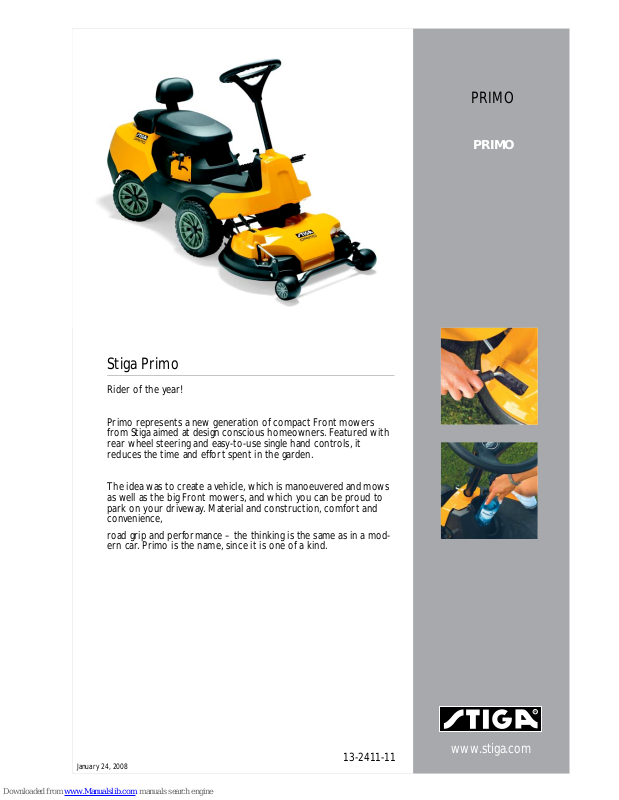

Stiga Primo

13-2411-11

PRIMO

PRIMO

Rider of the year!

Primo represents a new generation of compact Front mowers
from Stiga aimed at design conscio us ho meo wn ers. Featured with
rear wheel steering and easy-to-use single hand controls, it
reduces the time and effort spent in the garden.

The idea was to create a vehi cle, which is manoeuver ed and mows
as well as the big Front mowers, and which you can be proud to
park on your driveway. Material and construction, comfort and
convenience,

road grip and performance – t he thinking is the same as in a mod­ern car. Primo is the name, since it is one of a kind.

Primo (13-2411-11)

ENGINE

Brand Stiga
Power 12,5 hp
Cylinders 1 cyl
Speed 7,5 (km/h)

FUEL

Type of fuel Petrol
Tank volume 3,6 l

SPEED CONTROL

Type of transmission Gearbox in-line
Number of gears 3 + R

STEERING

Type of steering Rear wheel steering

WHEELS

Type of wheels Stiga special lawn tyre tread
Wheel size Front and rear 13 inches
Tyre pressure Front and rear 1,2 bar
Driving Rear wheel drive

CUTTING INFORMATION

Type of cutting system Front cutting Combi deck
Cutting heights 25-85 mm in 9 steps
Cutting width 78 cm
Cutting height adjustment Manual

VIBRATIONS & SOUND LEVELS

Synchronized belt Yes
Discharge Multiclip and rear discharge

CONTROLS

Deck lift Foot controlled
Electric starter Yes
Gear lever Hand controlled inline lever
Choke Yes
Throttle lever Yes

COLOUR & MATERIA L

Colour Yellow / Black
Material of chassis Long Fiber Thermoplastic (LFT)

MEASURES & WEIGHT

Weight 135 kg incl. cutting deck
Gross weight 160 kg incl. cutti ng deck
Package size WxHxL 92x86x202 cm incl. cutting deck
Largest measures WxHxL 86x110x19 4 cm incl . cu tting dec k

SEAT

Type of seat Comfort
Seat adjustable horizo nt a lly Yes

OTHER FACTS

CE-mark Yes
Instructions for use 8211-0027-80
EAN bar code 7 313 321 306 137
