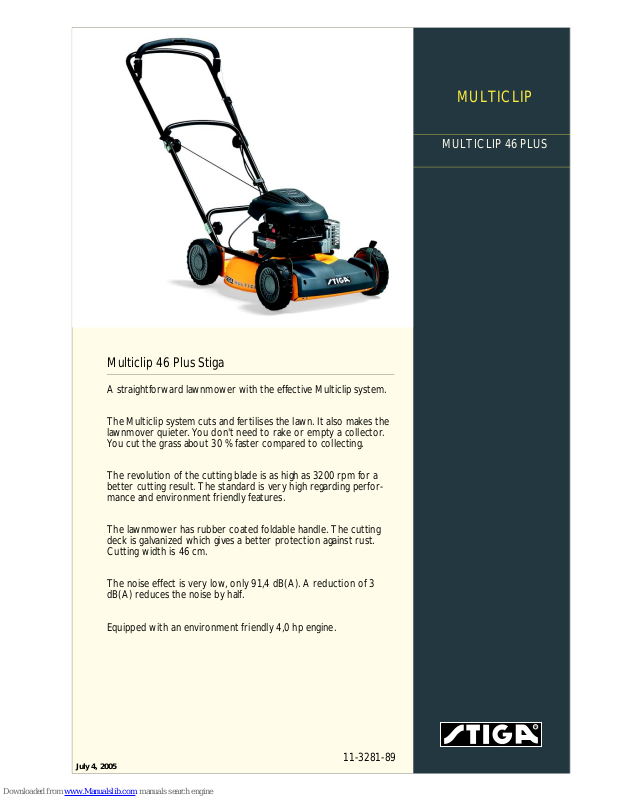

Multiclip 46 Plus Stiga
11-3281-89
MULTICLIP
MULTICLIP 46 PLUS
A straightforward lawnmower with the effective Multiclip system.
The Multiclip system cuts and fertilises the lawn. It also makes the
lawnmover quieter. You don't need to rake or empty a collector.
You cut the grass about 30 % faster compared to collecting.
The revolution of the cutting blade is as high as 3200 rpm for a
better cutting result. The standard is very high regarding perforÂmance and environment friendly features.
The lawnmower has rubber coated foldable handle. The cutting
deck is galvanized which gives a better protection against rust.
Cutting width is 46 cm.
The noise effect is very low, only 91,4 dB(A). A reduction of 3
dB(A) reduces the noise by half.
Equipped with an environment friendly 4,0 hp engine.
Page 2
Multiclip 46 Plus (11-3281-89)
ENGINE
Brand B& S LC 45 CARB
Power 4,0 hp, 2,6 kW
Number of revolutions 3200 rpm
FUEL
Type of fuel Leadfree 95
WHEELS
Type of wheels Wheels with double ball bearings
Wheel size Front 190 mm. Rear 190 mm
Driving Push
CUTTING SYSTEM
Type of cutting system Multiclip
Cutting heights 4 heights, 33-74 mm
Cutting width 46 cm
Cutting height adjustment Springloaded individual
VIBRATIONS & SOUND LEVELS
Sound power level 91,4 dB(A)
CONTROLS
Handlebar Robust fixation of the handle and comfortable soft OPC le-
ver
COLOUR & MATERIA L
Colour of chassis Yellow, UV-stabilized polyester powder coating
Material of chassis Steel
MEASURES & WEIGHT
Weight 24 kg
Gross weight 27 kg
Package size WxHxL 745x515x400 mm
Units on pallet 8 pcs
OTHER FACTS
Owner's Manual 71503841/0
EAN bar code 731 332 110 274 6
Other features Carrying handle in front of th e engine
