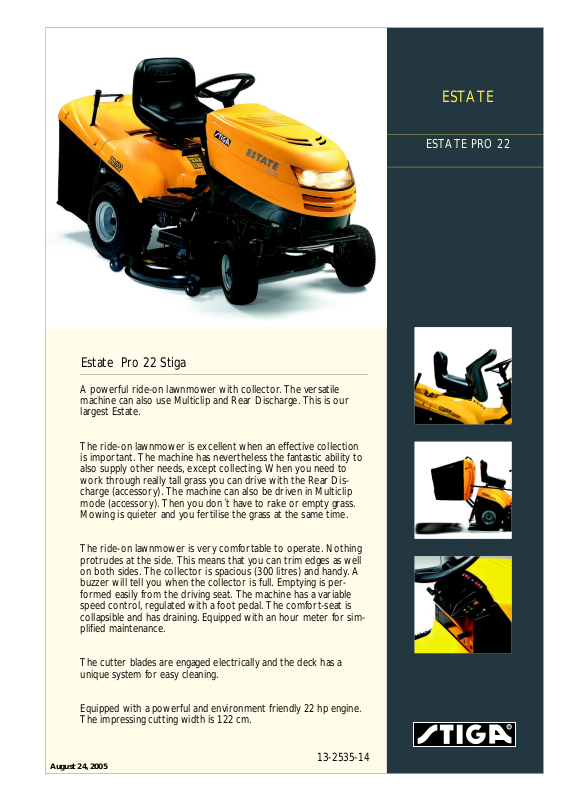

Estate Pro 22 Stiga
ESTATE
ESTATE PRO 22
A powerful ride-on lawnmower with collector. The versatile
machine ca n also use Mu lticlip and R ear Dischar ge. This is our
largest Estate.
The ride-on lawnmower is excellent when an effective collection
is important. The machine has nevertheless the fantastic ability to
also supply other needs, except collecting. When you need to
work through really tall grass you can drive with the Rear Discharge (acc essory). The machine can also be driven in Multiclip
mode (accessory). Then you don´t have to rake or empty grass.
Mowing is quieter and you fertilise the grass at the same time.
The ride-on lawnmower is very comfortable to operate. Nothing
protrudes at the side. This means that you can trim edges as well
on both sides. The collector is spacious (300 litres) and handy. A
buzzer will tell you when the collector is full. Emptying is performed easily from the driving seat. The machine has a variable
speed control, regulated with a foot pedal. The comfort-seat is
collapsible and has draining. Equipped with an hour meter for simplified maintenance.
The cutter blades are engaged electrically and the deck has a
unique system for easy cleaning.
Equipped with a powerful and environment friendly 22 hp engine.
The impressing cutting width is 122 cm.
August 24, 2005
13-2535-14
Estate PRO 22 (13-2535-14)
ENGINE
Brand Briggs & Stratton
Power 22 hp Intek OHV
Cylinders 2 - cyl.
Speed 0 - 9 km/h
Safety brake Yes
Battery 12 V /18 Ah
FUEL
Type of fuel Petrol
Tank volume 7 l
SPEED CONTROL
Type of transmission Hydrostatic
Number of gears Speed gear 0 - 9 km/h + R
STEERING
Type of steering Front wheel steering
WHEELS
Type of wheels Lawn tyre tread
Wheel size Front 13 inches Rear 18 inches
Bearings Plain
Tyre pressure Front 1,5 bar Rear 1,2 bar
Driving Rear wheel drive
CUTTING SYSTEM
Type of cutting system Rear discharge
Cutting heights 30 - 90 mm in 7 steps
Cutting width 122 cm
Cutting height adjustment Central
CONTROLS
Electric starter Yes
Head light Yes
MEASURES & WEIGHT
Weight 232 kg
Gross weight 274 kg
Package size WxHxL 126x112x186 cm
Type of package Carton on wooden pallet
Units on pallet 1
Largest measures WxHxL 125x116x234 cm
SEAT
Type of seat Comfort seat with high back support
Seat adjustable horizo nt a lly Yes
OTHER FACTS
CE-mark Yes
Instructions for use 1136-0780-02
EAN bar code 731 332 130 284 9
Other GS-mark
Multiclip function kit as accessory
