September 19, 2003

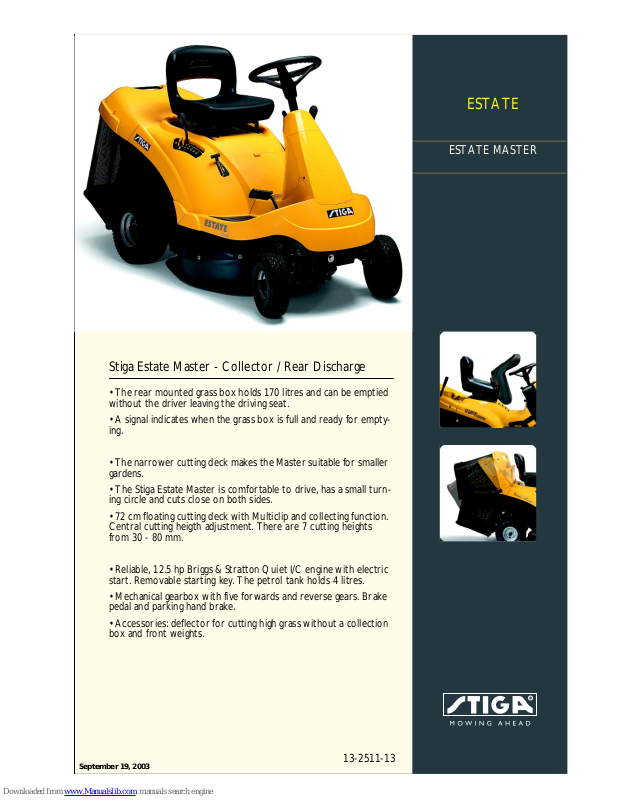

Stiga Estate Master - Collector / Rear Discharge
13-2511-13
ESTATE
ESTATE MASTER
• The rear mounted grass box holds 170 litres and can be emptied
without the driver leaving the driving seat.
• A signal indicates when the grass box is full and ready for emptying.
• The narro wer cutting dec k mak es th e Master suita ble f or smaller
gardens.
• The Stiga Estate Master is comfortable to drive, has a small turning circle and cuts close on both sides.
• 72 cm floating cutting deck with Multiclip and collecting function.
Central cutting heigth adjustment. There are 7 cutting heights
from 30 - 80 mm.
• Reliable, 12.5 hp Briggs & Stratton Quiet I/C engine with electric
start. Removable starting key. The petrol tank holds 4 litres.
• Mechanical gearbox with five forwards and reverse gears. Brake
pedal and parking hand brake.
• Accessories: defl ector f or cutt ing hi gh gra ss wit hout a coll ection
box and front weights.
Estate Master (13-2511-13)
MOTOR
Brand Briggs & Stratton
Power 12,5 hp I/C Quiet
Cylinders 1 - cyl.
Speed 1,5 - 7 km/h
Safety brake Yes
Battery 12 V /18 Ah
FUEL
Type of fuel Petrol
Tank volume 4 l
SPEED CONTROL
Type of transmission Transaxle
Number of gears 5 + R
STEERING
Type of steering Front wheel steering
WHEELS
Type of wheels Lawn tyre tread
Wheel size Front 11 inches Rear 15 inches
Bearings Plain
Tyre pressure Front 1,5 bar. Rear 1 bar
Driving Rear wheel drive
CUTTING SYSTEM
Type of cutting system Rear discharge
Cutting heights 30 - 80 mm in 7 steps
Cutting width 72 cm
Cutting height adjustment Central
CONTROLS
Electric starter Yes
Head light No
Gear lever Hand control
MEASURES & WEIG HT
Weight 161 kg
Gross weight 186 kg
Package size W*H*L 80 x 103 x 168 cm
Type of package Carton on wooden pallet
Units on pallet 1
Largest measures W*H*L 76 x 110 x 186 cm
SEAT
Type of seat Comfort seat
Seat adjustable horizontally Yes
OTHER FACT S
CE-mark Yes
Instructions for use 1136-0779-01
EAN bar code 731 332 130 144 6
Other GS-mark
Accessory: Multiclip function kit
