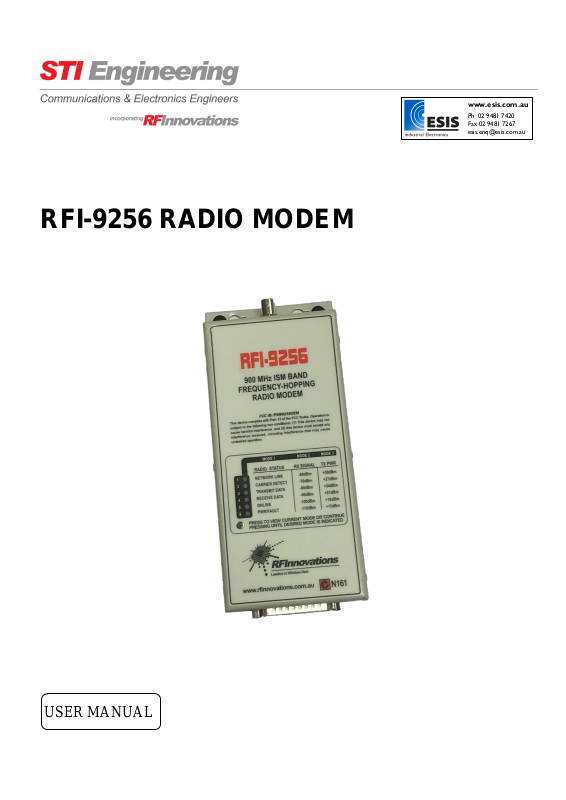

RFI-9256 Radio Modem
User Manual
DISCLAIMER
© 2017 STI Engineering Pty Ltd. All rights reserved.
STI Engineering reserves the right to make improvements on the product in this manual at any time
without notice.
No part of this manual may be produced, copied, translated, or transmitted in any form or by any means
without the written permission of STI Engineering.
Information provided in this manual is intended to be accurate and reliable. However, STI Engineering
assumes no responsibility for its use or infringements upon the rights of third parties that may result from
its use.
FCC NOTIFICATIONS
This device must be operated as supplied by STI Engineering. Any changes or modifications made to the
device without the express written approval of STI Engineering may void the user's authority to operate
the device.
This device complies with Part 15 of the FCC rules. Operation is subject to the following two conditions:
1) this device may not cause harmful interference and 2) this device must accept any interference received,
including interference that may cause undesired operation.
This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant
to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful
interference in a residential installation. This equipment generates, uses and can radiate radio frequency
energy and, if not installed and used in accordance with the instructions, may cause harmful interference to
radio communications. However, there is no guarantee that interference will not occur in a particular
installation. If this equipment does cause harmful interference to radio or television reception, which can
be determined by turning the equipment off and on, the user is encouraged to try to correct the interference
by one or more of the following measures:
Reorient or relocate the receiving antenna.
Increase the separation between the equipment and receiver.
Connect the equipment into an outlet on a circuit different from that to which the receiver is
connected.
Consult the dealer or an experienced radio/TV technician for help.
Reference No. MAN00005
Revision 5.5
February 2017
Firmware Version: 1.24I (1.24O)
www.esis.com.au
Ph 02 9481 7420
Fax 02 9481 7267
[email protected]
Page 3
Contents
RFI-9256 Radio Modem User Manual Page 3 of 109
Contents
1. Introduction ................................................................................................................................................................................... 5
1.1 OEM Applications .................................................................................................................................................................... 5
1.2 Product Overview ..................................................................................................................................................................... 5
2. Quick Start Guide ......................................................................................................................................................................... 6
2.1 Mounting and Environmental Considerations .......................................................................................................................... 6
2.2 Connecting Antennas ................................................................................................ ................................ ................................ 6
2.3 Communication Ports ............................................................................................................................................................... 6
2.4 Power Supply and Protection ................................................................................................................................................... 8
2.5 Cruise Control .......................................................................................................................................................................... 8
3. Installation ..................................................................................................................................................................................... 9
3.1 Radio Frequency Hazard Information ...................................................................................................................................... 9
3.2 OEM Handling Procedure ........................................................................................................................................................ 9
3.3 RFI-9256 Location ................................................................................................................................................................... 9
3.4 Antenna Installation ............................................................................................................................................................... 10
4. Configuration ............................................................................................................................................................................... 11
4.1 User Interfaces ....................................................................................................................................................................... 11
4.2 Cruise Control ........................................................................................................................................................................ 11
4.3 Terminal Menu Interface ........................................................................................................................................................ 13
4.4 Hayes AT Command Interface ................................................................................................................................................ 13
4.5 Front Panel Interface ............................................................................................................................................................. 16
5. Operation ..................................................................................................................................................................................... 20
5.1 Serial Port Operation ............................................................................................................................................................. 20
5.2 Radio Operation ..................................................................................................................................................................... 23
5.3 Protocol Operation ................................................................................................................................................................. 33
5.4 Auxiliary I/O ........................................................................................................................................................................... 41
6. Applications ................................................................................................................................................................................. 42
6.1 Basic Point-to-point Network ................................................................................................................................................. 42
6.2 Simplex Point-to-point Network ............................................................................................................................................. 42
6.3 Multiple Slave Point-to-point Network ................................................................................................................................... 43
6.4 Point-to-point Network with Back-to-back Repeaters ............................................................................................................ 45
6.5 Broadcast Network ................................................................................................................................................................. 46
6.6 Broadcast Network with Back-to-back Repeaters .................................................................................................................. 47
6.7 Hayes Dial-up Networking ..................................................................................................................................................... 48
6.8 Dial-up Networking with Back-to-back Repeaters ................................................................................................................. 49
6.9 SCADA Network with Routing Table ...................................................................................................................................... 51
6.10 SCADA Network with a Back-to-back Repeater ................................................................................................................... 52
Page 4
Contents
RFI-9256 Radio Modem User Manual Page 4 of 109
6.11 Point-to-point Auxiliary I/O ................................................................................................................................................. 55
6.12 Point-to-point Auxiliary I/O with a Back-to-back Repeater ................................................................................................. 56
6.13 Hayes Dial-up Auxiliary I/O ................................................................................................................................................. 57
Appendix A Technical Specifications ............................................................................................................................................ 58
A.1 Type Approvals ...................................................................................................................................................................... 58
A.2 Radio Specifications ............................................................................................................................................................... 58
A.3 Connector Pin Assignments ................................................................................................................................................... 60
A.4 Power/Data Cable Assembly .................................................................................................................................................. 61
A.5 Back-to-back Repeater Cable Assembly ................................................................................................................................. 62
A.6 I/O Example Schematics ........................................................................................................................................................ 63
A.7 Power Supply Notes ............................................................................................................................................................... 64
A.8 Version Numbering Scheme ................................................................................................................................................... 64
A.9 Case Dimensions .................................................................................................................................................................... 66
A.10 OEM Dimensions ................................................................................................................................................................. 67
Appendix B Terminal Menu Reference ......................................................................................................................................... 68
B.1 (R) Radio Configuration Menu .............................................................................................................................................. 69
B.2 (L) Protocol Port Selection Menu .......................................................................................................................................... 73
B.3 (S) Serial Port Configuration Menu ....................................................................................................................................... 78
B.4 (M) Radio and I/O Configuration Menu ................................................................................................................................ 80
B.5 (P) Radio Personality Menu ................................................................................................................................................... 82
B.6 (D) Diagnostics Menu ............................................................................................................................................................ 83
Appendix C Hayes AT Command Reference................................................................................................................................ 86
C.1 Radio Commands ................................................................................................................................................................... 86
C.2 S-Register Commands ............................................................................................................................................................ 91
C.3 ‘%’ Register Commands ........................................................................................................................................................ 99
C.4 Other Commands ................................................................................................................................................................... 99
C.5 Summary of Commands ......................................................................................................................................................... 99
Appendix D Factory Defaults ....................................................................................................................................................... 105
Appendix E Glossary .................................................................................................................................................................... 107
Page 5
Introduction
RFI-9256 Radio Modem User Manual Page 5 of 109
1. Introduction
The RFI-9256 is a frequency-hopping spread spectrum (FHSS) radio modem operating in the international
900MHz ISM band. It has been type approved for operation in Australia (915-928MHz), New Zealand (920928MHz), and countries regulated by the FCC (902-928MHz).
The RFI-9256 is suitable for many applications including point-to-point, point-to-multipoint, and SCADA
protocol networks.
1.1 OEM Applications
An RFI-9256 OEM module is available for OEM applications.
When used in modular applications, the device where the module is fitted will be required to display on the
outside and in a clearly visible area the notice: “Contains FCC ID: P5M9256OEM”
Under FCC regulations, use of certain antennas may require a Class II permissive change from the FCC.
Please contact STI Engineering for more information.

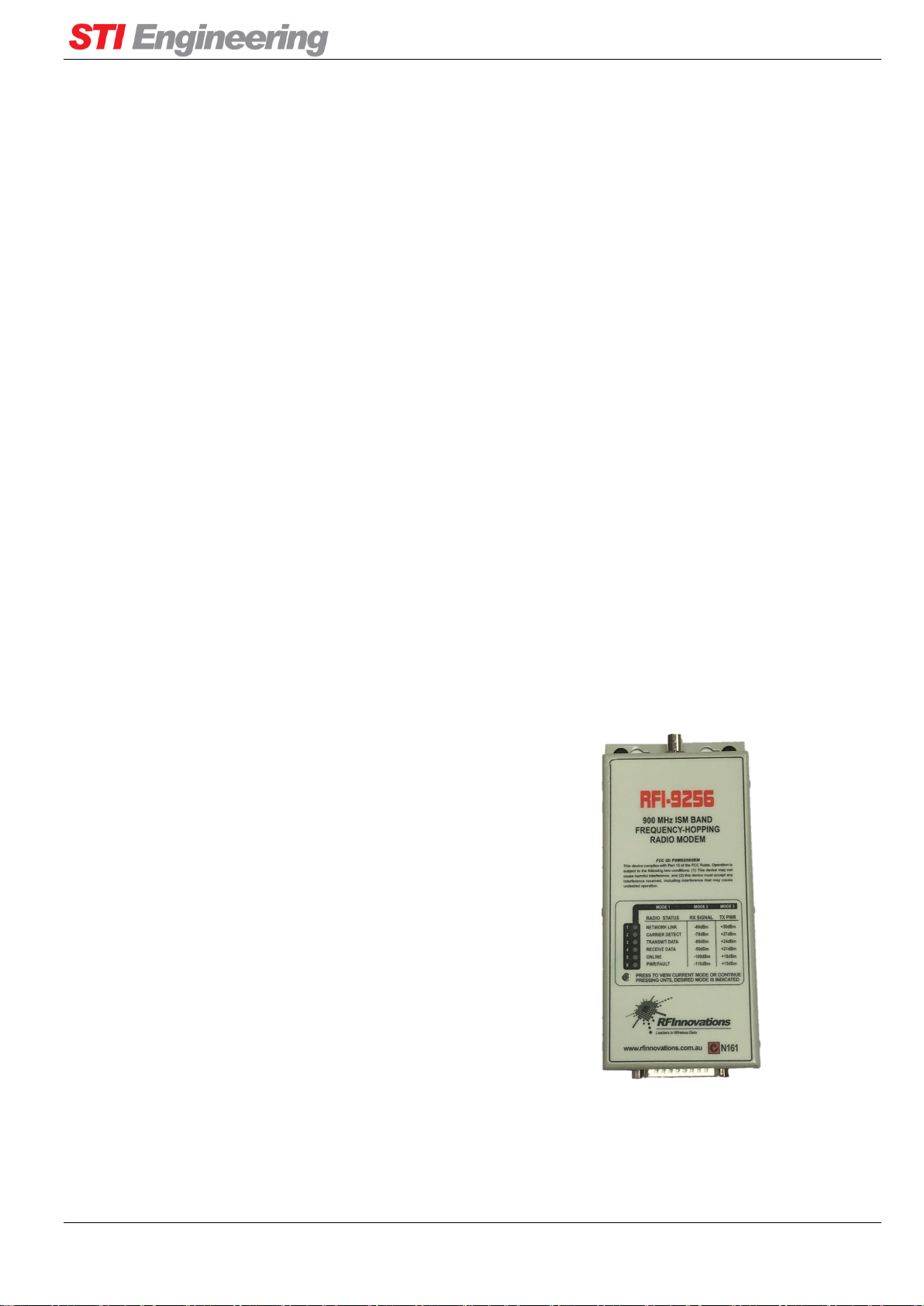

1.2 Product Overview
CRC error detection and recovery via retries
Up to 30km point-to-point
Dual RS-232 serial ports
User selectable interface speeds between 110
and 115200bps
1 Watt (30dBm) RF output power
Programmable I/O for SCADA applications
Front panel indicators for RSSI, TX power, and
status
Can be installed and commissioned without test
equipment.
Sensitivity <-104dBm for BER 1 part in 10-4
Operating voltage 8 to 30VDC
Operates at -10ºC to +60ºC with 95% non-
condensing humidity
Protocol routing modes.
Page 6
Quick Start Guide
RFI-9256 Radio Modem User Manual Page 6 of 109
2. Quick Start Guide
Welcome to the Quick Start Guide for the 9256 radio modem. This guide provides step-by-step instructions,
with simple explanations to get you up-and-running. For further information, please refer to the other
sections in the user 9256 user manual.
2.1 Mounting and Environmental Considerations
The 9256 can be mounted to a panel or tray by means of screws or bolts, using the hole slots provided. The
9256 OEM will require 10mm stand-offs to prevent components on the PCB from touching the panel and
short-circuiting. For more information on the dimensions of the 9256, please consult the technical
specifications section in Appendix A of the 9256 user manual.
The radio should be mounted in a clean and dry location, protected from water, excessive dust, corrosive
fumes, extremes of temperature and direct sunlight.
2.2 Connecting Antennas
The RF antenna system should be installed in accordance with the manufacturers notes. The RF connector
used on the 9256 radio is an BNC female connector. Always use good quality low loss feeder cable, selected
according to the length of the cable run. Ensure all external connections are waterproofed using
amalgamating tape. Preset directional antennas in the required direction using a compass, GPS, or visual
alignment and ensure correct polarisation (vertical or horizontal).
Lightning
Arrestor

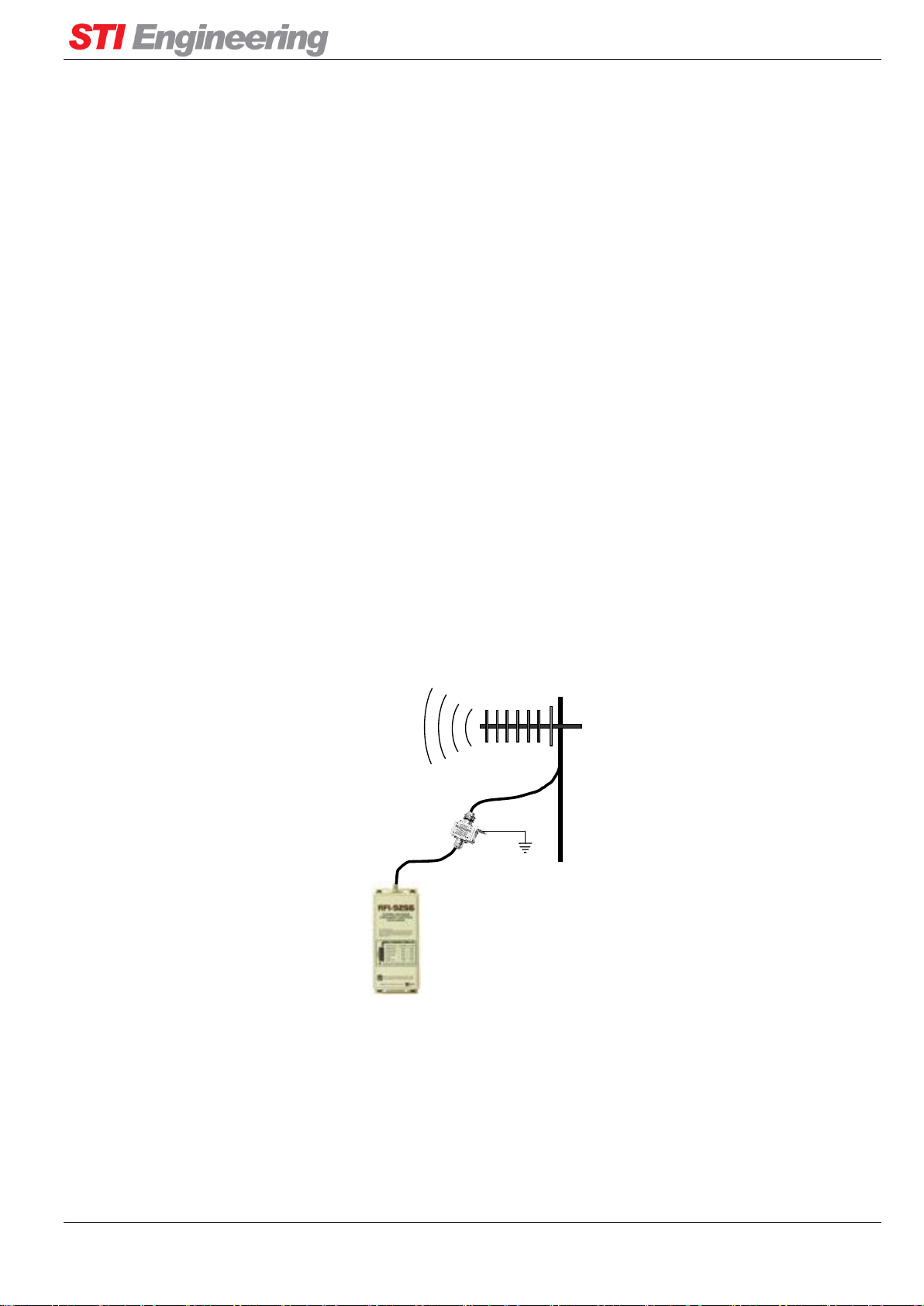

Figure 1: Antenna connection
2.3 Communication Ports
The 9256 has a DB-25 connector for power, data and configuration/diagnostics. The power/data cable (see
page 61) is used to power the radio and connect the 9256 to an external device. The cable has two RS-232
serial ports which are named Main and Auxiliary. The Auxiliary port is a multi-function interface which can
be used for:
Page 7
Quick Start Guide
RFI-9256 Radio Modem User Manual Page 7 of 109
Programming / Configuration of the radio
Remote Diagnostics connections
Data transfer
Auxiliary
Main
240VAC/12VDC
Power Supply
DB-25
Power/Data Cable
PLC
Laptop for
Configuration and
Diagnostics

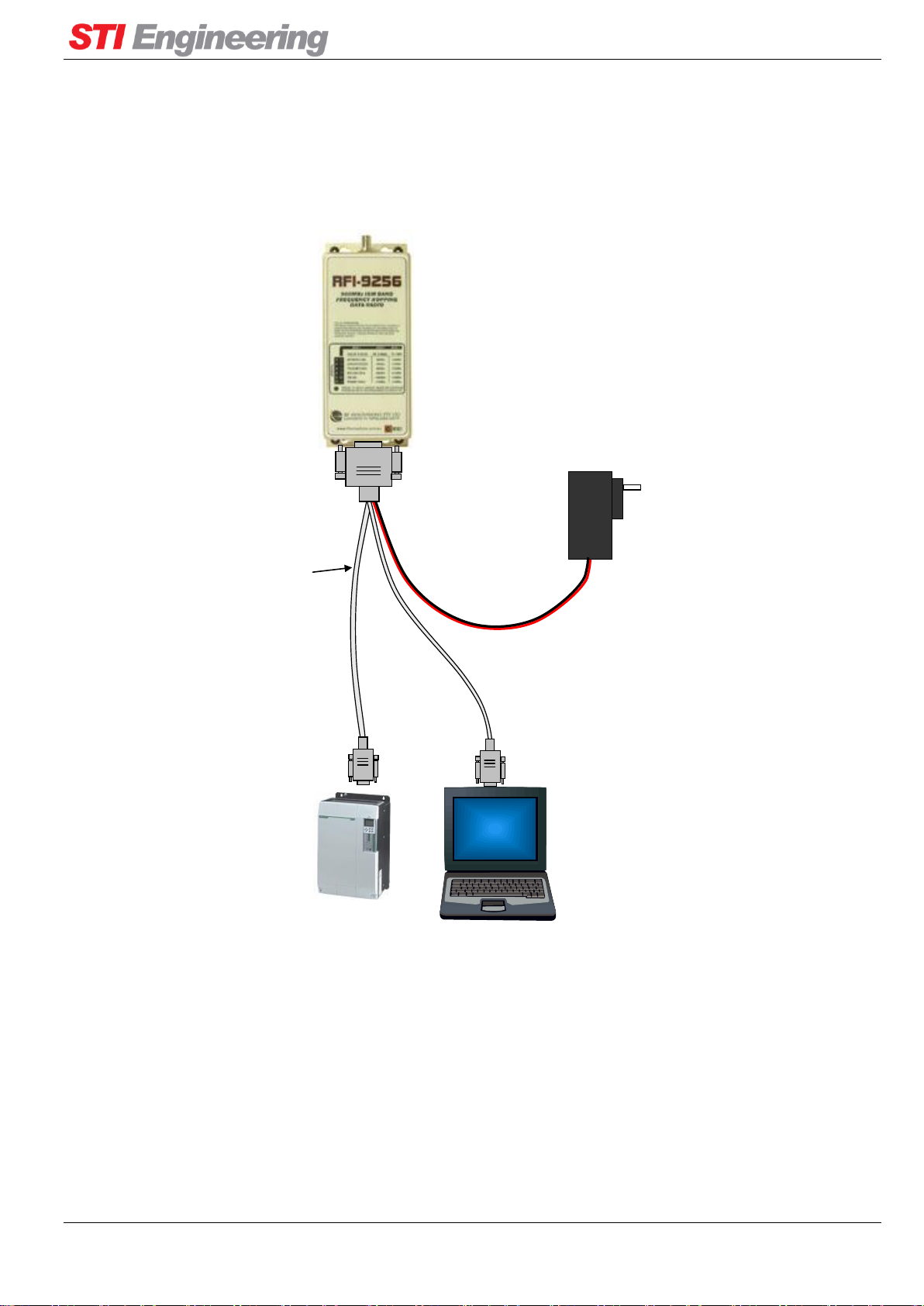

Figure 2: Power/Data cable
Both the Main and Auxiliary ports are wired as RS232 DCE. The pin-out for the data and control lines is
shown in Figure 27. Typically the Auxiliary port is used to configure the radio and monitoring diagnostic
information, while the Main port is used to transfer data.
Page 8
Quick Start Guide
RFI-9256 Radio Modem User Manual Page 8 of 109
2.4 Power Supply and Protection
The 9256 radio modem is designed to operate over a voltage range of 8-30 volts DC. The radio also
incorporates self-protection features to prevent permanent damage if over voltage, over current or reverse
polarity is applied. The radio may need to be returned for service if this occurs.
2.5 Cruise Control
The Cruise Control Configuration Tool is a simple configuration tool that allows configuration of STI
Engineering products via a Windows™ Graphical User Interface.

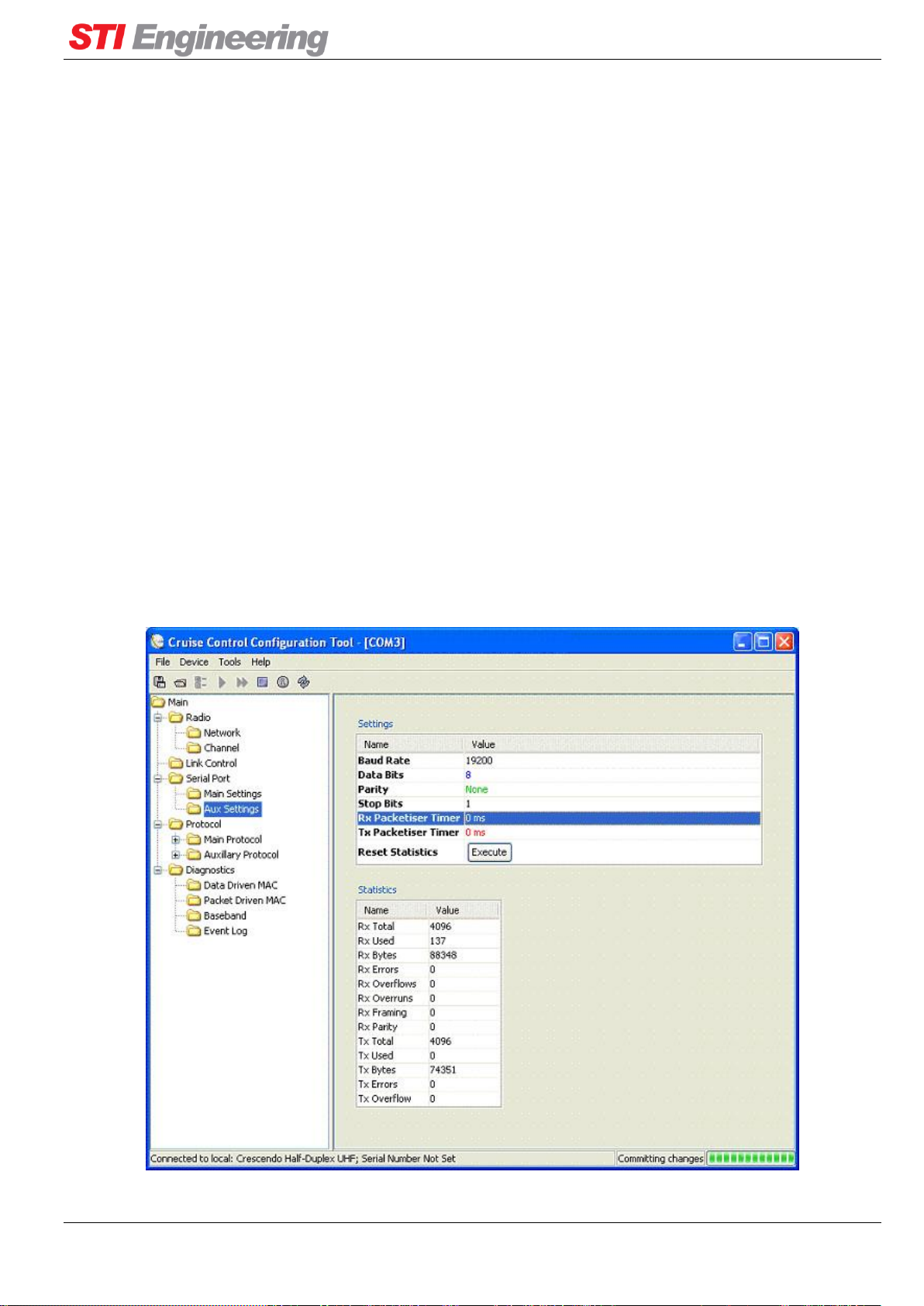

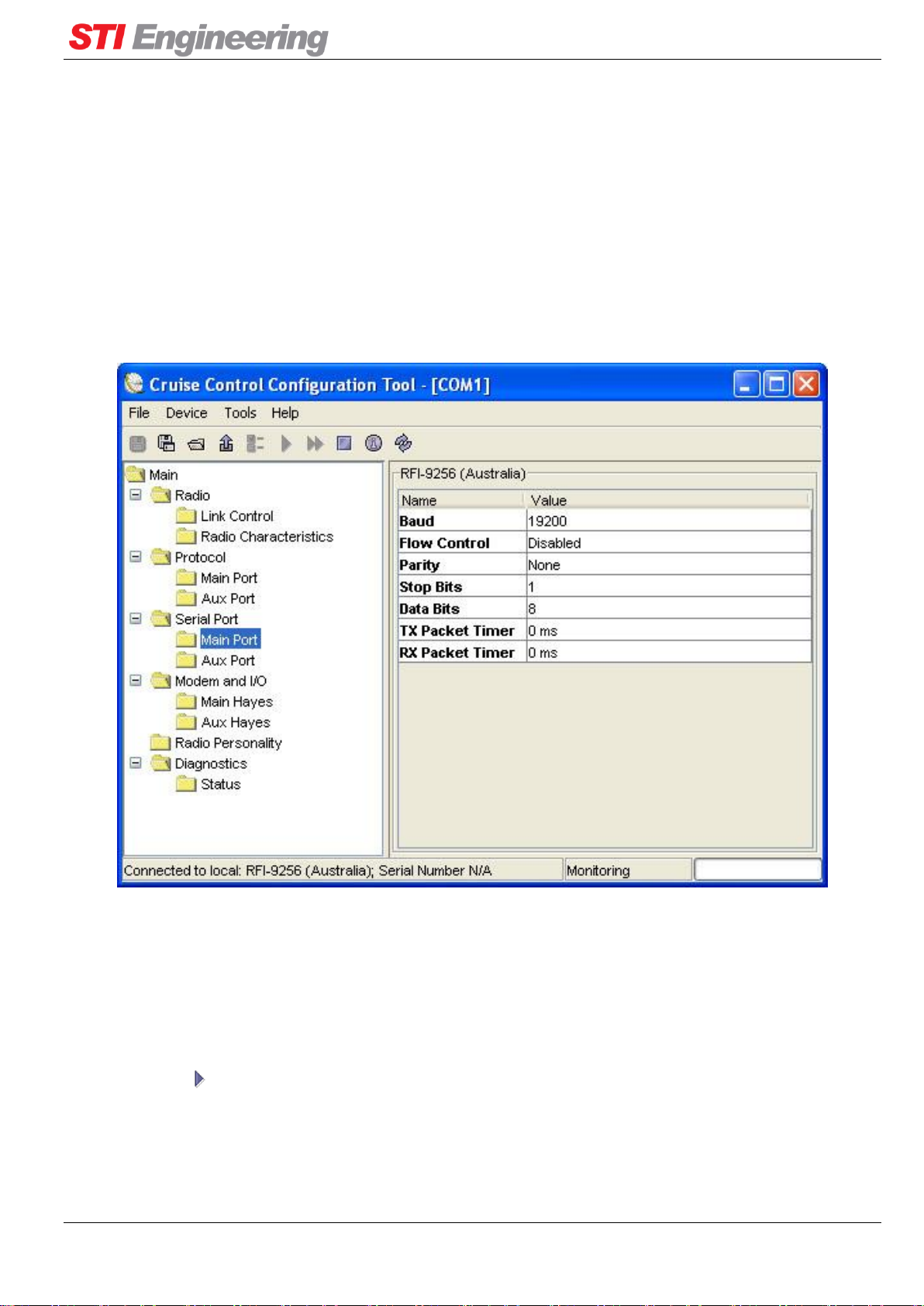

Figure 3: Cruise Control interface
Cruise Control communicates with an attached radio modem over a PC serial port. The serial port
configuration must match the radio’s configuration. When a radio is supplied from STI Engineering, serial
port settings are defaulted to 19200, 8N1, with no flow control.
In order to configure and monitor a local device, plug the device into the appropriate serial port and press the
connect button ( ). Cruise Control will then attempt to establish a connection with the local device. More
information on using the software can be found in the Cruise Control user manual.
For more information on configuring the radio and application notes, please see section 6 on page 42.
Page 9
Installation
RFI-9256 Radio Modem User Manual Page 9 of 109
3. Installation
3.1 Radio Frequency Hazard Information
The product described in this manual has been tested to comply with Maximum Permissible Exposure
(MPE) limits.
When operated with the supplied antenna and at maximum transmit power1, the antenna should not be
located within 20cm of where people may come in contact.
Antennas of this transmitter must not be co-located or operating in conjunction with any other antenna or
transmitter.
3.2 OEM Handling Procedure

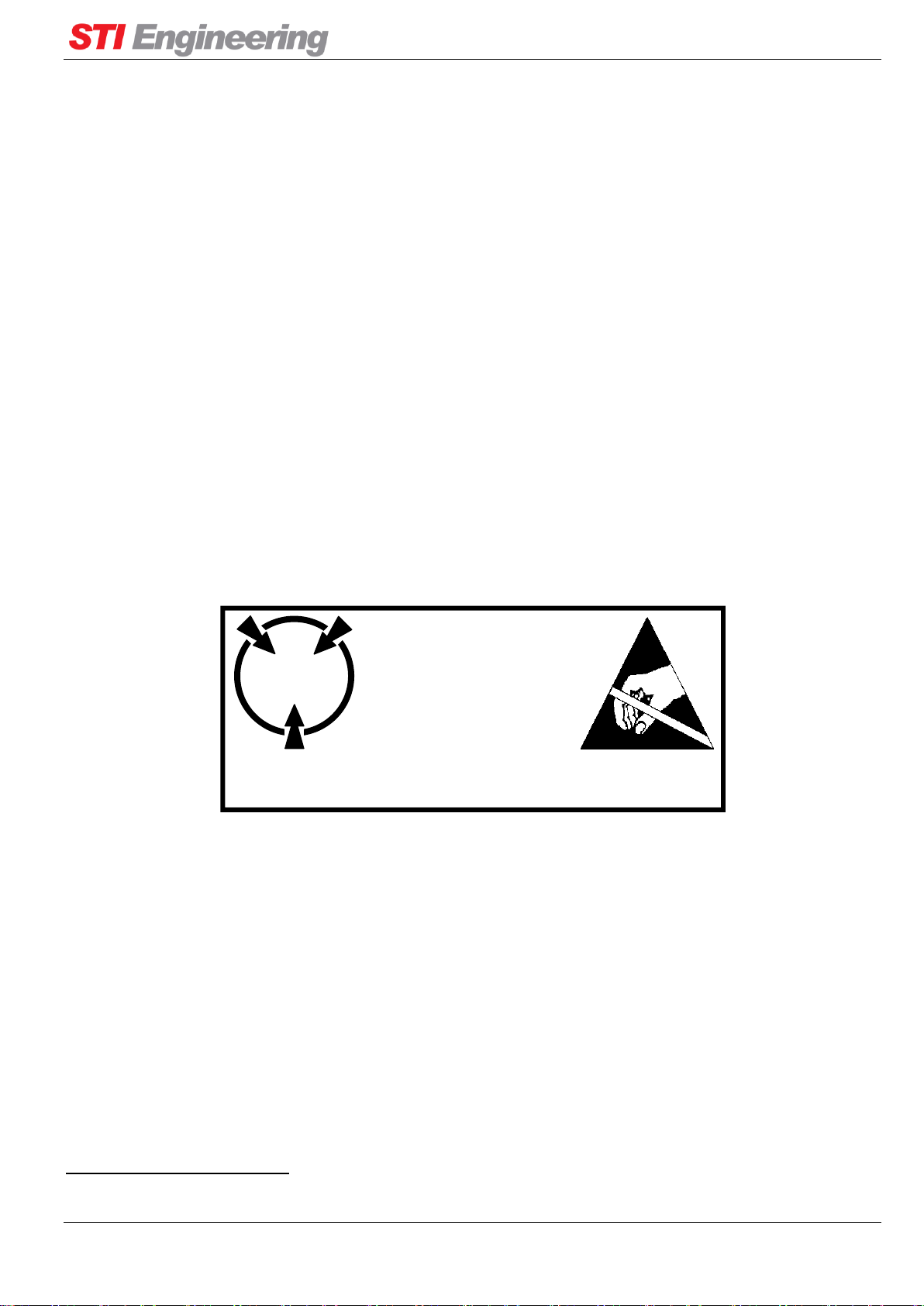

Static electricity can severely damage the 9256OEM. Handling of the OEM should be done with extreme
care and avoid any unnecessary contact with system components on the board. Always work on an antistatic
surface to avoid possible damage to the radio modem from static discharge. Always have the power supply
unplugged and powered off when inserting and removing connectors. STI Engineering assumes no
responsibility that results from failure to follow instructions or failure to observe safety precautions.
CAUTION
The 9256OEM is subject to damage by static electricity.
Always observe the handling procedures.
3.3 RFI-9256 Location
There are a number of rules to observe when installing the RFI-9256.
The radio should be placed away from computers, telephones, answering machines and other
similar equipment.
Long RS-232 cable runs (greater than 10 meters) should be avoided in areas with frequent lightning
activity or static electricity build-up. Nearby lightning strikes or elevated levels of static electricity
may lead to voltage spikes on the RS-232 circuits with potential failure of the interface. STI
Engineering supplies a range of external data interface converters for applications requiring long
cable runs.
1
Transmit power set to 1W (+30dBm) and antenna gain 3dBd (5.15dBi).
Page 10
Installation
RFI-9256 Radio Modem User Manual Page 10 of 109
3.4 Antenna Installation
Use extreme caution when installing antennas and follow all instructions provided.
Antennas should be placed away from walls and poles as these will affect the radiated pattern and VSWR.
Placing the antenna as high above ground as possible will result in the best communication link.
Antennas in close proximity are potential sources of mutual interference. It is possible that slight
adjustments in antenna placement (as little as 1 meter in either vertically or horizontally) may solve
interference problems.
The use of external antennas subjects the transceiver to greater exposure to direct lightning strikes. STI
Engineering recommends use of lightning surge arrestors to protect all antennas and attached equipment
against lighting strike.
Page 11
Configuration
RFI-9256 Radio Modem User Manual Page 11 of 109
4. Configuration
4.1 User Interfaces
The RFI-9256 provides four user interfaces:
1. Cruise control management interface: Basic radio configuration and diagnostics parameters can be
accessed using the Windows-based Cruise Control Graphical User Interface (GUI).
2. Terminal menu interface: A menu system is available over either of the RFI-9256’s serial ports.
This menu interface can be accessed through a terminal emulation program, such as RFI InTerm.
3. AT command interface: The AT command interface is used to configure and control to the RFI-9256
through ASCII Hayes attention commands. This can be used to adjust the radio’s configuration, read
the radio’s configuration, and read performance parameters.
4. Front panel interface: The front panel interface consists of six dual colour (red / green) LEDs and a
push button. This panel can display the radio status, RSSI, transmit power, temperature, and main
serial port status.
4.2 Cruise Control
Figure 4: Cruise control configuration tool
Page 12
Configuration
RFI-9256 Radio Modem User Manual Page 12 of 109
The requirements for using the Cruise Control application are:
Pentium III+ Windows based machine.
At least 1 available serial port.
The Cruise Control application is provided on a CD or can be downloaded from the website
www.rfinnovations.com.au, and runs with a self-installer.
4.2.1 Connecting to a Local Device
In order to connect to a local device, attach the 9256 to the PC running Cruise Control via a serial port.
Configure Cruise Control with the appropriate serial port settings (19200, 8,N,1 by default), and ensure that
the 9256 is configured with Hayes AT command interface on the connected port.
Use the Device -> Connect to Local Device menu item or connect button ( ) to connect to the
local device. Once all the settings have been downloaded from the device, the available configuration groups
are displayed in a tree on the left, with the items that can be configured in each group displayed in tables in
the right.
Editable items have their names in black, while those that are read only have their names in grey.
Changes made to serial port baud rate, data bits, parity, stop bits, flow control, and protocol mode on the port
that cruise control is open on do not take effect immediately. They will only take effect once the stop button
in Cruise Control is pressed, or the radio is reset.
It is possible to remotely connect to a device over the air by using Device -> Connect to Remote
Device or using the remote button ( ) and entering the remote address of the device. For best results when
using a remote connection:
Do not connect to a remote device through store-and-forward repeaters.
Do not connect to a remote device while a live system is running.
4.2.2 Saving and Loading Configurations
The current configuration of a device can be saved by selecting:
File -> Save As... ( ): This saves the configuration of the connected device to a selected
file. This configuration can later be re-applied to a device by using the File -> Upload ( )
option or view using Tools -> View Saved Configuration.
File -> Export as Text: This exports the configuration to a human readable text file.
It is recommended that only local devices have their configuration loaded from file, as when performing this
operation on a remote device only those items that can be edited remotely will be updated.
Page 13
Configuration
RFI-9256 Radio Modem User Manual Page 13 of 109
4.3 Terminal Menu Interface
The terminal menu provides access to all configuration parameters in the radio. There are three methods for
accessing the terminal menu:
1. Execute the AT? command at the Hayes AT command interface. See section 4.4 on page 13 for
information on executing AT commands.
2. Dial a remote radio’s menu system using AT commands. See section 5.3.3 on page 34 for more
information on connecting to remote radios via AT commands. When a menu system is accessed
remotely its functionality is limited in order to prevent a configuration change that would break the
connection.
3. Select mode 6 on the front panel interface. See section 4.5 on page 16 for information on selecting
front panel modes.
The terminal menu has the following features:
The terminal menu can be password protected to prevent unauthorised users for reading or changing
the radio configuration.
If a terminal menu is enabled, but there is no input for a configurable period of time, then the
terminal menu will disable itself. By default the terminal menu is disabled after 15 minutes.
Only 1 terminal menu can be available at any one time. This is done to prevent multiple users from
changing the configuration of a single radio at the same time.
The full terminal menu reference is provided in Appendix B on page 68.
4.4 Hayes AT Command Interface
The RFI-9256 supports many Hayes compatible commands enabling the user to fully control and operate the
radio, and in most cases emulate public switch telephone network (PSTN) modems.
Hayes commands may be entered manually through a terminal or automatically through dial-up network
applications and scripts. Most commands, with exception of the ‘%’ register and connection commands, may
be concatenated into a single command string. Commands or command strings must be terminated with a
carriage return, produced by the enter key.
4.4.1 The AT Commands
THE ATTENTION CODE
The attention commands are a group of commands recognised by the radio. All attention commands are
prefixed by the letters AT, and are referred to as AT commands. For example, the command:
ATI3<CR>
Causes the radio to return its firmware version information:
Page 14
Configuration
RFI-9256 Radio Modem User Manual Page 14 of 109
Firmware: 9256 Version 1.30 Rev.D Australia
OK
The attention code, along with all AT commands, is case insensitive.
MULTIPLE COMMANDS
Multiple commands can be placed after an AT provided that the total number of characters does not exceed
255. For example, a valid command to display the radio’s firmware version (ATI3) and internal temperature
(ATI9) is:
ATI3I9<CR>
This results in the output:
Firmware: 9256 Version 1.30 Rev.H Australia
25.5c
OK
S-REGISTER AND %-REGISTER COMMANDS
S-registers and %-registers are used to store complex configuration parameters. In order to set the value of
an s-register or %-register the following format is used:
ATS<r>=<n><CR>
AT%<r>=<n><CR>
Where <r> is the register, and <n> is the data. The current value of an s-register or %-register can be
retrieved through a command of the form:
ATS<r><CR>
AT%<r><CR>
A list of all s-registers can be found in Appendix C.2 on page 91, while all %-registers are listed in
Appendix C.3 on page 99.
RESPONSE CODES
Whenever an AT command is executed a response code is generated. Response codes can be either strings,
numbers, or be suppressed (not output to the serial port). The list of response codes generated by the RFI9256 is shown in Table 1.
Page 15
Configuration
RFI-9256 Radio Modem User Manual Page 15 of 109
Response
String
Response
Number
Description
OK
0
The command executed successfully.
CONNECT
1
A connection has been established between this radio and another radio.
RING
2
Another radio is ringing this radio and attempting to establish a
connection.
NO CARRIER
3
A connection could not be established or it has been dropped.
ERROR
4
A command was formatted incorrectly.
BUSY
7
An attempt was made to dial a remote unit and it responded with a busy
signal.
NO ANSWER
8
An attempt was made to dial a remote unit but it could not be contacted
Table 1: AT response codes generated by the RFI-9256
4.4.2 Configuring the Radio
The radio uses s-registers to alter the configuration profile. Each s-register contains a decimal value, an
ASCII character or an ASCII string. The interpretation of each value differs with each s-register.
The radio allows the contents of the s-registers to be saved to non-volatile memory using the AT&W
command. The entire configuration profile will be retained after the radio has been powered off.
The radio also has factory default settings stored internally, allowing all communication settings and sregister values to be set to the factory default configuration. The factory defaults have been selected so most
users will be able to make immediate use of their radio, with minimum changes. The default settings are
listed in Appendix D on page 105.
Factory defaults can be restored using the AT&F command.
The AT&V (view) command outputs the current configuration of the radio.
The complete AT command reference is provided in Appendix C on page 86, while the use of Hayes AT
commands to establish dial-up networking connections is discussed in section 5.3.3 on page 34.
4.4.3 Menu Password Disable
If a menu password has been enabled and access to the internal menu cannot be obtained. The 9256 can be
set back to its factory default configuration by holding down the front button when the power is applied and
typing in the following password after the prompt appears.
*** RFI: standard
NOTE: The password needs to be entered in lower case letters
Page 16
Configuration
RFI-9256 Radio Modem User Manual Page 16 of 109
4.4.4 Auxiliary Port Protocol Reset
The auxiliary port can be put back into Hayes dialup mode by typing in the following password:
*** RFI: config
All other configurations setting will not be changed during the reset.
NOTE: The password needs to be entered in lower case letters
4.5 Front Panel Interface
The front panel interface allows for real-time monitoring of radio parameters without the need for any
external equipment. The front panel can also be used to enable the menu on the RFI-9256’s auxiliary port
regardless of the current serial port configuration. The front panel is shown in Figure 5.
Figure 5: RFI-9256 front panel
There are six front panel modes. In order to select a front panel mode press the front panel button. This will
display the current panel mode by highlighting a single LED red. In order to select another front panel mode,
continue to hold the button until the LED scrolls down to the appropriate LED before releasing. The list of
LED modes is shown in Table 2.

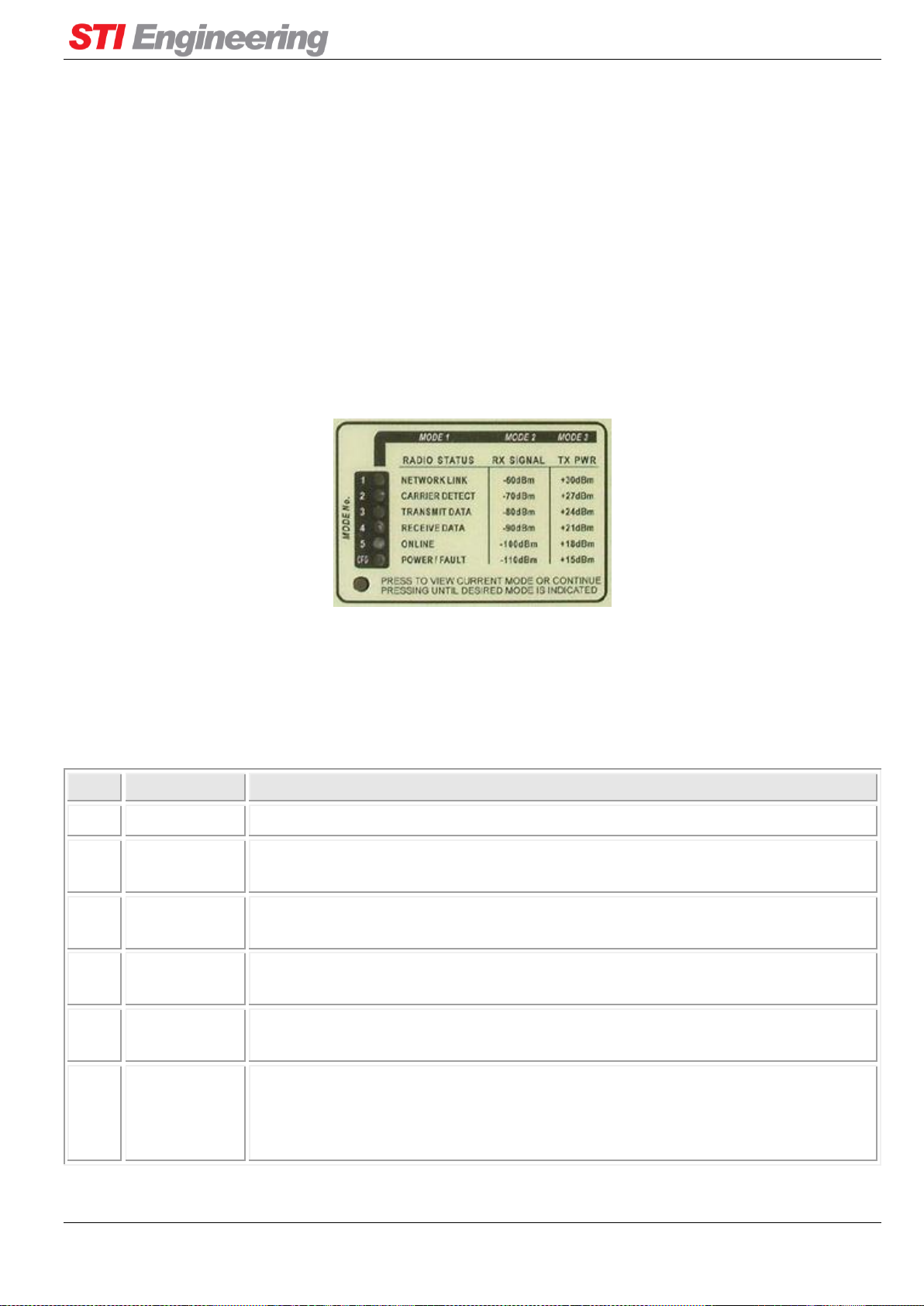

LED
Mode
Function
1
Radio Status
Section 4.5.3 describes the functionality of the LEDs when in radio status mode.
2
RSSI
Provides a bar display of the average received single strength indication (RSSI)
for the radio. Table 3 shows the level for each bar item.
3
Tx Power
Provides a bar display of the transmit power for the radio. Table 3 shows the level
for each bar item.
4
Temperature
Provides a bar display of the current internal temperature. Table 3 shows the level
for each bar item.
5
Main Serial
Port
Shows the main serial port status. The meaning of each individual LED is shown
in Table 4.
CFG
Configuration
When mode 6 is selected, the terminal menu will be enabled on the auxiliary port
at 19200, 8, N, 1, with no flow control. Once configuration mode is selected and
the terminal menu enabled, the front panel displays the same settings as for radio
status mode (mode 1).
Table 2: Front panel modes
Page 17
Configuration
RFI-9256 Radio Modem User Manual Page 17 of 109
4.5.1 RSSI, Tx Power, Temperature Status (Mode 2, 3 , 4)
Front panel modes 2, 3, and 4 all display a bar graph to indicate the level of RSSI, transmit power, and
temperature respectively. The top LED that is lit indicates the current value, if the LED is lit green then the
value shown in Table 3 applies, while if the LED is lit red then the current value is half way between the
listed value in Table 3 and the previous value.
LED
RSSI
Tx Power
Temperature
1
-60dBm
+30dBm
60ºC
2
-70dBm
+27dBm
50ºC
3
-80dBm
+24dBm
40ºC
4
-90dBm
+21dBm
30ºC
5
-100dBm
+18dBm
20ºC
CFG
-110dBm
+15dBm
10ºC
Table 3: RSSI, Tx Power, and Temperature displays
4.5.2 Main Serial Port Status (Mode 5)
LED
Name
Function
1
DTR
The current state of the DTR input on the main port. Red indicates +12V, while green
indicates -12V.
2
DCD
The current state of the DCD output on the main port. Red indicates +12V, while green
indicates -12V.
3
TX
Flashes when RS-232 data is transmitted by the radio on the main or auxiliary serial port.
4
RX
Flashes when RS-232 data is received by the radio on the main or auxiliary serial port.
5
RTS
The current state of the RTS input on the main port. Red indicates +12V, while green
indicates -12V.
CFG
CTS
The current state of the CTS output on the main port.. Red indicates +12V, while green
indicates -12V.
Table 4:Mode 5 LED function
4.5.3 Radio Status LEDs (Mode 1)
NETWORK LINK
When network link is green it shows that the unit can hear a remote radio that is on the same network and
hopping pattern. Slave radios should show network link constantly, as master radios are constantly
Page 18
Configuration
RFI-9256 Radio Modem User Manual Page 18 of 109
transmitting network synchronization messages. Master radios will only show network link when connected
to a slave in point-to-point, Hayes dial-up mode, or when receiving user data.
In a radio network with a strong signal (better than -90dBm), network link should be predominately green, it
may go red from time to time, but should not go off. A red network link indicator means that the radio has
temporarily lost the remote unit. This should occur infrequently.
CARRIER DETECT
When carrier detect is green in mode 1 it shows that the unit can hear a remote radio. Slave radios in a
network should always show carrier detect, as a master radio is constantly transmitting a synchronization
signal. Master radios however will only show this LED when connected to a slave in point-to-point or Hayes
dial-up mode, or when receiving data from a slave unit. Generally it can be assumed that if a slave can hear
its master then the master can also hear its slave.
In a good radio network carrier detect should be predominately green with flashes of red. A flash of red
indicated that one RF packet has been lost. It is acceptable, and expected, that some RF packets will be lost
as the RFI-9256 operates in an industrial, scientific, and military band (ISM) where there is a potential for
interference from other radios. A red flash of carrier detect does not mean user data has been discarded, as
the RFI-9256 will retry any packet that is lost or corrupted during transmission.
TRANSMIT DATA
The transmit data LED indicates that data has been received from a remote radio and transmitted out of
either the main or auxiliary serial port. The colour of the LED does not matter. If the LED is lighting up, but
the connected device is not receiving data it could indicate a damaged/broken serial cable, latency issues
with the protocol of the device, or incorrect serial port configuration.
The transmit data LED will also flash when local Hayes commands are issued or the terminal menu is being
used.
RECEIVE DATA
The receive data LED indicates that data has been received from the connected device on either the main or
auxiliary serial port and sent through to the remote radio. The colour of the LED does not matter. If the
remote radio is not receiving the RF data, given there is a sufficient RF path (as indicated by the carrier
detect and network link LEDs), there may be a problem with the radio addressing or protocol routing in the
radio set-up.
The receive data LED will also flash when local Hayes commands are issued or the terminal menu is being
used.
ONLINE
When the online LED is green it shows that a packet has been received from a remote unit. The Online LED
will remain green while two units are connected in point-to-point mode or Hayes dialup mode. It is not
Page 19
Configuration
RFI-9256 Radio Modem User Manual Page 19 of 109
expected that the online LED will flash red in mode 1, a red Online LED indicates that there is something
wrong with the RF link, including mismatched frame time, directional bias settings, or a poor signal path.
POWER / FAULT
The power/fault LED indicates whether there is something seriously wrong with the radio configuration. In
normal operation the power/fault LED will flash green. When the Power LED flashes red there is most likely
something wrong with the serial configuration between the radio and the connected device. The red LED can
also indicate an internal fault in the radio; the diagnostics event log menu can provide more information (see
section B.6.1 on page 84). There are two possibilities for the power/fault LED flashing red.
The firmware image has become corrupted: If this is the case and the diagnostics status menu can
be reached, then it will display the message "Firmware CRC mismatch."
A framing, parity, overrun, or overflow occurs on either serial port: In this case the error is
latched for 500ms before being cleared.
Page 20
Operation
RFI-9256 Radio Modem User Manual Page 20 of 109
5. Operation
5.1 Serial Port Operation
The RFI-9256 radio has two data communications equipment (DCE) RS-232 serial ports provided on a
single DB25 connector. The DB25 pin out can be found in Appendix A.3on page 60.
The main port supports:
TX, RX, and GND.
RTS and DTR inputs.
CTS and DCD outputs.
While the auxiliary port supports:
TX, RX, and GND.
Both main and auxiliary serial ports have internal 4096 byte buffers on both transmit and receive interfaces.
This configuration is shown in Figure 6.
4096 byte output buffer
4096 byte input buffer
TX Line (input from DTE)
RX Line (output to DTE)
Input to RF /
internal processing
Output from RF /
internal processing

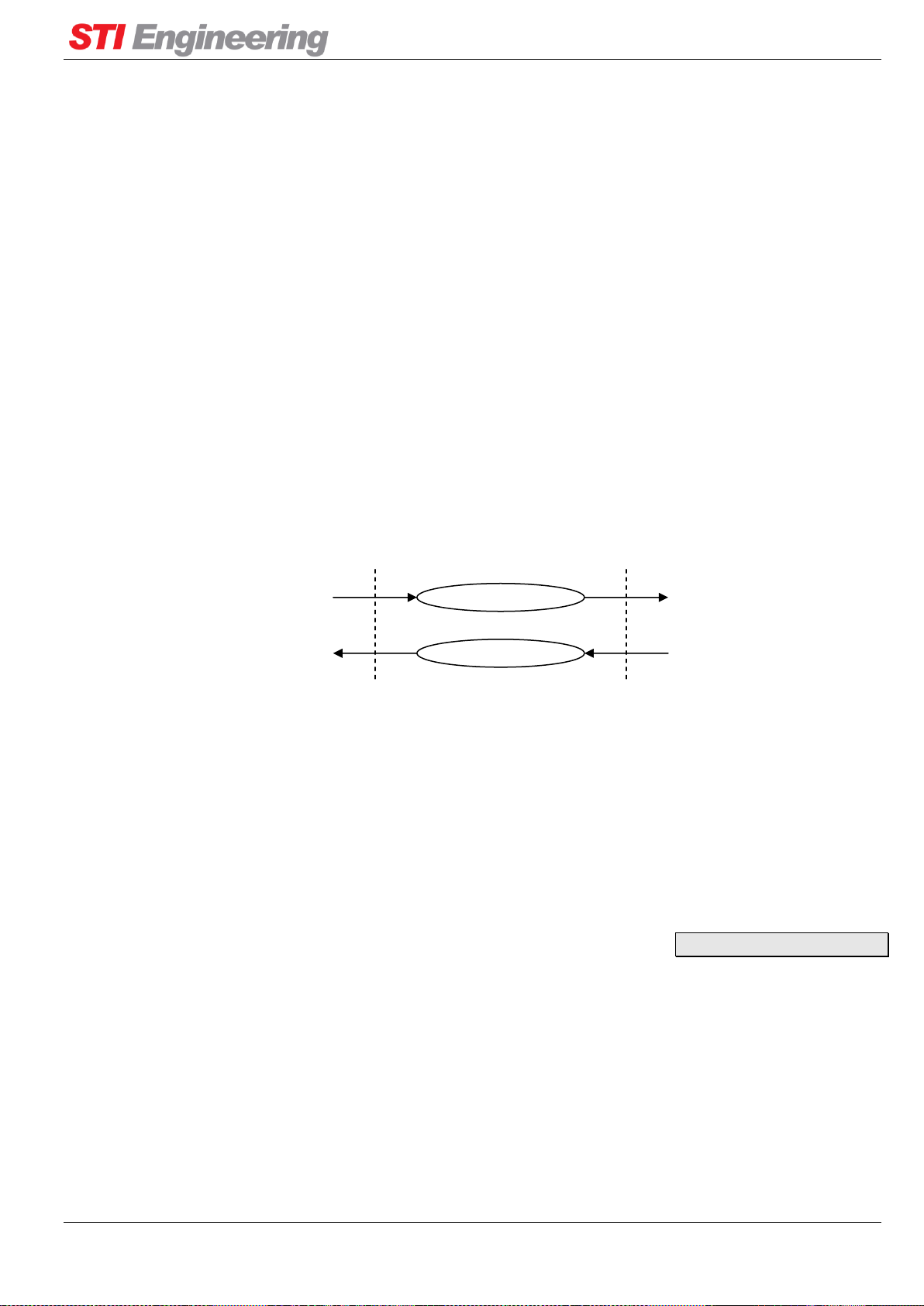

Figure 6: Buffering scheme on the RFI-9256
This serial port buffering scheme has a number of ramifications on the RFI-9256 operation:
No preamble is required to account for radio turn-on time.
If the data cannot be transmitted over-the-air, it will be buffered until the transmitter is ready.
If the data terminal equipment (DTE) is not ready for data, the RFI-9256 can buffer that data until
the DTE is ready.
5.1.1 Configuration
Both main and auxiliary serial ports support the configuration settings shown in Table 5.
Main -> Serial Port
Page 21
Operation
RFI-9256 Radio Modem User Manual Page 21 of 109
Setting
Possible Values
Default
Baud
110, 300, 600, 1200, 2400, 4800, 9600, 19200, 38400, 57600, 115200
19200
Data bits
7, 8
8
Parity
None, Odd, Even
None
Stop bits
1, 2
1
Table 5: Serial port configuration
5.1.2 Control Lines and Flow Control
The main serial port has four control lines:
Request to Send (RTS)
Clear to Send (CTS)
Data Terminal Ready (DTR)
Data Carrier Detect (DCD)
The main serial port supports hardware flow control using the RTS and CTS control lines. When hardware
flow control is enabled:
The radio will only transmit data to the DTE when the RTS line is high.
The radio will raise the CTS line when the input buffer is less than the Rx buffer limit (default is
3072 Bytes), and drop the CTS line when its input buffer is greater than or equal to the Rx buffer
limit.
The flow control Rx buffer limit can be configured by the user.
In addition to hardware flow control, the CTS and DCD lines can be configured to behave in one of the
following ways:
ONLINE controls CTS/DCD: The line is active when the front panel online LED is green or red,
and is off when the front panel online LED is off.
NEWTORK LINK controls CTS/DCD: The line is active when the front panel network link LED is
green or red, and is inactive when the front panel online LED is off.
CARRIER DETECT controls CTS/DCD: The line is active when the front panel carrier detect
LED is green or red, and is inactive when the front panel online LED is off.
Remote DTR controls CTS/DCD: The line is active when a remote radio’s DTR input line is active
in point-to-point or Hayes dial-up mode.
Local DTR controls CTS/DCD: The line is active when the local radio’s DTR input line is active.
Remote RTS controls CTS/DCD: The line is active when a remote radio’s RTS input line is active
in point-to-point or Hayes dial-up mode.
Local RTS controls CTS/DCD: The line is active when the local radio’s RTS input line is active.
CTS/DCD Always ON: The line is always active.
Main -> Serial Port
Page 22
Operation
RFI-9256 Radio Modem User Manual Page 22 of 109
CTS/DCD Always OFF: The line is always inactive.
CTS/DCD disabled: The line control has been disabled.
Note: When hardware flow control is enabled, the CTS line configuration is ignored.
5.1.3 Statistics
Each serial port has associated with it a set of statistics that can be used to debug RFI-9256 applications. The
serial port statistics are described in Table 6.
Name
Description
Rx Bytes
The total number of bytes that have been received.
Rx Errors
The total number of errors that have occurred during data reception. This is the sum of Rx
Overflows, Rx Overruns, Rx Framing, and Rx Parity errors.
Rx
Overflows
The total number of overflow errors that have occurred. An overflow error occurs whenever
data is received, but the internal buffer is already full.
Rx
Overruns
The total number of overrun errors that have occurred. An overrun error occurs whenever the
internal processor is overloaded and cannot handle the incoming data. This error should
never occur.
Rx
Framing
The total number of framing errors that have occurred. Framing errors usually occur due to
mismatched serial port baud rates between the DTE and DCE.
Tx Bytes
The total number of bytes that have been transmitted.
Tx Errors
The total number of errors that have occurred while transmitting. This is equal to the Tx
Overflows count.
Tx
Overflows
The total number of overflows that have occurred. An overflow occurs when the radio
attempts to insert data into the transmit buffer internally, and the buffer is full.
Table 6: Serial port statistics
These statistics can be used to isolate a number of potential problems in an RFI-9256 system.
A large number of Rx framing errors indicates that the radio serial port configuration (baud, data
bits, parity, and stop bits) is not configured to match the serial port configuration of the DTE.
A large number of Rx overflow errors indicates that the DTE is supplying data faster than it can be
transferred over the air. This can usually be corrected by enabling flow control. If flow control is
already enabled on the radio then it may not be operating correctly on the DTE.
A large number of Tx overflow errors indicates that data is arriving over the air faster than the DTE
can retrieve it from the radio.
Page 23
Operation
RFI-9256 Radio Modem User Manual Page 23 of 109
5.2 Radio Operation
5.2.1 Overview of Operation
The RFI-9256 is a time division duplex / frequency division duplex (TDD/FDD) frequency hopping spread
spectrum (FHSS) radio. The RFI-9256 divides its transmission up into frames, where each frame contains
communication between two radios on a fixed channel and lasts for a fixed period of time.
The RFI-9256 is a master / slave based system. In any one radio network there is a single master and
multiple slaves. The master may send messages to any slave, but the slaves may only send messages to the
master. It is the responsibility of the master to synchronise all the slaves, and to allocate time for slaves to
transmit.

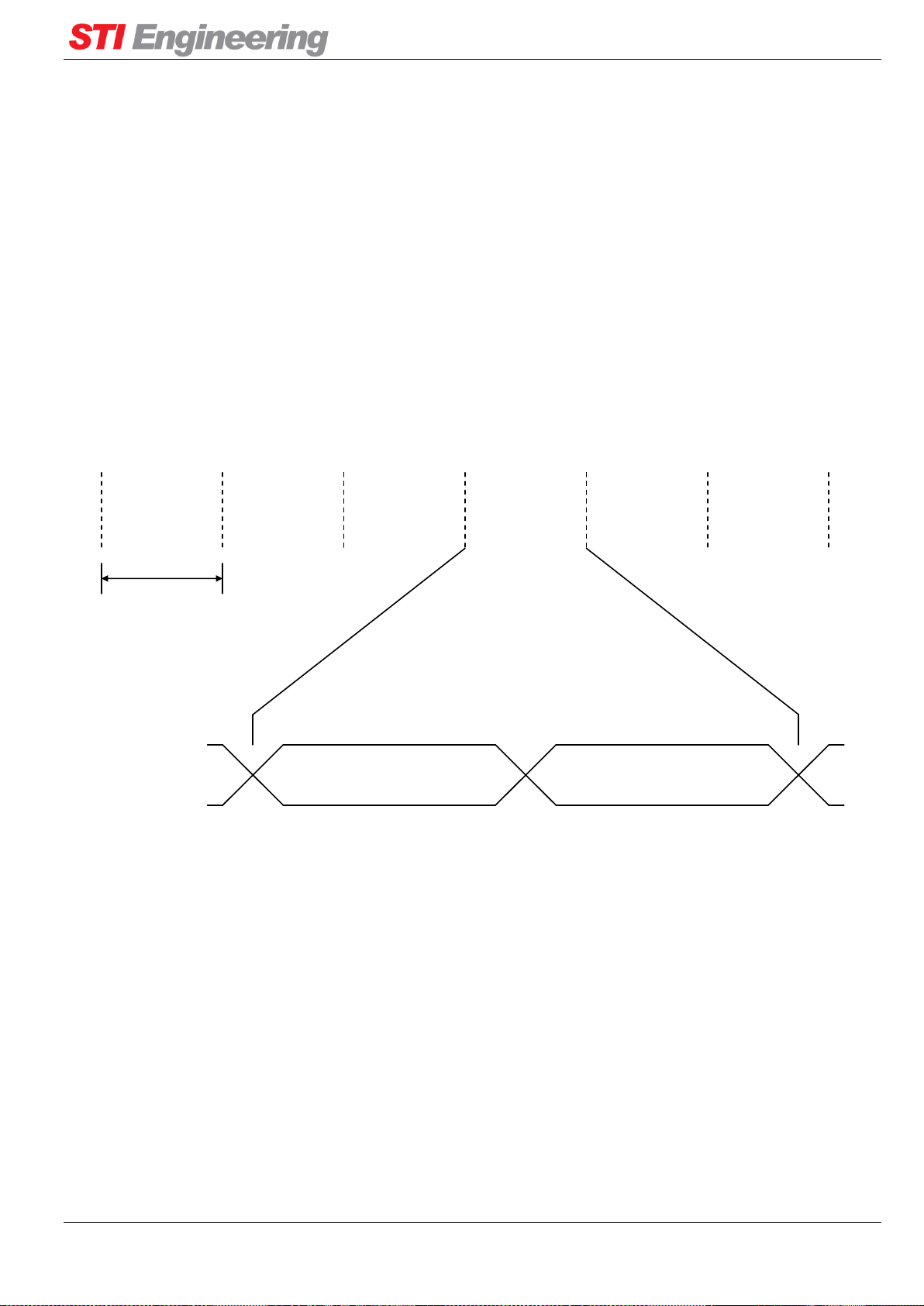

The framing arrangement is shown in Figure 7.
Frame 1
f1
Frame 2
f2
Frame 3
f3
Frame 4
f4
Frame 5
f5
Frame 6
f6
Frame Time
20ms
Master
Packet
Slave
Packet
Figure 7: RFI-9256 time division duplex / frequency division duplex (TDD/FDD) operation
Each frame occurs on a different frequency and lasts for a fixed period of time, 20ms in the above diagram.
This is referred to as the channel dwell time or the frame time. The RFI-9256 supports configurable frame
times between 5 and 35ms. The selection of frequencies is based on a pseudo-random hopping sequence,
with 32 user selectable hopping sequences.
Each frame can be used to transmit up to two packets, the master packet and the slave packet. In the master
packet the master sends control data, followed by user payload that is destined for either one slave, or
broadcast to all slaves. In the slave packet a slave will transmit control data followed by a user payload
destined for the master.
Page 24
Operation
RFI-9256 Radio Modem User Manual Page 24 of 109
DATA PATH
Internally, the RFI-9256 stores a set of payload frames that are waiting to be transmitted, and a set of
payload frames that have been received but not yet processed. Combining this with the serial port interface
described in section 5, an overall picture of the data path in the RFI-9256 radio can be obtained. This is
shown for a master unit in Figure 8.
4kB output buffer
4kB input buffer
outgoing frame buffers
incoming frame buffers
Frame 1
f1
Frame 2
f2
Frame Time
20ms
M M S
S
Figure 8: Overall data path in the RFI-9256 radio
Due to the framing structure over the air, and the data path shown above, the RFI-9256 cannot be regarded
as a direct wire replacement. It will induce additional latency into the communications link, as well as
potentially causing changes in the timing between bytes (inter-character delay).
LATENCY
The RFI-9256 will introduce latency into the system. This latency is caused by the following factors:
Serialisation delays: Serialisation delays are caused by the time taken for the incoming RS-232 bit
stream to be converted back into bytes. The serialisation delay for each serial port can be calculated
in milliseconds using Equation 1.
baud
bits
t
serial
1000
Equation 1: Latency induced by serialisation delay for a single serial port in ms
Where bits is the number of bits in a byte (including start, stop and parity bits), and baud is the baud
rate of the serial port.
Thus, for 9,600 baud, 8N1 the serialisation delay is around 1ms per serial port.
Page 25
Operation
RFI-9256 Radio Modem User Manual Page 25 of 109
Framing delays: Framing delays will occur depending on where data arrives relative to the start of

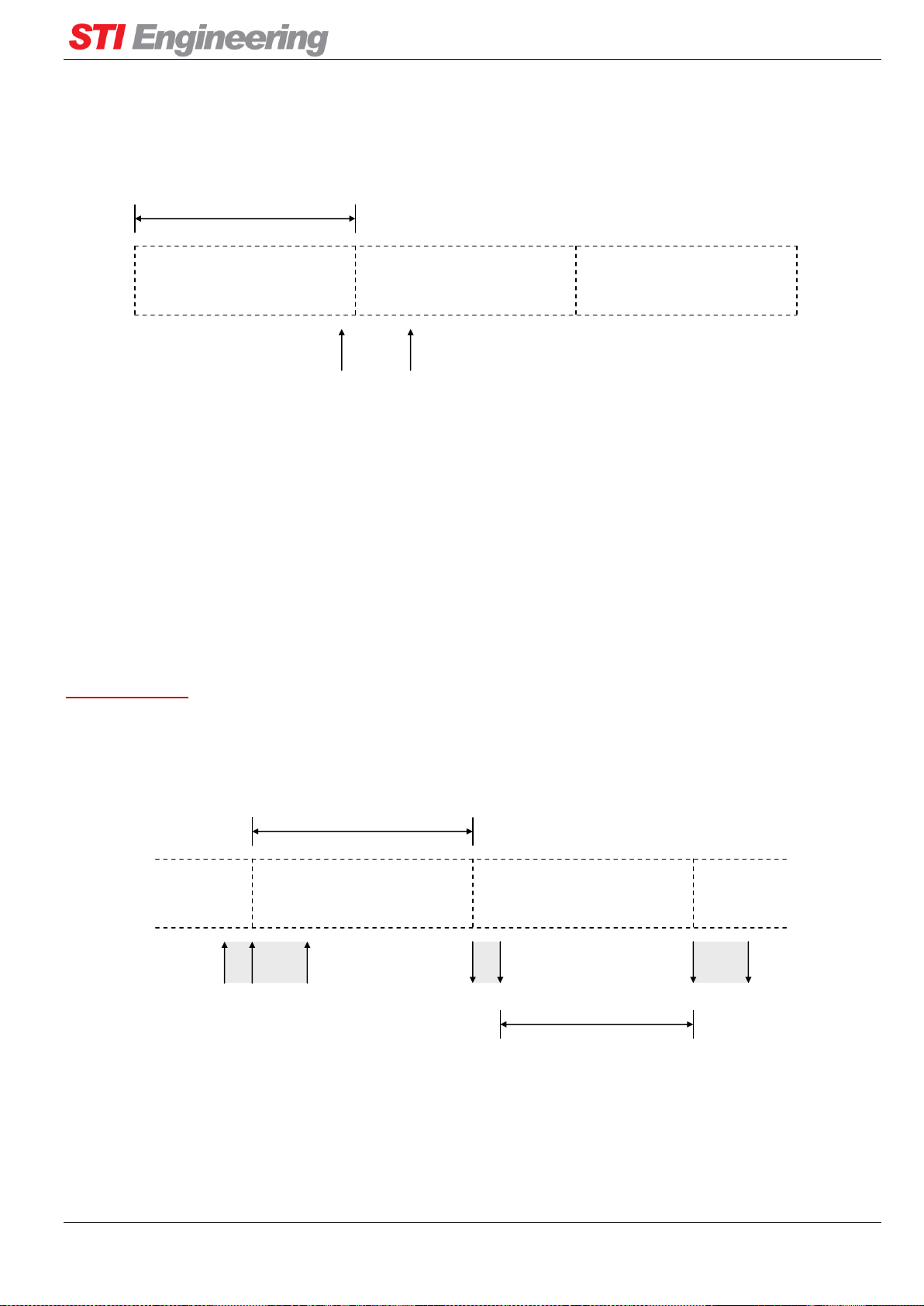

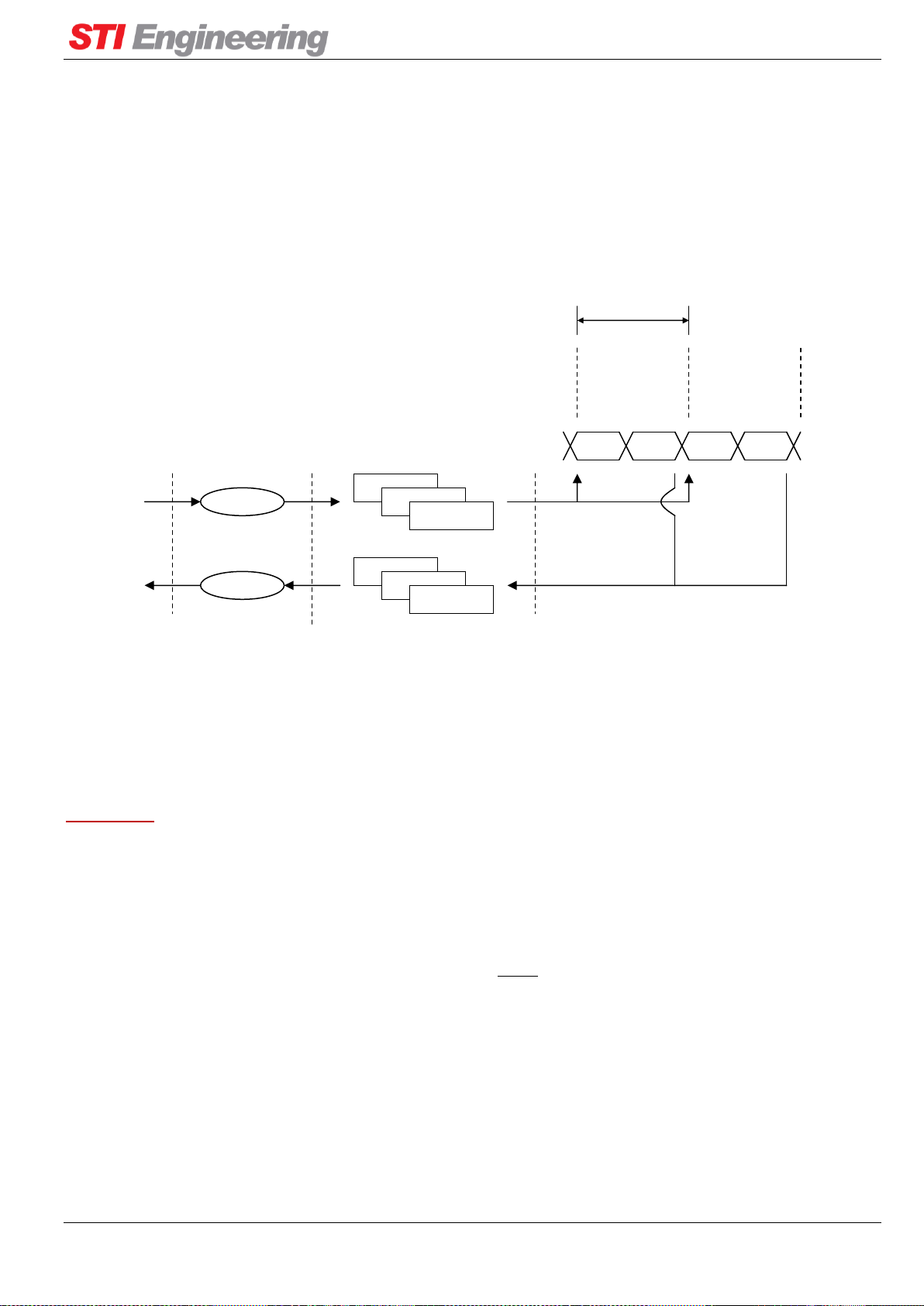

a frame. Consider the situation in Figure 9.
Frame 1
Frame 2
Frame 3
Frame Time
20ms
P1
P2
Figure 9: Data arriving at different times relative to the start of frame
The data arriving at P1 would be transmitted almost immediately in frame 2, while the data arriving
at P2 will have to wait until the start of the next frame. In the worst case, the amount of latency
introduced will be equal to the frame time.
Link quality: The quality of a link can have a substantial impact on the latency induced by the
radio. The RFI-9256 will retry frames that become corrupted due to RF interference, configurable
between 0 and 255 retries. The more retries that are required to get a packet through the greater the
latency induced. Each retry adds an additional frame time to the latency induced by the radio.
DATA TIMING
The RFI-9256 will change the inter-character and inter-packet timing of data that it transmits as all data
received by the RFI-9256 is framed for transmission over the air. Consider the situation shown in Figure 10.
Frame 1
Frame 2
Frame Time
20ms
P1
P3
P1
P2
P2
P2
P3
Inter-character Delay
Figure 10: Data timing variation due to framing
Data between P1 and P2 arrives before the start of Frame 1. This is then transmitted over the air, and is
output at the end of Frame 1. The data between P2 and P3 had to wait for frame 2 to be transmitted, so now
there is an artificial gap introduced between the bytes before P2 and after P2.
Page 26
Operation
RFI-9256 Radio Modem User Manual Page 26 of 109
This problem can be exaggerated by additional retries occurring for frame 1 or frame 2. In order to
counteract this problem, packetisation timers can be configured. For a description on packetisation timers
see section Time Based Packetisation of Data on page 31.
5.2.2 Radio Parameters
ADDRESSING
Each radio in a RFI-9256 network has a local address. The local address is a decimal number between 1 and
9999.
When allocating addresses on an RFI-9256 network, the convention is to allocate the address 1000-9999 to
the master and slaves, while reserving the addresses 10-99 to be allocated to any back-to-back repeaters. In
general, addresses 1-9 are not used. The reason for this is explained in the section Back-to-back Repeater
Operation on page 29.
NETWORK FAIL TIMER
When power is first applied to a slave, it enters the unlocked state. In the unlocked state the slave has not
heard a master unit, and waits on a single channel listening for a master to hop past. When the master hops
past, the slave will start hopping with the master.
If the master loses power, or becomes unreachable, then the slave will continue to hop over the channels,
searching for the master. If after the network fail timer period expires the slave has failed to hear from its
master and it reverts to the unlocked state.
For more information on configuring the network fail time, see section B.1.1 on page 71.
TRANSMIT POWER
The transmit power of the RFI-9256 can be configured at fixed intervals 0dBm, +10dBm, +20dBm,
+25dBm, and +30dBm.
When operating in the 900MHz ISM band, the maximum allowed output power at the antenna is 1 Watt
effective isotropic radiated power (EIRP). This translates to +30dBm. Noting that cables will introduce loss,
and the antenna may introduce gain, the transmit power of the RFI-9256 should be adjusted so that the
power at the antenna is as close to +30dBm as possible.
RSSI TRIGGER LEVEL
The RFI-9256 supports a configurable RSSI trigger level, or squelch. The RSSI trigger level sets the lowest
RSSI that the RFI-9256 is to attempt to acquire data. When the radio has to operate in a very noisy
environment, where the background noise has risen above its sensitivity (-108 dBm), the RSSI trigger level
will need to be set higher than the default to allow the radios to communicate.
When operating in a normal environment the RSSI trigger level should be set below the radio’s sensitivity
otherwise the radio will be artificially deafened.
Main -> Radio
Main -> Radio -> Link Control
Main -> Radio -> Radio Characteristics
Page 27
Operation
RFI-9256 Radio Modem User Manual Page 27 of 109
For more information on configuring the RSSI trigger level, see section B.1.2 on page 72
FRAME TIME
The frame time is the amount of time that the RFI-9256 will spend on each channel in the hopping pattern.
This is also referred to as the channel dwell time. The frame time can be adjusted to suit each application.
The frame time duration and throughput is shown in Table 7.
Frame
Time (ms)
Bytes
per
Packet
Throughput One Way (kbps)
Throughput Total (kbps)
Over the air
Serial
Over the air
Serial
5 5 8
10
16
16 8 26
26
32.5
52
65
10
41
32
40
64
80
15
77
41
51.25
82
102.5
20
113
45
56.25
90
112.5
25
149
48
60
96
120
30
185
49
61.25
98
122.5
35
221
51
63.75
102
127.5
Table 7: Frame time configuration
Selection of frame time will trade off maximum throughput against latency. A low frame time will decrease
both latency and throughput, while a high frame time will increase both latency and throughput. This is
discussed in the section Latency Reduction on page 30.
DIRECTIONAL BIAS
A single frame on the RFI-9256 contains two packets, one from the master and one from the slave. In the
default configuration the size of both packets is the same, so the system is unbiased. In many systems data
will flow in one direction substantially more than in the other direction. When this is the case the RFI-9256
can be configured to bias its frames so that the master packet and slave packet are of different lengths.
In order to configure a link for directional bias, one radio must be set to the outgoing radio, and one to the
incoming radio. The link from the outgoing radio to the incoming radio has more bandwidth, while the link
from the incoming radio to the outgoing radio has its bandwidth reduced.
Table 8 shows the throughput obtained for each frame time configuration when directional bias is used.
Main -> Radio -> Radio Characteristics
Main -> Radio -> Radio Characteristics
Page 28
Operation
RFI-9256 Radio Modem User Manual Page 28 of 109
Frame
Time
(ms)
Outgoing
Bytes per
Packet
Incoming
Bytes per
Packet
Outgoing
Throughput (kbps)
Incoming
Throughput (kbps)
Over the
air
Serial
Over
the air
Serial
5 5 5 8 10 8 10 8 26
26
26
32.5
26
32.5
10
55
27
44
55
22
27.5
15
125
28
67
83.75
15
18.75
20
197
28
79
98.75
11
13.75
25
269
28
86
107.5
9
11.25
30
338
31
90
112.5
8
10
35
410
31
93
116.25
7
8.75
Table 8: Directional bias configuration for different frame times
RETRIES
The maximum number of retries per frame can be configured between 0 to 255. When a low number of
retries is selected, the link may become unreliable in the presence of interference. When a high number of
retries is selected the link will be reliable, however it may induce substantial latency in the presence of
interference.
If an RFI-9256 is given data to transmit to a slave that is non-existent, either due to a misconfigured
destination address, the slave being out of range, or the slave unit being faulty, then it will transmit each
frame the maximum number of retries. This can dramatically slow down the throughput of a radio network.
The RFI-9256 also supports exponential back-off and retry. This mechanism is intended for a situation
where there are multiple slaves that may have data to transmit at the same time. If these slaves are
configured with exponential back-off and retry mode enabled, collisions will have a minimal impact on
system performance.
For more information on configuring back-off retries, see section B.1.1 on page 71.
SYNCHRONISATION
When two or more RFI-9256 are located in very close proximity, such as when they are in a back-to-back
repeater configuration, the transmitter from one can interfere with the receiver of the other even though they
are on different channels, simply due to the large amount of power that is being radiated.
In order to prevent this from happening it is desirable to synchronise the radios so that they will transmit at
the same time. Only master units can be synchronised in this way, as slave units must obtain their
synchronisation from the network master.
Main -> Radio -> Link Control
Main -> Radio
Page 29
Operation
RFI-9256 Radio Modem User Manual Page 29 of 109
The frame synchronisation is a TTL I/O on the DB25 connector described in Appendix A.3 on page 60.
Each RFI-9256 can be configured with one of the following synchronisation options:
No Sync Mode: Disables synchronisation.
Output Sync Signal: The radio will output a frame synchronisation signal. This is a falling edge on
the TTL output every time a new frame starts.
Follow Sync Signal: The master radio will follow the synchronisation signal output by another unit.
This causes the master radio to adjust the start of its frame to match the falling edge detected on the
synchronisation TTL input. This mode should be used when a master is following another
collocated master.
Repeater Sync Mode: The master radio will follow the synchronisation signal output by another
unit. This causes the master radio to adjust the start of its frame to be 50% offset from the falling
edge detected on the synchronisation TTL input. This mode should be used when a master is
following a collocated slave, such as when they are in back-to-back repeater configuration.
NOTE: Synchronisation should not be used when directional bias has been enabled on either unit.
5.2.3 Network Configuration
A network of RFI-9256 radios will consist of one master, and one or more slaves. Multiple co-located
masters are supported in the RFI-9256 system through three mechanisms:
Hopping Pattern: Each master unit has a unique hopping pattern. The hopping pattern determines
the order that the master hops over all available channels. There are 32 available hopping patterns,
and these have been selected so as to cause minimum interference between co-located masters. For
more information on configuring the hopping pattern, see section B.1.2 on page 72.
Network Address: The network address is a number between 0 and 63 that defines the network to
which the master belongs. The network address provides a second layer of differentiation between
multiple masters. For more information on configuring the network address see section B.1 on page
69.
Security Code: Each RFI-9256 can be programmed with a 32-bit security code. A slave will only be
able to communicate with a master if both units have the same security code. For more information
on configuring the security code see section B.5 on page 82.
The master and all the slaves in a single network must be configured with the same values for hopping
pattern, network address, and security code.
BACK-TO-BACK REPEATER OPERATION
The RFI-9256 supports network extension through the use of a back-to-back repeater. A back-to-back
repeater consists of two RFI-9256 radio radios. This is shown in Figure 11.
Page 30
Operation
RFI-9256 Radio Modem User Manual Page 30 of 109
RFI-9256
Master 1
HPSN=0
Addr=1000
RFI-9256
Slave 1
HPSN=0
Addr=20
RFI-9256
Master 2
HPSN=1
Addr=20
RFI-9256
Slave 2
HPSN=1
Addr=3000
Wiring
Harness

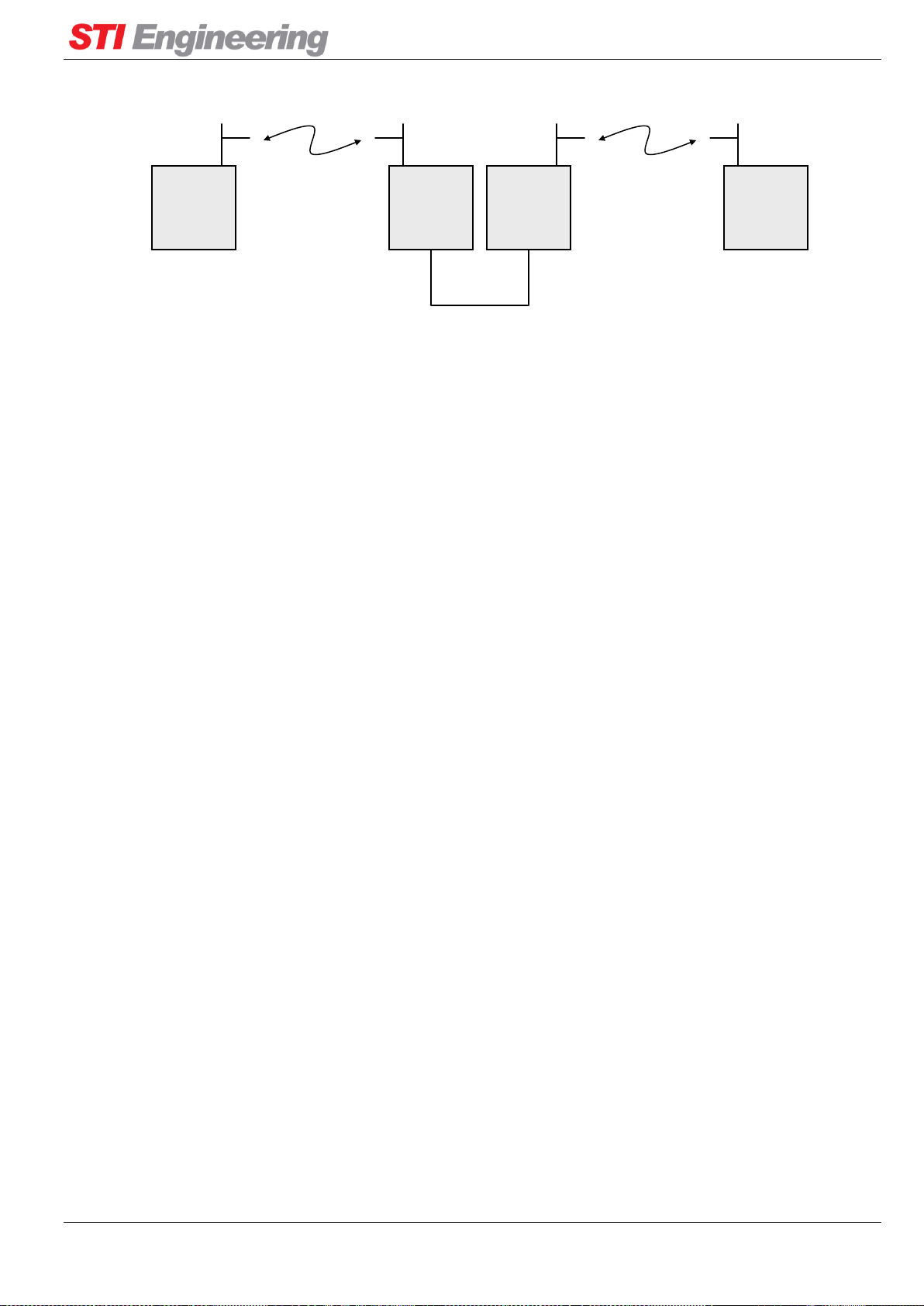

Figure 11: Back-to-back repeater configuration
A back-to-back repeater configuration is the joining two separate RFI-9256 networks via a wiring harness
between a slave on one network and the master of a second network. The wiring harness can link the main

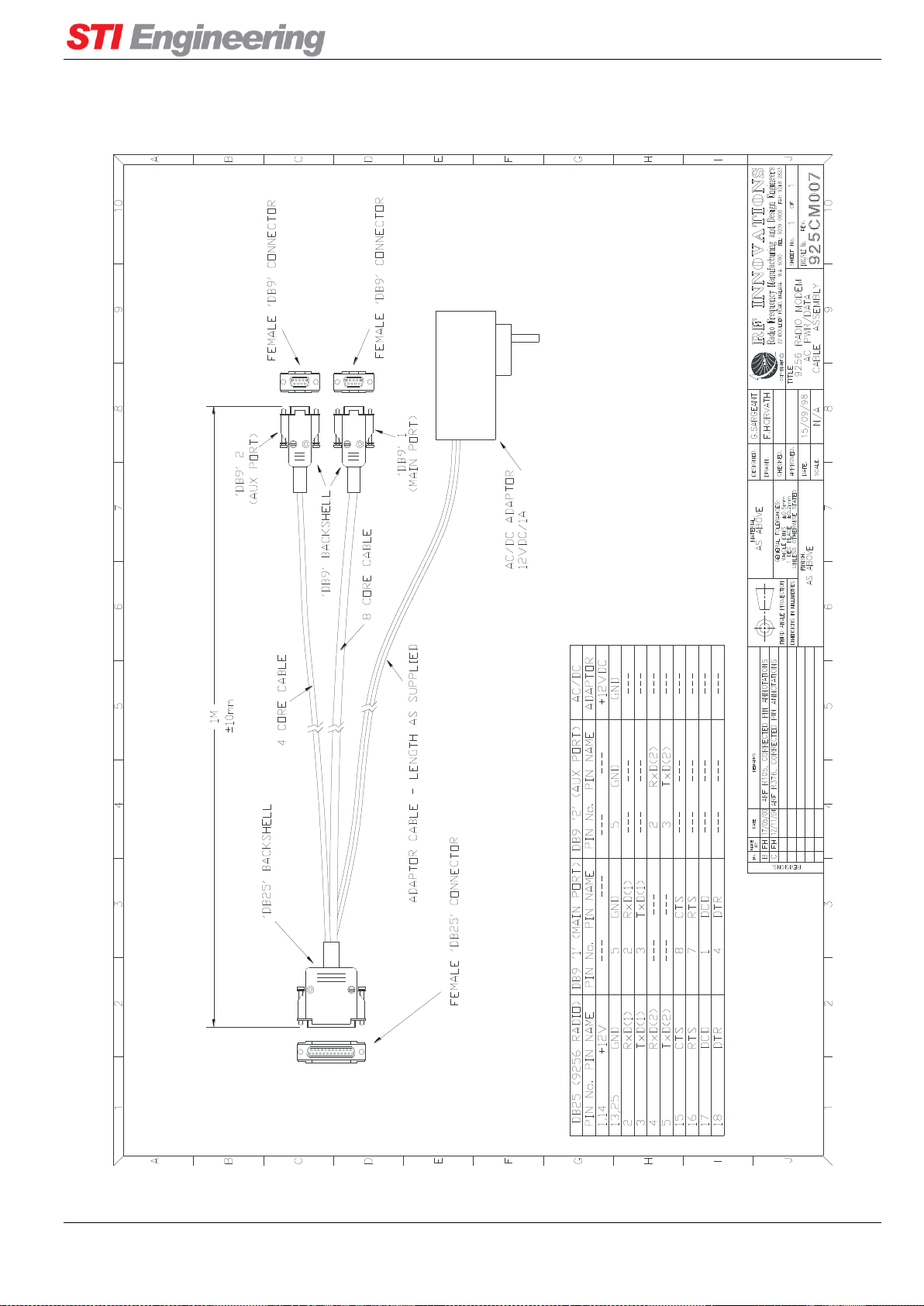

port, auxiliary port, or both ports via a null-modem cable. A wiring diagram for a back-to-back repeater
cable that links both main, auxiliary, and the auxiliary I/O lines is given in Appendix A.5 on page 62.
When setting up back-to-back repeaters, the following rules should be followed:
Both master and slave radio must have the same local address, and it must be in the range 10-99
(i.e., two characters).
All other radios in the network must have local addresses in the range 1000-9999.
These rules come about due to the way Hayes dial-up works in a back-to-back repeater network. See section
5.3.3 on page 34 for more information on Hayes dial-up networking.
Back-to-back repeaters should be synchronised, as discussed in the section Synchronisation on page 28, in
order to prevent them from jamming each other due to collocated antennas.
The slave must be configured to output a synchronisation signal.
The master must be configured to follow a repeater synchronisation signal.
This guarantees that both master and slave will transmit at the same time.
5.2.4 Performance Tuning
LATENCY REDUCTION
Some systems will require a radio link that induces very low latency, usually where the RFI-9256 is being
used to replace an existing wired system. There are a number of parameters that can be traded off in order to
reduce latency.
Throughput: The throughput of the RFI-9256 can be reduced, with a corresponding reduction in
latency. This is achieved by reducing the frame time as the frame time has a direct impact on
latency. A smaller frame time will give lower latency. See section Latency on page 24 for a more
information.
Page 31
Operation
RFI-9256 Radio Modem User Manual Page 31 of 109
Reliability: By reducing the maximum number of retries the latency performance of the RFI-9256
can be improved in harsh RF environments. Given that each retry will add an extra frame time to
the latency induced by the radio, calculate the maximum acceptable latency induced by retries, and
divide by the frame time to give the maximum retries that should be configured. Note that by
reducing the maximum number of retries, data may be lost so the underlying system should be
robust enough to handle this situation.
TIME BASED PACKETISATION OF DATA
Many protocols delimit packets of data by silence on the communications line for a set period of time. A
common example of such a protocol is Modbus.
Due to the TDD nature of the RFI-9256, simply passing this data into the radio can cause it to become
disrupted as there is no guarantee that timing will be maintained over the air link (see section Data Timing
on page 25). In order to correct this problem, two configuration items should be used.
Set the Rx packetisation timer to the number of milliseconds that will appear between each packet.
Set the frame time to the smallest number that will provide enough bytes in a single frame for the
largest protocol message.
The packetisation time is used to detect the end of each packet. Only once the end of the packet has been
detected will the RFI-9256 transmit any of the packet.
The frame time must be configured to allow a full packet in a single frame. If the frame time is too small
then the packet will be split across multiple frames and inter-character delay could occur due to retries.
When packets are larger than the maximum frame time, yet must still be kept together the Tx packetisation
timer can be used. This timer operates in the same way as the RX packetisation timer, except that it will
attempt to bunch received data frames together. When the TX packetisation timer is enabled the radio will
not transmit data out of its serial port until an amount of time equal to the packetisation timer has passed
with it receiving no data over the air.
For more information on configuring the packetiser timer, see section B.3.1 on page 80.
5.2.5 Diagnostics
RSSI AND NOISE
The RFI-9256 can report the RSSI and noise detected on each individual channel in the 900MHz ISM band.
This is accessed through the diagnostics menu (see Appendix B.6 on page 83).
There are two factors to be aware of when using the RSSI / Noise report of the RFI-9256.
1. The master is transmitting all the time, while slaves only transmit when they have data or a
connection has been established to them. Thus, a slave will always be able to report the RSSI of the
master, while the master can only report slave RSSI when communications is occurring.
Main -> Serial Port
Page 32
Operation
RFI-9256 Radio Modem User Manual Page 32 of 109
2. Each individual slave can only hear the master unit, while the master can hear all the slaves. This
means that when a master is communicating with multiple slaves there is no guarantee which slave
the RSSI value refers two, in fact it is most likely to be an average of all slaves. In order to counteract
this effect a special link margin test is provided on the master unit. The link margin test will take
control of the communications link and determine the exact RSSI that the master is receiving from a
particular slave. This is covered in Appendix B.6 on page 83.
RF COMMUNICATIONS STATISTICS
The RFI-9256 provides a number of communications statistics that can be used to debug a RFI-9256 system.
These parameters are shown in Table 9.
Statistic
Description
Frame count
The total number of frames that have passed while the radio has been operating.
Empty frames
The number of frames that have been received but contained no user data.
Good packets
The number of good packets received.
Bad packets
The number of bad packets received.
Lost packets
The number of packets that have been lost.
Retries
The number of retries or retransmissions this unit has used while transmitting.
Good headers
The number of good header packets received. Header packets contain
synchronisation and control information.
Bad headers
The number of bad header packets received.
Lost frame lock
The number of times this unit has lost lock. A loss of lock occurs on a slave when it
can no longer hear the synchronisation messages from the master.
Low RSSI
The number of times the RSSI level has been at or below the nominal sensitivity of
the radio while receiving.
Data Recv
The number of user data bytes received.
Data Sent
The number of user data bytes transmitted.
Rx Overflows
The number of times received data has been discarded due to there be no free frame
buffers.
Rx Overruns
The number of times data has been lost due to internal radio errors.
Tx Overflows
The number of times an attempt has been made to obtain a frame buffer for
transmission, and there have been no free frame buffers.
Busy Waits
The number of times the slave radio has had data to transmit, but has been unable to
do so due to communications between the master unit and another slave radio.
Table 9: RF communications statistics
Page 33
Operation
RFI-9256 Radio Modem User Manual Page 33 of 109
5.3 Protocol Operation
The protocol mode of a serial port determines how the serial port data is interpreted and converted into
packets for transmission over the air. There are four basic protocol modes:
Point-to-point Protocol: Communications occurs between two radios only.
Broadcast Protocol: Communications occurs between the master and any number of slaves, and
any slave back to the master. Data is broadcast from the master to all slaves, while the slave only
transmits data directly back to the master.
Hayes Dial-up Protocol: Communications occurs between a master and any number of slaves one
at a time, where Hayes dialling commands are used to create and destroy connections.
SCADA Protocols: Communications occurs using SCADA communications protocols such as
Modbus, Honeywell, DNP3, or TDE.
All protocol modes support back-to-back repeaters for extending network coverage.
5.3.1 Point-to-point Protocol
A point-to-point network establishes a link between two radio radios, through an optional number of
repeaters. A point-to-point connection can be established on the main, auxiliary, or both serial ports.
A single master unit and a single slave unit are configured such that:
They have the same hopping pattern, network address, and security code.
The master and slave have different local addresses.
Both the master and slave have the point-to-point protocol selected on their main and/or auxiliary
serial port.
The point-to-point destination address on the slave is set to the master’s local address, while the
point-to-point destination address on the master is set to the slave’s local address.
This results in a connection being established between the two units. The network link, carrier detect and
online LED should turn green on both units, and data transmitted by the DTE on the master be received on
the DTE on the slave, and vice versa.
5.3.2 Broadcast Protocol
In a point-to-multipoint broadcast network, data transmitted by the master unit is output by all the slaves,
while data transmitted by each slave is only output by the master.
When using point-to-multipoint broadcast mode, there are no acknowledgments on the master to slave
transactions. This is because multiple slaves may be receiving the data, and if they were to all attempt to
acknowledge the transmission they would interfere with each other.
Instead of acknowledgements, the master will transmit each message a fixed number of times equal to the
maximum retries. For this reason, the number of retries used in a broadcast network should be configured to
between 1 and 5 in order to maintain a reasonable throughput.
Main -> Protocol
Main -> Protocol
Main -> Protocol
Page 34
Operation
RFI-9256 Radio Modem User Manual Page 34 of 109
5.3.3 Hayes Dial-up Protocol
Hayes dial-up networks provide connection mechanism that emulates a PSTN modem’s dialling mechanism.
This is a more powerful method of operating than using point-to-point or point-to-multipoint broadcast
networks, as it allows dedicated communication between a master and one of many slaves.
CONNECTION MANAGEMENT
DIALLING
The AT commands may be used to initiate dialling of a remote radio. The ATD command is use to establish a
connection. The form of the ATD command is:
ATD<address><extension>
Where <address> is the address of the radio that is being dialled, and <extension> is the serial port or
internal extension port that is being dialled. The available extension numbers are shown in Table 10.
NOTE: When dialling radio modems with a single digit unit address, a leading zero must be added (eg 01
for unit with address 1).
Extension
Name
Description
00
Main Port
Establishes a connection between the current serial port and the main port
on the remote unit,
01
Auxiliary Port
Establishes a connection between the current serial port and the auxiliary
port on the remote unit,
91
Virtual Hayes
Establishes a connection between the current serial port and the Hayes
command interface running on the remote unit.
92
Remote Menu
Establishes a connection between the current serial port and the menu of
the remote unit. When connection to a menu system remotely, the radio
configuration menu (see Appendix B.1 on page 69) will not be available.
This is done to prevent configuration changes that could sever the
connection to the remote radio.
93
Remote Logger
Establishes a connection between the current serial port and the logs of
the remote unit.
99
Loop-back
Establishes a connection that loops back all data that is transmitted to the
remote unit.
Table 10: Hayes dial-up extension numbers
The <address> and <extension> sections of the ATD command can include any number of colons,
dashes, or spaces as these will be stripped out of the string by the radio.
If the radio receives a character on the serial port while dialling is in progress it will immediately terminate
the connection attempt and send a NO CARRIER response message.
Main -> Protocol
Page 35
Operation
RFI-9256 Radio Modem User Manual Page 35 of 109
If a connection is established then the CONNECT response message will be returned.
ANSWERING
The RFI-9256 provides two options for answering dial-up calls:
Auto-answer: When in auto answer mode and a connection request is made, the RFI-9256 will
output a configurable number of RING responses on the destination radio extension, and then
automatically connect. When dialling an extension other then the main or auxiliary port, autoanswer is used by default.
Manual answer: When in manual answer mode the RFI-9256 will output a RING response on the
destination once per second until the ATA command is received at which point the connection is
established. If no ATA command is received within the connect timeout the connection is not
established.
Manual answering of dial-up requests only applies to the main and auxiliary ports. The internal extension
numbers for the virtual Hayes, remote menu, remote logger, and loop-back services will always answer
automatically.
ESCAPE SEQUENCE
When there is no communications link established to a remote radio, and AT commands are issued locally
then the radio is in local command state.
When a connection is established to a remote radio, all communications occurs between the DTE’s
connected to the ports on the two radios. This is known as online state. Once a radio enters online state, it
assumes all the data sent to it is to be sent on to the remote radio, so it ignores all AT commands.
Unlike the other commands, there is no AT prefixing the escape sequence, and no carriage return after the
escape sequence. Instead, wait a full second before entering the three characters (default is ‘+’) typed
rapidly, then wait another full second. As soon as the radio returns to local command state, it will respond
with the message OK.
This delay period before and after the escape sequence is called the escape sequence guard time. This allows
the radio to distinguish the escape sequence from the normal flow of user information between radios.
The character used for the escape sequence and the amount of guard time is set in the Hayes command
control menu on page 75. They can also be configured using s-register 2 (page 91) and , s-register 12 (page
91) respectively.
When entering local command state, the connection is not disrupted. In order to return back to online state,
the command ATO is used.
HANGING UP
The ATH command is used to terminate a connection.
After communications has finished enter the escape sequence (+++). The radio responds with an OK
message. Then execute the ATH command and the local radio will respond with OK. The remote radio will
output NO CARRIER as the communications link is lost.
Page 36
Operation
RFI-9256 Radio Modem User Manual Page 36 of 109
DTR CONTROL OF HAYES STATE
The Data Terminal Ready (DTR) input to the radio can be used to control the Hayes dial-up state.
Ignore DTR: The radio does not use the DTR signal to control its connection state.
Hang-up on DTR Low: The radio will hang-up whenever the DTR line is low. If this option is
selected, and DTR is low when a remote radio is dialled then the connection will be terminated the
moment after it is established.
Hang-up on DTR Dropped: The radio will hang-up whenever DTR changes from high to low.
Local on DTR Low: Whenever DTR goes low, the radio will enter local command state. This is the
same as entering the escape sequence.
DIAL-UP NETWORKING WITH BACK-TO-BACK REPEATERS
A Hayes dial-up network can be extended by one or more back-to-back repeaters. In order to establish a dialup connection through a back-to-back repeater, an extension to the dialling system is used:
ATD<repeater0><repeater1>...<repeatern><address><extension><CR>
The address of each repeater to dial through is prefixed before the address of the destination radio and
extension. Thus to dial the auxiliary port of the radio with address 2200 first through repeater 10 and then
through repeater 43 the following dial string would be used:
ATD1043220001<CR>
In order to access the repeater slave’s terminal menu, dial up the menu system as if it were any other slave.
In order to access the repeater master’s terminal menu dial up the main port of the slave (the port that has
been connected through to the master unit), then use the master units AT command interface to bring up the
menu system via the AT? command.
When using back-to-back repeaters in dial-up networks, there are a number of rules that must be observed:
The protocol mode needs to be set as “Dialup Repeater” via the “Radio Configuration Menu”.
The escape character on the repeater master and repeater slave must be set to ‘-‘.
The escape guard time on the repeater master and repeater slave must be set to 200ms.
The main port DTR mode on both the repeater master and repeater slave must be set to “Hang-up
on DTR dropped”.
The local address of the repeater slave and repeater master must both be the same, and must both be
in the range 10-99.
The local address of all non-repeater units must be in the range 1000-9999.
The DTR line is used in the back-to-back repeater wiring harness in order to propagate Hayes hang-up
requests through the network. If this line is not connected there is a possibility that the hang-up request could
get lost and the repeater network lock-up, believing there to be an established connection.
For this reason it is not advised to use dial-up networking through back-to-back repeaters on the auxiliary
port.
Page 37
Operation
RFI-9256 Radio Modem User Manual Page 37 of 109
5.3.4 SCADA Protocols
The RFI-9256 supports SCADA protocol networks in two ways:
Providing a point-to-multipoint broadcast network, where any SCADA packet that is inserted at the
master will be delivered to all slaves, and a SCADA packet inserted into any slave is delivered to
the master. This was covered in section 0.
Providing a point-to-multipoint routing network, where master to slave communications is no
longer broadcast. In this case the RFI-9256 will decode each SCADA protocol packet to extract the
destination address and match it against a radio address.
Routing services are provided for a number of SCADA protocols, specifically:
Modbus
Honeywell
DNP3
TDE
PROTOCOL ROUTING
The protocol decoder for the packet based SCADA protocols extracts the destination remote terminal unit
(RTU) address from the protocol and maps it to a radio address. This routing scheme is shown in Figure 12.
Controller
RFI-9256
Master
Main
RFI-9256
Slave
Addr=1000
RTU
Main
Address
SCADA Data
Fcn
CRC
Table
SCADA
Address
Slave Address
Figure 12: SCADA protocol routing
The SCADA protocol routing table on the RFI-9256 can have four types of entries.
Default route: This route is mostly used by slaves and is a required entry for any slave in a protocol
network. This route only requires the address of the destination radio. This route is used when no
Page 38
Operation
RFI-9256 Radio Modem User Manual Page 38 of 109
other route can be matched in the routing table. On slave units this destination address must always
be the address of the master unit.
Single route: This route explicitly maps a single RTU address to a radio address. If a single route
exists, then it overrides any matching mapped route or range route.
Mapped route: This route maps a relationship between RTU addresses and radio addresses. This is
an efficient method of describing a network providing the RTUs and radios are numbered
sequentially. This route configuration requires an RTU address to be assigned as the base address
for the route and an end RTU address to define the range of addresses to be used by the route. It
also requires a radio address associated with the base RTU address.
The decoder subtracts the RTU base address from each decoded RTU address. This result is then
added to the radio base address. Consider the situation shown in Figure 13.
Controller
RFI-9256
Master
Main
RFI-9256
Slave
Addr=1000
RTU
20
Main
RFI-9256
Slave
Addr=1001
RTU
21
Main
RFI-9256
Slave
Addr=1002
RTU
22
Main
Figure 13: Range routing relationship between radio address and RTU address
From the Figure 13:
The base RTU address is 20.
The end RTU address is 22, therefore the range of RTU addresses is 20, 21 and 22.
The base radio address is 1000 with port extension 00 (main port).
Page 39
Operation
RFI-9256 Radio Modem User Manual Page 39 of 109
When the decoder finds RTU address 21 it subtracts it from the base RTU address, leaving a result
of 1. This is then added to the base radio address of 1000 giving a radio address of 1001 which has
RTU 21 attached.
NOTE: When using the mapped route configuration, the RTUs have to be connected to the same
port which is used by the base radio address.
Range route: This route mode routes any RTU address between a start and end RTU address to a
single radio address.
5.3.5 Mixed Protocol Networks
The RFI-9256 offers dual independent serial ports that can be used for different network configurations. This
allows for any combination of the following network configurations to co-exist in a single radio network.
Point-to-point configurations.
Point-to-multipoint broadcast configurations.
Hayes dial-up configurations.
SCADA protocol configurations.
The most common use for this co-existence is to allow remote monitoring of radios without disrupting the
main data path through the network. This is achieved by configuring the main data path on the main port,
and leaving the auxiliary port on the master unit for Hayes dial-up. Hayes commands can then be used to
connect to the terminal menu of each individual radio in the network.
5.3.6 Network Link and Online Determination
There are two important indications given by the RFI-9256 as to the current network status, network link and
online. These two parameters have different functionality when running in point-to-point, point-tomultipoint broadcast, Hayes dial-up, and SCADA routing modes as shown in Table 11.
Page 40
Operation
RFI-9256 Radio Modem User Manual Page 40 of 109
Mode
Network Link on Master
Online (both Master and Slave)
Point-topoint
LED is On whenever a point-to-point
connection is established with a
slave, and is turned Off when the
point-to-point connection is closed.
In turning Off it waits for 3 x
network link timeout (ms).
While there is no point-to-point link established, the
LED is Off. Once the point-to-point link is
established the LED is set On (green).
If connection is severed, both units will flash the
Online light red every time a packet is dropped due
to running out of retries. This will happen once per
online request poll (defaults to 3 seconds). Once the
network link light is turned red, the online light will
be turned Off.
Point-tomultipoint
Broadcast
Turns green whenever data is
received. Turns Off again after no
data has been received for 3 x
network link timeout (ms).
Turns green whenever data is received. Turns Off
after a short period with no data.
Hayes
Dial-up
LED is On whenever a dial-up
connection is established with the
slave, is turned Off when the dial-up
connection is closed. In turning Off it
waits for 3 x network link timeout
(ms).
While there is no dial-up connection, the LED is
Off. Once the dial-up connection is established, the
LED is set On (green).
If connection is severed, the dialler (source of the
connection) will flash the Online light red every
time a packet is dropped due to running out of
retries. This will happen (in the absence of data)
once per online request poll. Once the network link
LED is turned red, the online light will turn black.
The receiver (destination) will turn its online light
Off immediately upon losing the first online request
from the dialler.
SCADA
protocol
networks
Turns green whenever data is
received. Turns Off again after no
data has been received for 3 x
network link timeout (ms).
Turns green whenever data is received. Turns Off
after a short period with no data.
Table 11: Network link and online functionality in different protocol modes
Network link always functions the same way on the slave unit, regardless of protocol mode. On a slave
network link comes on whenever the slave has successfully locked with a master radio and is hopping with
it. It will be turned off after the time specified 2 x network link timeout (ms) passes without the slave
receiving its master's transmission.
When a serial port output (DCD or CTS) has been configured to follow online or follow network link, the
output will be high so long as online or network link is red or green. Once online or network link goes black
the serial port output will go low.
Page 41
Operation
RFI-9256 Radio Modem User Manual Page 41 of 109
5.4 Auxiliary I/O
The RFI-9256 provides eight auxiliary digital I/Os. Refer to Appendix A.3 for individual pin assignments
and electrical specifications.
Each I/O can be individually configured as an input or output. The outputs can have a default state when
power is applied before a connection is established to a remote radio. See appendix B.4.2 on page 81 for
details.
If the outputs are to be used to drive a load, an external module should be used to condition the outputs
should be used. Refer to Appendix A.6 for example circuit schematics.
5.4.1 Input Sampling
All digital inputs are sampled at a fixed interval that may also be configured. The smaller the sample interval
the faster changes will be propagated across the radio network. However if a lot of changes occur to the
digital I/Os in rapid succession this can generate a large amount of traffic that may adversely affect serial
port data throughput.
5.4.2 I/O Routing
The I/Os can be mirrored across a radio network.
I/Os are routed transparently on point-to-point or Hayes dial-up links. When a point-to-point link is used and
remote I/O is enabled, each output on a unit will be set to the current state of the input on the other unit. For
this reason it is important to ensure that the outputs on one unit are matched with inputs on the other unit.
When Hayes dial-up is used, the I/Os will be mirrored so long as a connection is established. When the
connection is closed the I/Os will be held at the last known value.
Page 42
Applications
RFI-9256 Radio Modem User Manual Page 42 of 109
6. Applications
6.1 Basic Point-to-point Network
A basic point to point network is shown in Figure 14.
RFI-9256
Master
RFI-9256
Slave
Main
DTE
Main
DTE
RADIO CONFIGURATION
Unit is a SLAVE
Network Address: 12
Hopping Pattern: 4
Rx Address: 2000
PROTOCOL CONFIGURATION
Main Port: Point-to-point to 1000
SERIAL CONFIGURATION
Main Port: 115200, 8N1, Hardware Flow
RADIO CONFIGURATION
Unit is a MASTER
Network Address: 12
Hopping Pattern: 4
Rx Address: 1000
PROTOCOL CONFIGURATION
Main Port: Point-to-point to 2000
SERIAL CONFIGURATION
Main Port: 115200, 8N1, Hardware Flow
Figure 14: Basic point-to-point network
A single master unit and a single slave unit are configured such that:
The have the same hopping pattern, network address, and security code.
The master and slave have different local addresses.
Both the master and slave have the point-to-point protocol selected on their main serial port.
The point-to-point destination address on the slave is set to the master’s local address, while the
point-to-point destination address on the master is set to the slave’s local address.
6.2 Simplex Point-to-point Network
A simplex point-to-point network is the same as a basic point-to-point network, except that user data is only
going to flow in a single direction. This situation is shown in Figure 15, where user data is only flowing
from the slave to the master unit.
RFI-9256
Master
RFI-9256
Slave
Main
DTE
Main
DTE
RADIO CONFIGURATION
Unit is a SLAVE
Network Address: 21
Hopping Pattern: 7
Rx Address: 2000
Directional Bias: Outgoing
PROTOCOL CONFIGURATION
Main Port: Point-to-point to 1000
SERIAL CONFIGURATION
Main Port: 115200, 8N1, Hardware Flow
RADIO CONFIGURATION
Unit is a MASTER
Network Address: 21
Hopping Pattern: 7
Rx Address: 1000
Directional Bias: Incoming
PROTOCOL CONFIGURATION
Main Port: Point-to-point to 2000
SERIAL CONFIGURATION
Main Port: 115200, 8N1, Hardware Flow
Page 43
Applications
RFI-9256 Radio Modem User Manual Page 43 of 109
Figure 15: Simplex point-to-point network
Even though user data is only flowing in one direction, there is data being transmitted from the master to the
slave in the form of acknowledgments for each packet received.
The simplex point-to-point network has the same configuration as the basic point-to-point network, except
that now the slave is configured with an outgoing directional bias and the master is configured with an
incoming directional bias.
6.3 Multiple Slave Point-to-point Network
The multiple slave point-to-point network can be expanded to allow two slave units to be connected to a
single master using point-to-point links. This configuration is shown in Figure 16.
RFI-9256
Master
RFI-9256
Slave 1
Main
DTE1
Main
DTE1
RADIO CONFIGURATION
Unit is a SLAVE
Network Address: 54
Hopping Pattern: 18
Rx Address: 2000
PROTOCOL CONFIGURATION
Main Port: Point-to-point to 1000
SERIAL CONFIGURATION
Main Port: 115200, 8N1, Hardware Flow
RADIO CONFIGURATION
Unit is a MASTER
Network Address: 54
Hopping Pattern: 18
Rx Address: 1000
PROTOCOL CONFIGURATION
Main Port: Point-to-point to 2000
Aux Port: Point-to-point to 3000
SERIAL CONFIGURATION
Main Port: 115200, 8N1, Hardware Flow
Aux Port: 9600, 8N1, No Flow
RFI-9256
Slave 2
Aux
DTE2
RADIO CONFIGURATION
Unit is a SLAVE
Network Address: 54
Hopping Pattern: 18
Rx Address: 3000
PROTOCOL CONFIGURATION
Aux Port: Point-to-point to 1000
SERIAL CONFIGURATION
Aux Port: 9600, 8N1, No Flow
Aux
DTE2

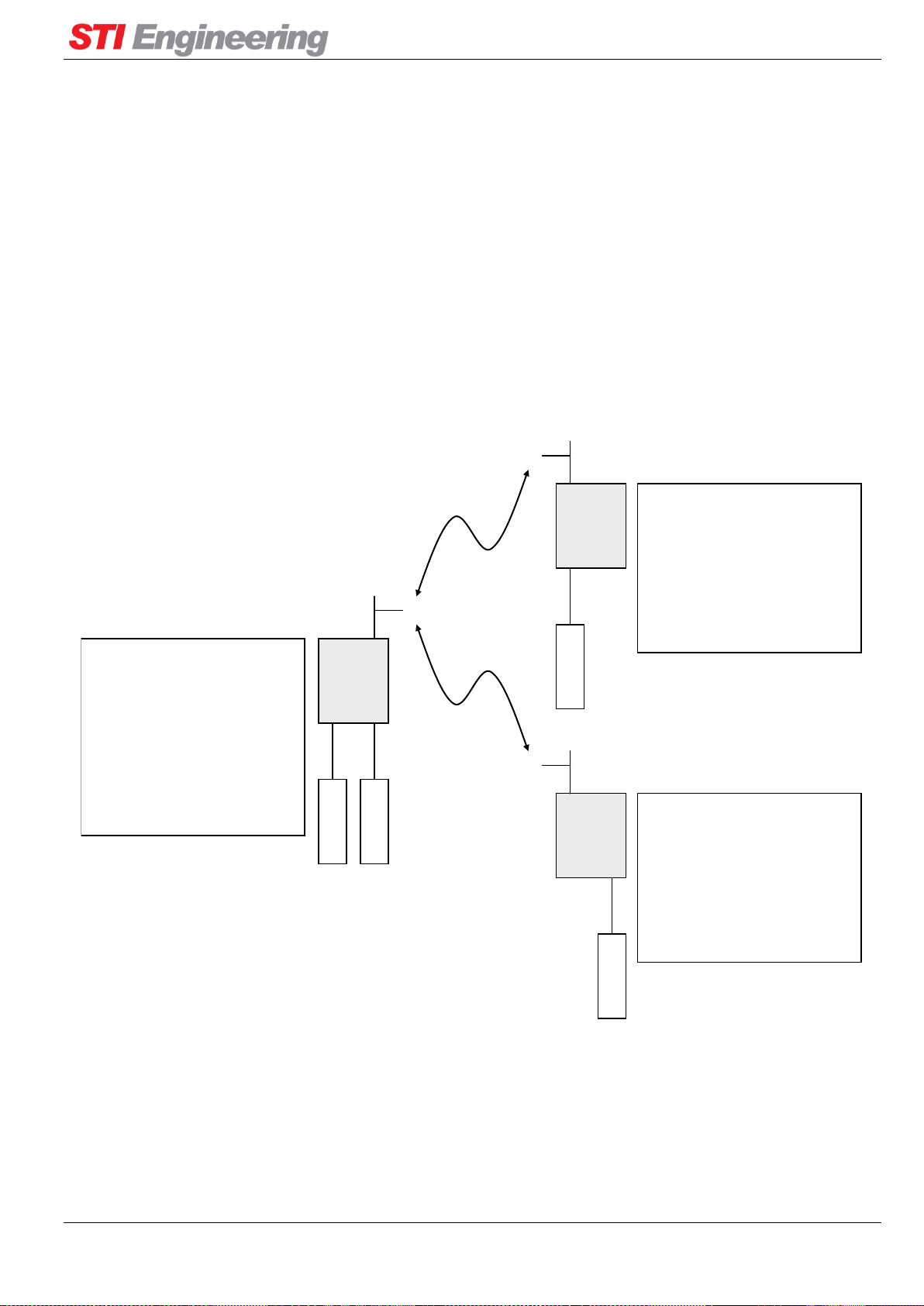

Figure 16: Multiple slave point-to-point network
In this scenario, the radios are configured in the same way as for the basic point-to-point network, however
now the auxiliary port must be configured in point-to-point mode and given the destination address as the
address of slave 2. This allows all data transmitted on DTE1 on the master to be received by DTE1 on slave
Page 44
Applications
RFI-9256 Radio Modem User Manual Page 44 of 109
1, and vice versa. At the same time all data transmitted by DTE2 on the master will appear at DTE2 on slave
2 and vice versa.
Page 45
Applications
RFI-9256 Radio Modem User Manual Page 45 of 109
6.4 Point-to-point Network with Back-to-back Repeaters
The final point-to-point configuration involves the addition of one or more back-to-back repeaters. Back-toback repeaters can be used to extend the range of an RFI-9256 based network.
The basic network set-up for back-to-back repeaters in point-to-point links is shown in Figure 17.
Back-to-back Repeater
RFI-9256
Master1
RFI-9256
Repeater
Slave1
Main
DTE1
Main
DTE1
RADIO CONFIGURATION
Unit is a SLAVE
Network Address: 1
Hopping Pattern: 20
Rx Address: 20
PROTOCOL CONFIGURATION
Main Port: Point-to-point to 1000
Aux Port: Point-to-point to 1000
SERIAL CONFIGURATION
Main Port: 115200, 8N1, Hardware Flow
Aux Port: 115200, 8N1, No Flow
RADIO CONFIGURATION
Unit is a MASTER
Network Address: 1
Hopping Pattern: 20
Rx Address: 1000
PROTOCOL CONFIGURATION
Main Port: Point-to-point to 20
Aux Port: Point-to-point to 20
SERIAL CONFIGURATION
Main Port: 115200, 8N1, Hardware Flow
Aux Port: 115200, 8N1, No Flow
RFI-9256
Repeater
Master2
RFI-9256
Slave2
Aux
DTE2
RADIO CONFIGURATION
Unit is a SLAVE
Network Address: 1
Hopping Pattern: 30
Rx Address: 3000
PROTOCOL CONFIGURATION
Aux Port: Point-to-point to 20
SERIAL CONFIGURATION
Aux Port: 115200, 8N1, No Flow
Aux Null Modem Cable
RADIO CONFIGURATION
Unit is a MASTER
Network Address: 1
Hopping Pattern: 30
Rx Address: 20
PROTOCOL CONFIGURATION
Aux Port: Point-to-point to 3000
SERIAL CONFIGURATION
Aux Port: 115200, 8N1, No Flow
Aux
DTE2

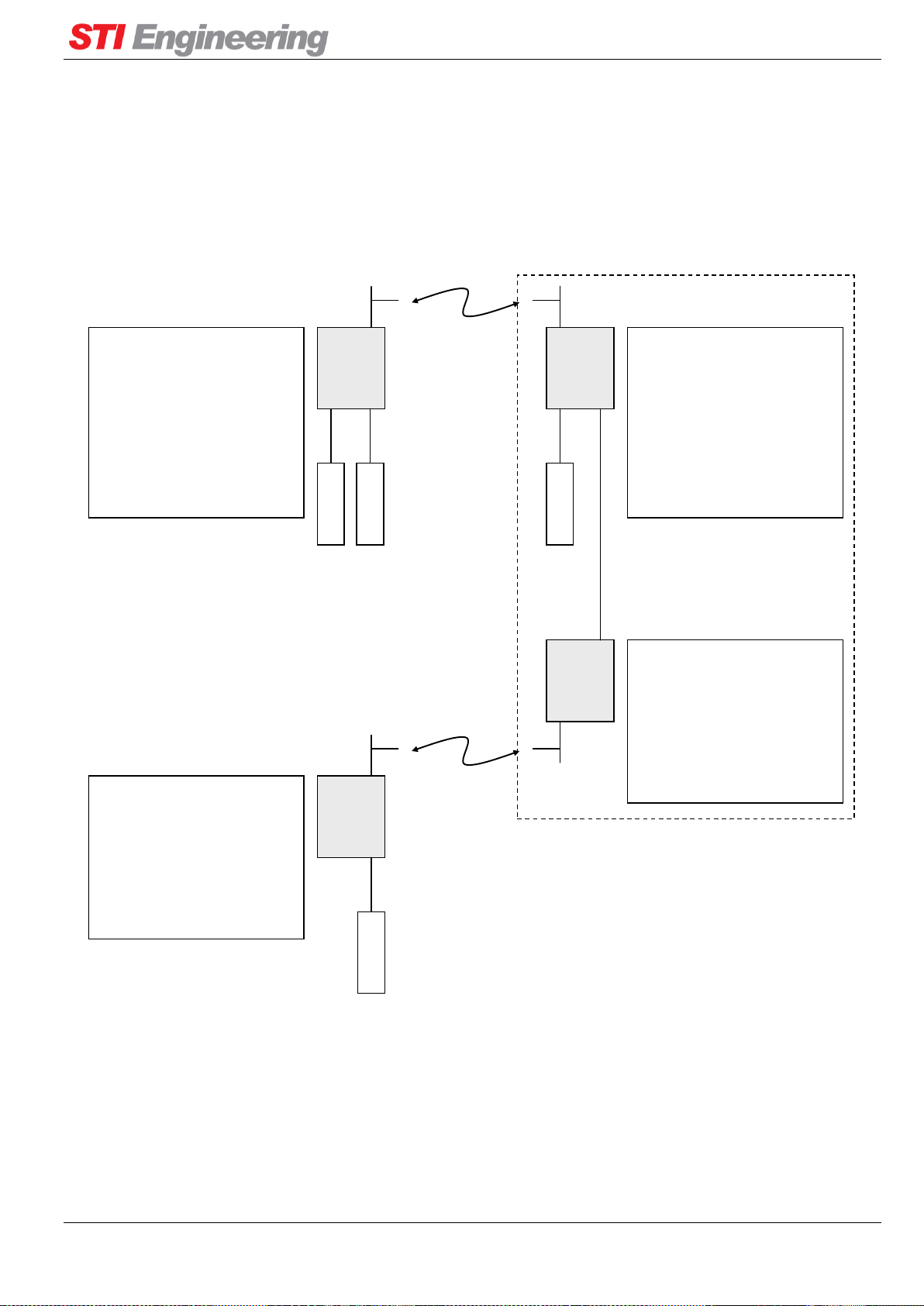

Figure 17: Point-to-point network with a back-to-back repeater
In this scenario, the master 1 and slave 1 form the first network. A point-to-point connection is established
between both main and auxiliary ports of these two units. Data transmitted by DTE1 on master 1 will be
received on DTE1 of slave 1. Data transmitted by DTE2 on master 1 will be received by slave 1, and passed
to master 2 via a null modem cable linking the two auxiliary ports. This data is then re-transmitted to slave 2,
which outputs the received data on its auxiliary port.
Page 46
Applications
RFI-9256 Radio Modem User Manual Page 46 of 109
6.5 Broadcast Network
The basic configuration for point-to-multipoint broadcast networks is shown in Figure 18.
RFI-9256
Master
RFI-9256
Slave 1
Main
DTE
Main
DTE
RADIO CONFIGURATION
Unit is a MASTER
Network Address: 16
Hopping Pattern: 27
Rx Address: 1000
PROTOCOL CONFIGURATION
Main Port: Broadcast
Main Port ARQ: 5
SERIAL CONFIGURATION
Main Port: 115200, 8N1, Hardware Flow
RFI-9256
Slave 2
Main
DTE
RADIO CONFIGURATION
Unit is a SLAVE
Network Address: 16
Hopping Pattern: 27
Rx Address: 1001
PROTOCOL CONFIGURATION
Main Port: Broadcast
Main Port ARQ: 20
SERIAL CONFIGURATION
Main Port: 115200, 8N1, Hardware Flow
RADIO CONFIGURATION
Unit is a SLAVE
Network Address: 16
Hopping Pattern: 27
Rx Address: 1002
PROTOCOL CONFIGURATION
Main Port: Broadcast
Main Port ARQ: 20
SERIAL CONFIGURATION
Main Port: 115200, 8N1, Hardware Flow

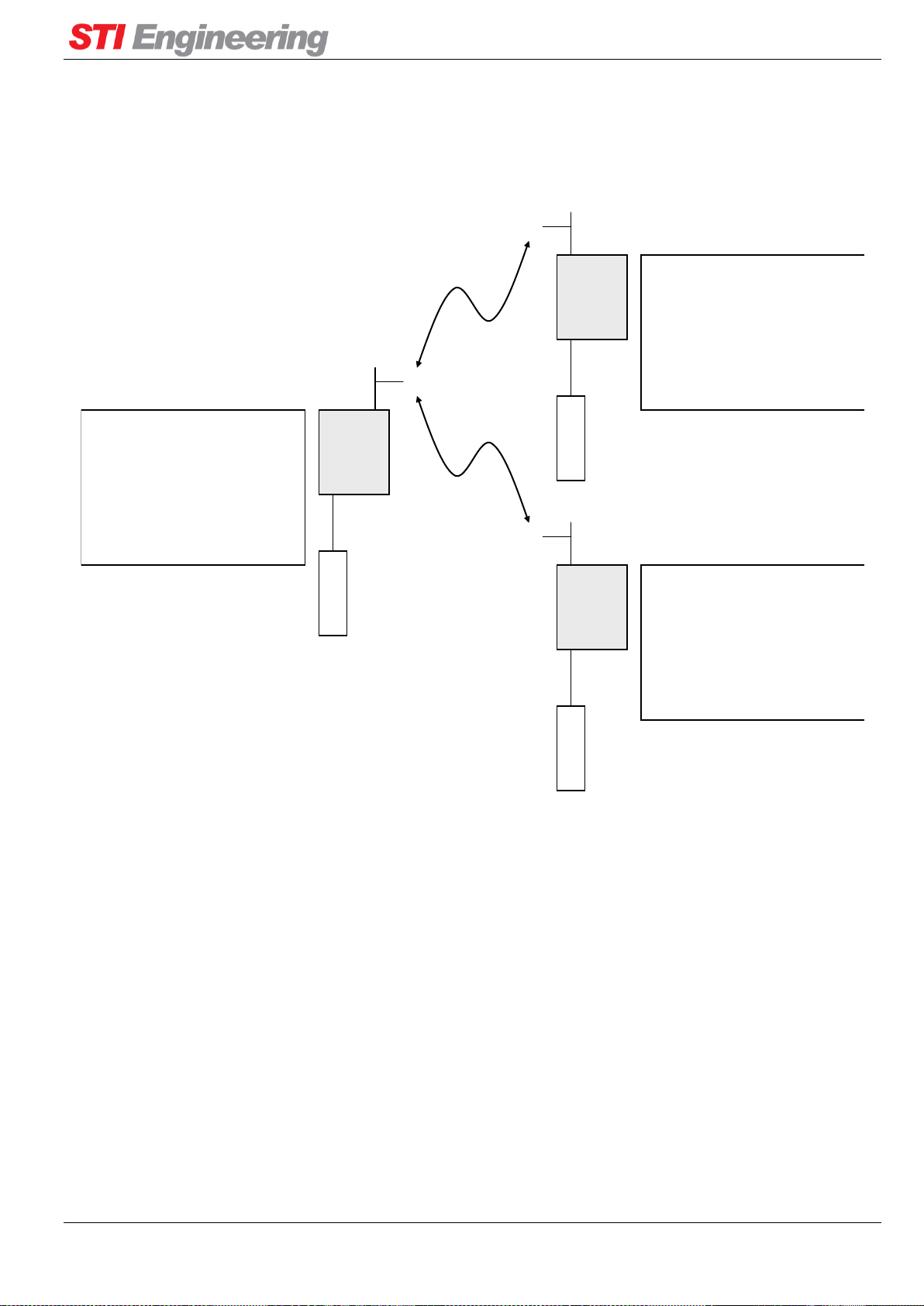

Figure 18: Broadcast network
The master and all the slaves must be configured such that:
They have the same hopping pattern, network address, and security code.
Both the master and slave have the broadcast protocol selected on their main serial port.
Page 47
Applications
RFI-9256 Radio Modem User Manual Page 47 of 109
6.6 Broadcast Network with Back-to-back Repeaters
Back-to-back repeaters can be used in point-to-multipoint broadcast networks to extend the network range.
This scenario is shown in Figure 19.
Back-to-back Repeater
RFI-9256
Master 1
RFI-9256
Repeater
Slave 1
Main
DTE
RADIO CONFIGURATION
Unit is a SLAVE
Network Address: 43
Hopping Pattern: 14
Rx Address: 20
PROTOCOL CONFIGURATION
Main Port: Broadcast
Main Port ARQ: 20
SERIAL CONFIGURATION
Main Port: 115200, 8N1, Hardware Flow
RADIO CONFIGURATION
Unit is a MASTER
Network Address: 43
Hopping Pattern: 14
Rx Address: 1000
PROTOCOL CONFIGURATION
Main Port: Broadcast
Main Port ARQ: 5
SERIAL CONFIGURATION
Main Port: 115200, 8N1, Hardware Flow
RFI-9256
Repeater
Master 2
RFI-9256
Slave 2
Main
DTE
RADIO CONFIGURATION
Unit is a SLAVE
Network Address: 43
Hopping Pattern: 15
Rx Address: 3000
PROTOCOL CONFIGURATION
Main Port: Broadcast
Main Port ARQ: 20
SERIAL CONFIGURATION
Main Port: 115200, 8N1, Hardware Flow
Main Null Modem Cable
RADIO CONFIGURATION
Unit is a MASTER
Network Address: 43
Hopping Pattern: 15
Rx Address: 20
PROTOCOL CONFIGURATION
Main Port: Broadcast
Main Port ARQ: 5
SERIAL CONFIGURATION
Main Port: 115200, 8N1, Hardware Flow
RFI-9256
Slave 3
RADIO CONFIGURATION
Unit is a SLAVE
Network Address: 43
Hopping Pattern: 14
Rx Address: 1001
PROTOCOL CONFIGURATION
Main Port: Broadcast
Main Port ARQ: 20
SERIAL CONFIGURATION
Main Port: 115200, 8N1, Hardware Flow
Main
DTE

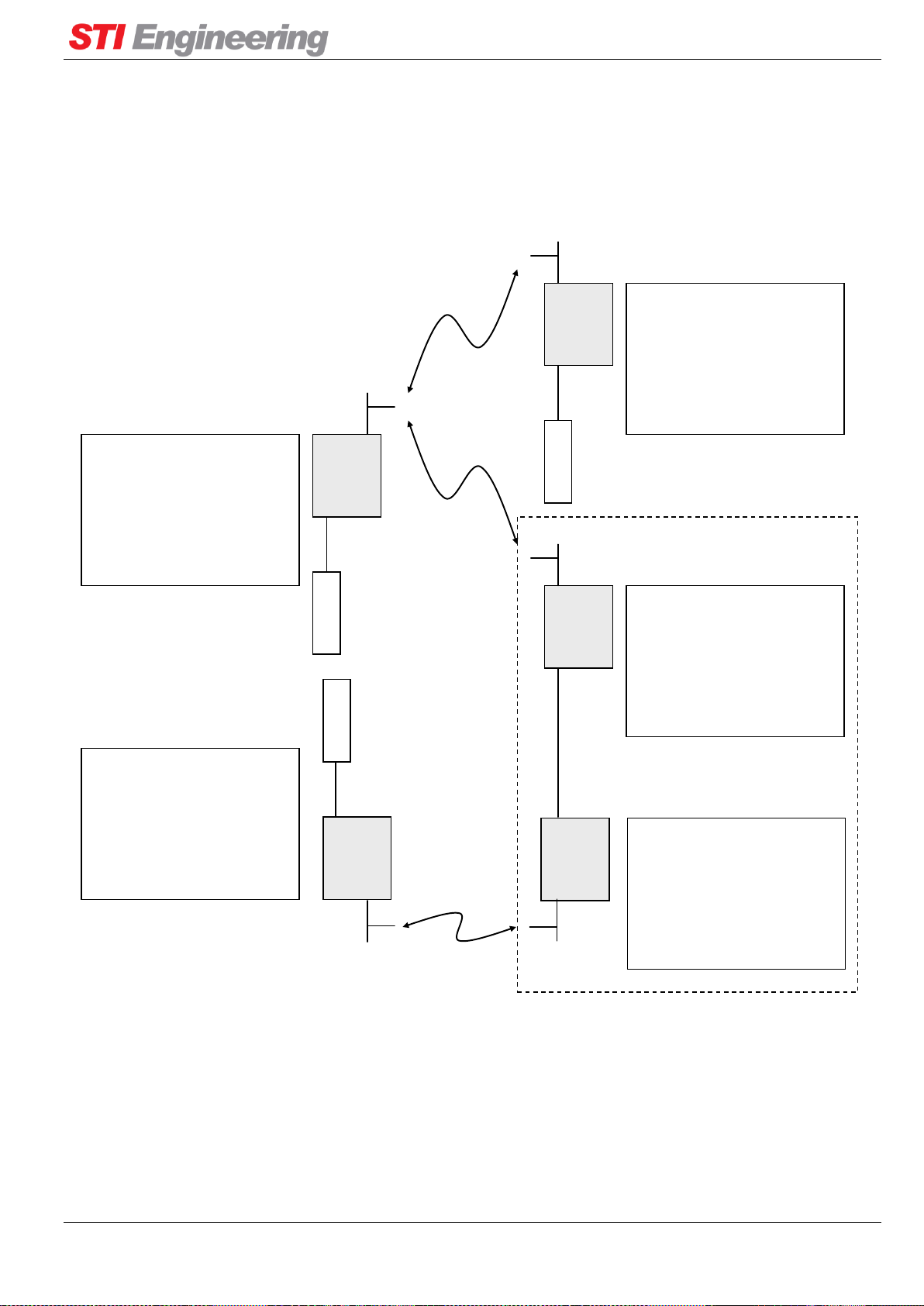

Figure 19: Point-to-multipoint broadcast network with three destinations and a back-to-back repeater
Each segment of the network consists of a master that is either connected to a DTE or to a slave that is on
another segment of the network. The transmissions from master 1 will be output on the main port of slave 1,
and thus be re-transmitted by master 2. In a similar fashion data received by master 2 will be output on its
main port and thus retransmitted by slave 1 back to master 1.
Page 48
Applications
RFI-9256 Radio Modem User Manual Page 48 of 109
6.7 Hayes Dial-up Networking
The simplest form of Hayes dial-up networking is shown in Figure 20.
RFI-9256
Master
RFI-9256
Slave 1
Main
DTE
Main
DTE
RADIO CONFIGURATION
Unit is a MASTER
Network Address: 19
Hopping Pattern: 3
Local Address: 1000
PROTOCOL CONFIGURATION
Main Port: Hayes Dial-up
SERIAL CONFIGURATION
Main Port: 115200, 8N1, Hardware Flow
RFI-9256
Slave 2
Main
DTE
RADIO CONFIGURATION
Unit is a SLAVE
Network Address: 19
Hopping Pattern: 3
Local Address: 2000
PROTOCOL CONFIGURATION
Main Port: Hayes Dial-up
SERIAL CONFIGURATION
Main Port: 115200, 8N1, Hardware Flow
RADIO CONFIGURATION
Unit is a SLAVE
Network Address: 19
Hopping Pattern: 3
Local Address: 3000
PROTOCOL CONFIGURATION
Main Port: Hayes Dial-up
SERIAL CONFIGURATION
Main Port: 115200, 8N1, Hardware Flow

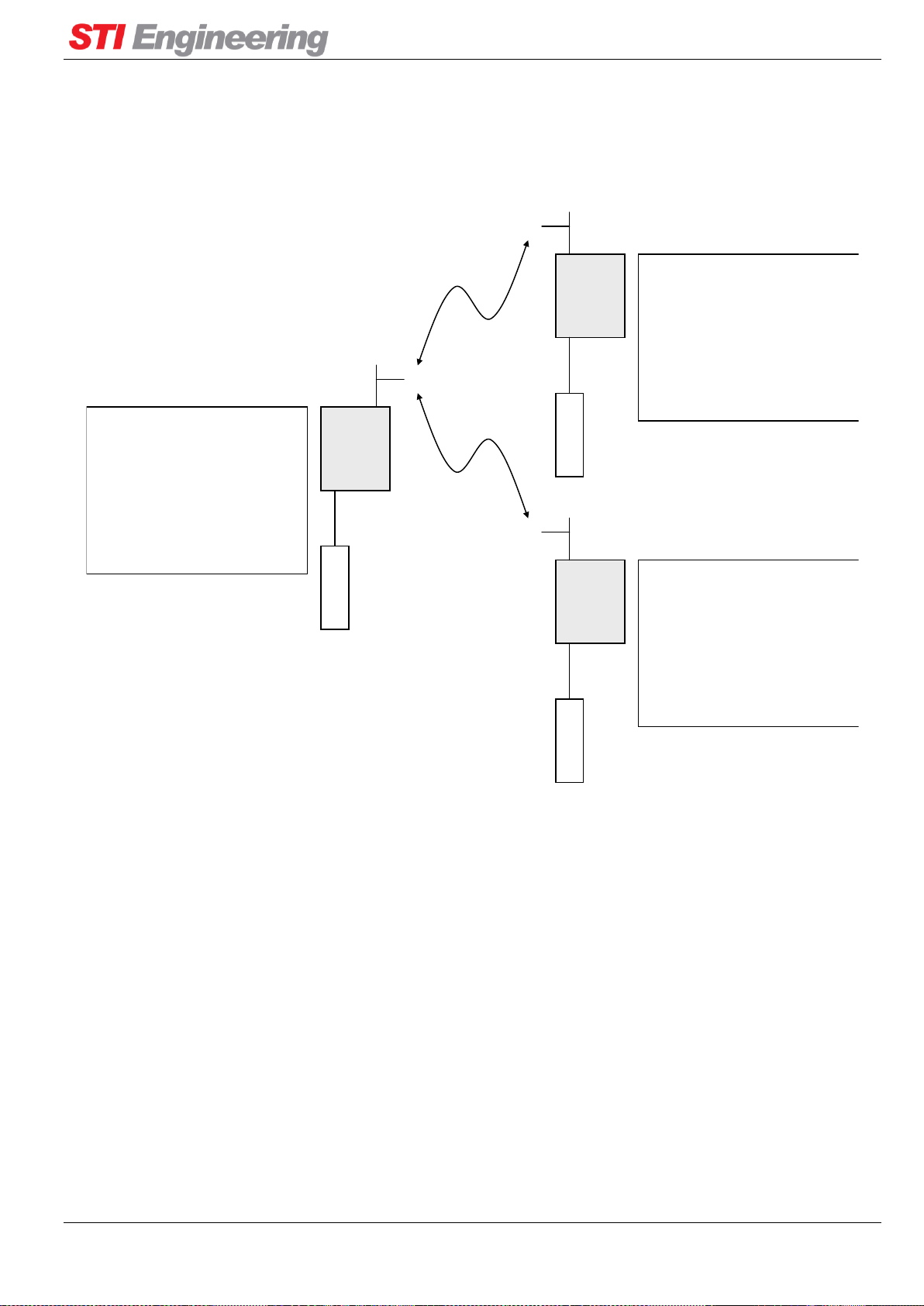

Figure 20: Hayes dial-up network
A single master unit can dial either slave 1 or slave 2. Either slave can dial the master unit.
Example dial strings from the master are:
ATD200001<CR>: Dial the auxiliary port of slave 1 (address 2000, extension 01).
ATD300092<CR>: Dials the internal menu system of slave 2 (address 3000, extension 92).
An example dial string from slave 1 is:
ATD 100000<CR>: Dial the main port of the master (address 1000, extension 00).
For more information on the Hayes dial-up protocol and connection management, see section 5.3.3 on page
34.
Page 49
Applications
RFI-9256 Radio Modem User Manual Page 49 of 109
6.8 Dial-up Networking with Back-to-back Repeaters
A Hayes dial-up network can be extended by one or more back-to-back repeaters. Figure 21 shows a Hayes
dial-up network where a single back-to-back repeater has been used to extend coverage.
RFI-9256
Master
RFI-9256
Repeater
Slave
Main
DTE
RADIO CONFIGURATION
Unit is a SLAVE
Network Address: 35
Hopping Pattern: 5
Local Address: 30
PROTOCOL CONFIGURATION
Main Port: Hayes Dial-up
Main Escape Char: ‘-‘
Main Escape Guard Time: 200ms
Main DTR: Hang-up on DTR Dropped
SERIAL CONFIGURATION
Main Port: 115200, 8N1, Hardware Flow
RADIO CONFIGURATION
Unit is a MASTER
Network Address: 35
Hopping Pattern: 5
Local Address: 1000
PROTOCOL CONFIGURATION
Main Port: Hayes Dial-up
SERIAL CONFIGURATION
Main Port: 115200, 8N1, Hardware Flow
RFI-9256
Repeater
Master
RFI-9256
Slave 3
RADIO CONFIGURATION
Unit is a SLAVE
Network Address: 35
Hopping Pattern: 6
Local Address: 5000
PROTOCOL CONFIGURATION
Main Port: Hayes Dial-up
SERIAL CONFIGURATION
Main Port: 115200, 8N1, Hardware Flow
Main Null Modem Cable
Back-to-back Repeater
RADIO CONFIGURATION
Unit is a MASTER
Network Address: 35
Hopping Pattern: 6
Local Address: 30
PROTOCOL CONFIGURATION
Main Port: Hayes Dial-up
Main Escape Char: ‘-‘
Main Escape Guard Time: 200ms
Main DTR: Hang-up on DTR Dropped
SERIAL CONFIGURATION
Main Port: 115200, 8N1, Hardware Flow
RFI-9256
Slave 1
RADIO CONFIGURATION
Unit is a SLAVE
Network Address: 35
Hopping Pattern: 5
Local Address: 2000
PROTOCOL CONFIGURATION
Main Port: Hayes Dial-up
SERIAL CONFIGURATION
Main Port: 115200, 8N1, Hardware Flow
Main
DTE
RFI-9256
Slave 2
RADIO CONFIGURATION
Unit is a SLAVE
Network Address: 35
Hopping Pattern: 6
Local Address: 4000
PROTOCOL CONFIGURATION
Main Port: Hayes Dial-up
SERIAL CONFIGURATION
Main Port: 115200, 8N1, Hardware Flow
Main
DTE
Main
DTE

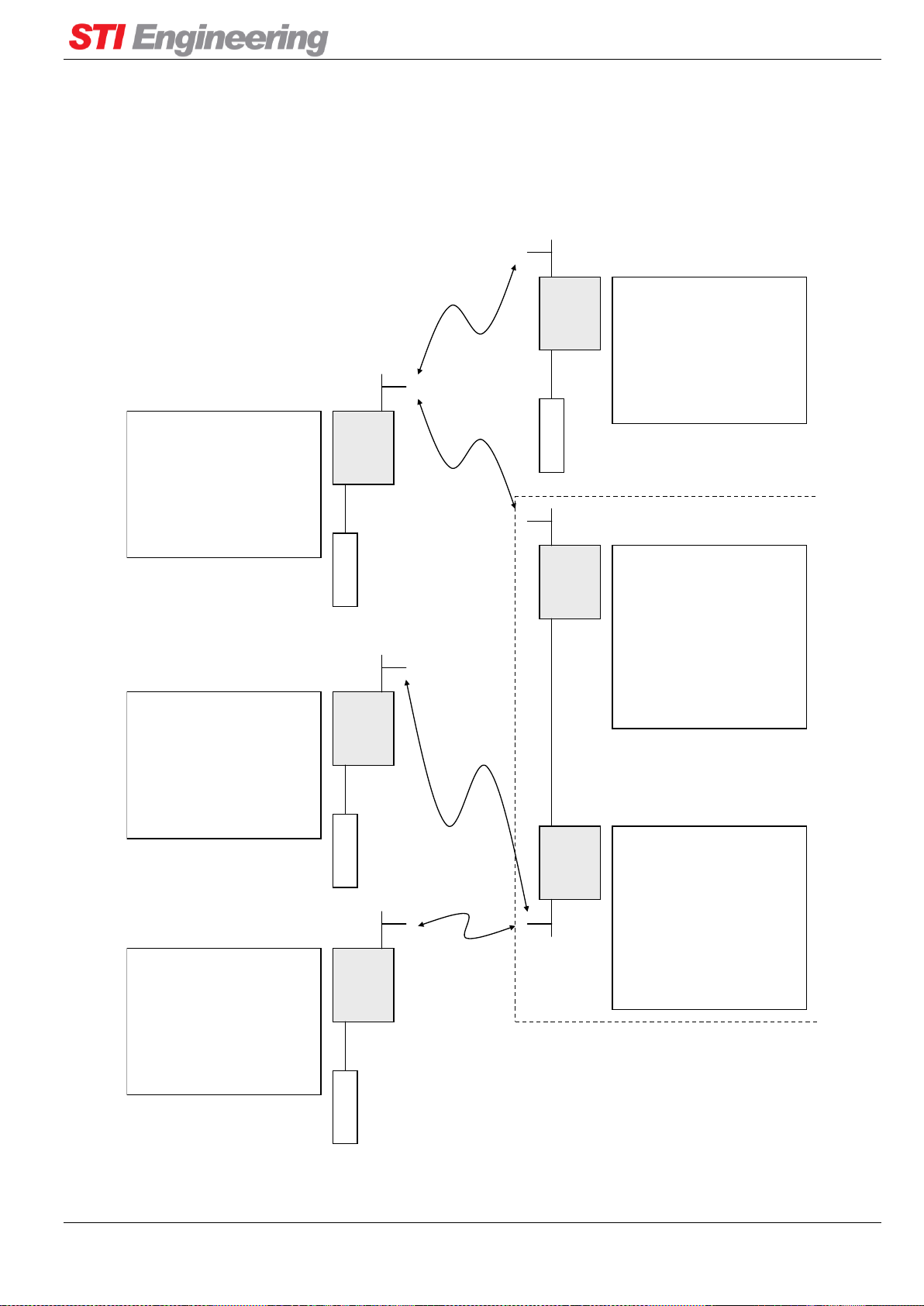

Figure 21: Hayes dial-up network with three destinations and a back-to-back repeater
Page 50
Applications
RFI-9256 Radio Modem User Manual Page 50 of 109
When configuring the two back-to-back repeater radios, the protocol mode needs to be set as “Dialup
Repeater” via the “Radio Configuration Menu”. All other setting can be configured via their respective
menus.
In order to establish a dial-up connection through a back-to-back repeater, an extension to the dialling
system is used. When dialling from the master unit in Figure 21, the following dial strings are used:
ATD30400000<CR>: Establishes a dial-up connection between the master and slave with address
4000 (slave 2) main ports through the back-to-back repeater with address 30.
ATD30500092<CR>: Establishes a dial-up connection between the master and the remote menu
system on the slave with address 5000 (slave 3) through the back-to-back repeater 30.
ATD200001<CR>: Establish a connection with the auxiliary port of slave 1. As there is no back-to-
back repeater involved in the connection the format does not need a preceding repeater address
number.
ATD3092<CR>: Establishes a dial-up connection from the master to the dial-up repeater slave unit’s
remote menu system.
ATD3000<CR>: Establishes a dial-up connection from the master to the main port of the repeater
slave unit. This will in effect put the master radio in communications with the Hayes AT command
mode on the repeater master unit.
These last two dial strings illustrate how to access the terminal menu on either of the back-to-back repeater
units. In order to access the repeater slave’s terminal menu, dial up the menu system as if it were any other
slave. In order to access the repeater master’s terminal menu dial up the main port of the slave (the port that
has been connected through to the master unit), then use the master units AT command interface to bring up
the menu system via the AT? command.
For more information on the Hayes dial-up protocol and connection management, see section 5.3.3 on page
34.
Page 51
Applications
RFI-9256 Radio Modem User Manual Page 51 of 109
6.9 SCADA Network with Routing Table
A simple SCADA network using a routing table is shown in Figure 22.
RFI-9256
Master
RFI-9256
Slave 1
Main
Aux
RADIO CONFIGURATION
Unit is a MASTER
Network Address: 1
Hopping Pattern: 25
Local Address: 1000
PROTOCOL CONFIGURATION
Main Port: Modbus
Single Route: 71 -> 2000:01
Mapped Route: 55-56 -> 3001:00
SERIAL CONFIGURATION
Main Port: 9600, 8O1, No Flow
RFI-9256
Slave 2
Main
RADIO CONFIGURATION
Unit is a SLAVE
Network Address: 1
Hopping Pattern: 25
Local Address: 2000
PROTOCOL CONFIGURATION
Aux Port: Modbus
Default Route: 1000:00
SERIAL CONFIGURATION
Aux Port: 9600, 8O1, No Flow
RADIO CONFIGURATION
Unit is a SLAVE
Network Address: 1
Hopping Pattern: 25
Local Address: 3001
PROTOCOL CONFIGURATION
Main Port: Modbus
Default Route: 1000:00
SERIAL CONFIGURATION
Main Port: 9600, 8O1, No Flow
RFI-9256
Slave 3
Main
RADIO CONFIGURATION
Unit is a SLAVE
Network Address: 1
Hopping Pattern: 25
Local Address: 3002
PROTOCOL CONFIGURATION
Main Port: Modbus
Default Route: 1000:00
SERIAL CONFIGURATION
Main Port: 9600, 8O1, No Flow
RTU
MASTER
RTU 71
RTU 55
RTU 56

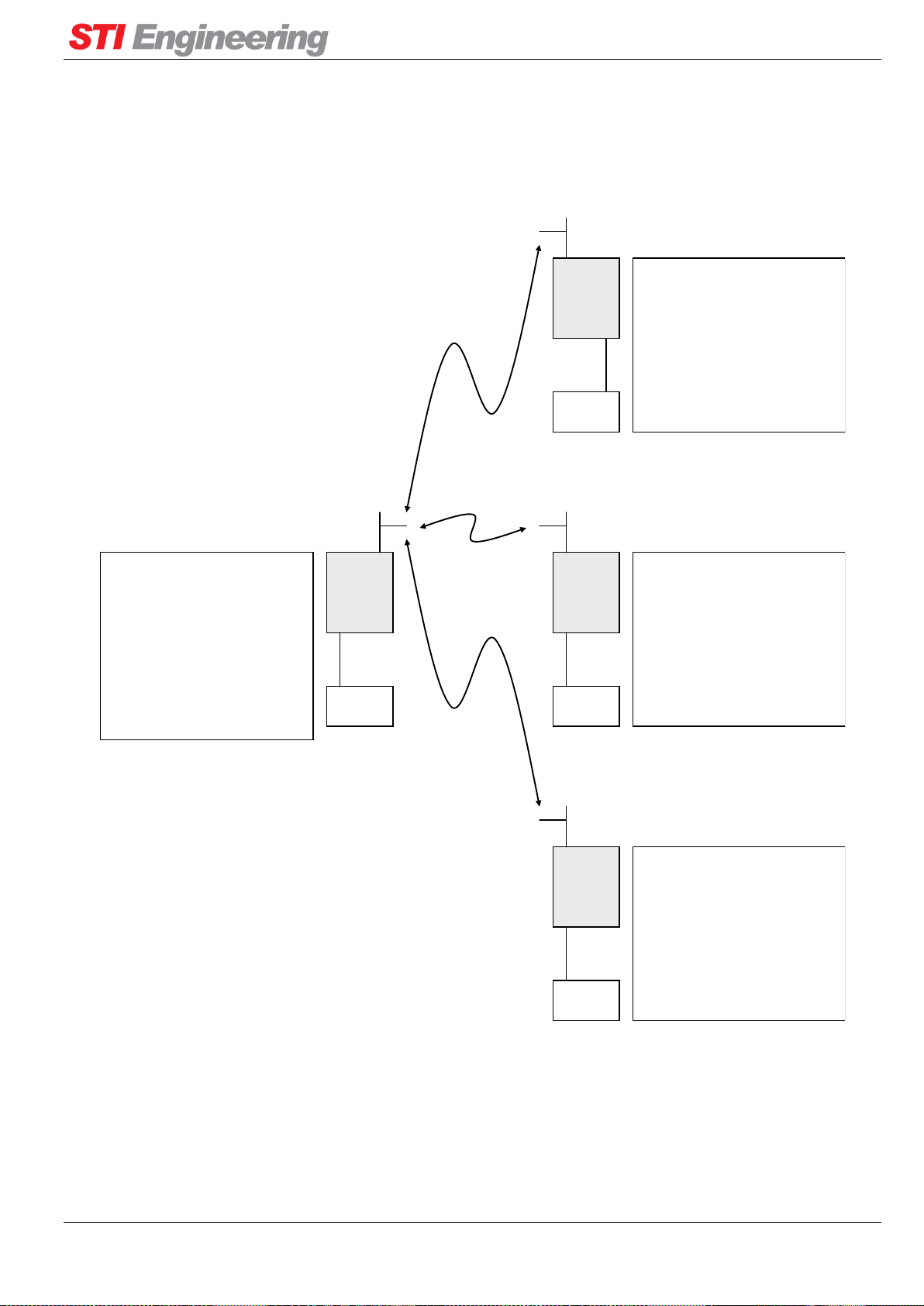

Figure 22: SCADA network with routing table
In all SCADA routing networks, data travels from the master to one of the slaves, or from one of the slaves
to the master. The slaves each require a default route with the master units address.
The routing table for the master is Table 12.
Page 52
Applications
RFI-9256 Radio Modem User Manual Page 52 of 109
Route Type
RTU Address
Radio Address
Single Route
71
2000:01
Mapped Route
55-56
3001:00
Table 12: Master SCADA routing table
There are two routes used in this network. The first route is a single route that links RTU address 71 to radio
address 2000:01. All traffic with an RTU destination of 71 will be routed to the auxiliary port of the slave
with address 2000 (slave 1).
The second route is a mapped route that links RTU addresses 55 and 56 to radio addresses 3001:00 to
3002:00. This means that traffic destined for an RTU with an address in the range 55-56 will be routed to the
main port of the slave with address 3001 + RTU Address – 55.
All slave units have the same routing table, shown in Table 13.
Route Type
RTU Address
Radio Address
Default Route
N/A
1000:00
Table 13: Slave SCADA routing table
6.10 SCADA Network with a Back-to-back Repeater
SCADA networks can use back-to-back repeaters in order to extend the network coverage. This scenario is
shown in Figure 23.
Page 53
Applications
RFI-9256 Radio Modem User Manual Page 53 of 109
Back-to-back Repeater
RFI-9256
Master 1
RFI-9256
Repeater
Slave 2
Main
RADIO CONFIGURATION
Unit is a SLAVE
Network Address: 12
Hopping Pattern: 8
Local Address: 30
PROTOCOL CONFIGURATION
Main Port: Modbus
Default Route: 1000:00
SERIAL CONFIGURATION
Main Port: 9600, 8O1, No Flow
RADIO CONFIGURATION
Unit is a MASTER
Network Address: 12
Hopping Pattern: 8
Local Address: 1000
PROTOCOL CONFIGURATION
Main Port: Modbus
Single Route: 21 -> 2000:00
Range Route: 40-41 -> 30:00
SERIAL CONFIGURATION
Main Port: 9600, 8O1, No Flow
RFI-9256
Repeater
Master 2
RFI-9256
Slave 4
RADIO CONFIGURATION
Unit is a SLAVE
Network Address: 12
Hopping Pattern: 9
Local Address: 4008
PROTOCOL CONFIGURATION
Main Port: Modbus
Default Route: 30:00
SERIAL CONFIGURATION
Main Port: 9600, 8O1, No Flow
Main Null Modem Cable
RADIO CONFIGURATION
Unit is a MASTER
Network Address: 12
Hopping Pattern: 9
Local Address: 30
PROTOCOL CONFIGURATION
Main Port: Modbus
Mapped Route: 40-41 -> 4007:00
SERIAL CONFIGURATION
Main Port: 9600, 8O1, No Flow
RFI-9256
Slave 1
RADIO CONFIGURATION
Unit is a SLAVE
Network Address: 12
Hopping Pattern: 8
Local Address: 2000
PROTOCOL CONFIGURATION
Main Port: Modbus
Default Route: 1000:00
SERIAL CONFIGURATION
Main Port: 9600, 8O1, No Flow
Main
RFI-9256
Slave 3
RADIO CONFIGURATION
Unit is a SLAVE
Network Address: 12
Hopping Pattern: 9
Local Address: 4007
PROTOCOL CONFIGURATION
Main Port: Modbus
Default Route: 30:00
SERIAL CONFIGURATION
Main Port: 9600, 8O1, No Flow
Main
Main
RTU
MASTER
RTU 21
RTU 40
RTU 41

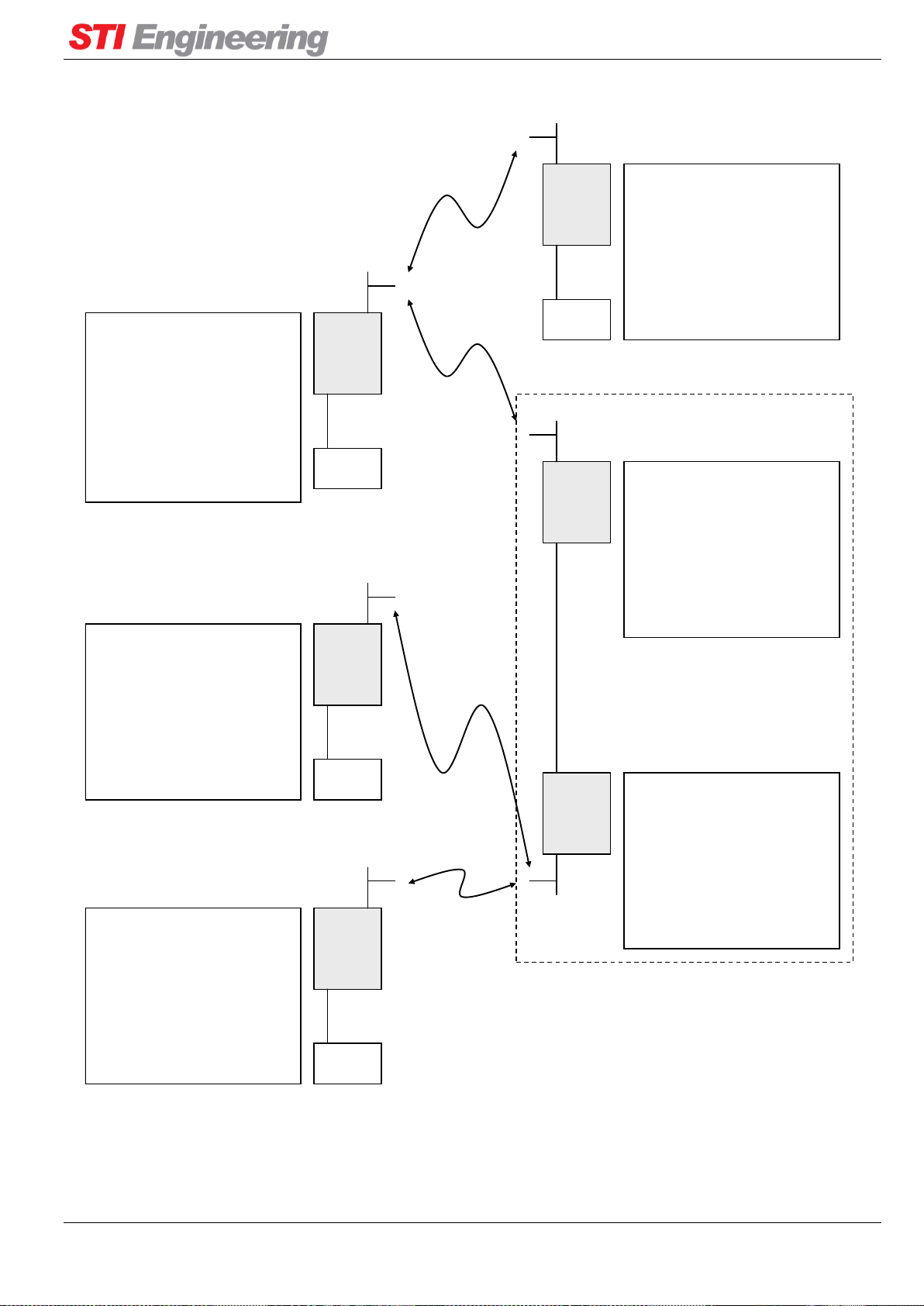

Figure 23: SCADA network with a back-to-back repeater
Page 54
Applications
RFI-9256 Radio Modem User Manual Page 54 of 109
In this situation Master 1 must route all SCADA packets that are destined for the slaves connected to the
Master 2 to Slave 2 (the slave radio in the back-to-back repeater). The routing table for Master 1 is shown in
Table 14
Route Type
RTU Address
Radio Address
Single Route
21
2000:00
Range Route
40-41
30:00
Table 14: Master 1 routing table
Master 2 must then correctly route all SCADA protocol packets to the slaves in its network. This is done
using the routing table in Table 15
Route Type
RTU Address
Radio Address
Mapped Route
40-41
4007:00
Table 15: Master 2 routing table
Slaves 1 must have the following routing table shown in Table 16.
Route Type
RTU Address
Radio Address
Default Route
N/A
1000:00
Table 16: Slave 1 routing table
Slaves 3 and 4 must have the following routing table shown in Table 17.
Route Type
RTU Address
Radio Address
Default Route
N/A
30:00
Table 17: Slaves 3 and 4 routing table
Page 55
Applications
RFI-9256 Radio Modem User Manual Page 55 of 109
6.11 Point-to-point Auxiliary I/O
The simplest way to route auxiliary I/Os is in a point-to-point network as shown in Figure 24.
RFI-9256
Master
RFI-9256
Slave
RADIO CONFIGURATION
Unit is a MASTER
Network Address: 61
Hopping Pattern: 13
Rx Address: 1000
PROTOCOL CONFIGURATION
Main Port: Point-to-point to 2000
AUXILIARY I/O CONFIGURATION
Auxiliary I/O Follows Remote ENABLED
Direction: Bit0 = output; Bit1 = input
Power-up default: Bit0 = Low; Bit1 = N/A
0 1 … 7 0 1 …
7
RADIO CONFIGURATION
Unit is a SLAVE
Network Address: 61
Hopping Pattern: 13
Rx Address: 2000
PROTOCOL CONFIGURATION
Main Port: Point-to-point to 1000
AUXILIARY I/O CONFIGURATION
Auxiliary I/O Follows Remote ENABLED
Direction: Bit0 = input; Bit1 = output
Power-up default: Bit0 = N/A; Bit1 = Low

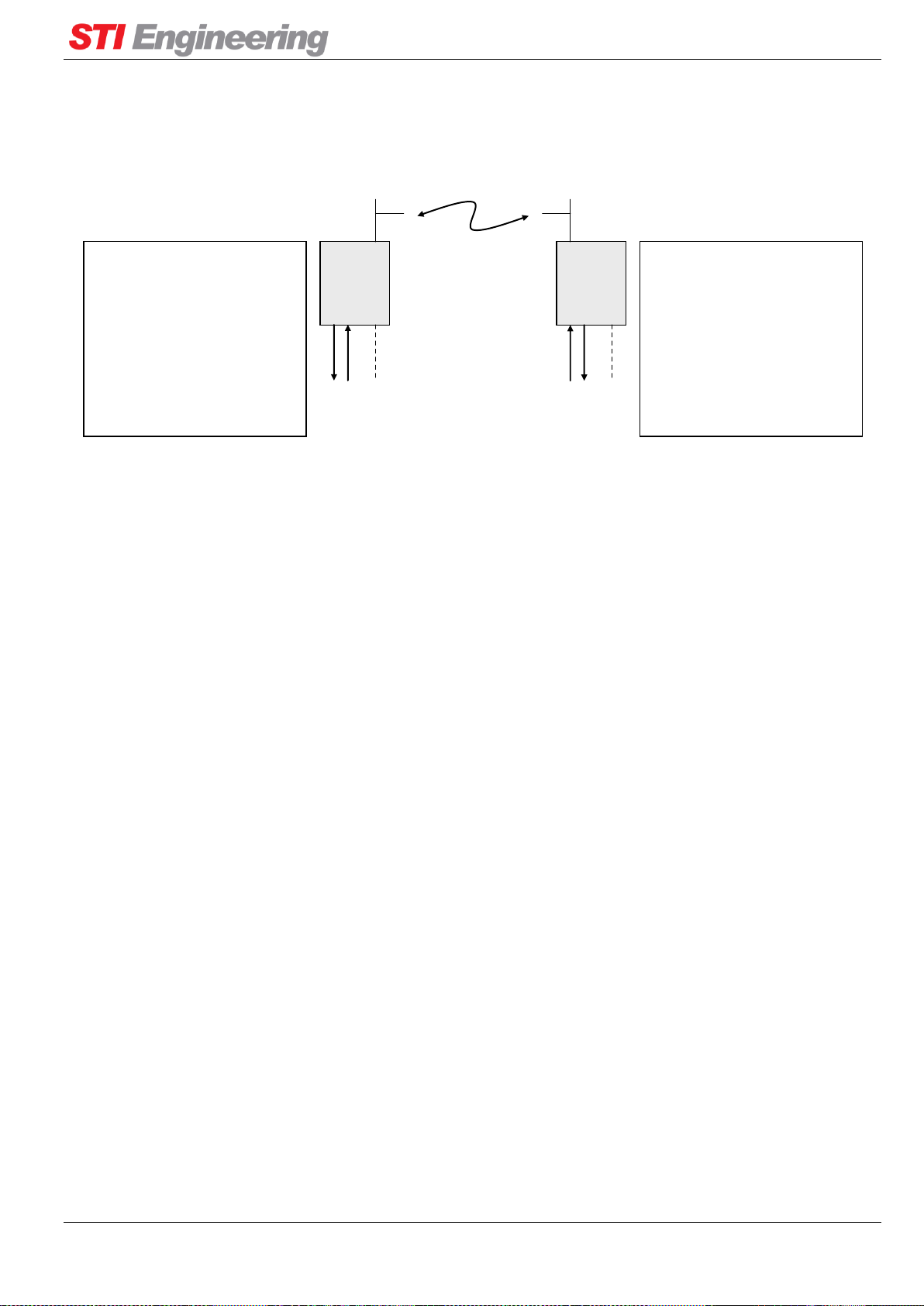

Figure 24: Point-to-point routing of auxiliary I/Os
In this scenario, the master has I/O 0 configured as an output, and I/O 1 configured as an input, while the
slave has I/O 0 configured as an input and I/O 1 configured as an output. I/O2 2 through 7 are not used.
The input applied to I/O 0 on the slave will be mirrored on the master, while the input applied to I/O 1 on the
master will be mirrored on the slave. The power-up default for the output I/O on both radios is low.
More information on configuring the I/O can be found in section 5.4 on page 41.
Page 56
Applications
RFI-9256 Radio Modem User Manual Page 56 of 109
6.12 Point-to-point Auxiliary I/O with a Back-to-back Repeater
Auxiliary I/Os can also be routed through back-to-back repeaters by connecting the outputs on one radio to
the inputs on the second radio. Such a configuration is shown in Figure 25.
Back-to-back Repeater
RFI-9256
Master 1
RFI-9256
Repeater
Slave 1
RFI-9256
Repeater
Master 2
RFI-9256
Slave 2
1
RADIO CONFIGURATION
Unit is a MASTER
Network Address: 52
Hopping Pattern: 22
Rx Address: 1000
PROTOCOL CONFIGURATION
Main Port: Point-to-point to 20
AUXILIARY I/O CONFIGURATION
Auxiliary I/O Follows Remote ENABLED
Direction: Bit0 = output; Bit1 = input
Power-up default: Bit0 = Low; Bit1 = N/A
RADIO CONFIGURATION
Unit is a SLAVE
Network Address: 52
Hopping Pattern: 22
Rx Address: 20
PROTOCOL CONFIGURATION
Main Port: Point-to-point to 1000
AUXILIARY I/O CONFIGURATION
Auxiliary I/O Follows Remote ENABLED
Direction: Bit0 = input; Bit1 = output
Power-up default: Bit0 = N/A, Bit1 = Low
RADIO CONFIGURATION
Unit is a MASTER
Network Address: 52
Hopping Pattern: 23
Rx Address: 20
PROTOCOL CONFIGURATION
Main Port: Point-to-point to 3000
AUXILIARY I/O CONFIGURATION
Auxiliary I/O Follows Remote ENABLED
Direction: Bit1 = input
RADIO CONFIGURATION
Unit is a SLAVE
Network Address: 52
Hopping Pattern: 23
Rx Address: 3000
PROTOCOL CONFIGURATION
Main Port: Point-to-point to 20
AUXILIARY I/O CONFIGURATION
Auxiliary I/O Follows Remote ENABLED
Direction: Bit1 = output
Power-up default: Bit1 = Low
0 1 0
1

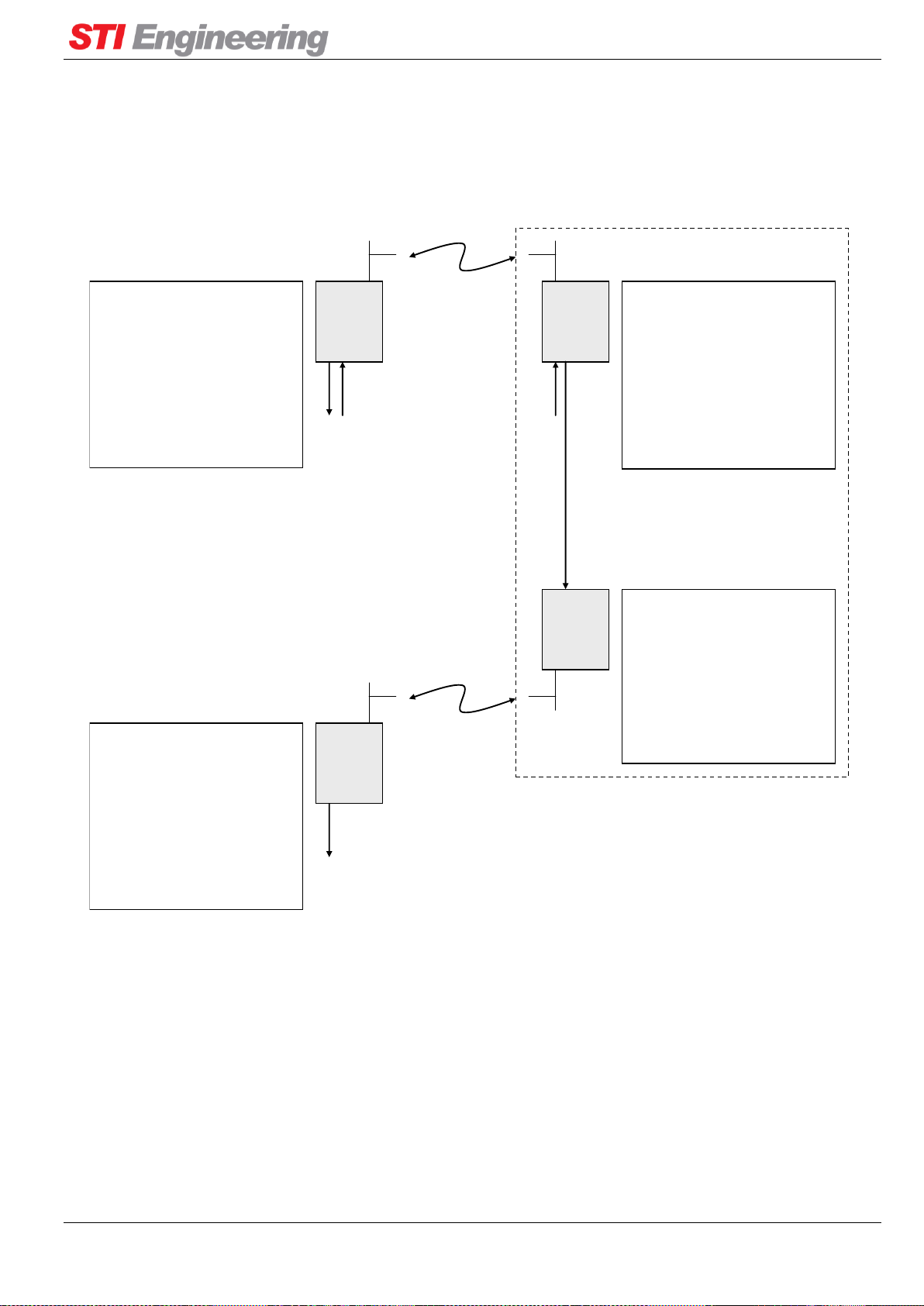

Figure 25: Point-to-point auxiliary I/O with a back-to-back repeater
In this scenario, I/O 0 has been configured as an output on Master 1, and as an input on Slave 1, thus output
0 on Master 1 will mirror input 0 on Slave 1.
Auxiliary I/O 1 on Master 1 has been routed to I/O 1 on Slave 2 via the back-to-back repeater. This is
achieved by configuring I/O 1 as an output on Slave 1 and as an input on Master 2. Thus, the value of I/O 1
will be mirrored on Slave 1 from Master 1, which is passed on to Master 2, and Slave 2 will mirror the value
of I/O 1 on Master 2.
Page 57
Applications
RFI-9256 Radio Modem User Manual Page 57 of 109
6.13 Hayes Dial-up Auxiliary I/O
Hayes dial-up connections can be used to control auxiliary I/Os. Whenever a dial-up connection is
established, the I/Os will mirror each other. When the dial-up connection is terminated the I/O outputs on
either end of the connection will retain their state but will no longer change. This scenario is shown in Figure
26.
RFI-9256
Master
RFI-9256
Slave 1
RADIO CONFIGURATION
Unit is a MASTER
Network Address: 26
Hopping Pattern: 30
Local Address: 1000
PROTOCOL CONFIGURATION
Main Port: Hayes Dial-up
AUXILIARY I/O CONFIGURATION
Auxiliary I/O Follows Remote ENABLED
Direction: Bit0 = output; Bit1 = input
Power-up default: Bit0 = Low, Bit1 = N/A
RFI-9256
Slave 2
RADIO CONFIGURATION
Unit is a SLAVE
Network Address: 26
Hopping Pattern: 30
Local Address: 2000
PROTOCOL CONFIGURATION
Main Port: Hayes Dial-up
AUXILIARY I/O CONFIGURATION
Auxiliary I/O Follows Remote ENABLED
Direction: Bit0 = input; Bit1 = output
Power-up default: Bit0 = N/A, Bit1 = Low
RADIO CONFIGURATION
Unit is a SLAVE
Network Address: 26
Hopping Pattern: 30
Local Address: 3000
PROTOCOL CONFIGURATION
Main Port: Hayes Dial-up
AUXILIARY I/O CONFIGURATION
Auxiliary I/O Follows Remote ENABLED
Direction: Bit0 = input; Bit1 = output
Power-up default: Bit0 = N/A, Bit1 = Low
0 1 0 1 0
1

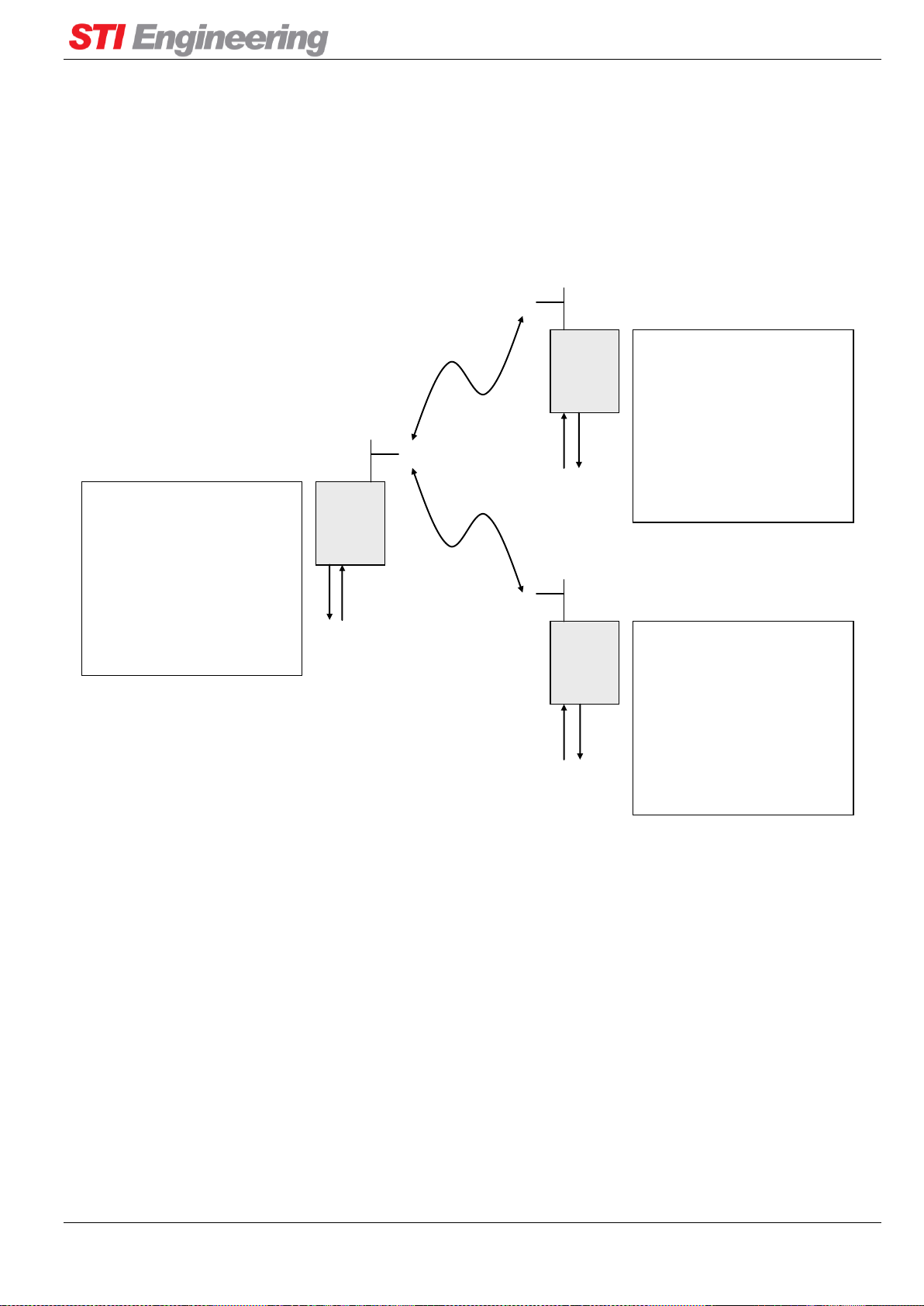

Figure 26: Hayes Dial-up auxiliary I/O
In the Hayes dial-up situation, when the Master dials Slave 1, the auxiliary I/O 0 on the Master will mirror
the value on Slave 1, while I/O 1 on the Master will be mirrored on I/O 1 of Slave 1. When the Master
hangs-up the connection, I/O 1 on Slave 1 will remain at the last value of I/O 1 on the Master.
The same situation can be repeated when the Master dials Slave 2.
For more information on the Hayes dial-up protocol and connection management, see section 5.3.3 on page
34.
Page 58
Appendix A Technical Specifications
RFI-9256 Radio Modem User Manual Page 58 of 109
Appendix A Technical Specifications
A.1 Type Approvals
Australia/ New Zealand
AS/NZS 4771:2000
Australian Supplier ID: N161
FCC
CFR 47 Part 15 Sub-Part C Section 15.247
FCC ID:
P5M9256TRX (radio modem)
P5M9256OEM (OEM module)
A.2 Radio Specifications
Range
Up to 30km point-to-point
RS-232 Data Rates
110, 300, 600, 1200, 2400, 4800, 9600, 19200, 38400, 57600, 115200
baud
RS-232 Interface
Asynchronous full duplex
Receiver Sensitivity
-104 dBm @ 10-4 raw BER
-102 dBm @ 10-6 raw BER
Modulation Type
Gaussian-Shaped FSK (GFSK)
Spreading Code
Frequency-Hopping
Hopping Patterns
32 user selectable
Output Power
1mW – 1W (0dBm to +30dBm)
Error Detection
32-bit CRC with packet re-transmit (ARQ)
Antenna
BNC
Power Requirements
9.0 to 28.0 VDC (RFI-9256 TRX)
8.0 to 30.0VDC (RFI-9256 OEM)
Power Consumption
@ 12VDC nominal:
Receive mode – 150mA
Transmit mode – 265mA @ 0dBm
320mA @+10dBm
490mA @+20dBm
620mA @+25dBm
850mA @+30dBm
Typical (5% duty)-177mA @+30dBm
Connector
DB-25 male (power and data combined)
Unit Address (Network ID)
User programmable
Operating Modes
Point-to-point
Page 59
Appendix A Technical Specifications
RFI-9256 Radio Modem User Manual Page 59 of 109
Point-to-multipoint Broadcast
Hayes Dial-up
SCADA Protocol Router (ModBus, DNP3, TDE, Honeywell)
Back-to-back Repeater
Operating Environment
-10ºC to +60ºC
Table 18: Radio Specifications
Page 60
Appendix A Technical Specifications
RFI-9256 Radio Modem User Manual Page 60 of 109
A.3 Connector Pin Assignments
DB25 Pin
IDC Pin
Function
Comment
1 1 +12VDC
2 3 RxD (Main Port)
Output (RS-232)
3 5 TxD (Main Port)
Input (RS-232)
4 7 RxD (Auxiliary Port)
Output (RS-232)
5 9 TxD (Auxiliary Port)
Input (RS-232)
6
11
I/O Bit 7
Input/Output (CMOS) 2
7
13
I/O Bit 5
Input/Output (CMOS) 2
8
15
I/O Bit 0
Input/Output (CMOS) 2
9
17
I/O Bit 2
Input/Output (CMOS) 2
10
19
Synchronisation I/O
Input/Output (TTL). 100K pull-up, internal voltage
limiting.
11
21
NC 12
23
NC 13
25
GND
14 2 +12VDC
15 4 CTS (Main Port)
Output (RS-232)
16 6 RTS (Main Port)
Input (RS-232)
17 8 DCD (Main Port)
Output (RS-232)
18
10
DTR (Main Port)
Input (RS-232)
19
12
I/O Bit 6
Input/Output (CMOS) 2
20
14
I/O Bit 4
Input/Output (CMOS) 2
21
16
I/O Bit 1
Input/Output (CMOS) 2
22
18
I/O Bit 3
Input/Output (CMOS) 2
23
20
NC
24
22
NC 25
24
GND
–
26
GND
Table 19: RFI-9256 Interface Pin Assignments
2
Input/output with 10K series limiting resistor. VCC=5V. Sink/source current limited to ±400uA.
Page 61
Appendix A Technical Specifications
RFI-9256 Radio Modem User Manual Page 61 of 109
A.4 Power/Data Cable Assembly
Figure 27: 9256 power/data cable assembly
Page 62
Appendix A Technical Specifications
RFI-9256 Radio Modem User Manual Page 62 of 109
A.5 Back-to-back Repeater Cable Assembly

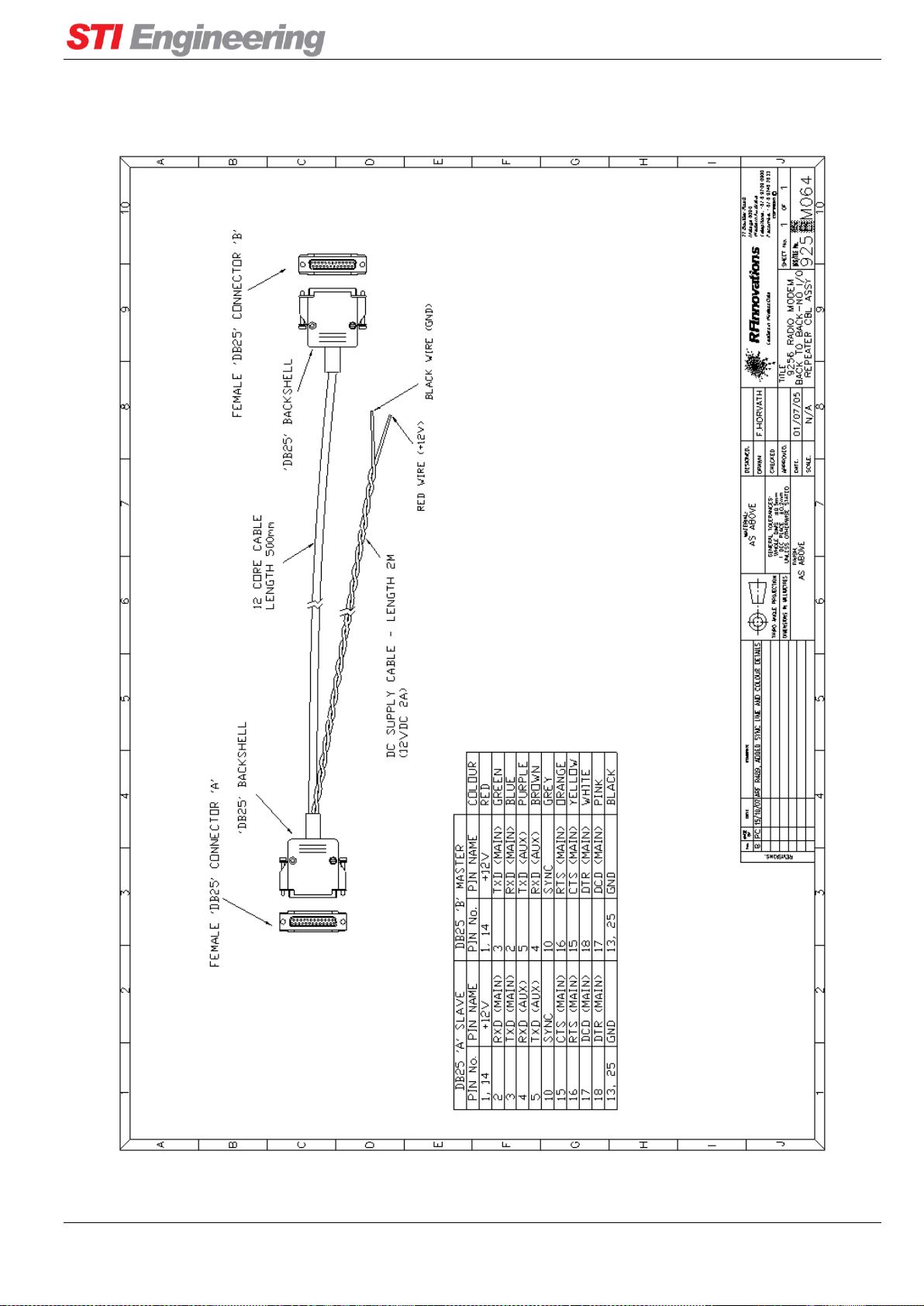

Figure 28: RFI-9256 back-to-back repeater cable assembly
Page 63
Appendix A Technical Specifications
RFI-9256 Radio Modem User Manual Page 63 of 109
A.6 I/O Example Schematics
A.6.1 Circuit Schematics

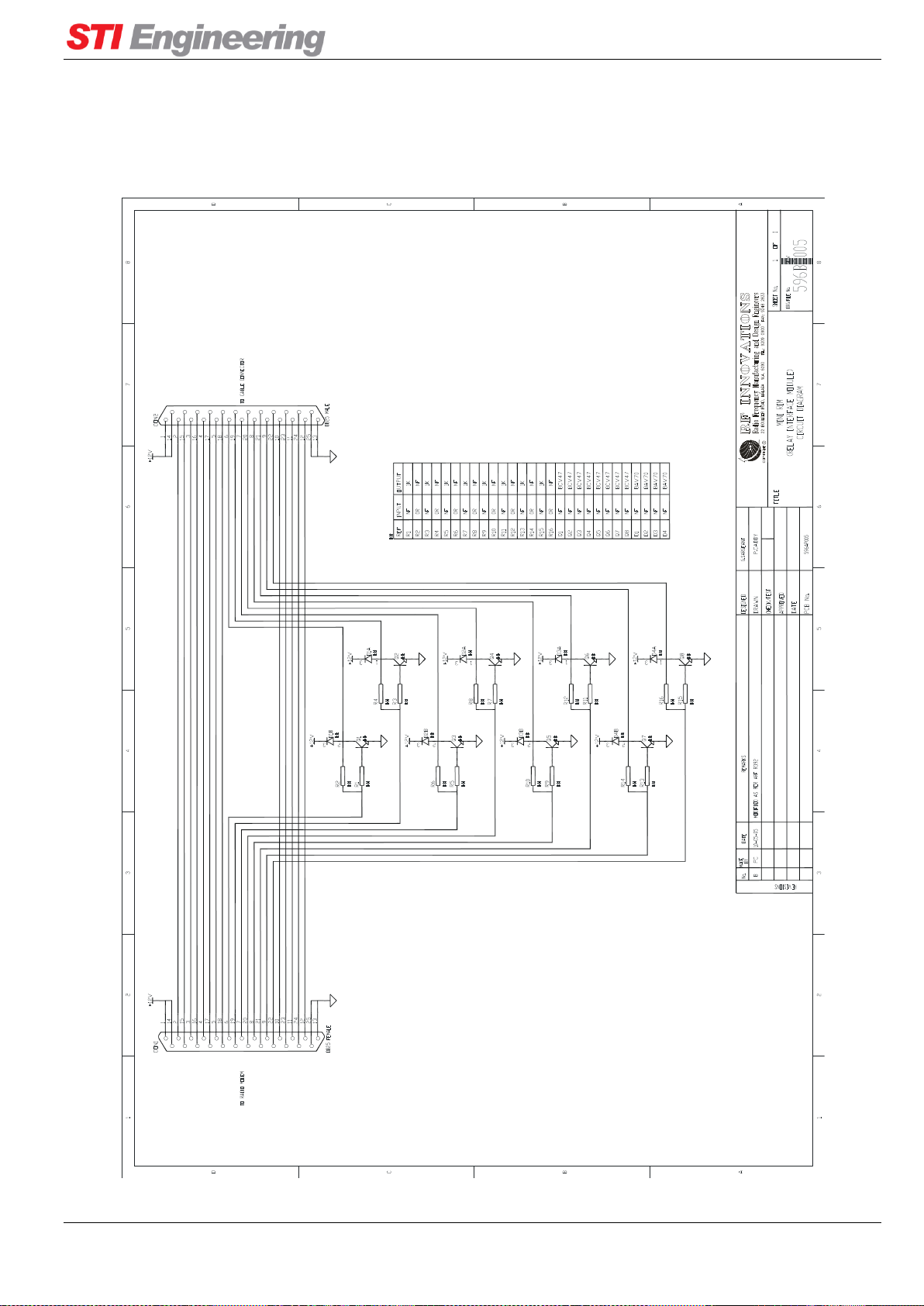

Figure 29: Circuit Schematics
Page 64
Appendix A Technical Specifications
RFI-9256 Radio Modem User Manual Page 64 of 109
A.6.2 Specifications
The example schematics above have the following specifications suitable for driving most relay or input
devices.
I/O (configurable)
Specification
Input
Input signal routed through (0 resistor)
Output
Open-collector Darlington output:
Integral suppression diodes
No internal pull-up
VO = 50V (max)
Sink current: 500mA (max)
Table 20: I/O Module specifications
A.7 Power Supply Notes
Power supplies used to power the RFI-9256 should have sufficient current rating and ripple rejection.
Typically <500m VRMS of power supply noise can be tolerated. The RFI-9256 contains a built in thermal
fuse that will open the circuit in the event of any over current conditions, over temperature or reverse
polarity. Power supplies used should be capable of at least 1A continuous current at 12VDC.
A.8 Version Numbering Scheme
The RFI-9256 contains a firmware version string. This version string provides some information regarding
compatibility with other firmware versions, and consists of:
Product Name: Identifies the radio hardware type.
Major and Minor Number: The major number generally reflects the hardware compatibility of the
firmware but may be incremented if the firmware has had a major overhaul. The minor number is
incremented as new suites of functionality have been added or when changes have been made
which render the firmware incompatible with previous versions. Combined they are the version
number.
Revision: The revisions reflect bug fixes or minor changes that do not render the system
incompatible.
Country: Firmware with versions with different country identifiers, are always incompatible with
their air interface. This is due to the frequencies and hopping sequences that they use. Each country
has its own spectrum allocation and laws governing radio spectrum usage.
An example version number string is shown in Figure 30.
Page 65
Appendix A Technical Specifications
RFI-9256 Radio Modem User Manual Page 65 of 109
Firmware Version Number
RFI-9256 Version 1.30 Rev.H Australia
Major Number
Minor Number
Revision
Country
Identifier
Product
Name
Figure 30: Example firmware version number
Firmware revisions with major version number 1 will be compatible with this hardware build, while
firmware revisions with major version number 1 and minor version number 10 will be compatible over the
air with this build.
Page 66
Appendix A Technical Specifications
RFI-9256 Radio Modem User Manual Page 66 of 109
A.9 Case Dimensions

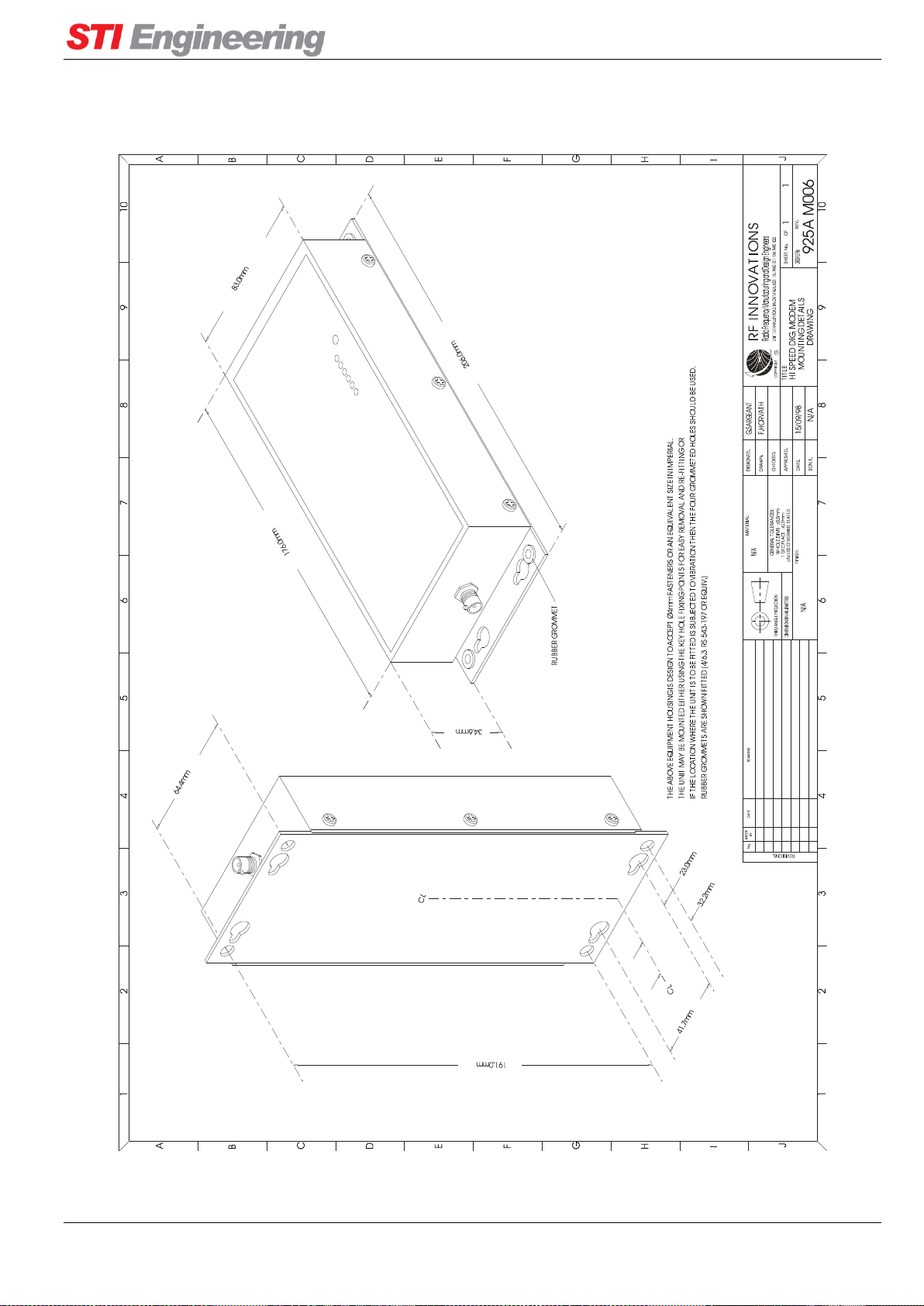

Figure 31: Case physical dimensions
Page 67
Appendix A Technical Specifications
RFI-9256 Radio Modem User Manual Page 67 of 109
A.10 OEM Dimensions

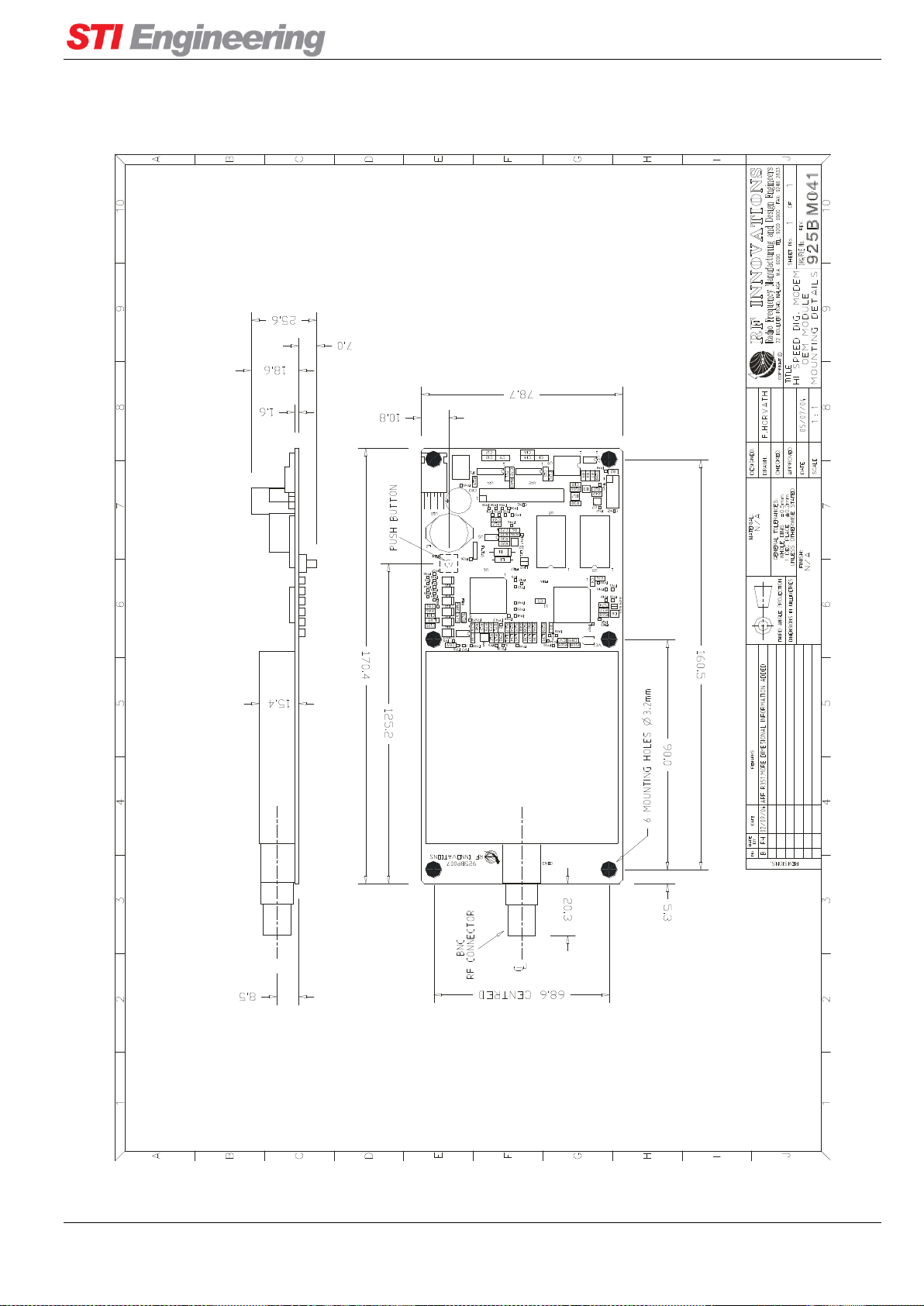

Figure 32: OEM physical dimensions
Page 68
Appendix B Terminal Menu Reference
RFI-9256 Radio Modem User Manual Page 68 of 109
Appendix B Terminal Menu Reference
*** MiROS MAIN MENU (Version 2.0) ***
RFI-9256 Version 1.30 Rev.D
Unit Name: test
Unit is a: SLAVE
Serial No: 207311DF2765
Manufactured Date: 30/01/2002
(R) Radio Configuration Menu
(L) Protocol Port Selection
(S) Serial Port Configuration Menu
(M) Radio and I/O Configuration Menu
(P) Radio Personality Menu
(D) Diagnostics Menu
(Esc) To Exit Menu
Enter Choice:
Figure 33: Main menu
Status Information: The main menu displays the RFI-9256 model and firmware revision (1.30 Rev
D in Figure 33), along with the unit name, current mode, serial number and manufacture date.
Page 69
Appendix B Terminal Menu Reference
RFI-9256 Radio Modem User Manual Page 69 of 109
B.1 (R) Radio Configuration Menu
*** Radio Configuration Menu ***
Unit is a: SLAVE
Network Address = 32
Rx Address = 20
Hopping Pattern = 0
Point to Multipoint Dialup Connection
(M) Set unit as Master
(S) Set unit as Slave
(N) Set Network address
(L) Set Local Rx address
(P) Set ports as Point to Point Direct
(D) Set ports as Point to Multipoint Dialup
(R) Set ports as Dialup Repeater
(1) Special Controls Menu
(2) Link Control Menu
(3) Radio Characteristics Menu
(F) Restore Factory defaults
(Esc) Previous Menu
Enter Choice:
Figure 34: Radio configuration menu
Set unit as Master: In any communications link, at least one radio must be configured as a master.
The master synchronises communications with the slaves, and a may communicate with any slave.
A master may not communicate with another master unit.
Set unit as Slave: In any communication link one unit must be set as a master and the rest as slaves.
Slaves can initiate communication but follow the synchronisation of the master. A slave can only
communicate with the master.
Set Network address: The network address is the network identification number, and every radio on
a single network must have the same network address. Slaves will only synchronise with a master
that has the same network address. Radios ignore data originating from a radio with another
network address. A maximum of 64 network addresses are available, in the range 0 to 63.
Set Local Rx Address: The local address is used to identify individual radios within a network.
Each radio must have a unique address, otherwise destructive collisions will occur. It is advised that
individual radios be given an address in the range 1000-9999, while radios configured as repeaters
(see section Back-to-back Repeater Operation on page 29) must be given the same local address in
the range 10-99.
Radios in different networks can have the same local address.
Page 70
Appendix B Terminal Menu Reference
RFI-9256 Radio Modem User Manual Page 70 of 109
Set ports as Point to Point Direct: This is a shorthand way of configuring a point-to-point
connection on both main and auxiliary ports. For more information see section 0.
Set ports as Point to Multipoint Dialup: This is a shorthand way of configuring a point-to-
multipoint dial-up connection on both main and auxiliary ports. For more information see section
5.3.3 on page 34.
Set ports as Dialup Repeater: A repeater extends the range of a RFI-9256 radio network. Repeaters
consist of a pair of radios, one master and one slave wired together in a back-to-back configuration.
This is covered in the section Back-to-back Repeater Operation on page 29. This function will
configure the current RFI-9256 for dial-up repeater operation, with the settings for Hayes dialup
described in the section Dial-up Networking with Back-to-back Repeaters on page 36.
Special Controls Menu: When the antennas from more than one radio are placed within close
proximity, the units may be synchronised to prevent interference. One radio must be configured to
output a synchronisation signal while the other radio follows the synchronisation signal. Slave units
cannot be configured to follow an external synchronisation signal as the slave must synchronise
from the master of its network. In order for synchronisation to operate correctly both radios must be
configured with the same frame length and bias setting. For more information see the section
Synchronisation on page 28. The following synchronisation options are available:
(a) Follow Sync Signal: The radio will follow a synchronisation signal provided by another. Only
the master radio can have this option configured.
(b) Output Sync Signal: The radio will output the frame synchronisation signal.
(c) Repeater Sync Mode: The radio will follow a synchronisation signal provided by another. In
this case the radio will synchronise to a 50% offset.
(d) No Sync Mode: Disables synchronisation.
Restore Factory defaults: Restores the default settings of the RFI-9256. The factory defaults
settings are given in Appendix D on page 105.
Page 71
Appendix B Terminal Menu Reference
RFI-9256 Radio Modem User Manual Page 71 of 109
B.1.1 (2) Link Control Menu
*** Link Control Menu ***
Main Port: ARQ Retries = 50
Aux Port: ARQ Retries = 50
Network Fail Timer = 5000ms
Online Request Timer = 1000ms
Backoff Retry is Disabled
(A) Number of Retries for ARQ
(F) Network Fail Timer
(O) Online Request Timer
(B) Backoff Retries Enable/Disable
(Esc) Previous Menu
Enter Choice:
Figure 35: Link control menu
Number of Retries for ARQ: The ARQ (automatic repeat request) controls the number of times the
radio will resend a packet of lost information before discarding the packet. This can be set as high
as 255 retries. Each serial port can be configured independently allowing for modes like broadcast
(where a low retry count is desirable) to co-exist with point-to-point or Hayes dial-up modes on the
same radio. This is done through the protocol link control menu outlined in Appendix B.2.2.3 on
page 78.
Network Fail Timer: The network fail timeout controls the time a slave waits when a signal is lost
before attempting to re-synchronise. The network link LED on the front panel also indicates this
loss.
Online Request Timer: This timer controls the length of time between integrity checks between
radios connected in point-to-point or Hayes dial-up modes.
Backoff Retries Enable / Disable: When several slaves are to be connected simultaneously to a
single master, they should be configured with back-off retries. This allow for collisions between the
slaves to be resolved using exponential back off and retry.
Page 72
Appendix B Terminal Menu Reference
RFI-9256 Radio Modem User Manual Page 72 of 109
B.1.2 (3) Radio Characteristics Menu
*** Radio Characteristics Menu ***
Hopping Pattern = 0
Tx Power Level = 20 dBm
RSSI trigger level = -110
Frame Time = 20 milliseconds
Max Tx bytes per frame = 113
Directional Bias is Disabled
(H) Hopping Pattern
(P) Tx Power Menu
(R) RSSI trigger level
(F) Frame Time Menu
(B) Directional Bias Menu
(Esc) Previous Menu
Enter Choice:
Figure 36: Radio characteristics menu
Hopping Pattern: There are 32 (0-31) hopping patterns available. The hopping pattern determines
how the radio hops through the frequency spectrum. Co-located master units should all use different
hopping patterns to minimise interference, and all units on the same network must have the same
hopping pattern.
It is advised that the default hopping pattern not be used in order to minimise the change of
interference with other RFI-9256 in the area.
Tx Power Menu: The transmit power menu allows the user to select the output power of the RFI-
9256. The options are:
(a) OFF
(b) 0 dBm
(c) +10 dBm
(d) +20 dBm
(e) +25 dBm
(f) +30 dBm
The total output power from the antenna must not exceed 1W EIRP (30dBm) noting that antennas
will usually provide gain, and cables and connectors produce a loss.
RSSI trigger level: The RFI-9256 will only attempt to acquire data if the power on the channel
exceeds the RSSI trigger level. This can be configured between -120dBm and -50dBm, however
setting this to greater than the radio sensitivity (-108dBm) will cause an artificial loss in sensitivity
and should only be done in noisy environments.
Page 73
Appendix B Terminal Menu Reference
RFI-9256 Radio Modem User Manual Page 73 of 109
Frame Time Menu: This function changes the maximum length (in time) of each packet frame.
The size in bytes of each frame, and the available frame times is covered in the section Frame Time
on page 27.
Directional Bias Menu: The directional bias menu allows the master/slave biasing of frames to be
adjusted. This is often used in simplex systems. The effect of biasing frames is covered in the
section Directional Bias on page 27.
B.2 (L) Protocol Port Selection Menu
*** Protocol Port Selection ***
Main Port: Protocol Type: Hayes Dialup
Aux Port: Protocol Type: Hayes Dialup
(M) Main Port
(A) Aux Port
(Esc) Previous Menu
Enter Choice:
Figure 37: Protocol Port Selection Menu
Main Port: Select to change the protocol on the Main Port and bring up the menu shown in Figure
38
Aux Port: Select to change the protocol on the Auxiliary Port.
*** Link/Port Protocol Menu ***
Main Port: Protocol Type: Hayes Dialup
(P) Protocol Selection Menu
(C) Configure Protocol Menu
(Esc) Previous Menu
Enter Choice:
Figure 38: Link/Port protocol menu for the main port
Page 74
Appendix B Terminal Menu Reference
RFI-9256 Radio Modem User Manual Page 74 of 109
B.2.1 (P) Protocol Selection Menu
*** Protocol Selection Menu ***
Main Port: Protocol Type: Hayes Dialup
(P) Point to Point
(B) Broadcast
(D) Hayes Dialup
(M) Modbus
(H) Honeywell
(3) DNP3
(T) TDE
(X) Disabled
(Esc) Previous Menu
Enter Choice:
Figure 39: Protocol selection menu
Point to Point: Configures the serial port for point-to-point operation. See section 0 on page 33for
more information on point-to-point network operation.
Broadcast: Configures the serial port for point-to-multipoint broadcast operation. See section 0 on
page 33 for more information on point-to-multipoint broadcast network operation.
Hayes Dialup: Configures the serial port for Hayes dial-up operation. See section 5.3.3 on page 34
for more information on Hayes dial-up network operation.
Modbus: Configures the serial port for the Modbus SCADA protocol. See section 5.3.4 on page 37
for more information on SCADA protocol network operation.
Honeywell: Configures the serial port for the Honeywell SCADA protocol.
DNP3: Configures the serial port for the DNP3 SCADA protocol using the FT3 frame formal
(LPDU).
TDE: Configures the serial port for the Introl systems TDE protocol.
Disabled: Disables any transmission of data though the selected serial port.
Page 75
Appendix B Terminal Menu Reference
RFI-9256 Radio Modem User Manual Page 75 of 109
B.2.2 (C) Configure Protocol Menu
*** Configure Protocol Menu ***
Main Port: Protocol Type: Hayes Dialup
(M) Hayes Command Control Menu
(R) Route Manager Menu
(L) Link Control Menu
(Esc) Previous Menu
Enter Choice:
Figure 40: Configure protocol menu
B.2.2.1 (M) Hayes Command Control Menu
*** Hayes Command Control Menu ***
Main Port: Hang-up on DTR Dropped, Echo is ON, Response is ON, Auto-answer is
ON
Escape character = + Escape guard time = 1000ms
Connect Timeout = 9985ms
Ring Count = 1
(C) Connect Timeout
(X) Escape character (ie +)
(G) Escape guard time
(H) Hang-up on DTR (low)
(Z) Hang-up on DTR Dropped
(L) Local on DTR (low)
(I) Ignore DTR
(E) Echo (ON/OFF)
(R) Response codes (ON/OFF)
(A) Auto-answer (ON/OFF)
(N) Set Max Rings
(D) Set to Defaults
(Esc) Previous Menu
Enter Choice:
Figure 41: Hayes command control menu
Page 76
Appendix B Terminal Menu Reference
RFI-9256 Radio Modem User Manual Page 76 of 109
Connect Timeout: The maximum amount of time that the radio will wait for a connection response,
configurable between 100 and 30000ms.
Escape character (i.e., +): Sets the escape character. This is the character that is used in the escape
sequence to return from online state to local command state. The escape sequence consists of the
escape character being typed three times, with set communication-free periods of time before and
after the sequence. Back-to-back repeaters used in Hayes dial-up mode should have the escape
character set to ‘-‘. See the section Back-to-back Repeater Operation on page 29.
Escape guard time: The time before and after the escape sequence has been entered that there needs
to be no activity for the radio to enter local command state.
Hang-up on DTR (low): DTR is an RS-232 signal used to indicate to the radio whether the local
terminal is ready to communicate. Hang-up on DTR (low) causes a connection to be broken
whenever the DTR line is low.
Hang-up on DTR Dropped: Hang-up on DTR dropped is used to disconnect whenever DTR
changes from a high to a low.
Local on DTR (low): When DTR is low the radio goes into local command state. This is equivalent
to typing the escape sequence. Once the unit is in local command state, it will only return to online
state if the ATO command is issued. DTR should be high at this time to prevent the radio
immediately returning to local command state.
Ignore DTR: The radio does not use the DTR signal to control its connection state.
Echo (ON/OFF): Toggles the echo setting between on and off. When on characters typed at the
terminal will be echoed back to the screen while in local command state.
Response codes (ON/OFF): This toggles whether the radio returns response codes. If the response
codes are on, all codes such as OK, CONNECT, and NO CARRIER will be returned to the terminal.
Auto-answer (ON/OFF): When auto-answer is on, the radio will automatically answer any
incoming call after the maximum number of rings has passed. When auto-answer is off the ATA
command must be used to answer an incoming call.
Set Max Rings: Sets the number of RING messages to output before automatically answering.
Set to Defaults: Restores the Hayes settings to their factory defaults for the selected port. The
factory defaults are given in Appendix D on page 105.
Page 77
Appendix B Terminal Menu Reference
RFI-9256 Radio Modem User Manual Page 77 of 109
B.2.2.2 (R) Route Manager Menu
*** Route Manager Menu ***
Main Port: Protocol Type: Modbus
Used Space : 0
Free Space : 3935
Total Routes : 0
Single Routes : 0
Mapped Routes : 0
Range Routes : 0
No Default Route
(A) Add Route
(D) Delete Route
(X) Delete All Routes
(L) List All Routes
(T) List Routes by Type
(Esc) Previous Menu
Enter Choice:
Figure 42: Route manager menu
Add Route: Adds a new route to the routing table.
Delete Route: Deletes an existing route from the routing table.
Delete All Routes: Deletes all routes in the routing table for the selected port.
List All Routes: Lists all the configured routes for this RFI-9256. Slave radios only have a default
route configured, while masters may have an extensive routing table. The following items are
displayed for each route:
(a) IDX is the individual route identifier.
(b) Route Type is the type of route (single, mapped or range).
(c) Route Source is the destination address that is found in the protocol packet.
(d) Destination Radio is the radio that the packet is sent to.
List Routes by Type: Provides a list of all routes sorted by the route type.
Page 78
Appendix B Terminal Menu Reference
RFI-9256 Radio Modem User Manual Page 78 of 109
B.2.2.3 (L) Link Control Menu
*** Link Control Menu ***
Main Port: ARQ Retries = 50
Network Fail Timer = 5000ms
Online Request Timer = 1000ms
(A) Number of Retries for ARQ
(F) Network Fail Timer
(O) Online Request Timer
(Esc) Previous Menu
Enter Choice:
Figure 43: Link control menu
Number of Retries for ARQ: Sets the number of ARQ retries to be used on the selected port. See
section B.1.1 on page 71 for more information.
Network Fail Timer: Sets the network fail timer for the selected port. See section B.1.1 on page 71
for more information.
Online Request Timer: Sets the online request timer for the selected port. See section B.1.1 on page
71 for more information.
B.3 (S) Serial Port Configuration Menu
*** Port Selection Menu ***
Main Port: 19200 Baud, No Parity, 8 Data, 1 Stop, No Flow
Main Port: Packet Timers: Output = Disabled, Input = Disabled
Aux Port: 19200 Baud, No Parity, 8 Data, 1 Stop, No Flow
Aux Port: Packet Timers: Output = Disabled, Input = Disabled
(M) Main Port
(A) Aux Port
(Esc) Previous Menu
Enter Choice:
Figure 44: Serial port selection menu
Main Port: Allows the serial port settings for the main port to be configured as shown in Figure 45.
Aux Port: Allows the serial port settings for the auxiliary port to be configured.
Page 79
Appendix B Terminal Menu Reference
RFI-9256 Radio Modem User Manual Page 79 of 109
*** Serial Port Configuration Menu ***
Main Port: 19200 Baud, No Parity, 8 Data, 1 Stop, No Flow
Main Port: Packet Timers: Output = Disabled, Input = Disabled
Main Port: Rx Buffer Limit = 3072
(B) Baud Rate Menu
(F) Flow Control Menu
(N) No Parity
(E) Even Parity
(O) Odd Parity
(1) One Stop Bit
(2) Two Stop Bits
(7) Seven Bit Data
(8) Eight Bit Data
(A) Advanced Functions Menu
(D) Set to Defaults
(Esc) Previous Menu
Enter Choice:
Figure 45: Main serial port configuration menu
Baud Rate Menu: Selects the serial port baud rate for this port.
Flow Control Menu: Selects the flow control method used for this port. The main port supports
both hardware and software flow control, while the auxiliary port only supports software flow
control
No Parity / Even Parity / Odd Parity: Selects the parity to use on the serial port.
One Stop Bit / Two Stop Bits: Selects the number of stop bits to use on the serial port.
Seven Bit Data / Eight Bit Data: Selects the number of data bits to use on the serial port.
Set to Defaults: Restores the factory default settings for the serial port. The factory defaults are
given in Appendix D on page 105.
Page 80
Appendix B Terminal Menu Reference
RFI-9256 Radio Modem User Manual Page 80 of 109
B.3.1 (A) Advanced Functions Menu
*** Advanced Functions Menu ***
Main Port: Packet Timers: Output = Disabled, Input = Disabled
Main Port: Rx Buffer Limit = 3072
(T) Tx (Out) Packetiser Timer
(R) Rx (In) Packetiser Timer
(L) Rx Buffer Limit
(Esc) Previous Menu
Enter Choice:
Figure 46: Advanced functions menu
Tx (Out) Packetiser Timer: The Tx (out) packetiser timer is used to packetise data incoming from
the RF. When the packetising time has passed with no further data being received, all data will be
output on the serial port.
Rx (In) Packetiser Timer: The Rx (in) packetiser timer is used to packetise data that comes into the
serial port. When the packetising time has passed with no data received on the serial port, all
available data is transmitted over the air.
Rx Buffer Limit: The Rx buffer limit allows control over how full the internal buffer should get
before flow control is triggered.
B.4 (M) Radio and I/O Configuration Menu
*** Radio and I/O Configuration Menu ***
(H) Hayes Command Control Menu
(D) DCD Output Control Menu
(R) CTS Output Control Menu
(A) Auxiliary I/O Config Menu
(Esc) Previous Menu
Enter Choice:
Figure 47: Radio and I/O configuration menu
DCD Output Control Menu: DCD (Data Carrier Detect) is an output from the RFI-9256 that can be
set to one of the options given in section 0 on page 21.
CTS Output Control Menu: The CTS (clear to send) output is used in flow control. When it is not
being used for hardware flow control it can be set to one of the options given in section 0 on page
21.
Page 81
Appendix B Terminal Menu Reference
RFI-9256 Radio Modem User Manual Page 81 of 109
B.4.1 (H) Hayes Command Control Menu
*** Port Selection Menu ***
Main Port: Hang-up on DTR Dropped, Echo is ON, Response is ON, Auto-answer is
ON
Escape character = + Escape guard time = 1000ms
Connect Timeout = 9985ms
Ring Count = 1
Aux Port: Echo is ON, Response is ON, Auto-answer is ON
Escape character = + Escape guard time = 1000ms
Connect Timeout = 9985ms
Ring Count = 1
(M) Main Port
(A) Aux Port
(Esc) Previous Menu
Enter Choice:
Figure 48: Hayes command control menu
Main Port: Select to change the Hayes Command settings on the Main Port. This is the same menu
as described in B.2.2.1 on page 75.
Aux Port: Select to change the Hayes Command settings on the Auxiliary Port. This is the same
menu as described in B.2.2.1 on page 75.
B.4.2 (A) Auxiliary I/O Port
*** Auxiliary I/O Config Menu ***
Sample Time = 500 (ms)
Aux I/O Follows remote = Disabled
(D) Aux I/O Direction Menu
(P) Powerup defaults Menu
(S) Sample Rate
(F) Aux I/O Follows remote
(E) Enable/Disable Aux I/O
(Esc) Previous Menu
Enter Choice:
Figure 49: Auxiliary I/O menu
Page 82
Appendix B Terminal Menu Reference
RFI-9256 Radio Modem User Manual Page 82 of 109
Aux I/O Direction Menu: Allows individual configuration of each I/O line as either an input or an
output.
Powerup defaults Menu: Sets the default state of each output line when power is applied to the
RFI-9256.
Sample Rate: The number of milliseconds between each sample of the digital inputs. The smaller
the sample time the faster changes will be propagated across the radio network. The sampling time
can be set between 8ms and 5000ms.
Aux I/O Follows remote: Toggles auxiliary I/O control via a remote radio.
Enable/Disable Aux I/O: Enables or disables the auxiliary I/O port.
B.5 (P) Radio Personality Menu
*** Radio Personality Menu ***
Unit Name:
Menu Password is Disabled
Security Code is Disabled
Menu Timeout is 15 minutes
(U) Set Unit Name
(P) Set Menu Password
(R) Remove Menu Password
(S) Set Security Code
(D) Delete Security Code
(M) Set Menu Timeout
(Esc) Previous Menu
Enter Choice:
Figure 50: Radio personality menu
Set Unit Name: Sets the name of the unit. This can help identify each unit on the network by name,
location, number or function.
Set Menu Password: Sets the menu password to prevent an unauthorised person from entering the
menu system and changing the radio’s settings. A password can be between 1 and 12 alphanumeric
characters.
Remove Menu Password: Removes the password used to access the radio's menu, disabling
password protection.
Set Security Code: Sets the security code. The security code protects the radio network from
interference from other networks using RFI-9256 radio radios. The code is a 32-bit (9 digit)
number, which allows 0 to 4294967295 combinations.
Delete Security Code: Clears the security code
Page 83
Appendix B Terminal Menu Reference
RFI-9256 Radio Modem User Manual Page 83 of 109
Set Menu Timeout : Sets the amount time a menu remains idle before it is closed.
B.6 (D) Diagnostics Menu
*** Diagnostics Menu ***
(S) Display Status
(E) Event Log Menu
(T) Test Indicator LEDs
(D) Test Digital Outputs
(N) Show channel signal/noise
(L) Show Stats/Logging
(M) Test Link Margin
(1) Statistics Menu
(2) Display Tasks
(3) Display Links
(Esc) Previous Menu
Enter Choice:
Figure 51: Diagnostics menu
Display Status: This function gives a summary of the information regarding the configuration of
the radio.
Test Indicator LEDs: Selecting this function starts a test of the front panel LEDs. This is a visual
test and the LEDs must be observed while this test is in progress. It simply turns the LEDs on and
off operating using all the colours in a predefined sequence.
Test Digital Outputs: This will cause all the auxiliary I/Os to be set as outputs, and then each I/O
turned on then off in turn. This is used to test the functionality of the I/O port.
Show channel signal/noise: When this function is selected, a table showing the signal and noise
levels for each channel is displayed. If a ‘??’ is displayed as the signal value then there wasn’t a
recent sample for that channel.
Show Stats/Logging: Shows the statistics relating to the quality of the data throughput and
information regarding the performance of both serial ports.
Test Link Margin: Displays the average signal and average noise the radio is measuring. If the unit
is configured as a master then it will require an address of the slave.
Display Links: Displays all the links that the radio current has established. This is a table with the
following items:
(a) Idx: the index number used internally.
(b) LocSrc: the local port number that is the source/destination for the data.
(c) LocExt: the extension that has been dialled if a remote has dialled this unit
(d) DestSrc: the remote port that is the source/destination for the data
Page 84
Appendix B Terminal Menu Reference
RFI-9256 Radio Modem User Manual Page 84 of 109
(e) DestExt: the extension that this unit has dialled.
(f) DestAddr: the remote unit address.
(g) State: the internal state of the link.
(h) Link Name: is the name assigned to the link. It reflects the mode of operation for that link.
The source/destination ports are one of three ports, the main, auxiliary or the virtual port. The virtual
port is an internal port used by the radio to communicate through the menus.
B.6.1 (E) Event Log Menu
*** Event Log Menu ***
Log Level = General Information
(V) View Log
(L) Logging Level Menu
(C) Clear Log
(Esc) Previous Menu
Enter Choice:
Figure 52: Event log menu
View Log: Used to view the debugging information supplied by the radio.
Logging Level Menu: Selected to change the type of information logged by the radio for display
when viewing the log. There are five available levels.
(a) Errors: Only displays severe errors.
(b) Warnings: Displays both errors and warnings.
(c) State: Displays state changes, along with errors and warnings.
(d) Info: Displays all available information, along with stats, errors, and warnings.
(e) Debug: Displays internal debugging information along with info, states, warnings, and errors.
Clear Log: Clears the log.
Page 85
Appendix B Terminal Menu Reference
RFI-9256 Radio Modem User Manual Page 85 of 109
B.6.2 (1) Statistics Menu
*** Statistics Menu ***
(N) Show channel signal/noise
(L) Show Stats/Logging
(P) Reset Physical Layer Logging
(S) Reset Serial Logging
(Esc) Previous Menu
Enter Choice:
Figure 53: Event log menu
Show channel signal / noise: This function is exactly the same as in the diagnostics menu in
section B.6 on page 83.
Show Stats/Logging: This function is exactly the same as in the diagnostics menu in section B.6 on
page 83.
Reset Physical Layer Logging: Clears the RF logging information.
Reset Serial Logging: Clears the serial port logging information.
Page 86
Appendix C Hayes AT Command Reference
RFI-9256 Radio Modem User Manual Page 86 of 109
Appendix C Hayes AT Command Reference
C.1 Radio Commands
C.1.1 “AT?” Menu Mode
This command enables the menu system on the current Hayes port. When the menu is exited the radio will
return to AT command mode.
C.1.2 “ATD” Dial
This command dials a remote unit. The basic dialling command is:
ATD<address><extension>
Where <address> is the address of the remote unit, and <extension> is the extension number to dial. For
a list of extension numbers see section 5.3.3 on page 34.
NOTE: When dialling radio modems with a single digit unit address, a leading zero must be added (eg 01
for unit with address 1).
Hyphens, spaces, and colons can be used to make the command more readable, however these will be
ignored by the radio. For example, the command ATD30200001 is equivalent to ATD 30-2000:01.
Dial commands cannot be concatenated with other AT commands. More information can be found in the
section Connection Management on page 34.
C.1.3 “ATE” Echo
The echo command enables or disables the echoing of input characters in local command state.
Command
Description
ATE0
Disable local command echo.
ATE1
Enable local command echo.
Table 21: ATE Echo commands
C.1.4 “ATH” Hang Up
The hang-up command forces the radio to terminate the current dial-up connection.
C.1.5 “ATI” Information
The information commands can be used to return various information about the radio. The list of commands
are shown in Table 22.
Page 87
Appendix C Hayes AT Command Reference
RFI-9256 Radio Modem User Manual Page 87 of 109
Command
Description
ATI
Displays the firmware identifier.
ATI0
Displays the numeric identify code (UNIRADIO PnP).
ATI1
Displays the CRC-32 firmware checksum.
ATI2
Returns OK if the firmware checksum is correct, or ERROR if the firmware checksum is
invalid.
ATI3
Displays the firmware revision level.
ATI4
Displays the firmware revision / build date.
ATI5
Displays the radio manufacture date.
ATI6
Displays the radio serial number.
ATI7
Displays the mode identification string.
ATI8
Displays the connection type.
ATI9
Displays the internal temperature of the radio in degrees C.
ATI10
Displays the offline time in milliseconds.
ATI11
Displays the radios average RSSI in dBm.
ATI12
Displays the radios average NOISE in dBm.
ATI13
Displays the current port identifier (0 for main, 1 for aux, or 2 for a virtual Hayes dial-up
port).
ATI14
Displays the radio link status.
Table 22: ATI information commands
C.1.6 “ATO” Return to Online State
The return to online state command returns the radio to online state from local command state.
When a radio is online (connected to a remote computer), anything transmitted over the serial port is sent to
the remote unit. In order to send AT commands to the radio, it must be returned to local command state. This
is done by sending an escape sequence (see section Escape Sequence on page 35). In order to go back online
state from the local command state, the ATO command is executed.
C.1.7 “ATQ” Quiet (Suppress Response Codes)
The response codes that are generated by the radio can be suppressed, so that commands do not return OK,
CONNECT, or NO CARRIER. The options for generating response codes are shown in Table 23.
Page 88
Appendix C Hayes AT Command Reference
RFI-9256 Radio Modem User Manual Page 88 of 109
Command
Description
ATQ0
Response codes are always generated.
ATQ1
Response codes are not generated.
Table 23: ATQ Quiet commands
C.1.8 “ATV” Verbal Response Codes
Response codes can be either verbal (English words), or numeric. The options for selecting response codes is
shown in Table 24.
Command
Description
ATV0
Numeric response codes are generated.
ATV1
Verbal (string based) response codes are generated.
Table 24: ATV Verbal response codes commands
See the section S-Register and %-Register Commands on page 14 for a full list of response codes.
C.1.9 “ATW” Delayed Response
The RFI-9256 can often establish connections much faster than a conventional public switched telephone
network (PSTN) modem. In order to be compatible with PSTN modems the ATW command can be used to
delay the CONNECT response to link establishment by 1 second. The options are shown in Table 25.
Command
Description
ATW0
Respond as soon as a connection is established.
ATW1
Allow for at least 1 second of delay before responding.
Table 25: ATW delayed response codes commands
C.1.10 “AT&C” Data Carrier Detect Control
Data Carrier Detect (DCD) is an RS-232 signal used to indicate to the DTE that a connection is established
to a remote radio. The AT&C command is used to tell the radio how it will control the DCD output as shown
in Table 26.
Page 89
Appendix C Hayes AT Command Reference
RFI-9256 Radio Modem User Manual Page 89 of 109
Command
Description
AT&C0
DCD is always asserted.
AT&C1
DCD follows the online status of the radio. Online status is discussed in section 5.3.6.
AT&C2
DCD follows the DTR input of the remote radio when a connection is established, and is low
when there is no connection established.
Table 26: AT&C data carrier detect control commands
C.1.11 “AT&D” Data Terminal Ready Activity
Data Terminal Ready (DTR) is an RS-232 signal used to indicate to the radio whether the DTE is ready to
communicate. The AT&D command is used to tell the radio how it will react when the DTR signal changes.
The options are shown in Table 27.
Command
Description
AT&D0
The radio ignores the DTR signal.
AT&D1
The radio enters local command mode whenever DTR is low.
AT&D2
The radio hangs up the current connection whenever DTR goes from high to low.
AT&D3
The radio hangs up and returns to the local command mode whenever DTR is low. The radio
with this configuration must be DTR asserted before dialling or answering otherwise an
immediate hang-up will occur.
Table 27: AT&D data terminal ready activity commands
C.1.12 “AT&F” Restore Factory Defaults
All configuration values in the RFI-9256 have factory default settings, outlined in Appendix D on page 105.
The AT&F command can be used to reset some or all of these settings to the factory default state.
Command
Description
AT&F0
Restores the Hayes radio interface to the factory default settings.
AT&F1
Restores all radio settings to their factory default state.
Table 28: AT&F restore factory defaults commands
C.1.13 “AT&G” Exclusive Port Control
There are times when a DTE may require exclusive control of a radio. Since the RFI-9256 is a dual port
radio, this involves preventing any dial attempts from the other serial port. There are three options for
exclusive port control
Page 90
Appendix C Hayes AT Command Reference
RFI-9256 Radio Modem User Manual Page 90 of 109
Command
Description
AT&G0
Multi-port operation.
AT&G1
Exclusive port control. The other serial port will always return BUSY whenever an attempt is
made to dial out.
AT&G2
Priority port control. If the other serial port already has a connection established then it will
be immediately disconnected when the priority port (this port) issues a dial command, and
the other serial port will always return BUSY whenever an attempt is made to dial out.
Table 29: AT&G exclusive port control commands
The radio should be restored to multi-port operation after hanging up from the remote radio or at the end of
session.
C.1.14 “AT&K” Flow Control
The flow control mode for the current serial port is selected using the AT&K command. The selection options
are shown in Table 30.
Command
Description
AT&K0
Flow control is disabled.
AT&K3
RTS/CTS hardware flow control is selected. This option is only available for the main serial
port.
AT&K4
Xon/Xoff software flow control is selected. This option is available on both the main and
auxiliary ports.
Table 30: AT&K flow control commands
C.1.15 “AT&V” View Active Profile
The current configuration of the radio can be viewed using the AT&V command. The items that can be
viewed are shown in Table 31.
Command
Description
AT&V
Displays all registers except for I registers.
AT&V1
Displays all I registers.
AT&V2
Displays all S registers.
AT&V8
Displays the current communications links.
AT&V9
Displays the fault / diagnostics log.
Table 31: AT&V view profile commands
Page 91
Appendix C Hayes AT Command Reference
RFI-9256 Radio Modem User Manual Page 91 of 109
C.1.16 “AT&W” Store Active Profile
The AT&W command is used to store the current profile in non-volatile memory.
The two options when storing the active profile are shown in Table 32.
Command
Description
AT&W
Saves all radio configuration data to non-volatile memory.
AT&W1
Submits the serial port configuration. Serial port configuration changes are not made active
until this command is executed.
Table 32: AT&V view profile commands
C.2 S-Register Commands
C.2.1 “ATS0” Rings Before Answer
Sets the number of rings that are output before the RFI-9256 automatically answers a call.
ATS0=3<CR>: Causes 3 RING messages to be output before answering.
C.2.2 “ATS2” Escape Character
S-register 2 contains the ASCII values of the character that forms the escape sequence. The default value for
this register is the ‘+’ character, with an ASCII value of 43. The radio will recognise three + characters
(+++) as the escape sequence with the escape guard time delay before and after the sequence.
ATS2=36<CR>: Recognises three dollar characters “$$$” as the escape sequence.
ATS2=45<CR>: Recognises three minus characters “---“ as the escape sequence.
C.2.3 “ATS7” Wait for Carrier
S-register 7 contains a value, in seconds, equivalent to the length of time the radio will wait for a carrier
signal after dialling. If a carrier is not detected within the time specified in this register, the radio will hang
up and return a NO CARRIER message.
ATS7=20<CR>: Wait for up to 20 seconds for a connection to be established before returning NO
CARRIER.
C.2.4 “ATS12” Escape Sequence Guard Time
The escape sequence guard time is the time delay required immediately before and after entering an escape
sequence.
Page 92
Appendix C Hayes AT Command Reference
RFI-9256 Radio Modem User Manual Page 92 of 109
For the radio to distinguish the escape sequence from ordinary data, there must be a period of silence both
before and after the escape sequence is entered. If the escape sequence guard time is one second and the
escape sequence character has been defined as ‘+’, for the radio to recognise an escape sequence the line
must be silent for one second, then “+++” is transmitted in rapid succession, and then another one second
silence.
S-register 12 is also used to time the period between the escape sequence characters as they are typed. If the
period between the first and second escape characters or second and third escape characters being entered is
greater than the value in s-register 12, the radio will not recognise the escape sequence.
The guard time is in units of milliseconds (or 1/1000 of a second).
ATS12=990<CR>: Maintain silence on the line for 990ms (0.99 seconds) before and after entering
the escape sequence.
C.2.5 “ATS21” Set Security Code
S-register 21 sets the network security code for this radio. The range of values is from 0 to 4294967295. All
radios on a single network must have the same security code in order to maintain communications.
ATS21=5839238<CR>: Sets the security code to 5839238.
C.2.6 “ATS39” RX Packet Timer
S-register 39 contains the RX (in) packetiser timer. Packet timers are in the range 0 to 1000ms. When a
value of 0 is set for s-register 39 packetising is disabled.
ATS39=30<CR>: Sets a 30ms RX packetisation timer.
ATS39=0<CR>: Disables the RX packetisation timer.
C.2.7 “ATS40” TX Packet Timer
S-register 40 contains the TX (out) packetiser. Packet timers are in the range 0 to 1000ms. When a value of 0
is set for s-register 40 packetising is disabled.
ATS40=870<CR>: Sets an 870ms TX packetisation timer.
ATS40=0<CR>: Disables the TX packetisation timer.
C.2.8 “ATS41” Number of Retries
S-register 41 contains the number of retries used by the radio, and is within the range 0 to 255 where a value
of 0 will disable retries.
ATS41=25<CR>: Sets 25 retries.
ATS41=0<CR>: Disables retries.
Page 93
Appendix C Hayes AT Command Reference
RFI-9256 Radio Modem User Manual Page 93 of 109
C.2.9 “ATS42” Network fail timeout
S-register 42 sets the network fail timeout. The network fail timeout is the amount of time that must pass
with no data being received on a slave for it to give up trying to communicate with its master and return to
hunting for a connection. The network fail timer is configurable between 100 and 30000ms.
ATS42=15000<CR>: Sets the network fail timeout to occur after 15 seconds without contact
between the slave and the master.
C.2.10 “ATS43” Online requests timer
S-register 43 sets the online request timer. The online request timer is the time between automatic
background polling between point-to-point and Hayes dial-up units to ensure that connections still exist. It
can be configured to between 100ms and 30000ms, and must be less than the network fail timer. For more
information about online requests see section 5.3.6 on page 39.
ATS43=400<CR>: Sets the radio to check for online status every 400ms.
C.2.11 “ATS44” Hopping Pattern Sequence
S-register 44 sets the hopping pattern sequence number used by the radio. All radios on a single network
must have the same hopping pattern sequence number in order to communicate. Valid values are between 0
and 31.
ATS44=27<CR>: Sets the hopping pattern sequence number to 27.
C.2.12 “ATS45” Max TX Power
S-register 45 sets the maximum transmit power of the radio. The only valid formats for setting the maximum
transmit power are:
ATS45=0<CR>: Sets the maximum transmit power to 0dBm.
ATS45=10<CR>: Sets the maximum transmit power to 10dBm.
ATS45=20<CR>: Sets the maximum transmit power to 20dBm.
ATS45=25<CR>: Sets the maximum transmit power to 25dBm.
ATS45=30<CR>: Sets the maximum transmit power to 30dBm.
C.2.13 “ATS47” Frame Time
S-register 47 sets the frame time in milliseconds. The only valid frame time values are:
ATS47=5<CR>: Sets the frame time to 5ms.
ATS47=8<CR>: Sets the frame time to 8ms.
ATS47=10<CR>: Sets the frame time to 10ms.
Page 94
Appendix C Hayes AT Command Reference
RFI-9256 Radio Modem User Manual Page 94 of 109
ATS47=15<CR>: Sets the frame time to 15ms.
ATS47=20<CR>: Sets the frame time to 20ms.
ATS47=25<CR>: Sets the frame time to 25ms.
ATS47=30<CR>: Sets the frame time to 30ms.
ATS47=35<CR>: Sets the frame time to 35ms.
C.2.14 “ATS48” Frame Bias
S-register 48 sets the frame bias of the radio. The only valid frame bias values are:
ATS48=0<CR>: Disables frame bias (sets the bias to 50/50).
ATS48=1<CR>: Sets the frame bias to outgoing/upload. This means that more data can flow out
from this unit over the air.
ATS48=2<CR>: Sets the frame bias to incoming/download. This means that more data can flow into
this unit from the air.
C.2.15 “ATS50” Network Address
S-register 40 sets the network address of the radio. All radios on a single network must have the same
network in order to communicate. Valid values are between 0 and 63.
ATS50=54<CR>: Sets the network address to 54.
C.2.16 “ATS51” Unit Rx address
S-register 51 sets the units local address. Local addresses are in the range 1 to 9999.
ATS51=1001<CR>: Sets the units address to 1001.
C.2.17 “ATS52” Unit Tx address
S-register 52 sets the destination address for point-to-point traffic from this unit. Destination addresses are in
the range 0 to 9999.
ATS52=2027<CR>: Sets the point-to-point destination address to 2027.
C.2.18 “ATS60” Set Logging Level
S-register 60 sets the current radio log level. The only valid values are:
ATS60=0<CR>: Only errors are logged.
ATS60=1<CR>: Warnings and errors are logged.
ATS60=2<CR>: Status information, warnings, and errors are logged.
Page 95
Appendix C Hayes AT Command Reference
RFI-9256 Radio Modem User Manual Page 95 of 109
ATS60=3<CR>: General information, status information, warnings, and errors are logged.
ATS60=4<CR>: All information is logged.
C.2.19 “ATS70” Set Port Protocol Type
S-register 70 sets the protocol mode for the serial port. The protocol type can be set for a specific port by
appending “:0” for the main port and “:1” for the auxiliary port. The only valid values are:
ATS70=0<CR>: Disables the serial port.
ATS70=1<CR>: Sets the serial port into point-to-point mode. See section 0 on page 33 for
information on point-to-point networks.
ATS70=2<CR>: Sets the serial port into point-to-multipoint broadcast mode. See section 0 on page
33 for information on point-to-multipoint broadcast networks.
ATS70=3<CR>: Sets the serial port into Hayes dial-up mode. See section 5.3.3 on page 34 for
information on Hayes dial-up networks.
ATS70=11<CR>: Sets the serial port to the Modbus protocol. See section 5.3.4 on page 37 for
information on SCADA protocol utilization.
ATS70=12<CR>: Sets the serial port to the Honeywell protocol. See section 5.3.4 on page 37 for
information on SCADA protocol utilization.
ATS70=13<CR>: Sets the serial port to the DNP3 protocol. See section 5.3.4 on page 37 for
information on SCADA protocol utilization.
ATS70=14<CR>: Sets the serial port to the TDE protocol. See section 5.3.4 on page 37 for
information on SCADA protocol utilization.
C.2.20 “ATS80” Local Auxiliary I/O Hex data
S-register 80 contains the current value being read from the auxiliary I/O input as an 8-bit number, where a
bit is set to 1 for a logic high and 0 for logic low. It can also be used to set the local outputs.
ATS80=F0<CR>: Sets the Auxiliary I/O bits 0…3 to output 1 and bits 4…7 to output 0.
C.2.21 “ATS81” Get Remote Auxiliary I/O Hex data
S-register 81 is a read-only register that contains the current value being read from the remote auxiliary I/O
input as an 8-bit number, where a bit is set to 1 for a logic high and 0 for logic low.
C.2.22 “ATS82” Auxiliary I/O Direction Mask
S-register 82 contains the direction mask for the auxiliary I/O on the local radio. A bit set to 1 sets the I/O as
an output, and 0 sets the I/O as an input.
ATS82=00<CR>: This would set all eight I/Os as inputs.
ATS82=F0<CR>: This would set I/Os 0…3 to be inputs and I/Os 4…7 to be outputs.
Page 96
Appendix C Hayes AT Command Reference
RFI-9256 Radio Modem User Manual Page 96 of 109
C.2.23 “ATS83” Set Auxiliary I/O Power-up Default
S-register 83 contains the power-up default value for the auxiliary I/O port. A bit set to 1 sets the I/O as logic
high, and 0 sets the I/O as logic low.
ATS83=FF<CR>: This would set all eight I/Os to logic high on power-up.
ATS82=80<CR>: This would set I/O 7 to logic high, and all other I/Os to logic low on power-up.
C.2.24 “ATS84” Set Auxiliary I/O Sample Timer
S-register 84 sets the sample period for the input I/Os.
ATS84=100<CR>: This would cause the I/Os to be sampled once every 100ms.
C.2.25 “ATS90” Set DCD control
S-register 90 sets how the data carrier detect (DCD) output is controlled. The options for controlling DCD
are shown in Table 29.
Value
Description
0
Online controls DCD.
1
Network link controls DCD.
2
Carrier detect controls DCD.
3
Remote DTR controls DCD.
4
Local DTR controls DCD.
5
Remote RTS controls DCD.
6
Local RTS controls DCD.
7
DCD always off.
8
DCD always on.
9
DCD disabled.
Table 33: DCD output control options
ATS90=2<CR>: Sets carrier detect to control DCD.
ATS90=7<CR>: Sets DCD to always be on.
C.2.26 “ATS91” Set CTS control
S-register 90 sets how the clear to send (CTS) output is controlled. The options for controlling CTS are
shown in Table 30.
Page 97
Appendix C Hayes AT Command Reference
RFI-9256 Radio Modem User Manual Page 97 of 109
Value
Description
0
Online controls CTS.
1
Network link controls CTS.
2
Carrier detect controls CTS.
3
Remote DTR controls CTS.
4
Local DTR controls CTS.
5
Remote RTS controls CTS.
6
Local RTS controls CTS.
7
CTS always off.
8
CTS always on.
9
CTS disabled.
Table 34: CTS output control options
ATS91=3<CR>: Sets CTS to follow the remote value of DTR.
ATS91=6<CR>: Sets CTS to follow the local value of RTS.
Note: When RTS/CTS flow control is selected, CTS is set according to the flow control and the setting in sregister 91 is ignored.
C.2.27 “ATS100” Set Port Baud Rate
S-register 100 sets the baud rate of the connected serial port. The values for S-register 100 are limited to
{110, 300, 600, 1200, 2400, 4800, 9600, 19200, 38400, 57600, 115200}. To set the baud rate for a specific
port, the command is appended with “:0” for the main port and “:1” for the auxiliary port.
ATS100=300<CR>: Sets the baud rate to 300 on the current port.
ATS100=115200:0<CR>: Sets the baud rate to 115200 on the main port.
The value store in s-register 100 will not be applied immediately. It will only become active once the AT&W1
command is executed.
C.2.28 “ATS101” Set Port Parity
S-register 101 sets the parity of connected serial port. The parity can be set for a specific port by appending
to the command “:0” for the main port and “:1” for the auxiliary port. There are three options for the parity:
ATS101=0<CR>: Disable parity on current port.
ATS101=1:0<CR>: Odd parity on the main port.
ATS101=2:1<CR>: Even parity on the auxiliary port.
Page 98
Appendix C Hayes AT Command Reference
RFI-9256 Radio Modem User Manual Page 98 of 109
The value store in s-register 101 will not be applied immediately. It will only become active once the AT&W1
command is executed.
C.2.29 “ATS102” Set Port Data Bits
S-register 102 sets the number of data bits used by the connected serial port. The data bits can be set for a
specific port by appending to the command “:0” for the main port and “:1” for the auxiliary port. There are
two options for the number of data bits:
ATS102=7<CR>: Seven data bits on the current port.
ATS102=8:1<CR>: Eight data bits on the auxiliary port.
The value store in s-register 102 will not be applied immediately. It will only become active once the AT&W1
command is executed.
C.2.30 “ATS103” Set Port Stop Bits
S-register 103 sets the number of stop bits used by the connected serial port. The stop bits can be set for a
specific port by appending to the command “:0” for the main port and “:1” for the auxiliary port. There are
two options for the number of stop bits:
ATS103=1:0<CR>: One stop bit on the main port.
ATS103=2<CR>: Two stop bits on the current port.
The value store in s-register 103 will not be applied immediately. It will only become active once the AT&W1
command is executed.
C.2.31 “ATS104” Set Port Flow Control
S-register 104 sets the flow control mode of connected serial port. There are three options for the flow
control mode:
ATS104=0<CR>: Flow control disabled.
ATS104=1<CR>: Software (XON/XOFF) flow control.
ATS104=2<CR>: Hardware (RTS/CTS) flow control.
The value store in s-register 104 will not be applied immediately. It will only become active once the AT&W1
command is executed.
NOTE: The flow control can be set for a specific port by appending “:0” for the main port and “:1” for the
auxiliary port.
Page 99
Appendix C Hayes AT Command Reference
RFI-9256 Radio Modem User Manual Page 99 of 109
C.3 ‘%’ Register Commands
C.3.1 “AT%20” Set Unit Name
The AT%20 command sets the unit’s name. A unit name can be between 0 and 16 alphanumeric characters.
AT%20=South<CR>: Sets the units name to “South”.
AT%20=<CR>: Clears the unit’s name (sets it to an empty string).
C.3.2 “AT%22” Set Menu Password
The RFI-9256 menu system can be password protected in order to prevent unauthorized access. A password
can be between 1 and 12 alphanumeric characters. If the password is already set, then this command will not
change it.
AT%22=password<CR>: Sets the menu access password to “password”.
C.4 Other Commands
The RFI-9256 supports many other AT commands. Most of these commands are common to many PSTN
modems, however do not provide any function on the RFI-9256. They are only supplied for compatibility
with existing systems. The list of commands supplied for compatibility only are given in the summary of
commands in the next section.
C.5 Summary of Commands
The following section provides a summary of all AT commands supported by the RFI-9256. Each of these
tables has the following headings:
Command: The actual AT command.
Description: A brief description of the command functionality.
Last on Line: A cross, , indicates that the command must be the last on the line for it to be
executed.
&W: A cross, , indicates that the change will not become active until the AT&W command is
executed.
&W1: A cross, , indicates that the change will not be saved in non-volatile memory until the AT&W
or AT&W1 command is executed.
Compat: A cross, , indicates that the command is supplied for compatibility only and does not
perform any actual function.
Command
Description
Last on Line
&W
&W1
Compat
A
Answer a call.
D
DT
DP
Dial a number.
Page 100
Appendix C Hayes AT Command Reference
RFI-9256 Radio Modem User Manual Page 100 of 109
H
H0
Hang-up the radio.
O
O0
Go online.
Table 35: Dialling Commands
Command
Description
Last on
Line
&W
&W1
Compat
?
Enables the menu on the current port.
E0
Echo OFF.
E1
Echo ON.
L0
Lowest speaker volume.
L1
Low speaker volume.
L2
Medium speaker volume.
L3
Highest speaker volume.
M0
Speaker off.
M1
Speaker on when connecting.
M2
Speaker on.
Q0
Responses ON.
Q1
Responses OFF.
V0
Numeric response codes.
V1
Verbal response codes.
X0
Set to basic response codes.
W0
Fast connection response.
W1
Delayed connection response.
X4
Set to extended response codes.
Z
Initialise radio (power on reset).
&A0
Auxiliary I/O Disable
&A1
Auxiliary I/O Enable
&A2
Auxiliary I/O Follow Remote
&C0
DCD always on.
&C1
DCD follow online.
&C2
DCD follows remote DTR.
Loading...
