STI SUB-319 User Manual

Safety Technology International, Inc.

2306 Airport Road • Waterford, Michigan 48327-1209
P

hone: 248-673-9898 • Fax: [phone]

T

oll Free: 800-888-4784 • E-mail: [e-mail]

Web: www.sti-usa.com

Safety Technology International (Europe) Ltd.

Unit 49G Pipers Road • Park Farm Industrial Estate • Redditch
Worcestershire • B98 0HU • England • Tel: [phone]
F

ax: 44 (0) 1527 501 999 • Freephone: 0800 085 1678 (UK only)

E

-mail: [e-mail] • Web: www.sti-europe.com

HORN DEACTIVATION PIN

HORN CASE

ROTATE BATTERY UPWARD

FOR REMOVAL

HORN COVER

HARNESS

WIRE HARNESS COLOR CODE
POWER IN
RED + 12-24VDC
BLACK GROUND
FORM “C” CONTACTS
YELLOW N.O.
BLUE COM
GREEN N.C.

PLUG

JACK

R

OUTE WIRE HARNESS AS SHOWN

FIG. 3

FIG. 2

NOTE: Form “C” Dry Contact Rating < 30, 1 VAC/DC

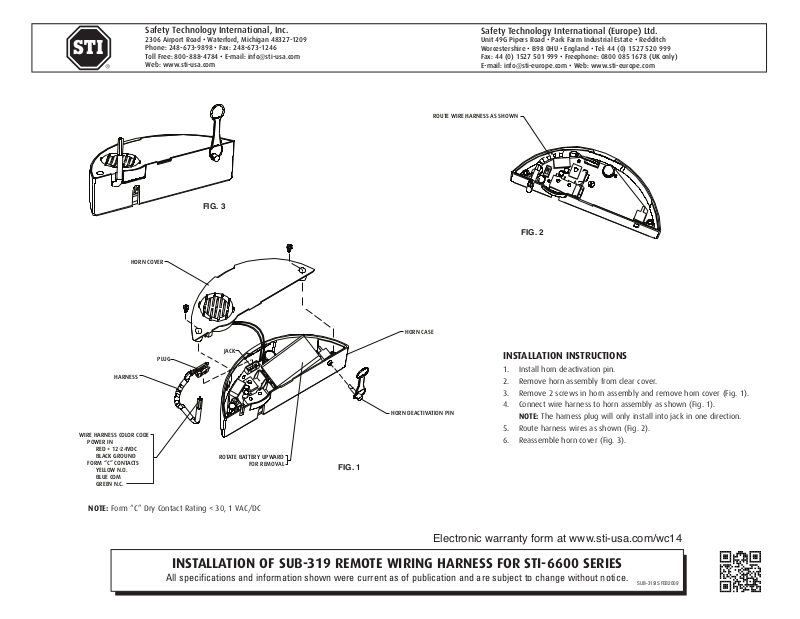

INSTALLATION OF SUB-319 REMOTE WIRING HARNESS FOR STI-6600 SERIES

All specifications and information shown were current as of publication and are subject to change without notice.

FIG. 1

INSTALLATION INSTRUCTIONS

1. Install horn deactivation pin.

2. Remove horn assembly from clear cover.

3. Remove 2 screws in horn assembly and remove horn cover (Fig. 1).

4. Connect wire harness to horn assembly as shown (Fig. 1).
NOTE: The harness plug will only install into jack in one direction.

5. Route harness wires as shown (Fig. 2).

6. Reassemble horn cover (Fig. 3).

Electronic warranty form at www.sti-usa.com/wc14

SUB-319IS FEB2009
