SUB-316 ALUMINUM LOUVER

(2) PROVIDED

STI RECOMMENDS THE APPLICATION
OF A GOOD ADHESIVE (LOCTITE 414) OR
S

IMILAR INSTANT ADHESIVE APPLIED TO

U

NDERSIDE OF LOUVER FLANGE AS SHOWN

FLAT BOSSES MUST FACE UPWARD AS SHOWN

SUB-315 STAINLESS STEEL GRILL,
SLIDE INTO LOWER CONDUIT NOTCH

PRIOR TO INSTALLATION OF LOUVERS
ROTATE LOUVER FINS TO A DOWNWARD
POSITION AS SHOWN

DRILL 2 1 in.(25mm) DIAMETER HOLES

BOTH SIDES AS SHOWN

BEST RESULTS ARE OBTAINED USING A HOLE

SAW TURNED AT 200-300 RPM’S WITH SLOW FEED RATE

NOTE: IF CLEARANCE FOR ELECTRICAL CONDUIT

IS NOT NEEDED STI RECOMMENDS THE (2) KNOCK OUTS

B

E PLACED IN NOTCHES AS SHOWN

1

in

.(2

5m

m

)

Electronic warranty form at www.sti-usa.com/wc14

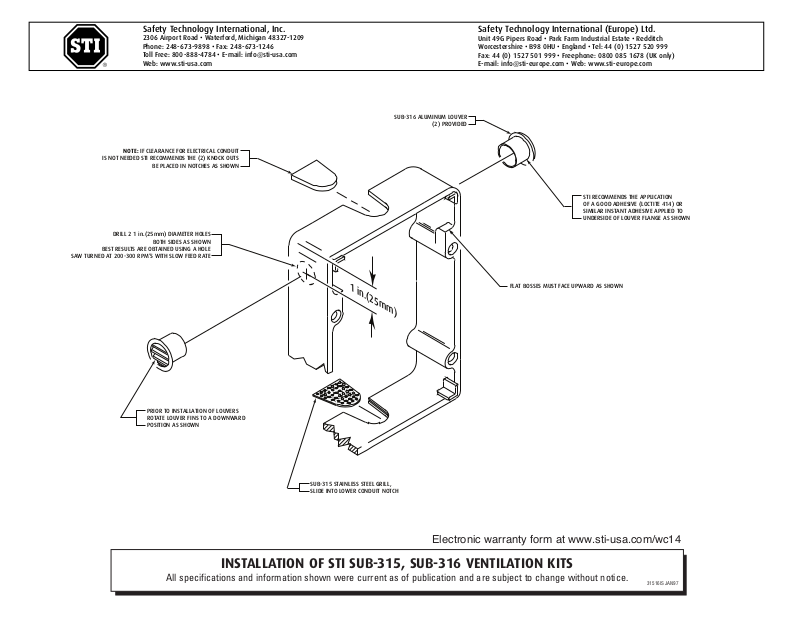

INSTALLATION OF STI SUB-315, SUB-316 VENTILATION KITS
