GASKET MAY BE SLIT IN
THIS AREA AND PLACED
BEHIND CONDUIT

#70495 CONDUIT ENTRY GASKET
SELECT THE PROPER DIAMETER,
PUSH OUT AND DISCARD

Safety Technology International (Europe) Ltd.

Unit 49G Pipers Road • Park Farm Industrial Estate • Redditch

Worcestershire • B98 0HU • England • Tel: [phone]
Fax: [phone] • Freephone: 0800 085 1678 (UK only)
E-mail: [e-mail] • Web: www.sti-europe.com

INSTALLATION INSTRUCTIONS

1. The (6) mounting holes must be marked and
drilled with the (6) anchors installed prior to
the installation of the #70496 gasket.

2. After the #70496 gasket is installed the
#70495 gasket (if needed) may now be
placed around conduit.

3. Place #70498 gasket into the groove on
the bottom side of cover and complete
installation as shown.

#70496 GASKET

PEEL OFF BACKING PAPER

AND PLACE ADHESIVE

SIDE TOWARD WALL

#70498 GASKET

#19050 #8-32 x 3/4 in.
SOCKET HEAD SCREW
(6) PROVIDED

Electronic warranty form at www.sti-usa.com/wc14

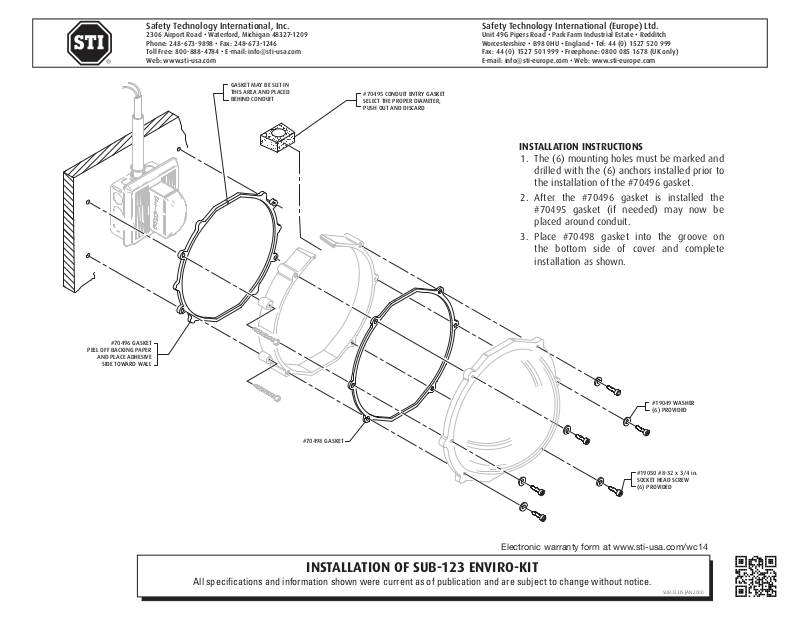

INSTALLATION OF SUB-123 ENVIRO-KIT

All specifications and information shown were current as of publication and are subject to change without notice.

#19049 WASHER
(6) PROVIDED
