STI SUB-121 User Manual
62961 GASKET (1) PROVIDED
NOTE: AS AN ASSEMBLY AID
WATER MAY BE USED AS
A LUBRICANT
6297316 GASKET
(1) PROVIDED
E SPACER
(PRE-EXISTING)
ADHESIVE BACKED GASKET
(1) PROVIDED
"O" RING GASKET
(1) PROVIDED
D SPACER
ADHESIVE
REMOVE BACKING
PAPER PRIOR TO
INSTALLATION
EXISTING
ANCHOR
EXISTING
SCREW
62961 GASKET (1) PROVIDED
NOTE: AS AN ASSEMBLY AID
WATER MAY BE USED AS
A LUBRICANT
629761 "O"
RING GASKET
6297316 ADHESIVE
BACKED GASKET
(4) 19033 ANCHORS
(4) 19013 SCREWS 10 X 1 1/2
"O" RING GASKET
(1) PROVIDED
STI-1221D
STI-1210D
"O" RING GASKET
(1) PROVIDED
INSERT
EXISTING
CONDUIT GASKET
(1) PROVIDED
D SPACER
(PRE-EXISTING)
ADHESIVE
BACKED GASKET
(1) PROVIDED
EXISTING
ANCHOR
EXISTING
SCREW
BACKED GASKET
(1) PROVIDED
STI-1210D/1221D
Safety Technology International, Inc.
2306 Airport Road • Waterford, Michigan 48327-1209
Phone: 248-673-9898 • Fax: 248-673-1246
Toll Free: 800-888-4784 • E-mail: info@sti-usa.com
Web: www.sti-usa.com
CONDUIT GASKET
(1) PROVIDED
EXISTING
INSERT
D SPACER
(PRE-EXISTING)
"O" RING GASKET
(1) PROVIDED
REMOVE BACKING
PAPER PRIOR TO
INSTALLATION
EXISTING
ANCHOR
STI-1210E/1221E
WHEN USING 629761
GASKET EXISTING RETAINING
CLIP MUST BE INSTALLED
IN SLOT #1 AS SHOWN.
Safety Technology International (Europe) Ltd.
Unit 49G Pipers Road • Park Farm Industrial Estate • Redditch
Worcestershire • B98 0HU • England • Tel: 44 (0) 1527 520 999
Fax: 44 (0) 1527 501 999 • Freephone: 0800 085 1678 (UK only)
E-mail: info@sti-europe.com • Web: www.sti-europe.com
EXISTING
SCREW
6297316 GASKET
(1) PROVIDED
E SPACER
(PRE-EXISTING)
62961 GASKET (1) PROVIDED
NOTE: AS AN ASSEMBLY AID
WATER MAY BE USED AS
A LUBRICANT
DRILL A 1/4 in. (6mm) DIA.
WEEP HOLE AS SHOWN
IMPORTANT
In applications where wash downs or rainfall
occur, it is recommended a drain or weep
hole be provided at location shown.
All specifications and information shown were current as of publication and are subject to change without notice.
RETAINING CLAMP
629761 "O" RING
GASKET
(PRE-EXISTING)
SOCKET HEAD SCREW
(PRE-EXISTING)
SLOT #1
COVER
SLOT #2
Electronic warranty form at www.sti-usa.com/wc14

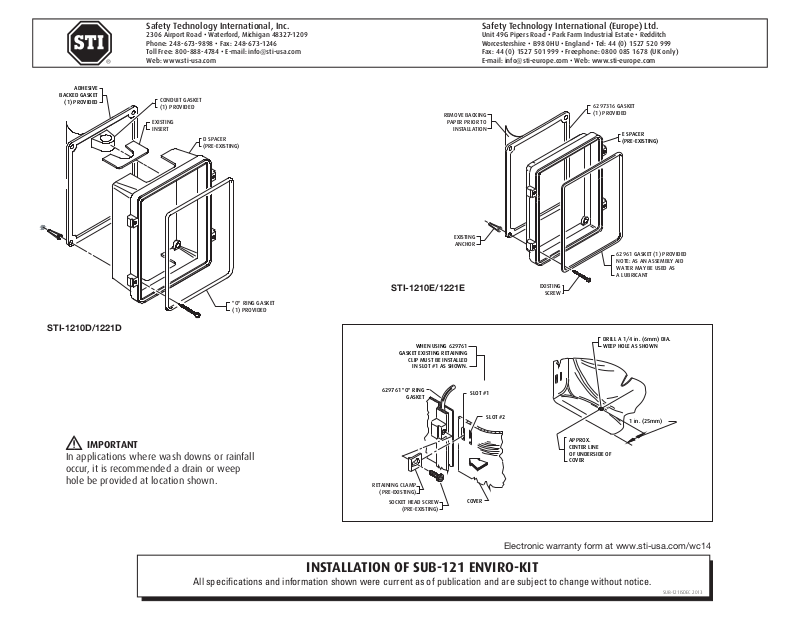

INSTALLATION OF SUB-121 ENVIRO-KIT
APPROX.
CENTER LINE
OF UNDERSIDE OF
COVER
1 in. (25mm)
SUB-121ISDEC 2013
