STI SUB-06297 User Manual
S
afety Technology International, Inc.
2
306 Airport Road • Waterford, Michigan 48327-1209
P
hone: 248-673-9898 • Fax: 248-673-1246
Toll Free: 800 -888 -4784 • E-mail: inf o@sti -usa.com
Web: www.sti-usa.com
Safety Technology International (Europe) Ltd.
Unit 49G Pipers Road • Park Farm Industrial Estate • Redditch
W
orcestershire • B98 0HU • England • Tel: 44 (0) 1527 520 999
F
ax: 44 (0) 1527 501 999 • Freephone: 0800 085 1678 (UK only)
E-mail: info@sti-europe.com • Web: www.sti-europe.com
19013 SCREW
#10 x 1 1/2 in.
(4) PROVIDED
629761 GASKET
LID ASSEMBLY
TO BACKBOX
(ALL MODELS)
6297221 GASKET
LID TO FRAME
(ALL MODELS)
1
9033 ANCHOR
(4) PROVIDED
6
297T EXTERNAL MOUNTING TABS
(PROVIDED ON A, B, C & F MODELS)
07522 LID AND
F
RAME ASSEMBLY
19001 SOCKET HEAD
S
CREW #8-32 x 3/8 in.
(4) PROVIDED
KEY LOCK SHOWN
4.15 in.(105mm)
D
EPTH
M
OUNTING TABS
AND FASTENERS
SEALED BACKBOX WITH EXTERNAL MOUNTING
STI-3002 GASKET
IF CONDUIT HUB IS
NEEDED ORDER
SUB-6297B20 HUB
KIT, GASKET AND
FASTENERS INCLUDED
NOTE: SUB KIT IS
3/4 in. RIGID DIE CAST
KEY LOCK SHOWN
2.51 in.(64mm)
DEPTH
MOUNTING TABS &
FASTENERS
OPEN BACKBOX WITH EXTERNAL MOUNTING
OPEN BACKBOX WITH INTERNAL MOUNTING
6297316 GASKET
THUMB LOCK SHOWN
MOUNTING
FASTENERS
1.76 in.(45mm)
DEPTH
R
I
F CONDUIT HUB IS
NEEDED ORDER
SUB- 6297B20 HUB
K
IT, GASKET AND
FASTENERS INCLUDED
NOTE: SUB KIT IS 3/4 in.
R
IGID DIE CAST
T
HUMB LOCK SHOWN
1.30 in.(33mm)
DEPTH
MOUNTING TABS
AND FASTENERS
SEALED BACKBOX WITH EXTERNAL MOUNTING
AND MOLDED DOUBLE GANG OUTLET BOX
R
OPEN BACKBOX WITH INTERNAL MOUNTING
6297316 GASKET
SURFACE MOUNT
CONDUIT INSERTS USE
WHERE NEEDED
(1 OF EACH PROVIDED)
KEY LOCK SHOWN
MOUNTING
FASTENERS
3.54 in.(90mm)
DEPTH
R
KEY LOCK SHOWN
2.35 in.(60mm)
DEPTH
MOUNTING TABS
AND FASTENERS
IF CONDUIT HUB IS
NEEDED ORDER
SUB-6297B20 HUB
KIT, GASKET AND
FASTENERS INCLUDED
NOTE: SUB KIT IS 3/4
SEALED BACKBOX WITH EXTERNAL MOUNTING
TYPICAL INSTALLATION OF STI-7500 AND STI-7501
Internal dimensions of all six enclosures are 8.50 in. (216mm) wide
and 6.37 in. (160mm) high. For depth dimensions, see pictorial views.
INSTALLATION INSTRUCTIONS
1. For models A, B, C & F insert the (4) mounting tabs into the back
box slots.
2. Using the installed mounting tab holes or internal mounting bosses
as a template, mark and drill (4) 1/4 in. diameter holes and
complete installation as shown.
CLEANING INSTRUCTIONS
Rinse with water to remove
abrasive dust and dirt. Wash with
soap or mild detergent, using a
soft cloth. (Do not scrub or use
brushes or abrasives.) Rinse
once more, then dry using a soft
cloth or chamois.
Electronic warranty form at www.sti-usa.com/wc14
All specifications and information shown were current as of publication, and are subject to change without notice.
STI-7500A WITH KEY LOCK
STI-7501A WITH THUMB LOCK
STI-7500C WITH KEY LOCK
To remove grease or wet paint,
rub gently with a cloth wetted
thoroughly with naptha (do not
use razor blades or gasoline).
Then wash and rinse.

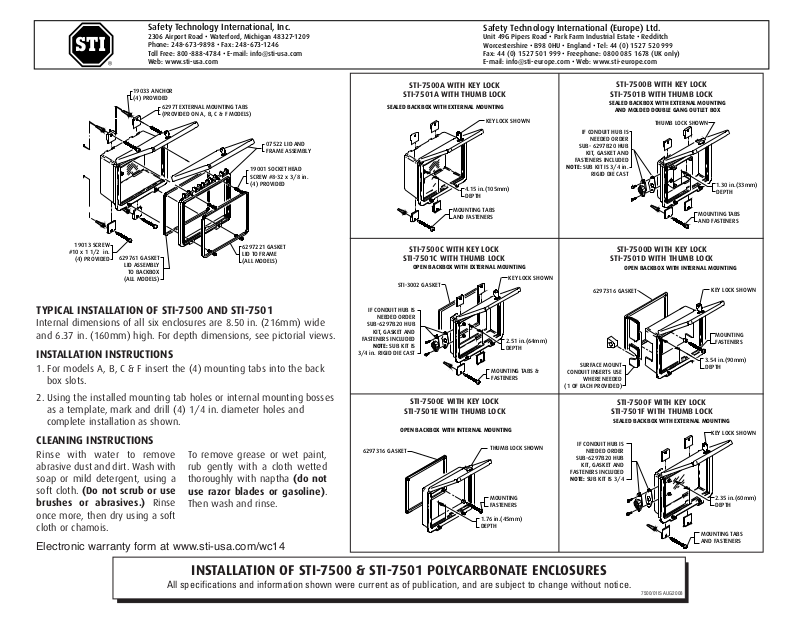

INSTALLATION OF STI-7500 & STI-7501 POLYCARBONATE ENCLOSURES
STI-7501C WITH THUMB LOCK
STI-7500E WITH KEY LOCK
STI-7501E WITH THUMB LOCK
STI-7500B WITH KEY LOCK
STI-7501B WITH THUMB LOCK
STI-7500D WITH KEY LOCK
STI-7501D WITH THUMB LOCK
STI-7500F WITH KEY LOCK
STI-7501F WITH THUMB LOCK
7500/01IS AUG2008
