STI SS-2000F User Manual

Safety Technology International, Inc.

2

306 Airport Road • Waterford, Michigan 48327-1209

P

hone: 248-673-9898 • Fax: [phone]
Toll Free: 800-88 8-4784 • E-mai l: info @sti-us a.com
Web: www.sti-usa.com

Safety Technology International (Europe) Ltd.

Unit 49G Pipers Road • Park Farm Industrial Estate • Redditch
W

orcestershire • B98 0HU • England • Tel: [phone]

F

ax: 44 (0) 1527 501 999 • Freephone: 0800 085 1678 (UK only)

E-mail: [e-mail] • Web: www.sti-europe.com

.69 in.

(17mm)

SUB-102722-R
PLASTIC SPACER MOLDED
IN RED (OPTIONAL)

TERMINAL BLOCK ASSEMBLY

BACKPLATE ASSEMBLY
WITH STAINLESS STEEL
GROUND PLATE AND LUG

MOLDED BUTTON
WITH KEY RESET

MOLDED
POLYCARBONATE
FACEPLATE

TURN CLOCKWISE
ONE QUARTER TURN
TO RESET

19001 HOUSING
RETENTION SCREW
#8-32 x 3/8 in.
(1) PROVIDED

19015 3/32 in. ALLEN
WRENCH (1) PROVIDED

BUTTON LOCK NUT

F

F

I

I

R

R

E

E

P

U

S

h

H

E

R

E

STANDARD SINGLE OUTLET BOX
NOTE: TO MOUNT STOPPER STATION SS-2000F ON A
STANDARD OUTLET BOX SUB-102722-R IS REQUIRED

19030 KEY
(2) PROVIDED

10197H CONTACT HOLDER

SCREWS (2) PROVIDED
19010 #6-32 x 1 in. WITHOUT SUB-102722-R
19045 #6-22 x 1 1/2 in. WITH SUB-102722-R

TO PROVIDE ADEQUATE
C

LEARANCE FOR INSTALLATION
TO ANY STANDARD SINGLE
G

ANG OUTLET BOX,

THE SUB-102722-R SPACER IS REQ

2

.25 in.

(57mm)

1

.62 in.

(41mm)

4.87 in. (124mm)

3.25 in. (82mm)

PRODUCT DIMENSIONS

PRY BACK LEVER 'A' IN
DIRECTION OF ARROW
THEN USING A FLATHEAD
SCREW DRIVER, INSERT
AS SHOWN AND ROTATE
UPWARD.

REMOVAL OF TERMINAL BLOCKS

A

I

NSERT TERMINAL
BLOCK NOTCH AS
SHOWN AND ROTATE
UPWARD.

INSTALLATION OF TERMINAL BLOCKS

All specifications and information shown were current as of publication, and are subject to change without notice.

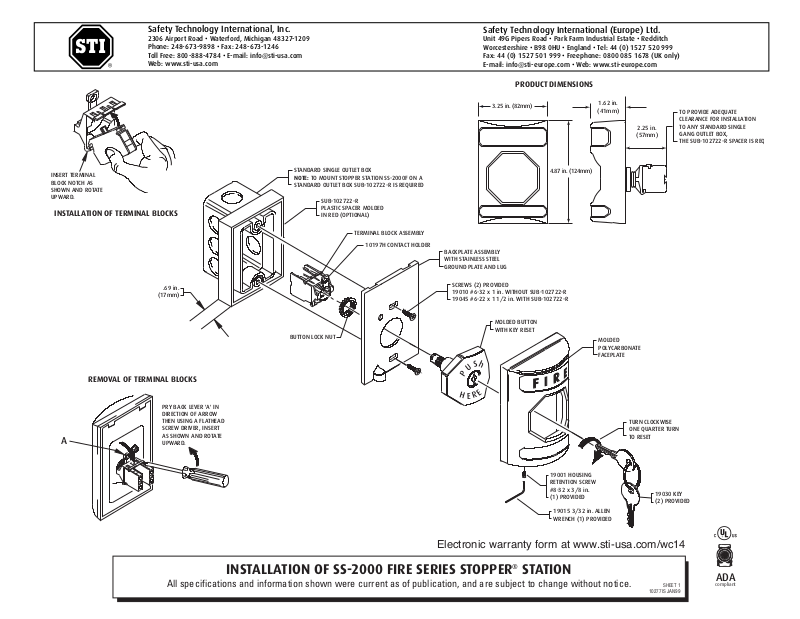

INSTALLATION OF SS-2000 FIRE SERIES STOPPER®STATION

Electronic warranty form at www.sti-usa.com/wc14

SHEET 1

10277IS JAN99

ADA

compliant

I

F LAST

STATION ON

CIRCUIT,

C

ONNECT E.O.L.

RESISTOR

12-18 AWG

CLOSE ON
ALARM

S

INGLE DEVICE

DIAGRAM DEPICTING
MULTIPLE DEVICES

12-18 AWG

CLOSE ON
ALARM

SUPERVISED LOOP (SEE CAUTION NOTE)

C

LOSE ON

ALARM

B

E SURE ALL ELECTRICAL

POWER IS DISCONNECTED

BEFORE STARTING THE INSTALLATION.

N

OTE: JUMPER NOT PROVIDED

A

VIEW IN DIRECTIONS OF ARROW

INSTALLATION AND REMOVAL OF TERMINAL BLOCKS AND

TERMINAL BLOCK ASSEMBLY FROM BUTTON ASSEMBLY

TO SEPARATE TERMINAL
AND BUTTON ASSEMBLY

GRASP TERMINAL HOUSING, USING
THUMB APPLY PRESSURE
DOWNWARD, REMOVE TERMINAL
HOUSING AS SHOWN.

REMOVAL OF TERMINAL BLOCK
FROM TERMINAL HOUSING

INSERT SMALL SCREWDRIVER
AS SHOWN AND PRY
UPWARD, REMOVE TERMINAL.

BACKPLATE ASSEMBLY

INSERT NOTCH
AS SHOWN THEN
ROTATE UPWARD

TERMINAL BLOCK RELEASE LEVER
MUST FACE UPWARD
AS SHOWN FOR SWITCH
TO FUNCTION CORRECTLY.

ELECTRICAL TERMINAL
1, 2, OR 3 TERMINALS
MAY BE USED

STRIP 1/4 in. OF WIRE INSULATION,
INSERT IN TERMINAL (AS SHOWN).
THEN USING A PHILLIPS SCREWDRIVER
TURN CLOCKWISE UNTIL TIGHT.

A

VIEW IN DIRECTIONS OF ARROW

INSTALLATION OF ELECTRICAL
WIRE INTO TERMINAL BLOCK

O

UTGOING

I

NCOMING

BUTTON LOCK NUT

10196 N.O. TERMINAL BLOCK
(

2) PROVIDED UP TO 3
TERMINALS MAY BE USED FOR
EACH STATION ASSEMBLY.

A

AN UNINSULATED SECTION OF A SINGLE
C

ONDUCTOR SHOULD NOT BE LOOPED
AROUND THE TERMINAL AND SERVE AS
TWO CONNECTIONS.
T

HE WIRE MUST BE SEVERED, THEREBY
PROVIDING SUPERVISION OF THE
CONNECTION IN THE EVENT THE WIRE
B

ECOMES DISLODGED FROM THE DEVICE.

C

AUTION

METAL WASHER

ALL TERMINALS ACCEPT TWO 12 TO 18 (AWG)

VOLTAGE RATED AVERAGE CURRENT

250 VDC 1 AMP
24 VAC 3 AMP

SAFETY TECHNOLOGY INTERNATIONAL, INC. • 2306 AIRPORT ROAD • WATERFORD • MICHIGAN 48327-1209 • PHONE: [phone] • FAX: [phone] • INFO @ www.sti-usa.com

SHT. 2

10277IS JAN99
