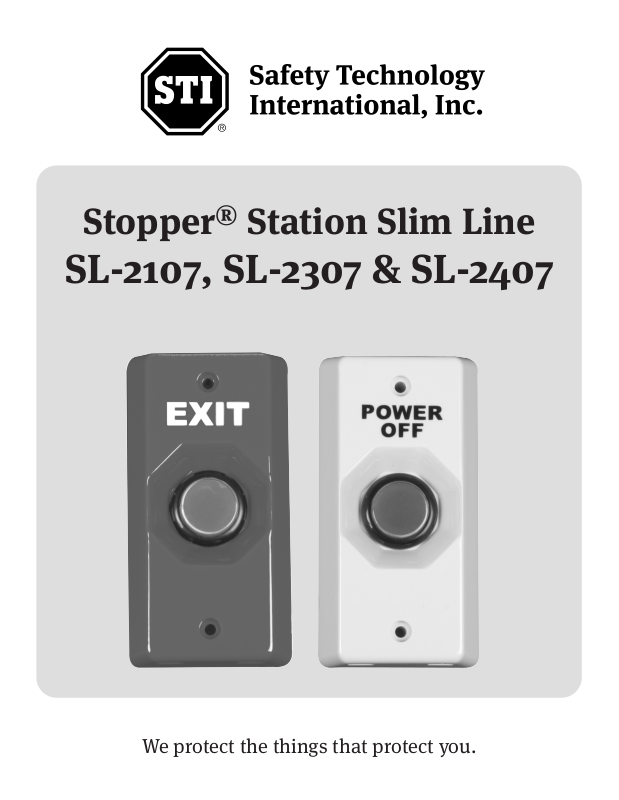

Page 1
Stopper®Station Slim Line
SL-2107, SL-2307 & SL-2407
We protect the things that protect you.
Page 2
2
.
2
0
i
n.
(
5
6
m
m
)
4
.
2
5
i
n.
(
1
0
8
m
m
)
2
.1
6
in.
(
5
5
m
m
)
P
R
O
D
U
C
T
D
IM
ENS
IO
N
S
B
U
T
T
O
N
A
S
S
E
MB
L
Y
.
8
i
n
.
(
1
9
m
m
)
F
R
O
N
T
V
IE
W
SIDE
V
I
EW
FACEPLATE AVAILABLE IN
BLUE, GREEN OR WHITE
1
.
3
6
i
n
.
(
35
m
m
)
- 2 -
Page 3
FACEPLATE INSTALLATION
STEP 1
PLACE THE TWO LOCATING
TABS INTO THE TWO TOP SLOTS OF
THE FRONT HOUSING AND ROTATE
DOWNWARD AS SHOWN.
FRONT HOUSING SNAPS INTO PLACE.
GRASP FRONT COVER
WHILE USING A SMALL
FLATHEAD SCREWDRIVER.
PLACE INTO THE BOTTOM
SLOTS, PRESS UPWARD
AND ROTATE COVER OFF
AS SHOWN.
STEP 2
FACEPLATE REMOVAL
- 3 -
Page 4
S
W
I
T
C
H
C
O
N
F
I
G
U
R
ATI
O
N
W
IR
ING
D
IA
G
RA
M
RED +
BLACK -
WHITE N.C.
GREEN N.O.
BLUE COM
{
{
LED POWER
FORM C CONTACT
CONTACT RATING - 30 VDC, 5 AMP
CONTACT CONFIGURATION - SPDT MOMENTARY CONTACT
N.C.
COM
- 4 -
N.O.
Page 5
LAMP REPLACEMENT
L
A
M
P
H
O
L
D
E
R
A
S
S
EM
BL
Y
2
4
V
D
C
L
A
M
P
S
TD
.
B
U
TTO
N
A
S
S
EM
BL
Y
GRASP SWITCH HOLDER ASSEMBLY
AS SHOWN. USING OTHER HAND
ROTATE BUTTON 1/4 in.
CLOCKWISE AND SEPARATE THE TWO
PIECES. PULL LAMP STRAIGHT OUT.
STEP 1
INSERT NEW LAMP AND COMPLETE
INSTALLATION AS SHOWN ABOVE BUT
ROTATE COUNTER-CLOCKWISE TO LOCK
THE PIECES TOGETHER.
STEP 2
REPLACEMENT LED PIN
12 VDC RED 10132
12 VDC BLUE 10136
24 VDC RED 10131
24 VDC BLUE 10135
- 5 -
Page 6
TYPICAL SINGLE GANG
OUTLET BOX (EITHER FLUSH
OR SURFACE MOUNT)
BACKPLATE
RETAINING NUT
WASHER
FACEPLATE
#6-32 x 1 1/2 in. SCREW
(2) PROVIDED
INSTALLATION PROCEDURE
DIRECTLY TO SINGLE GANG OUTLET BOX
- 6 -
Page 7
INSTALLATION PROCEDURE
DIRECTLY TO WALL OR DOOR CASING
USING A SPADE BIT, DRILL A
1.5 in.(38mm) HOLE, PULL
WIRE THROUGH AND COMPLETE
INSTALLATION AS SHOWN.
ANCHOR (2) PROVIDED FOR MASONARY
OR WALLBOARD SURFACE ONLY
BACKPLATE
RETAINING NUT
WASHER
FACEPLATE
19039 SCREW
#6 X 1-1/2 in.
(2) PROVIDED
BUTTON ASSEMBLY
(SEE PAGE 4)
FOR MASONRY OR
WALLBOARD MOUNTING
DRILL (2) 3/16 in. DIA.
HOLES ONLY)
3-9/32 in.
STEP 1
STEP 2
- 7 -
Page 8
WARRANTY
Three year guarantee against breakage of polycarbonate in normal use
(one year on electro mechanical and electronic components).
Electronic warranty form at www.sti-usa.com/wc14.
2306 Airport Rd • Waterford, MI 48327
Phone: 248-673-9898 • Fax: 248-673-1246
info@sti-usa.com •
Safety Technology International (Europe) Ltd.
Unit 49G Pipers Road • Park Farm Industrial Estate • Redditch
Worcestershire • B98 0HU • England • Tel: 44 (0) 1527 520 999
Fax: 44 (0) 1527 501 999 • Freephone: 0800 085 1678 (UK only)
E-mail: info@sti-europe.com • Web: www.sti-europe.com
www.sti-usa.com
Printed in USA Inst. Sht. SLIMLINE SERIES IS MARCH2005
