INSTALLATION INSTRUCTIONS
Series 44+ Extension Fire Rated Pathway
(Part No. EZD44ES)
Optional Ground Attachment

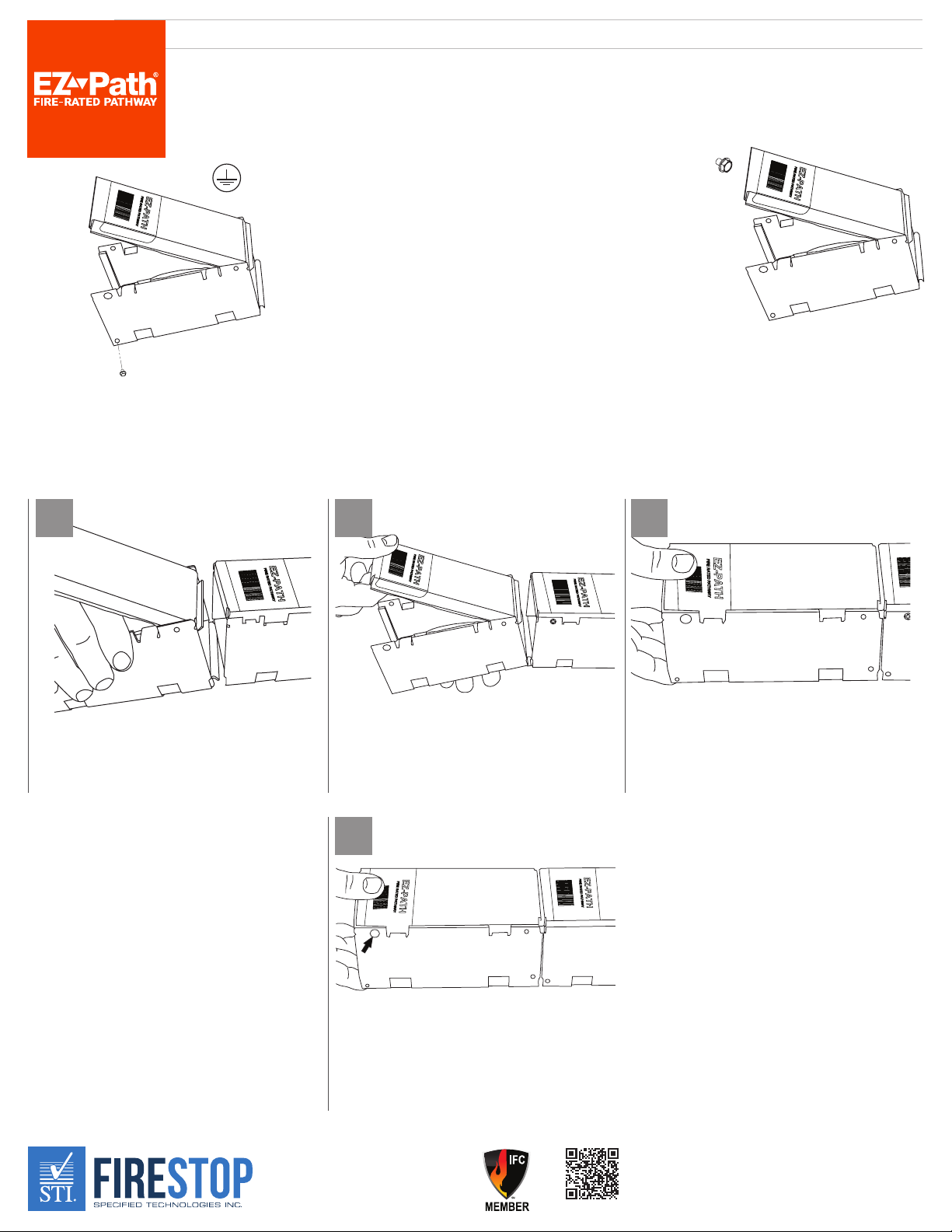

Option 1 - New Work Installations
1 32
Tilt lid from extension channel
and insert xed lower coupler into
pathway
Tilt extension upward until upper coupler
4
is within pathway
Parts Included (Not to Scale)
Engage upper coupler to top ange
on pathway by tilting extension lid
downward
Secure closed lid to extension channel
by installing and tightening the included
Specied Technologies Inc.
Somerville, NJ 08876 USA
T: (800) 992-1180
F: (908) 526-9623
www.stirestop.com
screws.
Scan for more information
Page 1 of 2
Warranty: www.stirestop.com/legal/warranty
Made in USA • Printed in USA
ZIS1053 2348
Page 2
INSTALLATION INSTRUCTIONS
Series 44+ Extension Fire Rated Pathway

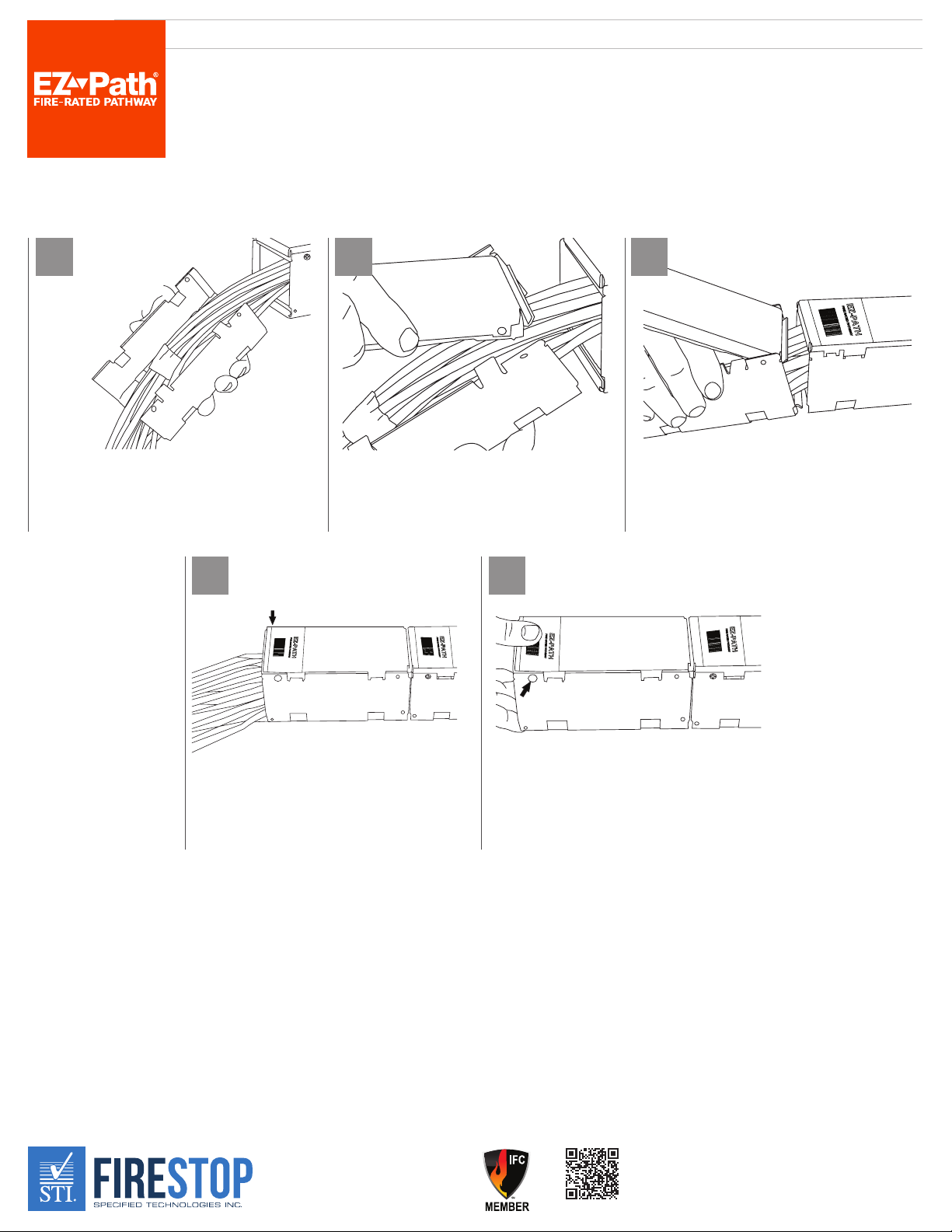

Option 2 - Old Work Installations (Cables Already Installed)
1 32
(Part No. EZD44ES)
Remove lid and place extension
channel around cable bundle
4 5
Close lid on extension channel Secure closed lid to extension channel
Snap lid onto extension channel
by installing and tightening the included
Insert bottom lip of extension
channel into device
screws
Specied Technologies Inc.
Somerville, NJ 08876 USA
T: (800) 992-1180
F: (908) 526-9623
www.stirestop.com
Scan for more information
Page 2 of 2
Warranty: www.stirestop.com/legal/warranty
Made in USA • Printed in USA
ZIS1053 2348
