STI EM08073.5 User Manual

Safety Technology International, Inc.

2306 Airport Road • Waterford, Michigan 48327-1209
Phone: [phone] • Fax: [phone]
Toll Free: 800-888-4784 • E-mail: [e-mail]
Web: www.sti-usa.com

Safety Technology International (Europe) Ltd.

Unit 49G Pipers Road • Park Farm Industrial Estate • Redditch
Worcestershire • B98 0HU • England • Tel: [phone]
Fax: [phone] • Freephone: 0800 085 1678 (UK only)
E-mail: [e-mail] • Web: www.sti-europe.com

5.3 in.

(135mm)

R .250 in.

(6mm)

2.25 in.

(57mm)

2.25 in.

(57mm)

2.65 in.

(67mm)

1.75 in.

(44mm)

7.66 in.

(195mm)

7.40 in.

(188mm)

8.40 in.

(213mm)

1.125 in.
(29mm)

0.875 in.
(22mm)

8.40 in.

(213mm)

3.80 in.

(97mm)

1.75 in.

(44mm)

8.20 in.

(208mm)

6 in.

(152mm)

3 in.

(76mm)

.197in.
(5mm)

BACKPLATE

STI-MBP0506

.07 in.

(2mm)

Electronic warranty form at www.sti-usa.com/wc14

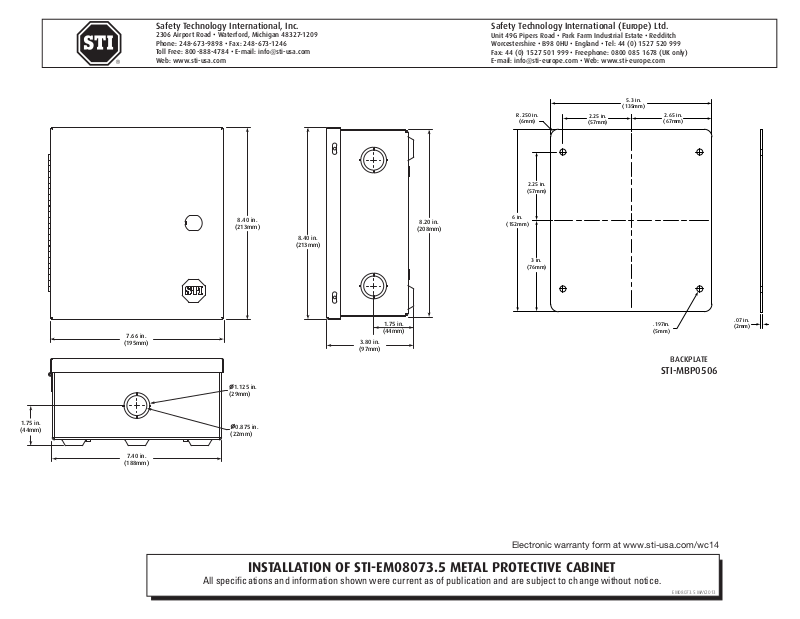

INSTALLATION OF STI-EM08073.5 METAL PROTECTIVE CABINET

All specifications and information shown were current as of publication and are subject to change without notice.

EM08073.5 MAY2013
