STI ED-55 User Manual

Rex Plus® II

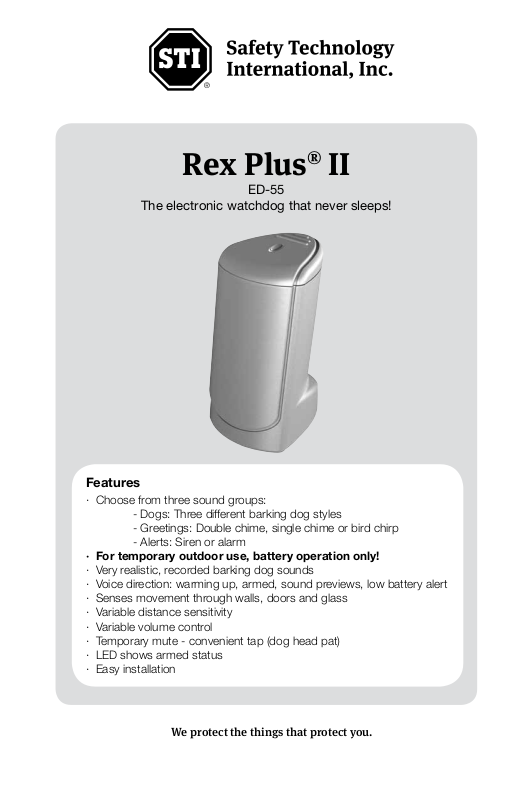

ED-55

The electronic watchdog that never sleeps!

Features

· Choose from three sound groups:

- Dogs: Three different barking dog styles

- Greetings: Double chime, single chime or bird chirp

- Alerts: Siren or alarm

· For temporary outdoor use, battery operation only!

· Very realistic, recorded barking dog sounds

· Voice direction: warming up, armed, sound previews, low battery alert

· Senses movement through walls, doors and glass

· Variable distance sensitivity

· Variable volume control

· Temporary mute - convenient tap (dog head pat)

· LED shows armed status

· Easy installation

We protect the things that protect you.

General Description

This new generation barking dog alarm features realistic sounds and voice operating
status. Ferocious barking dogs, greetings or alarms are available. Rex Plus® II is
versatile and provides an excellent way to deter burglars, without the annoying
problems of owning a real dog. With his electronic radar eyes, Rex Plus® II can
“see” through thick doors, walls and glass. Once the cord is plugged into any
standard 120VAC outlet (for indoor use only), he’ll stay
on duty around the clock. Portable operation is available
by installing the optional batteries. For outdoor use,
battery operation only. Note: Rex Plus® II uses a 2.4GHz
microwave radar detection system. It shares operation in
a band of frequencies along with other electronic devices
such as microwave ovens, Wi-Fi, wireless keyboards and
other wireless controls. These can also cause undesirable

Fig. 1

false detections. Reducing the sensitivity and repositioning the unit to aim away from
these sources can be helpful.

Operational Instructions

1. Plug in unit (Fig. 1).

2. Open lid. Adjust volume and sensitivity to
lowest level (fully counterclockwise). (Fig. 2)

3. Turn unit on. You will hear, “Warming up.”
After 30 seconds, unit will say, “Armed.”
Red LED will blink while warming up; solid
when ready.

4. Move switch to choose: Dog ( ), Greeting
( ) or Siren ( ) (Fig. 2)

5. Press sound selection button to select
sound in each category.

(Fig. 2)

6. Adjust volume and sensitivity, clockwise, to desired
level.

7. Point the front of the unit (wider face) towards the
detection area. Note: The unit has reduced sensitivity
at the back of the unit. (Fig. 3)

8. 15 minute mute (Red LED will blink)

  •Withlidopen,tapthemutebutton.
  •Whenlidisclosed,tapraisedgroovesonthe

lid to activate.

9. For outdoor use, portable use or as backup,
install 6 “C” alkaline batteries. After arming and
no detection for 5 minutes, the LED changes to a
slow blink to extend battery life. Note: When batteries are

low ED-55 will state “Please replace batteries,” only at power up
and when mute button is pressed.

FRONT

OF UNIT

Fig. 2

Fig. 3

SOUND

SELECTION

BUTTON

LID

CAUTION

Rex Plus® II is designed to detect a moving object though a wall or door and
designed to be placed in an area hidden from an intruder or guest. The unit has
reduced sensitivity at the back of the unit. If sensing movement from behind, try to
change the position of Rex Plus® II slightly to reduce any unwanted detections. The
sensitivity control can also be reduced to minimum to detect in the desired direction
while reducing the undesired detections. Moving objects in addition to people can
also be detected, including vehicles, animals, trees and shrubs blowing in strong
winds and dwelling movements during strong storms.

Detection Eciency

Rex Plus® II radar waves can detect through a variety of materials with maximum
efficiency. The following chart serves as a guide.

MATERIAL EFFECT ON RANGE

Fiberglass or Plastic Full Detection
Wooden Doors Slight Reduction
Glass Slight Reduction
Curtain Material Slight Reduction
Paper Cartons/Cardboard Slight Reduction
Plaster/Drywall Walls Medium Reduction
Metal (Steel doors, aluminum or steel siding) Heavy Reduction

SPECIFICATIONS

Power Requirements 120 VAC Plug-in Adapter, 12VDC 0.5A
Battery (optional for portable operation) 6 Alkaline “C” batteries
Detector Operating Frequency 2.4 GHz
Power detecting standby 0.15W
Power Barking 6 W Peak
90 days maximum with alkaline batteries,

Battery Life
depending on the number of activations

Detection Range 26 ft. maximum, reduced through obstructions
Detection Angle 150 degrees typical

3.5mm mono jack, supply 75mA at 12VDC for
1 second

External Output

· can be used with optional STI Lamp Controller
STI-30104
Weight 2 lbs., including AC adaptor, without batteries
Size 8 ½ in. tall, 4 ½ in. wide, 5 ½ in. deep

(not supplied)

(supplied)

Important Notice

Changes or modifications not expressly approved by the manufacturer could void
the user’s authority to operate the equipment.

This device complies with Part 15 of the FCC Rules. Operation is subject to the
following two conditions:

1.This device may not cause harmful interference, and

2.This device must accept any interference received, including interference that may

cause undesired operation.

Le présent appareil est conforme aux CNR d’Industrie Canada applicables aux
appareils radio exempts de licence. L’exploitation est autorisée aux deux conditions
suivantes :
(1) l’appareil ne doit pas produire de brouillage, et
(2) l’utilisateur de l’appareil doit accepter tout brouillage radioélectrique subi, même
si le brouillage est susceptible d’en compromettre le fonctionnement

Model: ED-55 FCC ID: TXL-STI-ED55 IC: 6335A-STIED55
