STI 7521 User Manual

Safety Technology International, Inc.

2306 Airport Road • Waterford, Michigan 48327-1209
Phone: [phone] • Fax: [phone]
Toll Free: 800-888-4784 • E-mail: [e-mail]
Web: www.sti-usa.com

STI-7520 SEALED ENCLOSURE W/KEY LOCK

STI-7521 SEALED ENCLOSURE W/THUMB LOCK

Safety Technology International (Europe) Ltd.

Unit 49G Pipers Road • Park Farm Industrial Estate • Redditch

Worcestershire • B98 0HU • England • Tel: [phone]
Fax: [phone] • Freephone: 0800 085 1678 (UK only)
E-mail: [e-mail] • Web: www.sti-europe.com

19033 ANCHOR

(4) PROVIDED

06298 MOUNTING TABS

(4) PROVIDED

19013 SCREW #10 x 1 1/2 in.

(4) PROVIDED

6297520 GASKET (1) PROVIDED

SCREW #8-32 x 1/2 in.
(4) PROVIDED

04874 MOUNTING PLATE

NEMA 4X

10.875 in. (276 mm)
(Internal)

12.5 in. (318 mm)

FRONT VIEW

3.15 in.

(79 mm)

TOP VIEW

INTERNAL PRODUCT

DIMENSIONS

7.125 in.

(181 mm)

1/4” DIAMETER

.375 in.

(10 mm)

8.9 in.

(226 mm)

(Internal)

INSTALLATION INSTRUCTIONS

1. Insert the (4) mounting tabs into the (4) back box slots.

2. Using the installed mounting tabs as a template, mark
and drill (4) 1/4 in. diameter holes and complete
installation as shown.

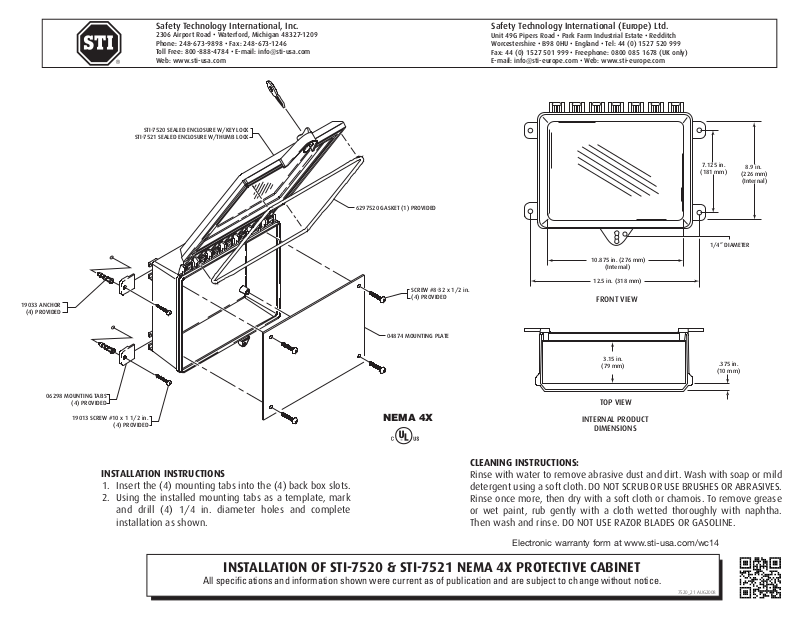

INSTALLATION OF STI-7520 & STI-7521 NEMA 4X PROTECTIVE CABINET

All specifications and information shown were current as of publication and are subject to change without notice.

CLEANING INSTRUCTIONS:

Rinse with water to remove abrasive dust and dirt. Wash with soap or mild
detergent using a soft cloth. DO NOT SCRUB OR USE BRUSHES OR ABRASIVES.
Rinse once more, then dry with a soft cloth or chamois. To remove grease
or wet paint, rub gently with a cloth wetted thoroughly with naphtha.
Then wash and rinse. DO NOT USE RAZOR BLADES OR GASOLINE.

Electronic warranty form at www.sti-usa.com/wc14

7520_21 AUG2008
