STI-3100-R CONDUIT SPACER

(FOR USE WITH STI-4100 ONLY)

19013 #10 x 1 1/2 in. PHIL PAN HEAD

HOLD DOWN TAB

STI-6100 AND STI-6700 (3) PROVIDED

STI-4100 (4) PROVIDED

19033 PLASTIC ANCHOR
(4) PROVIDED

(4) PROVIDED

COVER

INSERT PLASTIC KNOCK-OUT INTO SPACER
NOTCH IF CONDUIT IS NOT NEEDED
(2) PROVIDED

GLASS

MOUNTING FRAME

19003 WALL HOOK
STI-6700 MODEL ONLY

CABLE

TOP TAB
INCLUDED
WITH
STI-4100
ONLY

SUB-08 BREAK GLASS TOOL

SINGLE STRENGTH GLASS
SUB-09 FOR STI-6100
SUB-10 FOR STI-4100
SUB-67 FOR STI-6700 PRINTED
WITH “BREAK GLASS” ONLY

FRAME

CABLE RETAINER MUST BE
INSERTED IN FRAME NOTCH
PRIOR TO SECURING FRAME
TO WALL

POLYCARBONATE
COVER

19001 ALLEN HEAD SCREW

PRODUCT DIMENSIONS

STI-4100 and STI-3100-R (SPACER)

2 in.

(51mm)

2.43 in.

(62mm)

4.96 in.

(126mm)

(159mm)

6.84 in.

(173 mm)

6.25 in.

5.39 in.

(136mm)

FRAME

1.5 in.

(38mm)

9 in.

(229mm)

COVER SPACER

8.5 in.

(216mm)

STI-6100 and STI-6700

1.66 in.

(42mm)

4.16 in.

(106mm)

4.75 in.

(121mm)

3.97 in.

(100mm)

5.41 in.

(137mm)

FRAME

7 in.

(178mm)

1.5 in.

(38mm)

COVER

6.625 in.

(168mm)

INSTALLATION NOTES

1. Using frame as a template, mark four (4) holes for installation.

2. Drill four (4) 1/4 in. holes approximately 1 1/4 in. deep.

3. Insert four (4) anchors (provided) into mounting holes.

4. Install break glass tool inside of mounting frame.

5. Place mounting frame with break glass tool installed and
conduit spacer (if used - only in some STI-4100 installations)
over pull station.

6. Tighten mounting screws (provided) in mounting holes.

7. Place cover and glass assembly over mounting frame.

8. Tighten 19001 allen head screw at bottom of cover.

VIEW OF GLASS PLACEMENT

BREAK GLASS TOOL INSTALLATION

Electronic warranty form at www.sti-usa.com/wc14

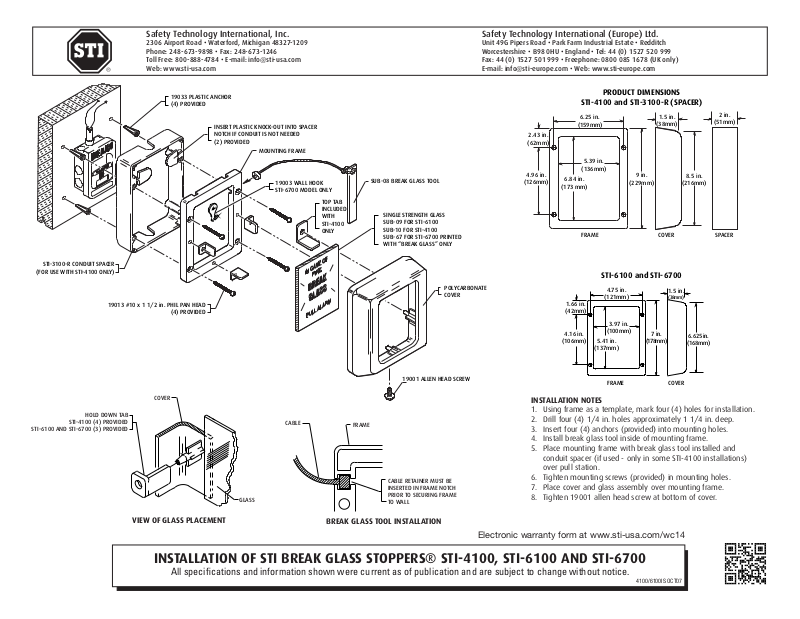

INSTALLATION OF STI BREAK GLASS STOPPERS® STI-4100, STI-6100 AND STI-6700

All specifications and information shown were current as of publication and are subject to change without notice.

4100/6100IS OCT07

UL INSTALLATION REQUIREMENTS

STI-1210 / STI-1221 SERIES

CAUTION:

• This enclosure is rated to protect signaling appliances indoors and in areas of indirect weather
exposure. The cover may be used outdoors only with devices also suitable for outdoor use.

• When covering fire-signaling appliances with this enclosure, some light and sound loss
occurs. Please follow these guidelines listed during installation.

• Voice speaker appliance: No spacing adjustment is required

for 0.5W, 1.0W and 2.0W

appliances.

• Refer to the appliance manufacturer's candela rating. Multiply this number by the light loss
value from the chart below to determine the new candela rating. Use this number and refer
to the notification layout table of NFPA 72 for proper device locations.

• The use of this cover on audible devices decreases the sound output by 6dB(A). Actual sound
level output should be checked after installation to determine if adequate sound levels exist.
Refer to the notification layout table of NFPA 72 for proper device locations.

Performance Review - LIGHT DERATING FACTOR

MANUFACTURER SERIES STI-1210 STI-1221/1221A4X MANUFACTURER SERIES STI-1210 STI-1221/1221A4X

ADT SECURITY ADTG1-V SERIES 40% 34% HONEYWELL XLS202 SERIES 40% 34%

AMSECO SL24W-153075 22% 37% HONEYWELL XLSG1-HV SERIES 40% 34%

AMSECO – COLORED LENSES SL24W-153075 A, B, G, OR R 47% 26% HONEYWELL XLSG1-HOV SERIES 40% 34%

AMSECO – COLORED LENSES SL24C-3075110 A, B, G, OR R 47% 26% MIRCOM FS-240 47% 26%

AMSECO – COLORED LENSES CSL24W-A, B, G, OR R 47% 26% MIRCOM MS SERIES 43% 45%

AMSECO – COLORED LENSES CSL24C-A, B, G, OR R 47% 26% MIRCOM MG1-V SERIES 40% 34%

DETECTION SYSTEMS GES24 SERIES - 31% MIRCOM MG1-HV SERIES 40% 34%

DETECTION SYSTEMS GES24-15/75 --MIRCOM MG1-HOV SERIES 40% 34%

EST / EDWARDS 2440S SERIES 43% 45% MIRTONE MG1-V SERIES 43% 45%

EST / EDWARDS 202 SERIES 43% 45% NATIONAL TIME & SIGNAL GES24 SERIES - 31%

EST / EDWARDS G1-V SERIES 40% 34% NATIONAL TIME & SIGNAL GES24-15/75 - -

EST / EDWARDS G1-HV SERIES 40% 34% POTTER ELECTRIC AS-24-153075R 47% 26%

EST / EDWARDS G1-HOV SERIES 40% 34% POTTER ELECTRIC AS-24-153075W 47% 26%

EST / EDWARDS EG1-V SERIES 40% 34% SECUTRON GES24 SERIES - 31%

EST / EDWARDS EG1-HV SERIES 40% 34% SECUTRON GES24-15/75 --

EST / EDWARDS EG1-HOV SERIES 40% 34% SIEMENS 202- SERIES 43% 45%

FARADAY LLC 2700 - 57% SIEMENS G1-V SERIES 40% 34%

GENTEX GES24 SERIES - 31% SIEMENS U-MCS SERIES --

GENTEX GES24-15/75 --SYSTEM SENSOR SS24110ADA 46% 37%

HARRINGTON SIGNAL GES24 SERIES - 31% SYSTEM SENSOR P2, PC2, P4, PC4, SX, SC 53% 61%

HARRINGTON SIGNAL GES24-15/75 --WHEELOCK RSS-24MCW --

HONEYWELL XLSG1-V SERIES 43% 45% ZITON PTY LTD ZG1-V SERIES 40% 34%

STI-1210 Series Sound Derating Factor

System Sensor P2, PC2, P4, PC4, SX, SC series models: 6.7 dBA

General: 6 dBA

STI Generic Light Loss Value

STI-1210 Series: 53%; STI-1221 Series: 61%
