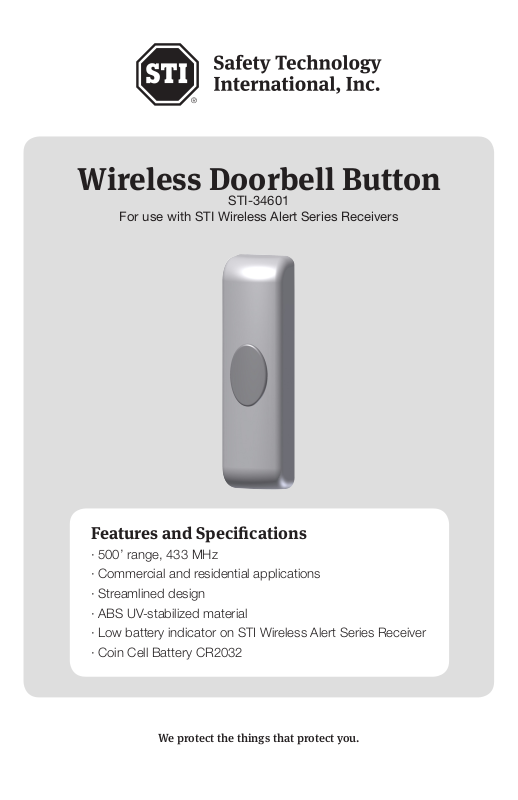

STI 34609 User Manual

Wireless Doorbell Button

STI-34601

For use with STI Wireless Alert Series Receivers

Features and Specications

· 500’ range, 433 MHz

· Commercial and residential applications

· Streamlined design

· ABS UV-stabilized material

· Low battery indicator on STI Wireless Alert Series Receiver

· Coin Cell Battery CR2032

We protect the things that protect you.

Thank you for purchasing the STI Wireless Doorbell Button. Your satisfaction is very important

SET BATTERY IN PLACE AS
SHOWN AND PRESS DOWN

SET BATTERY IN PLACE AS
SHOWN AND PRESS DOWN

SET BATTERY IN PLACE AS
SHOWN AND PRESS DOWN

A

B

1.02 in.

(26mm)

.735 in.

(19mm)

SET BATTERY IN PLACE AS
SHOWN AND PRESS DOWN

to us. Please read this manual carefully to get the most from your new product.

Installation Instructions

1. To remove cover, insert screwdriver, or other small
device, at bottom of cover and depress gently.
Rotate until tab disengages (Fig. 1).

2. Insert the battery by placing it under the top
claws and then pushing battery into the bottom
cradle (Fig. 2 and 3).

3. Attach backplate onto mounting surface with two
included #6 – 32” screws (Fig. 4).

4. Snap cover back together (Fig. 4).

5. The Wireless Doorbell Button can now be
enrolled into your 433 MHz Wireless Receiver.
(Refer to receiver instructions for enrollment and
programming.)

FIG. 1

FIG. 2

3.55 in.

(90mm)

WHEN USING ANCHORS, DRILL 3/16 in. DIA HOLES

WHEN USING SCREWS ONLY, DRILL 3/32 in. DIA HOLES

AND ROTATE CLOSED

COVER

1.02 in.

(26mm)

PLACE TAB INSIDE

COVER INTO SLOT

ON BACKPLATE

.735 in.

(19mm)

BACKPLATE

19018 ANCHOR

(2) PROVIDED

1-5/8 in.1-5/8 in.

-2-

FIG. 4

SET BATTERY IN PLACE AS
SHOWN AND PRESS DOWN

FIG. 3

Important Notice

This device complies with Part 15 of the FCC Rules. Operation is subject to the following
two conditions:
This device may not cause harmful interference.
This device must accept any interference that may be received, including interference
that may cause undesired operation.
Changes or modifications not expressly approved by STI could void the user’s authority to
operate this equipment.
This product meets the applicable industry Canada Technical specifications.
Le Présent matériel est conforme aux spécifications techniques applicables d’Industrie Canada.

Model: 34601 FCC ID: TXL34601 IC: 6335A-34601

This device is a button transmitter intended for home and office use in all EU and EFTA member
states.

Warranty

Safety Technology International, Inc. warrants to the original consumer/purchaser that this product
shall be free of defects in material and workmanship under normal use and circumstances for a
period of one (1) year from the original date of purchase.

Electronic warranty form at www.sti-usa.com/wc14.

Technical Support

Contact STI at 800-888-4784

-3-

Additional Wireless Alert Series Products

STI-34098 Single Channel Slave Receiver
STI-34104 4-Channel Receiver
STI-V34104 4-Channel Voice Receiver
STI-34108 8-Channel Receiver
STI-34188 8-Zone Relay Board
STI-34101 Solar Powered Driveway Monitor Sensor
STI-34151 Battery Powered Driveway Monitor Sensor
STI-34201 Wireless Mailbox Alert Sensor
STI-34301 Wireless Garage Sentry Sensor
STI-34401 Wireless Universal Alert Sensor
STI-34501 Wireless Entry Alert Sensor
STI-34601 Wireless Doorbell Button
STI-34701 Indoor Wireless PIR
STI-34751 Outdoor Wireless PIR

STI-6200WIR Wireless Fire Extinguisher Theft Stopper
STI-6200WIR4 Wireless Fire Extinguisher Theft Stopper w/Receiver
STI-6400WIR Wireless Exit Stopper Door Alarm
STI-6400WIR4 Wireless Exit Stopper Door Alarm with Receiver
STI-6517A Stopper Station Shield with Sound
STI-6517B Stopper Station Shield with Sound and Transmitter
STI-30104 Lamp Controller
STI-30105 Extended Antenna
STI-34105 Voltamax 12VDC (500mA) Power Supply
STI-34106 Keyfob
STI-34109 Repeater
