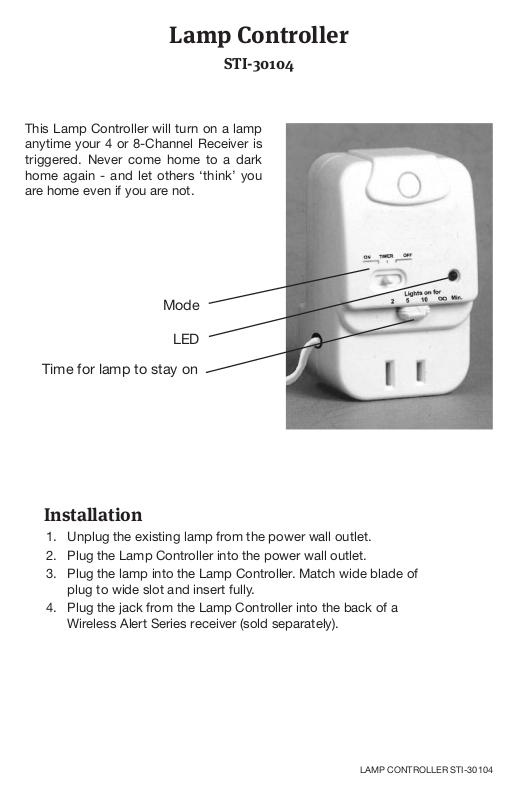

Lamp Controller

STI-30104

This Lamp Controller will turn on a lamp
anytime your 4 or 8-Channel Receiver is
triggered. Never come home to a dark
home again - and let others ‘think’ you
are home even if you are not.

Mode

LED

Time for lamp to stay on

Installation

1. Unplug the existing lamp from the power wall outlet.

2. Plug the Lamp Controller into the power wall outlet.

3. Plug the lamp into the Lamp Controller. Match wide blade of
plug to wide slot and insert fully.

4. Plug the jack from the Lamp Controller into the back of a
Wireless Alert Series receiver (sold separately).

LAMP CONTROLLER STI-30104

Operation

1) Set the Lamp Controller mode: ON (manually turns the lamp ON), Timer
(activated by the receiver), or OFF (manually turns the lamp OFF).

2) Set the time for the lamp to be turned ON each time the receiver is activated,

2 minutes, 5 minutes, 10 minutes, or ∞ (turns on indefinitely until manually
reset). To manually reset the Lamp Controller turn the timer switch to OFF
then back to TIMER.

3) The Red LED light turns on whenever the Lamp Controller is powering the

lamp.

NOTE: The Lamp Controller is triggered by a 3.5-12V DC, 1 second pulse. The

jack is a 1/8 inch mono audio plug (negative tip).

WARNINGS

FOR INDOOR USE ONLY. For use with 250 Watt or less incandescent lamps.

CANNOT be used with 3-prong grounded plugs. When using with a lamp, keep
lamp away from bed coverings, curtains or other materials which may present a
fire hazard. Do not connect to heaters or other heat-producing appliances.

Keep away from water and damp areas. To prevent electric shock, match wide
blade of plug to wide slot and fully insert end.

LIMITED WARRANTY

Safety Technology International, Inc. warrants to the original consumer/purchaser that this product
shall be free of defects in material and workmanship under normal use and circumstances for a period
of one (1) year from the date of original purchase for use.

Electronic warranty form at www.sti-usa.com/wc14.

One Year Limited Warranty

ETL Listed

Maximum Load: 250 watts incandescent lamp
