STI 14300 User Manual
ANCHOR
A A
B
B
6.45 in.
(163mm)
1.41 in.
(35mm)
6.17 in.
(156mm)
.80 in.
(20mm)
1.83 in.
2.09 in.
(53mm)
4.58 in.
(116mm)
4.18 in.
(106mm)
(4) PROVIDED
Safety Technology International, Inc.
2306 Airport Road • Waterford, Michigan 48327-1209
Phone: 248-673-9898 • Fax: 248-673-1246
Toll Free: 800-888-4784 • E-mail: info@sti-usa.com
Web: www.sti-usa.com
STI-1401 FRAME GASKET
FITS IN RECESSED POCKET
ON BACK SIDE OF FRAME
COVER & FRAME ASSEMBLY
Safety Technology International (Europe) Ltd.
Unit 49G Pipers Road • Park Farm Industrial Estate • Redditch
Worcestershire • B98 0HU • England • Tel: 44 (0) 1527 520 999
Fax: 44 (0) 1527 501 999 • Freephone: 0800 085 1678 (UK only)
E-mail: info@sti-europe.com • Web: www.sti-europe.com
B
(163mm)
A A
1.41 in.
(35mm)
6.45 in.
6.17 in.
(156mm)
5.94 in.
(150mm)
7.60 in.
(193mm)
6.79 in.
(172mm)
8.15 in.
(207mm)
STI-1316 COVER GASKET
WHEN USING ANCHORS DRILL 3/16 in.
DIAMETER HOLES 1 1/4 in. DEEP
IF USING SCREWS ONLY DRILL 7/64 in.
DIAMETER HOLES 1 1/4 in. DEEP
#6 x 1 1/4 in. SCREW
(4) PROVIDED
INSTALLATION INSTRUCTIONS
1. Before mounting cover and frame assembly, the four mounting holes in frame
(one in each corner) must be drilled out using a 5/32” diameter drill bit.
2. After drilling out the four mounting holes in frame, place cover and frame
assembly in position and mark the four mounting hole locations onto the wall.
3. Drill the four mounting hole locations using drill sizes stated above.
4. Place frame gasket on the recessed pocket on back of frame, if needed, and
mount frame and cover assembly as shown.

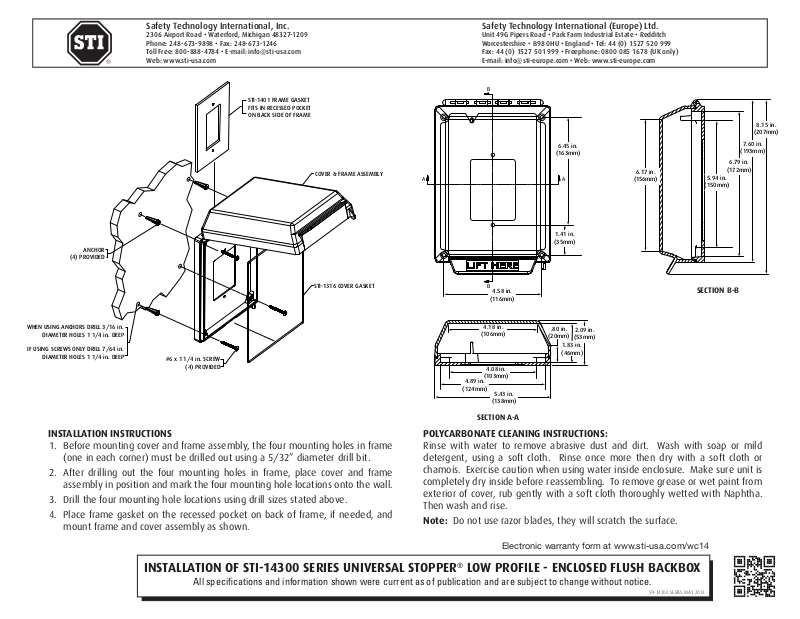

INSTALLATION OF STI-14300 SERIES UNIVERSAL STOPPER® LOW PROFILE - ENCLOSED FLUSH BACKBOX
All specifications and information shown were current as of publication and are subject to change without notice.
B
(106mm)
4.89 in.
(124mm)
SECTION A-A
4.58 in.
(116mm)
4.18 in.
4.08 in.
(103mm)
5.43 in.
(138mm)
.80 in.
(20mm)
(46mm)
(53mm)
1.83 in.
2.09 in.
SECTION B-B
POLYCARBONATE CLEANING INSTRUCTIONS:
Rinse with water to remove abrasive dust and dirt. Wash with soap or mild
detergent, using a soft cloth. Rinse once more then dry with a soft cloth or
chamois. Exercise caution when using water inside enclosure. Make sure unit is
completely dry inside before reassembling. To remove grease or wet paint from
exterior of cover, rub gently with a soft cloth thoroughly wetted with Naphtha.
Then wash and rise.
Note: Do not use razor blades, they will scratch the surface.
Electronic warranty form at www.sti-usa.com/wc14
STI-14300 SERIES MAY 2012
