STI 14200 User Manual
Safety Technology International, Inc.
A A
B
B
6.45 in.
(163mm)
6.17 in.
(156mm)
6.00 in.
(152mm)
3.17 in.
(80mm)
3.30 in.
(83mm)
4.58 in.
(116mm)
4.2 in.
(106mm)
4.13 in.
(104mm)
4.85 in.
(123mm)
5.43 in.
(138mm)
2306 Airport Road • Waterford, Michigan 48327-1209
Phone: 248-673-9898 • Fax: 248-673-1246
Toll Free: 800-888-4784 • E-mail: info@sti-usa.com
Web: www.sti-usa.com
Safety Technology International (Europe) Ltd.
Unit 49G Pipers Road • Park Farm Industrial Estate • Redditch
Worcestershire • B98 0HU • England • Tel: 44 (0) 1527 520 999
Fax: 44 (0) 1527 501 999 • Freephone: 0800 085 1678 (UK only)
E-mail: info@sti-europe.com • Web: www.sti-europe.com
01311 CONDUIT WINDOW
(2) PROVIDED
STI-1318 CORD GASKET
(2) PROVIDED
STI-1326 CONDUIT GASKET
WHEN USING ANCHORS,
DRILL 3/16 in. DIA. HOLES
IF USING SCREWS ONLY,
DRILL 7/64 in. DIA. HOLES
(2) PROVIDED
1 1/4 in. DEEP
1 1/4 in. DEEP
ANCHOR
(4) PROVIDED
01312 CONDUIT WINDOW
(2) PROVIDED
INSTALLATION INSTRUCTIONS
1. Center cover and surface mount frame over device and mark the four
screw hole locations on wall.
2. Drill the four marked screw holes using drill sizes stated in drawing and
mount cover assembly as shown.
Note: Conduit gaskets and conduit windows provided for various applications.
STI-1318 Cord Gasket provided for use with conduit windows may need to
be trimmed to fit.
COVER & SURFACE MOUNT
FRAME ASSEMBLY
STI-1316 COVER GASKET
#6 x 1 1/4 in. SCREWS
(4) PROVIDED
B
A A
4.58 in.
B
(116mm)
4.2 in.
(106mm)
3.17 in.
(80mm)
4.13 in.
(104mm)
4.85 in.
(123mm)
5.43 in.
(138mm)
6.45 in.
(163mm)
3.30 in.
(83mm)
6.17 in.
(156mm)
SECTION B-B
(171mm)
6.00 in.
(152mm)
6.75 in.
SECTION A-A
POLYCARBONATE CLEANING INSTRUCTIONS:
Rinse with water to remove abrasive dust and dirt. Wash with soap or mild
detergent, using a soft cloth. Rinse once more then dry with a soft cloth or
chamois. Exercise caution when using water inside enclosure. Make sure unit
is completely dry inside before reassembling. To remove grease or wet paint
from exterior of cover, rub gently with a soft cloth thoroughly wetted with
Naphtha. Then wash and rise.
Note: Do not use razor blades, they will scratch the surface.
Electronic warranty form at www.sti-usa.com/wc14
7.55 in.
(191mm)
8.15 in.
(207mm)

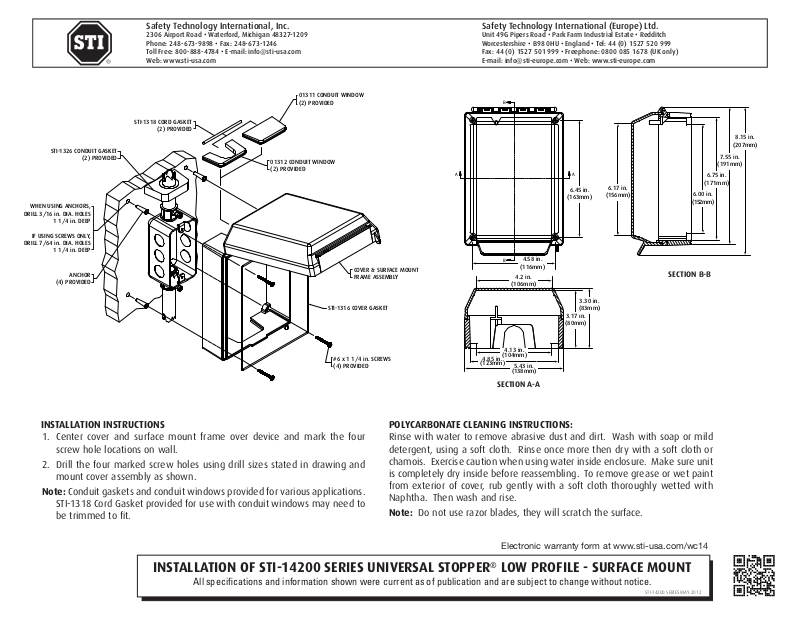

INSTALLATION OF STI-14200 SERIES UNIVERSAL STOPPER® LOW PROFILE - SURFACE MOUNT
All specifications and information shown were current as of publication and are subject to change without notice.
STI-14200 SERIES MAY 2012
