STI 14000 User Manual
Safety Technology International, Inc.
A A
B
B
4.58 in.
(116mm)
4.18 in.
(106mm)
6.45 in.
(163mm)
6.17 in.
(156mm)
5.95 in.
(151mm)
6.79 in.
(172mm)
7.60 in.
(193mm)
8.15 in.
(207mm)
2306 Airport Road • Waterford, Michigan 48327-1209
Phone: 248-673-9898 • Fax: 248-673-1246
Toll Free: 800-888-4784 • E-mail: info@sti-usa.com
Web: www.sti-usa.com
Safety Technology International (Europe) Ltd.
Unit 49G Pipers Road • Park Farm Industrial Estate • Redditch
Worcestershire • B98 0HU • England • Tel: 44 (0) 1527 520 999
Fax: 44 (0) 1527 501 999 • Freephone: 0800 085 1678 (UK only)
E-mail: info@sti-europe.com • Web: www.sti-europe.com
B
WHEN USING ANCHORS, DRILL 3/16 in.
DIA. HOLES 1 1/4 in. DEEP
IF USING SCREWS ONLY, DRILL 7/64 in.
DIA. HOLES 1 1/4 in. DEEP
ANCHOR (4) PROVIDED
STI-1314 BACKPLATE (OPTIONAL) RECOMMENDED
WHEN MOUNTING TO UNLEVEL SURFACE
#6 x 1 1/4 in. SCREW
(4) PROVIDED
FRAME AND
COVER ASSEMBLY
STI-1316
COVER GASKET
A A
B
4.58 in.
(116mm)
4.18 in.
(106mm)
4.08 in.
(103mm)
5.43 in.
(137mm)
4.89 in.
(124mm)
(20mm)
SECTION A-A
6.45 in.
(163mm)
1.83 in.
(46mm)
.80 in.
1.96 in.
(49mm)
6.17 in.
(156mm)
6.79 in.
(172mm)
5.95 in.
(151mm)
SECTION B-B
(207mm)
7.60 in.
(193mm)
8.15 in.
INSTALLATION INSTRUCTIONS
1. Center frame and cover assembly in desired position and mark the four
corner holes onto the wall.
2. Drill marked holes using drill size indicated in instructions and mount
cover assembly as shown.

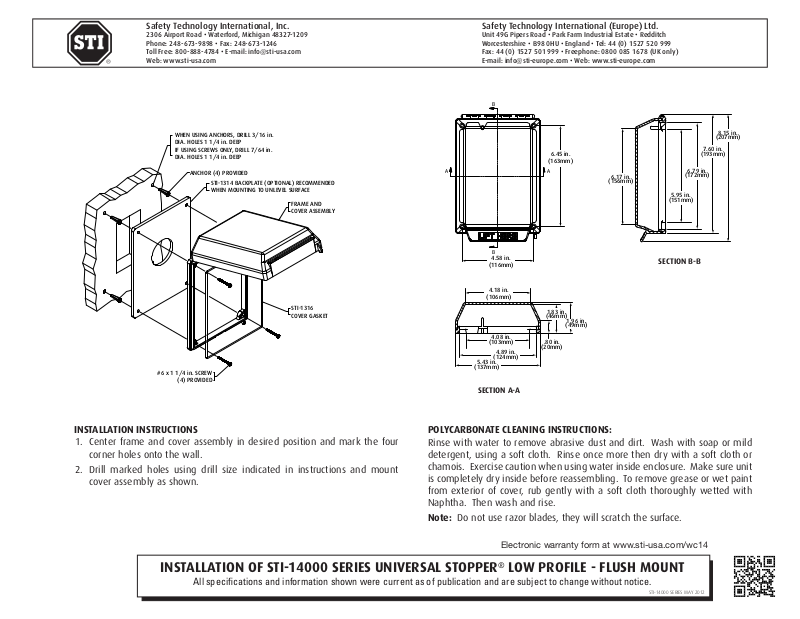

INSTALLATION OF STI-14000 SERIES UNIVERSAL STOPPER® LOW PROFILE - FLUSH MOUNT
All specifications and information shown were current as of publication and are subject to change without notice.
POLYCARBONATE CLEANING INSTRUCTIONS:
Rinse with water to remove abrasive dust and dirt. Wash with soap or mild
detergent, using a soft cloth. Rinse once more then dry with a soft cloth or
chamois. Exercise caution when using water inside enclosure. Make sure unit
is completely dry inside before reassembling. To remove grease or wet paint
from exterior of cover, rub gently with a soft cloth thoroughly wetted with
Naphtha. Then wash and rise.
Note: Do not use razor blades, they will scratch the surface.
Electronic warranty form at www.sti-usa.com/wc14
STI-14000 SERIES MAY 2012
