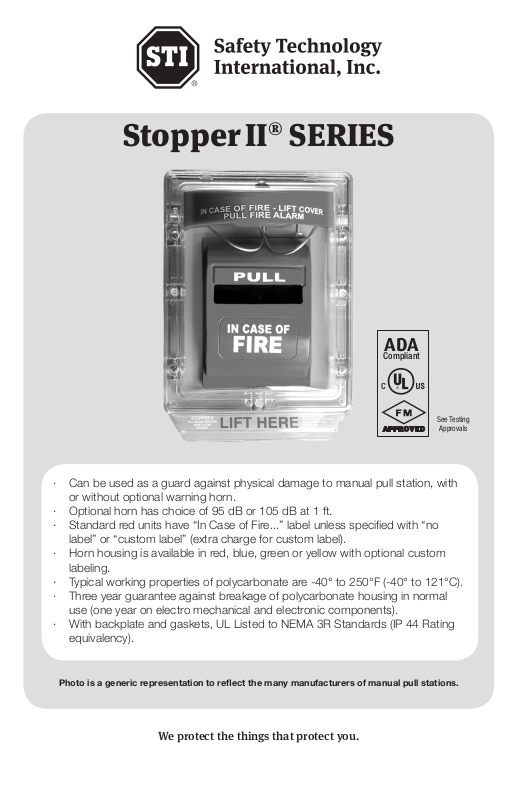

Stopper II® SERIES
ADA
Compliant
See Testing
Approvals
· Can be used as a guard against physical damage to manual pull station, with
or without optional warning horn.
· Optional horn has choice of 95 dB or 105 dB at 1 ft.
· Standard red units have “In Case of Fire...” label unless specified with “no
label” or “custom label” (extra charge for custom label).
· Horn housing is available in red, blue, green or yellow with optional custom
labeling.
· Typical working properties of polycarbonate are -40° to 250°F (-40° to 121°C).
· Three year guarantee against breakage of polycarbonate housing in normal
use (one year on electro mechanical and electronic components).
· With backplate and gaskets, UL Listed to NEMA 3R Standards (IP 44 Rating
equivalency).
Photo is a generic representation to reflect the many manufacturers of manual pull stations.
We protect the things that protect you.
- 1 -
Page 2
UL Listed Models Included on this Install Sheet
Indoor Use:
STI-1100 With horn for flush mounted appliances
STI-1100RC With horn for flush mounted appliances includes relay contacts capable of
operating from 9-24 VDC remote power or internal 9V battery power
STI-1130 With horn and 2” conduit spacer for surface mounted appliances and
electrical boxes
STI-1130RC Surface mounted version of the 1100RC includes 2” conduit spacer
STI-1200 Without horn for flush mounted appliances
STI-1230 Without horn, with 2” conduit spacer for surface mounted appliances and
electrical boxes
Indoor/Outdoor Use (Weather Stopper Models)
All outdoor units include necessary gaskets.
STI-1150 With horn for flush mounted appliances
STI-1150RC With horn for flush mounted appliances includes relay contacts capable of
operating from 9-24 VDC remote power or internal 9V battery power and
includes weather gasket
STI-1155 Surface mounted version of the STI-1150 includes 2” conduit spacer
STI-1155RC Surface mounted version of the STI-1150RC includes 2” conduit spacer
STI-1250 Without horn for flush mounted appliances
STI-3150 Without horn with 2” conduit spacer for surface mounted appliances and
electrical boxes
STI-1102 Replacement horn for cover with alarm
Custom-LBL Custom text message for horn housing
Testing Approvals
It has been tested and approved or listed by:
· Underwriter Laboratories and cUL No. 49G2
· Factory Mutual No. OG6A2.AY (STI-1100 and STI-1130 only)
· NEMA 3R when mounted to smooth non-masonry surfaces (only for Stopper II models
with backplate and gaskets)
· NYC BSA #947-81-5A
· IP 44 Rating (NEMA 3R)
· Obtain local fire marshal approval for State of California
· Operation is ADA Compliant
· UL/cUL Certified to meet ADA compliance
Patents
· United States No. 4267549, Canada No. 1147828Z
Specications
Polycarbonate Enclosure
· Flammability UL94 V-2
· Wall Thickness .095 inches
· NEMA Rating Meets NEMA 3R when mounted to smooth non-masonry surfaces
Gaskets
· Closed Cell IV2 with pressure sensitive adhesive
· Replace after 5 years
9V 12V 24V
Horn
· Low (95 dB @ 1 ft.) 96mA 107mA 125mA
· High (105 dB @ 1 ft.) 130mA 145mA 182mA
· Min. Operating Req. 2V @ 20mA 4V @ 20mA 4V @ 20mA
9V 12V 24V
Relay
· Relay 23mA 25mA 29mA
· Min. Activation Voltage 3.7V 5.8V 5.8V
· Reset Voltage 1.5V 3.3V 3.3V
· Dry Contact Rating <30V, 1A <30V, 1A <30V, 1A
(type Form “C”)
- 2 -
Page 3
Specications (continued)
Temperature Range
· -40°F (-40°C) to 120°F (49°C)
· For temperatures below -4°F (-20°C) recommend using remote power source
Warranty
· Three year guarantee against breakage of polycarbonate housing in normal use (one year on electro
mechanical and electronic components).
· Electronic warranty form at www.sti-usa.com/wc14.
Important Notice
Stopper II is intended to be used in areas where the incidence of false fire alarms from
manual pull stations is high or has proven to be a serious problem. Any disadvantage of this
device is more than balanced when one considers the consequences of false fire alarms,
especially if fire service personnel and equipment are responding to a false fire alarm when
they are needed for a real fire somewhere else. Add to this the disruption to the facility when
false alarms occur. If you have, or may have, a problem with false fire alarms or physical/
weather damage to your fire alarm activation devices, the Stopper II could prove invaluable.
Avis important
Le Stopper II est destiné à être utilisé dans les zones où l’occurrence de fausses alertes d’incendie issues d’avertisseurs
d’incendie manuels est élevée ou présente un problème grave. Un quelconque inconvénient de ce dispositif est vite contrecarré
par les conséquences des fausses alertes d’incendie, surtout lorsque le personnel et l’équipement des services d’incendie
réagissent à une fausse alerte d’incendie alors que leur intervention ailleurs sur un vrai incendie s’avère nécessaire en même
temps. À cela s’ajoute l’agitation éprouvée dans l’établissement au moment du déclenchement d’une fausse alerte. Si vous
rencontrez, ou risquez de rencontrer, un problème avec les fausses alertes d’incendie ou avec l’éventuel endommagement par
effet climatique ou physique de vos dispositifs de déclenchement des alertes d’incendie, le Stopper II pourra alors se révéler
d’une valeur inestimable.
Installation Notes
1. When used outdoors, the manual pull station must also be rated for outdoor use.
2. The relay contacts on Model STI-1100RC, STI-1130RC, STI-1150RC and STI-1155RC,
UL Listing does not permit connection to fire alarm or a life safety function.
3. According to UL Listing, models powered from an external power source cannot be
supplied from the fire alarm panel.
4. When properly installed the operation of this cover will not interfere with the function of
your life safety system.
5. A backplate and gaskets must be used to achieve NEMA 3R integrity.
6. Horn must be tested annually for proper operation. Battery replacement is recommended
annually dependent on use and battery expiration date.
7. If mounting to an uneven surface STI recommends the use of the STI-1280 backplate to
ensure proper sealing. If wire access or screw mounting holes are needed, backplate
may be drilled as necessary.
Remarques sur l’installation
1. L’avertisseur d’incendie manuel doit être homologué pour une utilisation à l’extérieur en cas de recours à une telle utilisation.
2. L’homologation UL des contacts de relais sur les modèles STI-1100RC, STI-1130RC, STI-1150RC et STI-1155RC n’autorise
pas leur connexion à une fonction d’alerte d’incendie ou de sécurité des personnes.
3. Selon l’homologation UL, les modèles alimentés par une source électrique externe ne peuvent pas être intégrés au panneau
d’alerte d’incendie.
4. Lorsqu’il est correctement installé, le fonctionnement de ce couvercle ne provoquera aucune interférence avec le
fonctionnement de votre système de sécurité des personnes.
5. Un palastre et des joints d’étanchéité doivent être utilisés pour atteindre l’intégrité NEMA 3R.
6. L’alarme sonore doit être testée annuellement pour confirmer son bon fonctionnement. Il est recommandé de remplacer la
pile chaque année et ce en fonction du taux d’utilisation et de la validité de la pile.
7. Dans le cas d’un montage sur une surface irrégulière, STI recommande l’utilisation du palastre STI-1280 pour garantir une
étanchéité adéquate contre la surface de montage. S’il est nécessaire d’accéder aux fils ou aux trous des vis de montage, le
palastre peut être percé tel que requis.
- 3 -
Page 4
Installation Instructions
ADDED
SILICONE
ANCHOR
(4) PROVIDED
STI-3002 WEATHER GASKETS
INSTALL THICK END OF GASKET
TOWARDS TOP OF ASSEMBLY
STI-1280
BACKPLATE
FOR RETROFIT APPLICATIONS,
CUT GASKET AT THE BOTTOM TO
INSTALL BEHIND CONDUIT
EXISTING PULL
STATION
INSERT PLASTIC KNOCK-OUT (2) PROVIDED
INTO SPACER NOTCH IF CONDUIT IS NOT NEEDED
1. Separate cover and frame leaving
cables attached. Slide power switch,
on back of horn housing, to “OFF”
position (Fig. 5). Using frame or optional
backplate (recommended with all
Weather Stopper models) as a template,
mark mounting holes on wall taking into
consideration placement of pull station
or refer to Fig. 1 for dimensional hole
placement from center of clear opening.
NOTE: Be sure cover will not interfere
with operation of the pull station when
installed.
2. If drilling into masonry or drywall use provided anchors. Drill four 1/4” (6.3mm) holes
approximately 1 1/4” deep. If drilling into wood, drill four 5/32” (3.9mm) holes 1 1/4”
deep. Do not use anchors if drilling into wood. NOTE: When gaskets are used, install
gasket provided by peeling off backing paper and apply with adhesive facing wall.
Align holes in gasket with holes drilled and stick on mounting surface.
3. If using STI-1280 backplate, refer to Fig. 3 and 4 for install instructions depending
on your application. NOTE: When drilling hole in backplate NEMA 3R integrity is
compromised.
4. Align frame and put screws through frame holes, into anchors and tighten (if used,
through spacer, gaskets and optional backplate). For STI-1200, continue to Step 8.
NOTE: When using STI-3100 spacer, be sure to install conduit knockout (2 provided),
any additional ventilation (sub-315 grill and sub-316 louver kit), and gaskets before
you tighten to the wall. When using conduit gasket (use STI-3003 with 1/2” conduit
and STI-3100 spacer or use STI-3004 with 3/4” rigid conduit and STI-3104 spacer)
place gasket around conduit in proper location and tighten frame over spacer. For
added protection a bead of silicone may be applied to conduit fitting and between
STI-1280 backplate and wall (Fig. 2). Refer to exploded view of flush and surface
mount installation options Fig. 3 and 4.

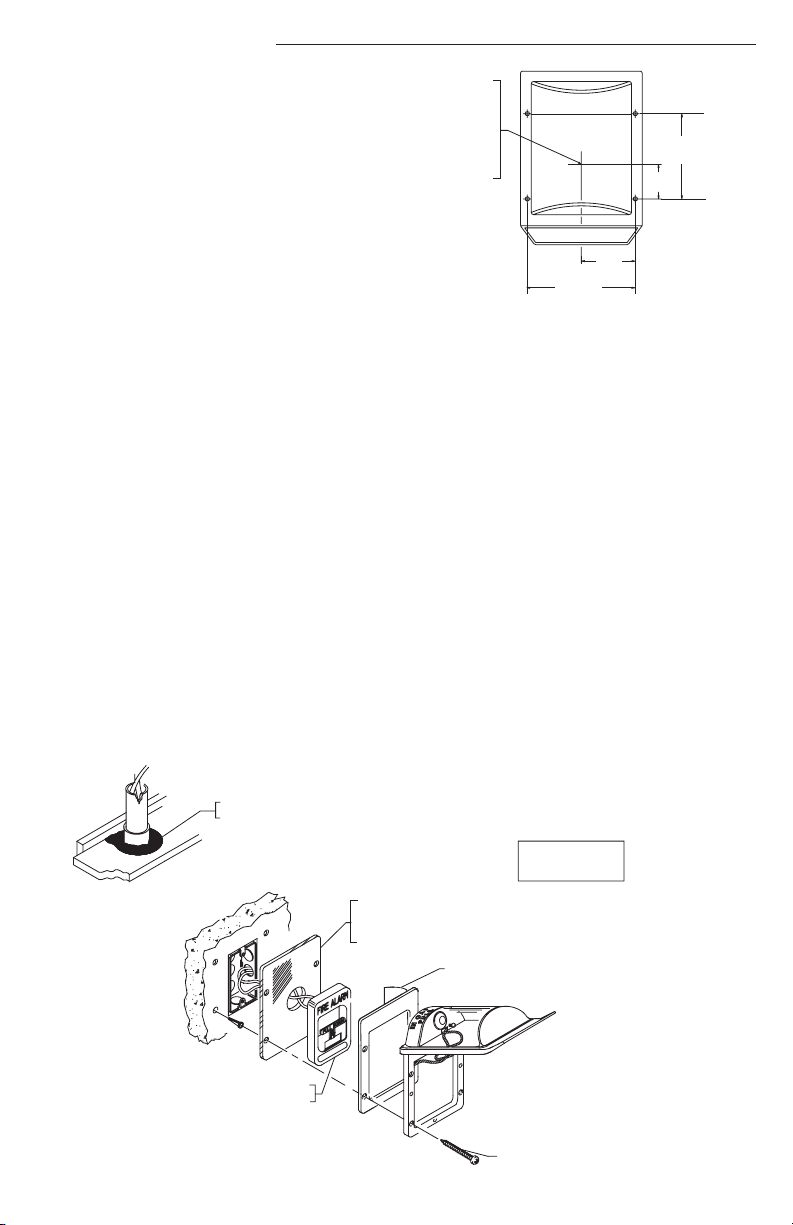

FIND CENTER OF
PULL STATION
AND USE GIVEN
DIMENSIONS TO
CENTER PULL STATION
IN VISIBLE OPENING
OF COVER. DRILL
4 HOLES PER STEP 2.
IN CASE OF FIRE - LIFT COVER
PULL FIRE ALARM
LIFT HERE
3.125 in.
(79mm)
6.25 in.
(159mm)
4.9375 in.
(125mm)
2 in.
(51mm)
Fig.1
ADDED
SILICONE
Fig. 2
EXISTING
PULL STATION
BACKPLATE
NOTE: WHEN DRILLING HOLE IN
BACKPLATE NEMA 3R INTEGRITY
IS COMPROMISED
ADHESIVE SIDE
SCREW WITHOUT SPACER
- 4 -
FLUSH MOUNT
WITH OPTIONS
Fig. 3
Page 5

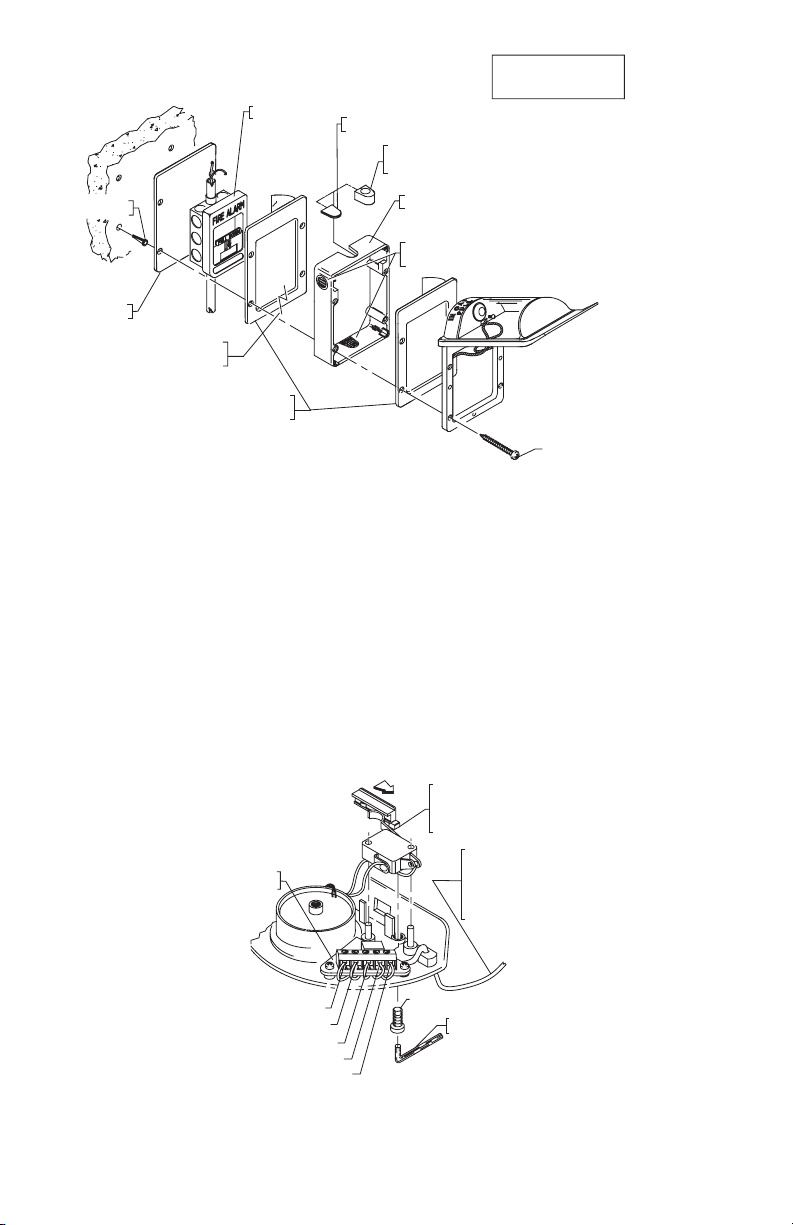

SURFACE MOUNT
OPTIONAL STI-1103
RELAY BOARD
RED +9, 12, OR 24 VOLTS
BLACK -9, 12, OR 24 VOLTS
GREEN NORMALLY OPEN
BLUE COMMON
WHITE NORMALLY CLOSED
3/32 in. ALLEN WRENCH
(NOT PROVIDED)
SWITCH LOCKING SCREW
5 INCHES OF CABLE IS
PROVIDED FOR SERVICE LOOP.
MAKE SURE THIS LOOP AND
ALL OTHER CABLES DO NOT
INTERFERE WITH STATION
OPERATION.
TO LOCK POWER SWITCH IN
THE "OFF" OR "ON" POSITION
TIGHTEN LOCKING SCREW FULLY
UNTIL SCREW MAKES CONTACT
WITH SWITCH PAD AS SHOWN.
OFF
*
*
WITH OPTIONS
EXISTING PULL
ANCHOR
(4) PROVIDED
STI-1280
BACKPLATE
FOR RETROFIT APPLICATIONS,
CUT GASKET AT THE BOTTOM TO
INSTALL BEHIND CONDUIT
STI-3002 WEATHER GASKETS
INSTALL THICK END OF GASKET
TOWARDS TOP OF ASSEMBLY
STATION
INSERT PLASTIC KNOCK-OUT (2) PROVIDED
INTO SPACER NOTCH IF CONDUIT IS NOT NEEDED
STI-3003 GASKET (USE WITH 1/2 in. CONDUIT)
STI-3004 GASKET (USE WITH 3/4 in. CONDUIT
AND STI-3104 SPACER)
STI-3100 CONDUIT SPACER SHOWN
WITH SUB-316 AND SUB-315
FOR ADDITIONAL VENTILATION
ORDER SUB-316 LOUVER KIT
OR SUB-315 GRILL
SCREW WITH SPACER
Fig. 4
5. Make any external connections for remote power or relay options. Refer to Fig. 5 for
wiring details.
6. Slide power switch, on back of horn housing, to “ON” position (Fig. 5). When power is
connected to unit horn should sound. NOTE: If external power source is used horn will
not sound until power is turned on at source.
7. Push switch in to silence horn while tightening switch locking screw (Fig. 5 for location of
screw). This prevents slide switch from being shut off during unauthorized use.
CAUTION: Do not tighten when screw is in “OFF” position.
8. Place cover on frame by aligning tabs on cover with slots on frame and push bottom on
tightly, horn should silence. To test: lift cover, horn should sound, and return cover to
frame to silence horn. Unit is armed for operation.
OPTIONAL STI-1103
RELAY BOARD
RED +9, 12, OR 24 VOLTS
*
BLACK -9, 12, OR 24 VOLTS
*
GREEN NORMALLY OPEN
BLUE COMMON
WHITE NORMALLY CLOSED
STI MODELS 1100RC, 1130RC, 1150RC AND 1155RC
OFF
TO LOCK POWER SWITCH IN
THE "OFF" OR "ON" POSITION
TIGHTEN LOCKING SCREW FULLY
UNTIL SCREW MAKES CONTACT
WITH SWITCH PAD AS SHOWN.
5 INCHES OF CABLE IS
PROVIDED FOR SERVICE LOOP.
MAKE SURE THIS LOOP AND
ALL OTHER CABLES DO NOT
INTERFERE WITH STATION
OPERATION.
SWITCH LOCKING SCREW
3/32 in. ALLEN WRENCH
(NOT PROVIDED)

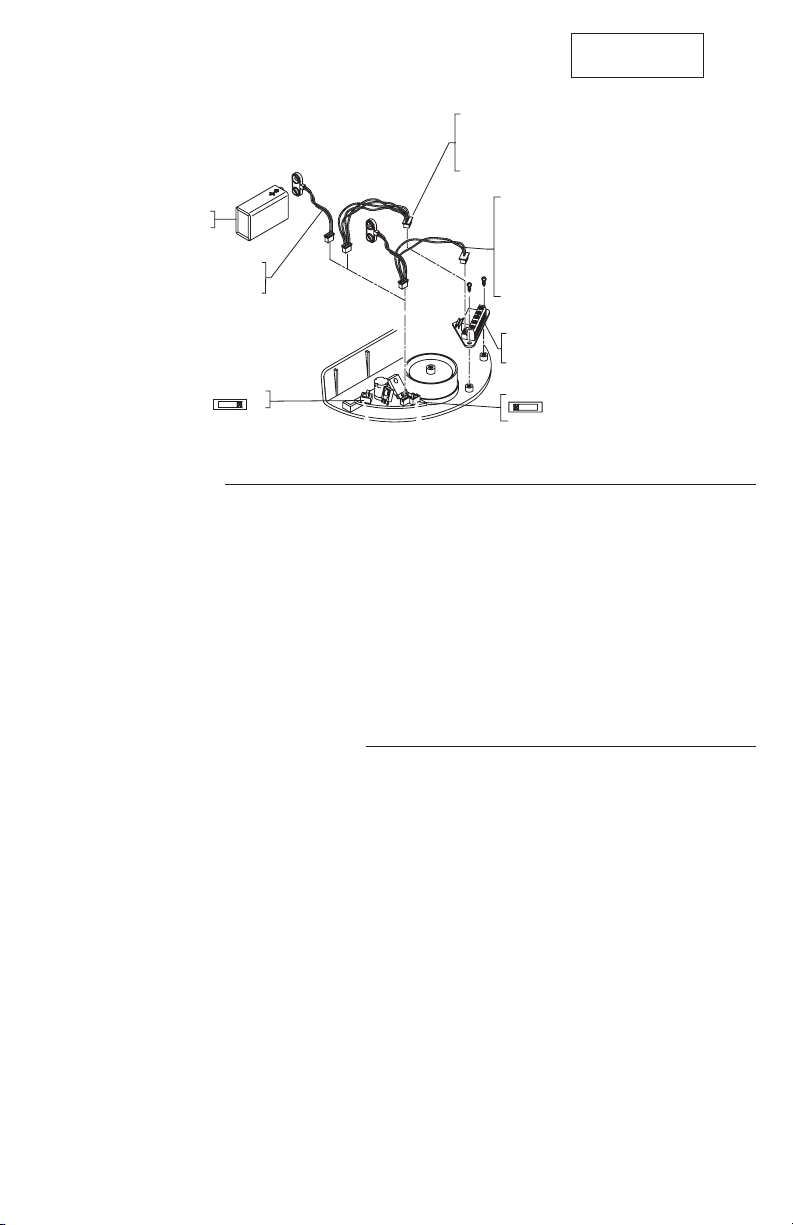

OPTIONAL RELAY CONTACT SETTINGS
( NOT USED WITH 9VDC BATTERY JUMPER)
*
- 5 -
Fig. 5
Page 6
SCREW WITH SPACER
INSTALL THICK END OF GASKET
TOWARDS TOP OF ASSEMBLY
VIEW OF RELAY CONTACT
15 - 24 VDC
9 - 12 VDC
GROUND
NORMALL OPEN
NORMALLY CLOSED
COMMON
EXPLODED
ELECTRONIC VIEW
FACTORY VOLTAGE SETTINGS:
BATTERY POWERED UNITS: 9 VOLT
REMOTE POWER "RC" UNITS: 24 VOLT
USE 24 VOLT SETTING FOR USE WITH
12 VOLT DC INPUT POWER.
USE ONLY
9 VOLT BATTERY
JUMPER USED ON STANDARD 9
FACTORY VOLUME SETTING: HIGH
VOLT INTERNALLY
POWERED MODELS
VOLUME SELECTOR
LOW
HI
JUMPER INSTALLED ON "RC" MODELS
FOR EXTERNALLY SUPPLIED 12VDC OR
24VDC POWER
NOTE: SMALL CONNECTOR ON JUMPER
FITS INTO PLUG ON RELAY BOARD
THIS JUMPER IS INCLUDED WITH "RC"
MODELS FOR USE WHEN INTERNAL
9VDC BATTERY POWER IS REQUIRED.
(BATTERY NOT INCLUDED)
SMALL CONNECTOR ON JUMPER FITS
INTO PLUG ON RELAY BOARD
USING THIS JUMPER REQUIRES
VOLTAGE SELECTOR SET TO 9V
STI-1103 RELAY
BOARD IS USED ON
"RC" MODELS
VOLTAGE SELECTOR
9V 24V
Fig. 6
Gasket Installation
Use of gaskets is necessary to ensure a proper seal in weatherproof applications. Weather
Stopper models ship complete with all necessary gaskets and should be used accordingly.
For flush mount weather applications, one STI-3002 must be used between the cover and
wall or backplate (see Fig. 3). In surface mount applications, one STI-3002 must be placed
between the spacer and wall, while another STI-3002 must be placed between the spacer
and cover (see Fig. 4). An STI-3003 or STI-3004 gasket must be used around all entering
conduit. For surface mount applications, it is also recommended that the SUB-315 grill
be installed in the bottom knockout of the conduit spacer. This helps prevent excessive
condensation buildup. STI recommends gasket replacement every five years. (UL requires
listing of pull station to be UL Listed for outdoor installations.)
Battery Replacement Instructions
1. Remove the cover from the frame. It is not necessary to remove the cables from the
frame.
2. Use a 3/32” allen wrench to loosen the button head screw located next to the switch far
enough to slide the switch to the “off” position.
3. Holding the horn housing and cover in one hand, remove the button head screw located
on the top of the cover with the same allen wrench.
4. Set the clear cover aside and remove the horn housing cover.
5. Replace the battery with a 9 Volt battery only. Be careful to keep the wires away from the
slide switch and the micro-switch.
6. Reassemble the unit making sure that the horn housing fits into the tabs on the horn
housing cover; and that this assembly is mounted evenly into the clear cover.
7. Replace the button head screw through the top of the clear cover and into the top of the
horn.
8. Slide the switch to the “on” position. The horn should sound.
9. Push the switch in to silence horn while tightening the “on” position locking screw.
10. Replace the cover onto the frame and test by removing the cover from the frame. The
horn should sound when removed and silence when cover is replaced. If unit does not
operate correctly, contact Safety Technology International, Inc.
- 6 -
Page 7
3 in.(76mm)
ALL MODELS END VIEW
4 in.(102mm)
5 in.(127mm)
5.5 in.(140mm)
STI-3100 SPACER
ADDS 2" DEPTH(51mm)
5.5 in.(140mm)
E
.75 in.
(19mm)
1.625 in.
(41mm)
2.375 in.
(60mm)
2.75 in.
(70mm)
3.2 in.
(81mm)
A
B
C
D
E
D
C
B
A
Polycarbonate Cleaning Instructions
Rinse with water to remove abrasive dust and dirt. Wash with soap or mild detergent, using
a soft cloth. Rinse once more, then dry with a soft cloth or chamois. Exercise caution when
using water inside enclosure. Make sure unit is completely dry inside before reassembling. To
remove grease or wet paint from exterior of cover, rub gently with a cloth thoroughly wetted
with Naptha. Then wash and rinse. (Do not use razor blades.)
Options Available
· STI-1280 Backplate for mounting appliances to uneven surface.
· STI-3002 Weather gaskets
· STI-3100 Large conduit clear 2” conduit spacer for 1/2” conduit
· SUB-315 Grill for Ventilation Kit
· SUB-316 Louvers for extra ventilation
· STI-3003 1/2” conduit gasket
· STI-3004 3/4” rigid conduit gasket
· STI-3104 Modified STI-3100 with larger top conduit opening to accommodate the
STI-3004 3/4” rigid conduit gasket.

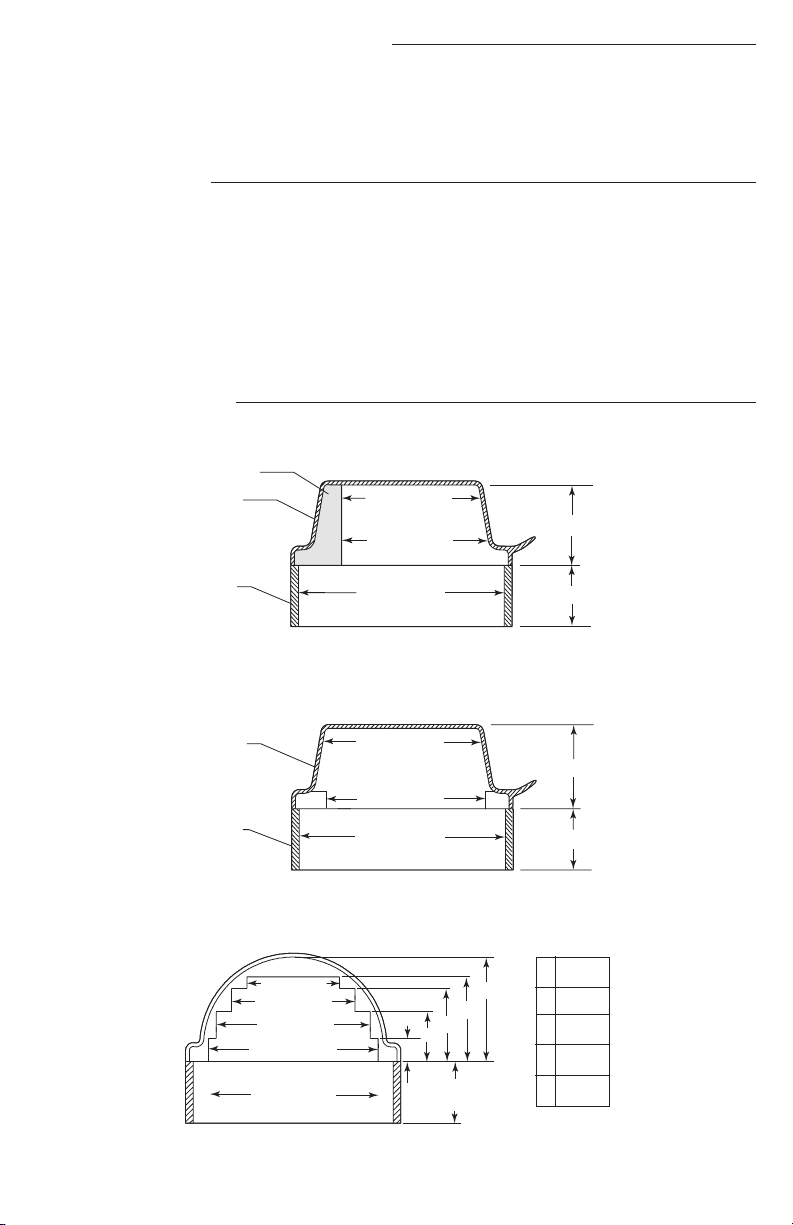

Product Dimensions
EXTERNAL DIMENSIONS: · Flush 7.2 W x 10.2 H x 3.3 D in. (183x259x84mm)
· Surface 7.2 W x 10.2 H x 5.5 D in. (183x259x140mm)
HORN HOUSING
COVER
SPACER
5.5 in.(140mm)
6.2 in.(158mm)
8.5 in.(216mm)
3.2 in.(81mm)
2 in.(51mm)
SIDE VIEW
MODELS WITH HORN (STI-1100 Series)
COVER
SPACER
6.5 in.(165mm)
7.0 in.(178mm)
8.5 in.(216mm)
SIDE VIEW
3.2 in.(81mm)
2 in.(51mm)
MODELS WITHOUT HORN (STI-1200 AND STI-3150 Series)
3.2 in.
A
3 in.(76mm)
4 in.(102mm)
5 in.(127mm)
5.5 in.(140mm)
5.5 in.(140mm)
A
B
C
D
E
STI-3100 SPACER
ADDS 2" DEPTH(51mm)
(81mm)
2.75 in.
B
(70mm)
2.375 in.
C
(60mm)
1.625 in.
D
(41mm)
.75 in.
E
(19mm)
ALL MODELS END VIEW
- 7 -
Page 8
2306 Airport Rd • Waterford, MI 48327
Phone: 248-673-9898 • Fax: 248-673-1246
info@sti-usa.com • www.sti-usa.com
Safety Technology International (Europe) Ltd.
Unit 49G Pipers Road • Park Farm Industrial Estate • Redditch
Worcestershire • B98 0HU • England • Tel: 44 (0) 1527 520 999
Fax: 44 (0) 1527 501 999 • Freephone: 0800 085 1678 (UK only)
info@sti-europe.com • www.sti-europe.com
Subject to change without notice.
Printed in USA
- 8 -
Inst. Sht. STOPPER II SERIES IS
MAY2008
Loading...
