STI 10115 User Manual

Safety Technology International, Inc.

2

306 Airport Road • Waterford, Michigan 48327-1209
Phone: [phone] • Fax: [phone]
Toll Free: 800-88 8-4784 • E-mai l: info @sti-us a.com
Web: www.sti-usa.com

Safety Technology International (Europe) Ltd.

U

nit 49G Pipers Road • Park Farm Industrial Estate • Redditch

W

orcestershire • B98 0HU • England • Tel: [phone]
Fax: [phone] • Freephone: 0800 085 1678 (UK only)
E-mail: [e-mail] • Web: www.sti-europe.com

.69 in.

(18mm)

1.45 in.

(37mm)

.13 in.

(3mm)

.74 in.

RANGE ADJUST
C

W - FAR

CCW - NEAR

CONTACT HOLD TIME

CW - LONG

CCW - SHORT

+12 VDC - RED

GND - BLACK

DRY CONTACTS

N

.O. - GREEN
COM - BLUE
N.C. - WHITE

SPECIFICATIONS:

• Made of UV resistant polycarbonate.

• 0.75 in.(19mm) diameter panel mount

• Built-in self test on power up
Green light on for 1 sec. and no action from relay
Red light on to complete self test

• Dual color status LED
Red - standby
Green - active

• Special infrared encoder to avoid distraction from
other infrared.

• Adjustable latch time 0.5 ~ 20 seconds

• Adjustable proximity range 0.4 ~ 4 in. (1 ~ 10 cm)

• Operating voltage 12VDC+/-15%

• Power consumption:

Standby - 15mA
Active - 25mA

• Dry contact rating - 1 amp @ 24VDC

• Operating temperature -4°F ~ 158°F (-20°C ~ 70°C)

• Seal protection IP65

• Infrared life 100,000 hours

INFRARED SENDING
AND RECEIVING AREA

.92 in. DIAMETER

10115 IR TIMER SWITCH

WASHER

NUT

CABLE

All specifications and information shown were current as of publication, and are subject to change without notice.

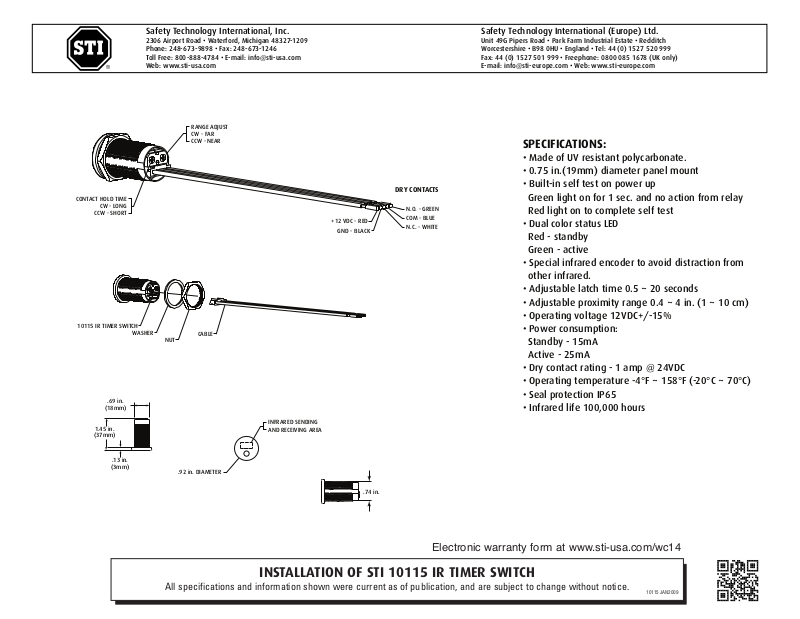

INSTALLATION OF STI 10115 IR TIMER SWITCH

Electronic warranty form at www.sti-usa.com/wc14

10115 JAN2009
