04876

MOUNTING

PLATE

OPTIONAL TAB
MOUNTING LOCATION

19033 ANCHOR

(6) PROVIDED

19002 SCREW

#8-32 x 3/8 in.

(4) PROVIDED

6297550

GASKET

1

9013 SCREW

#10 x 1 1/2 in.

(6) PROVIDED

06298 MOUNTING TABS
(

6) PROVIDED

07550WR WIRE SHELF ON
AED MODELS (ADJUSTABLE)

ROTARY ACTION

LATCH (2) PROVIDED

SHOWN WITH COVER CLOSED

07551WR WIRE RACK

(INCLUDED WITH

AED MODEL)

19002 #8-32 x 3/8 in.

SCREWS AND (4) 19055

#8-32 KEPS NUTS PROVIDED

24.75 in.

(629mm)

1

9.75 in.

(502mm)

FRONT VIEW

RIGHT SIDE VIEW

7

.

3

1

in

.

(1

8

6

m

m

)

3

/8” DIA.

UEHX
UL 50

UL 2017

NEMA 4X

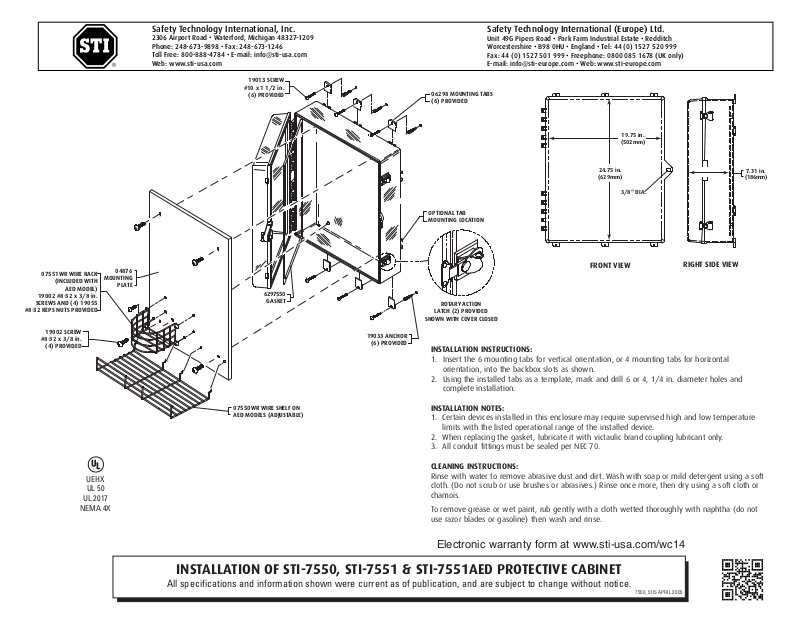

INSTALLATION OF STI-7550, STI-7551 & STI-7551AED PROTECTIVE CABINET

All specifications and information shown were current as of publication, and are subject to change without notice.

INSTALLATION INSTRUCTIONS:

1. Insert the 6 mounting tabs for vertical orientation, or 4 mounting tabs for horizontal
orientation, into the backbox slots as shown.

2. Using the installed tabs as a template, mark and drill 6 or 4, 1/4 in. diameter holes and
complete installation.

INSTALLATION NOTES:

1. Certain devices installed in this enclosure may require supervised high and low temperature
limits with the listed operational range of the installed device.

2. When replacing the gasket, lubricate it with victaulic brand coupling lubricant only.

3. All conduit fittings must be sealed per NEC 70.

CLEANING INSTRUCTIONS:

Rinse with water to remove abrasive dust and dirt. Wash with soap or mild detergent using a soft
cloth. (Do not scrub or use brushes or abrasives.) Rinse once more, then dry using a soft cloth or
chamois.

To remove grease or wet paint, rub gently with a cloth wetted thoroughly with naphtha (do not
use razor blades or gasoline) then wash and rinse.

Electronic warranty form at www.sti-usa.com/wc14

7550_51IS APRIL 2005
