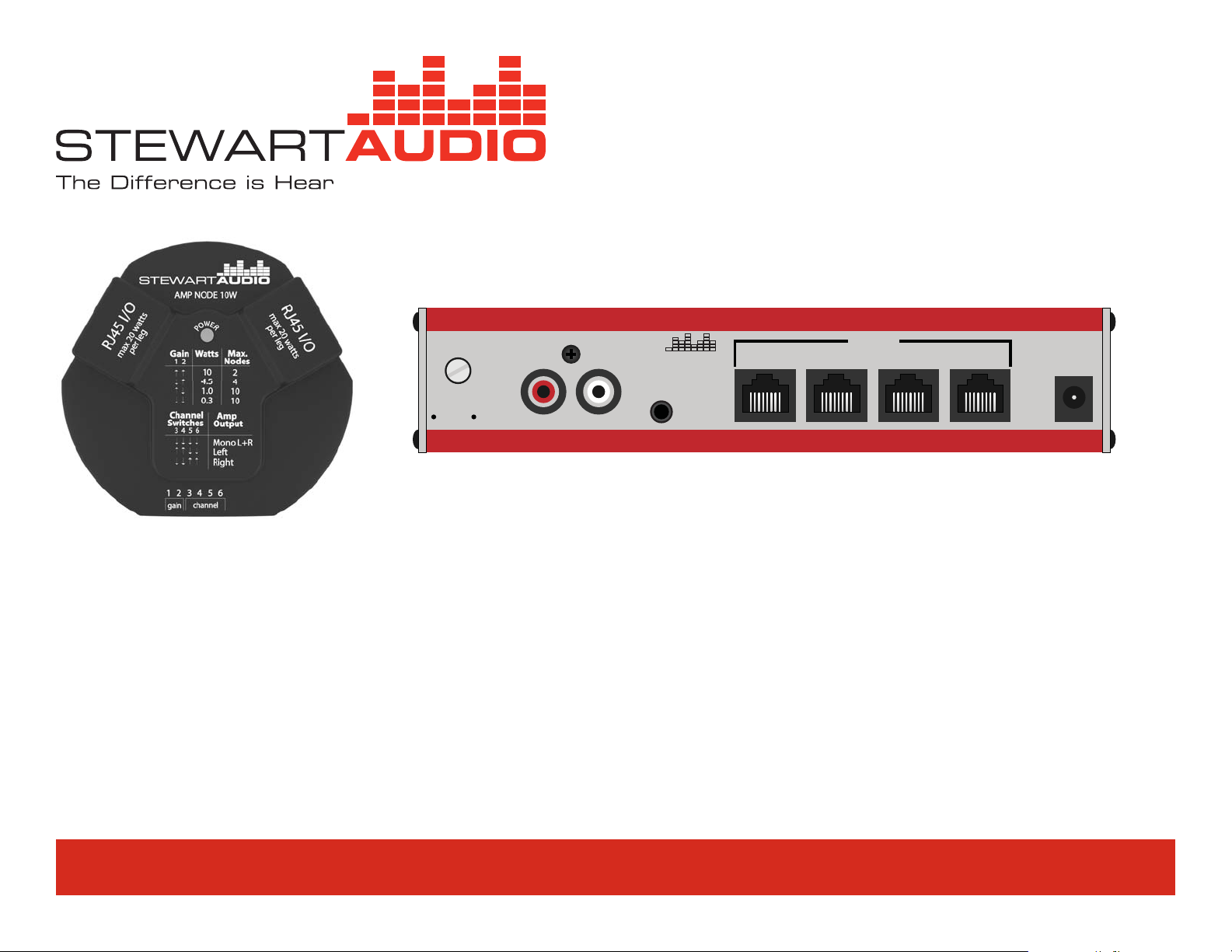

Stewart Audio IS-AmpNode-10 User Manual

Page 1
Level
IS-HUB4
STEWART
Input
AUDIO
Port 1
Port 2
Output
Port 4
Power
24VDC
Sig On
Input

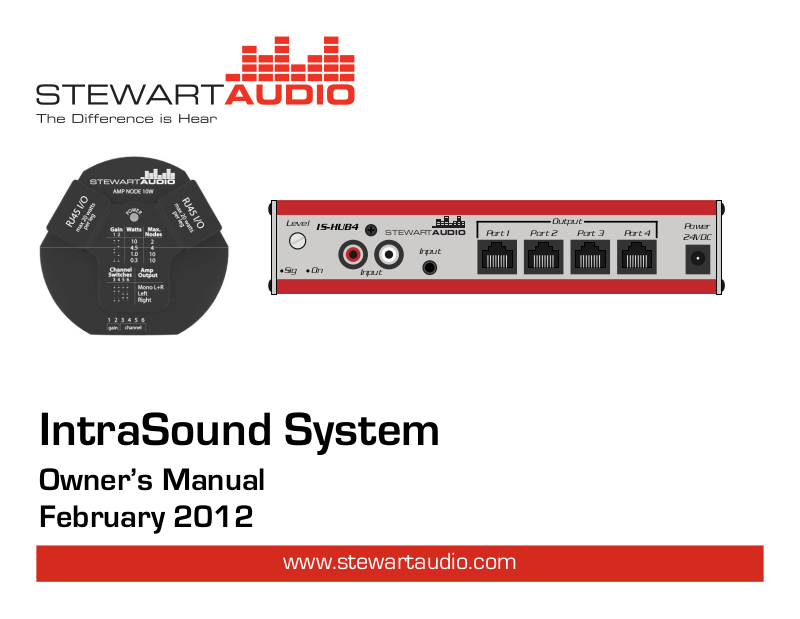

IntraSound System
Owner’s Manual February 2012
www.stewartaudio.com
Page 2
Important Safety Instructions
Before using your Stewart Audio Inc. Power Amplier, please read this Owner’s Manual carefully to ensure optimum trouble-free perfor­mance.
WARNING: TO REDUCE THE RISK OF ELECTRICAL SHOCK, DO NOT EX-
POSE THIS AMPLIFIER TO RAIN OR MOISTURE. DANGEROUS HIGH
VOLTAGES ARE PRESENT INSIDE THE ENCLOSURE. DO NOT OPEN THE
CABINET. REFER SERVICING TO QUALIFIED PERSONNEL ONLY.
CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER (OR BACK). NO USER­SERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.
The lighting bolt within arrowhead symbol, within an equilateral triangle, is intended to alert the user to the presence of un-insulated “dangerous voltage” within the product’s enclosure that may be of sufcient mag­nitude to constitute a risk of electrical shock to person.
The exclamation point within an equilateral triangle, is intended to alert the user to the presence of important operating and maintenance (servicing) instruction in the literature accompanying the appliance.
1. Read these instructions. All of the safety and operating proce­dures should be read before the amplier is installed or operated.
CAUTION
RISK OF ELECTRIC SHOCK
DO NOT OPEN
5. Do not use this apparatus near water. For example, near a bathtub, in a wet basement, near a swimming pool, etc. This amplier is intended to be operated in a controlled indoor environment.
6. Clean only with dry cloth. Do not use solvents or abrasive cleaners. Never pour any liquid on the amplier.
7. Installation should be performed by a trained and licensed profes­sional to insure safe and lasting operation.
8. Do not install near any heat sources such as radiators, heat regis­ters, stoves, or other apparatus (including ampliers) that produce heat.
9. Protect the power cord from being walked on or pinched particular­ly at plugs, convenience receptacles, and the point where they exit from the apparatus.
10. Unplug this apparatus during lightning storms or when unused for long periods of time.
11. Only use attachments/accessories specied by the manufacturer.
12. Refer all servicing to qualied service personnel. Servicing is re­quired when the apparatus has been damaged in any way, such as power-supply cord or plug is damaged, liquid has been spilled or objects have fallen into the apparatus, the apparatus has been ex­posed to rain or moisture, does not operate normally, or has been dropped.
13. The 24 Volt DC power supply that is supplied with the IntraSound System may be connected to 120 to 240 VAC, 50-60 Hertz. Do not defeat the ground polarization of the power plug.
2. Keep these instructions. Retain these documents for future refer­ence.
3. Heed all warnings. All warnings on the amplier and in these oper­ating instructions should be adhered to.
4. Follow all instructions
2 3
Page 3
Table of Contents
Important Safety Instructions ······························································ 2
Table of Contents ················································································ 4
1 Welcome ························································································· 5
2 System Overview ········································································· 6
3 System Installation ······································································· 8
4 Operation ······················································································ 12
5 Troubleshooting ·········································································· 14
6 Technical Specications ····························································· 15
7 Warranty Statement ·································································· 16
8 Accessories ················································································· 16
1 Welcome
Congratulations on the purchase of your new Stewart Audio IntraSound System. If after reading this manual you should have any questions concerning amplier installation and operation, please contact your Au­thorized Stewart Dealer, or you may contact us directly using the con­tact information provided on the back of this manual.
1.1 Features
Your Stewart Audio IntraSound System is the result of years of experience in the design and manufacture of quality ampliers. As such it provides a combination of performance and operational benets that simply cannot be found in conventional ampliers.
 Distributes audio and power over Cat5 cables
 Compact hub and subcompact nodes
 Nodes have selectable wattage and channels
 Efcient Class D microamplier inside every node
 Clean full–range dynamic power
 Signal Sense Technology for Energy Star Compliance
 Easy to install distributed audio solution
 External inline power supply
1.2 Using this Manual
In order to obtain maximum performance from your IntraSound Sys­tem, please take time to read this brief owner’s manual and carefully follow the guidelines for connection and operation.
This manual provides you with the information necessary to safely in­stall and operate your new IntraSound System in the most common scenarios. If you nd yourself requiring additional assistance, please feel free to contact your Authorized Dealer, or you may contact us di­rectly using the information provided on the back of this manual.
4 5
Page 4
2 System Overview
The IntraSound System by Stewart Audio consists of two key com­ponents: the IS-HUB4 and the IS-AmpNode-10. Other components such as Cat5 cable and speakers play a role in the system but will not be the focus of this manual.
2.1 System Components & Dimensions
7.25in
18.4cm

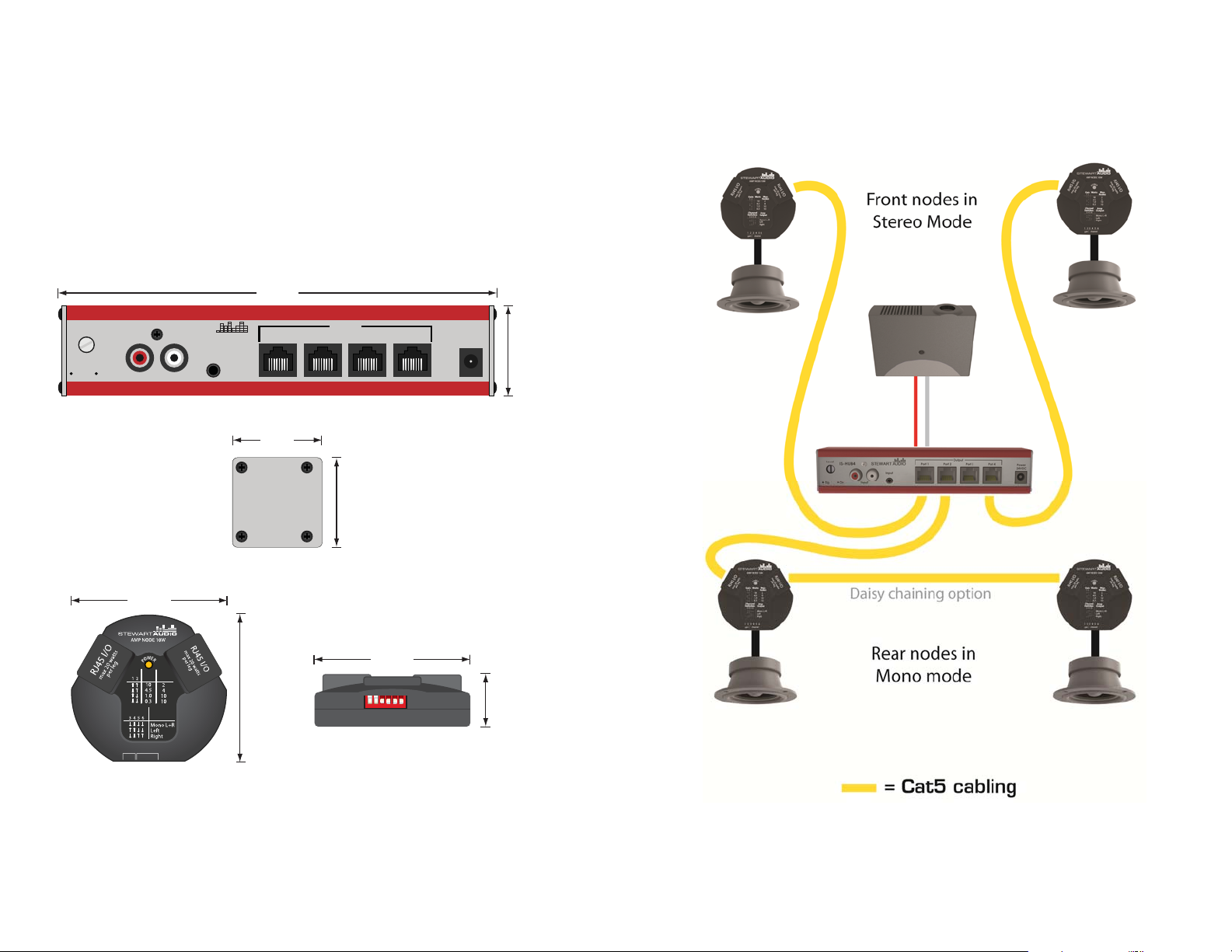

2.2 Example System Setup
Level
Sig On
IS-HUB4
Gain
Channel Switches
1 2 3 4 5 6
gain channel
Input
2.65in
6.75cm
Watts
Amp
Output
Nodes
Max.
STEWART
Input
AUDIO
Port 1
Hub Front
1.5in
3.8cm
Hub Side
2.5in
6.4cm
Port 2
Output
1.5in
3.8cm
Port 3
2.65in
6.75cm
1
23456
Node Side
Port 4
Power 24VDC
1.0in
2.5cm
1.5in
3.8cm
Node Top
6 7
Page 5
3 System Installation
CAUTION: Before installing your system, make sure that you have read the Important Safety Precautions at the be­ginning of this manual.
3.1. Hub Installation
Stewart Audio recommends that the unit is secured in some fashion to prevent movement of the unit if one of the cables is pulled during in­stallation of an amplier node.
3.1.1 Input Connections
The IS-HUB4 accepts an unbalanced stereo input using either RCA or

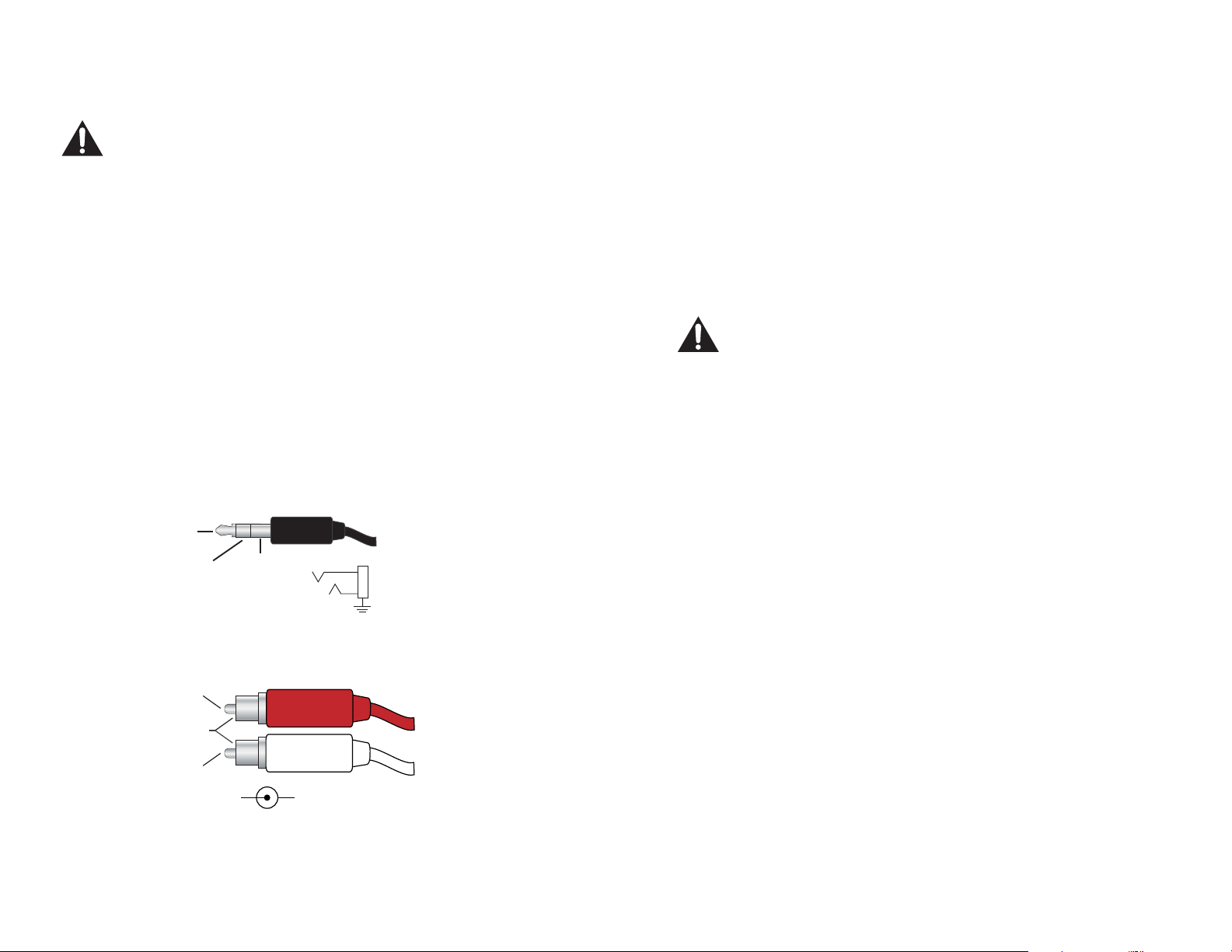

3.5mm plugs. The standard wiring is shown below.
+/Left
+
Ground
(Shield)
+/Left
Right
Left
Ground
-/Right
(Shield)
Ground
(Shield)
-/Right
+/Right
Shield
+/Left
3.1.2 Output Connections
The IS-HUB4 utilizes standard Cat-5 (or Cat-5e) cable to send both sig­nal and power to the nodes connected to its ports. Regular Cat-5 patch cables may be used, purchased in standard lengths or cut and crimped for the installation. If making your own cables, standard A or B patch cable wiring can be used or straight through connections between pin 1-8 to pin 1-8 on either end. Crossover cables or wiring cannot be
used.
Each port is capable of outputting a maximum of 20 total watts of pow­er to the nodes daisy chained on that port.
CAUTION: Do not connect the Hub or Amp Nodes to any other devices (such as a network router or switch). They are not internet capable and will damage other devices.
The total power output of the IS-HUB4 is limited by the power rating of the power supply which was purchased with the system and cannot exceed 80 Watts.
Each IS-Hub4 port is capable of outputting a maximum of 20 watts of speaker power. This 20 watts is available for the IS-AmpNode-10/ speakers daisy chained to the port.
If you would like to upgrade the chosen power supply, please contact your local sales rep for details.
3.2 Node Installation
The IS-AmpNode-10 contains a single channel micro amplier capable of delivering up to 10 watts of power to a single speaker.
If you have purchased the IS-SP4 speakers as a part of your IntraSound system, the amplier can be secured into the top of the speaker. To secure the amplier node, place the node on top of the speaker insert­ing the screws on the top of the speaker into the notches on the rear of the amplier. Twist the node clockwise and it will lock into place.
To secure the amplier node to another type of speaker, Stewart Audio recommends industrial strength Velcro for easily installation.
8 9
Page 6
3.2.1 Node Input Connections
The IntraSound system utilizies Cat5 to send power as well as a stereo signal to each node on the line. For the initial connection between the IS-HUB4 and an IS-AmpNode-10, a Cat5 cable should connect any port on the hub with either the left or right port of the node. The remaining port of the node can be used to daisy chain it to another node
Caution: Do not connect the nal node in a line back to the IS-HUB4. Doing so may damage the hub.
3.2.2 Amplier Node Conguration
The Amp nodes are congured on a node-per-node basis using the DIP switches located on the front of the node. This can be done with a small screwdriver or other tool that will t into the recessed switches. The conguration options are found printed on the top of the amplier or below
Gain
Watts
Max.
Nodes
Channel
Switches
Amp
Output
1 2 3 4 5 6
gain channel
1
23456

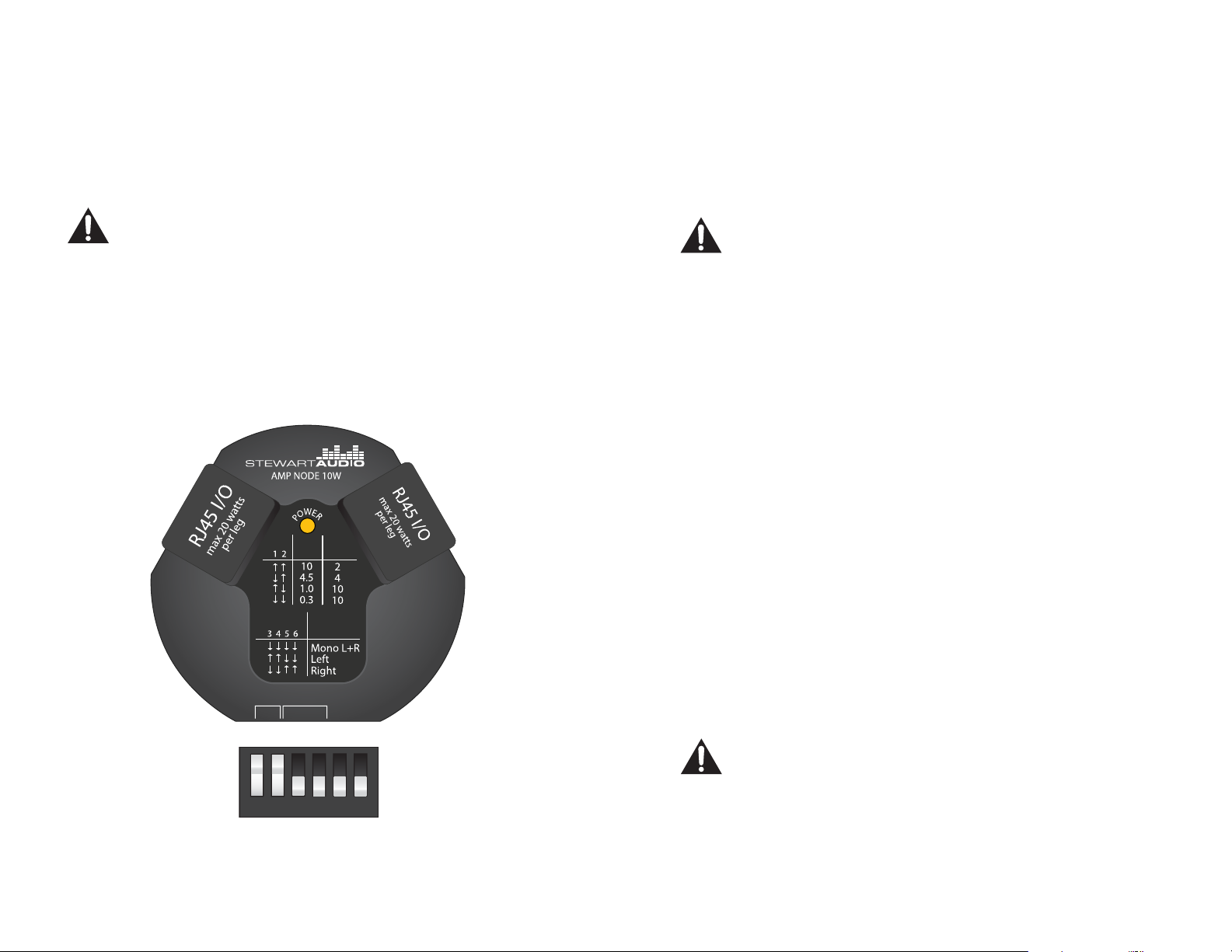

In this example, the node is set to 10W and Mono L+R
Gain Conguration
The gain level on the micro amplier nodes is adjustable from 0.3W to 10W using the DIP switches on the front of the unit. Using the table printed on the top of the node or provided for you on the left, adjust the rst 2 DIP switches to the desired setting.
Note: Each port from the hub is capable of supplying 20W each. This means that the higher the gain setting, the few­er units you can daisy chain. Refer to the table below.
Selected Wattage # of Units/Port
10W 2
4.5W 4
1.0W 15*
*Number reduced to account for power loss over cable
0.3W 50*
Channel Conguration
When the signal is sent down the Cat5 cable from the hub to the nodes, both the left and right channels are sent. This means that each amplier node can be congured to output the left channel, right chan­nel, or a mono summation. The last 4 switches of the DIP switch are for selecting the channel.
Refer to the image in section 3.2.2 or the silkscreen of the amplier node for switch congurations.
Note: Each port from the hub is capable of supplying 20W each. This means that the higher the gain setting, the few­er units you can daisy chain. Refer to the table below.
10 11
Page 7
4 Operation
4.1 Operating Precautions
1. Before use, your amplier must be congured for proper operation, including input and output wiring hookup. Improper wiring can re­sult in damage to equipment or potentially harm to the operator. Consult section 3 for setup instructions.
2. Tampering with the circuitry, or making unauthorized changes is not only dangerous but may also violate local regulations.
3. Use care when making connections between the amplier and the input or output equipment. Using equipment that is not capable of handling the output wattage may lead to permanent damage.
NOTE: Stewart Audio will not be held responsible for damage to your IntraSound System or connected equip­ment if the instructions in this manual are not followed.
4.2 Indicators and Controls
4.2.1 Indicators and Controls on IS-HUB4
The IS-HUB4 accepts all inputs and power and sends it down Cat5 ca­ble to the amplier nodes. All power and system volume can be con­trolled on the IS-HUB4.
Two LED indicators on the left-hand side of the IS-HUB4 will illuminate when power is supplied (Power LED - blue) and when signal is detect­ed on either input (Sig LED - green). If the nodes are not outputting any audio, rst check to make sure that both of these LEDs are illuminated.
Note - When the IS-HUB4 goes into sleep mode due to no signal, the LED will turn OFF. To turn the IS-HUB4 back on, make sure that signal is being sent to the IS-HUB4.
The system volume can be set using the recessed knob on the left­hand side of the unit. To turn this, insert a small screwdriver into the slot and turn clockwise to turn the volume up.
4.2.2 Indicators and Controls on IS-AmpNode-10
The IS-AmpNode-10 has an amber LED on the top of the node which will illuminate when power is supplied to the node from the hub.
Note - When the IS-HUB4 is in sleep mode, the amber LED indica­tors on the top of the amplier nodes will turn off.
To control the wattage of the amplier, refer to section 3.2.2.
12 13
Page 8
5 Troubleshooting
6 Technical Specications
Problem: Hub’s Power indicator does not turn on.
Procedure: Check that the hub is plugged into a live outlet. After you
have ensured that it is not a power issue, check that you have a hot signal going into the inputs. If a signal is not detected, the hub will go into a sleep mode after 5 minutes to comply with Energy Star.
Problem: Amplier Node’s power indicator does not turn on.
Procedure: First check to make sure that the power indicator is lit on
the hub, if not then see the corresponding Troubleshooting entry. If this does not resolve the issue, then double-check the Cat5 cable going from the hub to the amplier node. Replace this cable if possible. If this is not the issue, then ensure that you are not stringing too many nodes on a line. Refer to section 3.2.2 for more information on this.
Problem: Amplier Node is outputting no audio.
Procedure: First check that the signal indicator on the hub is lit and the
volume control is at a reasonable level on the hub. Next, to rule out a cabling issue, check that the power indicator is lit on the amplier node. If this does not resolve the issue then refer to section 3.2.2 to ensure that the DIP switches are correctly congured on the node. If all of the channel selection switches are in the “up” position, then this is most likely the issue. Refer to section 3.2.2for the proper settings.
Problem: Amplier Node is outputting weak audio
Procedure: First check the Level knob on the hub to make sure it is at
a reasonable level. Next, check the DIP switches on the front of the amplier node to see what the gain is set at. If both switches are in the “up” position and you still have a weak output, check to make sure that you are not stringing too many nodes on a line. Refer to section
3.2.2 for more information on this.
Maximum Output 20Hz - 20kHz
Output per node 10W @ 8Ω
Hub’s Total Output Wattage of power supply
Frequency Response (+0, -3 dB) 20Hz-20kHz
THD+N <0.1% at 1W
Signal to noise ratio >100dB
Standard Voltage Gain Adjustable 20-36dB
Input Impedance (Unbalanced) 9-60kΩ (Depending on gain)
Sleep, Idle (No Nodes) 0.005/0.016A
Class D
Input Connectors 3.5mm Stereo, Dual RCA
Output Connectors RJ-45 (Hub), Bare wire (Node)
Power Supply External In-Line 24VDC
Cooling Convection-Cooling
Controls Master Volume (Hub), Gain
and Channel Select (Node)
LED Indicators Power & Signal Present
Construction Aluminum Chassis (Hub), ABS
Plastic (Node)
Dimensions
Height 1.25in (3.2cm)
Width 4.35in (11.1cm)
Depth 3.2in (8.1cm)
Weight 0.37bs (0.16kg)
14 15
Page 9
7 Warranty Information
6.1 Warranty Summary
All Stewart Audio ampliers and accessories, unless excluded in this summary, are covered by a 3-year limited warranty on parts and labor from the date of purchase. In order to be eligible for warranty repairs, the ampliers and accessories must have been purchased through an authorized Stewart Audio dealer and submitted by the original purchas­er. This warranty is only valid in the country in which the amplier was purchased.
7.1.1 Eligibility Requirements.
Stewart Audio warrants against all malfunctions which come as a result of component or manufacturer defect. The amplier is also covered from all failures which arise during the warranty period (3 years from date of purchase) that are not a result of misuse. The following actions will void your warranty:
 The power cord or AC plug has been damaged through misuse.  The amplier has been exposed to moisture or extreme tempera-
tures.
 The amplier has been dropped, items have been dropped on the
amplier, or the enclosure has been damaged.
 The amplier has been opened by the operator.  The amplier was improperly packaged when sending to the fac-
tory for repair, resulting in damage.
 Any of the precautions or instructions found in this manual were
not followed.
Damages resulting to the amplier which are not covered under this warranty can be factory-repaired at cost to the customer. Use the con­tact information below to initiate the repair process.
7.2 Return Procedure
This section includes the return procedures which must be followed in order to prevent processing delay or cost to the customer. Please read the entire section before contacting Stewart Audio for returns.
7.2.1 Return Authorization Number
All returns to the factory for service must be accompanied by a Return Authorization (RA) number. One can be obtained by contacting Stewart Audio at (209) 588-8111 or via e-mail at support@stewartaudio.com.
NOTE: Any defective products received without an RA number will be returned to sender at their expense.
If Stewart Audio is unable to contact the sender in 14 days, the mer­chandise will be considered scrap and may be disposed of.
7.2.2 Shipment Instructions
If Stewart Audio requests that you ship the defective product back to their service center, please refer to the guide below. To ensure prompt warranty service, be sure to follow all instructions.
1. Return Authorization (RA) is required for product being sent to the factory for service.
2. See packing instructions in section 7.2.3.
3. Ship the defective product using a method which provides for or­der tracking or order conrmation. The service center is located at the following address:
Stewart Audio 14397 Cuesta Court Suite D1 Sonora, CA 95370
4. Use a bold black marker and write the RA number on three sides of the box.
5. Record the RMA number for future reference. The RA number can be used to check the repair status.
7.2.3 Packaging Instructions
Should Stewart Audio request that you ship your product to their ser­vice center, these instructions must be followed in order to ensure safe delivery. If they are not followed, Stewart Audio assumes no responsi­bility for damaged goods and/or accessories that are sent with your unit.
16 17
Page 10
7.2.3 Packaging Instructions (cont.)
1. Please write the RA number on three sides of the box. Include the Stewart Audio RA number inside the box and a brief description of the problem.
2. Do not ship any accessories (manuals, cords, hardware, etc.) with your unit. These items are not needed to service your product. Stewart Audio will not be held responsible for these items if they are returned with the ampliers.
3. When shipping your amplier, it is important that it has adequate protection. We recommend you use the original packing material when returning the product for repair. If you do not have the origi­nal box, see number 4.
4. If you provide your own shipping pack, the minimum recommend­ed requirements for materials are as follows:
a. 275 P.S.I. burst test, Double-Wall carton that allows for 2-
inch solid Styrofoam on all six sides of unit or 3 inches of plastic bubble wrap on all six sides of unit.
b. Securely seal the package with an adequate carton sealing
tape.
c. Do not use light boxes or “peanuts”.
NOTE: Damage caused by poor packaging will not be covered under warranty.
7.2.4 Estimate Approval
An estimate for all non-warranty repairs will be provided to the custom­er once the unit has been shipped to the factory. The customer is re­sponsible to approve this estimate within 7 days. If the repairs are not approved within 14 days, Stewart Audio reserves the right to consider the unit scrap and may discard it.
7.2.5 Payment of Non-Warranty Repairs
Payment for non-warranty repairs must be submitted to Stewart Audio before the product will be returned to the customer.
8 Accessories
At the time of this printing, the IntraSound
System accessories were still under
development
To view the IntraSound System accessories or
to see the full Stewart Audio product lineup,
visit us at:
www.stewartaudio.com
