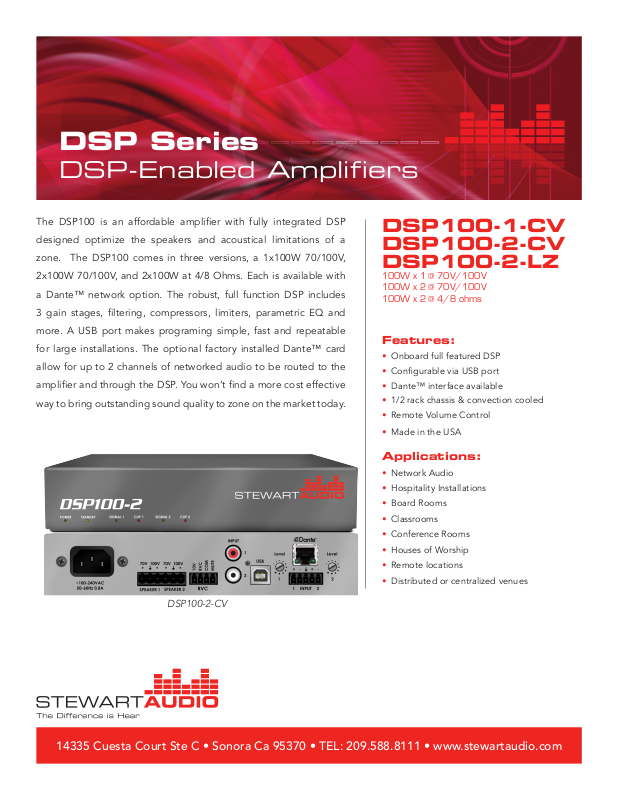

Page 1
DSP Series
DSP-Enabled Ampliers
The DSP100 is an affordable amplier with fully integrated DSP
designed optimize the speakers and acoustical limitations of a
zone. The DSP100 comes in three versions, a 1x100W 70/100V,
2x100W 70/100V, and 2x100W at 4/8 Ohms. Each is available with
a Dante™ network option. The robust, full function DSP includes
3 gain stages, ltering, compressors, limiters, parametric EQ and
more. A USB port makes programing simple, fast and repeatable
for large installations. The optional factory installed Dante™ card
allow for up to 2 channels of networked audio to be routed to the
amplier and through the DSP. You won’t nd a more cost effective
way to bring outstanding sound quality to zone on the market today.
DSP100-1-CV
DSP100-2-CV
DSP100-2-LZ
100W x 1 @ 70V/100V
100W x 2 @ 70V/100V
100W x 2 @ 4/8 ohms
Features:
• Onboard full featured DSP
• Congurable via USB port
• Dante™ interface available
• 1/2 rack chassis & convection cooled
• Remote Volume Control
• Made in the USA
Applications:
• Network Audio
• Hospitality Installations
• Board Rooms
• Classrooms
• Conference Rooms
• Houses of Worship
• Remote locations
• Distributed or centralized venues
DSP100-2-CV
14335 Cuesta Court Ste C • Sonora Ca 95370 • TEL: 209.588.8111 • www.stewartaudio.com
Page 2
DSP100 Series
DSP100-1 100W x 1 @ 70V/100V
DSP100-2 100W x 2 @ 70V/100V
DSP100-2 100W x 2 @4/8 Ohms
Output Power
DSP100-1-CV
DSP100-2-CV
DSP100-2-LZ
Frequency Response
THD+N
Signal-to-Noise Ratio
Input Sensitivity
Input impedance (Balanced/Unbalanced)
Current Draw - Standby, 1/8 Power
Amplier Class
Remote Volume
External Mute
Input Connectors
Output Connectors
LED Indicators
Controls
Optional Network Input
Power Supply Input
Cooling
Construction
Mounting
Dimensions (height, width, depth)
Weight
Warranty
100W x 1 @ 70V / 100V
100W x 2 @ 70V / 100V
100W x 2 @ 4/8 Ohms
100 Hz - 20kHz
<.1% @ Full Power
>100dB
1V (0 dBV)
7.2K Ohms/3.6K Ohms
12W/65W (Varies by model)
D
0-10VDC
Contact-Closure
3.5mm Euroblock and RCA
5mm Euroblock
Power, Standby, Signal, and Clip
USB for programming, Remote Volume, Trim Knobs
Dante™
110/240 VAC 50/60Hz (Universal Input)
Convection–Cooling (No Fans)
Aluminum Chassis
Rack-Mountable
1.7”H x 8.4”W x 10.7”D
4.5lbs max (varies by model)
3 years
LOCAL INPUT 1
NETWORK INPUT 1
LOCAL INPUT 2
NETWORK INPUT 2
Rev D
Adjustable
Pregain
Adjustable
Pregain
EQ
3 Blocks
EQ
3 Blocks
EQ Blocks
High Pass (1st/2nd Order)
Low Pass (1st/2nd Order)
Low Shelf
High Shelf
Peak (PEQ)
Notch
Compressor
Compressor
Gain
Gain
Sine Wave
Pink Noise
Matrix
Mixer
Trim
Trim
EQ
6 Blocks
EQ
6 Blocks
Limiter Gain
Limiter Gain
LOCAL OUTPUT 1
LOCAL OUTPUT 2
14335 Cuesta Court Ste C
Sonora Ca 95370
TEL: 209.588.8111
www.stewartaudio.com
