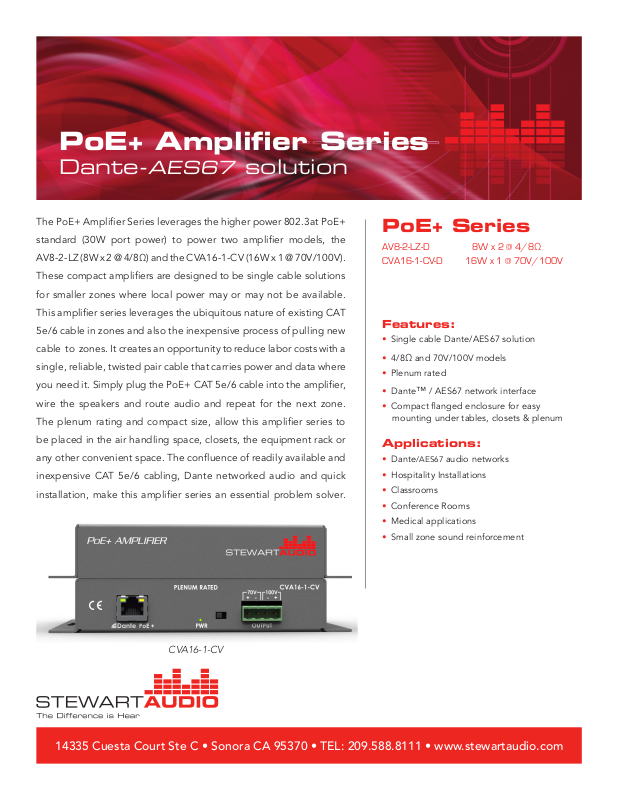

Page 1

PoE+ Amplier Series

Dante-

The PoE+ Amplier Series leverages the higher power 802.3at PoE+

standard (30W port power) to power two amplier models, the

AV8-2-LZ (8W x 2 @ 4/8Ω) and the CVA16-1-CV (16W x 1 @ 70V/100V).

These compact ampliers are designed to be single cable solutions

for smaller zones where local power may or may not be available.

This amplier series leverages the ubiquitous nature of existing CAT

5e/6 cable in zones and also the inexpensive process of pulling new

cable to zones. It creates an opportunity to reduce labor costs with a

single, reliable, twisted pair cable that carries power and data where

you need it. Simply plug the PoE+ CAT 5e/6 cable into the amplier,

wire the speakers and route audio and repeat for the next zone.

The plenum rating and compact size, allow this amplier series to

be placed in the air handling space, closets, the equipment rack or

any other convenient space. The conuence of readily available and

inexpensive CAT 5e/6 cabling, Dante networked audio and quick

installation, make this amplier series an essential problem solver.

AES67

solution

PoE+ Series

AV8-2-LZ-D 8W x 2 @ 4/8Ω

CVA16-1-CV-D 16W x 1 @ 70V/100V

Features:

• Single cable Dante/AES67 solution

• 4/8Ω and 70V/100V models

• Plenum rated

• Dante™ / AES67 network interface

• Compact anged enclosure for easy

mounting under tables, closets & plenum

Applications:

• Dante/AES67 audio networks

• Hospitality Installations

• Classrooms

• Conference Rooms

• Medical applications

• Small zone sound reinforcement

CVA16-1-CV

14335 Cuesta Court Ste C • Sonora CA 95370 • TEL: 209.588.8111 • www.stewartaudio.com

Page 2

PoE+ Amplifier Series

AV8-2-LZ 8W x 2 @ 4/8ΩΩ CVA16-1-CV 16W x 1 @ 70V/100V

Output Power* AV8-2-LZ CVA16-1-CV Frequency Response AV8-2-LZ (+/-1dB) CVA16-1-CV (+0dB, -3dB) THD+N @ full frequency and power THD+N @ 1kHz and full power Signal-to-Noise Ratio AV8-2-LZ CVA16-1-CV Channel-to-Channel Separation (Crosstalk) Noise oor AV8-2-LZ CVA16-1-CV Amplier Class Input Connector (Dante/AES67 Audio & DC) Output Connectors LED Indicators (on RJ-45 connector Power Supply (via RJ-45 connector)

Construction Mounting Cooling Dimensions (height, width, depth) Weight Certications Warranty

*Functions with 802.3af switches with lower power output

Plenum Rating

Single Cable Solution

CAT5e/6 - PoE+ power & Dante

x 2 @ 4/8Ω

RMS

16W

20 Hz - 20 kHz (4/8Ω), 100 Hz - 20 kHz (70V/100V) <0.3% <0.05%

>90dB >88dB >85dB

-110dBV

-95dBV D RJ-45 5mm Euro Block Green – Connectivity, Flashing Amber - Activity

802.3at compliant PoE+ Switch or mid-span injector* (30W port power) Aluminum Enclosure Flange Mount Enclosure Convection–Cooling (No Fans)

1.2”(31mm) H x 6.7”(170mm) W x 4.31”(110mm) D

0.6 lbs (0.3kg) AV8-2-LZ, 1.0 lbs (0.45 kg) CVA16-1-CV Plenum UL 2043, FCC, CE 3 years parts and labor

x 1 @ 70V/100V

RMS

• No long speaker cable runs

• Labor savings

• No local power outlet required

• Plenum rated

• Convenient

14335 Cuesta Court Ste C

Sonora CA 95370

TEL: 209.588.8111

www.stewartaudio.com

REV _E
