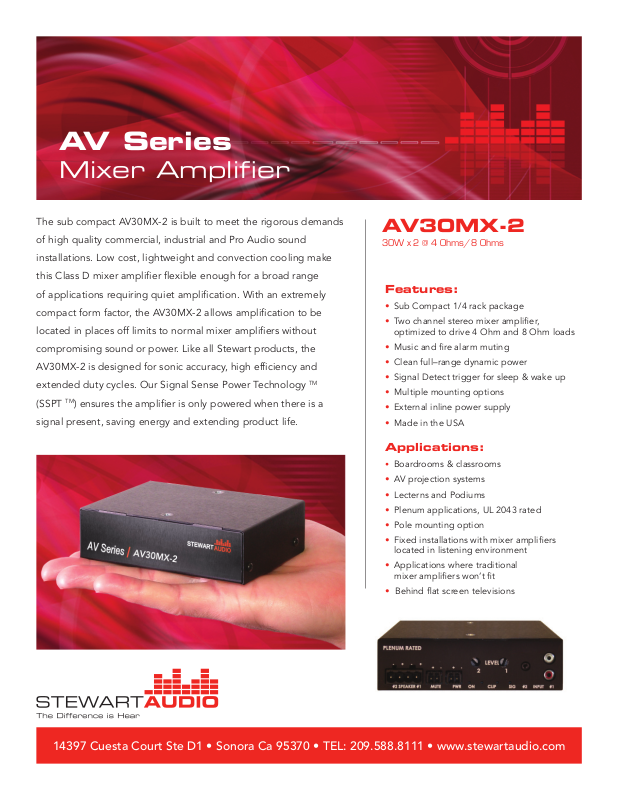

Stewart Audio AV30MX-2 Data Sheet

AV Series

Mixer Ampli er

The sub compact AV30MX-2 is built to meet the rigorous demands

of high quality commercial, industrial and Pro Audio sound

installations. Low cost, lightweight and convection cooling make

this Class D mixer ampli er  exible enough for a broad range

of applications requiring quiet ampli cation. With an extremely

compact form factor, the AV30MX-2 allows ampli cation to be

located in places off limits to normal mixer ampli ers without

compromising sound or power. Like all Stewart products, the

AV30MX-2 is designed for sonic accuracy, high ef ciency and

extended duty cycles. Our Signal Sense Power Technology TM

(SSPT TM) ensures the ampli er is only powered when there is a

signal present, saving energy and extending product life.

AV30MX-2

30W x 2 @ 4 Ohms/8 Ohms

Features:

• Sub Compact 1/4 rack package

• Two channel stereo mixer ampli er,

optimized to drive 4 Ohm and 8 Ohm loads

• Music and  re alarm muting

• Clean full–range dynamic power

• Signal Detect trigger for sleep & wake up

• Multiple mounting options

• External inline power supply

• Made in the USA

Applications:

• Boardrooms & classrooms

• AV projection systems

• Lecterns and Podiums

• Plenum applications, UL 2043 rated

• Pole mounting option

• Fixed installations with mixer ampli ers

located in listening environment

• Applications where traditional

mixer ampli ers won’t  t

• Behind  at screen televisions

14397 Cuesta Court Ste D1 • Sonora Ca 95370 • TEL: [phone] • www.stewartaudio.com

AV30MX-2

30W x 2 @ 4 Ohms/8 Ohms

Specifications

4 Ohm Stereo Power
8 Ohm Stereo Power
Frequency Response (+0, –3 dB, 1W)
Power Bandwidth (+3, –3 dB)
THD+N
Signal to noise ratio
External Mute
Slew Rate
Input Sensitivity
Standard Voltage Gain
Input impedance (Unbalanced)
Standby, Idle Current Draw , 1/8 power draw
Class
Input Connectors
Output Connectors
Power Supply
Cooling
Controls
LED Indicators
Construction
Dimensions (height, width, depth)
Weight
Warranty
Plenum Rating

30 W
30 W
30 Hz—20 kHz
30 Hz—30 kHz
<.1% @ 1 Watt
>100dB
5-12V DC
30V/microsecond
.5V (-3 dBV)
28X (26.5dB)
10k Ohms

0.005/ 0.01/0.15 Amps
D

3.5mm Stereo, Dual RCA
Euro Block
External in-line 48VDC (Included)
Convection–Cooling (No Fans)
2 Independent Level Controls
Power, Signal Present & Clip
Aluminum Chassis

1.25”H x 4.35” W x 3.2” D (3.2H x 11.1W x 8.1D cm)
<.37 lbs (0.16 kg)
3 years
UL 2043 Approved

Architects & Engineering Speci cations

The mixer ampli er shall consist of 2 channels. Model AV30MX-2
shall deliver a minimum of 30W at 8 Ohms and 30W at 4 Ohms,
both channels driven, 30 Hz—30 kHz, < .1% THD at 1 Watt. The
ampli er shall be convection cooled, requiring no fan. Ampli ers
using fan cooling will not be accepted. The mixer ampli er shall
contain SSPT
when a signal is detected. The ampli er shall have circuitry to
protect itself and the speaker loads from output short circuits, DC
voltage on the outputs and thermal overload. The ampli er shall
have a voltage gain of 28X (26.5dB) and an input sensitivity of

0.5V for rated power at 8 Ohm output. The ampli er shall have

TM

Technology ensuring the device is only powered

an external in-line Power Supply. Internal Power Supplies will
not be accepted. The frequency response shall be greater than
30Hz to 20 kHz +0, – 3dB at rated power. The rear panel shall
contain LED Clip indicators for each channel, signal present and
power. The Rear panel shall have a Phoenix block connectors
for power, input shall consist of 3.5mm Stereo and dual RCA
connectors, output and mute/ re alarm, recessed level. The
AV30MX-2 shall weigh .37 lbs (.16 kg) and shall be 4.35” (11.1
cm) wide, 1.25” (3.2 cm) high, and 3.2” (8.1 cm) deep. The
ampli er shall be designated the Stewart Audio Model AV30MX-2.
