Cima BC

OWNERS MANUAL

Contents

To the Owner . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4

Important Safety Informaton . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4

Preparing the Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5

Product Dimensions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6

Iwall-Mounting the Screen . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7

Ceiling-Mounting the Screen . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8

Standard Control - Keypad . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9

Standard Control - Projector Trigger . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10

Standard Control - Keypad & Projector Trigger. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .11

Optional Control - Cima-Link Controller Description . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12

Optional Control - Cima-Link Infrared Package Connection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13

Optional Control - Cima-Link Cima-Link Ethernet Package Connection . . . . . . . . . . . . . . . . . . . . . 14

Optional Control - Cima-Link RS232 Package Connection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15

Operating the Screen . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16

Adjusting the Screen Extension . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17-18

Adjusting the Screen Tension . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19

Caring for & Cleaning the Screen . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20

Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21-22

Product Warranty . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .23

TO THE OWNER

Congratulations on your purchase of one of our highly versatile Cima projection screens representing

“Top of the Class” in standard commercial and residential projection screens. Please take a moment to

review this manual as it will help ensure you many years of trouble-free service from your new Cima by

Stewart Filmscreen product.

ABOUT YOUR CIMA BELOW CEILING

The Cima Below Ceiling is designed for ease of installation. The Cima Below Ceiling features a self-

finishing face-plate. There are no user-servicable parts contained within the unit.

IMPORTANT SAFETY INFORMATION

SAFETY PRECAUTIONS

Carefully read the instructions appropriate for your needs.

`

This screen must be installed by a qualified electrician.

`

For supply connections, use wires rated for at least 75 C.

`

Use copper or aluminum conductors.

`

For indoor use only.

`

Do not connect low-voltage to line-voltage power.

`

Earth ground connection must be utilized.

`

Proper short-circuit and overload protection must be provided at the circuit breaker distribution

panel. A dedicated 20 amp circuit breaker is recommended.

4 Stewart Filmscreen

PREPARING THE INSTALLATION

The Cima Below Ceiling product can be controlled through a number of remote control devices, including

keypads, dry contact outputs, and low-voltage trigger outputs. With the optional Cima-Link Controller

Packages, your Cima screen can be controlled by local and remote Infrared, IP ethernet, and computer-

based signaling sources such as those manufactured by Control4, AMX, Crestron, Elan Home Systems

with RS-232-C or RS-485 interfaces.

i CAUTION

To be installed and/or used in accordance with appropriate electrical codes and regulations.

You will need:

`

Enough ladders for the personnel supporting the screen during the mounting process

`

A level

`

Fasteners appropriate for the surface on which the screen is being mounted

Note: This manual refers to “AC” to represent electrical power. Your location may use 120 V, 220
V, or other electrical power. Screen systems are manufactured using the electrical power type
specified for the location. Use appropriate power sources for your location.

UNPACKING

1. Remove the outer plastic covering and white wrapping paper surrounding the screen case.

2. Do not remove the wrapping paper surrounding the screen roller. You should remove it only after

the unit is hung and all electrical connections have been made.

3. Remove the batten lock-down screws located on the back side of the case.

WARNING

Failure to remove the batten lock-down screws can result in permanent damage to the screen.

MOTOR WIRING

The Cima Below Ceiling screen motor is pre-wired at the factory. No additional internal motor wiring is

required.

i CAUTION

During installation, do not place the unit on an unstable cart, stand, table, or ladder. The unit may fall,

causing injury and damage to the unit.

Cima BC 5

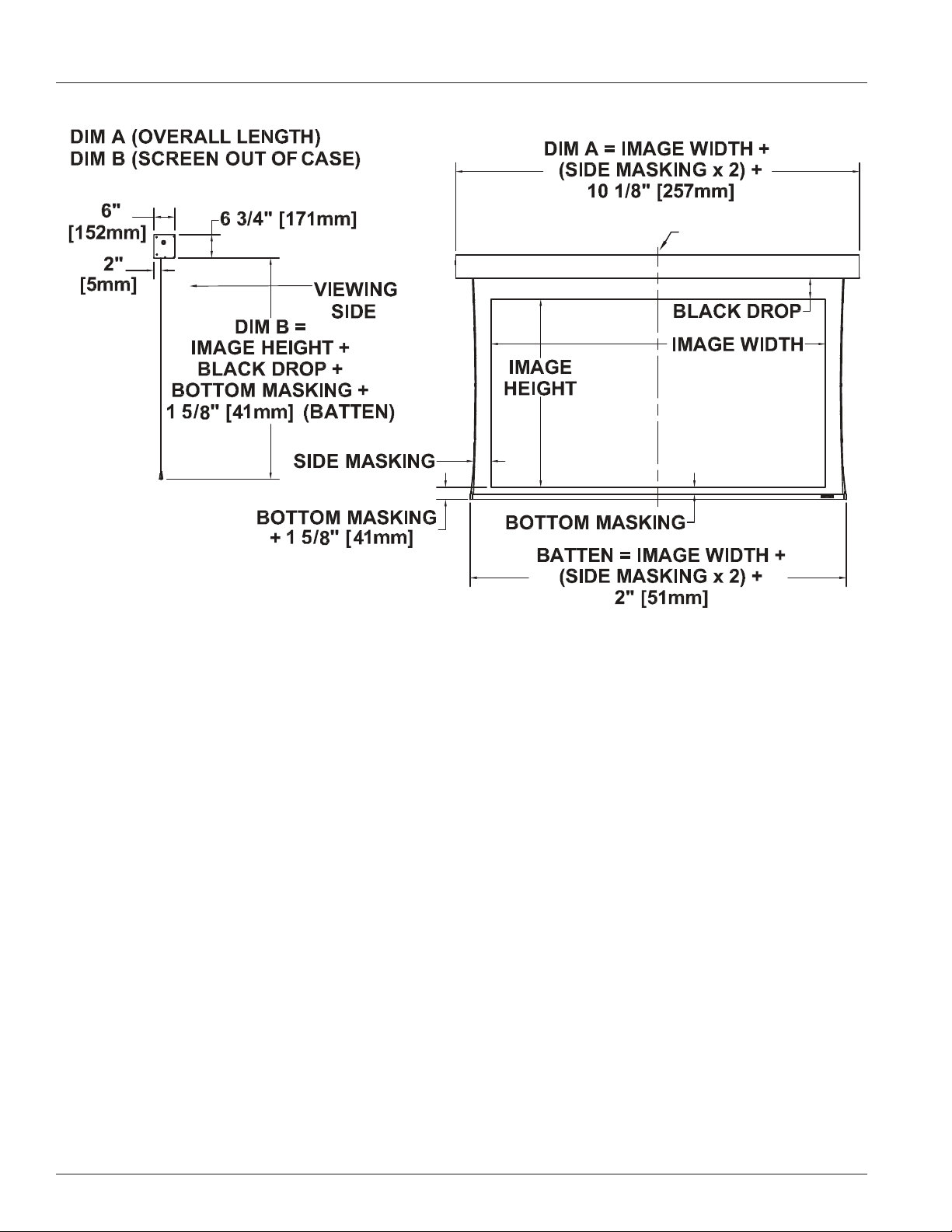

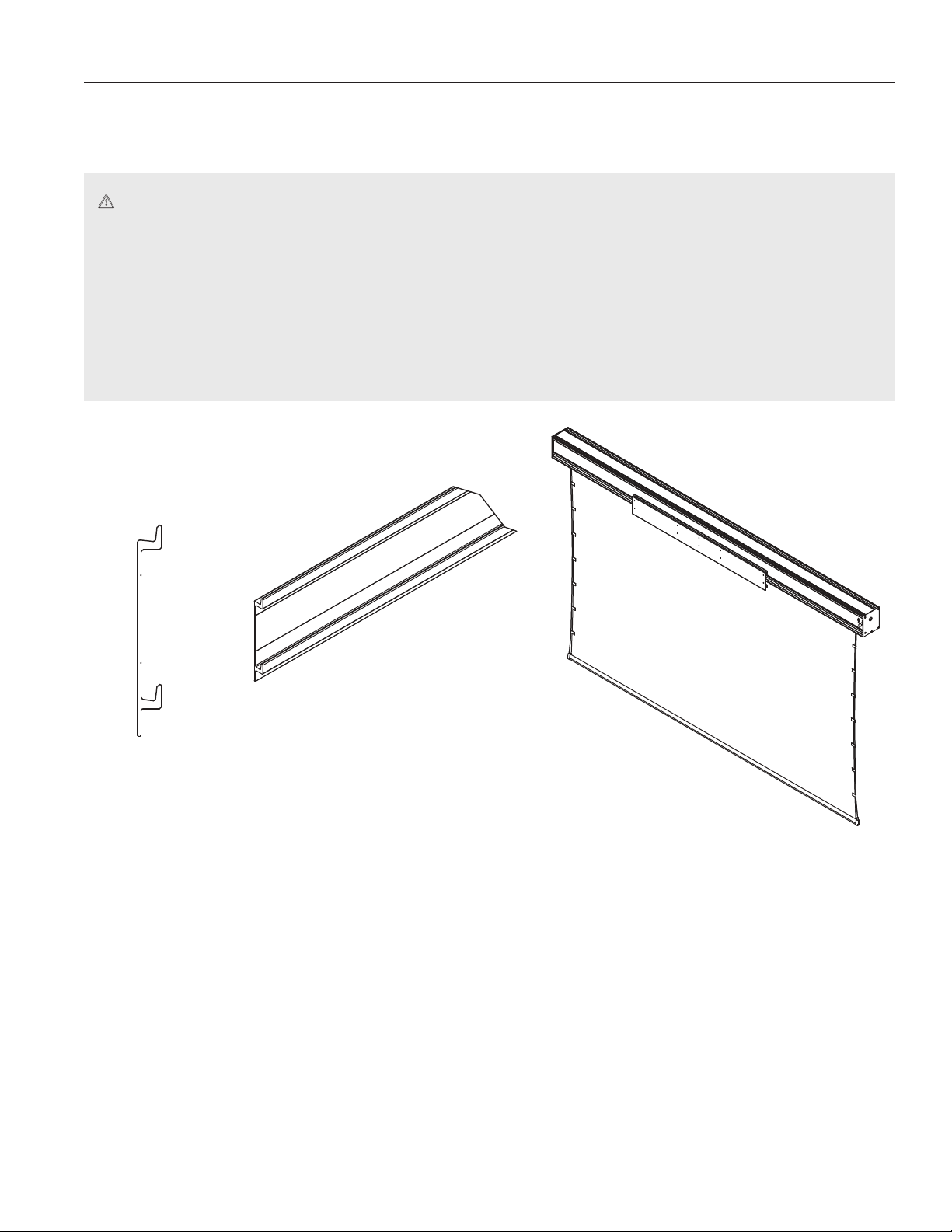

PRODUCT DIMENSIONS

C

CASE & SCREEN

L

6 Stewart Filmscreen

WALL-MOUNTING THE SCREEN

Professional mounting techniques should be used. Stewart Filmscreen cannot be liable for substandard

or faulty installations.

i CAUTION

During installation of the Cima Below Ceilinga into the ceiling opening, be advised that damage can

occur to the screen. Perform the following actions to avoid damage:

`

Wear clean gloves throughout the installation process to prevent damage to the screen housing

or screen material.

`

Make sure that the screen batten never contacts or strikes any objects as damage may occur.

Figure 1:

Mounting Bar

- Side View

Figure 2:

Mounting Bar

- Front View

(Length Varies)

Figure 3:

Case with

Mounting Bar

- Back View

1. Securely install the mounting bar onto the wall, making sure the bar is level. (The preset holes in the

mounting bar are 16” apart for residential applications and 24” apart for commercial applications.)

2. Properly hang the case onto the mounting bar, making sure it is level.

Cima BC 7

CEILING-MOUNTING THE SCREEN

Professional mounting techniques should be used. Stewart Filmscreen cannot be liable for substandard

or faulty installations.

i CAUTION

Proper handling of the Cima Below Ceiling is required during installation to avoid possible damage

to the screen. Perform the following actions to avoid damage:

`

Wear clean gloves throughout the installation process to prevent damage to the screen housing

or screen material.

`

Make sure that the screen batten never contacts or strikes any objects as damage may occur.

Note: A false ceiling is not intended to support the weight of a Cima Below Ceiling ElectriScreen.

CHANNELS

B

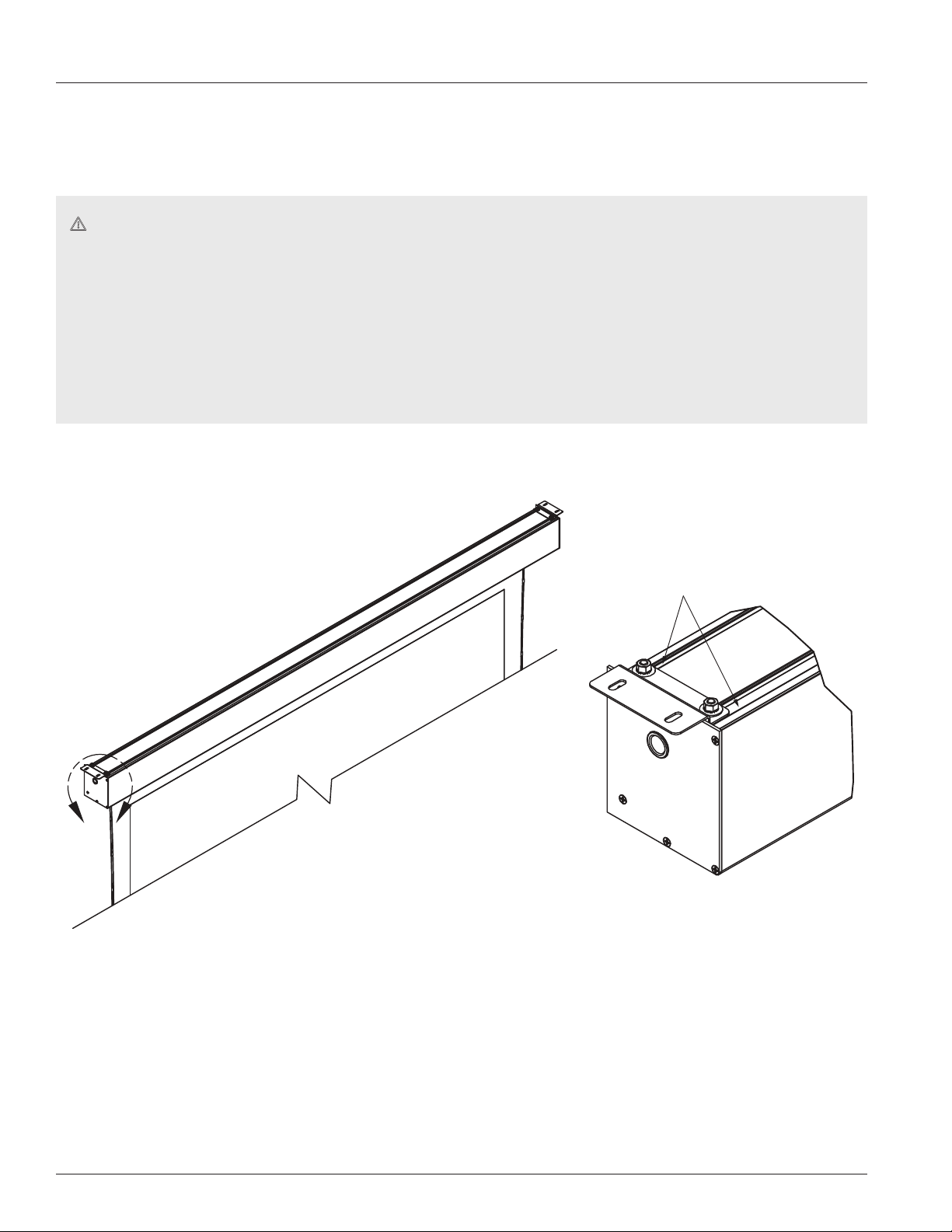

Detail B: Bracket DetailFigure 4: Ceiling Mounted Screen - Front View

1. Insert a provided drop-in t-bolt into each channel on the top of the case on each end (two per side)

and turn clockwise 90 degrees.

2. Place a bracket on each end of the case over the t-bolts.

3. Place a provided washer on each t-bolt and screw a provided lock nut securely onto each t-bolt.

4. Properly mount the case on the ceiling using the brackets now screwed on the case.

8 Stewart Filmscreen

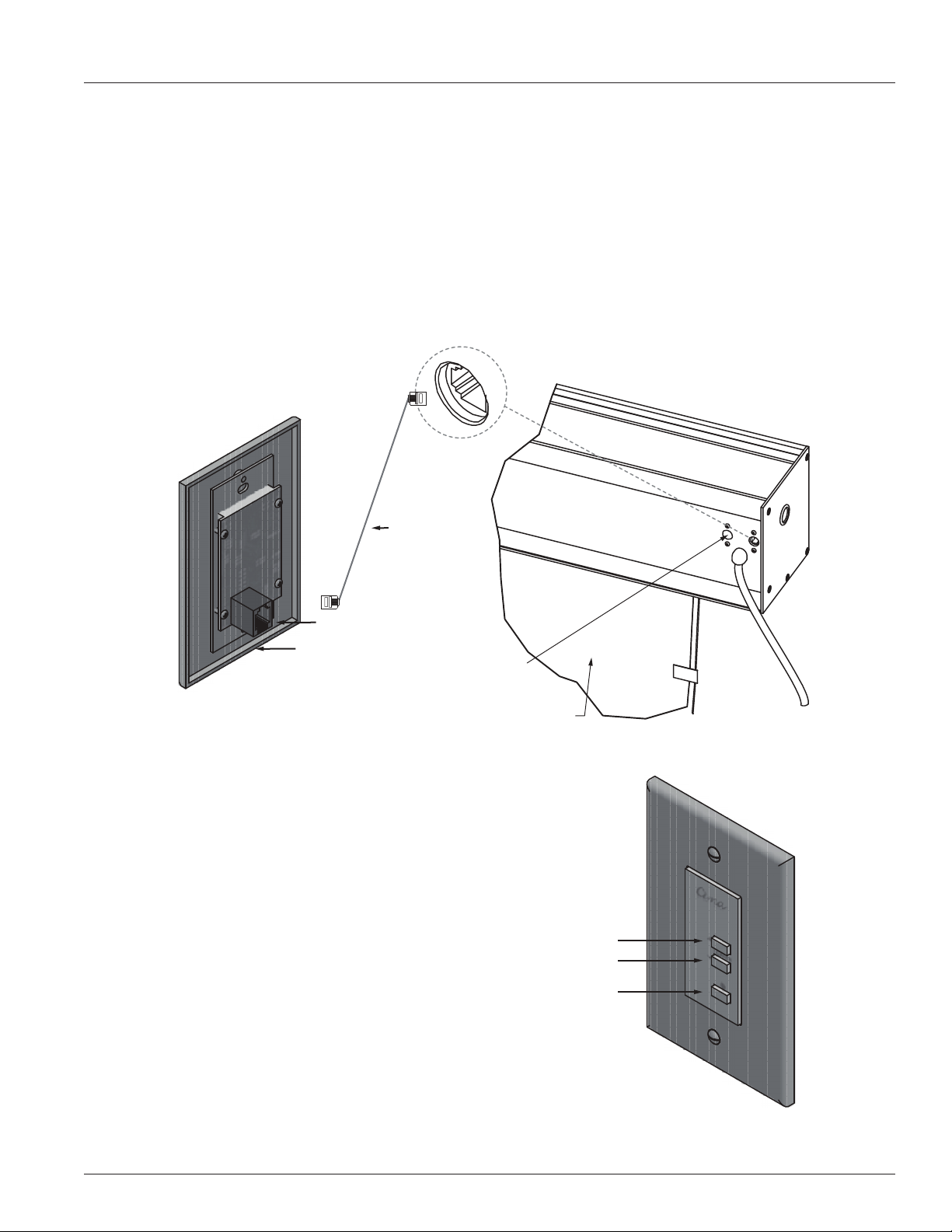

STANDARD CONTROL - KEYPAD

Figure 6: Keypad Face

A standard, 3-button, low-voltage keypad is supplied for both the standard controller and the optional

Cima-Link Controller Accessories.

MAKING THE CONNECTIONS

1. Connect the RJ25 cable to the keypad.

2. Connect the other end of the RJ25 cable to the Cima unit.

Note: The maximum length of the RJ25 cable shall not exceed 50’.

RJ25 JACK

RJ25 CABLE

RJ25 JACK

KEYPAD - BACKSIDE

OPTIONAL CONTROLS

Figure 5: Keypad Connection

ADDITIONAL

RJ25 JACK FOR

(BACKSIDE)

OPERATION

Press the “Down” button once, and the Cima screen will

automatically extend fully to its pre-set limit, and then

will power itself off. Press the “Up” button once and

the Cima screen will automatically retract back into the

case and power itself off. If a custom position is desired,

simply press the “Stop” button at any time during the

SCREEN

UP

DOWN

STOP

screen’s deployment or retraction. (See Figure 6)

Note: See the section on Adjusting the Screen
Extension for information regarding the default limits
by which the screen can be adjusted up or down from
the factory pre-set.

Cima BC 9

STANDARD CONTROL - PROJECTOR TRIGGER

MAKING THE CONNECTIONS

1. Connect a projector trigger cable to the projector. (Note: projector trigger cable not provided.) The

required cable will have an RJ25 plug on one end and a 3.5mm mono phono plug on the opposite end.

2. The installer will make this cable

3. Connect the other end of the RJ25 cable to the SWS, and the 35mm trigger cable to the projector.

PROJECTOR
TRIGGER CABLE
(NOT INCLUDED)

RJ25 JACK

ADDITIONAL RJ25 JACK FOR OPTIONAL CONTROLS

SCREEN (BACKSIDE)

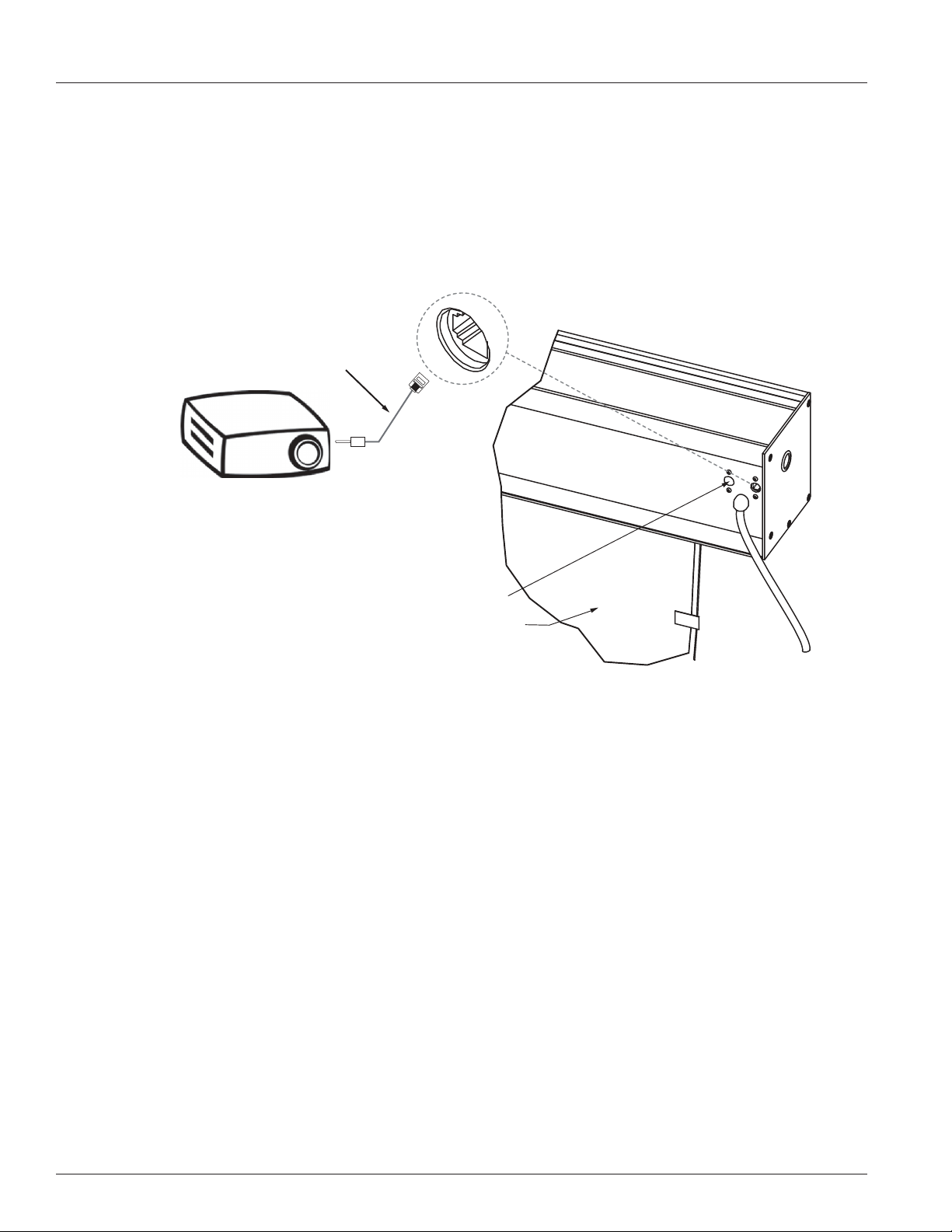

Figure 7: Projector Connection

HOW IT WORKS

When the projector is turned on or off a signal is sent to the controller within the motor and will trigger

the screen to move up or down.

If there is a sudden change in direction, the motor is paused for 1/2 second before reversing direction.

This is to prevent strain on the motor mechanism, and to prevent damage to any material controlled

by the motor. Relays are automatically de-energized after 120 seconds of operation to reduce power

consumption.

10 Stewart Filmscreen

STANDARD CONTROL - KEYPAD & PROJECTOR TRIGGER

MAKING THE CONNECTIONS

1. 1. Connect the RJ25 cable splitter to the RJ25 jack in the Cima unit.

2. 2. Connect the RJ25 cable and projector trigger cable to each jack in the splitter. (Note: projector

trigger cable not provided – the installer needs to make the cord from a RJ25 cord, cut one end off

and add the mono plug onsite.)

3. 3. Connect the other end of the RJ25 cable and trigger cable to the jack on the projector and keypad.

RJ25

SPLITTER

PROJECTOR
TRIGGER CABLE
(NOT INCLUDED)

RJ25 JACK

RJ25 CABLE

ADDITIONAL
RJ25 JACK FOR
OPTIONAL CONTROLS

RJ25 JACK

KEYPAD - BACKSIDE

SCREEN (BACKSIDE)

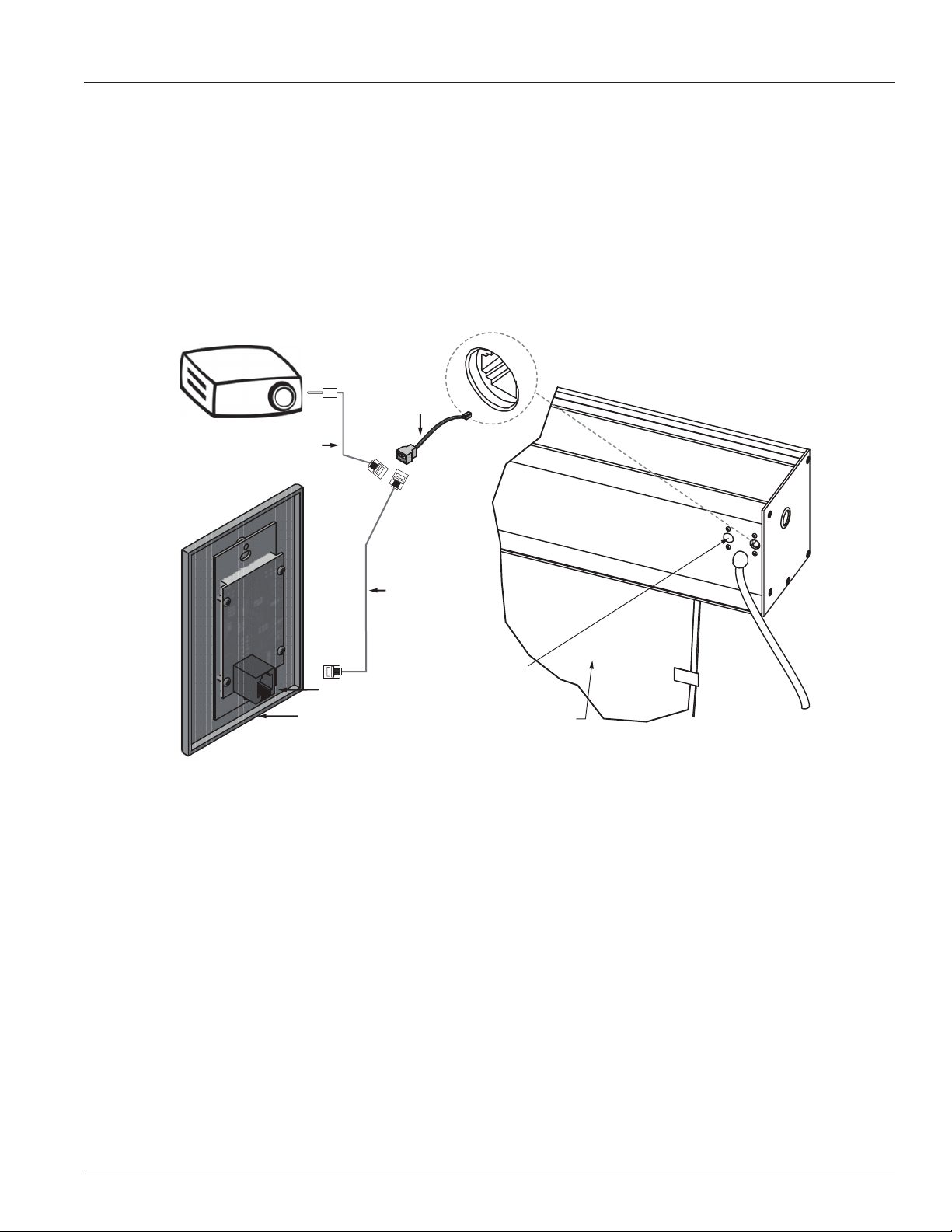

Figure 8: Keypad & Projector Connection

KEYPAD OPERATION

Press the “Down” button once and the Cima screen will automatically extend fully to its pre-set limit, and

then will power itself off. Press the “Up” button once and the Cima screen will automatically retract back

into the case and power itself off. If a custom position is desired, simply press the “Stop” button at any

time during the screen’s deployment or retraction. (See Figure 6)

PROJECTOR OPERATION

When the projector is turned on or off a signal is sent to the controller to trigger the screen to move up

or down. If there is a sudden change in direction, the motor is paused for 1/2 second before reversing

direction. This is to prevent strain on the motor mechanism, and to prevent damage to any material

controlled by the motor. Relays are automatically de-energized after 120 seconds of operation to reduce

power consumption.

Cima BC 11

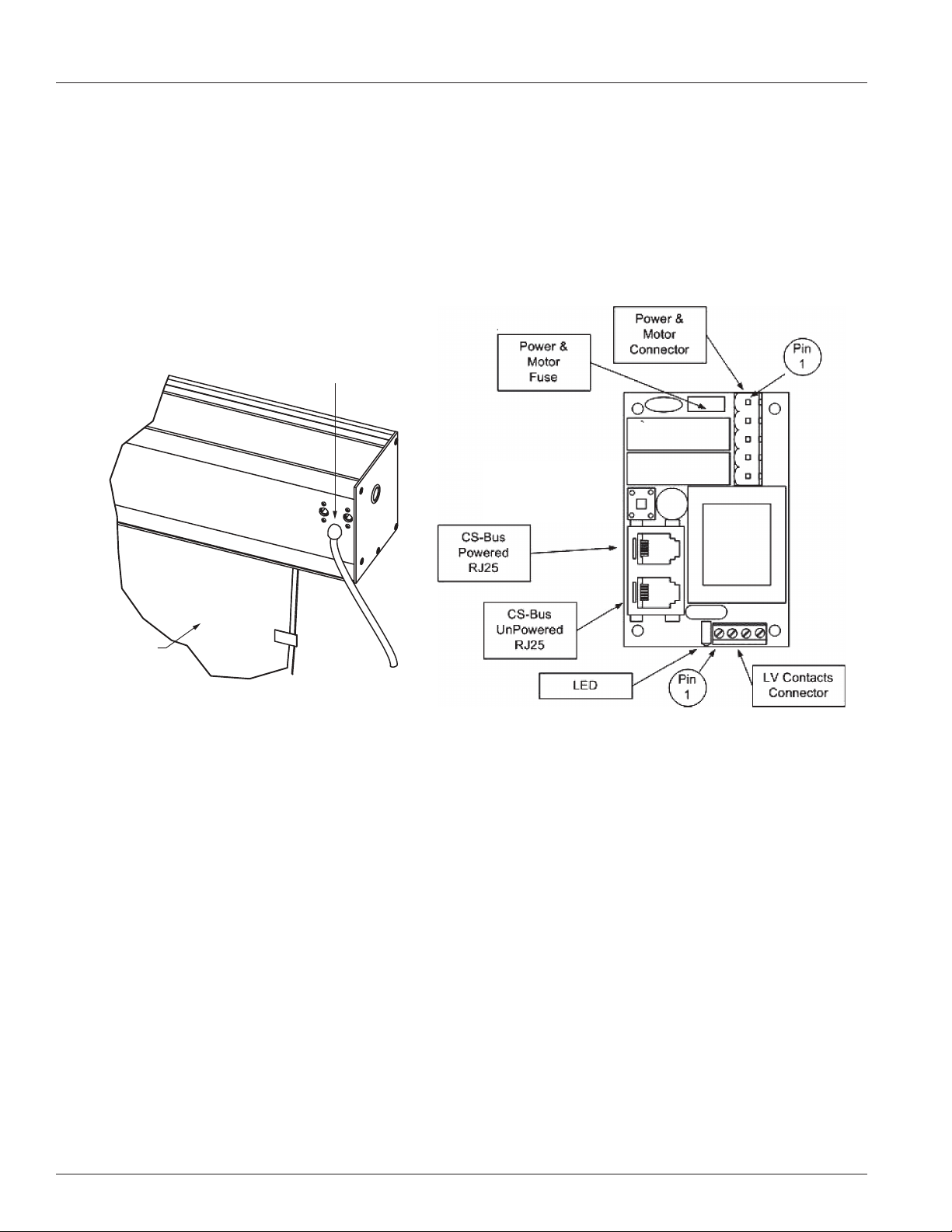

OPTIONAL CONTROL - CIMA-LINK CONTROLLER DESCRIPTION

DESCRIPTION

The optional Cima-Link Controller (IMC-100C) is a state-of-the art bi-directional communication AC

motor controller designed to control your Cima projection screen and integrate with optional infrared

remote, additional Cima screens, and 3rd party applications. Multiple Cima Below Ceilings can be linked

together on any one span when connected together via the optional Cima-Link RS-232 Serial Package or

Cima-Link Ethernet Package.

CIMA-LINK

CONTROLLER

(LOCATED INSIDE CASE)

SCREEN

(BACKSIDE)

Figure 10: Cima-Link Controller (face)Figure 9: Screen Rear View Isometric

Note: The Cima-Link Controller is installed at the factory when ordered with a screen. In the event of

an aftermarket installation, contact the factory for instructions for mounting the controller. Call Toll-Free

800-762-4999 or 310-784-5300.

12 Stewart Filmscreen

OPTIONAL CONTROL - CIMA-LINK

E

E

CONN

(S

INFRARED EYE

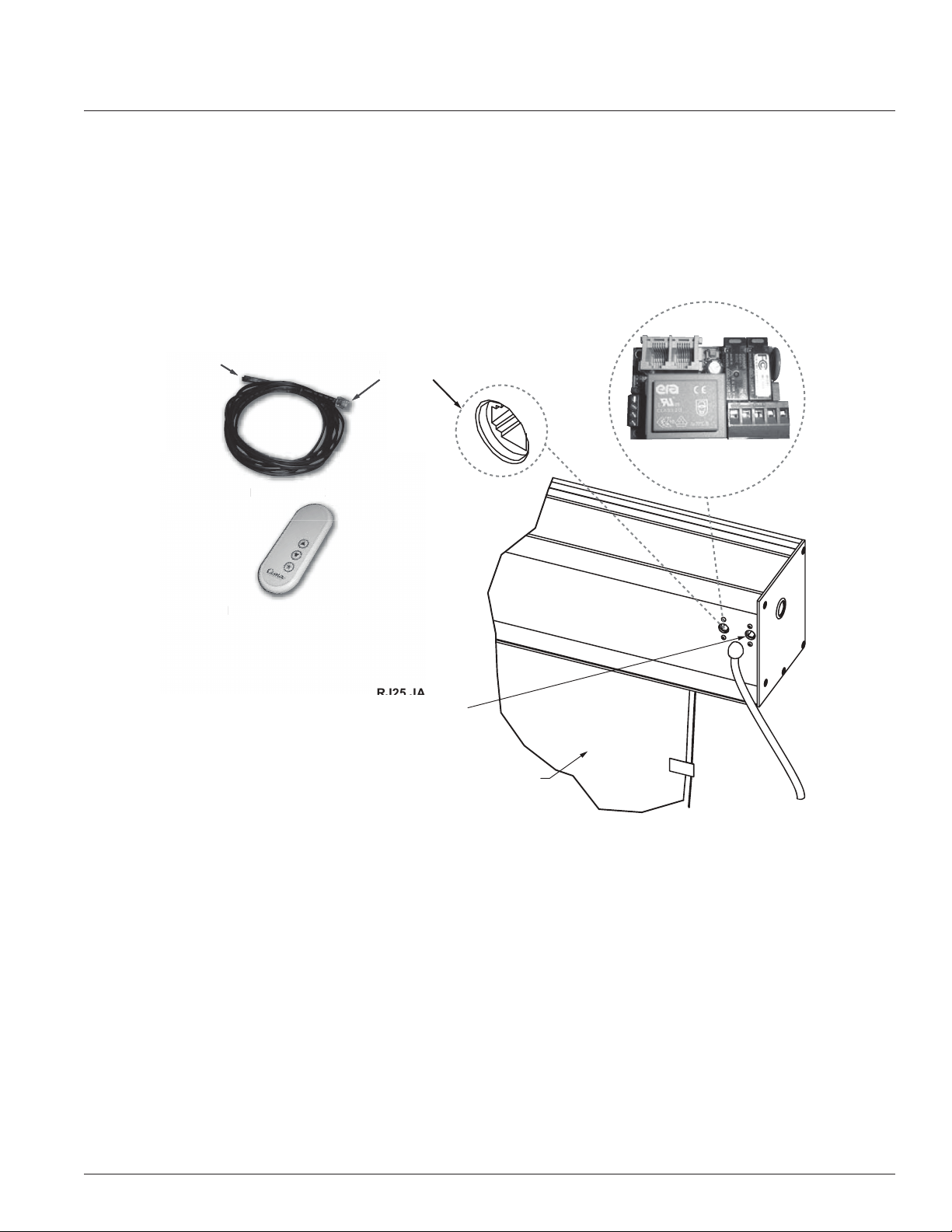

INFRARED PACKAGE CONNECTION

MAKING THE CONNECTION

1. Connect the RJ25 cable to the right RJ25 jack located in the back of the Cima unit.

2. Place infrared eye in line of sight of remote.

Note: The maximum length of the RJ25 cable is 20’.

INFRARED EYE

RJ25 CABLE

RJ25 CABL

INFRARED REMOTE

INFRARED REMOT

CONNECT CABLE

(STEP 1)

RJ25 JACK FOR

STANDARD
CONTROLS

RJ25 JACK

SCREEN

(BACKSIDE)

CIMA-LINK

CONTROLLER

LOCATED

INSIDE CASE

Figure 11: Cima-Link Infrared Package Connection

Cima BC 13

OPTIONAL CONTROL - CIMA-LINK

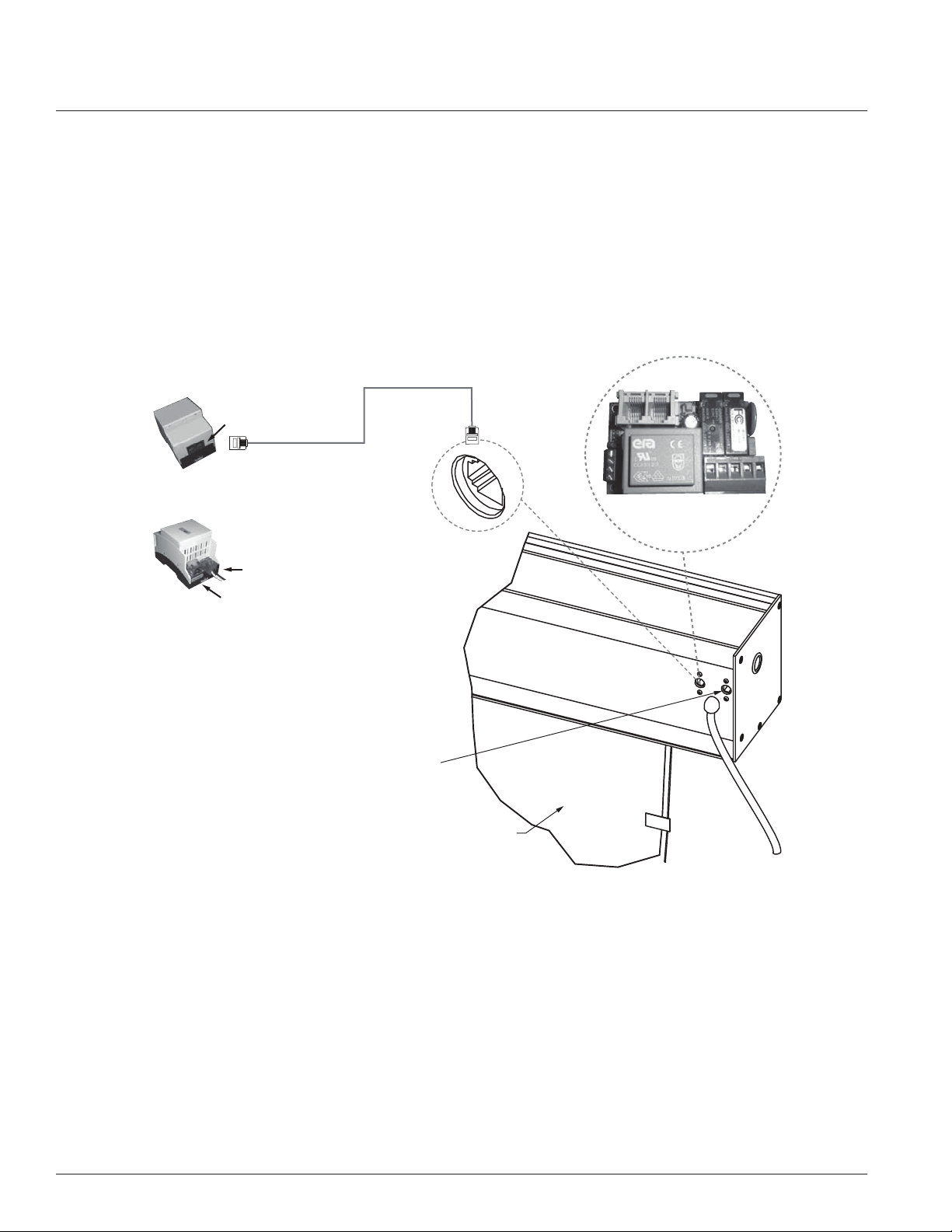

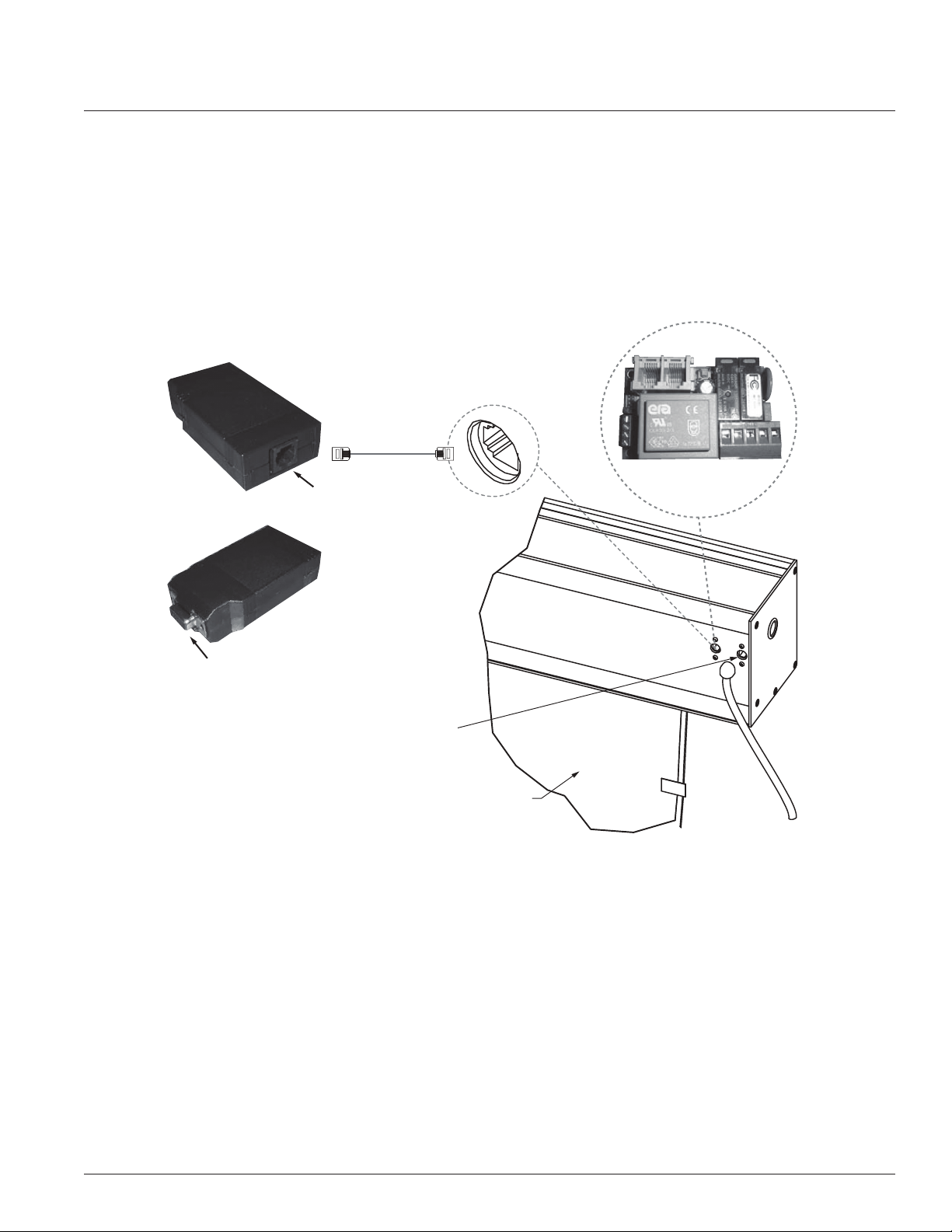

CIMA-LINK ETHERNET PACKAGE CONNECTION

MAKING THE CONNECTION

1. Connect the RJ25 cable to the right RJ25 jack located in the back of the Cima unit.

2. Place the other end of the RJ25 cable to the RJ25 jack in the IP device.

3. Place the RJ45 cable in the RJ45 jack in the IP Device.

4. Place the other end of the RJ45 cable in the end-user device.

Note: The maximum length of the RJ25 cable shall not exceed 50’.

RJ25 CABLE

RJ25 JACK

IP DEVICE

(FRONT)

RJ25 JACK

POWER
SUPPLY

RJ45 JACK

IP DEVICE

(BACK)

CIMA-LINK

CONTROLLER

LOCATED

INSIDE CASE

RJ25 JACK FOR

STANDARD
CONTROLS

SCREEN

(BACKSIDE)

Figure 12: Cima-Link Ethernet Package Connection

14 Stewart Filmscreen

OPTIONAL CONTROL - CIMA-LINK
RS232 PACKAGE CONNECTION

MAKING THE CONNECTION

1. Connect the RJ25 cable to the right RJ25 jack located in the back of the Cima unit.

2. Place the other end of the RJ25 cable to the RJ25 jack in the RS232 adapter.

3. Connect the DB9 end of the RS232 to the DB9 jack in the end-user device.

Note: The maximum length of the RJ25 cable shall not exceed 50’.

RJ25 CABLE

CIMA-LINK

CONTROLLER

LOCATED

INSIDE CASE

RS232

RJ25 JACK

RJ25 JACK

RS232

9-PIN

CONNECTS

RJ25 JACK FOR

STANDARD
CONTROLS

SCREEN

(BACKSIDE)

Figure 13: Cima-Link RS232 Package Connection

Note: For RS-485 connection protocol, installer may need to provide an adapter to interface with the

control system. This adapter is not included.

Cima BC 15

OPERATING THE SCREEN

DESCRIPTION

The method you use to raise and lower the screen depends on the type of switch control device you

have selected.

When you lower or retract the screen, it will stop at its preset limit. If an obstacle (such as a person or

furniture) is in the path of the screen as it is lowered, use the switch control to stop the screen’s motion

(it will not automatically stop if it hits an obstacle).

The motor is designed to be used for short operations such as lowering the screen in preparation for

viewing. The motor is not designed for continuous duty. If the motor operates continually for more than a

few minutes, it may automatically shut off to prevent damage from overheating. If the motor occasionally

needs to be run more than normal, for example during initial setup and positioning, allow time for the

motor to cool down.

In general, when the screen is not in use, you should store it in the fully retracted position.

i CAUTION

Do not operate the motor when any of the following occurs:

`

The unit emits any smoke, heat, abnormal noise or unusual odor.

`

The unit is damaged in some way, such as damage from a water leak.

If any of these situations occurs, call a qualified service person.

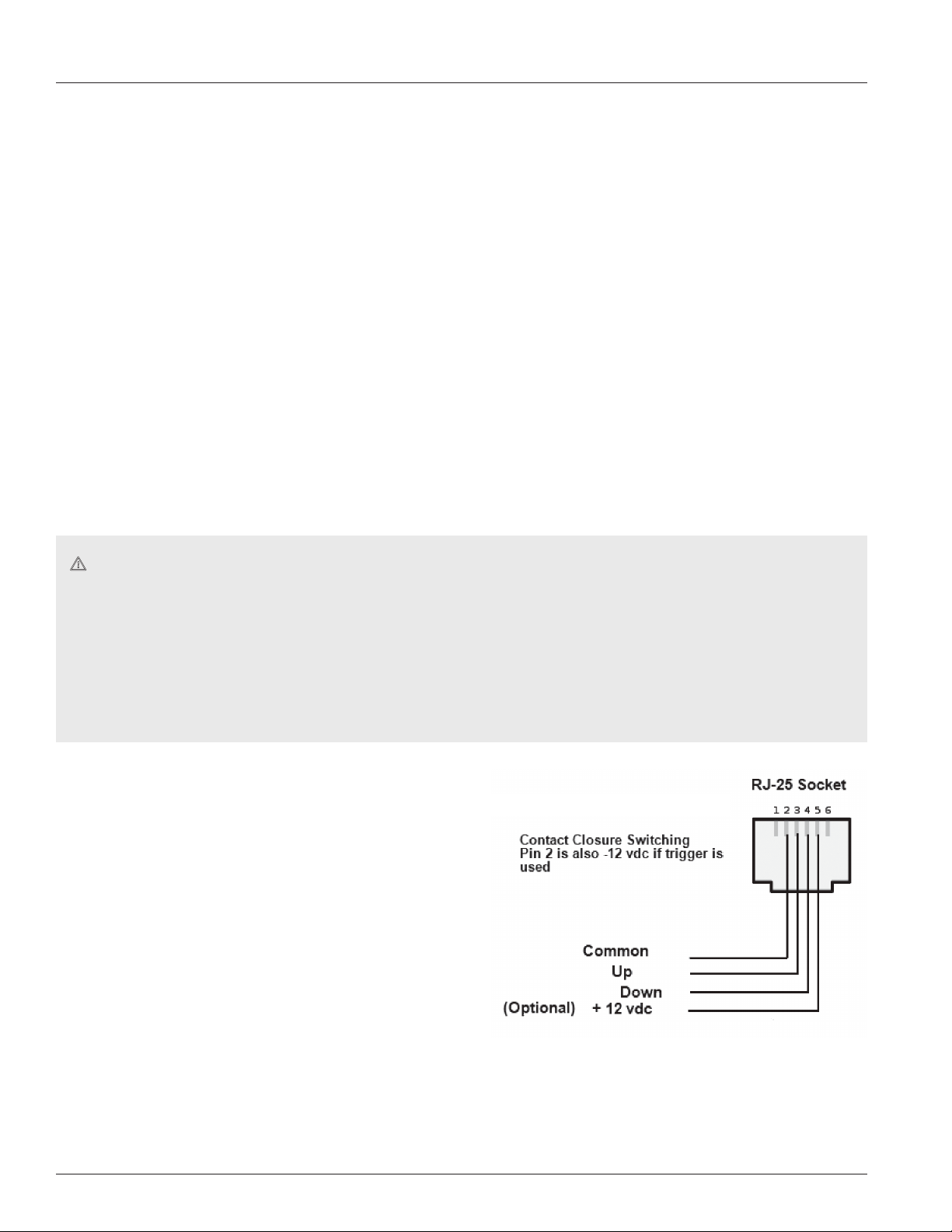

SWITCH & TRIGGER WIRING

The 3-button, low-voltage keypad operates with

only 3 conductors; common, up & down. The

“Stop” function shorts both directions internally

to common. You can use both switching functions

simultaneously by simply connecting a splitter to

the Cima RJ Input jack. The trigger input is only a 2

conductor connection.

Figure 12: Pinout Diagram

16 Stewart Filmscreen

ADJUSTING THE SCREEN EXTENSION

i CAUTION

Improper adjustment of the limit switches can cause irreparable damage to the screen itself, resulting

in voiding the factory warranty.

DESCRIPTION

The extension and retraction limit switches have been preset at the factory. In general, we advise you

to avoid readjusting these switches. In some cases, to enable proper alignment of the displayed image

on the screen, you may need to adjust the extension of the screen. If adjustment to the extension is

necessary, carefully follow these instructions.

WARNING!

The screen is fully retracted when the batten is flush with the bottom of the case. Do not attempt

adjustments with the yellow retraction (UP) limit switch that will further retract the screen. Incorrect

adjustment of the switch will cause severe screen damage. Please consult the factory if you have

any questions.

ADJUSTING THE SCREEN EXTENSION

You can increase the extension of the screen up to 3” (7.6 cm) past the factory preset stop, or you can

decrease the extension by approximately 4-6” (10 - 15 cm) from the factory preset stop. Do not attempt

to modify the screen extension beyond these recommended amounts.

The limit switches are located on the left side (audience left) of the screen roller tube inside the case,

after removing the dust cover.

To increase the screen’s fully extended (screen down) stop position:

1. Lower the screen to its current stop position.

2. Remove the dust cover to locate the white extension (down) limit switch on the left side of the

screen tube (audience left). Use a small electrician’s style screwdriver or a 5/32” (.4 cm) hex wrench

to turn the switch in a counterclockwise direction. If the power is still on, the screen will drop incre-

mentally as the switch is turned.

Note: One complete turn of the switch will make approximately a 3/4” (2 cm) change in the screen’s

stop position.

Cima BC 17

ADJUSTING THE SCREEN EXTENSION (CONTINUED)

To decrease the screen extension:

1. Lower the screen until it is extended about halfway down.

2. Remove the dust cover to locate the white extension (down) limit switch on the left side of the

screen tube (audience left). Use a small electrician’s style screwdriver or a 5/32” (.4 cm) hex wrench

to turn the switch in a clockwise direction.

Note: One complete turn of the switch will make approximately a 3/4” (2 cm) change in the

screen’s stop position.

3. Activate the screen in the down direction until it reaches the newly reduced stop position. Repeat

this procedure until the desired stop position is reached.

Once you have made the adjustment, whenever you lower the screen, it will automatically stop at the

new position.

Note: The yellow “UP” limit switch is to stop the motor in the retracted position. We advise not adjusting

this switch as to avoid possible screen damage should the switch get mis-adjusted. It is recommended

that you make a note of any changes made to the factory preset.

18 Stewart Filmscreen

ADJUSTING THE SCREEN TENSION

Detail B: Batten Overview Detail B: Batten Underside

Detail B: Batten Underside

To correctly adjust the batten

setting position and side line length

on your Cima screen, it may be

necessary to loosen the existing side

line attachment screws. After the

adjustment has been completed,

the batten weight will be increased

on the screen while decreasing the

side line tension.

This procedure can improve the

overall flatness of the screen

primarily in the lower section of the

image area. In many instances, the

screen’s factory deployment setting

has been reduced at the site and

therefore this batten adjustment is

necessary.

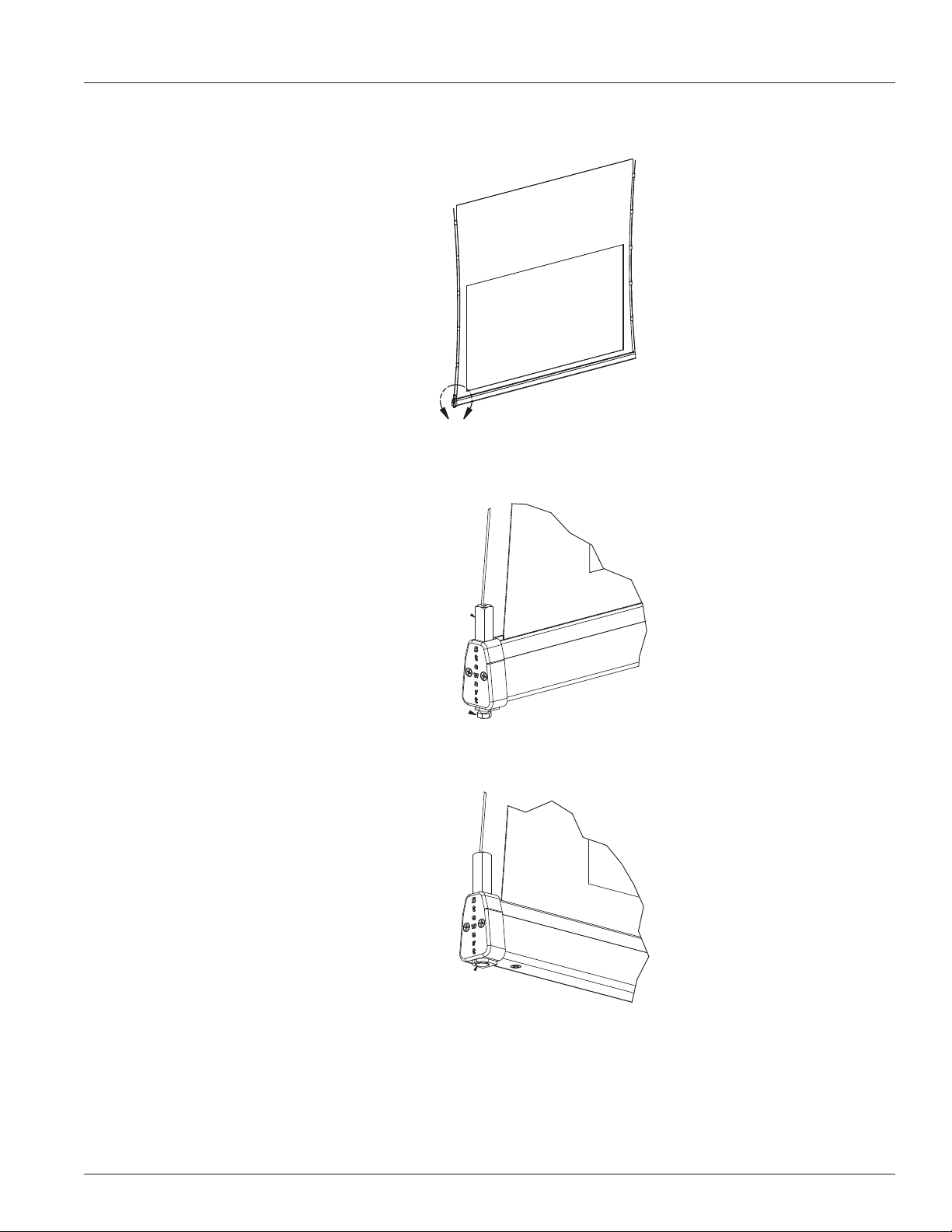

SCREEN TENSION ADJUSTMENT PROCEDURE

1. Push the ferrule down.

C

Figure 13: Cima Screen

2. Turning the screw

counter-clockwise will

lengthen the side line,

adding batten weight /

The objective is to thread the

screw into the ferrule just enough

to get a very low amount of side

line tension (approximately 3 to 4

turns). The side lines will now have

less tension which is desirable. The

result is that more batten weight will

be distributed on the screen once

this adjustment is completed. You

should see a slight improvement

when finished; however, it will take

some time for this adjustment to

fully take effect (stretching screen)

thereby eliminating any wrinkles,

waves, or puckers.

Detail B: Batten Overview

Detail B: Batten Underside

tension to the screen.

Turning it clockwise will

shorten the side line and

decrease batten weight /

tension on the screen.

3. Align the bottom

screw to the recessed

pocket and release it to

move the ferrule back

in place and complete

adjustment.

Cima BC 19

CARING FOR AND CLEANING THE SCREEN

With reasonable care, you may expect many years of dependable use of your Stewart projection screen.

We encourage you to keep your screen clean. To protect your screen when it is not in use, store it in the

fully retracted position.

Avoid getting any foreign material on the screen, as cleaning may prove very difficult. It may not be

possible to remove scratches, paint, ink, etc.

GENERAL MAINTENANCE

Treat your screen surface delicately. Special attention to these instructions should be followed when

cleaning.

`

A draftsman-style brush may be used to lightly whisk away any loose dirt or dust particles. (This

type of brush is usually available at office supply stores.) Stewart Filmscreen has an optional screen

cleaning kit that contains the proper type of brush. Contact your dealer if you would like to obtain

this cleaning kit.

`

Particles left on the screen when it is retracted into the case may form an impression on the screen

surface. Periodically wipe the back of the screen with a clean damp cloth.

`

For tougher spots, you can make a cleaning solution using a water-based detergent and warm water.

To make the solution, mix one part Simple Green, 409, or other water based industrial cleaner with

three parts warm water. Moisten a clean cotton cloth or Q-Tip with this solution, moisten the stained

area, and gently lift off the stain. Never use an aggressive scrubbing action as you could damage the

screen surface by removing the optical coating. Remoisten the area with clean water and dab dry

with a clean sponge or cotton cloth. Any residual watermarks will evaporate on their own in a few

minutes.

Do not use any other cleaning materials on the screen. Contact the factory if you have questions about

removing difficult spots.

WEEKLY MAINTENANCE

To maximize the longevity of your Cima screen we recommend the screen be deployed overnight at

least once a week. If using a 3rd party control system to deploy your Cima screen, you may be able to

program the 3rd party system to automatically deploy your Cima screen once a week.

REPLACEMENT PARTS & SERVICE

No user-serviceable parts are contained within the unit. Contact your dealer or the factory if you require

part replacement or service.

20 Stewart Filmscreen

TROUBLESHOOTING

Refer to the following guidelines if you encounter a difficulty in the operation of your Stewart Filmscreen

product. Problems related to electrical or motor function may require a qualified service person or

electrician. Should you have a problem that is not addressed here, call Stewart Filmscreen Corporation

(310-784-5300) Toll free (800-762-4999).

Problem Cause Action Steps

Screen won’t operate. No AC power available. Check to see if the circuit

breaker has switched off.
Reset if needed. Check
outboard switching apparatus.
Check voltage availability.
Contact an electrician.

Screen won’t roll up or down
(even though power is available).

Screen roller chatters when
power is activated.

Unit hums in up mode. (Screen
has already retracted.)

Bad connection at switch.
Polarity of IMC / STI line may
be bad.

Can be caused by voltage
drop, bad connections, or a
defective switch.

The screen batten is retracting
too far into the case. Failure
to correct can damage motor
and screen. Do not use the unit
until this problem is resolved.

Have an electrician or
qualified service person check
the connection as follows:

 If you have a low voltage

control unit, check the
switchline connections.

 Check STI / IMC module’s

line connections or the
miniplugs at the screen
input or projector output.

Check 12V DC line for correct
polarity. Contacts may be stick­ing- tap relay to free contacts.

Have an electrician or
qualified service person
check all hookups including all
outboard wiring.

Have a qualified service
person adjust the yellow UP
limit switch.

Screen drops when up
direction is activated (grinding
noise occurs).

Drop in voltage. Screen motor requires full

voltage. Have an electrician
or qualified service person
check available voltage.

Cima BC 21

TROUBLESHOOTING (CONTINUED)

Problem Cause Action Steps

Screen continues past bottom
stop position.

Motor shuts off. Motor has been
in use for more than 2 minutes.

Dirt, fingerprints, marks, etc.
on screen surface.

Indentations appear on screen
surface.

White limit switch is out of
adjustment.

Motor is designed for short
operations (lowering and
retracting), not continuous
duty. Longer operation, causes
the motor to overheat and
shut off.

Improper handling of screen. Lightly brush off or use a mild

Debris or particles adhering to
screen due to static cling.

Readjust the white DOWN
limit switch. See the section
on Adjusting the Screen
Extension of this manual.

Allow the motor to cool down.
Complete cooling can take
an hour or more. Heat gain is
cumulative and takes time to
dissipate. If motor use is
initiated before it has cooled
completely, the motor will shut
down again when it reaches
maximum temperature.

detergent solution with a
clean rag or cotton swab.

Check back of screen; gently
brush debris away with a
draftsman-style brush.

22 Stewart Filmscreen

LIMITED ONE YEAR WARRANTY

STEWART FILMSCREEN CORPORATION (Stewart) warrants all products to the original purchaser only.

Stewart products are guaranteed to be free from defects in materials and workmanship for a period

of one (1) year from the date of purchase by the original purchaser or eighteen (18) months from date

of manufacture, as defined in the serial number. Additionally, all products must be properly operated

and maintained according to Stewart instructions and cannot be damaged due to improper handling or

treatment after shipment from the factory. This warranty does not apply to equipment showing evidence

of misuse, abuse, or accidental damage, including neglect caused by improper installation (i.e. proximity

to hot lights, exposure to extreme heat or cold, exposure to excessive humidity, etc.)

Stewart on-site warranty repair services are not available for this product. Stewart’s sole obligation

under this warranty shall be to repair or to replace (at Stewart’s sole discretion) the defective part of the

merchandise. This warranty expressly does not cover any costs of removal, installation, framing, or other

costs incidental to replacing the screen or returning it to Stewart. Returns for service should be made to

your Stewart dealer. If it is necessary for the dealer to return the screen or part to Stewart, transportation

(freight) expenses to and from Stewart are payable by the purchaser. Stewart is not responsible for

damage in shipment. To protect against damage or loss in transit, insure the product and prepay all

transportation expenses.

This warranty is in lieu of all other warranties, expressed or implied, including warranties as to fitness for

use or merchantability. Any implied warranties of fitness for use, or merchantability, that may be mandated

by statute or rule of law are limited to the one (1) year warranty period. This warranty gives you specific

legal rights, and you may also have other rights which vary from state to state. In no event will Stewart

be liable for sums in excess of the purchase price of the product. No liability is assumed by Stewart for

expenses or damages resulting from interruption in operation of equipment, or for incidental, direct, or

consequential damages of any nature. In the event that there is a defect in materials or workmanship of

a Stewart Filmscreen product, you may contact our Customer Service Department at 1161 W Sepulveda

Blvd, Torrance, California 90502- 2797 (310-784-5300) Toll free (800-762-4999).

IMPORTANT: This warranty shall not be valid and Stewart shall not be bound by this warranty if the product

is not operated and maintained in accordance with Stewart’s written instructions. Stewart Filmscreen

Corporation shall not be liable for any and all consequential damage(s) occasioned by the breach of

any written or implied warranty pertaining to the sale of a Stewart Filmscreen product in excess of the

purchase price of the product sold.

Cima BC 23

MAINTENANCE NOTES

24 Stewart Filmscreen

xxx

www.stewartfilmscreen.com

1161 W. Sepulveda Blvd., Torrance CA 90502 USA l 800.762.4999 l Tel: [phone] l Fax: [phone] l Email: request@stewartfilmscreen.com

©2019 Stewart Filmscreen. Specifications are subject to change without notice.
