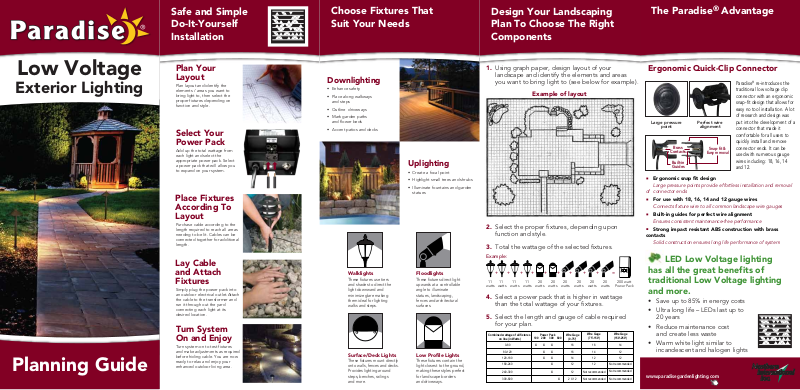

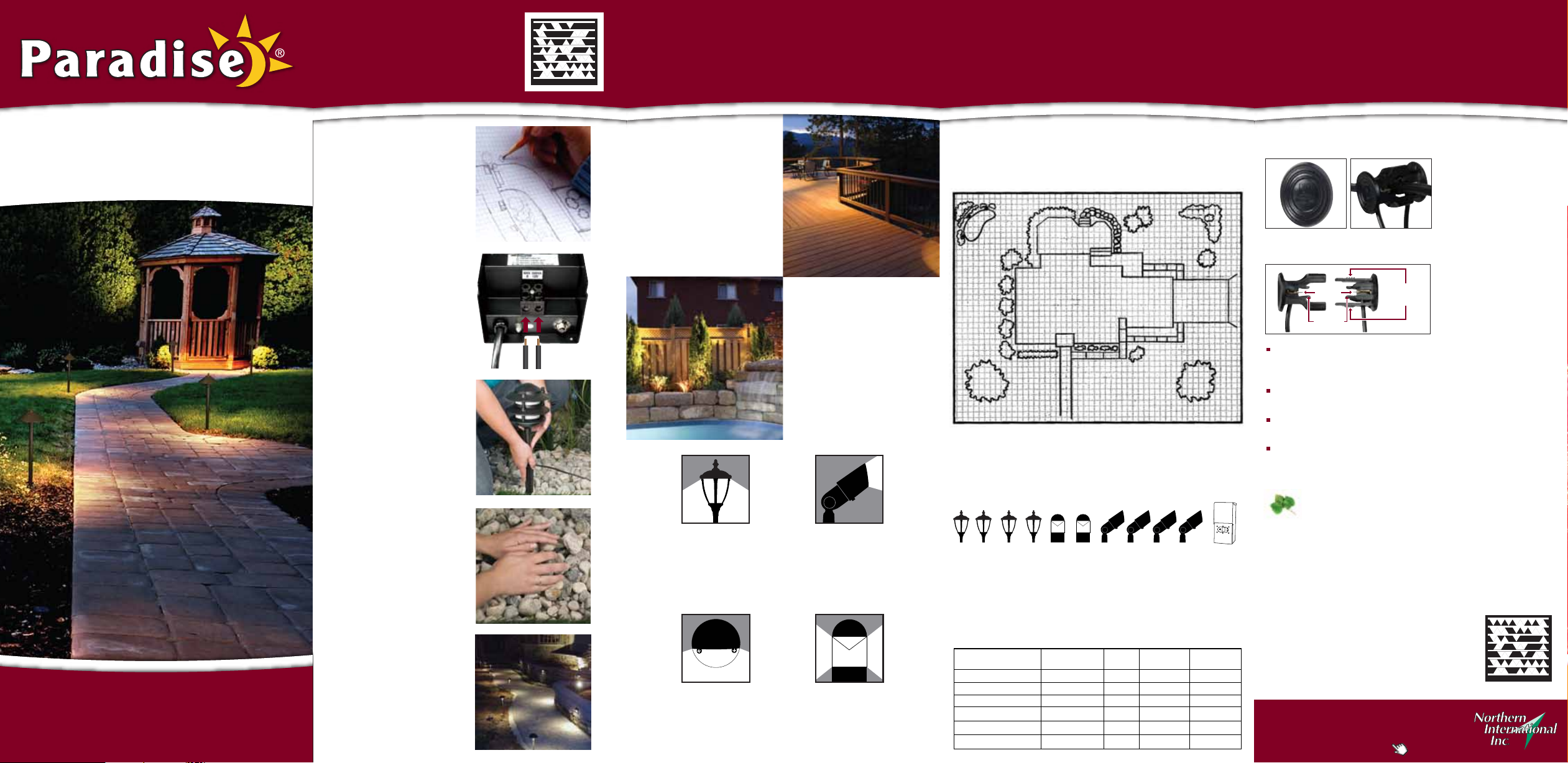

Safe and Simple
Choose Fixtures That
Design Your Landscaping
The Paradise® Advantage
Low Voltage
Exterior Lighting
Planning Guide
Do-It-Yourself
Installation
Plan Your
Layout
Plan layout and identify the
elements / areas you want to
bring light to, then select the
proper fixtures depending on
function and style.
Select Your
Power Pack
Add up the total wattage from
each light and select the
appropriate power pack. Select
a power pack that will allow you
to expand on your system.
Place Fixtures
According To
Layout
Purchase cable according to the
length required to reach all areas
needing to be lit. Cables can be
connected together for additional
length.
Lay Cable
and Attach
Fixtures
Simply plug the power pack into
an outdoor electrical outlet.Attach
the cable to the transformer and
run it through out the yard
connecting each light at its
desired location.
Turn System
On and Enjoy
Turn system on to test fixtures
and make adjustments as required
before hiding cable. You are now
ready to relax and enjoy your
enhanced outdoor living area.
Suit Your Needs
Downlighting
• Enhance safety
• Place along walkways
and steps
• Outline driveways
• Mark garden paths
and flower beds
• Accent patios and decks
Walklights
These fixtures use tiers
and shades to direct the
light downward and
minimize glare making
them ideal for lighting
walks and steps.
Surface/Deck Lights
These fixtures mount directly
onto walls, fences and decks.
Provides lighting around
steps, benches, railings
and more.
Uplighting
• Create a focal point
• Highlight small trees and shrubs
• Illuminate fountains and garden
statues
Floodlights
These fixtures direct light
upwards at a controllable
angle to illuminate
statues, landscaping,
fences and architectural
surfaces.
Low Profile Lights
These fixtures contain the
light closest to the ground,
making these styles perfect
for landscape borders
and driveways.
Plan To Choose The Right
Components
1.
Using graph paper, design layout of your
landscape and identify the elements and areas
you want to bring light to (see below for example).
Example of layout
2.
Select the proper fixtures, depending upon
function and style.
3.
Total the wattage of the selected fixtures.
Example:
+ + + + + + + + + =
11
11
11
watts
watts
4.
Select a power pack that is higher in wattage
than the total wattage of your fixtures.
5.
Select the length and gauge of cable required
for your plan.
Combined wattage of all fixtures
on line (in Watts)
0-80
80-120
120-180
180-240
240-300
300-600
11
watts
watts20watts20watts20watts20watts20watts20watts
Power Pack
100 200 300 600
X X X
X X
X X
Wire Gage
(0-75')
16 16 14
16 14 12
14 12 12
X
12 12
12
2 X 12
X
X
Wire Gage
(75'-150')
Not recommended
Not recommended
Wire Gage
(150'-250')
Not recommended
Not recommended
Not recommended
200 watt
Power Pack
Ergonomic Quick-Clip Connector
Paradise® re-introduces the
traditional low voltage clip
connector with an ergonomic
snap-fit design that allows for
easy no tool installation. A lot
Large pressure
point
Brass
Contacts
Built-in
Guides
Ergonomic snap fit design
Large pressure points provide effortless installation and removal
of connector ends
For use with 18, 16, 14 and 12 gauge wires
Connects fixture wire to all common landscape wire gauges
Built-in guides for perfect wire alignment
Ensures consistent maintenance-free performance
Strong impact resistant ABS construction with brass
contacts
Solid construction ensures long life performance of system
Perfect wire
alignment
Snap-fit &
Easy removal
of research and design was
put into the development of a
connector that made it
comfortable for all users to
quickly install and remove
connector ends. It can be
used with numerous gauge
wires including: 18, 16, 14
and 12.
LED Low Voltage lighting
has all the great benefits of
traditional Low Voltage lighting
and more.
• Save up to 85% in energy costs
• Ultra long life – LEDs last up to
20 years
• Reduce maintenance cost
and create less waste
• Warm white light similar to
incandescent and halogen lights
www.paradisegardenlighting.com
