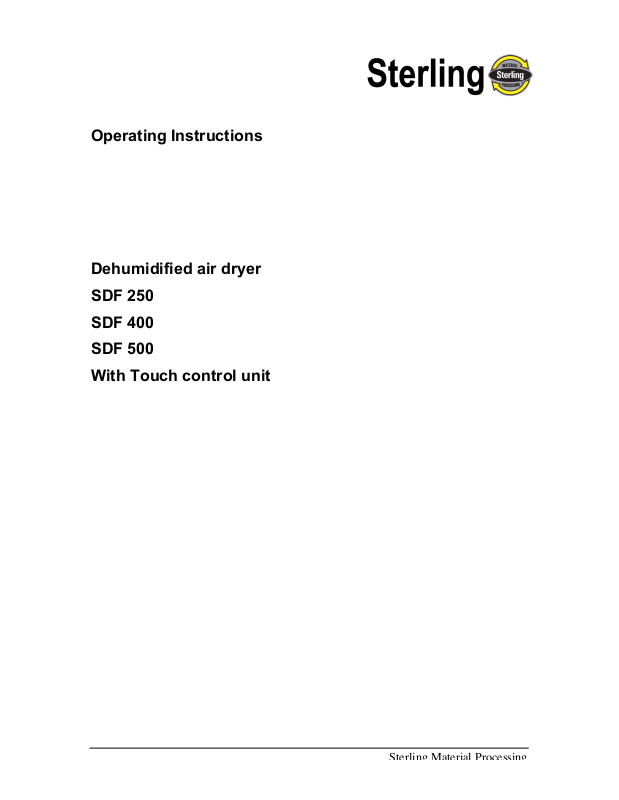

Sterling SDF 500, SDF 250, SDF 400 User Manual

Operating Instructions

Dehumidified air dryer

SDF 250

SDF 400

SDF 500

With Touch control unit

SDF 250/400/500

Sterling Material Processing
5200 West Clinton Ave.
Milwaukee, WI 53223

Telephone: [phone]
Fax: [phone]

www.sterlco.com

Technical service:
Service department
Telephone: [phone]

Edition: 12/03

These operating instructions are for*:
(* please fill in personally)

Serial number:
Year of manufature:
Date of Delivery:
Number of delivery:
Date of commissioning:
Location:
Group of machines:

SDF 250/400/500

Sterling Material Processing retains all rights to change the information in these operating
instructions at any time without notice.

We assume no liability for any errors or direct or indirect damage resulting in context with these
operating instructions.

Copying, translation or publication in any form except for personal use of purchaser requires
approval from Sterling Material Processing.

All rights reserved.

SDF 250/400/500

Table of contents

1. General Information .............................................................................................1-1

1.1. Warnings and symbols.......................................................................................1-2

1.2. Explanations and information ............................................................................1-4

1.3. Legal basis ........................................................................................................1-4

1.4. Fields of applications.........................................................................................1-4

1.5. Notes on Usage..................................................................................................1-4

2. Safety instructions ................................................................................................ 2-1

2.1. General..............................................................................................................2-2

2.1.1. Assembly ..............................................................................................2-3

2.1.2. Operation ..............................................................................................2-3

2.1.3. Maintenance.......................................................................................... 2-4

2.2. For the safety of the devices ..............................................................................2-5

3. Start up.................................................................................................................3-1

3.1. Control Unit ......................................................................................................3-2

3.1.1. Touch Screen ........................................................................................3-2

3.2. Switching on the Dryer......................................................................................3-3

3.3. Basic parameters................................................................................................3-4

3.3.1. Entering Dryer Values...........................................................................3-4

3.3.2. Entering hopper values..........................................................................3-6

3.3.3. Setting the timer....................................................................................3-8

3.3.4. Observing processing status ................................................................3-10

3.3.5. Setting date and time........................................................................... 3-11

3.3.6. Changing language..............................................................................3-12

3.4. Continuous operation....................................................................................... 3-14

3.4.1. Continuous Operation of the Hopper ...................................................3-14

Continuous Operation of the Dryer.....................................................................3-14

3.5. Switching the dryer/hopper heater off ..............................................................3-16

4. Error and error correction .....................................................................................4-1

4.1. Actual messages ................................................................................................4-3

4.2. Alarm protocol ..................................................................................................4-7

5. Maintenance.........................................................................................................5-1

5.1. Maintenance schedule........................................................................................ 5-3

5.2. Cleaning or Replacing the Air Filter ..................................................................5-4

5.2.1. Cleaning or Replacing the Return Air Filter ..........................................5-5

5.2.2. Cleaning or Replacing the Regeneration air filter ..................................5-6

5.2.3. Filter of the electrical cabinet ................................................................5-7

5.3. Disposing of Drying Agents ..............................................................................5-8

5.4. Cleaning the Drying Hopper ..............................................................................5-9

5.5. Changing the battery of the control system ......................................................5-12

5.5.1. Resetting the control values................................................................. 5-14

6. Functional description ........................................................................................ 6-15

6.1. General Information ........................................................................................6-16

6.2. Drying Hopper (Optional)................................................................................6-17

6.2.1. Hopper heaters (optional).................................................................... 6-17

SDF 250/400/500

6.3. Connection to a Pneumatic Conveying System (Optional) ............................... 6-18

6.4. Return Air Cooler (Optional)........................................................................... 6-18

7. Transport, Assembly and Storage .........................................................................7-1

7.1. Tansport and Packing ........................................................................................ 7-2

7.2. Assembly ..........................................................................................................7-4

7.3. Storage ..............................................................................................................7-4

8. Assembly instructions ..........................................................................................8-1

8.1. Installation of the exhauster fan for regeneration of exhaust air..........................8-2

8.2. Connection of Return Air Cooler (Optional) ...................................................... 8-2

8.3. Electrical Connection ........................................................................................8-3

8.4. Compressed Air Supply.....................................................................................8-4

9. Technical data ......................................................................................................9-1

10. Accessories..................................................................................................... 10-1

SDF 250/400/500

1. General Information

 These operating instructions are addressed to all users of the

device.
These operating instructions must be used by every person
charged with work on the unit.

SDF 250/400/500

1.1. Warnings and symbols

The following warnings and symbols are used in these operating instructions:

 This symbol indicates danger to life! Fatal or serious injury is

possible if the corresponding instructions, regulations or
warnings are not observed.

L This symbol indicates that serious injury is possible if the

corresponding instructions, regulations or warnings are not
observed.

F This symbol indicates that extensive damage to equipment is

possible if the corresponding instructions, regulations or
warnings are not observed.

& This symbol indicates information important for becoming

familiar with the equipment, i.e. technical correlations.

$ This symbol indicates that a technical term is explained at this

point.

SDF 250/400/500

When disposing of drying agents / batteries / oil, observe all
official rules.

Caution: High noise pollution !
For all work on the equipment, hearing protection should be
worn.
Avoids impairment of hearing!

Caution: Danger of crushing !
Disconnect the equipment from mains supply before starting
mainenance procedures. All compressed air pipes on the
equipment should be depressurised before starting
maintenance work.

Caution: Danger of hot surface !
Before starting any work wait until all parts have been cooled
down sufficiently. Avoid touching any of these parts!

Caution: Danger of skidding !
Remove any granules remaining on the ground.

Caution: Danger to life through electrical shock !
Observe that the control system is still under voltage even
when the main switch is switched off.

Check the direction of rotation of the blowers after the
electrical connections have been made (see rotational
direction arrow).

SDF 250/400/500

1.2. Explanations and information

Various terms and designations are used in these operating instructions to ensure clarity.
Therefore please note that the terms used in the text stand for the corresponding explanations
listed below.

• Equipment: ”Equipment” can mean an individual unit, a machine or an installation.

• Operating personnel: The ”operating personnel” are persons operating the equipment on their

own responsibility or according to instructions.

• Operator : The ”operator” of the equipment (production manager, foreman, etc.) is the person

responsible for all production sequences. The operator instructs the operating personnel of
what is to be done.

• Operating instructions: The ”operating instructions” describe the interaction of the equipment,

production sequences or methods. The operating instructions must be compiled by the
operator of the equipment.

• Equipment foreman: When several operating personnel work on one machine, the

”equipment foreman” coordinates the sequences. The equipment foreman must be appointed
by the operator.

• Trained personnel: ”Trained personnel” are persons who, due to their training, are authorized

to carry out the required work.

1.3. Legal basis

See “Manufacturer’s Certificate” resp. “Certificate of Conformity”.

1.4. Fields of applications

For the drying of thermoplastic granules and regrind before processing in order to remove all
remaining moisture from the granules both inside and out, independent of climate or ambient air
conditions.

1.5. Notes on Usage

• Experienced operators can begin directly with the chapter on “Start-up” if the unit has been

properly installed.

• If the unit has not been installed yet, observe the instructions in the chapter on “Assembly

Instructions” and “Transport, Assembly and Storage”.

SDF 250/400/500

2. Safety instructions

 These safety instructions apply to all persons within the range of

action of the equipment.

Please inform all persons within the range of action of the
equipment of the direct and indirect hazards connected with the
equipment.

These operating instructions are to be used by all persons
assigned activities connected with the equipment.

Knowledge of the English language is prerequisite.

Ensure in each case that the operating personnel are familiar with
the operating instructions and the function of the equipment. For
your safety

SDF 250/400/500

2.1. General

The operating personnel of this equipment must be at least 16 years old.

Please read these operating instructions carefully before taking into operation for the first time.
Contact us should questions arise. This avoids injury and damage to equipment!

These operating instructions must be kept available at all times at the place of operation of the
equipment. Improper operation results in danger of accidents!

Please note that, for reasons of clarity, not all conceivable cases regarding operation or
maintenance of the equipment can be covered in these operating instructions.

Please observe all safety instructions and warnings on the equipment. This avoids injury and
damage to equipment!

All work on the equipment is to be carried out by persons whose qualifications are specified in the
pertaining chapters of the operating instructions. Improper operation results in danger of
accidents!

The proper working clothes are to be worn during any work on the equipment. This avoids injury!

The local regulations and requirements pertaining to this equipment must be observed.

Disconnect electrical components from the mains supply before work is carried out on these
components Caution: Danger to life through electrical shock!

Compile detailed operating instructions based on these Operating instructions for the sequence of
procedures to be carried out on this equipment. Improper operation results in danger of
accidents!

Observe that the control system is still under voltage even when the main switch is switched off.
Caution: Danger to life through electrical shock!

SDF 250/400/500

2.1.1. Assembly

Compare the connected loads with those of the mains supply. Danger of injury through electrical
shock!

When using lifting gear, please observe the pertaining regulations. Caution: Danger of accidents!

Do not modify, add other equipment or change the design of the equipment without the approval
of the manufacturer. Caution: Danger of accidents!

Attachments not supplied by Sterling must be manufactured in accordance with safety regulation
EN 294. Danger of accidents!

The equipment may only be operated when all the associated components are properly
connected up and in accordance with the relevant regulations. This avoids injury and damage to
equipment!

Operate the device only if all its components are grounded. Danger: accident through electrical
shock!

Please note for installation that the equipment is top-heavy. Danger exists that it may topple over!

Take care that the device is not standing on the mains cable. This will prevent danger to people
and material!

2.1.2. Operation

Appoint an equipment foreman to be responsible for the equipment.

Ensure that the operating personnel are provided detailed instruction in the operation of the
equipment. Improper operation results in danger of accidents!

When the main switch is switched off for reasons pertaining to safety, it must be secured against
unauthorized activation. Caution: Danger of accidents!

Repair work may be carried out by trained personnel only. Caution: Danger of accidents!

Never operate the equipment when partially dismantled! Danger! Limbs may be caught in
machinery! Electric shock!

In case of malfunction, shut down the equipment immediately. Have malfunctions corrected
immediately. Danger of accidents!

The machine is intended only for the drying of granulated plastics. Any other or additional use is
contrary to specifications.

This equipment is not suitable for food processing.

The safety instructions of the connected machines must be followed.

Please note that sound levels exceeding 85 db(A) may in the long term damage your health. Use
the appropriate ear muffs. This avoids impairment of hearing!

Please note that the drying cells, drying hoppers and air pipings grow hot during use. Avoid
touching any of these parts! Danger: Injury through burns!

Never operate the dryer without side panels. Danger: Limbs may be caught in machinery! Injury
through burns!

When drying plastics which emit gases dangerous for human health, take care that the
regeneration exhaust air is disposed of without polluting the environment. This will prevent danger

SDF 250/400/500

to people and material!

2.1.3. Maintenance

Before starting maintenance work, appoint a supervisor.

Inform the responsible personnel before maintenance work on the system is started. Caution:
Danger of accidents!

Disconnect the equipment from mains supply before starting maintenance procedures to ensure
that it cannot be switched on unintentionally. Caution: Danger of accidents!

All pipes, hoses and screwed connections should be checked regularly for leaks and damage.
Any faults which arise should be corrected immediately. Danger of accidents!

Depressurize all compressed air piping before starting maintenance work. Danger of accidents!

The air filters should only be cleaned/replaced when the the main switch is off and the blower has
stopped. This avoids injury and damage to equipment!

Any maintenance work on the equipment should only be started when the the main switch is off
and the blower has stopped. This avoids injury and damage to equipment!

Check the v-belts of the blower only when the main switch is switched off and the blowers have
stopped. Caution: Danger of accidents!

Open drying hoppers only if they are completely empty. Danger of accidents!

Never open drying hoppers while the device is in operation. Danger: Injury through burns!

Open drying hoppers only if they have been cooled down sufficiently. Danger: Injury through
burns!

Before starting maintenance work wait until the drying cells, drying hoppers and air pipings
have been cooled down sufficiently. Avoid touching any of these parts! Danger: Injury through
burns!

Remove any granules remaining on the ground. Danger of accidents!

Arrest the wheels after installation if the dryer is mounted on a movable frame. This will prevent
danger to people and material!

SDF 250/400/500

2.2. For the safety of the devices

Never change settings without carefully assessing the consequences.

Use only original Sterling spare parts.

Observe the maintenance instructions.

Keep a record of all maintenance works and repairs.

Please note that electronic components can be damaged by static discharge.

Before initial operation and in regular intervals, make sure that no electrical connections are
loose.

Never readjust sensors without exactly knowing their functions.

Please ensure that the permitted storage temperature lies between -20 and +55 °C
(-4 to +131 °F).

Please ensure that the permitted operation temperature lies between 0 and +45 °C
(32 to +113 °F).

Check the direction of rotation of the blowers after the electrical connections have been made
(see rotational direction arrow).

Clean the drying hoppers before the first filling.

Note the instructions of the material manufacturer for the maximum drying temperature.

Note the drying instructions of the material manufacturer.

Take care that the drying hoppers are always completely filled and that the retention period is
respected if continual removal is taking place.

Note that too large amounts taken from the drying hopper lead to insufficient drying of the
material.

Close the air stop valves of drying hoppers which are empty or have not been used.

Note down all data which you have entered into the control system.

The password is to be entrusted to authorised personnel only.

Please note that the temperature of the dryer heating system must always be set lower than that
of the supplementary heaters.

When you dispose of drying agents, observe all official rules.

Note that drying cells are replaced or refilled by Sterling only if they are empty.

The material level may not fall below 40 % in the drying hopper, when material is continuously
removed from the drying hopper, but no material is continuously fed into the drying hopper (batch
drying). Close the throttle valves.

Read the operating manuals of the connected devices.

Please note that a compressed air supply is required for the operation of the unit.

Never set a higher operating pressure than 6 bar for the hopper loaders (system overpressure).

SDF 250/400/500

3. Start up

 This chapter is addressed to the operators of the machine.

This chapter assumes general skills with drying systems and SPS
(PLC) control units.

This chapter assumes that the functional description has been
read and understood.

It must be ensured that the operators have the relevant skills.

F Note down all set values of the control system.

Make sure that the cooling appliance is connected to the mains
socket in the electrical cabinet (if present, optional).

Make sure that any condensate penetrating from the cooling
appliance (optional) does not get inside the dryer or the control
box.

& If the inside temperature of the switch cabinet is above 50º C (122

ºF) the dryer is switched off after 30 minutes if it is operated with
a cooling appliance (optional).

If ordered temperature can be displayed in ºF!

SDF 250/400/500

3.1. Control Unit

The control system is switched on at the main switch.

The control system is operated via the ”Touch Screen and the keyboard of the operator panel.

The facility’s control system is factory-programmed. Nevertheless, you have to set specific values
(basic parameters) which are dependent on the processed material, for instance.

The values entered are stored in the control system and remain so, even after the unit is switched
off or in the event of a power cut. All messages are displayed in plain text.

3.1.1. Touch Screen

The operating menus will be directly selected by touching the symbols with the finger tips. Entries
are made by means of the numerical keyboard.

As soon as a symbol has been touched, the respective menu will appear.

As soon as an input field has been touched, it will be activated and be ready for input.

All entries will only be accepted after being acknowledged by means of the Enter key.

SDF 250/400/500

3.2. Switching on the Dryer

Switch on the system by means of the main switch.

& The control system carries through a self-test; after that the

“Start-Screen” with date and time is displayed

3.3.

SDF 250/400/500

Basic parameters

3.3.1. Entering Dryer Values

Return air cooler on/orr
“I”: enabling the return air cooler
“O” disabling the return air cooler

Target value

Actual value

Status Dryer

Back to “Start-Screen”

SDF 250/400/500

Heater Reg. Act.

The regenerated heat temperature will be displayed.

Exit air Act.

The current temperature of the used air will be
displayed.

& If the unit is operates with “dew

point controlled changeover
point with dew point display”

(optional):

Dew point max.

Enter the maximum permissible (worst allowed)
dew point temperature (-35 to -28 °C / -31 to -18.4
°F).

Dew point Act.

The current dew point temperature will be displayed.

Return air cooler Target

Enter the max. permissible air temperature.
Acknowledge with the ENTER-key.

Return air cooler Act.

The current air temperature will be displayed.

& The cooling effect of the pre air

cooler is highly dependent on
the cooler circuit.

The lower the value chosen for
the pre air temperature, the
better.

F Plan the size of the coolant

circuit accordingly.

Displaying trend

Temperature
Dew point

SDF 250/400/500

3.3.2. Entering hopper values

Return air cooler on/orr
“I”: enabling the return air cooler
“O” disabling the return air cooler

Enter hopper name

Status Hopper

Back to “Start-Screen”

STT 1

SDF 250/400/500

Hopper temp Target

Enter the drying temperature for the drying
hopper.

Hopper temp Act.

The current temperature at the feed opening of
hopper flap will be displayed.

& If the unit operates with

motor flaps (optional):

Granule Temp

Enter the material temperature at which the flap
on the drying hopper should close.

& This value is entered in

percent of the temperature
on the hopper inlet.

The material temperature
calculated by the control
system for closing the flap
on the drying hopper is
displayed

Drying time Target

Enter the dwelling time of the material within the
drying hopper in minutes.

F Observe the indicated

dwelling time.

& When the drying hopper is released, the dwelling time starts. The

residual time is displayed (= current dwelling time).

If the drying hopper is blocked, the current dwelling time is reset
to the value of the dwelling time which has been entered before.

Drying time Act

The dwelling time of the material in the drying hopper is displayed in minutes.

Displaying trend

Temperature

SDF 250/400/500

3.3.3. Setting the timer

SDF 250/400/500

Enter for each day the switching on time and the
switching off time in hours and minutes.

Off / Internal / External

Select operation mode:

”internal” = operation with internal timer,

“external” = operation with external timer (if
present),

”off” = operation without timer.

& The timer is only operating,

when the dryer is switched
on.

SDF 250/400/500

3.3.4. Observing processing status

Actual operation status:

The following operation

statuses can be displayed:

• system is off

• system is on

• blower runs on

• valve block

• regeneration will be finished in x min.

Actual hopper temperature displayed in °C

Status dryer

LED grey - dryer off

LED green - dryer on

Target hopper temperature displayed in °C

Actual dew point temperature (optional)

Work-load frequency blower (optional)

Status drying hopper:

LED 1: grey, LED 2: grey - hopper off;

LED 1: green, LED 2: grey - hopper on,

dwelling time control off;

LED 1: green, LED 2: yellow - hopper on, dwelling time control active;

LED 1: green, LED 2: green - Trichter ein, Verweilzeit abgelaufen

SDF 250/400/500

3.3.5. Setting date and time

Date/Time

Enter the desired day and time.

SDF 250/400/500

3.3.6. Changing language

& This function is password

protected.

Enter the password

(password: 792154)

SDF 250/400/500

& If the password

has been
entered
correctly, the
language can be
changed.

SDF 250/400/500

3.4. Continuous operation

When you have carried through all basic settings, you can start with continuous operation.

F Make sure that hoppers which are not in use are separated from

the dehumidified air supply.

Make sure that the set drying temperatures are suited for the
materials in the hoppers.

After first filling, do not process the material until after the
dwelling time.

If a return air cooler (optional) is installed, switch on the coolant
circuit .

Make sure that the cooling appliance is connected to the mains
socket (if present, optional).

Check setting of the timer.

Switch on the main switch of the drying hopper.

3.4.1. Continuous Operation of the Hopper

3.4.2. Continuous Operation of the Dryer

SDF 250/400/500

Or

SDF 250/400/500

3.5. Switching the dryer/hopper heater off

Switch off the hopper heater:

Switch off the dryer:

L Wait until the regeneration phase is finished and the blower has

come to a standstill.

Switch off the dryer at the main switch.

Disconnect the power supply.

F Never switch off the dryer directly at the main switch

SDF 250/400/500

4. Error and error correction

 This chapter is directed at the operators of the equipment.

This chapter assumes general skills in dealing with drying
systems and SPS (PLC) control units.

This chapter assumes that the “start-up” description has been
read and understood.

It should be ensured in each and every case that the operators
have the relevant skills.

& An alarm is indicated by flashing light of

the button “Alarm”.

If the alarm message is acknowledged by
pressing the button “Alarm”, but the
failure is not yet eliminated, the flashing
changes to steady light. If the failure is
repaired the light is off.

SDF 250/400/500

F Failures must be repaired immediately.

& Alarm messages are displayed in plain language on the screen of

the operator device. An alarm is given by flashing of the LED
“alarm”.

The display of alarm messages in the operator device can only be
erased by pressing the “ACK” key. The failure is not repaired.

If the alarm message is acknowledged by pressing of the “ACK”
key, but the failure is not yet eliminated, the flashing changes to
steady light. If the failure is repaired the light is off.

Alarm messages are displayed in plain language with date and
time in the alarm protocol.

LED “ALARM”:

flashes in case of an error;

is on if the error has been acknowledged but not yet eliminated;

is off if there are no errors

SDF 250/400/500

4.1. Actual messages

Following alarm messages can be displayed:

PLC (= SPS) Battery is Empty

Replace the SPS battery.

The Safety Switch Regeneration Blower Has Been Actuated

Check the blower.

Check the fuses.

Short circuit check of the blower.

Vacuum Regeneration Blower

The regeneration blower does not produce sufficient pressure.

Check the blower.

Vacuum sensor defective.

The Safety Switch Drying Blower Has Been Actuated

Check the blower.

Check the fuses.

Short circuit check of the blower.

Vacuum Drying Blower

The drying blower does not produce sufficient pressure.

Check the blower.

Vacuum sensor defective.

Temperature Measurement Regeneration Heater Defective

Check the cables and the sensor.

Check the power supply.

Short circuit check.

Excess Temperature Regeneration Heater

The regeneration temperature is too high.

Check the safety temperature limiter.

Sterling Service.

Insufficient Temperature Regeneration Heater

The regeneration temperature is too low.

Check the regeneration heater.

SDF 250/400/500

Error Bypass Flap

The bypass flap does not close or closes too slowly.

Check the bypass flap.

Error Valve Block

The valve block has not reached the proper position. The main switch is placed in the off position.

Check the position of the valve block. Press the “ACK” key and put the main switch in the on
position immediately. If the valve block has not reached the correct position within 1 minute, the
main switch is again placed in the off position.

Sterling Service.

Temperature Measurement Outgoing Air Defective

Check cables and sensor.

Temperature Measurement Return Air Defective

Check cables and sensor.

Excess Temperature Return Air

Check cables and sensor.

Check the return air cooler.

Temperature Measurement Drying Heater Defective

Check cables and sensor.

Check the power supply.

Short circuit check.

Excess Temperature Drying Heater

The drying temperature is too high.

Check the safety temperature limiter.

Sterling Service.

Insufficient Temperature Drying Heater

The drying temperature is too low.

Check the drying heater.

Temperature Measurement Heater Defective Hopper X

(X = number of the drying hopper)

Check cables and sensor.

Check the power supply.

Short circuit check.

SDF 250/400/500

Excess Temperature Heater Hopper X

(X = number of the drying hopper)

The temperature of the hopper heater is too high.

Check the safety temperature limiter.

Sterling Service.

Insufficient Temperature Heater Hopper X

(X = number of the drying hopper)

The temperature of the hopper heater is too low.

Check the hopper heater.

Temperature Measurement Granules Defective Hopper X

(X = number of the drying hopper)

Check cables and sensor.

Check the power supply.

Short circuit check.

Excess Temperature Granules Hopper X

(X = number of the drying hopper)

The material temperature is too high.

Check the heater.

Check the throttle valve.

Valve Error Hopper X

(X = number of the drying hopper)

The throttle valve does not close or closes too slowly.

Check the throttle valve.

Temperature Measurement Pre Air Defective

Check cables and sensor.

Excess Temperature Pre Air

Check cables and sensor.

Check the pre air cooler.

Error feedback SSR Regeneration Heater

Check Solid State Relais (= SSR).

SDF 250/400/500

Overload Regeneration Heater - STB has been activated

Check the safety temperature limiter (= STB).

Check regeneration heater.

Short circuit check.

Overload Drying Heater - STB has been activated

Check the safety temperature limiter (= STB).

Check drying heater.

Short circuit check.

Main switch hopper heater # - Controller is off

Switch on the main switch of the hopper heater.

SDF 250/400/500

4.2. Alarm protocol

& Alarm messages

are displayed in
plain language
with date and time
in the alarm
protocol.

SDF 250/400/500

5. Maintenance

 This chapter is intended for persons with skills in electrical and

mechanical areas due to their training, experience and received
instructions.

Personnel using the instructions in this chapter must be
instructed of the regulations for the prevention of accidents, the
operating conditions and safety regulations and their
implementation.

Ensure in each case that the personnel are informed.

For maintenance work taking place at heights of over approx.
1829 mm (6ft.), use only ladders or similar equipment and working
platforms intended for this purpose. At greater heights, the
proper equipment for protection against falling must be worn.

Use only suitable lifting gear which is in proper working order and
load suspension devices with sufficient carrying capacity. Do not
stand or work under suspended loads!

Ensure that the electric motors/switch cabinets are sufficiently
protected against moisture.

Use suitable workshop equipment.

Before starting maintenance work, appoint a supervisor.

Inform the responsible personnel before maintenance work on the
system is started.

Never operate the equipment when partially dismantled.

Any maintenance and repair work NOT described here may only
be carried out by Sterling service personnel or by specialised
staff authorized by Sterling.

L Disconnect the equipment from mains supply before starting

maintenance procedures to ensure that it cannot be switched on
unintentionally.

All compressed air pipes on the equipment should be
depressurized before starting maintenance work.

SDF 250/400/500

F Please observe the maintenance schedule.

Before starting maintenance work, clean the equipment of oil, fuel
or lubricant.

Ensure that materials and incidentals required for operation as
well as spare parts are disposed of properly and in an
environmentally sound manner.

Use only original Sterling spare parts.

Keep record of all maintenance and repair procedures.

SDF 250/400/500

5.1. Maintenance schedule

Daily: Check warning signs on equipment for good legibility and completeness

Clean return air filters and casing (depending on dust build-up)

Weekly: Check main switch for proper function

Check the signal lamps for proper functioning

Every three months: Clean filter of the regeneration blower (depnding on amount of dust

collected)

Every six months: Change return air filters (depending on dust build-up)

Clean air filter of the suction box
All electrical and mechanical connections should be checked to see if
they fit securely

Annually: Dewpoint should be checked (only by Sterling service personnel)

Whenever the
material is changed: The drying hopper and suction box must be cleaned

& The service intervals refer to a 3-shift operation.

F The given maintenance intervals are average values.

Check whether in your individual case the maintenance intervals
must be shortened.

SDF 250/400/500

5.2. Cleaning or Replacing the Air Filter

Switch off the hopper heater:

And the dryer:

L Wait until the regeneration phase is finished

and the blower has come to a standstill.

Switch off the main switch of the dryer.

Interrupt the mains supply so that the device cannot be switched
on unintentionally.

If there is a return air cooler installed, switch off its coolant
circuit.

Switch off the drying hopper:

& Clogged filters substantially reduce the amount of circulating air

and lead to a production lag of your dryer. Clogged filters may
also damage the heating elements.

Purchase order numbers return air filter

when operating without return air cooler: ID 86378

when operating with return air cooler: ID 88226

Purchase order number regeneration air filter: ID 98171

SDF 250/400/500

5.2.1. Cleaning or Replacing the Return Air Filter

Open the panel (A) by means of the provided
switch cabinet key.

Open the tension ring on the housing of the
return air filter (B) and remove the housing
cover.

Remove the nut of the filter cartridge.

Remove the filter cartridge.

Clean the inside of the return air filter housing.
Use non-fibrous cleaning cloths or an industrial
type vacuum cleaner.

Blow compressed air from the inside out
through the clogged filter cartridge or replace
the filter cartridge.

Re-install the cleaned/new filter cartridge.

Mount the nut.

Install the lid of the return air filter housing.

Mount the tension ring with sealing.

Mount the panel (A).

F Never operate the dryer

without return air filter

Figure 0: SDF Dryer

A

B

SDF 250/400/500

5.2.2. Cleaning or Replacing the Regeneration air filter

Open the back panel.

Slide the air filter (A) off the nozzle.

Blow compressed air through the clogged
air filter from the inside out or replace the
air filter.

Install the cleaned/new air filter (A).

Mount the back panel.

F Never operate the dryer without regeneration air filter

Figure 1: SDF Dryer

A

SDF 250/400/500

5.2.3. Filter of the electrical cabinet

Remove the lid of the filter.

Remove the filter mat.

Blow through the filter mat with compressed air from inside to outside or renew the filter mat.

Clean the filter housing. Use lint-free cleaning rags.

Re-install the cleaned/new filter mat.

Replace the lid of the filter.

F Never operate the dryer without filter mat.

& Order number filter mat: ID 87491

SDF 250/400/500

5.3. Disposing of Drying Agents

Please note that drying cells are replaced or refilled by Sterling only if they are empty.

When disposing of drying agents, observe all official rules.

Since used drying agents may contain impurities from the dried
materials, treat them as special waste.

& It is not possible for Sterling to take back the used drying agent

or drying cells with used drying agents.

SDF 250/400/500

5.4. Cleaning the Drying Hopper

Switch off the hopper heater

and the dryer:

L Wait until the regeneration phase is finished

and the blower has come to a standstill.

Switch off the main switch of the dryer.

Interrupt the mains supply so that the device cannot be switched
on unintentionally.

If there is a return air cooler installed, switch off its coolant
circuit.

F Clean the drying hopper each time you are changing the

materials.

Make sure that the drying hopper has cooled down sufficiently.

Make sure that the drying hopper is completely empty.

Remove any granules remaining on the ground.

SDF 250/400/500

STT 25

Open the toggle-type fasteners (A) at the hopper lid
and fold the hopper lid upwards (if in use: remove
before the single conveyor).
Clean the drying hopper.
Close the hopper lid and close the toggle-type
fasteners (A) (if in use: re-mount the single
conveyor).

F Remove any granules remaining in the cleaning opening.

A

Figure 2: STT 25

SDF 250/400/500

STT 60 - 1600

Open the cleaning opening of the drying hopper: Lift and turn the handle (A) to open the lock, if
in use: remove before the single conveyor (STT 400 - STT 1600: 2 handles).

Clean the drying hopper.

Close the cleaning opening of the drying hopper: Turn the handle (A) until the cleaning opening is
locked and then close the handle (if in use: re-mount the single conveyor).

F Remove any granules remaining in the cleaning opening.

STT 1200 and STT 1600: Clean the bead.

A

SDF 250/400/500

5.5. Changing the battery of the control system

 This work may be carried through only by qualified personnel

trained in the field of electrical engineering.

F The battery may be changed only with the control system

switched on.

Open the control box by means of the control box key which is part of the supply.

Open the front door of the CPU.

Pull the backup battery with cable out of the compartment.

Plug the connector of the new backup battery into the corresponding socket in the battery
compartment of the CPU.

& The notch on the battery connector must point to the left!

Place the backup battery into the battery compartment on the CPU.

Close the front door of the CPU

Close the control box.

SDF 250/400/500

Close the control box.

L Store backup batteries in a dry and cool place.

Backup batteries can be stored for approx. 5 years.

If backup batteries are not treated properly, they can ignite,
explode and cause severe burning.

& Order number battery: ID 83809

Batteries must be disposed of in keeping with the relevant
national environment protection regulations/guidelines.

SDF 250/400/500

5.5.1. Resetting the control values

 This electrical work is intended to be carried out only by trained

personnel.

After changing the battery or the PLC the control values should be resetted.

All control values are set back to the standard settings.

Open the control box with the switch box key which is part of the supply.

Turn the key to the STOP position.

Turn the key to the MRES position.

Hold the key in this position until the STOP-LED comes on for the second time and remains on
(this takes 3 seconds).

Turn the key to the STOP position.

Within 3 seconds you must turn the switch back to the MRES position.

Hold the key until the STOP-LED flashes.

& When the CPU has completed the reset, the STOP-LED stops

flashing and remains lit.

Close the control box.

SDF 250/400/500

6. Functional description

 This functional description is addressed to the operators of the

equipment.

This functional description assumes general familiarity with
drying equipment.

It should be verified that the operators do indeed have the
appropriate skills.

SDF 250/400/500

6.1. General Information

The dryers work according to the dehumidified air principle, i.e., the air is not only heated but also
dehumidified before it flows through the drying hopper.

In this manner, plastic granules can be dried down to a very small residual moisture content.

The drying takes place continuously, i.e., there are no rest periods due to regeneration of the
drying agent.

F The dryer is rated for continuous operation.

All function sequences are fully automatic.

The dryer is equipped with two drying cells. One drying cell is part of the drying cycle; the other
drying cell is regenerated simultaneously.

If a malfunction occurs in the drying cycle during the program run, regeneration is not interrupted,
but continues until the program end has been reached. This guarantees that one regenerated
drying cell is always available.

The air inside the switch cabinet is cooled by a cooling appliance for the protection of
temperature-sensitive components (if present, optional).

With the digital timer (optional) the dryer can be switched on and off at set times.

Dew point dependent regeneration switch (optional)

The dew point temperature is monitored continuously. The valve system switches to the freshly
regenerated drying cells only after the selected dew point temperature has been reached. The
humid drying cells are then regenerated. After the cooling time the drying cells are ready for
operation again. The valve system switches to the freshly regenerated drying cells only after the
moisture content of the drying cells which are in the drying cycle have reached the setpoint value.

SDF 250/400/500

6.2. Drying Hopper (Optional)

The material is dried in the drying hopper. The
dehumidified air is conducted through the material
in the drying hopper and takes up moisture. Drying
hoppers must have the appropriate dimensions for
their specific use so that the desired final moisture
content is reached. When refilling a drying hopper,
the material must first be dried completely before
material can be taken out for the first time.

If material is taken out continuously, there must
also be a continual addition of material into the
drying hopper (continuous drying process). New
(moist) material is conducted into the upper
opening of the drying hopper and slowly reaches
the material outlet at the lower end. On its way
from the upper to the lower end, the material is
dried down to the final moisture content.

In order to guarantee a continuous drying process,
we recommend that you always keep the drying
hopper filled completely.

6.2.1. Hopper heaters (optional)

If differing drying temperatures are required in the different drying hoppers, hopper heaters must
be installed on the drying hoppers. The drying temperature of each drying hopper can be set
centrally at the dryer.

Figure 3: Drying Hopper

SDF 250/400/500

6.3. Connection to a Pneumatic Conveying System (Optional)

Your drying facility works best in combination
with a pneumatic conveying system. In this
way, your drying hopper will always be
supplied with sufficient material.
The facility will only take as much material as
is required by the processing machines.
Therefore, the drying result will always be the
same.
Sterling drying hoppers are equipped with a
suitable flange for adding a Sterling pneumatic
conveyor.
Suction boxes with one or three suction tubes
can be supplied as well (optional). These
suction boxes are developped specifically for
this type of hopper.
The loading of the conveying line with material
is adjusted by closing or by opening of the
control cover (A).

6.4. Return Air Cooler (Optional)

F A return air cooler must be employed if the return air temperature

is higher than +65 °C (149°F).

A return air cooler improves the efficiency of the drying cells.

& The lower the return air temperature, the better the efficiency of

the drying cells.

The return air cooler can be connected to a coolant circuit or to the water mains network.

A

Figure 4: Suction Box

SDF 250/400/500

7. Transport, Assembly and Storage

 This chapter is intended for all operating personnel of the

equipment.

Personnel using these instructions must be instructed in the
regulations for the prevention of accidents, the operating
conditions and safety regulations and their implementation.

Ensure in each case that the operating personnel are sufficiently
informed.

Please inform all persons within the range of action of the
equipment of the direct and indirect hazards connected with the
equipment.

Please observe all safety regulations for the operation of lifting
equipment.

SDF 250/400/500

7.1. Tansport and Packing

 Please ensure adequate carrying capacity of the lifting

equipment.
Note that the dryer system is top-heavy. Risc of toppling!

F The machine must not be tilted or laid on its side.

The equipment pass a rigorous operating test in the factory and are packed carefully to avoid
transport damage.

Please check packing on delivery for transport damage.

The inlet and discharge flanges are sealed with plugs, so that no dirt can enter during transport.
Plugs must be removed before assembly.

Packing materials should be disposed of according to environmental laws or reused.

The dryer or the compact unit is delivered on a pallet.

The dryer should only be moved by means of the appropriate lifting equipment (e. g. a fork lift
truck or a workshop crane).

Fasten the transport cables to the eyelets of the control cabinets.

Transport must be shock-proofed and free from vibrations.

with a fork lift truck

Push the forks up to the dryer
housing.

Check that the forks reach
completely under the dryer
housing.

Figure 5: Transport with a fork lift truck

SDF 250/400/500

with a workshop crane

Check if the eyelets are installed on the dryer housing.

If this condition is met, fasten the transport cables to the eyelets.

If this condition is not met, mount the eyelets and then fasten the transport cables to the eyelets.

Disassemble the eyelets after set-up.

Figure 6: Transport with a workshop crane

SDF 250/400/500

7.2. Assembly

 Please ensure adequate carrying capacity of the lifting

equipment.

Check the carrying capacity of the point of installation,
particularly if installed on a platform.

The place selected for installation should be as free of vibrations
as possible.

The main switch must be freely accessible.

Ground the equipment against electrostatic charging.

F The machine must not be tilted or laid on its side.

Because of its compact construction the dryer can be installed directly beside the processing
machine (drying hopper on the processing machine) or with one or more drying hoppers as a
movable facility (compact facility).

Special foundations are not necessary for installation.

The dryer must be installed on a level surface and must not be exposed to excessive humidity.
The maximum permissible ambient temperature is 45 °C (113°F).

To facilitate servicing, the dryer should be installed in such a way that that it is accessible from
3 sides. Make sure that the air filters can be changed without problems.

To conserve energy, keep the distance between dryer, hopper and processing machine as small
as possible.

The wheels of the compact unit should be locked to ensure stable installation.

The foil should be removed from the drying hopper.

7.3. Storage

The control system may only be stored at temperatures from 0 to +55°C (32 to +131 °F).
Between delivery and machine commissioning the equipment should be stored in a dry, dust-free
and vibration-free room.

SDF 250/400/500

8. Assembly instructions

 These installation instructions are intended for persons with

skills in electrical and mechanical areas due to their training,
experience and received instructions.

Personnel using these installation instructions must be instructed
in the regulations for the prevention of accidents, the operating
conditions and safety regulations and their implementation.

Ensure in each case that the personnel are informed.

The installation instructions provided in the corresponding
operating instructions apply for all connected equipment.

Observe safety regulations with regard to lifting gear handling.

All installation work must be carried out with the equipment
disconnected from electrical power and compressed air supply.

L For installation work taking place at heights of over approx. 6 feet

(1829mm), use only ladders or similar equipment and working
platforms intended for this purpose. At greater heights, the
proper equipment for protection against falling must be worn.

Use only suitable lifting gear which is in proper working order and
load suspension devices with sufficient carrying capacity. Do not
stand or work under suspended loads!

Use suitable workshop equipment.

F Install the equipment such that all parts are easily accessible; this

facilitates maintenance and repair work.

SDF 250/400/500

8.1. Installation of the exhauster fan for regeneration of exhaust
air

When plastics are being dried that release harmful gases during the drying process, care must be
taken that the regeneration exhaust air is disposed of in an environmentally sound way. At the
same time the throughput of the regeneration blower must not be altered. It should be noted
when assembling a disposal system (e.g. an exhauster system) that the regeneration exhaust air
is very humid. Thus condensation may form, which must not under any circumstances return to
the dryer.

8.2. Connection of Return Air Cooler (Optional)

F A return air cooler must be employed if the return air temperature

is higher than +65 °C (149 °F).

The return air cooler can be connected to a coolant circuit or the water mains network.

Observe the water flow with connection to water mains network. The coolant circuit must be
dimensioned acccordingly.

Remove the side panel of the dryer.

Connect the coolant intake line and coolant return line to the return air cooler.

Obeserve the flow direction of the coolant through the return air cooler.

Check the connections for leaks.

Mount the side panel.

SDF 250/400/500

8.3. Electrical Connection

 Observe the rules of the local electricity board.

Check that the supply voltage and the power frequency are in
accordance with the data on the nameplate of the device.

The electrical connection may only be carried through or
assigned by Sterling service staff or by qualified staff authorized
by Sterling.

Other persons are not permitted to carry through the electrical
connection.
The main switch must be freely accessible.
Ground the equipment against electrostatic charging.

F Regularly make sure that none of the electrical or screw

connections are loose.

Make sure that the main switch is at “0" position before the
electrical connection is carried out.

The operating voltage is 400 V +/- 10%, 3 AC, 50 Hz
Special voltages can be supplied on request.

SDF 250/400/500

8.4. Compressed Air Supply

A compressed air supply is needed to operate the valve stem.

Check whether the compressed air piping has been installed and connected properly.

Check whether fittings, length and quality of the hose assemblies are in accordance with the
requirements.

The operating pressure is 5-6 bar (system overpressure).

Check the compressed air in the factory ductwork system.

Set the air pressure at 5-6 bar (system overpressure).

Open the panel by means of the provided switch cabinet key.

Attach the compressed air main to the maintenance unit (A).

Mount the panel.

L Depressurise the compressed air piping of the unit for all types of

work.

F The compressed air has to be dewatered, dustfree and oilfree.

The operating pressure is 5-6 bar (system overpressure).

SDF 250/400/500

9. Technical data

Basic Version

Central control unit for operating the dryer and the drying hoppers.

Drying temperature adjustment for all connected hoppers

• SPS-S7 PLC

• Touch-screen

• Timer clock

• Regeneration heater with safety temperature limiter

• Isolated alarm output

• Optical alarm

Optional Equipment

• Adjustable, dew point dependent regeneration switch with dew point display

-Optimum efficiency due to continuos online dew point measurements

-Maximum drying quality - minimal energy consumption

-Significant energy savings when processing materials with a low initial moisture content

• Controlled blowers

-Dry air volume optimally adapted to respective requirements

-No loss of heat during part-load operation

-Significant energy savings

• Automatic air distribution through air distribution valves with fuzzy logic control

-Prevents the material from being exposed to un nec es sary ther mal stress

-Significant energy saving due to heater shut-off function

-Optimum operating safety due to special sensor technology

• Throughput control at the drying hopper for automatic dwell time monitoring (only available

when used in conjunction with Sterling Central Conveyor System)

-Optimum protection for changing service conditions

-Alarm or removal stop if dwell time has not been reached

-Optimum operating safety through dwell time monitoring

• Communication Interface

Performance

• Maximum air drying capacity of 250 m3/hr up to 500 m3/h (depending on version)

• Operates with 400 V +/-10 %, 3 AC, 50 Hz voltage

• Average dewpoint temperature of -50° C (- 60 °F)

• Compressed-air consumption valve stem: 3 l/h

SDF 250/400/500

Dimension Sheet

Dimensions and data without obligation. Dimensions in mm. Specifications may be subject to
alterations.

STT 25 – STT 6400

10. Accessories

o Spare parts list Drying Hoppers STT 25 – STT 6400
o _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _
o _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _
o _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _
o _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _

Accessories

Spare parts list

Drying Hoppers

STT 25 – STT 6400

STT 25 – STT 6400

Sterling Material Processing
5200 West Clinton Ave.
Milwaukee, WI 53223

Telephone: [phone]
Fax: [phone]

www.sterlco.com

Technical service:
Service department
Telephone: [phone]

Edition: 07/03

These operating instructions are for*:
(* please fill in personally)

Serial number:
Year of manufature:
Date of Delivery:
Number of delivery:
Date of commissioning:
Location:
Group of machines:

STT 25 – STT 6400

Sterling Material Processing retains all rights to change the information in these operating
instructions at any time without notice.

We assume no liability for any errors or direct or indirect damage resulting in context with these
operating instructions.

Copying, translation or publication in any form except for personal use of purchaser requires
approval from Sterling Material Processing.

All rights reserved.

STT 25 – STT 6400

STT 25 – STT 6400

Pos. ID Description

1 Radiator hopper heater

85343 1.5 kW

85338 3.0 kW

85363 6.0 kW

85651 9.0 kW

95828 18.0 kW, 27.0 kW, 36.0 kW, 63.0 kW

87094 27.0 kW, 48.0 kW, 63.0 kW

2 18232 Hand flap Ø 80

92241 Tension ring

2 16523 Hand flap Ø 150 (> TT 1200)

96099 Tension ring

94231 Dichtring

3 06925 Flow indicator Ø 80

92241 Tension ring

94233 Sealing ring (optional, if flap in use)

3 07418 Flow indicator Ø 150

96099 Tension ring

94231 Sealing ring (optional, if flap in use)

4 16517 Motor flap Ø 80

92241 Tension ring

28923 Cable set

4 16522 Motor flap Ø 150

96099 Tension ring

28923 Cable set

5 05646 Hose

6 96118 Pipe

7 95409 Hose clamp

8 84148 Hose clamp

9 84144 Hose clamp

10 30308 Flap

92241 Tension ring

94233 Sealing ring

11 30335 Material outlet

92241 Tension ring

94233 Sealing ring

12 28000 Suction box with 1 suction tube

27985 Suction box with 3 suction tubes

92241 Tension ring

94233 Sealing ring

STT 25 – STT 6400

Pos. ID Description

13 18232 Hand flap

92241 Tension ring

94233 Sealing ring

14 30306 Lid

16 92241 Tension ring

17 94233 Sealing ring (optional, if flap in use)

18 30350 Grounding set

Multiplier PT 100:

ID Description

86371 Pt 100 (3 m)

89846 Pt 100 (6 m)

93303 PT 100 (9 m)

86387 PT 100 (12 m)

83015 PT 100 (15 m)

Drying Hoppers, complete

Description ID-number

STT 25 30301

STT 60 29767

STT 100 27976

STT 200 29768

STT 400 29769

STT 800 29770

STT 1200 32544

STT 1600 13924

STT 2400 13928

STT 3200 13939

STT 4800 13935

STT 6400 24425
