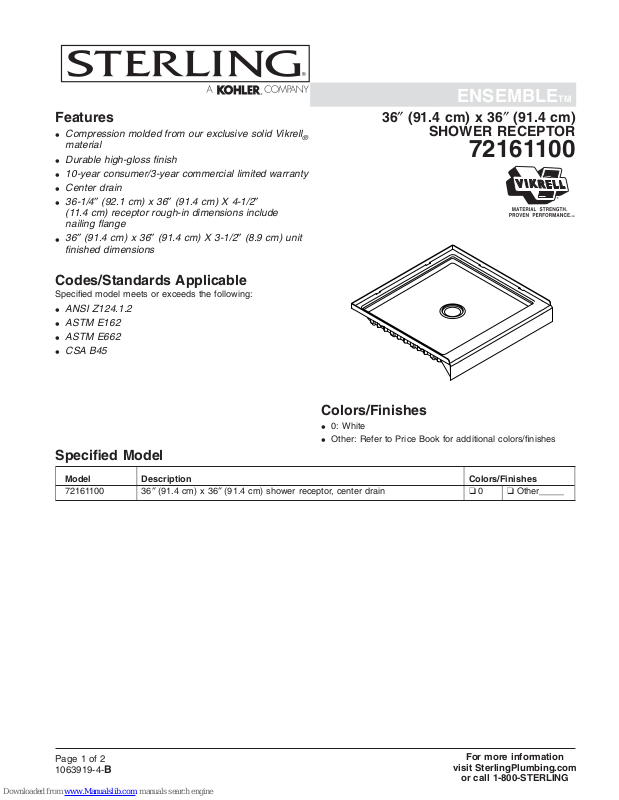

Page 1
ENSEMBLETM
Features
Compression molded from our exclusive solid Vikrell
•
material
Durable high-gloss finish
•
10-year consumer/3-year commercial limited warranty
•
Center drain
•
36-1/4″ (92.1 cm) x 36″ (91.4 cm) X 4-1/2″
•
(11.4 cm) receptor rough-in dimensions include
nailing flange
36″ (91.4 cm) x 36″ (91.4 cm) X 3-1/2″ (8.9 cm) unit
•
finished dimensions
Codes/Standards Applicable
Specified model meets or exceeds the following:
ANSI Z124.1.2
•
ASTM E162
•
ASTM E662
•
CSA B45
•
Specified Model
36″ (91.4 cm) x 36″ (91.4 cm)
®
SHOWER RECEPTOR
72161100
Colors/Finishes
0: White
•
Other: Refer to Price Book for additional colors/finishes
•
Model Description Colors/Finishes
72161100 36″ (91.4 cm) x 36″ (91.4 cm) shower receptor, center drain ❑ 0 ❑ Other_____
Page 1 of 2
1063919-4-
B
For more information
visit SterlingPlumbing.com
or call 1-800-STERLING
Page 2
ENSEMBLETM
Technical Information
Basin area Weight Drain Hole
27-13/16″ (70.6 cm) x
30-5/16″ (77 cm)
16-3/4"
(42.5 cm)
3-5/16"
(8.4 cm) D.
Drain Hole
25 lbs
(12 kg)
12"
(30.5 cm)
4-1/2"
(11.4 cm) D.
Drain Hole
3-5/16″
(8.4 cm) OD
18"
(45.7 cm)
Installation Notes
Install this product according to the installation guide.
Size the drain cutout to fit the drain assembly that will be
used.
Double studding is recommended for pivot shower door
installations.
Studs should be positioned as shown.
10-5/8" (27 cm)
4" (10.2 cm)
8"
(20.3 cm)
26-5/8"
(67.6 cm)
36-1/8" (91.8 cm) Min
36-1/4" (92.1 cm) Max
4-1/2"
(11.4 cm)
3-1/2"
(8.9 cm)
Product Diagram
ENSEMBLETM 36″ (91.4 cm) x 36″ (91.4 cm) SHOWER RECEPTOR
Page2of2
1063919-4-
B
36"
(91.4 cm)
36"
(91.4 cm)
