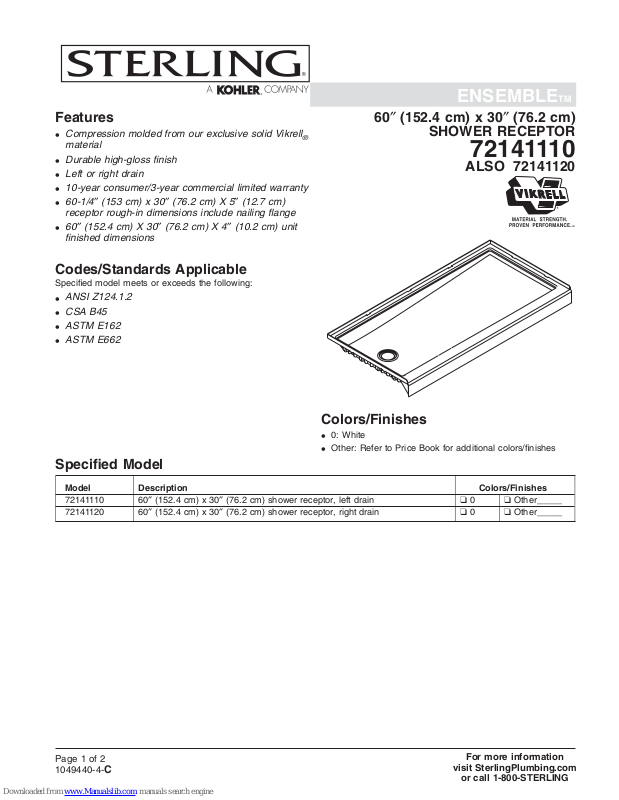

Page 1
ENSEMBLETM
Features
Compression molded from our exclusive solid Vikrell
•
material
Durable high-gloss finish
•
Left or right drain
•
10-year consumer/3-year commercial limited warranty
•
60-1/4″ (153 cm) x 30″ (76.2 cm) X 5″ (12.7 cm)
•
receptor rough-in dimensions include nailing flange
60″ (152.4 cm) X 30″ (76.2 cm) X 4″ (10.2 cm) unit
•
finished dimensions
Codes/Standards Applicable
Specified model meets or exceeds the following:
ANSI Z124.1.2
•
CSA B45
•
ASTM E162
•
ASTM E662
•
60″ (152.4 cm) x 30″ (76.2 cm)
®
SHOWER RECEPTOR
72141110
ALSO 72141120
Colors/Finishes
0: White
•
Other: Refer to Price Book for additional colors/finishes
•
Specified Model
Model Description Colors/Finishes
72141110 60″ (152.4 cm) x 30″ (76.2 cm) shower receptor, left drain ❑ 0 ❑ Other_____
72141120 60″ (152.4 cm) x 30″ (76.2 cm) shower receptor, right drain ❑ 0 ❑ Other_____
Page 1 of 2
1049440-4-
C
For more information
visit SterlingPlumbing.com
or call 1-800-STERLING
Page 2
ENSEMBLETM
Technical Information
Basin area Weight Drain Outlet
56-1/2″ (143.5 cm) x
24-5/16″ (61.8 cm)
24"
31-1/4"
(79.4 cm)
(61 cm)
38 lbs
(17 kg)
8" (20.3 cm)
4" (10.2 cm)
8"
(20.3 cm)
3-5/16″ (8.4 cm)
OD
16"
(40.6 cm)
Installation Notes
Install this product according to the installation guide.
Size the drain cutout to fit the drain assembly that will be
used.
Double studding is recommended for pivot shower door
installations.
Studs should be positioned as shown.
8-1/2"
(21.6 cm)
14" (35.6 cm)
13-7/8"
(35.2 cm)
4-1/2"
(11.4 cm) D.
Drain Cutout
3-5/16"
(8.4 cm) D.
Drain Hole
16"
(40.6 cm)
60-1/8" (152.7 cm) Min
60-1/4" (153 cm) Max
5"
(12.7 cm)
4"
(10.2 cm)
Product Diagram
30"
(76.2 cm)
60"
(152.4 cm)
ENSEMBLETM 60″ (152.4 cm) x 30″ (76.2 cm) SHOWER RECEPTOR
Page2of2
1049440-4-
C
