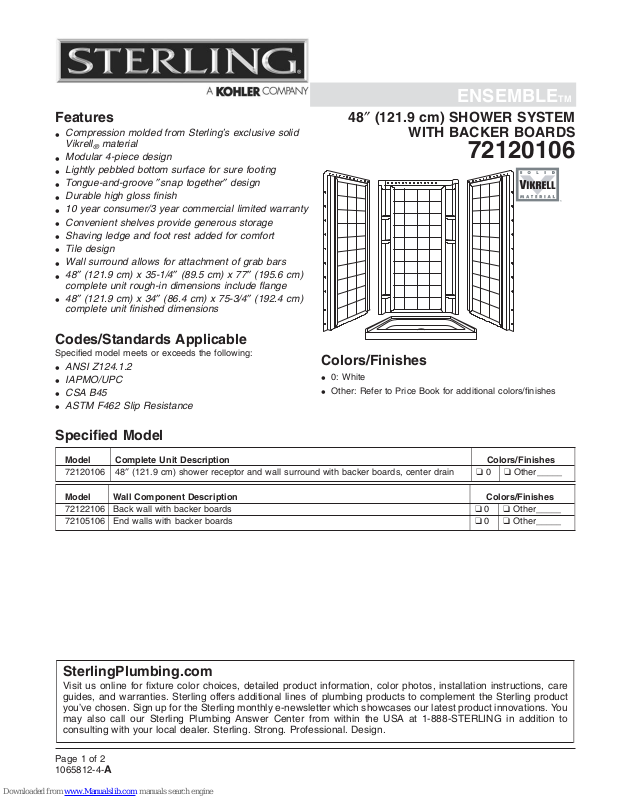

ENSEMBLETM
Features
Compression molded from Sterling’s exclusive solid
•
Vikrell
Modular 4-piece design
•
Lightly pebbled bottom surface for sure footing
•
Tongue-and-groove ″snap together″ design
•
Durable high gloss finish
•
10 year consumer/3 year commercial limited warranty
•
Convenient shelves provide generous storage
•
Shaving ledge and foot rest added for comfort
•
Tile design
•
Wall surround allows for attachment of grab bars
•
48″ (121.9 cm) x 35-1/4″ (89.5 cm) x 77″ (195.6 cm)
•
complete unit rough-in dimensions include flange
48″ (121.9 cm) x 34″ (86.4 cm) x 75-3/4″ (192.4 cm)
•
complete unit finished dimensions
material
®
Codes/Standards Applicable
Specified model meets or exceeds the following:
ANSI Z124.1.2
•
IAPMO/UPC
•
CSA B45
•
ASTM F462 Slip Resistance
•
48″ (121.9 cm) SHOWER SYSTEM
WITH BACKER BOARDS
72120106
Colors/Finishes
0: White
•
Other: Refer to Price Book for additional colors/finishes
•
Specified Model
Model Complete Unit Description Colors/Finishes
72120106 48″ (121.9 cm) shower receptor and wall surround with backer boards, center drain ❑ 0 ❑ Other_____
Model Wall Component Description Colors/Finishes
72122106 Back wall with backer boards ❑ 0 ❑ Other_____
72105106 End walls with backer boards ❑ 0 ❑ Other_____
SterlingPlumbing.com
Visit us online for fixture color choices, detailed product information, color photos, installation instructions, care
guides, and warranties. Sterling offers additional lines of plumbing products to complement the Sterling product
you’ve chosen. Sign up for the Sterling monthly e-newsletter which showcases our latest product innovations. You
may also call our Sterling Plumbing Answer Center from within the USA at 1-888-STERLING in addition to
consulting with your local dealer. Sterling. Strong. Professional. Design.
Page 1 of 2
1065812-4-
A
Page 2
ENSEMBLETM
Technical Information
Model Door maximum
width
72120106 44-5/8″ (113.3 cm) 70-1/2″ (179.1 cm)
Door maximum
height
Installation Notes
Install this product according to the installation guide.
Size the drain cutout to fit the drain assembly that will be
used.
16" (40.6 cm)
4-1/2" (11.4 cm) D.
Drain Cutout
15-13/16"
(40.2 cm)
24"
(61 cm)
10" (25.4 cm)
End stud positioning is critical if nailing-in flanges are to be
used.
Double studding is recommended for pivot shower door
installations.
Studs should be positioned roughly as shown for support clip
or roofing nail installation.
Attach grab bars at the specified backer board locations only.
4" (10.2 cm)
8"
(20.3 cm)
26"
(66 cm)
35-1/4"
(89.5 cm)
48" (121.9 cm) Min
3-5/16"
(8.4 cm)
Max OD
Drain Hole
1"
(2.5 cm)
2"
(5.1 cm)
Note: Right and left end walls are the same, only mirrored.
Backer board locations
48-1/8" (122.2 cm) Max
Recommended Roofing
Nail Locations (4 total)
Front Wall End Wall
2" (5.1 cm)
3.5" (8.9 cm)
10" (25.4 cm)
2" (5.1 cm)
10"
(25.4 cm)
2" (5.1 cm)
18" (45.7 cm) Grab Bar
18" (30.5 cm)
or 24" (61 cm)
Grab Bar
1"
(2.5 cm)
Product Diagram
77"
(195.6 cm)
12"
(30.5 cm)
Grab Bar
1-5/8" (4.1 cm)
at Midpoint
5-1/2"
(14 cm)
4-1/2"
(11.4 cm)
35-1/4"
(89.5 cm)
1-1/4"
(3.2 cm)
72-1/2"
(184.2 cm)
48"
(121.9 cm)
ENSEMBLETM 48″ (121.9 cm) SHOWER SYSTEM WITH BACKER BOARDS
Page2of2
1065812-4-
A
