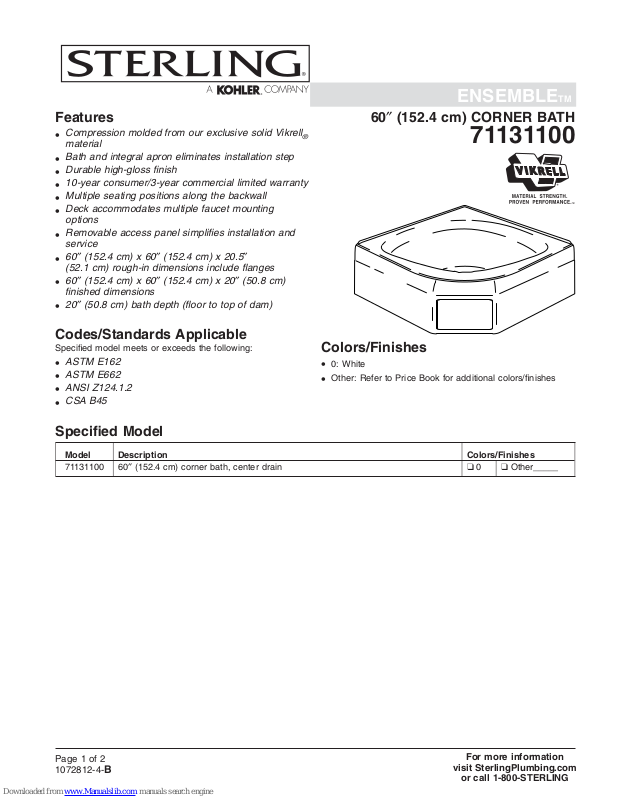

ENSEMBLETM
Features
Compression molded from our exclusive solid Vikrell
•
material
Bath and integral apron eliminates installation step
•
Durable high-gloss finish
•
10-year consumer/3-year commercial limited warranty
•
Multiple seating positions along the backwall
•
Deck accommodates multiple faucet mounting
•
options
Removable access panel simplifies installation and
•
service
60″ (152.4 cm) x 60″ (152.4 cm) x 20.5″
•
(52.1 cm) rough-in dimensions include flanges
60″ (152.4 cm) x 60″ (152.4 cm) x 20″ (50.8 cm)
•
finished dimensions
20″ (50.8 cm) bath depth (floor to top of dam)
•
Codes/Standards Applicable
Specified model meets or exceeds the following:
ASTM E162
•
ASTM E662
•
ANSI Z124.1.2
•
CSA B45
•
60″ (152.4 cm) CORNER BATH
®
71131100
Colors/Finishes
0: White
•
Other: Refer to Price Book for additional colors/finishes
•
Specified Model
Model Description Colors/Finishes
71131100 60″ (152.4 cm) corner bath, center drain ❑ 0 ❑ Other_____
Page 1 of 2
1072812-4-
B
For more information
visit SterlingPlumbing.com
or call 1-800-STERLING
Page 2
ENSEMBLETM
Technical Information
Fixture*:
Basin area:
Bathing well 49″ (124.5 cm) x 42″ (106.7 cm)
Top area 50″ (127 cm) x 60″ (152.4 cm)
To overflow:
Water depth 15-1/4″ (38.7 cm)
Capacity 108 gal (408.8 L)
* Approximate measurements for comparison only.
60" (152.4 cm)
72" (182.9 cm)
44" (111.8 cm)
Installation Notes
Install this product according to the installation guide.
Size the drain cutout to fit the drain assembly that will be
used.
Recommended faucet area
60"
(152.4 cm)
20-1/2"
(52.1 cm)
44"
(111.8 cm)
20"
(50.8 cm)
10-1/4"
(26 cm)
42-7/16" (107.8 cm)
Product Diagram
4-1/4"
(10.8 cm)
42-7/16"
(107.8 cm)
24-7/8"
(63.2 cm)
17-1/2" (44.5 cm)
from the Floor to
the Overflow
1" (2.5 cm) from the
Floor to the Drain
1/2"
(1.3 cm)
Tile Flange
Detail
ENSEMBLETM 60″ (152.4 cm) CORNER BATH
Page2of2
1072812-4-
B
