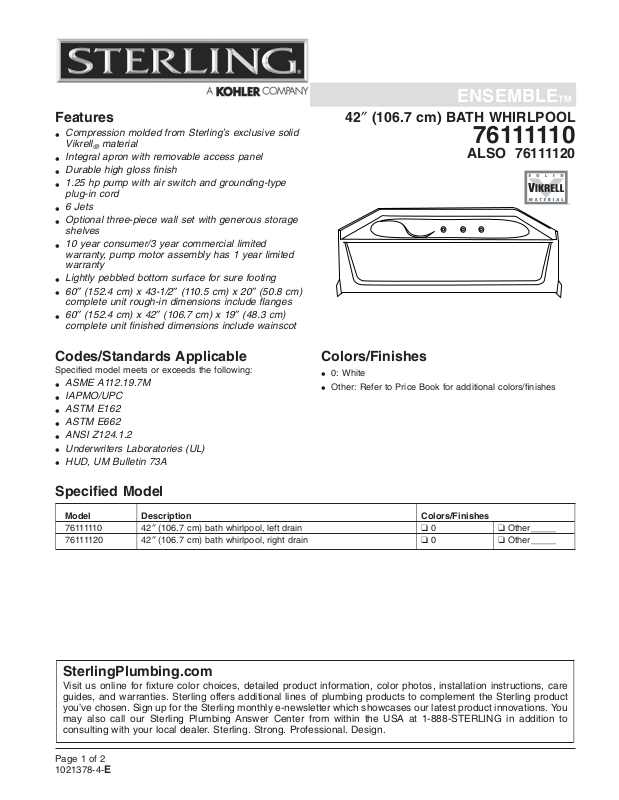

Sterling 76111110, 76111120 User Manual
ENSEMBLETM
Features
Compression molded from Sterling’s exclusive solid
•
Vikrell
Integral apron with removable access panel
•
Durable high gloss finish
•
1.25 hp pump with air switch and grounding-type
•
plug-in cord
6 Jets
•
Optional three-piece wall set with generous storage
•
shelves
10 year consumer/3 year commercial limited
•
warranty, pump motor assembly has 1 year limited
warranty
Lightly pebbled bottom surface for sure footing
•
60″ (152.4 cm) x 43-1/2″ (110.5 cm) x 20″ (50.8 cm)
•
complete unit rough-in dimensions include flanges
60″ (152.4 cm) x 42″ (106.7 cm) x 19″ (48.3 cm)
•
complete unit finished dimensions include wainscot
material
®
Codes/Standards Applicable
Specified model meets or exceeds the following:
ASME A112.19.7M
•
IAPMO/UPC
•
ASTM E162
•
ASTM E662
•
ANSI Z124.1.2
•
Underwriters Laboratories (UL)
•
HUD, UM Bulletin 73A
•
42″ (106.7 cm) BATH WHIRLPOOL
76111110
ALSO 76111120
Colors/Finishes
0: White
•
Other: Refer to Price Book for additional colors/finishes
•
Specified Model
Model Description Colors/Finishes
76 111110 42 ″ (106.7 cm) bath whirlpool, left drain ❑ 0 ❑ Other_____
76111120 42″ (106.7 cm) bath whirlpool, right drain ❑ 0 ❑ Other_____
SterlingPlumbing.com
Visit us online for fixture color choices, detailed product information, color photos, installation instructions, care
guides, and warranties. Sterling offers additional lines of plumbing products to complement the Sterling product
you’ve chosen. Sign up for the Sterling monthly e-newsletter which showcases our latest product innovations. You
may also call our Sterling Plumbing Answer Center from within the USA at 1-888-STERLING in addition to
consulting with your local dealer. Sterling. Strong. Professional. Design.
Page 1 of 2
1021378-4-
E
ENSEMBLETM
Technical Information
Fixture*: basin area top area
Bathing well 40″ (101.6 cm) x
To overflow water depth capacity
* Approximate measurements for comparison only.
Pump: Hp V Hz A
1-speed 1.25 120 60 7
Model Door maximum
76 111110
76111120
* Varies with alternative walls.
27″ (68.6 cm)
11″ (27.9 cm) 55 gal (208.2 L)
width
58″ (147.3 cm)* NA*
52″ (132.1 cm) x
35″ (88.9 cm)
Door maximum
height
16" (40.6 cm)
Required Electrical Service
Dedicated circuit required, protected with Class A
Ground-Fault Circuit-Interrupter (GFCI):
Pump 120 V, 15 A, 60 Hz
Installation Notes
Install this product according to the installation guide.
Pump is supplied with a grounding type plug-in cord. Locate
the outlet behind the whirlpool, and within 24″ (61 cm) of the
pump.
Do not disassemble the pump or piping as this could void the
warranty.
Size the drain cutout to fit the drain assembly that will be
used.
Stud positioning is critical.
Studs should be positioned roughly as shown for support clip
or roofing nail installation.
30" (76.2 cm)
14"
(35.6 cm)
6" (15.2 cm)
(Typical)
3-1/8" (7.9 cm)
Overflow
Detail
3" (7.6 cm)
24-1/2"
(62.2 cm)
1-1/2"
(3.8 cm)
16" (40.6 cm)
60" (152.4 cm)
4"
(10.2 cm)
8"
(20.3 cm)
43-1/2"
(110.5 cm)
42"
(106.7 cm)
8-3/4"
(22.2 cm)
17-1/4"
(43.8 cm)
Drain Cutout
2" (5.1 cm) D. Drain
8-3/4"
(22.2 cm)
3-1/2" (8.9 cm)
60" (152.4 cm) Min
60-1/8" (152.7 cm) Max
Product Diagram
19"
(48.3 cm)
43-1/2"
(110.5 cm)
Pump Motor
Location
Recommended Support
Clip or Roofing Nail
Location (5 total)
76111100
20"
(50.8 cm)
ENSEMBLETM 42″ (106.7 cm) BATH WHIRLPOOL
Page2of2
1021378-4-
