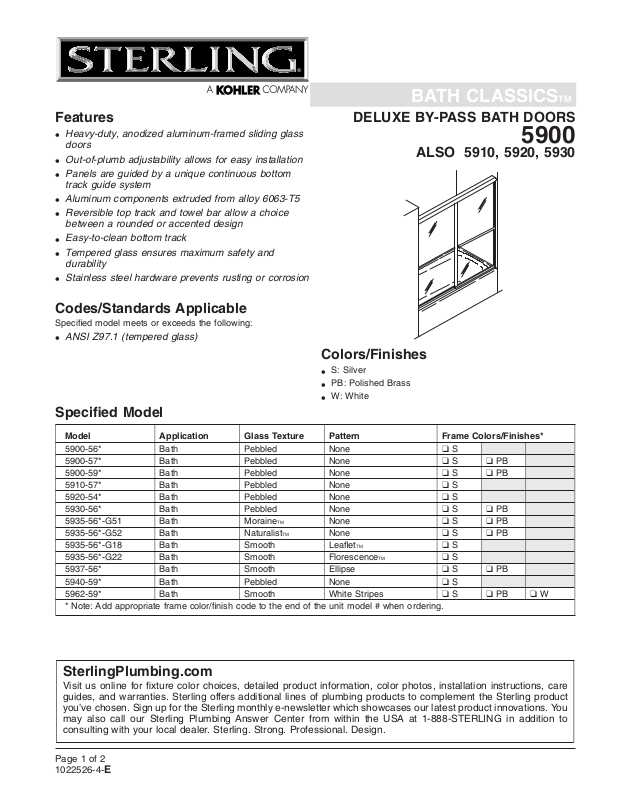

Sterling 5930-56, 5937-56, 5935-56-G51, 5920-54, 5935-56-G22 User Manual

BATH CLASSICSTM

Features

Heavy-duty, anodized aluminum-framed sliding glass

•

doors
Out-of-plumb adjustability allows for easy installation

•

Panels are guided by a unique continuous bottom

•

track guide system
Aluminum components extruded from alloy 6063-T5

•

Reversible top track and towel bar allow a choice

•

between a rounded or accented design
Easy-to-clean bottom track

•

Tempered glass ensures maximum safety and

•

durability
Stainless steel hardware prevents rusting or corrosion

•

Codes/Standards Applicable

Specified model meets or exceeds the following:

ANSI Z97.1 (tempered glass)

•

Specified Model

DELUXE BY-PASS BATH DOORS

ALSO 5910, 5920, 5930

Colors/Finishes

S: Silver

•

PB: Polished Brass

•

W: White

•

5900

Model Application Glass Texture Pattern Frame Colors/Finishes*

5900-56* Bath Pebbled None ❑ S
5900-57* Bath Pebbled None ❑ S ❑ PB
5900-59* Bath Pebbled None ❑ S ❑ PB
5910-57* Bath Pebbled None ❑ S
5920-54* Bath Pebbled None ❑ S
5930-56* Bath Pebbled None ❑ S ❑ PB
5935-56*-G51 Bath Moraine
5935-56*-G52 Bath Naturalist
5935-56*-G18 Bath Smooth Leaflet
5935-56*-G22 Bath Smooth Florescence
5937-56* Bath Smooth Ellipse ❑ S ❑ PB
5940-59* Bath Pebbled None ❑ S
5962-59* Bath Smooth White Stripes ❑ S ❑ PB ❑ W
* Note: Add appropriate frame color/finish code to the end of the unit model # when ordering.

TM None ❑ S ❑ PB

TM None ❑ S ❑ PB

TM ❑ S

TM ❑ S

SterlingPlumbing.com

Visit us online for fixture color choices, detailed product information, color photos, installation instructions, care
guides, and warranties. Sterling offers additional lines of plumbing products to complement the Sterling product
you’ve chosen. Sign up for the Sterling monthly e-newsletter which showcases our latest product innovations. You
may also call our Sterling Plumbing Answer Center from within the USA at 1-888-STERLING in addition to
consulting with your local dealer. Sterling. Strong. Professional. Design.

Page1of2
1022526-4-

E

BATH CLASSICSTM

Technical Information

Model A (Max Width) B (Height) C (Walk Through Max)

5900-56
5900-57
5900-59
5910-57
5920-54
5930-56
5935-56
5937-56
5940-59
5962-59

56-1/4" (142.9 cm)
57-3/4" (146.7 cm)
59-3/8" (150.8 cm)
57" (144.8 cm)
54" (137.2 cm)
56-1/4" (142.9 cm)
56-1/4" (142.9 cm)
56-1/4" (142.9 cm)
59" (149.9 cm)
59-3/8" (150.8 cm)

55-1/4" (140.3 cm)
56-1/4" (142.9 cm)
56-1/4" (142.9 cm)
55-3/4" (141.6 cm)
53-3/8" (135.6 cm)
55-1/4" (140.3 cm)
55-1/4" (140.3 cm)
55-1/4" (140.3 cm)
58" (147.3 cm)
56-1/4" (142.9 cm)

26-1/4" (66.7 cm)
26-15/16" (68.4 cm)
27-3/4" (70.5 cm)
26-1/4" (66.7 cm)
25-1/8" (63.8 cm)
26-1/4" (66.7 cm)
26-1/4" (66.7 cm)
26-1/4" (66.7 cm)
27-3/4" (70.5 cm)
27-3/4" (70.5 cm)

3-7/8" (9.8 cm)

1-7/8" (4.8 cm)

A

2-5/16"
(5.9 cm)

2-3/16"
(5.6 cm)

B

2-1/8"
(5.4 cm)

2" (5.1 cm)

C

Product Diagram

BATH CLASSICSTM DELUXE BY-PASS BATH DOORS
Page2of2

1022526-4-

E
