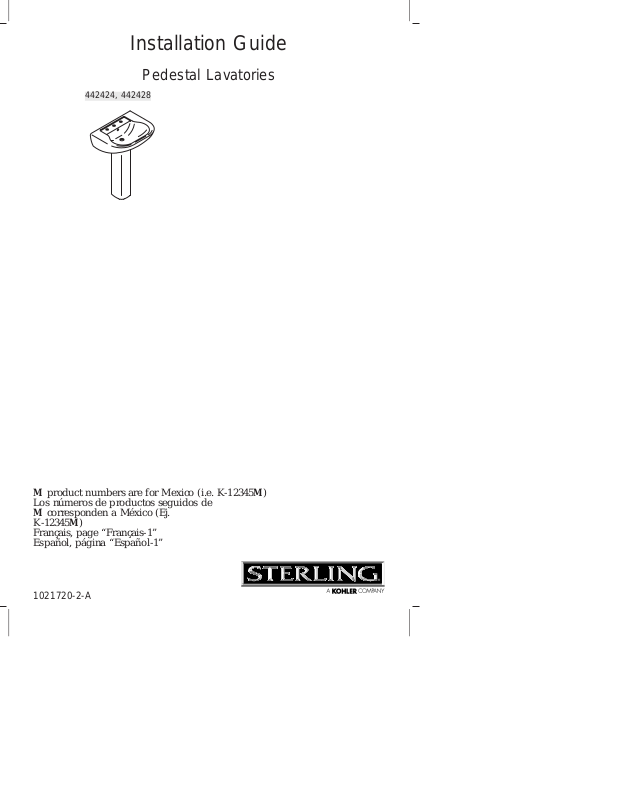

Sterling 442428, 442424 User Manual

Installation Guide
Pedestal Lavatories
M product numbers are for Mexico (i.e. K-12345M) Los números de productos seguidos de M corresponden a México (Ej. K-12345M) Français, page “Français-1” Español, página “Español-1”
1021720-2-A
Thank You For Choosing Sterling
We appreciate your commitment to Sterling value. Please take a few minutes to review this manual before you start installation. If you encounter any installation or performance problems, please don’t hesitate to contact us. Our phone numbers are listed on the back cover. Thanks again for choosing Sterling.
Tools and Materials
1/2" and 9/16" Combination Wrenches
Drill
Pencil
Square
Level
Pipe Wrench
Safety Glasses
Plus:
• Common Woodworking Tools and Materials
• 3/16" Drill Bit
Tape Measure
1021720-2-A 2 Sterling
6-5/8" (16.8 cm)
18-1/4" (46.4 cm)
6" (15.2 cm)
23-3/8" (59.4 cm)
A
23-3/8" (54 cm)
15-1/4" (38.7 cm)
2-5/8" (6.7 cm)
7-3/4" (19.7 cm)
1/2" (1.3 cm) D. Mounting Hole in Pedestal
1/2" (1.3 cm) D. Anchor Holes (2) in Lavatory
442424 442428
A 4" (10.2 cm) 8" (20.3 cm)
9" (22.9 cm)
14-1/4" (36.2 cm)
3/8" Hot
1-1/4" Drain Outlet
Common Pedestal Model
Provide Backing
3/8" Cold
4" (10.2 cm)
33" (83.8 cm)
Before You Begin
Observe all local plumbing codes. Prior to installation, unpack the new lavatory and pedestal and
inspect them for damage. Return the lavatory and pedestal to the protective cartons until
you are ready to install. These instructions are for installing the lavatory to wood frame
construction. For other installations, provide suitable bracing and fastening devices of sufficient size and strength.
The walls and floor must be square, plumb, and level. Lavatory dimensions are nominal and conform to tolerances in
ASME/ANSI A112.19.2M standards for vitreous china plumbing fixtures.
5-5/8" (14.3 cm)
1. Prepare the Site
NOTE: The supply stop handles must not extend more than 4-1/2 (11.4 cm) from the finished wall when in the open position.
Install 3/8water supply lines and 1-1/4drain piping according to the roughing-in information.
Sterling 3 1021720-2-A
Prepare the Site (cont.)
Install sufficient backing behind the finished wall to provide a secure material for the anchoring devices. The combined thickness of the wood backing and finished wall material must be at least 1-1/2(3.8 cm).
Install the finished wall material using established methods and materials.
1021720-2-A 4 Sterling
The drain and faucet are not
Position Six Self-Adhesive Pads to the Top of the Pedestal.
Hanger Bolt
Lag Bolt
Washer
Pedestal
The pedestal height is reduced to improve clarity.
shown to improve clarity.
Cap Nuts
2. Install the Lavatory
Apply six self-adhesive pads along the top surface of the pedestal.
Mark the pedestal centerline on the floor.
CAUTION: Risk of personal injury or product damage. This pedestal lavatory is heavy. Get help lifting and moving it.
Position the pedestal on the floor centerline. Refer to the roughing-in information for correct placement.
Carefully lift the lavatory into place on the pedestal. Level the lavatory and add additional self-adhesive pads as needed to level. If the bottom of the lavatory contacts the pedestal, reposition the self-adhesive pads as needed. Make sure the lavatory fits flat against the finished wall.
Refer to the roughing-in information to ensure the correct distance between the pedestal and the wall.
Mark the two lavatory anchoring holes on the finished wall. Mark the pedestal anchoring hole on the floor through the hole in
the pedestal bottom. Carefully remove the lavatory from the pedestal. Carefully move the pedestal and lavatory away from the
installation area. Drill 3/16holes at the marked locations on the finished wall and
floor.
Washer
Sterling 5 1021720-2-A
Install the Lavatory (cont.)
NOTE: You can also use other fastening devices of sufficient size and strength.
Install the hanger bolts to the backing material. Thread the cap nuts onto the two hanger bolts. Use a 9/16wrench to thread the hanger bolts into the wall so 1(2.5 cm) of each bolt remains exposed between the cap nuts and finished wall.
Remove the cap nuts. Install the faucet and drain to the lavatory according to the
manufacturer’s instructions. Move the pedestal and lavatory back into position and fit the
lavatory over the hanger bolts. Make sure the lavatory rests directly on the pedestal and fits flat against the wall.
Remove the lavatory and set it aside.
CAUTION: Risk of product damage. Do not overtighten or damage may occur.
Thread a washer and lag bolt through the pedestal hole and into the floor until the washer contacts the pedestal. Tighten the lag bolt until snug.
Move the lavatory back into position over the hanger bolts. Double check the installation to be sure it is level and properly
positioned. Install washers and cap nuts to the hanger bolts and tighten until
the washers contact the lavatory. Tighten the cap nuts until snug. Connect and tighten the trap to the drain. Complete the water supply connections to the faucet according to
the instructions packed with the faucet. Clean up with a nonabrasive cleaner.
Care and Cleaning
Clean the outside surface of your vitreous china lavatory with mild soap and warm water. Wipe the entire surface completely dry with a clean, soft cloth. You may use soft abrasive cleaners when necessary to clean your lavatory. Do not use strong abrasive cleaners, as they will scratch and dull the surface.
If the surface becomes excessively dirty, use a general purpose cleaner such as: Fantastik Soft Scrub
Multi Purpose, Scrub Free®Disinfectant Bathroom Cleaner,
®
Clorox Clean-Up
1021720-2-A 6 Sterling
All Purpose, Lysol®Basin, Tub and Tile Cleaner,
®
, Spic and Span Liquid, Comet®Liquid Bathroom
®
Care and Cleaning (cont.)
Cleaner, Scrubbing Bubbles or Bon Ami
.
®
Bathroom Cleaner, Bar Keeper’s Friend®,
®
Sterling Vitreous China Fixture Limited Warranty
Sterling warrants this vitreous china fixture to be free of manufacturing defects for five years from the date of sale.
Sterling will, at its election, repair or replace a fixture where Sterling inspection discloses any such defects occurring in normal usage within the time period of coverage stated above. Sterling is not responsible for removal or installation costs where replacement is indicated. Damage due to improper installation or improper maintenance are not considered manufacturing defects and are not covered by this warranty. This is valid for the original consumer purchaser only.
To obtain warranty service, contact Sterling; either through your plumbing contractor, home center, wholesaler or dealer, or by calling or writing Sterling Plumbing, Consumer Services, 444 Highland Drive, Kohler, WI 53044. Call toll free 1-888-STERLING (1-888-783-7546), or fax 920-457-0910 or in Mexico 011-877-680-1310.
To the extent permitted by law, all implied warranties including those of merchantability and fitness for a particular purpose are hereby disclaimed. Sterling disclaims any liability for special, incidental, or consequential damages.
Some states/provinces do not allow limitations on how long an implied warranty lasts, or the exclusion or limitation of incidental or consequential damages, so these limitations and exclusions may not apply to you. This warranty gives you specific legal rights. You may have other rights which vary from state/province to state/province.
This limited warranty provides specific legal rights as they apply within the USA, and other rights may be available, but may vary from country to country.
This is our exclusive written warranty.
Sterling 7 1021720-2-A
Guide d’installation
Lavabos sur colonne
Outils et matériels
Clé combinée de 1/2" et 9/16"
Perceuse
Crayon à papier
Équerre
Niveau à bulle
Clé à griffes
Lunettes de protection
Plus :
• Outils et matériaux du travail du bois
• Mêche de 3/16"
Mètre ruban
Merci d’avoir choisi Sterling.
Nous apprécions votre engagement envers la qualité de Sterling. Veuillez prendre s’il vous plaît quelques minutes pour lire ce manuel avant de commencer l’installation. Ne pas hésiter pas à nous contacter en cas de tout problème d’installation ou de fonctionnement. Nos numéros de téléphone sont indiqués au verso. Merci encore d’avoir choisi Sterling.
Sterling Français-1 1021720-2-A
