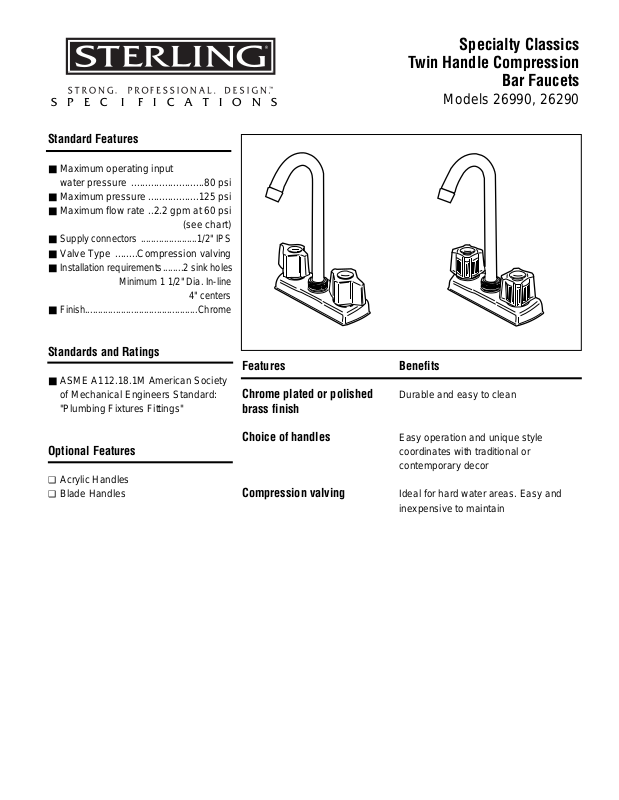

Sterling 26990, 26290 User Manual
Standard Features
■ Maximum operating input
water pressure ..........................80 psi
■ Maximum pressure ..................125 psi
■ Maximum flow rate ..2.2 gpm at 60 psi
(see chart)
■
Supply connectors ......................1/2" IPS
■ Valve Type ........Compression valving
■
Installation requirements........2 sink holes
Minimum 1 1/2" Dia. In-line
4" centers
■
Finish............................................Chrome
Standards and Ratings
■ ASME A112.18.1M American Society
of Mechanical Engineers Standard:
"Plumbing Fixtures Fittings"
Optional Features
❑ Acrylic Handles
❑ Blade Handles
Features
Chrome plated or polished
brass finish
Choice of handles
Compression valving
Benefits
Durable and easy to clean
Easy operation and unique style
coordinates with traditional or
contemporary decor
Ideal for hard water areas. Easy and
inexpensive to maintain
S P E C I F I C A T I O N S
Specialty Classics
Twin Handle Compression
Bar Faucets
Models 26990, 26290
Specialty Classics
Twin Handle Compression
Bar Faucets
Models 26990, 26290
D I M E N S I O N S
© 2001 Sterling Plumbing, 444 Higland Drive, Kohler, WI 53044 1-888-STERLING
Pub. No. 9907 01/02 www.sterlingplumbing.com Printed in U.S.A.
★Made in U.S.A.
Bar Faucet with Blade Handles
and Gooseneck Spout
Bar Faucet with Acrylic Handles
and Gooseneck Spout
LINE PRESSURE
P.S.I. GAUGE
FLOWRATE (gpm)
4"
2"
2"
6¹⁄₄"
2 ¹¹⁄₁₆"
2"
7 ⁵⁄₈"
30˚
4 ¹⁵⁄₁₆"
2 ¹⁄₈"
4 ¹⁄₈"
4"
2"
2 ¹⁄₄"
6¹⁄₄"
2 ¹¹⁄₁₆"
2"
7 ⁵⁄₈"
30˚
4 ¹⁵⁄₁₆"
2 ¹⁄₈"
4 ¹⁄₈"
Fixture dimensions are nominal and conform to tolerances established by ANSI Standards, Z124.1.
3.0
2.5
2.0
1.5
1.0
0.5
0.0
0.0 10 20 30 40 50 60 70 80
