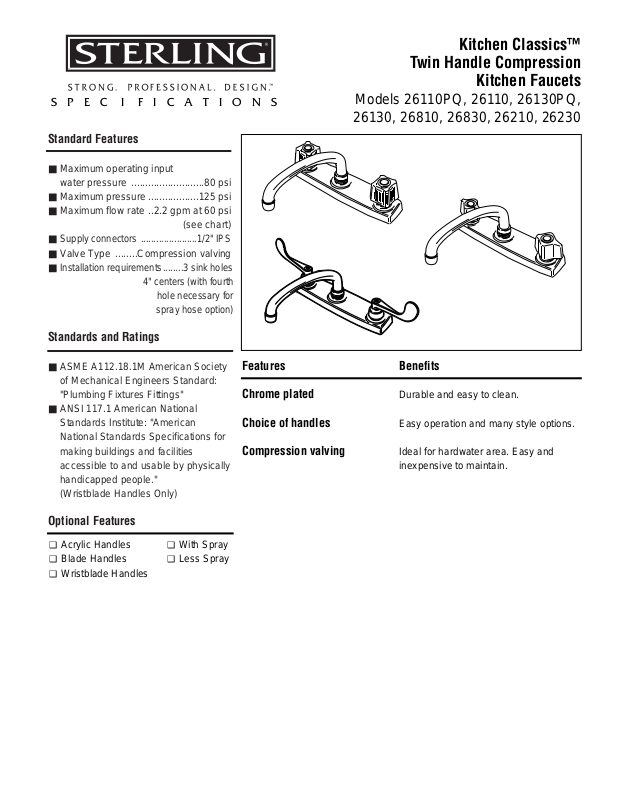

Sterling 26230, 26110PQ, 26130, 26830, 26130PQ User Manual

...

Standard Features

■ Maximum operating input

water pressure ..........................80 psi

■ Maximum pressure ..................125 psi

■ Maximum flow rate ..2.2 gpm at 60 psi

(see chart)

■

Supply connectors ......................1/2" IPS

■ Valve Type ........Compression valving

■

Installation requirements........3 sink holes

4" centers (with fourth

hole necessary for spray hose option)

Standards and Ratings

■ ASME A112.18.1M American Society of Mechanical Engineers Standard: "Plumbing Fixtures Fittings"

■ ANSI 117.1 American National Standards Institute: "American National Standards Specifications for making buildings and facilities accessible to and usable by physically handicapped people." (Wristblade Handles Only)

Optional Features

Features

Chrome plated

Choice of handles

Compression valving

Kitchen Classics™

Twin Handle Compression

Kitchen Faucets

Models 26110PQ, 26110, 26130PQ,

26130, 26810, 26830, 26210, 26230

Benefits

Durable and easy to clean.

Easy operation and many style options.

Ideal for hardwater area. Easy and inexpensive to maintain.

S P E C I F I C A T I O N S

❑ Acrylic Handles ❑ Blade Handles ❑ Wristblade Handles

❑ With Spray ❑ Less Spray

Kitchen Classics™ Twin Handle Compression Kitchen Faucets

Models 26110PQ, 26110, 26130PQ, 26130,

26810, 26830, 26210, 26230

D I M E N S I O N S

Pub. No. 9908 01/02 www.sterlingplumbing.com Printed in U.S.A.

★Made in U.S.A.

Twin Handle Compression Kitchen Faucet

with Wristblade Handles

Twin Handle Compression Kitchen Faucet

with Acrylic Handles

Twin Handle Compression Kitchen Faucet

with Blade Handles

LINE PRESSURE

P.S.I. GAUGE

FLOWRATE (gpm)

Fixture dimensions are nominal and conform to tolerances established by ANSI Standards, Z124.1.

8 ⁵⁄₁₆"

7 ⁷⁄₈"

4 ⁵⁄₈"

2 ⁷⁄₈"

1 ⁷⁄₈"

8 ⁵⁄₁₆"

7 ⁷⁄₈"

6 ³⁄₈"

8 ⁵⁄₁₆"

7 ⁷⁄₈"

6 ³⁄₈"

4 ⁵⁄₈"

4 ¹⁄₄"

1 ⁷⁄₈"

3.0

2.5

6 ³⁄₈"

4 ⁵⁄₈"

2 ⁷⁄₈"

1 ⁷⁄₈"

2.0

1.5

1.0

0.5

0.0

0.0 10 20 30 40 50 60 70 80
