[GB] Installation guide
Stera Lux AD
www.steralux.fi
STERA LUX AD 20 W, 40 W, 70 W, 100 W, 150 W
[GB] INDUSTRIAL / STORAGE / OFFICE LUMINAIRE
INSTALLATION INSTRUCTION
Stera Techonologies Oy
Tierankatu 5
20520 Turku
Finland
IP44
Max Ta 50 ℃
[GB] Installation guide
Stera Lux AD
www.steralux.fi
[GB] Screw fixing
2
1
Safety warnings:
To reduce the
possibility of an
electric shock,
disconnect the target
from the mains
electricity before
installation or
maintenance work!
- Installation or maintenance work
must be carried out with
appropriate competence and in
accordance with these
instructions
- The light source can only be
changed by Stera Technologies
Oy, or by an authorized
maintenance technician
- The manufacturer does not bear
responsibility for misuse of the
luminaire
- Avoid staring directly at the light
- For indoor use only
15 cm
[GB] Installation guide
Stera Lux AD
www.steralux.fi
2
1
1
2

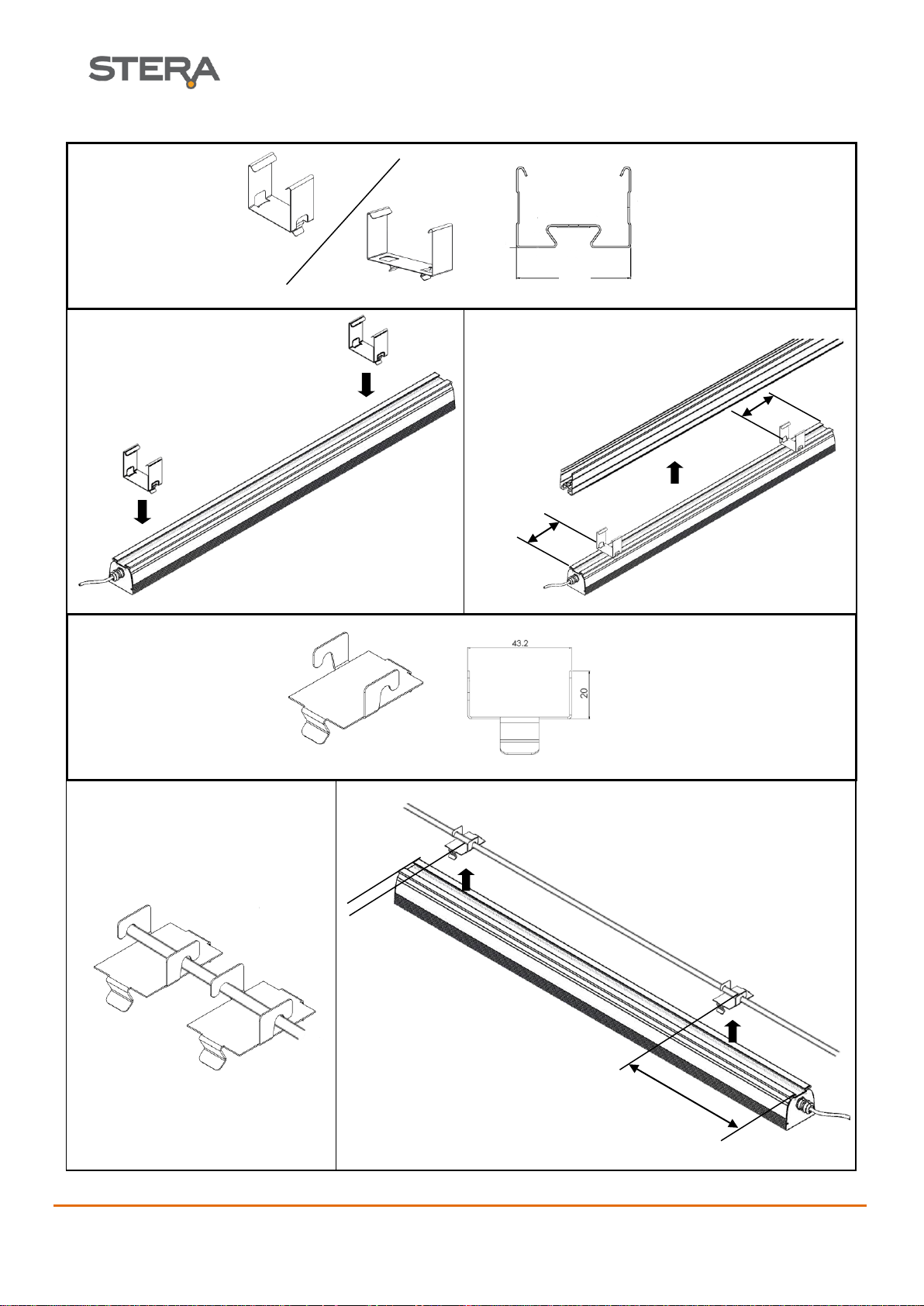

[GB] Rail mounting
[GB] Cable attachment
X
X = 70
120
15cm
15cm
15cm
15cm
[GB] Installation guide
Stera Lux AD
www.steralux.fi
Power
3
[GB] Wiring
Brown(L) / Black(1) [GB]
L ( 1 )
Blue(N) / Black(2) [GB]
N ( 2 )
Yellow-Green [GB]
PE
With
Control
Signal
Brown(L) / Black(1) [GB]
L ( 1 )
Note! Control circuit must be isolated from
the 230 V mains components!
Blue(N) / Black(2) [GB]
N ( 2 )
Yellow-Green [GB]
PE
Black(3) [GB]
C+ ( 3 )
Black(4) [GB]
C- ( 4 )
Terminal block minimum specifications:
Type of Terminal Screw / Spring
Number of Terminals 3 / 5
Rated Voltage 400 V
Rated Connecting Capacity 1,5 … 2,5 mm²
Note! Junction box must be rated at least IP44!
L
PE
N
L
PE N L
PE
N
C+
C-
L
PE
N
C+
C-
Spacing
