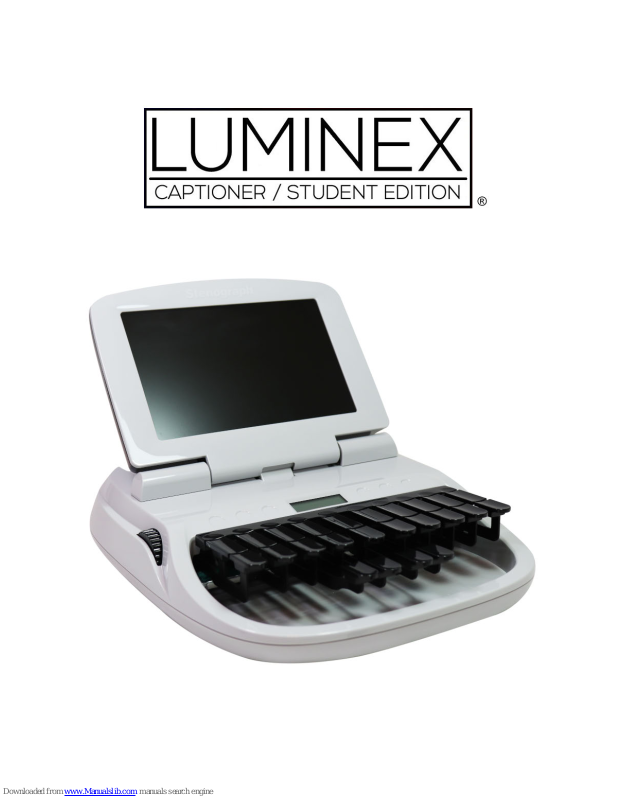

Stenograph Luminex Captioner Student Edition, Luminex CSE Student User Manual

Luminex Captioner/Student User Guide

Release: October 2018, August 2018.

Stenograph. Adjustable LCD Screen Assembly for Writing Machine. U.S. patent 7,403,375, filed May 27, 2005, and issued July 22, 2008.

This material is protected by law, including the Copyright Act of 1976 and is not to be copied, reproduced, modified, sold, stored or transmitted in any form or by any means (electronic, mechanical, photocopy, recording or otherwise), or used in any other manner, without the prior written permission of Stenograph.

STENOGRAPH PROPRIETARY: This material constitutes proprietary and trade secret information of Stenograph and shall not be disclosed to any third party, nor used by the recipient, except under the terms and conditions of the purchase agreement between the customer and Stenograph.

This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

Changes may be made periodically to the information in this publication. Such changes will be incorporated in any new edition of this manual.

Stenograph is a Pettibone Company.

Luminex, Case CATalyst, CATalyst, EasyLock, Diamante, TrueStroke Technology, élan Mira, Stentura Fusion, SmartWriter, Stentura, Stenograph logo and Stenograph are trademarks and registered trademarks of Stenograph.

Windows is a registered trademark of Microsoft Corporation in the United States and other countries.

All other trademarks are the property of their respective owners.

Luminex Captioner/Student User Guide

Congratulations

We strongly encourage you to read this User Guide and practice using your writing machine according to the instructions contained therein. This will allow you to become comfortable and familiar with it before taking it on a job or into class.

The Luminex Captioner/Student Edition is equipped with a full-color high resolution LCD touch screen for viewing steno or text and to interact with what is displayed.

The Luminex Captioner/Student Edition comes with a built-in rechargeable battery. Advanced battery technology prevents the battery from overcharging so you don’t have to worry about leaving the writer plugged into an electrical outlet for extended periods of time.

EasyLock™ LMX V2 tripod positioning with a positive-locking mechanism provides smooth and easy setup. Simply open and set the tripod on the floor and place your machine on it according to the instructions in this guide. The design of the tripod assures a smooth, even writing platform for you to enjoy. A tilt-mechanism enables the writer to be tilted 70o forward and backwards to suit your personal preference.

Weighing in at only 3.5 pounds, the Luminex Captioner/Student Edition lightens your load when carrying it from place to place.

Remember to check the Stenograph® web site, www.stenograph.com, for updates to the Luminex.

The Luminex Captioner/Student Edition was designed with you in mind. We are confident you’ll enjoy using it!

STENOGRAPH

Luminex Captioner/Student User Guide

The Importance of Working Comfortably and Effectively

Stenograph believes that the Luminex Captioner/Student Edition shorthand machine, when used in compliance with the enclosed instructions and information, is safe. Certain sources, though controverted, suggest a relationship between injuries of the hands and forearms with prolonged use of any type of keyboard or other equipment involving repetitive movements of the hands. At the same time, other sources indicate that there is no such cause and effect.

The safety and well-being of persons using Stenograph equipment is of paramount concern and because we recognize that these medical and scientific questions are not definitively resolved, Stenograph encourages all users of our writers to carefully review the following Work Area Checklist and to use appropriate work habits. Remember, personalizing your environment so that it is comfortable for you, promotes a healthy physical and mental work lifestyle.

The following Work Area Checklist is not intended to be all inclusive but a guideline for you to use. Only you can determine what is best for you. Use the checklist to assess and adjust your work area to suit your own needs. Personalizing your environment so that it is comfortable for you promotes a healthy physical and mental work lifestyle.

At Your Luminex Captioner/Student Edition Use a comfortable chair conducive to correct posture. Adjust the height of the shorthand machine appropriately for your body. Position the shorthand machine comfortably close to you. Place the tripod between your knees. Do not sit “sidesaddle”. Minimize the use of the shorthand machine on surfaces other than the tripod stand.

iii

At Your Computer Place the monitor screen perpendicular to the window to help avoid glare. Adjust or close window coverings. Arrange materials such as reference books or a telephone close to you to help avoid excessive reaching or twisting. Clear the area under and around the desk to leave room for your feet and legs. Remove sources of distraction around the monitor. Keep noise to a minimum. See accompanying materials provided by the computer keyboard manufacturer.

Your Body Take frequent breaks to stretch or exercise. Maintain a straight wrist position. Avoid resting your wrists while writing. Keep your hands level with your forearms. Let your fingers curve naturally. Let your forearm go up and down a little when you write, pivoting at the elbow, not at the wrists. Pull your steno machine comfortably close to you. Keep your feet on the floor or supported by a footrest. Support your lower back. Assure that your knees are bent at an angle of 90° or more and your thighs at an angle of 90° or greater in relation to your torso. Adjust the chair position and your posture throughout the day. If you experience any aching, numbing, or tingling in your arms, wrists, or hand, consult a qualified health care professional.

iii

Luminex Captioner/Student User Guide

TABLE OF CONTENTS

Chapter 1 Setting up your Writer 1

Turning your writer On and Off ......................................................................................... 2

Tripod Setup ........................................................................................................................ 2

Charging the Battery ........................................................................................................... 4

Install the Luminex Captioner Student Edition USB Driver ............................................. 4

Luminex Captioner Student Edition Technical Support .................................................. 5

Chapter 2 Understanding the Shorthand Machine 6

Chapter 3 Hardware Features 8

Battery ................................................................................................................................. 8

View Battery Charging Status ..................................................................................... 10

View Battery Voltage Levels ....................................................................................... 10

Low Battery Warnings ................................................................................................. 11

Battery Ga uge ............................................................................................................. 11

Tilting Screen Battery Mes sag es ................................................................................ 12

Communication Port ......................................................................................................... 12

Powering the with the USB Cable ............................................................................... 12

Updating With the USB Cable ..................................................................................... 13

Connect for Writing Realtime ..................................................................................... 13

USB Communications .................................................................................................. 13

USB Virtual Serial Port Communications ..................................................................... 14

Touch Sensors (Function Keys) ........................................................................................ 15

Keyboard Depth and Tension Control ............................................................................. 16

Adjust Depth of Stroke ................................................................................................ 16

Adjust Keyboard Tens ion ............................................................................................. 17

Reset ................................................................................................................................... 17

Status LCD .......................................................................................................................... 17

Tilting Color Screen ........................................................................................................... 18

Chapter 4 Writing on the Captioner/Student Edition 20

Accessing Luminex Captioner/Student Edition Features ............................................... 20

Opening Menu ................................................................................................................... 20

Writing Menus ................................................................................................................... 21

Writing Jobs ....................................................................................................................... 21

Beeper Volume .................................................................................................................. 22

Copy Log ............................................................................................................................. 22

Luminex Captioner/Student User Guide

Strokes Per Minute ........................................................................................................... 23

Electronic Marks ................................................................................................................ 23

Keyboard Layout ............................................................................................................... 23

Keyboard Options ............................................................................................................. 24

Keyboard Adjustments ................................................................................................ 24

Individual Key Adjustments ......................................................................................... 25

Memory .............................................................................................................................. 27

View Memory Files ...................................................................................................... 27

Read Steno Notes from Memory ................................................................................. 28

Memory Full ................................................................................................................. 29

Erase Memory Files ..................................................................................................... 30

Options ............................................................................................................................... 30

Prompt to End a Job Option ............................................................................................ 31

TABLE OF CONTENTS

Routine Care ...................................................................................................................... 31

Scroll ................................................................................................................................... 32

Search ................................................................................................................................. 33

Serial Protocol ................................................................................................................... 33

Status ................................................................................................................................. 34

Steno Test .......................................................................................................................... 34

Test Mode .......................................................................................................................... 35

Tilting Screen Appearance ............................................................................................... 36

Time and Date ................................................................................................................... 37

USB Communication Option ............................................................................................ 38

Chapter 5 Troubleshooting 39

Appendix A Updating Captioner/Student Software 40

Appendix B Captioner/Student Edition Utilities 42

Stenograph Writer Utility Programs ............................................................................... 42

Luminex Captioner/Student User Guide

Chapter 1, Setting Up your Writer, describes the steps to set up your new writing machine, how to turn it On and Off, charge the batteries and load the USB drivers. It also provides Technical Support contact information should you need additional assistance.

Chapter 1 Setting up your Writer

Package Contents

Review the contents of the writer bag before setting up your Writer. Your new Writer comes with the following items:

• Luminex Captioner/Student Edition writer

• Carrying case

• EasyLockTM Z12 tripod

• 110/220 AC adapter/charger

• Micro USB cable (6 ft.)

• Optical-quality spray cleaner and cleaning cloth

• Promotional insert

The Luminex Captioner/Student Edition provides you with the following features:

Full-Color, High Resolution LCD screen which pivots a full 180o.

Six capacitive touch sensors. The first one on the left turns the Luminex On and Off.

View steno notes.

Realtime ready through USB.

Adjustable digital clock with month, date, and time.

Adjust beeper volume.

Adjust screen brightness and text color and font size.

Update Luminex software from Internet download via USB.

Date and timestamp note files.

Search for and display the last StenoMark, or steno string.

Scroll forward and backward in a file.

Keyboard and individual key sensitivity adjustments.

Luminex Captioner/Student User Guide

Chapter 1 Setting up your Writer

Turning your writer On and Off

On either side of the Status LCD are three touch sensors. Each touch sensor serves a specific purpose, or function, on the different menus.

Touch the first touch sensor on the left side of the Luminex Captioner/Student Edition to turn the Luminex Captioner/Student Edition On and Off. When turning the Luminex Captioner/Student Edition Off, touch the sensor until you hear a beep and then lift your finger from the touch sensor.

Tripod Setup

Luminex Captioner/Student Edition Tripod

Tripod setup includes attaching the Writer to the tripod, only the EasyLock LMX V2 tripod designed with three straight legs, tilting mechanism and constructed of high gauge aluminum to provide a lightweight but strong and stable stand for your Luminex Captioner Student Edition. The EasyLock LMX V2 tripod fully extends to 27.5 inches. When folded, the tripod is 12.5 inches long.

Attaching the Tripod

The Luminex Captioner/Student Edition uses only the EasyLock Z12 tripod designed with three straight legs and constructed of high gauge aluminum to provide a lightweight but strong and stable stand for your Luminex Captioner Student Edition. When folded, the tripod is 12 inches long.

1. Fully extend each leg of the tripod, making sure the braces lock.

2. Set the tripod on the floor.

3. Loosen the thumb-lock knob on the tripod base.

4. Extend the inner tripod tube to a comfortable height. Turn the tripod head so that one of the flat sides of the tripod head is facing you.

Luminex Captioner/Student User Guide

Top of EasyLock LM X V2 Tripod

On the bottom of the Luminex Captioner Student Edition, locate the positive locking mechanism that looks like a large, round keyhole. The top of the EasyLock LMX V2 tripod fits like a key into the recessed mechanism.

5. Lift the Luminex Captioner/Student Edition on two sides of the machine and lower it evenly onto the top of the tripod with one of the flat sides of the writing machine facing you.

6. Grasp the inner tripod tube with one hand and with the other hand, rotate the machine clockwise until you hear a solid click. Ensure the Luminex Captioner/Student Edition is firmly attached to the tripod tube.

Chapter 1 Setting up your Writer

Adjust the Tripod Height

1. Grasp the tripod tube firmly, directly beneath the Luminex Captioner/Student Edition with one hand.

2. Using your other hand, loosen the thumb-lock knob on the tripod. As you loosen the thumb-lock, support the weight of the Luminex Captioner/Student Edition with your hand.

3. Adjust the Luminex Captioner/Student Edition to the desired height.

4. Tighten the thumb-lock knob.

Tilting the Luminex Captioner Student Edition

The EasyLock LMX V2 tripod has a built-in tilting mechanism. Once the Luminex Captioner/Student Edition is secured on the tripod, tilt the writing machine forward or backward within 70 degrees to a position comfortable for your writing style. To tilt the Luminex Captioner Student Edition:

1. Open the Tilting screen before adjusting the tilt position of the Luminex Captioner Student Edition.

2. Position one hand on the back of the Luminex Captioner/Student Edition behind the Tilting screen and the other hand on the front of the machine under the vowel keys.

3. Gently lift up or push down to the desired position. The movement of the Tilting mechanism is stiff to ensure the position of the desired tilt is secure while writing.

Removing the Tripod

1. Position the tripod firmly on the floor.

2. Locate the quick release lever on the left underside of the Luminex Captioner Student Edition.

Luminex Captioner/Student User Guide

3. Push the quick release lever towards the back of the Luminex Captioner/Student Edition and then rotate the Luminex Captioner/Student Edition counterclockwise one quarter of a turn.

4. Lift the Luminex Captioner/Student Edition from the tripod.

Chapter 1 Setting up your Writer

Charging the Battery

The Luminex Captioner/Student Edition comes with one main rechargeable battery and an internal backup rechargeable battery. Stenograph recommends that you charge the batteries in your Luminex Captioner/Student Edition before using it for the first time. Charging time for the main battery is approximately 4 - 5 hours. Be sure to review the additional battery charging details in the Luminex

Captioner/Student Edition Hardware Features chapter.

To charge your Luminex Captioner/Student Edition batteries:

1. Plug the AC charger/adapter into a wall outlet. Use only the AC charger/adapter supplied with your Luminex Captioner Student Edition.

2. Insert the small plug on the AC adapter/charger cord into the Charger socket on the back of the Luminex Captioner Student Edition.

3. The Luminex Captioner/Student Edition turns On. A black dot in the lower right corner of the Status LCD indicates the Luminex Captioner/Student Edition is On. A row of running blocks indicates the batteries are charging.

If you plug your Luminex Captioner/Student Edition in to charge and only the black dot displays on the Status LCD, the batteries are charged. Charging is not necessary and no charging occurs.

Install the Luminex Captioner Student Edition USB Driver

Install the necessary Luminex Captioner/Student Edition Luminex Captioner/Student Edition driver on your computer. The USB driver allows communication via USB cable between the Luminex Captioner/Student Edition writing machine and your computer. This includes reading notes, writing realtime and in the rare event, reading log files. Locate the Let Us Help You Get Started insert that came with your Luminex Captioner Student Edition. You can easily install the Luminex Captioner/Student Edition USB drivers by going to stenograph.com/utilitycd (clicking the link starts the download immediately) and downloading the Utility files.

At the Do you want to run or save writerutilitysetup.exe... prompt, select to do one of the following:

To run the Writer Utility Setup, select Run. The Stenograph Utility Setup screen displays.

To Save the setup file to your hard disk, select Save. Once the writerutility setup.exe is

downloaded, do one of the following to install the setup.

Luminex Captioner/Student User Guide

When copying or running a Luminex Captioner/Student Edition Utility, the User Account Control message box may display. The User Account Control (UAC) is a security feature prompting you for permission to run the displayed program name or service being accessed. To use the Luminex Captioner/Student Edition utilities, you must choose Continue in the UAC message box. The User Account Control is an important feature of Windows 7 and higher. Stenograph does not recommend disabling it.

1. Turn your computer On. Ensure it is fully booted.

2. Turn your Luminex Captioner Student Edition On.

3. Connect the appropriate end of the micro USB cable to the USB port on the Luminex Captioner/Student Edition and the other end to a USB port on your computer.

4. On your computer, with the Stenograph Writer Utility dialog box displayed, double click the Install USB Drivers button. The Windows Security screen may display, prompting you to install the Stenograph L.L.C. Ports (COM & LPT) virtual serial driver. Click the option, Always trust software from “Stenograph” and then click Install. If a second prompt displays for the Stenograph USB Writer driver, click

Install.

Chapter 1 Setting up your Writer

5. The Luminex Captioner/Student Edition driver installation begins.

6. Once the drivers install, the Stenograph Writer Drivers Setup Complete dialog box displays. press Enter (Finish).

Luminex Captioner Student Edition Technical Support

If you encounter a problem you cannot solve, a Luminex Captioner/Student Edition Support Specialist is available to assist you at:

1.800.323.4247 or 1.630.532.5100, touch 2, then 2

8:00 a.m. to 6:00 p.m. (CT)

Monday through Friday

Excluding Stenograph Holidays

To assist the Specialist, have the Luminex Captioner/Student Edition with you, know your customer number and know your Luminex Captioner/Student Edition serial number. The serial number is located on the bottom of the writing machine. Be prepared to describe your question or problem in detail.

Additional Help topics are available at www.stenograph.com. Click Support, Solution Center.

To order accessories, visit www.stenograph.com.

Luminex Captioner/Student User Guide

Chapter 2, Understanding the Shorthand Machine, provides an overview of the machine shorthand keyboard. It also describes machine shorthand and how an individual uses the writer. The shorthand machine is designed to accurately make a written record of spoken words at high speeds. Using sounds instead of spelling out each letter, a machine shorthand writer presses down several keys at once to record a word. This is much faster than a typewriter or computer keyboard where you can only press one key at a time. This means that the machine shorthand writer, using sounds, can write whole words or even a phrase in just one downward motion of their fingers.

Chapter 2 Understanding the Shorthand Machine

As you look at the front of your writer, notice that the keyboard is divided into four sets, or banks, of keys:

Number Bar—the long solid bar at the top of the keyboard.

Upper Bank—the row of 10 keys just below the number bar.

Lower Bank—the remaining consonant keys located below the Upper Bank.

Vowel Keys—the four keys at the front of the keyboard.

The Upper and Lower banks of keys to the left of the asterisk are the Initial keys. These consonants are generally used to begin a word. The Upper and Lower bank of keys to the right of the asterisk are the Final keys. These constants are generally used following the vowels to end a word or abbreviated phrase.

The Number Bar is used in conjunction with the upper bank of keys to write numbers. When the Number Bar is depressed along with the initial "S" on the left side of the keyboard, it produces the number 1. When the Number Bar is depressed with the initial "T" it produces the number "2" and so on. The Number Bar depressed with the asterisk key produces a space in the steno notes.

The asterisk key produces an asterisk. The asterisk symbol is generally used to denote a mistake, indicate a correction, or to distinguish homonyms.

Luminex Captioner/Student User Guide

Similar to a typewriter, your fingers have a home position on the keyboard as shown in the previous diagram. Notice that the Vowel keys are slightly lower than the other three banks of keys. This allows for the natural position of your thumbs.

Unlike the typewriter where each key is pressed one at a time, any number or all of the keys on a shorthand machine can be "stroked,” or pressed down at the same time. This means that a machine shorthand writer can write an entire word, syllable, or phrase in just one stroke. Although the keyboard does not contain all the letters of the alphabet, letters are used in combination to identify the remaining consonants. You will also notice, that while some letters do not appear at all, other letters appear twice.

The machine shorthand keyboard was designed to write sounds. Most word and syllable sounds begin with one or more consonants, followed by a vowel, and end with one or more consonants. For example: R E D; SH O P; ST A RT. While the machine shorthand writer may write words exactly as they are spelled, R E D or SH O P, they often are writing the words or syllables as they phonetically hear them. For example, in two strokes they may write "courthouse"-- K O R T/H O U S or "workhorse"-- WORBG/HORS. The writer may also record an entire phrase in just one stroke, "state your name"-- ST A U R PL or "could you tell us" -- KOUTS. The machine automatically creates spaces between the strokes, so the writer never needs to take their fingers off the keyboard to press a Return or Enter key.

Chapter 2 Understanding the Shorthand Machine

Computer software translates each stroke or group of strokes immediately into text by comparing the strokes to an electronic table of words and phrases called a "dictionary." This dictionary automatically provides for correct spelling of words, punctuation and spacing between words. Once the steno strokes are translated into words, text editing software is used to make corrections and to produce a final printed transcript.

The first shorthand machines were developed in the late 1800s and have evolved over time to the present-day Luminex Captioner/Luminex Captioner/Student Edition. To learn more about the evolution of the shorthand machine that brought the technology to this point, visit www.stenograph.com and view “The History of Machine Shorthand.”

Luminex Captioner/Student User Guide

Chapter 3, Luminex Captioner/Student Edition Hardware Features provides information about the hardware components of your Luminex Captioner Student Edition. This includes details on battery charging and use; communication port and setup; touch sensors for accessing menus; Status LCD icons; adjusting the Tilting screen; personalizing the opening graphic and resetting the writing machine.

Chapter 3 Hardware Features

Battery

The Luminex Captioner/Student Edition comes with one main rechargeable battery and an AC adapter/charger. You can operate your writing machine on battery power or using the AC adapter/charger with the main battery charging. Although you can use the Luminex with the AC adapter/charger, Stenograph recommends that you fully charge the battery before first time use.

The main battery, fully charged, operates all the features on the Luminex Captioner/Student Edition for approximately 12 hours. The charging time for the main battery is approximately 5 - 6 hours.

The main battery provides a FailSafe mode if the charged level of the main battery becomes too low and you are not using the AC adapter/charger or do not have your micro USB cable plugged into a powered computer. In FailSafe mode, the tilting screen turns Off. Your steno notes are sent to the realtime screen. Steno notes also continue to be stored in memory. FailSafe mode may last up to 3 hours. The Luminex Captioner/Student Edition retains the date, time and user settings during FailSafe mode. Charging the Battery when the Luminex is powered by the AC adapter/charger maintains the

Luminex Captioner/Student User Guide

main battery level. The batteries fully charge in 5 - 6 hours. You can use your writing machine while the AC adapter/charger charges the battery. The Luminex Captioner/Student Edition battery fully charged operates all features for approximately 12 hours and then will go into FailSafe mode which may last up to 3 hours.

To charge your Luminex Captioner/Student Edition batteries:

1. Plug the AC charger/adapter into a wall outlet. Use only the AC charger/adapter supplied with your Luminex Captioner Student Edition.

2. Insert the small plug on the AC adapter/charger cord into the Charger socket on the back of the Luminex Captioner Student Edition.

You can use the Luminex Captioner/Student Edition while the batteries charge. When you begin writing, the running blocks do not display but the Luminex Captioner/Student Edition continues to charge. See Status LCD for more information about the Status LCD indicators.

Chapter 3 Hardware Features

To turn the Luminex Captioning Student Edition Off while charging the batteries, touch the On/Off sensor until you heard a beep. Although the Titling screen turns off, the Luminex remains On while charging as indicated by the black dot on the Status LCD.

If you plug your Luminex Captioner/Student Edition in to charge and only the black dot displays on the Status LCD, the batteries are charged. Charging is not necessary and no charging occurs.

View Battery Charging Status

The Tilting screen and the Status LCD display graphic indicators that reflect the charging status of both the main and backup battery. To view specific battery voltage levels, current charging status and the most recent charging history, go to <Blue Text>View Battery Voltage Levels on page 1.

When the AC adapter/charger is connected to the Luminex Captioner/Student Edition charging the batteries, the title bar on the Tilting screen displays a "plug" icon with the battery gauge showing running black and yellow stripes. When the batteries are fully charged, a battery icon displays once you disconnect the AC adapter/charger.

Battery Charging Battery Fully Charged

When the main battery is charging, the Status LCD displays black bars in running sequence from left to right. The black bars are not visible when you are writing, but redisplay when you close the job. When the Luminex Captioner/Student Edition is finished charging, the bars move from each side of the screen to the middle of the screen in a “clapping” motion. If the AC adapter/charger is plugged in for a long time, the “clapping” motion stops, however the battery is fully charged.

Luminex Captioner/Student User Guide

When the backup battery is charging along with the main battery, the battery icon displays on the Status LCD along with black bars in running sequence from left to right. When the backup battery is fully charged the battery icon no longer displays.

Chapter 3 Hardware Features

View Battery Charging Status

When the AC adapter/charger is connected to the Luminex Captioner/Student Edition charging the batteries, the title bar on the Tilting screen displays a battery icon with the battery gauge showing running black and yellow stripes. When the batteries are fully charged, a plug icon replaces the battery icon until you disconnect the AC adapter/charger.

Battery Charging Battery Fully Charged

View Battery Voltage Levels

The Battery diagnostic screen displays the voltage level, charging status and most recent charging history for the Luminex Captioner/Student Edition main battery.

To view battery voltage and charging status:

Luminex Captioner/Student User Guide

1. Make sure the charger/adapter is not plugged into the Luminex Captioner Student Edition. If you just disconnected the charger/adapter from the Luminex Captioner Student Edition, turn the Luminex Captioner Student Edition On and wait 10 – 15 minutes to get an accurate battery voltage reading.

2. From the Opening menu, touch Diag and then touch Battery. The battery status screen displays.

3. Review the following battery information:

Indicator bar - provides an approximate indication of the battery voltage level. Green indicates the

battery is fully charged; yellow indicates it is charged and red indicates it is low.

Voltage - the actual voltage amount. A main battery reading of 4.07 volts or higher indicates

normal operating voltage. 3.6 volts or below indicates the battery is very low and the titling screen will turn off and FailSafe mode will occur if battery is not charged.

State - displays whether the writer is charging or not.

4. To display the Opening menu, touch OK, Quit.

Chapter 3 Hardware Features

Low Battery Warnings

As the main battery becomes progressively low, the battery indicator on the title bar will change from green to yellow to red indicating a drop in battery voltage. The Luminex Captioner/Student Edition displays warnings messages on the tilting screen and will beep to indicate the battery voltage is getting low.

Battery, Danger -- Battery Low.

Battery, Danger -- Recharge Battery Now.

Battery, Battery Dead -- Switching To FailSafe...

Once the Luminex Captioner/Student Edition switches to FailSafe mode, the battery icon on the Status LCD blinks. When the main battery becomes low while the Luminex Captioner/Student Edition is connected to a computer with the micro USB cable during realtime, low battery messages continue to display until the battery is depleted but the writer will not beep. The micro USB cable plugged into a powered computer may be able to charge the battery but may not begin charging immediately if the battery is in a very low voltage state. The battery indicator on the title bar may reflect that it is charging, but it may not actually be charging if the battery voltage is extremely low. Use the Luminex Diagnostic feature to check the specific voltage level of the battery.

Battery Gauge

The battery gauge on the title bar of the Tilting screen provides a general indicator of the battery voltage level. It changes appearance as the voltage level of the battery changes:

Edition is plugged into the AC and fully charged.

- an electrical plug with a full green gauge indicates the Luminex Captioner/Student

Luminex Captioner/Student User Guide

Chapter 3 Hardware Features

battery with a full green gauge indicates the main battery is fully charged.

the battery level drops, the green bar becomes smaller.

a battery with a partial yellow gauge indicates the battery is low.

a battery with a short red gauge indicates the battery is almost completely drained. The

battery icon flashes on and off.

a battery with black and yellow running stripes indicates the Luminex is plugged into

the AC adapter/charger and the batteries are charging.

Tilting Screen Battery Messages

The Tilting screen displays three progressive warning messages along with a beep as the main battery level becomes low:

Battery, Danger -- Battery Low.

Battery, Danger -- Recharge Battery Now.

Battery, Battery Dead -- Switching To FailSafe...

Communication Port

There is one USB port on your Luminex Captioner/Student Edition which provides connection access for the USB realtime cable between the writing machine and the computer. To use the micro USB cable for realtime writing or reading notes from Memory, you must install the Luminex

Captioner/Student Edition USB driver on your computer. The USB port is clearly marked on the

back of the writing machine.

Powering the with the USB Cable

When the Luminex is connected to your computer for realtime via the micro USB cable, the main battery continues to power the writing machine. In most situations, the USB port can power the Luminex and may charge the battery when the main battery is not fully charged. When the main battery becomes low while using the micro USB connection, low battery messages display on the Luminex, but all features continue to operate. The USB port provides power to run all the Luminex components except Bluetooth communications. When powered by the micro USB port, the Luminex tilting screen displays at about half of the Backlight brightness setting.

To use the micro USB cable, you must install the Luminex USB driver on your computer. See Install

the Luminex Captioner/Student Edition USB Drivers for instructions on loading the driver.

Luminex Captioner/Student User Guide

Chapter 3 Hardware Features

Updating With the USB Cable

Software updates for your Luminex Captioner Student Edition, when available, can be easily downloaded from the Stenograph web site. Once downloaded onto your computer, you can load the software update onto your Luminex over a USB cable. For more information about updating the Luminex see Appendix A .

Connect for Writing Realtime

To connect your Luminex Captioner/Student Edition to your computer for realtime writing, you must have one of the following:

a USB cable connection which requires using a USB compatible CAT software, such as Case

CATalyst version 4.096 or higher. A micro USB cable is included with your Luminex Captioner Student Edition. Check with your CAT software vendor for compatibility information.

a virtual serial port connection via USB cable. The virtual serial port connection is compatible

with any CAT software that accepts a serial connection and Stentura protocol. See USB Virtual

Serial Port Communication for more information.

USB Communications

To communicate with via USB, you must be using USB compatible CAT software and have installed the Luminex Captioner/Student Edition USB driver on your computer.

1. Ensure your Luminex Captioner/Student Edition and computer are turned On and are fully booted.

2. Each end of the USB cable has a different connection plug. Insert the appropriate end of the micro USB cable into the USB port on the back of the Luminex Captioner/Student Edition and the other end into a USB port on the computer.

3. Start your CAT software.

4. Set your realtime options. Select one of the following based on the Case CATalyst version you are using. This is a USB connection, COM port settings do not apply.

Case CATalyst V16 or higher, select Stenograph Writer USB.

Case CATalyst V7 through V15, select élan - USB.

5. Write a few strokes on the Luminex Captioner/Student Edition before starting realtime and start translate in your CAT software. If the USB realtime connection is active when you take a break, the realtime screen may not display new steno strokes when you resume writing. This may happen when the USB port becomes inactive after remaining idle for a period of time. If this occurs, disconnect the USB cable from the back of the writing machine and reconnect it. The realtime file is not affected. Reconnect the cable to display the new steno strokes on the realtime screen. See the Troubleshooting section for details on disabling USB port power saving features to avoid an inactive connection.

If the Memory becomes full while writing realtime, the realtime display on the Luminex

Luminex Captioner/Student User Guide

Captioner/Student Edition stops scrolling; however, the Luminex Captioner/Student Edition continues to send steno notes to the CAT system.

6. When you are finished writing realtime using a USB cable, it is important that you complete the following steps in order. This ensures your computer shuts down properly.

a. Touch End on the Luminex Captioner/Student Edition to close the file. If the option, Prompt to

confirm ending job is active, touch End again at the prompt.

b. Close and save the realtime file in your CAT system.

c. Unplug the Luminex Captioner/Student Edition USB cable from your computer and the

Luminex Captioner Student Edition.

Chapter 3 Hardware Features

USB Virtual Serial Port Communications

If your CAT system does not support USB communications, you will need to communicate with your CAT system using the Virtual Serial Port method. To communicate using the Virtual Serial Port, you must have installed the Luminex Captioner/Student Edition virtual serial port driver on your computer. The virtual serial port driver installs when you install the USB driver . The virtual serial port uses Stentura protocol for realtime communications and reading notes.

When using a virtual serial port connection, the realtime connection becomes inactive if you disconnect the USB cable and remains inactive even if you reconnect the cable. For example, let's say you disconnect the USB cable to simulate reporting a bench conference and then you reconnect the cable when finished. The current realtime does not reconnect. It is necessary to open a new realtime file on your CAT system.

If you leave the USB realtime connection active when you take a break, the realtime screen may not display the new steno strokes when you resume writing. This is a function of the USB port becoming inactive when it remains idle for a period of time. If the virtual serial port communication becomes inactive, you cannot reconnect to the realtime file. It is necessary to start a new realtime job on your CAT system. See the Troubleshooting section about disabling power saving features on the USB port to avoid an inactive connection.

To establish USB virtual serial port communication:

1. Ensure your Luminex Captioner/Student Edition and computer are turned On and are fully booted.

3. Start your CAT software.

4. Set your realtime options. This is a virtual serial port communication via USB cable. Ensure the appropriate COM port is selected. Depending on your CAT software, it may be necessary to select Stentura as the realtime writing machine.

Luminex Captioner/Student User Guide

5. Write a few strokes on the Luminex Captioner/Student Edition before starting realtime and then start translation on your CAT system.

If the Memory becomes full while writing realtime, the realtime display on the Luminex Captioner/Student Edition stops scrolling; however, the writing machine continues to send steno notes to the CAT system.

6. When you are finished writing realtime using the virtual serial port connection, it is important that you complete the following steps in order. This ensures your computer shuts down properly.

a. Touch End on the Luminex Captioner/Student Edition to close the file. If the option, Prompt to

confirm ending job is active, touch End again at the prompt.

b. Close and save the realtime file.

c. Unplug the USB cable from your computer and the Luminex Captioner Student Edition.

Chapter 3 Hardware Features

Touch Sensors (Function Keys)

On either side of the Status LCD are three touch sensors.

Each touch sensor serves a specific purpose, or function, on the different menus. For each function, there is a menu bar is located at the bottom of the Tilting screen. For example, the following menu bar is the Opening menu you see:

Luminex Captioner/Student User Guide

Touch the associated touch sensor, just below a function on the menu bar, to perform the action. For example, on the Opening menu, the word Off displays above the left most button. Touching the Off sensor until it beeps turns the Luminex Captioner/Student Edition Off. When the Luminex if off, touching the left most sensor turns the Luminex On. You can touch the Setup sensor to display another menu listing additional menu choices related to customizing your Luminex Captioner/Luminex Captioner/Student Edition, such as display settings, setting the time, options, etc.

Chapter 3 Hardware Features

Keyboard Depth and Tension Control

There are two thumbwheels on the Luminex Captioner/Luminex Captioner/Student Edition, one on each side of the keyboard, that control the keyboard depth and keyboard tension.

The depth of stroke adjustment wheel, on the left, determines the height of the number bar and all the steno keys. This affects how far the keys go down when you press them. There are ten different positions for the keyboard.

The keyboard tension adjustment wheel, on the right, controls how soft or firm the keys feel. An extensive range, between the top and bottom stopping positions of the wheel, allows you to customize the tension to your particular writing touch. Do not force the wheel past either stopping position.

Adjust Depth of Stroke

1. Face the front of the Luminex Captioner/Student Edition.

2. Do one of the following:

• To shorten the stroke depth, roll the left thumbwheel toward the front of the writer.

Luminex Captioner/Student User Guide

• To lengthen the stroke depth, roll the left thumbwheel toward the back of the writer.

3. After making an adjustment to either or both of the features, be sure to write on your machine for 5

- 10 minutes and look at your steno notes to make sure you are not splitting or stacking steno outlines.

Chapter 3 Hardware Features

Adjust Keyboard Tension

1. Face the front of the Luminex Captioner/Student Edition.

2. Do one of the following:

To decrease keyboard tension for a softer touch, roll the right thumbwheel toward the front of the

Luminex Captioner/Student Edition.

To increase keyboard tension for a firmer touch, roll the right thumbwheel toward the back of the

Luminex Captioner/Student Edition.

Reset

The Reset button is a small, recessed button located on the back of the Luminex Captioner/Student Edition to the right of the micro USB port.

Like other computer equipment, the Luminex Captioner/Student Edition can seem unresponsive when it receives a series of commands it does not recognize. If the Luminex Captioner/Student Edition

appears unresponsive, press the Reset button on the back of the Luminex Captioner/Student Edition. When you press the Reset button, the Luminex Captioner/Student Edition reboots and is

then ready to use.

If you had a file open before pressing Reset, the Luminex Captioner/Student Edition ends the job and the file closes. Start writing to create a new job.

Status LCD

Located between the touch sensors is a small rectangular LCD screen. The Status LCD displays icons that indicate specific operations of the Luminex Captioner/Student Edition. When battery power is low enough to turn off the Tilting screen, the Status LCD continues to show information, indicating the writing machine is still working.

The Status LCD provides the following information:

Luminex Captioner/Student User Guide

Status LCD:on/off iconA black dot ( ) displays in the lower right corner of the screen indicating the

Luminex Captioner/Student Edition is On.

The file open ( ) icon displays when you begin writing on the Luminex Captioner/Student Edition,

indicating a file is open.

The realtime indicator ( ) displays when the Luminex Captioner/Student Edition is connected to a

CAT system with a USB connection or virtual serial port connection using a USB cable for writing. The icon only displays when there is an active realtime connection. When you end realtime or disconnect the cable, the icon does not display.

The battery ( ) icon displays when the backup battery is charging. The backup battery is

automatically maintained when charging the main battery. This icon does not display if the backup battery does not need to be charged.

A row of rectangular black blocks ( ) display in running sequence from left to right when the

main battery is charging. When the Luminex Captioner/Student Edition is finished charging, the bars move from each side to the middle of the screen in a “clapping” motion. If you leave the AC adapter/charger plugged in for a long time, the “clapping” motion stops, however the battery is fully charged.

Chapter 3 Hardware Features

A single black rectangular block ( ) displays when you press a key. There is a corresponding block

for each letter on the keyboard. Which block displays depends on the key stroked. For example, if you pressed -FPLT four blocks would display on the Status LCD. Stroking the number bar along with a key displays the # sign on the left-most side of the Status LCD and the single black rectangular block for the key pressed.A block displays for each key in the following order:

# S T K P W H R A O * E U F R P B L G T S D Z

Tilting Color Screen

The Luminex Captioner/Student Edition tilting screen is a high resolution, LCD display. The “non-glare finish” reduces glare from overhead lights. The display folds flat for storage or transport and opens with a 180o tilt range to accommodate your personal viewing preference.

To use the Tilting screen, gently pull up on the display and adjust the tilt as necessary. Gently pull down on the display to fold it flat. When the Luminex Captioner/Student Edition is On and the display is folded flat, the display remains On.

Depending on the selected function, the Tilting screen shows:

the title bar with a battery icon, battery gauge reflecting the approximate main battery level, the

memory capacity indicator, the number of steno strokes for the open file and the estimated number of pages for the open file.

steno notes.

Luminex Captioner/Student User Guide

menu bar from which you select options or perform an action.

warning messages, such as “Low Battery”.

You can adjust the brightness and font size on the Tilting screen. Adjusting the brightness can reduce battery usage. See the Tilting Screen Appearance section more information about brightness and font size settings.

Chapter 3 Hardware Features

Luminex Captioner/Student User Guide

Chapter 4, Writing on the Luminex Captioner/Student Edition, details all the Luminex Captioner/Student Edition menu features including setting options, viewing and erasing memory, accessing Test Mode and marking, scrolling and searching steno notes.

Stenograph recommends that you charge the battery in your Luminex Captioner/Student Edition before using it for the first time. See Charging the Battery for information.

The Luminex Captioner/Student Edition offers the following features:

Steno outlines display on a seven inch color, non-glare Tilting screen.

View steno outlines in Vertical Note format.

Realtime ready through USB or virtual serial port.

Adjustable digital clock with month, date, and time.

Chapter 4 Writing on the Captioner/Student Edition

Adjustable beeper volume.

Set the Tilting screen brightness and font size.

Date and timestamp note files.

Search for the last StenoMark or steno string.

Scroll forward and backward in a file.

Accessing Luminex Captioner/Student Edition Features

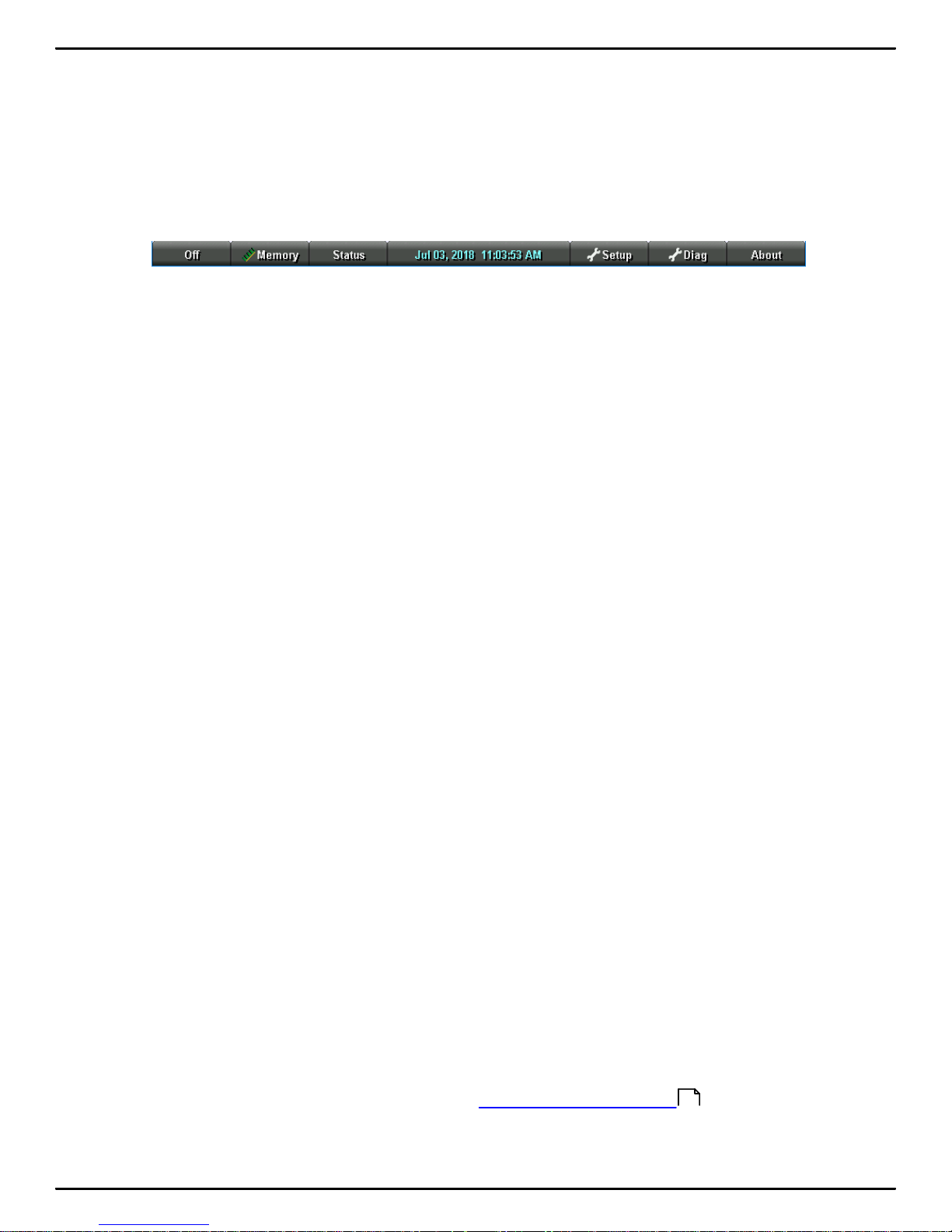

When you turn the Luminex Captioner/Student Edition On, the Opening menu displays. The Opening menu allows you to access the Memory, Setup Options, etc. The Opening menu is accessible when no file is open.

Opening Menu

From the Opening menu, you can:

view and erase Memory.

view Luminex Captioner/Student Edition status information.

set the time.

adjust the Tilting screen display.

Luminex Captioner/Student User Guide

access test mode.

set options including backlight, beeper volume, keyboard layout and options, prompt to end a job,

display strokes per minute and USB communication.

Chapter 4 Writing on the Captioner/Student Edition

Writing Menus

Once you begin writing on the steno keyboard, the first of two Writing menus replaces the Opening menu.

The First Writing menu includes features that allow you to:

End - close the file.

Mark - insert electronic (StenoMark) marks in your steno notes.

Search - find the last Mark or specific steno strokes.

Scroll - move the highlight up and down in the steno notes.

More... - access the second Writing menu.

Touching More... on the First Writing menu displays the Second Writing menu.

The second Writing menu includes features that allow you to:

Keyboard - make adjustments to your steno keyboard.

Status - Luminex Captioner/Student Edition status information.

Display - adjust Tilting screen steno note font size and backlight level.

More... - access the First Writing menu.

Return to First Writing Menu

Continue writing or touching More on the second Writing menu returns you to the First Writing menu.

Return to Opening Menu

Touching End on the First Writing menu closes the current job and returns you to the Opening menu.

Writing Jobs

To begin writing:

1. Turn the Luminex Captioner/Student Edition On. Touch the first function sensor on the left.

Luminex Captioner/Student User Guide

2. The Luminex Captioner/Student Edition logo displays briefly on the Tilting screen followed by the title bar across the top of the screen and the Opening menu at the bottom.

3. The Title Bar shows the following information:

4. The menus allow you to perform functions select to display another menu or to set options. The Opening menu is used to select options prior to writing.

5. When you write a steno stroke, the Luminex Captioner/Student Edition opens a new file and replaces the Opening menu with the first of two writing menus.

6. To close the job when finished writing, touch End. The Luminex Captioner/Student Edition writes

the steno to Memory and closes the current file. If the option, Prompt to confirm ending job is active, a confirmation prompt displays. Touch End to close the job or continue writing to cancel

the message.

The Luminex Captioner/Student Edition stores steno notes to Memory. The file naming convention uses a year, month, date and time format. For example: 20180815 - 142341 (August 15, 2018 at 2:23:41 p.m.). Job files are stored in folders identified by year and month. For example, 201808 (August 2018). By default, the newest file is listed first.

Chapter 4 Writing on the Captioner/Student Edition

7. To turn the Luminex Captioner/Student Edition Off, at the Opening menu touch the Off sensor until

you hear the beep.

Beeper Volume

The Luminex Captioner/Student Edition has a beeper to alert you to specific messages on the Tilting screen, such as Low Battery.

To adjust the beeper volume:

1. From the Opening menu, touch Setup, Options.

2. Touch the Up/Down sensors as necessary to highlight the Beeper Volume option.

3. Touch the Change sensor to toggle the Beeper volume between Soft and Loud. The Luminex Captioner/Student Edition emits a softer or louder tone indicating the volume level selected.

4. To display the Opening menu, touch OK, More, Quit.

Copy Log

In the rare instance your Luminex Captioner/Student Edition experiences an error or an exception, a log file is created. Technical Support may ask you to send the information to Stenograph for analysis. In order to retrieve the log files from the Luminex Captioner/Student Edition, you will need to use the Stenograph Writer Utility - GetSupportInfo. See Stenograph Writer Utilities for more information.

Luminex Captioner/Student User Guide

Chapter 4 Writing on the Captioner/Student Edition

Strokes Per Minute

The Display Set Strokes Per Minute (SPM) option allows the average number of strokes per minute to display on the Title bar and Status screen. The Title bar shows the approximate number of strokes per minute, SPM, while writing. The Status screen shows strokes per minute data for the most recent job. While writing, the Status screen shows strokes per minute data for the current job.

1. From the Opening menu, touch Setup, Options.

2. Touch the Up/Down sensors as necessary to highlight the Display Strokes per minute (SPM)

option.

3. Touch the Change sensor to toggle the option between Yes and No. Yes is the default.

4. To display the Opening menu, touch OK, More, Quit.

Electronic Marks

Use the Mark function to electronically mark locations in your steno notes. The mark is commonly known as a StenoMark. You can use the Search feature to locate the Marks in the file.

To mark your steno notes:

1. From the First Writing menu, touch either Mark sensor. The symbol, ! , displays on the right side

in the steno notes and an ( displays on the left side in the notes to indicate the insertion of an electronic mark.

2. Continue writing.

Keyboard Layout

Keyboard Layout is designed for international use of the Luminex Captioner/Student Edition. Changes to the Keyboard Layout should only be made when your steno keyboard layout uses a specific language steno theory.

Luminex Captioner/Student User Guide

Chapter 4 Writing on the Captioner/Student Edition

1. From the Opening menu, touch Setup, Options.

2. Touch the Up/Down sensors as necessary to highlight the Keyboard Layout option.

3. Touch the Change sensor to cycle through the available keyboard. USA is the default setting.

4. To display the Opening menu, press OK, More, Quit.

Keyboard Options

The majority of Luminex Captioner/Student Edition users successfully adjust their keyboard accuracy using the depth of stroke and the tension control adjustment wheels. Occasionally, when a very short depth of stroke is used or after adjusting the tension control and depth of stroke, you may continue to experience stacking or splitting. The Keyboard options allow you to further customize the keystroke interaction to your writing style. For more information about depth of stroke and keyboard tension, see

Keyboard Depth and Tension Control .

Keyboard Adjustments

1. Using Case CATalyst or the TrueView utility, review the TrueStroke data for recent jobs to help diagnose keystroke issues. See TrueView for more information.

2. Make adjustments to the keyboard depth of stroke and tension control settings. See Keyboard

Depth and Tension Controls for details.

3. Turn on CNN or the equivalent and write against the broadcast for 20 - 30 minutes.

4. If you continue to experience keystroke issues, make further adjustments using the Keyboard Options. From the Opening Menu, touch Setup, More, Keyboard.

5. Perform the adjustments according to the following priority list to ensure optimal keystroke performance. Use the Up/Down sensors to highlight an option.

Keyboard Sensitivity - Adjusts the overall keyboard sensitivity. This may be particularly necessary when your depth of stroke is very shallow. It is strongly recommended that you select the first available setting and assess the change. Turn on CNN or the equivalent and write against the broadcast for 20 - 30 minutes. The default setting is Balanced. Use the + and - sensors to

Luminex Captioner/Student User Guide

either make the keyboard Less Sensitive (when keys are shadowing or dragging) or More

Sensitive (reduce missed or dropped keys).

Split/Stack Adjustment - When you experience splitting steno outlines or multiple steno outlines becoming one, adjust the Split/Stack Adjustment setting. It is strongly recommended that you select the first available setting and assess the change. Turn on CNN or the equivalent and write against the broadcast for 20 - 30 minutes. The default setting is Balanced. Use the + and -

sensors to select Less Splitting (where one steno stroke becomes two) or Less Stacking

(where multiple steno strokes become one stroke).

Transition Time - Transition time is the number of milliseconds that pass between the release of a key stroke and when the Luminex Captioner/Student Edition recognizes the next key stroke. This can affect the stacking or splitting of strokes. If you experience stacking or splitting steno notes, adjust the Split/Stack Adjustment option first. Set the Split/Stack Adjustment option to “Balanced” before changing the Transition Time setting. It is strongly recommended that you select a small increment and assess the change. Increase the transition time setting when split steno

outlines continue to show in your steno notes or Lower the transition time setting when stacked

steno outlines continue to show your steno notes. Turn on CNN or the equivalent and write against the broadcast for 20 - 30 minutes.

Chapter 4 Writing on the Captioner/Student Edition

Return to Factory Default Settings - Returns all the keyboard options to the default factory settings. Use the + or - sensor to select Yes.

6. To return to the Opening menu, touch OK, Quit.

Individual Key Adjustments

Adjust individual keys only when a dragged or dropped key continues to occur after adjusting the depth of stroke, the keyboard tension and making appropriate changes to keyboard options. Carefully follow all the steps in “Keyboard Adjustments” section before making adjustments to individual keys.

Complete the following steps:

1. Ensure the depth of stroke is customized to your writing style. See Keyboard Depth and Tension

Controls for details.

2. Access the Adjust Key option. Touch Setup, More, Keyboard, Adjust Keys.

3. The Keyboard Hardware Type screen displays.

Luminex Captioner/Student User Guide

Keyboard at rest with the deepest depth of stroke setting.

The line of white bars at the top of the screen represents the bottom of the keyboard. The vertical position of the line varies depending on the depth of stroke setting. For example, a deeper depth of stroke places the line closer to the top of the screen. A shorter depth of stroke places the line closer to the bottom of the screen. Each individual bar indicates the point the key must reach or move slightly past in order to register as a stroke. The number below each key is the current setting. Zero is the factory default.

Chapter 4 Writing on the Captioner/Student Edition

4. Press and release the steno key you want to adjust. When you press a key you will notice a blue

bar expanding up and that blue bar must go past the white line before you release the key. The gray vertical bar highlights the key selected for adjustment. For example, let's say you want to adjust the sensitivity of the letter -L. You press the letter -L on your steno keyboard until the blue line extends beyond the white line and then you release the key. You see the gray bar as shone below.

5. Perform one of the following adjustments:

Luminex Captioner/Student User Guide

More - Increase the key sensitivity when the key is not showing in the steno notes and you want

it to register. Increase the sensitivity using increments of 5. For example, let's say you made the

-T more sensitive using an increment of 5, then 5 displays before the T. It is strongly recommended that you make the first incremental setting and assess the change. Turn on CNN or the equivalent and write against the broadcast for 20 - 30 minutes.

Less - Decrease the key sensitivity when the key is showing in the steno notes and is not

wanted. Decrease the sensitivity using increments of 10. For example, if you made the -B less sensitive using an increment of 10, then -10 displays in red below the B. It is strongly recommended that you make the first incremental setting and assess the change. Turn on CNN or the equivalent and write against the broadcast for 20 - 30 minutes.

Reset - Return all the key settings to the factory default.

6. When finished, touch Done.

Chapter 4 Writing on the Captioner/Student Edition

Memory

The Luminex Captioner/Student Edition uses Memory to store steno notes and timestamp files. Steno note files stored in Memory remain even when you turn the Luminex Captioner/Student Edition Off. There is 12,000 strokes of Memory on the Luminex Captioner/Student Edition or approximately 50 pages. If the Memory becomes full while writing realtime, the realtime display on the Luminex Captioner/Student Edition stops scrolling; however, the Luminex Captioner/Student Edition continues to send steno notes to the CAT system.

View Memory Files

The Memory screen displays the list of files in a year, month, date and time format: 20090716 142341 (July 16, 2009 2:23:41 p.m.). By default, the newest file is listed first. The file size and the estimated number of transcript pages shows for each file. Timestamp files are part of the steno note file but not visible in the list.

To view Memory files:

1. From the Opening menu, touch Memory.

2. Steno note files display with the newest folder first. Use Date Sort to toggle files between ascending and descending order.

3. Touch the Up/Down sensors to move to the desired folder and touch Folder.

4. A list of files contained in the folder displays with the newest folder first. Use the Up/Down sensor

and Date Sort to view the files.

5. To return to the first Memory screen, touch Back.

Luminex Captioner/Student User Guide

6. To return to the Opening menu touch Quit.

Chapter 4 Writing on the Captioner/Student Edition

Read Steno Notes from Memory

You can read steno notes from Memory into your CAT software via USB cable or USB virtual serial port connection. The Memory screen displays the list of files in a year, month, date and time format: 20090716 - 142341 (July 16, 2009 2:23:41 p.m.). By default, the newest file is listed first. The file size and the estimated number of transcript pages shows for each file. Timestamp files are part of the steno note file but not visible in the list.

USB Cable Connection

To use a USB cable for reading steno notes, you must be using USB compatible software, such as Case CATalyst V4.096 and higher; have CAT software that supports the reading of steno notes from a Stentura; and have installed the Luminex Captioner/Student Edition USB driver on your computer. See the section on installing the USB drivers for instructions on loading the driver.

To read steno notes via USB cable:

1. Ensure your Luminex Captioner/Student Edition and computer are turned On and are fully booted.

3. Start your CAT software and open your Read program. Refer to your CAT software manual for instructions on reading steno notes.

4. Verify the appropriate Read options are selected. In Case CATalyst, do one of the following:

Case CATalyst V19.05 and higher

Use the following Read options:

Device: Student

Method: USB

Drive: Memory

Case CATalyst V11 through V19.04

Use the following Read options:

Device: Luminex Captioner/Student Edition

Method: USB

Drive: Memory

Case CATalyst V7 - V10

Luminex Captioner/Student User Guide

Chapter 4 Writing on the Captioner/Student Edition

Use the following Read options:

Device: élan

Method: USB

Drive: RAM (Cybra Only)

5. After successfully reading your steno notes, you may want to clear the notes from the Luminex Captioner/Student Edition memory. See the Erase Memory Files topic for more information.

USB Virtual Serial Port Connection

To use a USB virtual serial port to read steno notes, you must have the Luminex Captioner/Student Edition virtual serial port driver on your computer which installs when you install the USB driver. The virtual serial port uses Stentura protocol. See the section on installing the USB drivers for instructions on loading the driver.

To read notes via USB virtual serial port cable:

1. Ensure your Luminex Captioner/Student Edition and computer are turned On and are fully booted.

3. Turn your computer On and start your Read program. This is a virtual serial port communication via the USB cable. It is necessary to ensure you designate the appropriate COM port. It also may be necessary to select Stentura as the writing device. Refer to your CAT software manual for instructions on reading steno notes.

4. After successfully reading your steno notes, you may want to clear the notes from the Luminex Captioner/Student Edition memory. See the Erase Memory Files section in this chapter for

more information.

Memory Full

Once the Luminex Captioner/Student Edition's memory is full (12,000) strokes, the steno outlines continue to be sent to the captioning/student CAT software but are no longer sent to the writing machine's memory. The following message displays:

The title bar displays:

Luminex Captioner/Student User Guide

Chapter 4 Writing on the Captioner/Student Edition

Erase Memory Files

You can erase the memory at any time. When the memory reaches capacity, a message displays. No further steno strokes are recorded to memory, however, you can continue to write realtime. It is important to clear the memory if you are using software that translates steno notes from memory.

To erase Memory files:

1. From the Opening menu, touch Memory, Erase All.

2. The Luminex Captioner/Student Edition prompts you with a confirmation message to delete all the files in Memory.

3. Do one of the following:

Touch Yes to erase all the files. When the Luminex Captioner/Student Edition completes

erasing the Memory files, touch OK to return to the Opening menu.

To keep the current files and not erase the Memory, touch No. To return to the Opening menu,

touch Quit.

Options

Options allow you to change the Keyboard Layout, switch the USB communication between Standard and élan Mira emulation®, adjust the Beeper Volume and select a prompt when ending a job.

To access Options:

1. From the Opening Menu, touch Setup, Options.

Luminex Captioner/Student User Guide

2. For details about each option, see the appropriate topic in this chapter:

“Language"

"Keyboard Layout"

"USB Communication"

"Beeper Volume”

“Prompt to confirm ending job"

"Display Strokes Per Minute (SPM)”

Chapter 4 Writing on the Captioner/Student Edition

Prompt to End a Job Option

The Luminex Captioner/Student Edition, by default, prompts you with a confirmation message each time you touch the End button to close a job.

When the message displays, you can continue to close the job by touching the End sensor on the right side. Pressing Cancel or continuing to write cancels the message and the job remains open.

To set the end job confirmation prompt:

1. From the Opening menu, touch Setup, Options.

2. Touch the Up/Down sensors as necessary to highlight the Prompt to end job option.

3. Touch the Change sensor to toggle the option between Yes and No. Yes is the default setting.

4. To display the Opening menu, touch OK, More, Quit.

Routine Care

Although little maintenance is required for your Luminex, covering it when not in use is suggested.

Daily/Monthly

Cover the Luminex when it is not in use.

Clean the tilting screen (when needed).

Always protect the tilting screen of your Luminex by removing all grit before cleaning. To remove

grit, use a soft brush to light brush the grit away before using the cleaner and micro-fiber cloth.

1. Turn the Luminex Off. It is easier to see the areas that are dirty when the screen is dark.

2. Very gently wipe the screen using the cleaning cloth that came with your Luminex or a

microfiber cloth available in computer, camera and eyeglass stores. Do not use materials such as paper towels, tissue paper or your shirt sleeve. These non-ultra soft materials can

Luminex Captioner/Student User Guide

easily scratch the screen. Do not press hard on the screen. Pushing directly on the Tilting screen can cause pixels to burn out.

3. If the cloth does not completely remove the dirty areas, dampen the cloth with the opticalquality spray cleaner that came with your Luminex or a cleaner designed for flat screen monitors or eyeglasses, and very gently wipe the screen. Do not spray the display screen directly. Liquid can run along the inside the edge of the screen and cause damage. Never use cleaning products that contain ammonia, ethyl alcohol, acetone, toluene, ethyl acid, or methyl chloride. These chemicals can react with the materials in the display screen and cause damage.

• Clean the shell (when needed).

Always protect the shell of your Luminex by removing all grit before cleaning. To remove grit, use a soft brush to lightly brush the grit away before using the cleaner and soft cloth.

1. Use mild soap and water or multipurpose cleaner using a soft cloth.

2. Apply sparingly and avoid contact with the tilting screen and the cleaner.

Chapter 4 Writing on the Captioner/Student Edition

3. If using a spray bottle, spray the mild soap and water on a soft cloth and wipe the body of the writer. Never use cleaning products that contain ammonia, ethyl alcohol, acetone (fingernail polish remover), toluene, ethyl acid, or methyl chloride.

• Clean the keyboard with any good clear furniture polish.

Two to three years

• Have your writer cleaned, lubricated and a routine inspection by a trained service technician

every two to three years depending on your machine’s usage.

Scroll

Using the Scroll function, you can review testimony by moving up or down the Tilting screen one line at a time. When you resume writing, the Luminex Captioner/Student Edition returns to the current spot in the testimony.

1. From the First Writing menu, touch Scroll.

2. Use any of the following menu options:

Up - move to a previous line.

Down - move to the following line.

3. To exit the Scroll menu, continue writing or touch Quit.

Luminex Captioner/Student User Guide

Chapter 4 Writing on the Captioner/Student Edition

The Luminex Captioner/Student Edition allows you to search through the steno notes in the active realtime file. When you select to search for an item, the Luminex Captioner/Student Edition highlights the located item on the screen. You can search for the last electronic Mark or specific steno strokes.

Search for Last Mark

An electronic Mark (commonly referred to as StenoMark) displays as an exclamation mark (!) on the left and an open parenthesis, ( , on the right of the Tilting screen.

1. From the First Writing menu, touch Search, Last Mark.

If the Mark is not found or you reach the beginning of the file, the search stops with the cursor positioned at the beginning of the file.

2. Use any of the following menu options:

Previous - search backward in the file for the previous electronic Mark.

Up - scroll backward in the file.

Down - scroll forward in the file.

3. Continue writing or touch Quit. The First Writing menu and your current writing position display.

Search for Steno Strokes

1. From the First Writing menu, touch Search, Steno. The Enter Steno To Search For field displays.

2. Write the steno strokes for which you want to search. If you make a mistake, touch Clear and

then write the new strokes.

3. Touch OK. The Luminex Captioner/Student Edition highlights the steno outlines. If the steno

outlines are not found or you reach the beginning of the file, the search stops with the cursor positioned at the top of the file.

4. Use any of the following menu options:

Previous - search backward in the file for the previous occurrence of the steno outlines.

Up - scroll backward in the file.

Down - scroll forward in the file.

5. Continue writing or touch Quit. The First Writing menu and your current writing position displays.

Serial Protocol

The Serial Protocol option is a fixed option that displays the Luminex Captioner/Student Edition communication protocol when using the Virtual Serial Port driver provided by Stenograph. The Virtual Serial Port is automatically installed when you install the Luminex Captioner/Student Edition USB

Luminex Captioner/Student User Guide

driver. Select Stentura as the writer in your CAT system if you are using the serial protocol with a CAT system not compatible with the Luminex Captioner/Student Edition USB protocol.

Chapter 4 Writing on the Captioner/Student Edition

Status

Status displays information about the Luminex Captioner/Student Edition. The Status screen indicates:

Software version.

When a job is opened, the name of the job.

The approximate number of strokes per minute.

The total number of strokes to date for all jobs taken.

Keyboard type and Serial Protocol.

The amount of space remaining in Memory.

Whether or not the AC adapter/charger is charging.

Main Battery status. See Battery for more information.

Check Status Information

To check status information:

Before Writing

From the Opening menu, touch Status.

To return to the Opening touch OK.

While Writing Realtime

From the Writing menu, touch More, Status.

To return to the Writing menu, continue writing or touch OK, More.

Steno Test

The Steno Test feature puts the Luminex Captioner/Student Edition in writing mode and simulates steno strokes for diagnostic purposes. This feature is generally used at the request of a Stenograph Technical Support Representative to test the Read and Writing features of the Luminex Captioner/Student Edition.

To activate Steno Test:

Luminex Captioner/Student User Guide

1. From the Opening menu, touch Diag, Steno Test.

The Luminex Captioner/Student Edition automatically writes one steno character at a time starting with the initial S to the final Z and continues that pattern until stopped.

2. Writing any steno stroke exits the Steno Test mode but keeps the file open. To close the file, touch

End. If the option, Prompt to confirm ending job is active, a confirmation prompt displays. Touch

End to close the job.

Chapter 4 Writing on the Captioner/Student Edition

Test Mode

Test mode allows you to write to the realtime screen without writing to memory. The Luminex Captioner/Student Edition must be connected to the computer for realtime writing. A testing facility may request this mode when you take a certification test or if you were providing captioning services in a secure location and you were not allowed to leave the area with steno files on your writer.

To turn Test Mode On or Off:

1. Connect the Luminex Captioner/Student Edition to your computer for realtime writing. For more information, see Connect for Realtime Writing .

2. From the Opening Menu, touch Setup, Test Mode.

3. Do one of the following:

On - make Test Mode active. The Status and Menu bars display in red to indicate that the

Luminex Captioner/Student Edition is in Test mode. The Luminex Captioner/Student Edition remains in Test Mode until you turn the feature Off or turn the Luminex Captioner/Student Edition Off.

Off - stops Test Mode.

4. To display the Opening menu, touch OK, More, Quit.

Luminex Captioner/Student User Guide

Chapter 4 Writing on the Captioner/Student Edition

Tilting Screen Appearance

You can adjust the font size and backlight level on the Tilting screen. The font size is only adjustable before beginning realtime. The brightness level is adjustable before or during realtime.

Set the Tilting Screen Font Size

The Luminex Captioner/Student Edition can display steno outlines in five different font sizes. Using a smaller font allows you to display more steno strokes on the Tilting screen and using a larger font allows for easier viewing. The default font size setting is #3.

To change the Tilting screen font size:

1. From the Opening menu, touch Setup, Display.

2. On the Display menu, touch Font.

3. Use the and sensors to move the cursor to the font size you desire.

4. When finished with your selection, touch OK. The Display menu displays. The selected font size

remains until changed.

5. To return to the Opening Menu touch Quit, More, Quit.

Set the Tilting Screen Backlight Level

Adjust the brightness of the Backlight on the Tilting screen to accommodate your viewing preference. Decreasing the brightness reduces the amount of the power required to display the screen which can reduce battery consumption. Optionally, setting the Backlight to automatically dim after a period of inactivity also reduces battery consumption. Dimming options allow you to customize automatic dimming when selected.

To customize the Tilting screen Backlight levels:

1. Do one of the following:

From the Opening menu, touch Setup, Display, Backlight.

From the First Writing menu, touch More, Setup, Display, Backlight.

2. Touch the Up/Down sensors to highlight an option. Use the + and - sensors to make changes.

Backlight Bright Level - increase or decrease the Backlight level. The brightness is based on

a percentage. 100% is the default. The screen reflects your selection.

Backlight Dim Level - set the Backlight dimming level when the Auto Dim After option is active.

The brightness level is based on a percentage. The screen reflects your selection.

Auto Dim After - select the period of inactivity that must pass on the Luminex Captioner/Student

Edition before Backlight dimming occurs. Choose a number between 1-90 seconds or Never.

Luminex Captioner/Student User Guide

Auto Bright When - select the action that must be taken to resume regular Backlight brightness

after dimming. Choose Press Steno or Function Key if you want the backlight to return to the

set brightness whether you write a steno stroke or use a touch sensor. Select Press Function

Key if you want the backlight to return to the set brightness only when you use a touch sensor.

3. When finished with your selections, touch OK. The Display menu displays.

4. Do one of the following:

• If no job is open on the writer, return to the Opening Menu by touching OK, More, Quit.

• During a job, simply continue writing. The First Writing menu displays.

Chapter 4 Writing on the Captioner/Student Edition

Time and Date

The Time function allows you to change the time and date on your Luminex Captioner/Student Edition. It is important to maintain date and time accuracy in the event you need to locate a file in Memory.

1. From the Opening menu, touch Setup, Time. The current Time and Date setting screen displays.

2. Touch the Next sensor to select the unit of time or date you want to change.

Month

Day

Year

Hour

Minutes

AM/PM

3. Do one of the following:

To increase the unit of time or date, touch +.

To decrease the unit of time or date, touch -.

4. Repeat the previous steps for each unit of time or date you want to change.

Luminex Captioner/Student User Guide

5. To apply your selection, touch Accept.

6. To display the Opening menu, touch Quit, More, Quit.

Chapter 4 Writing on the Captioner/Student Edition

USB Communication Option

The Luminex Captioner/Student Edition uses the same realtime USB protocol as the élan Mira®; however, some CAT systems look specifically for the writer model instead of the USB protocol. The USB Communication option allows you to switch the USB protocol from Standard to emulate the élan Mira, enabling you to connect your CAT system (which looks for a writer model specific information) to the Luminex Captioner/Student Edition via USB cable for realtime communication.

The USB Communication option only affects realtime communication via USB. Virtual USB serial port communication is not available.

To change the USB Communications option:

1. From the Opening Menu, touch Setup, Options.

2. Use the Up/Down sensors to highlight the USB Communication (Writer will Reset if Changes):

option.

3. Touch Change to switch to Mira Emulation or Standard. Standard is the default selection.

The message, Changing the USB Communications option requires the writer to Reset. To change the option and reset the writer, press Accept or press Cancel. displays. Do one of the following:

Touch Accept to change the USB Communication option and reset the Luminex

Captioner/Student Edition. The writer changes the protocol and resets. The Opening menu displays. The setting is retained until changed.

Touch Cancel to retain the current USB Communication option and remain at the Options

screen. To return to the Opening menu, touch OK, More, Quit.

Luminex Captioner/Student User Guide

Chapter 5 Troubleshooting

Chapter 5, Troubleshooting, suggests possible solutions to some common situations encountered when using the Luminex Captioner/Student Edition. Most users can remedy the following situations themselves. For more troubleshooting information, check Stenograph's web site,

www.stenograph.com. If a problem persists, call Stenograph Technical Support at 1.800.323.4247 or

1.630.532.5100.

Reset - Luminex Captioner/Student Edition Appears Unresponsive

If the Luminex Captioner/Student Edition appears to be unresponsive, press the Reset button on the back of the Luminex Captioner/Student Edition. If you have an open file at the time you press the Reset button, the current file closes. The Luminex Captioner/Student Edition reboots and a recovery complete message displays. Press OK and continue writing. A new file opens.

USB - Cannot Update Software

To load a Luminex Captioner/Student Edition software update, you must first install the Luminex Captioner/Student Edition USB driver on your computer. The Luminex Captioner/Student Edition USB drivers are available for download from the Stenograph website. To load the Luminex Captioner/Student Edition USB driver, see install USB drivers for instructions.

USB - Realtime Connection Appears Unresponsive

If you leave the USB realtime connection active when you take a break, the realtime screen on the CAT system may not display the new steno strokes when you resume writing. This is a function of the USB port power management settings when it remains idle for a period of time.

Power management settings determine if the USB ports turn off when not in use for a specified amount of time. Check the Power management settings for your computer USB Root Hubs to ensure the USB port does not turn off when idle.

When using the virtual serial port communication via a USB cable, ensure the power management settings to the USB port does not turn off when idle. Virtual serial port communications via USB cable, however, does not allow you to disconnect and reconnect the USB cable and maintain the realtime connection.

To modify the USB power management settings, please consult your Windows documentation about Windows Device Manager for your operating system. For additional information, check

Stenograph’s Solution Center.

USB - Unknown Device Message on Computer

1. Make sure the USB driver is loaded on the computer. See install USB drivers more

information.

2. Make sure the Luminex Captioner/Student Edition is turned On before attaching the USB cable to the Luminex Captioner/Student Edition and the computer.

Luminex Captioner/Student User Guide

Appendix A Updating Captioner/Student Software

Appendix A, Updating Luminex Captioner/Student Edition Software, explains how to download available updates for your Luminex Captioner/Student Edition from the Stenograph web site. You must have an active Internet connection and know your customer number and Luminex Captioner/Student Edition serial number in order to perform the update. The Luminex Captioner/Student Edition serial number is located on the bottom of the writing machine?

Once you download the software update onto your computer, you load it onto your Luminex Captioner/Student Edition via a USB cable. To load the Luminex Captioner/Student Edition software update via USB cable, you must first install the Luminex Captioner/Student Edition USB driver on

your computer.

To update your Luminex Captioner/Student Edition software:

1. Download the update to your computer. Connect to the Stenograph web site,

www.stenograph.com , and navigate to Support/ Downloads.

2. Select Luminex.

3. Right click on the selected update file to download and choose Save Target as. The Save As

dialog box displays.

4. The File name field displays the name of the selected file to download. Do not alter this name.

5. Select a location on your computer where you want to place the download file and select Save.

Stenograph recommends saving the file to your Desktop.

6. The File Download dialog box displays until the download completes copying files to your computer.

7. When the download is complete, the file displays on your Desktop, if the Desktop was selected for the download location.

8. Load the update onto your Luminex Captioner/Student Edition. Ensure your Luminex Captioner/Student Edition and computer are turned On.

9. Each end of the USB cable has a different connection plug. Connect the appropriate end of the micro USB cable to the USB port on the back of the Luminex Captioner/Student Edition and the other end to a USB port on the computer.

10. On your computer, navigate to the location on your computer where you downloaded the Luminex update file.

11. Double click on the Luminex update file. The Luminex Update dialog box displays.

12. Click Go!. The screen briefly displays a message indicating it is sending the updated software

build. The Luminex Captioner/Student Edition beeps twice and then displays the message:

Programming Flash.

Luminex Captioner/Student User Guide

13. When the update is complete the Luminex Captioner/Student Edition reboots and displays the Opening menu. Your computer displays the message: Successfully Updated the Luminex. Click

OK to Exit.

14. Click OK and in the Luminex Captioner/Student Edition Update dialog box on your computer, click

Quit. You can delete the update file.

Appendix A Updating Captioner/Student Software

Luminex Captioner/Student User Guide

Appendix B, Luminex Captioner/Student Edition Utilities, provides instruction on how to:

personalize the splash screen with a photograph.

retrieve log file if necessary.

use TrueView to view TrueStroke™ data generated by the Luminex Captioner/Student Edition.

Locate the Let Us Help You Get Started insert that came with your Luminex Captioner/Student Edition. You can easily download the Luminex Captioner/Student Edition utilities to personalize your Luminex Captioner/Student Edition, retrieve log files if necessary and view TrueStroke data by going to

stenograph.com/utilitycd. Using the previous link will automatically being the downloading the utilities

file to your Download folder.

1. If you clicked the above link, the file may have already begun downloading to your computer. If you are prompted with the following message, do one of the following:

Appendix B Captioner/Student Edition Utilities

To run the Writer Utility Setup, select Run. The Stenograph Utility Setup screen displays, follow

the prompts to install the utility.

To Save the setup file to your hard disk, select Save. Once the writer utility setup.exe is

downloaded, do one of the following to install the setup. Once the download is complete, do one

of the following:

To install the Writer Utility Setup, select Run.

To open the folder, select Open folder.

To look at your recent downloads, select View downloads.

Windows 7

Stenograph Writer Utility Programs

Once you download and install the Stenograph Writer Utility setup and run it, the following screen displays:

Luminex Captioner/Student User Guide

Do any of the following:

Install USB Drivers - if you have not already installed the Luminex Captioner/Student Edition

USB drivers, connect your Luminex Captioner/Student Edition to your computer via the USB cable and then click the Install USB Drivers button to automatically install the Luminex Captioner/Student Edition USB drivers on your computer.

Appendix B Captioner/Student Edition Utilities

Writer Utilities, Splash Loader and more option gives you access to the Splash Loader utility

that allows you to customize your Luminex Captioner/Student Edition start-up screen. Select the SplashLoader.exe in the Utilities and Splash Photos folder. For more information, see the SplashLoader.pdf located in the same folder. You can load your own photograph or use one of the supplied photos located in the Splash Photos folder.

The TrueView® utility is also available in the TrueView folder located in the Utilities and Splash

Photos folder. TrueView is a Luminex Captioner/Student Edition utility program that allows you to analyze your steno strokes by viewing the TrueStroke data (Steno X-ray2) generated by the Luminex Captioner/Student Edition. TrueStroke data is gathered while writing realtime connected via the USB cable to Case CATalyst V13 or higher. TrueStroke Data contains information about timing, the direction of travel and the velocity for each steno key in each steno outline. This allows you to examine a steno outline to determine the cause for a stroke to register as it did, providing instant feedback on your writing style. For example, you may want to examine split, stacked, dragged or dropped strokes. The TrueView Utility permits viewing of the Luminex Captioner/Student Edition TrueStroke data when you are not using Case CATalyst or are using another CAT system. The TrueView.exe along with important TrueView instructions are located in the TrueView folder.

GetSupportInfo is a utility that you may never use but may be necessary if the rare event that

your writing experiences a error. The GetSupportInfo utility transfers log error information from the Luminex Captioner/Student Edition to your computer. Technical Support may request this information for analysis. The GetSupportInfo program (GetSupportInfo.exe) along with the instructions (GetSupportInfo.pdf) are located in the Writer Utilities, Splash Loader and more option and then the Utilities and Splash Photos folder.

To retrieve the support information:

Luminex Captioner/Student User Guide

1. Turn your Luminex Captioner/Student Edition On. At the Opening menu, touch Memory.

2. Use the Down sensor to highlight the Support Info Files folder and then touch Folder.

3. Use the Down/Up sensors to highlight the current folder. Folders are named year followed by month (2018/08 indicates August of 2018).

4. Turn your computer On. Ensure that it is fully booted.

5. Connect the appropriate end of the USB cable to the USB port on the Luminex Captioner/Student Edition and the other end to a USB port on your computer.

6. Navigate to the location where you installed the Stenograph Utility files. At the Stenograph Writer Utility dialog box, click the Writer Utilities, Splash Loader and more option, double click the Utilities and Splash Photos folder and then double click the GetSupportInfo.exe. The GetSupportInfo dialog box displays.

7. You need to specific a location for the log files to be copied to your computer. In the GetSupportInfo dialog box, either click the Browse button to navigate to a location to save the log files or type a location. To copy the files from your Luminex Captioner/Student Edition to the computer, click Read.

Appendix B Captioner/Student Edition Utilities

8. When the files have been copied, the Reading Support Info Files Complete dialog box displays. Click OK and follow the instructions you received from the Stenograph Technical

Support Representative.

Stenograph Luminex Captioner Student Edition, Luminex CSE Student User Manual

Specifications and Main Features

Frequently Asked Questions

User Manual
