Diamante® User Guide

Release: July 2012; March 2012; July 2011; March 2011; February 2011; November 2010; June 2010; March 2010; February 2010; October 2009; July, 2009.

system or transmitted in any form or by any means (electronic, mechanical, photocopy, recording or otherwise) without the prior written permission of Stenograph, L.L.C.

STENOGRAPH PROPRIETARY: This material constitutes proprietary and trade secret information of Stenograph, L.L.C., and shall not be disclosed to any third party, nor used by the recipient, except under the terms and conditions of the purchase agreement between the customer and Stenograph, L.L.C.

Changes may be made periodically to the information in this publication. Such changes will be incorporated in any new edition of this manual.

Stenograph, L.L.C. is a Pettibone Company. Case CATalyst, EasyLock, Diamante, TrueStroke Technology (patent pending), élan Mira, Stentura Fusion,

SmartWriter, Stentura, Stenograph logo and Stenograph are trademarks and registered trademarks of Stenograph, L.L.C.

Windows is a registered trademark of Microsoft Corporation in the United States and other countries. Windows Vista is either a registered trademark or trademark of Microsoft Corporation in the United States and/

or other countries. SanDisk is a registered trademark of SanDisk Corporation. The SD logo is a trademark of Toshiba Corporation. All other trademarks are the property of their respective owners.

Congratulations on the purchase of your Diamante

We strongly encourage you to read this User Guide and practice using your writing machine according to the instructions contained therein. This will allow you to become comfortable and familiar with it before taking it on a job or into class.

The Diamante Diamante

is equipped with a non-glare liquid crystal display for easy read back of steno or text. The

provides text translation and searching, making it easier to provide “read back.”

Your Diamante comes with rechargeable batteries: one main battery pack and an internal backup battery. Advanced battery technology prevents the batteries from overcharging so you don’t have to worry about leaving the batteries on the charger overnight or over a weekend. Be aware that batteries are consumable items and are usually ready to be replaced every twelve to eighteen months.

EasyLock

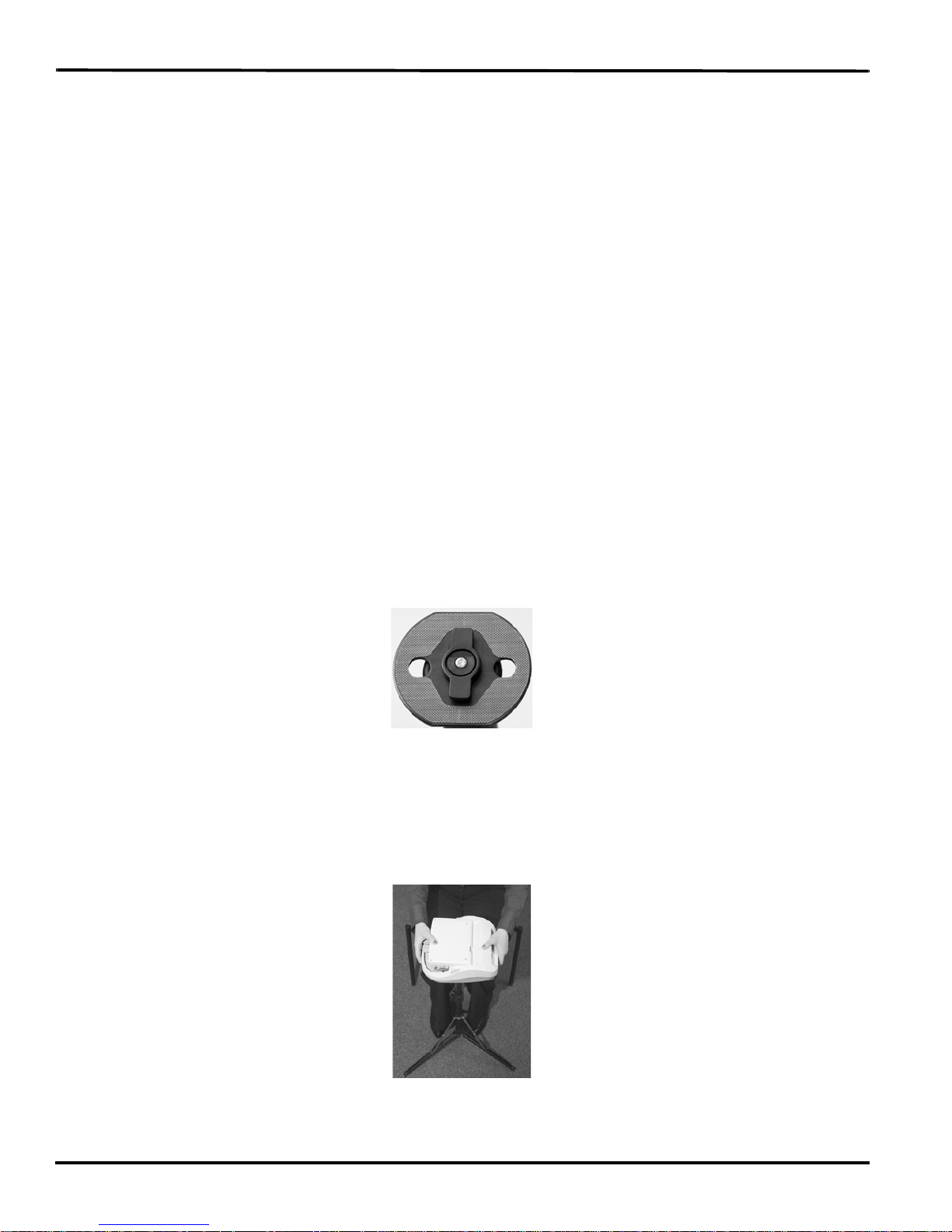

Z12 tripod positioning with a positive-locking mechanism provides quick and easy setup. Simply open and set the tripod on the floor and place your machine on it according to the instructions in this guide. The design of the tripod assures a smooth, even writing platform for you to enjoy.

You’ll probably notice how light the Diamante is - - just 4.5 pounds. The carrying case also lightens your load.

Remember to check the Stenograph

web site, www.stenograph.com, for updates to the Diamante. The

Diamante was designed with you in mind. We know you’ll enjoy using it!

STENOGRAPH, L.L.C.

iii

The Importance of Working Comfortably and Effectively

Stenograph believes that the Diamante shorthand machine, when used in compliance with the enclosed instructions and information, is safe. Certain sources, though controverted, suggest a relationship between injuries of the hands and forearms with prolonged use of any type of keyboard or other equipment involving repetitive movements of the hands. At the same time, other sources indicate that there is no such cause and effect.

The safety and well-being of persons using Stenograph equipment is of paramount concern and because we recognize that these medical and scientific questions are not definitively resolved, Stenograph encourages all users of our writers to carefully review the following Work Area Checklist and to use appropriate work habits. Remember, personalizing your environment so that it is comfortable for you, promotes a healthy physical and mental work lifestyle.

The following Work Area Checklist is not intended to be all inclusive but a guideline for you to use. Only you can determine what is best for you. Use the checklist to assess and adjust your work area to suit your own needs. Personalizing your environment so that it is comfortable for you promotes a healthy physical and mental work lifestyle.

Work Area Checklist

At Your Diamante

 Use a comfortable chair conducive to correct posture.  Adjust the height of the shorthand machine

appropriately for your body.

 Position the shorthand machine comfortably close to

you.

 Place the tripod between your knees. Do not sit

“sidesaddle”.

 Minimize the use of the shorthand machine on surfaces

other than the tripod stand.

At Your Computer

 Place the monitor screen perpendicular to the window to

help avoid glare.

 Adjust or close window coverings.  Arrange materials such as reference books or a

telephone close to you to help avoid excessive reaching or twisting.

 Clear the area under and around the desk to leave room

for your feet and legs.

 Remove sources of distraction around the monitor.  Keep noise to a minimum.

Your Body

 Take frequent breaks to stretch or exercise.  Maintain a straight wrist position.  Avoid resting your wrists while writing.  Keep your hands level with your forearms.  Let your fingers curve naturally.  Let your forearm go up and down a little whe n you write,

pivoting at the elbow, not at the wrists.

 Pull your steno machine comfortably close to you.  Keep your feet on the floor or supported by a footrest.  Support your lower back.  Assure that your knees are bent at an angle of 90° or

more and your thighs at an angle of 90° or greater in relation to your torso.

 Adjust the chair position and your posture throughout

the day.

 If you experience any aching, numbing, or tingling in

your arms, wrists, or hand, consult a qualified health care professional.

 See accompanying materials provided by the computer

keyboard manufacturer.

Contents

Chapter 1: Introduction..................................................................................................... 7

Diamante Features.................................................................................................................................. 8

Diamante Feature Details........................................................................................................................ 9

User Guide Overview........................................................................................................................ ..... 10

Tutorial Clips.......................................................................................................................................... 11

Chapter 2: Hardware ....................................................................................................... 13

Batteries....................................................................................................................... ........... .......... ..... 14

Communication Ports ............................................................................................................................ 18

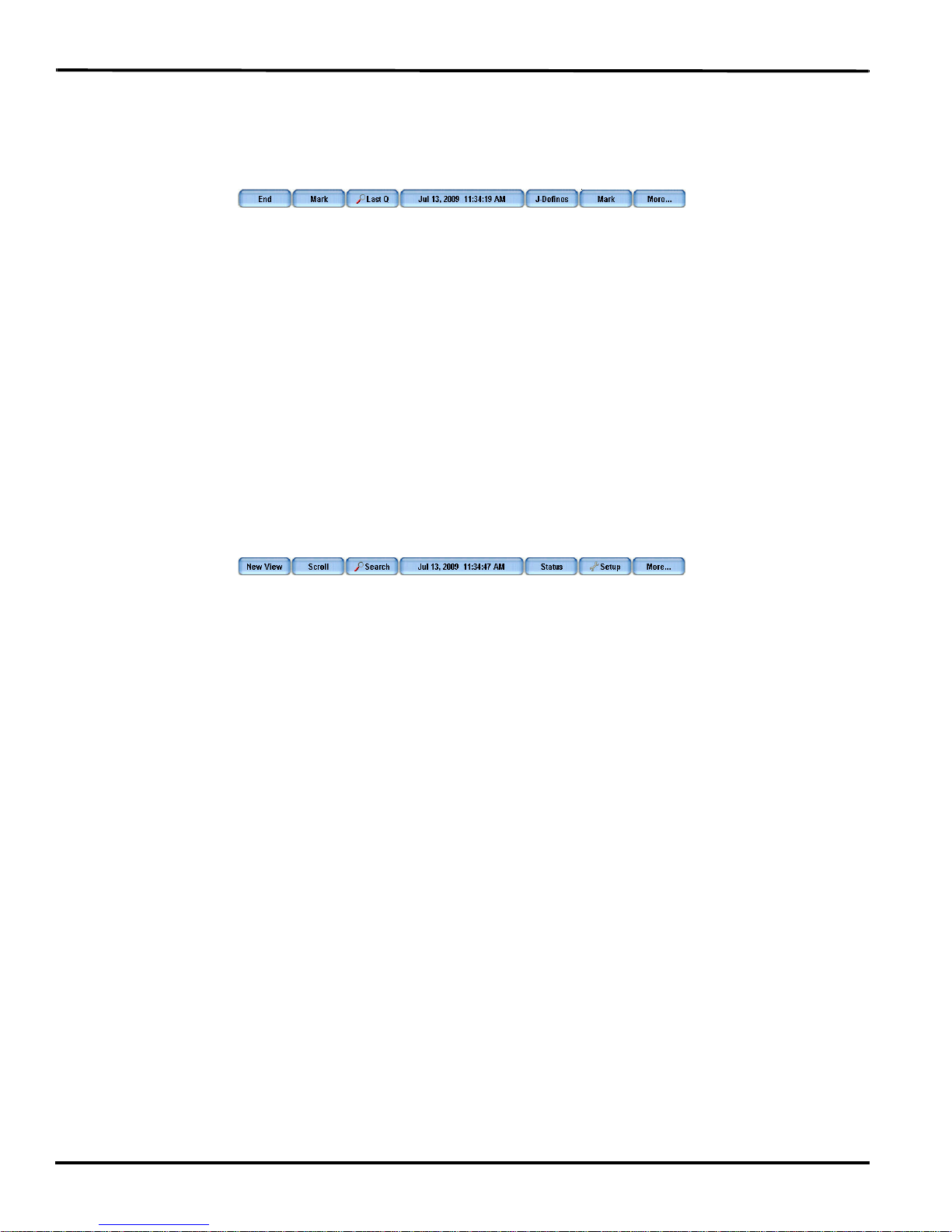

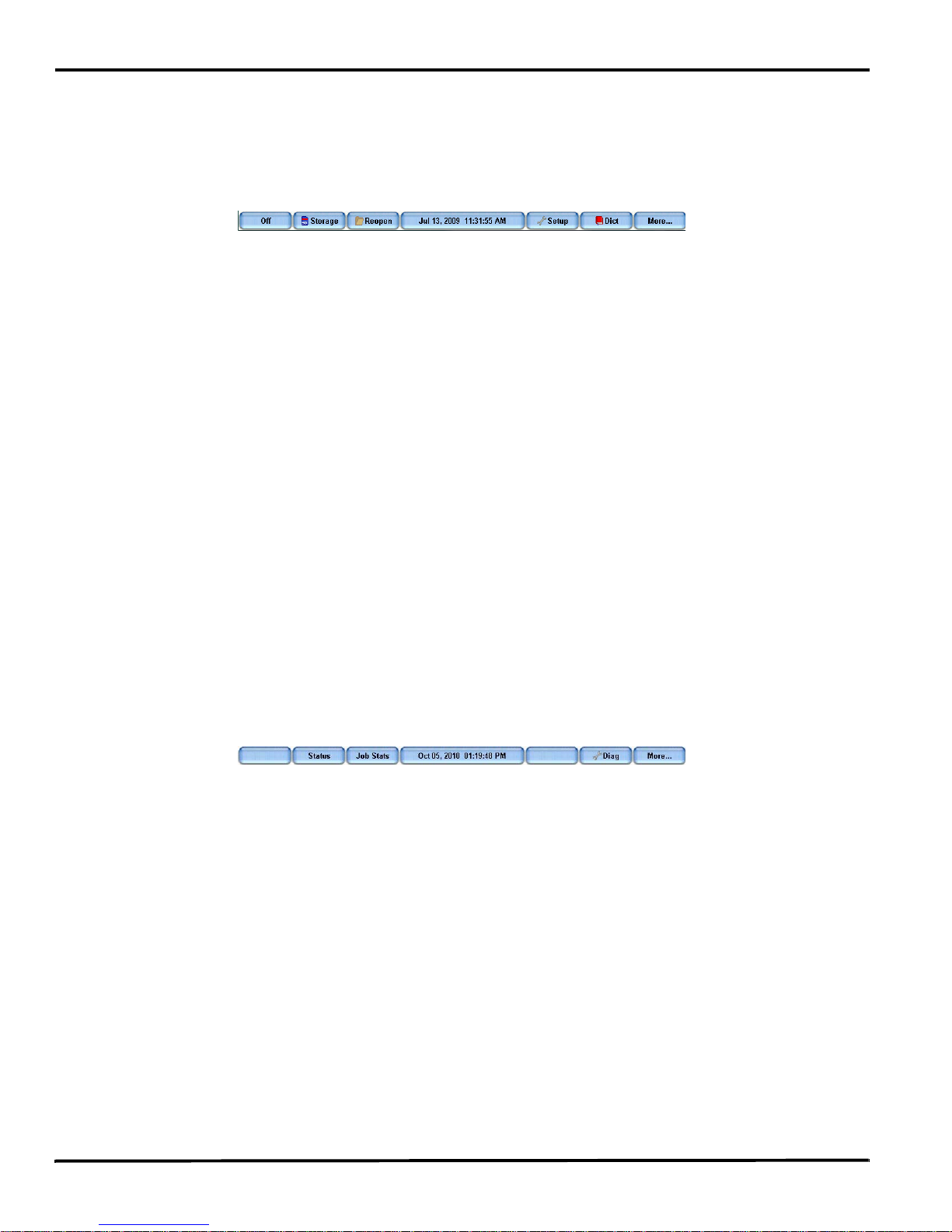

Function Buttons.................................................................................................................................... 23

Keyboard Depth and Tension Controls.................................................................................................. 24

Reset ................................................................................................................................................ ..... 25

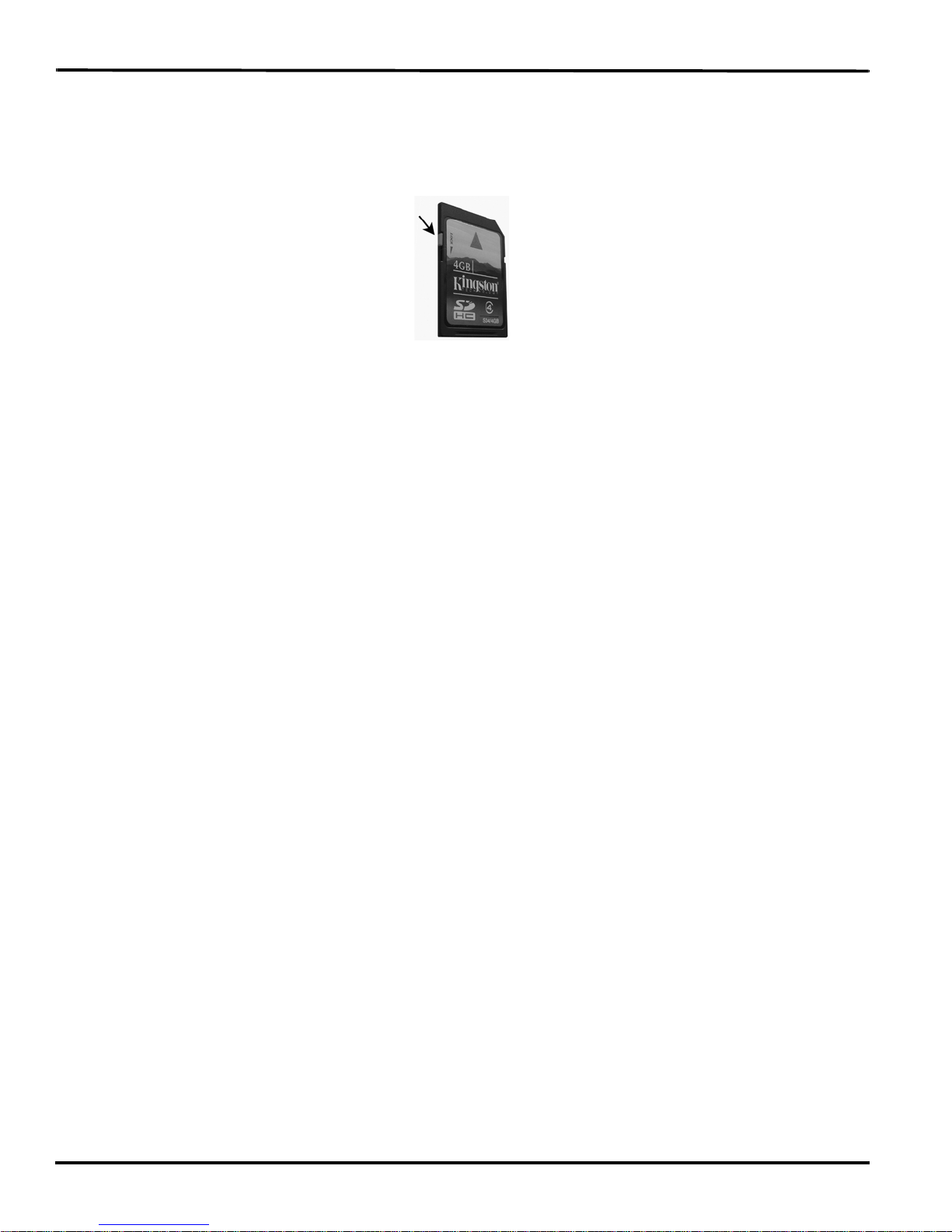

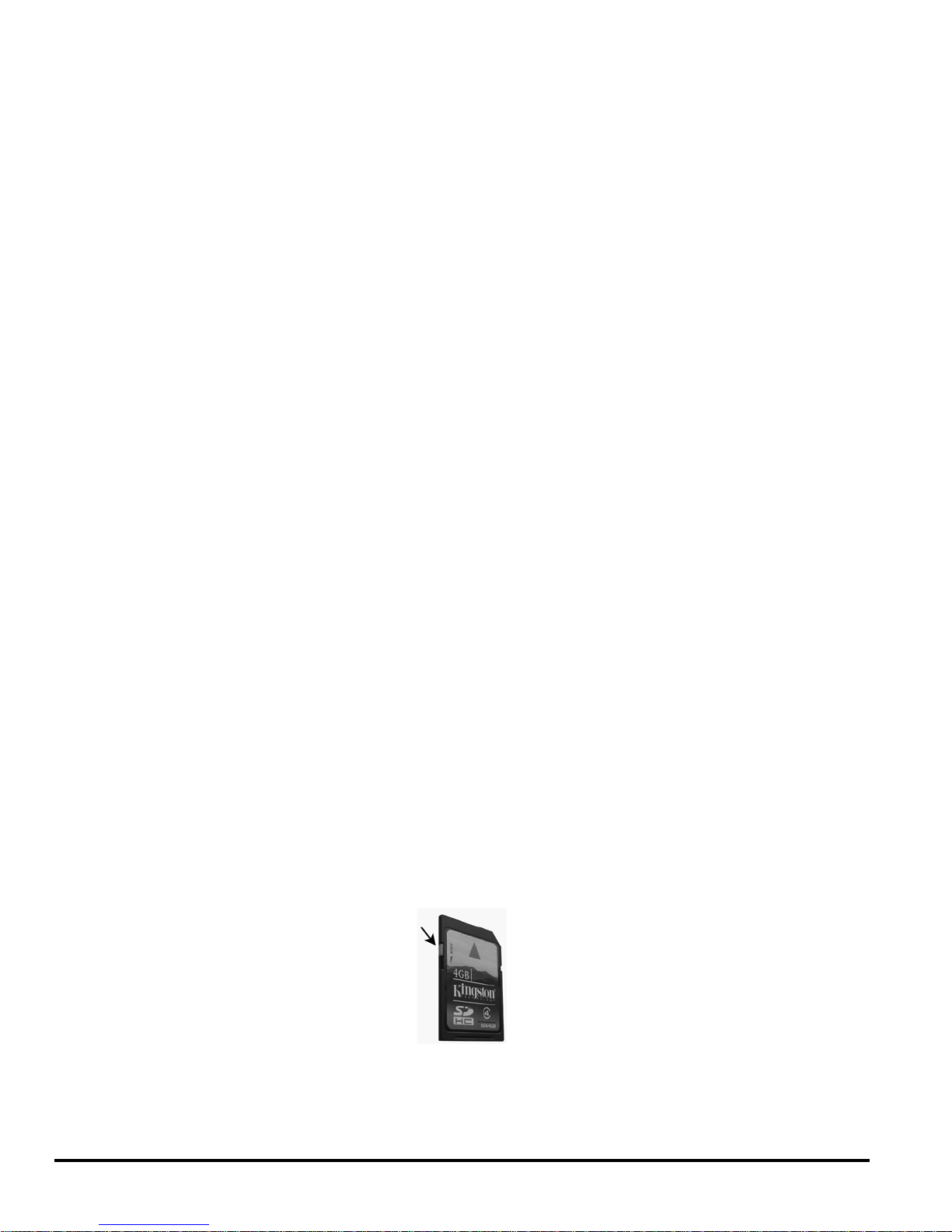

Secure Digital Cards.............................................................................................................................. 26

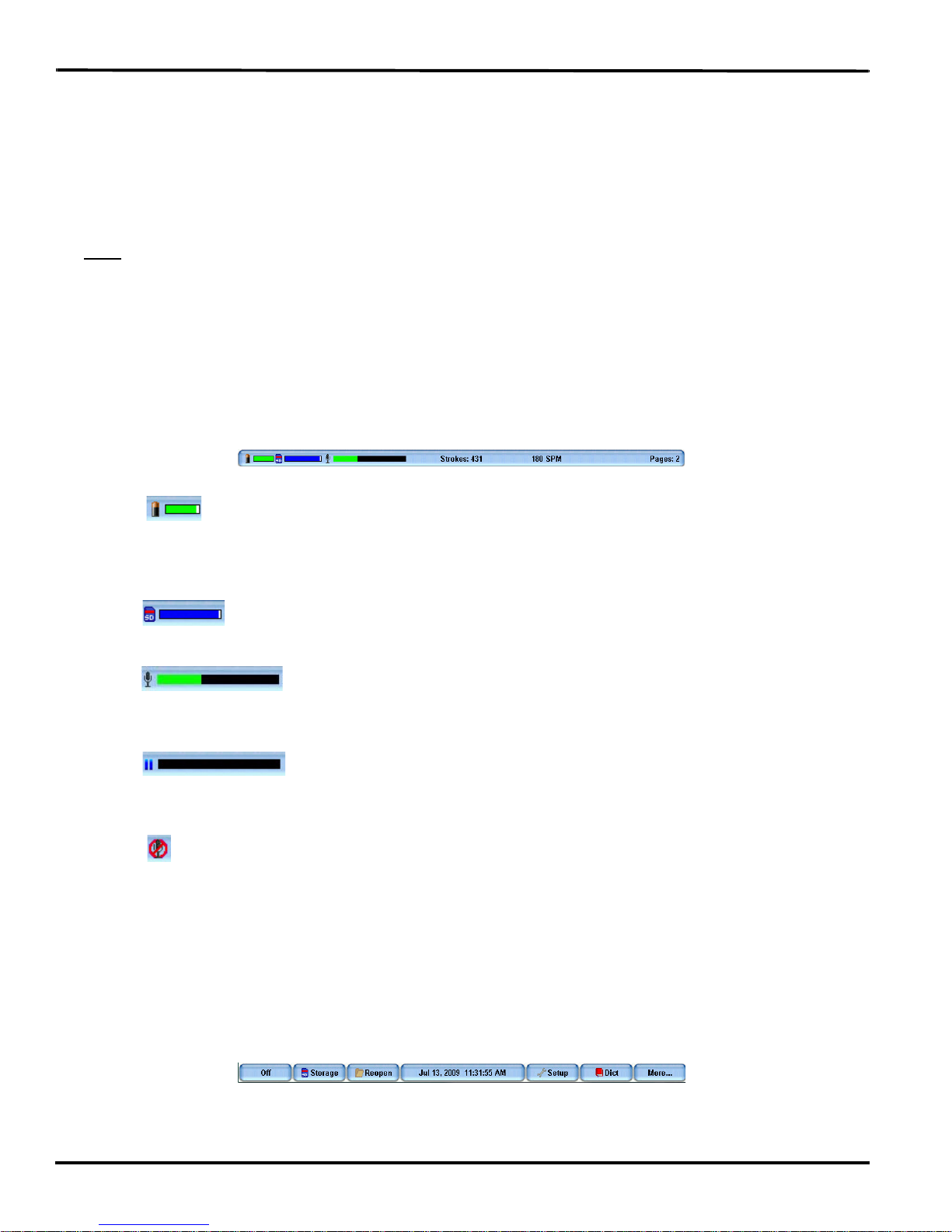

Status LCD ............................................................................................................................................ 29

Tilting Color Screen............................................................................................................................... 30

Tripod........................................................................................................................... ........... .......... ..... 31

Chapter 3: Writing on the Diamante .............................................................................. 33

Accessing Diamante Features............................................................................................................... 34

Writing Jobs........................................................................................................................................... 37

A/An Resolution..................................................................................................................................... 39

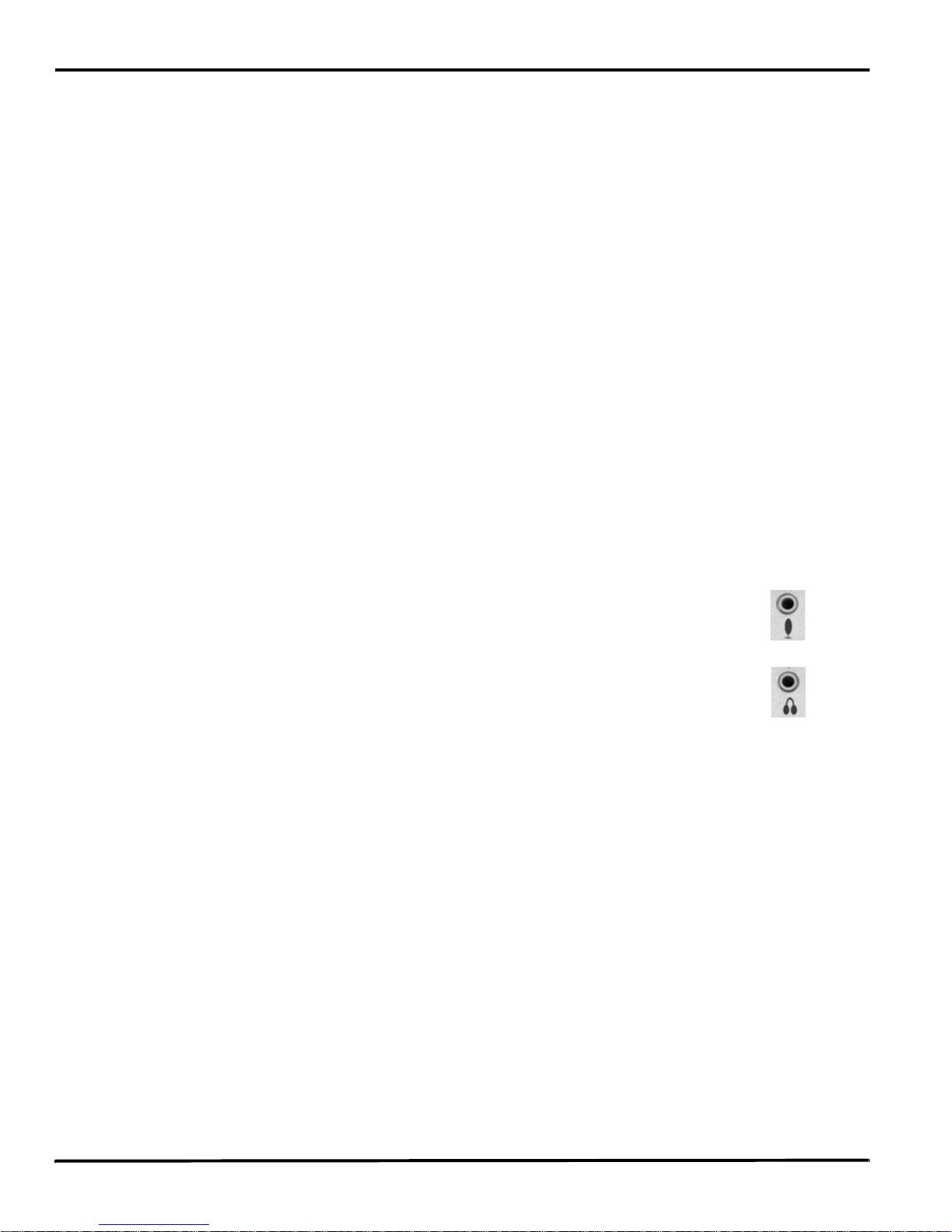

Audio............................................................................................................................ ........... .......... ..... 40

Auto-Conflict Resolution................................................................................................................... ..... 43

Backup SD Card.................................................................................................................................... 44

Beeper Volume...................................................................................................................................... 46

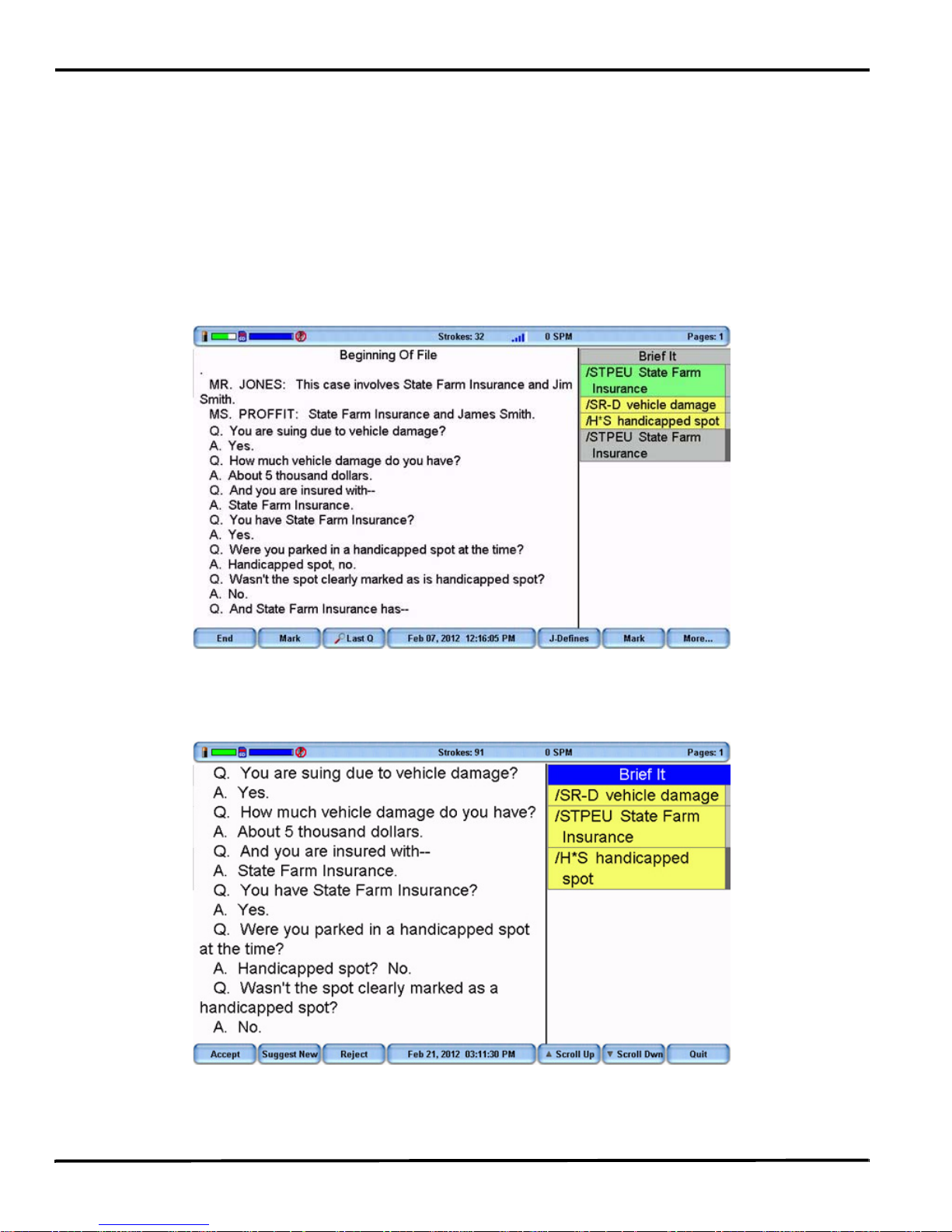

Brief It ............................................................................................................................................... ..... 47

Copy Log ............................................................................................................................................... 51

Data SD Card ......................................................................................... ........... .................................... 52

Dictionaries............................................................................................................................................ 55

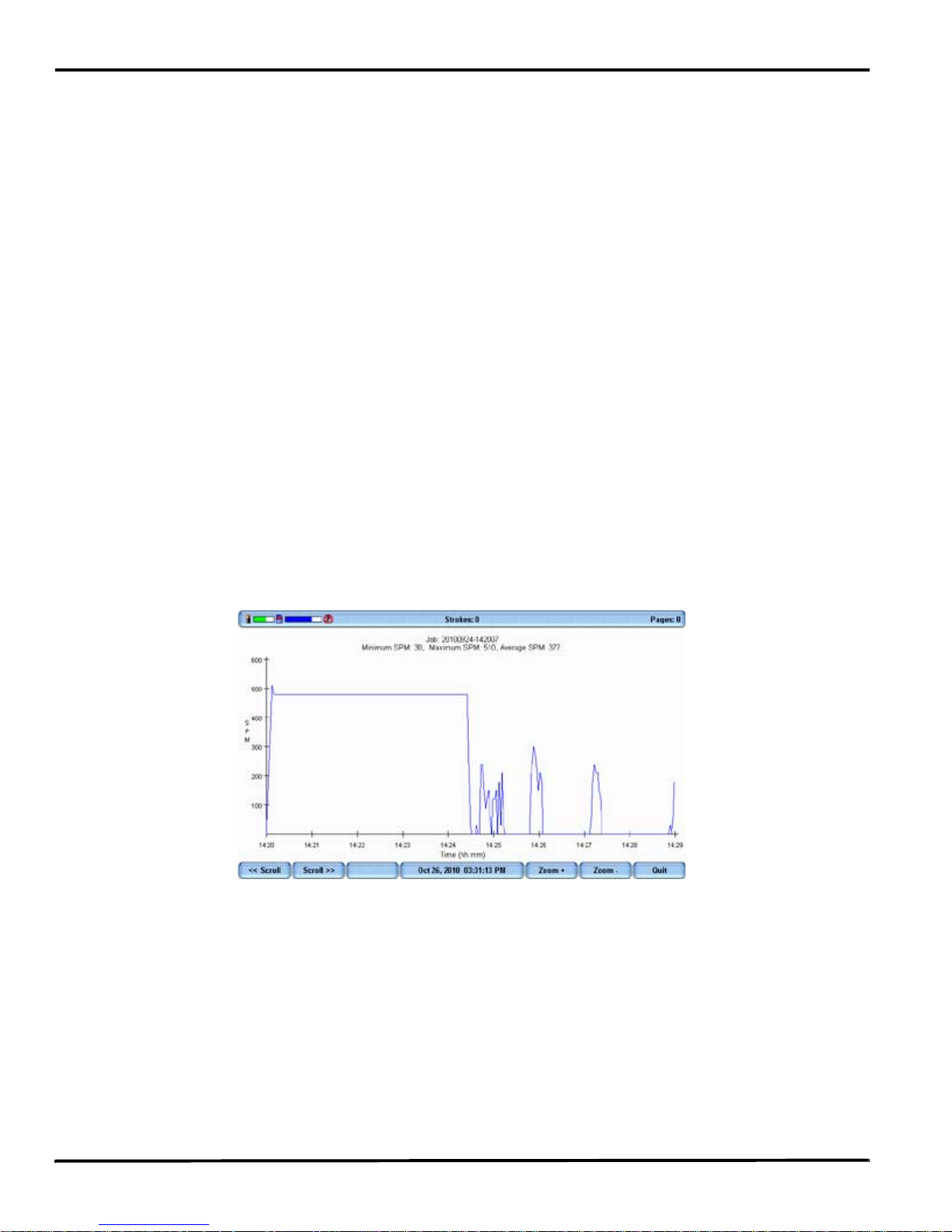

Display Set Strokes Per Minute (SPM).................................................................................................. 58

Electronic Marks..................................................................................................................... ............... 59

J-Defines................................................................................................................................. ............... 60

Job Statistics.......................................................................................................................................... 68

Keyboard Layout................................................................................................................................ .... 69

Keyboard Settings ............................................................. .......... ........... ............................................... 70

Memory.................................................................................................................................................. 74

New View............................................................................................................................................... 76

Options ............................................................................................................................................. ..... 77

Prompt to End a Job Option .................................................................................................................. 78

Reopen.................................................................................................................................................. 79

Scroll...................................................................................................................................................... 80

Search ................................................................................................................................................... 81

Serial Protocol ....................................................................................................................................... 84

Status........................................................................................................................... ........... .......... ..... 85

Steno Test ............................................................................................................................................. 86

Suffix Handling........................................................................................................................ .......... ..... 87

Test Mode.............................................................................................................................................. 88

Diamante User Guide

Thumb Drive.......................................................................................................................................... 89

Tilting Screen Appearance .................................................................................................................... 90

Time and Date....................................................................................................................................... 92

Translate Options .................................................................................................................................. 93

TrueStroke............................................................................................................................................. 94

USB Communication ............................................................................................................................. 95

Wireless................................................................................................................................................. 96

Chapter 4: Troubleshooting ........................................................................................... 97

Troubleshooting Tips............................................................................................................................. 97

Diamante Technical Support ............................................................................................................... 101

Appendix A: Updating Diamante Software ................................................................. 103

Appendix B: Diamante Utilities.................................................................................... 105

Personalize the Diamante Splash Screen........................................................................................... 106

Convert Date/Time to Stentura Format................................................................................................ 108

Convert RTF/CRE Dictionaries............................................................................................................ 110

Backup SD Card Reader..................................................................................................................... 113

TrueView.............................................................................................................................................. 115

Index............................................................................................................................... 125

Chapter 1

Introduction

Congratulations on the purchase of your Diamante® writing machine. Read this user guide to familiarize yourself with the Diamante components.

Chapter 1, Introduction, highlights the features of your Diamante, describes typographical conventions used in this guide and outlines the organization of this guide.

Package Contents

Your new Diamante comes with the following items:

• Diamante

• Carrying case

•EasyLock

Z12 tripod

• 1 main removable, rechargeable battery pack

• 110/220 AC adapter/charger

• 1 Data SDHC card, (4 GB)

• 1 Backup SDHC card, (4 GB)

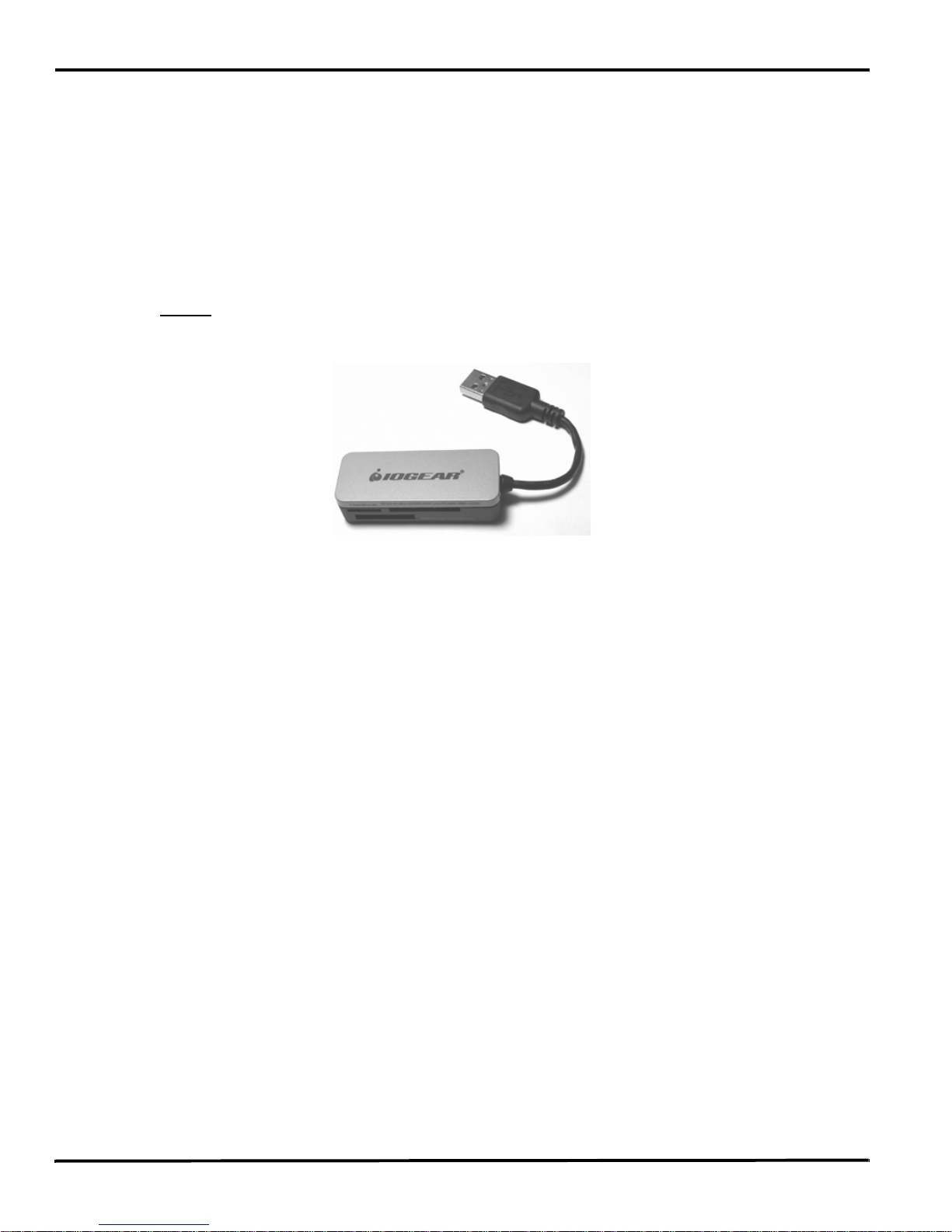

• USB SD Flash Drive reader

• USB cable (6 ft.)

• Diamante

/Wave™ Utilities and Tutorial CD

• Optical-quality spray cleaner and cleaning cloth

• Stenograph One-Year Commercial Warranty document

• Diamante User Guide available on the Diamante

/Wave™ Utilities and Tutorial CD

Diamante User Guide

Diamante Features

Diamante Feature Details

The Diamante provides you with the following features:

• Translated text displays on a seven inch color, non-glare Tilting screen.

• View text, steno notes or text and steno notes simultaneously.

• Realtime ready through USB or virtual serial port.

• Backup SD card for steno notes, timestamps and audio.

• Record and playback audio.

• Adjustable digital clock with month, date, and time.

• Data SD card for steno notes, timestamps, job dictionary and audio.

• Adjust beeper volume.

• Set the Tilting screen brightness and text color and font size.

• Update Diamante software from Internet download via USB.

Chapter 1: Introduction

• Date and timestamp note files.

• Automatically load main and job dictionaries.

• J-Define entries from the Diamante to a job dictionary.

• A/An resolution, Auto-Conflict and suffix handling for readback.

• Search for and display the previous or last Question, Answer, untranslate, StenoMark, or steno string.

• Scroll forward and backward in a file.

• Keyboard and individual key sensitivity adjustments.

• Reopen an existing file for readback and play audio.

• Bluetooth ready capabilities (optional).

• WiFi capabilities (optional).

Diamante User Guide

User Guide Overview

This Diamante User Guide contains the following chapters with related topics.

Chapter 1: Introduction

Introduction acquaints you to the Diamante features and explains this user guide.

Chapter 2: Hardware

Hardware explains the various components of the Diamante and how to use them.

Chapter 3: Writing on the Diamante

Writing on the Diamante explains all the software features of the Diamante used for setup before you begin writing and while writing a job. These includes features such as loading dictionaries, setting audio options, customizing the Tilting screen, searching steno and text and changing the Tilting screen view.

Chapter 4: Troubleshooting

Troubleshooting suggests possible solutions to some common situations that you may encounter when using the Diamante.

Appendix A: Updating Diamante Software

Updating Diamante Software instructs you how to download available updates for your Diamante from the Stenograph web site.

Appendix B: Diamante Utilities

Diamante Utilities provides instruction on how to load an RTF/CRE dictionary on the Diamante, convert Diamante files from Date and Time format to Stentura compatible format, personalize the Diamante splash screen, retrieve jobs from a Backup SD card and view TrueStroke™ data.

Chapter 1: Introduction

Tutorial Clips

The Diamante®/Wave™ Utilities and Tutorial CD contains short videos with audio, designed to assist you in learning about select Diamante features such as inserting the battery, using SD cards and recording audio. This Diamante User Guide provides additional details and step-by-step instructions for all Diamante features.

To access the Diamante video lessons:

1. Turn your computer On. Ensure that it is fully booted.

2. Ensure your computer speakers are turned On.

3. Insert the Diamante computer. If the AutoPlay dialog box displays, click Run autorun.exe.

4. The Diamante - Wave Utility dialog box displays. Click Diamante Utilities, User Guide and more.

5. The Diamante Utility dialog box displays. Click Video Tutorial Clips.

6. Click the lesson you want to view. The video begins playing automatically in your browser. Use the Pause/Play button on the viewer as necessary.

/Wave™ Utilities and Tutorial CD into the CD-ROM/DVD drive on your

7. When the current video finishes, select another video to view or click Replay.

8. When finished with the Diamante

/Wave™ Utilities and Tutorial CD remove it from your computer.

Diamante User Guide

Chapter 2

Hardware

Chapter 2, Hardware, provides information about the hardware components of your Diamante. This includes details on battery charging and use; communication ports and setup; function buttons for accessing menus; Status LCD icons; adjusting the Tilting screen; resetting the writing machine; and assembling and attaching the tripod.

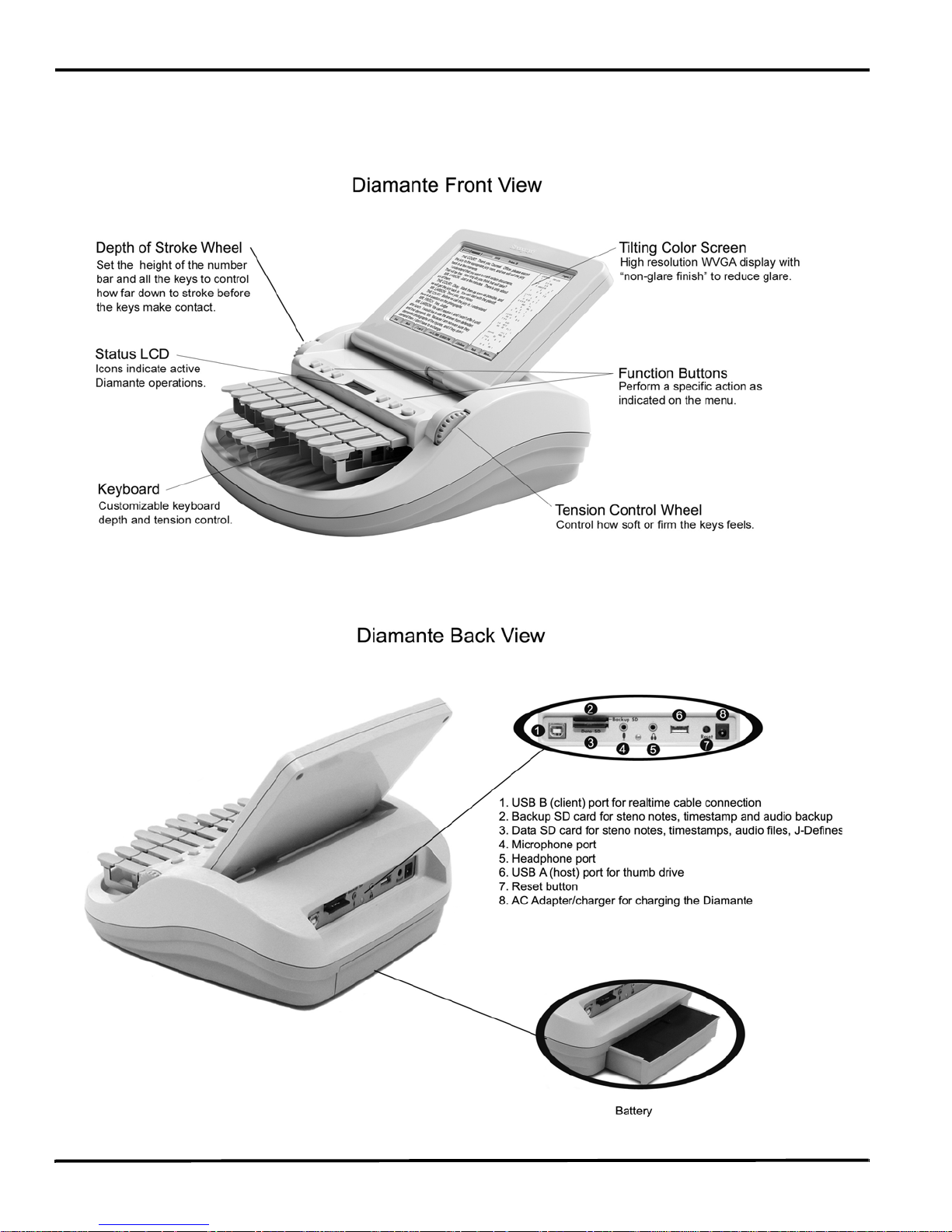

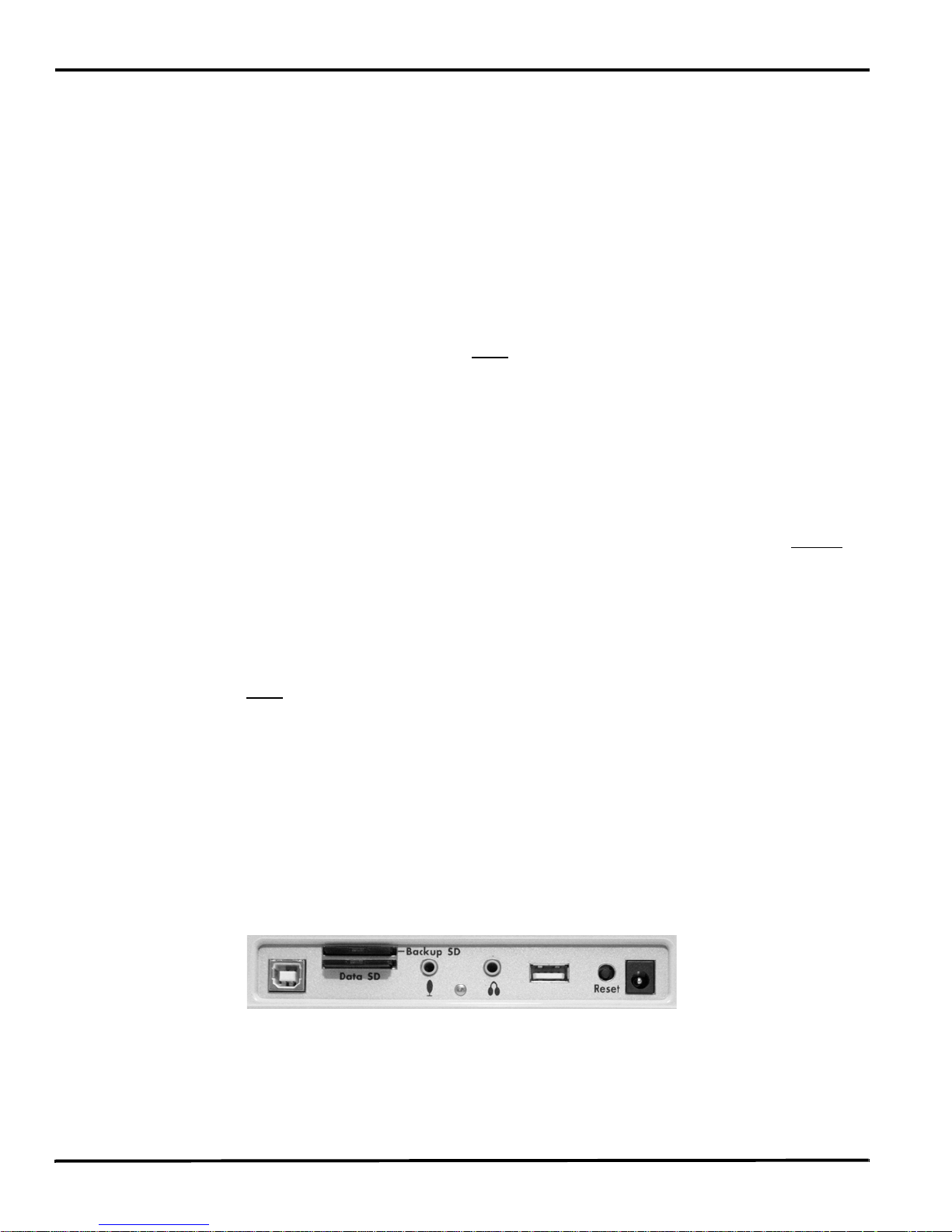

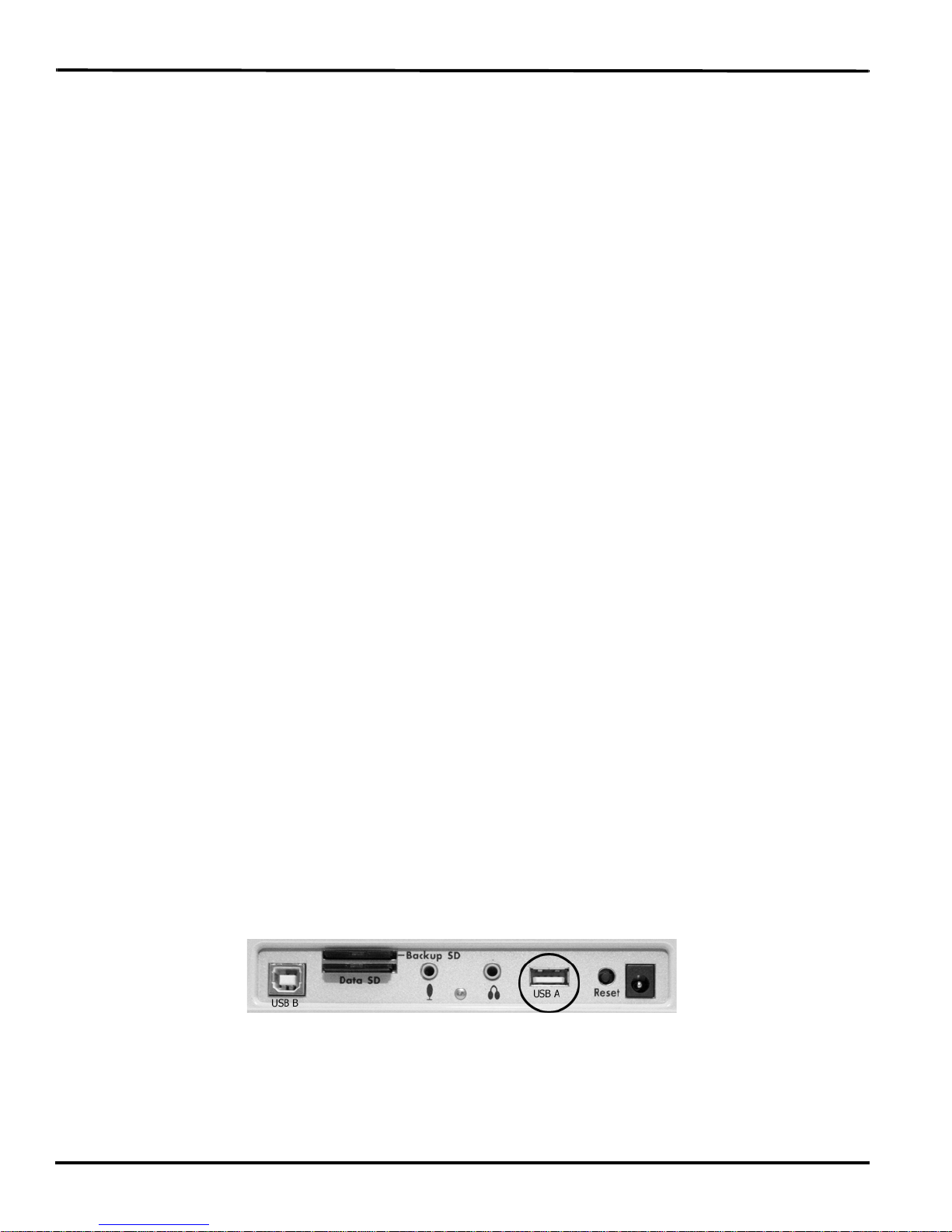

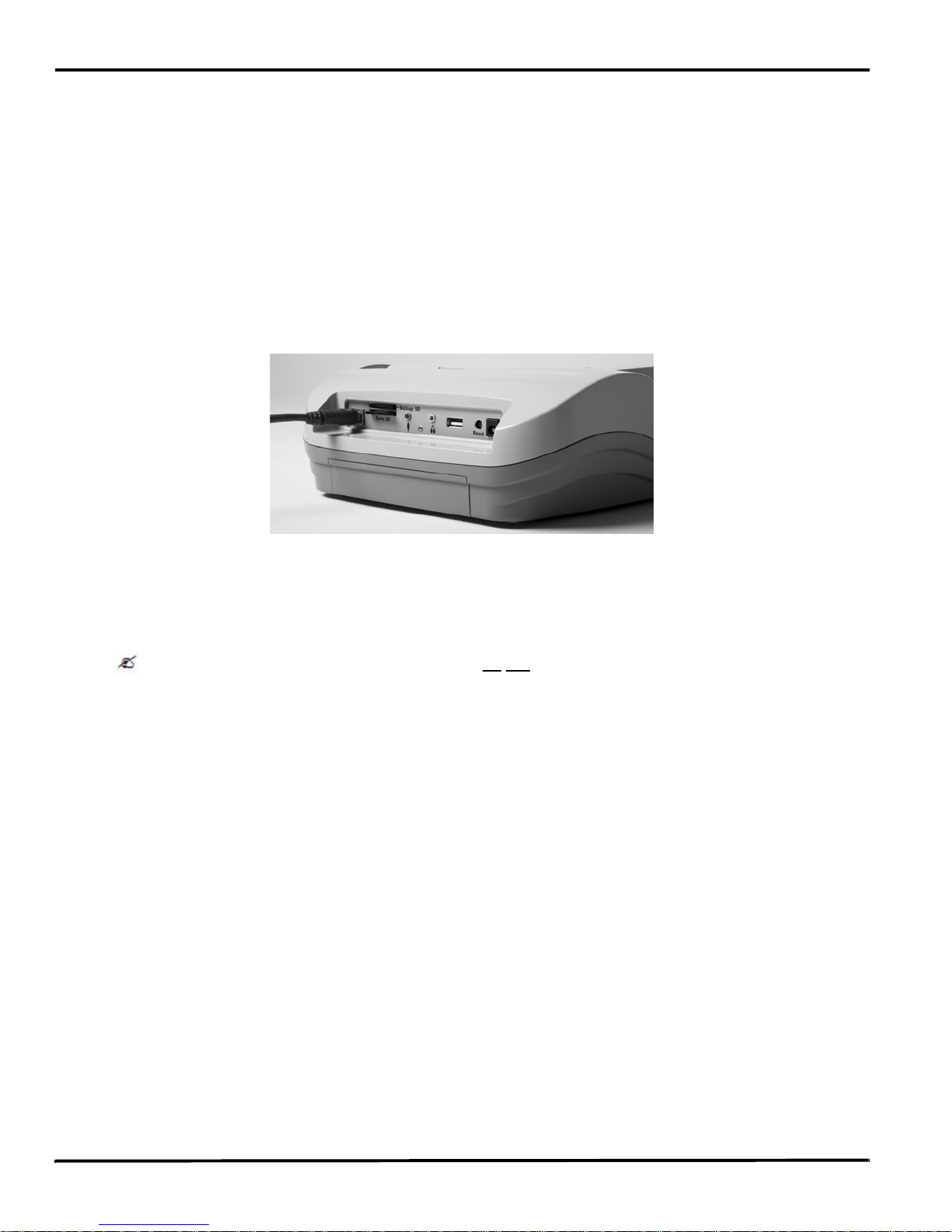

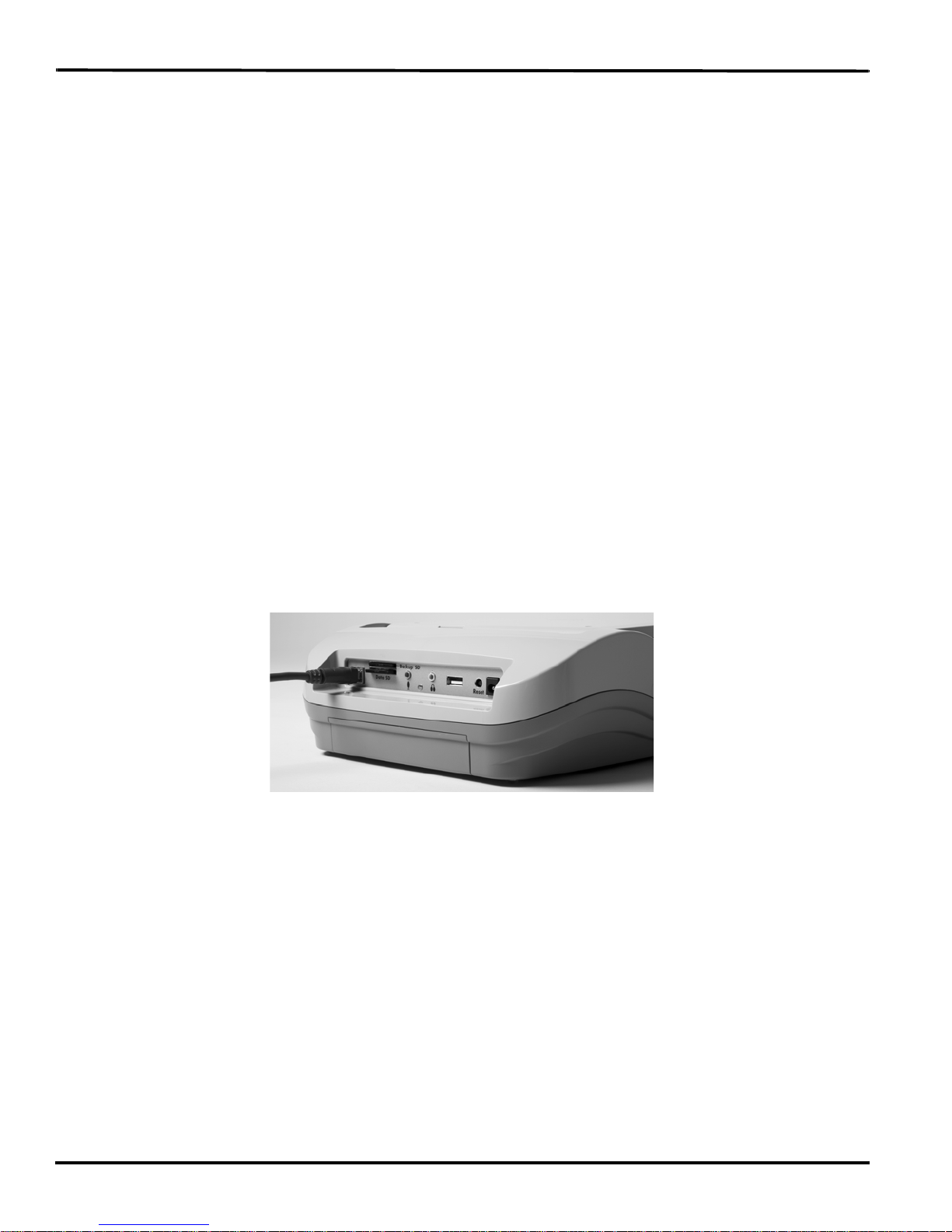

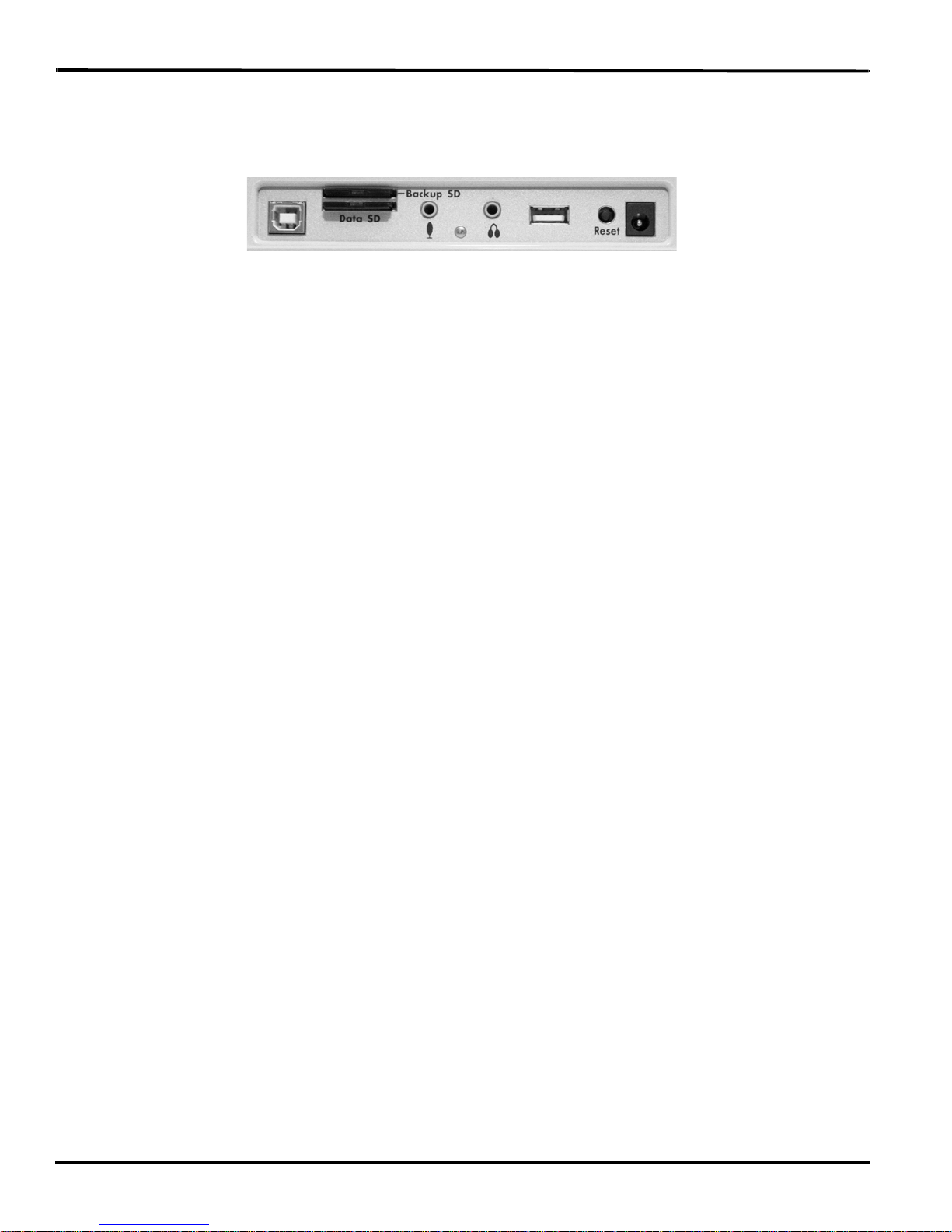

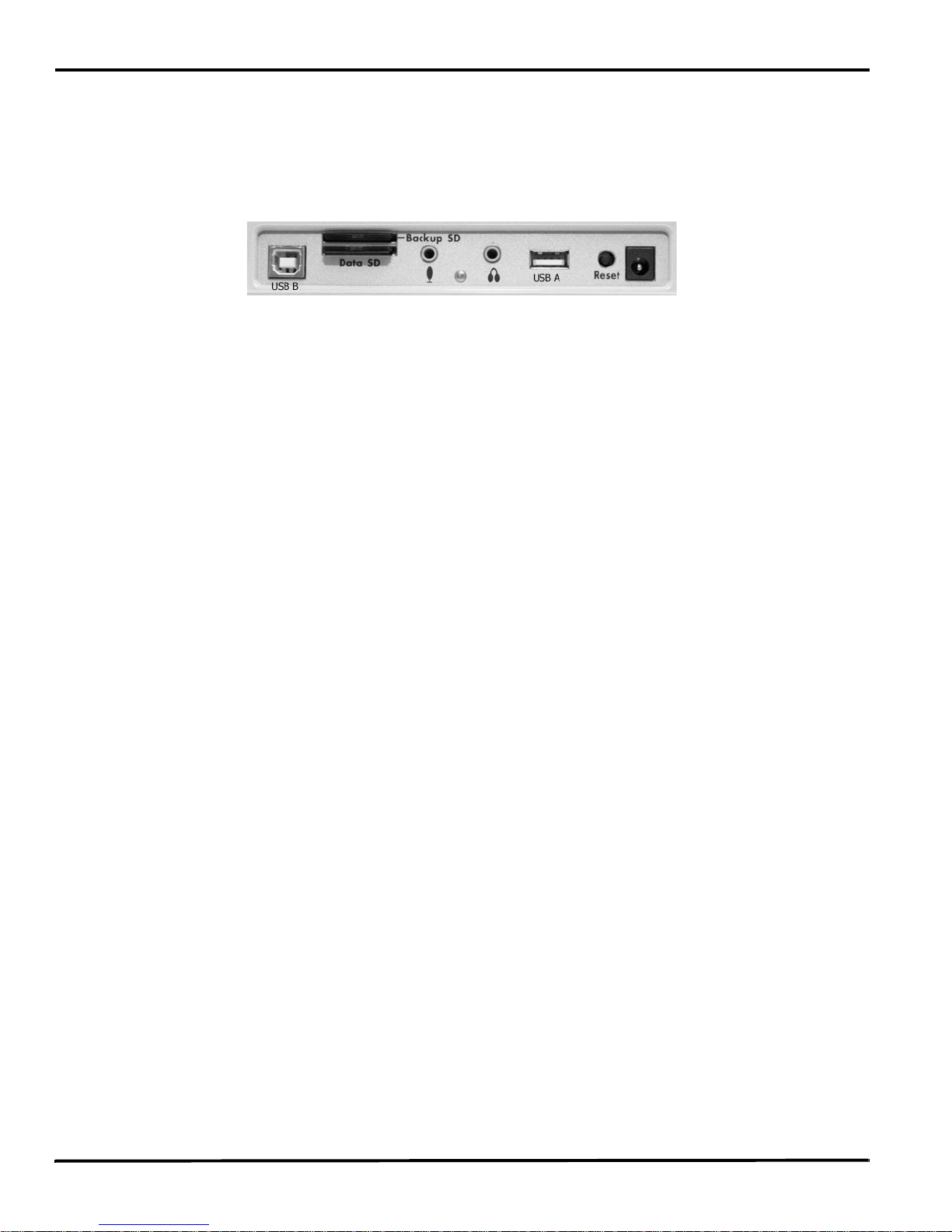

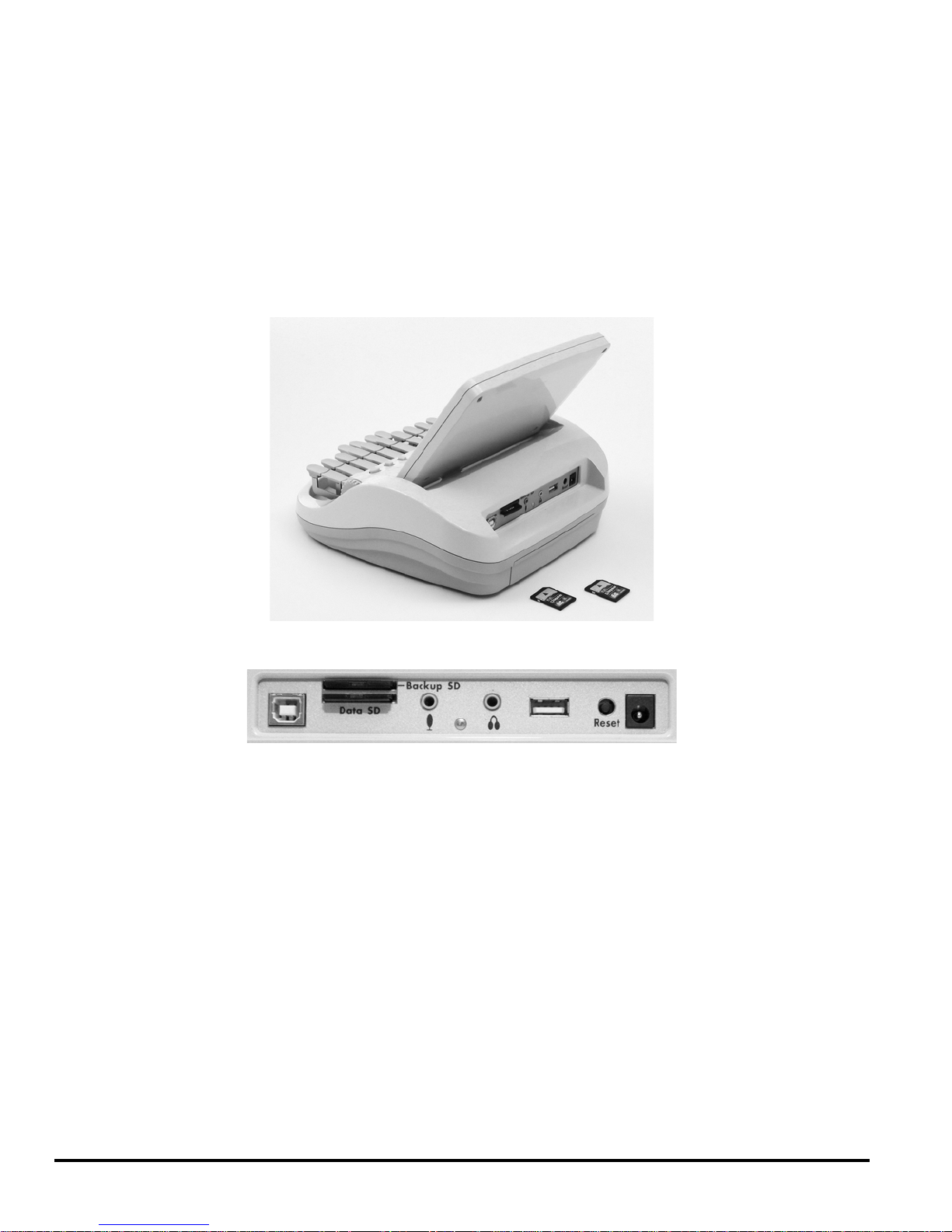

Diamante Ports

Diamante User Guide

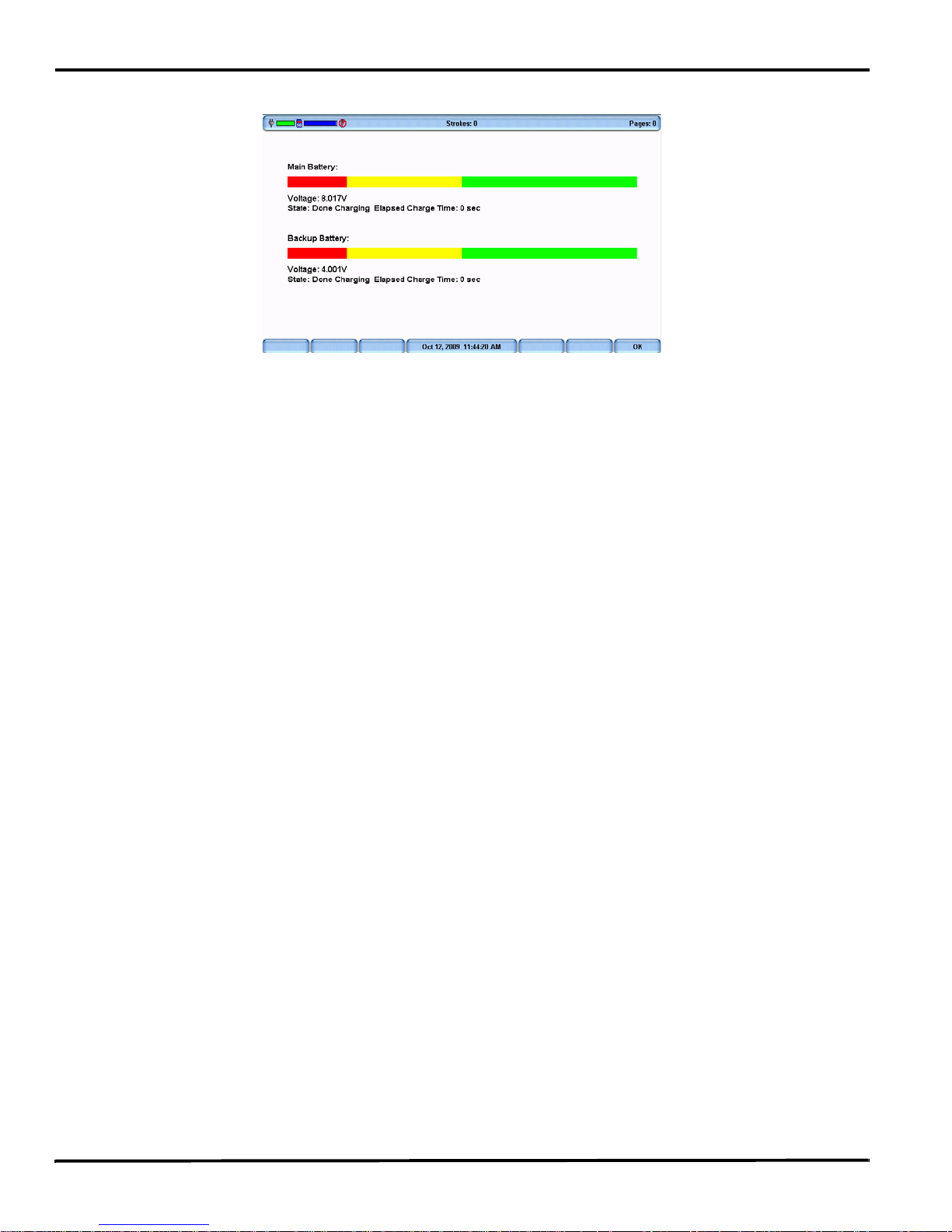

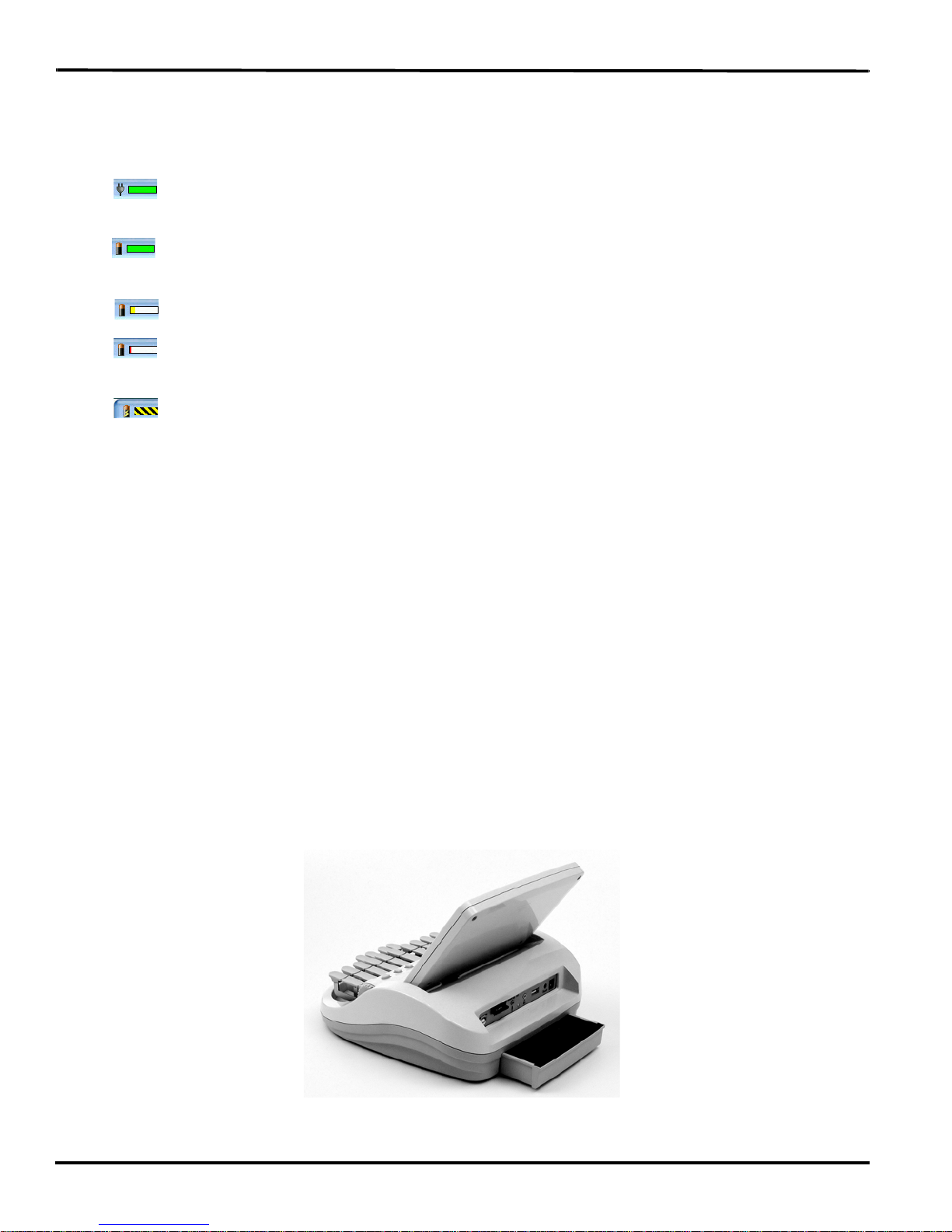

Batteries

The Diamante comes with one main rechargeable battery, an internal backup rechargeable battery and an AC adapter/charger. You can operate your writing machine on battery power, using the AC adapter/ charger without the main battery or using the AC adapter/charger with the main battery charging. Although you can use the Diamante with the AC adapter/charger, Stenograph recommends that you fully charge the battery before first time use. See Battery Charging Procedure on page 14.

The main battery, fully charged, operates all the features on the Diamante for approximately 8 - 10 hours. Charging time for the main battery is approximately 4 - 5 hours.

The internal backup battery provides a FailSafe mode if the charged level of the main battery becomes too low and you are not using the AC adapter/charger. In FailSafe mode, the Tilting screen, Bluetooth communication and WiFi communication turn Off. Your steno notes and audio continue to be written to the Data and Backup SD cards and, if you are writing realtime via a USB connection, steno notes are sent to the realtime screen. Steno notes also continue to be stored in memory. The backup battery operates for approximately 8 hours and charges at the same time the main battery is charging.

A third, small internal battery functions to retain the Diamante date, time and user settings. This battery has a lifespan of approximately 10 years.

Charging the Batteries

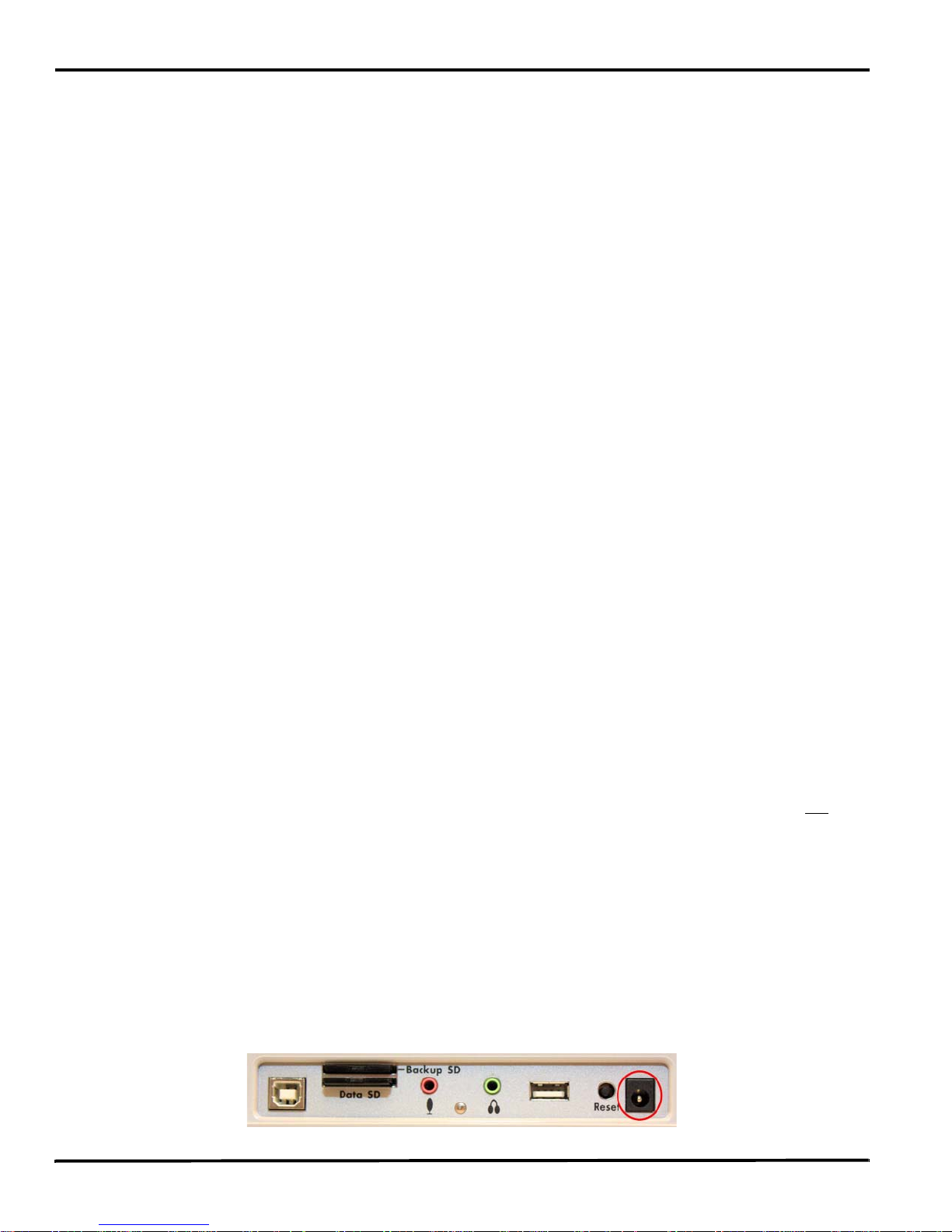

When the Diamante is powered by the AC adapter/charger, both the main battery and backup battery levels are automatically maintained. The batteries fully charge in 4 -5 hours. You can use your writing machine while the AC adapter/charger charges the batteries. If you have an additional main battery pack, Stenograph recommends alternating the batteries monthly.

The Diamante batteries only charge when low. Once the batteries are charged, it is not necessary to keep the writing machine plugged into the AC adapter/charger, however, keeping the writing machine plugged in does not damage the batteries. If you are not going to use your Diamante for an extended period of time, Stenograph recommends keeping the Diamante plugged into the AC adapter/charger. If the Diamante is not in use for a long period of time while disconnected from t he AC adapter/charger, it is important to fully charge the battery before use.

Use only the AC adapter/charger supplied with your Diamante. Chargers designed for other Sten ograph

writing machines do not power the Diamante. The Stentura charge the Diamante battery.

Battery Charging Procedure

To charge your Diamante batteries:

1. Ensure the main battery is in the Diamante.

charger fits the Diamante but does not

2. Plug the AC charger/adapter into a wall outlet.

3. Insert the small plug on the AC adapter/charger cord into the AC adapter/charger socket on the back of the Diamante.

Chapter 2: Hardware

4. The Diamante turns On. A black dot in the lower right corner of the Status LCD indicates the Diamante is On. A row of running blocks indicates the batteries are charging. If you plug your Diamante in to charge and only the black dot displays, the batteries are charged. Charging is not necessary and no charging occurs.

You can use the Diamante while the batteries charge. The running blocks do not but the Diamante continues to charge. See Status LCD on page 29 for more information.

Press the On/Off button to turn the Diamante Off during charging. The Tilting screen turns off but the Diamante remains On while charging as indicated by the black dot on the Status LCD.

display while writing

Viewing Battery Charging Status

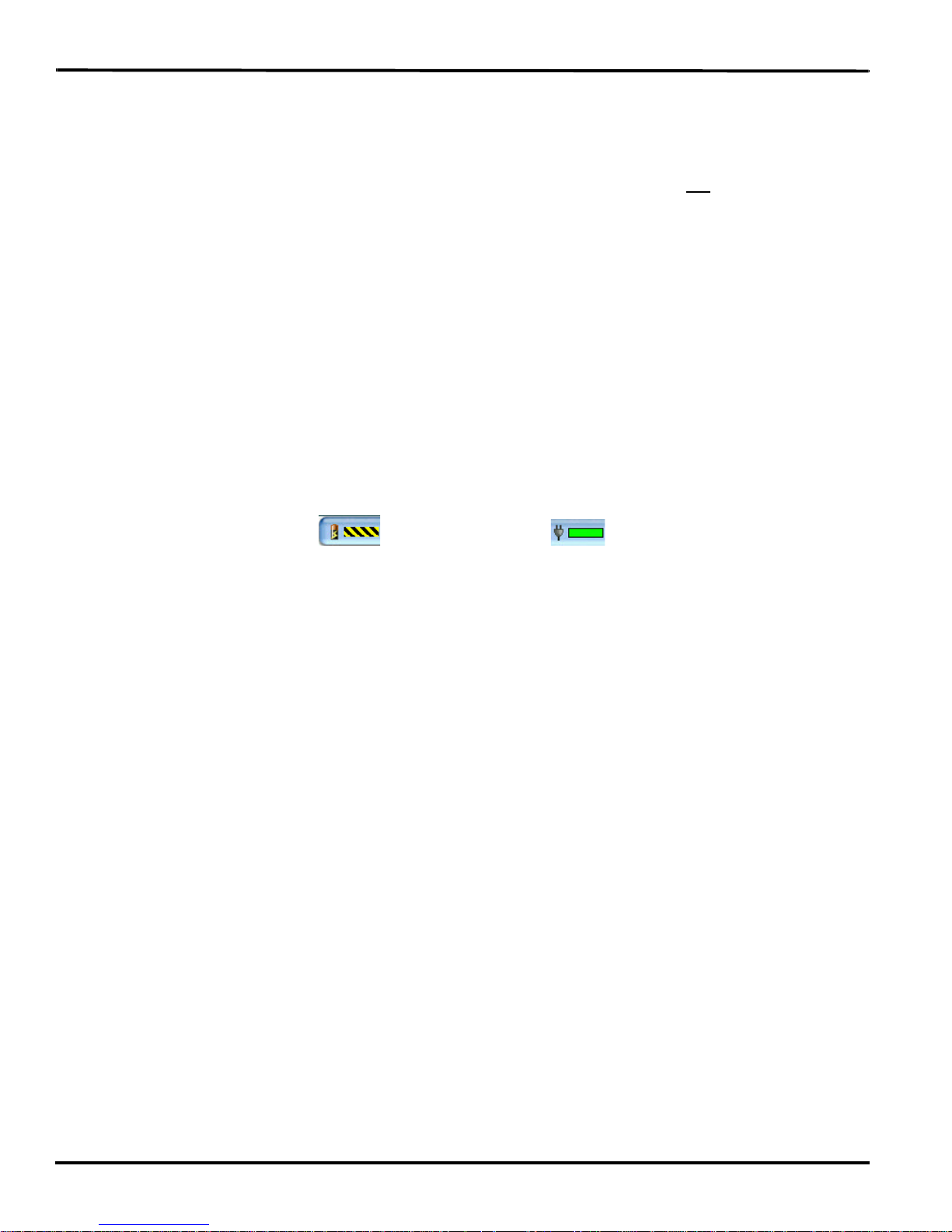

The Tilting screen and the Status LCD display graphic indicators that reflect the charging status of both the main and backup battery. See View Battery Voltage Levels on page 15 to view specific battery voltage levels, current charging status and the most recent charging history.

When the AC adapter/charger is connected to the Diamante charging the batteries, the title bar on the Tilting screen displays a battery icon with the battery gauge showing running black and yellow stripes. When the batteries are fully charged, a plug icon replaces the battery icon until you disconnect the AC adapter/charger.

Battery Charging Battery Fully Charged

When the main battery is charging, the Status LCD displays black bars in running sequence from left to right. The black bars are not visible when you are writing, but redisplays when you close the job. When the Diamante is finished charging, the bars move from each side of the screen to the middle of the screen in a “clapping” motion. If the AC adapter/charger is plugged in for a long time, the “clapping” motion stops, however the battery is fully charged.

When the backup battery is charging along with the main battery, the battery icon displays on the Status LCD along with black bars in running sequence from left to right. When the backup battery is fully charged, the battery icon no longer displays.

View Battery Voltage Levels

The Battery diagnostic screen displays the voltage level, charging status and most recent charging history for the Diamante batteries. This includes both the main battery and the backup Lithium ion battery.

To view battery voltage and charging status:

1. Make sure the charger/adapter is not plugged into the Diamante. If you just disconnected the charger/adapter from the Diamante, turn the Diamante On and wait 10 – 15 minutes to get an accurate battery voltage reading.

2. From the Opening menu, press More.

Diamante User Guide

3. Press Diag and then press Battery. The battery status screen displays.

Diamante Battery Status Screen

4. Review the following battery information:

• Indicator bar - provides an approximate indication of the battery voltage level. Green indicates

the battery is fully charged; yellow indicates it is charged and red indicates it is low.

• Voltage - the actual voltage amount. A main battery reading of 7.4 volts or higher indicates

normal operating voltage. 7.0 volts or below indicates the battery is very low and indicates approximately one hour of operating time remaining.

• A backup, Lithium Ion, battery reading of 3.9 or above indicates the backup battery is charged

and does not charge when the adapter/charger is attached; 3.8 or below indicates the backup battery needs charging and automatically charges when the charger/adapter is attached.

• State - the most recent charging history. When checking battery status with the adapter/charger

not attached, the message Not Charging displays. If the adapter/charger was removed befo re the charging is complete, an INCOMPLETE message displays along with a Cause of Failure message indicating the charger was removed.

5. When finished, press OK, Quit.

6. To display the Opening menu, press More.

Low Battery Warnings

As the main battery becomes progressively low, the Diamante displays warnings using the battery gauge on the title bar of the Tilting screen and messages on the Status LCD. When the main battery becomes low while the Diamante is connected to a computer with a USB cable during realtime, low battery messages continue to display until the battery is depleted. All the features remain operational. See Install the Diamante USB Drivers on page 18.

Use the Diamante Diagnostic feature to check the specific voltage levels of the batteries. See View

Battery Voltage Levels on page 15.

Chapter 2: Hardware

Battery Gauge

The battery gauge on the title bar of the Tilting screen provides a general indicator of the main battery voltage level. It changes appearance as the voltage level of the battery changes:

• - an electrical plug with a full green gauge indicates the Diamante is plugged into the AC adapter/charger and the main battery is fully charged.

• - a battery with a full green gauge indicates the main battery is fully charged. As the charge of the battery level drops, the green bar becomes smaller.

• - a battery with a partial yellow gauge indicates the battery is low.

• - a battery with a short red gauge indicates the battery is almost completely drained. The battery icon flashes on and off.

• - a battery with black and yellow running stripes indicates the Diamante is plugged into the AC adapter/charger and the batteries are charging.

Tilting Screen Battery Messages

The Tilting screen displays four progressive warning messages as the main battery level becomes low:

• Main battery, Danger -- Battery Low.

• Main Battery, Danger -- Recharge Battery Now.

• Main Battery, Battery Dead -- Switching To FailSafe...

• Main Battery, Battery Dead -- Recharge Battery Now!

Changing the Battery

To remove and replace the Diamante main battery:

1. Place the palm of your hand squarely against the back of the Diamante on the battery. Grasp the back portion of the battery with your two middle fingers.

2. Pull the battery gently away from the Diamante.

3. To replace the battery, slide it into the slot and press the battery firmly until it locks into place.

Diamante User Guide

Communication Ports

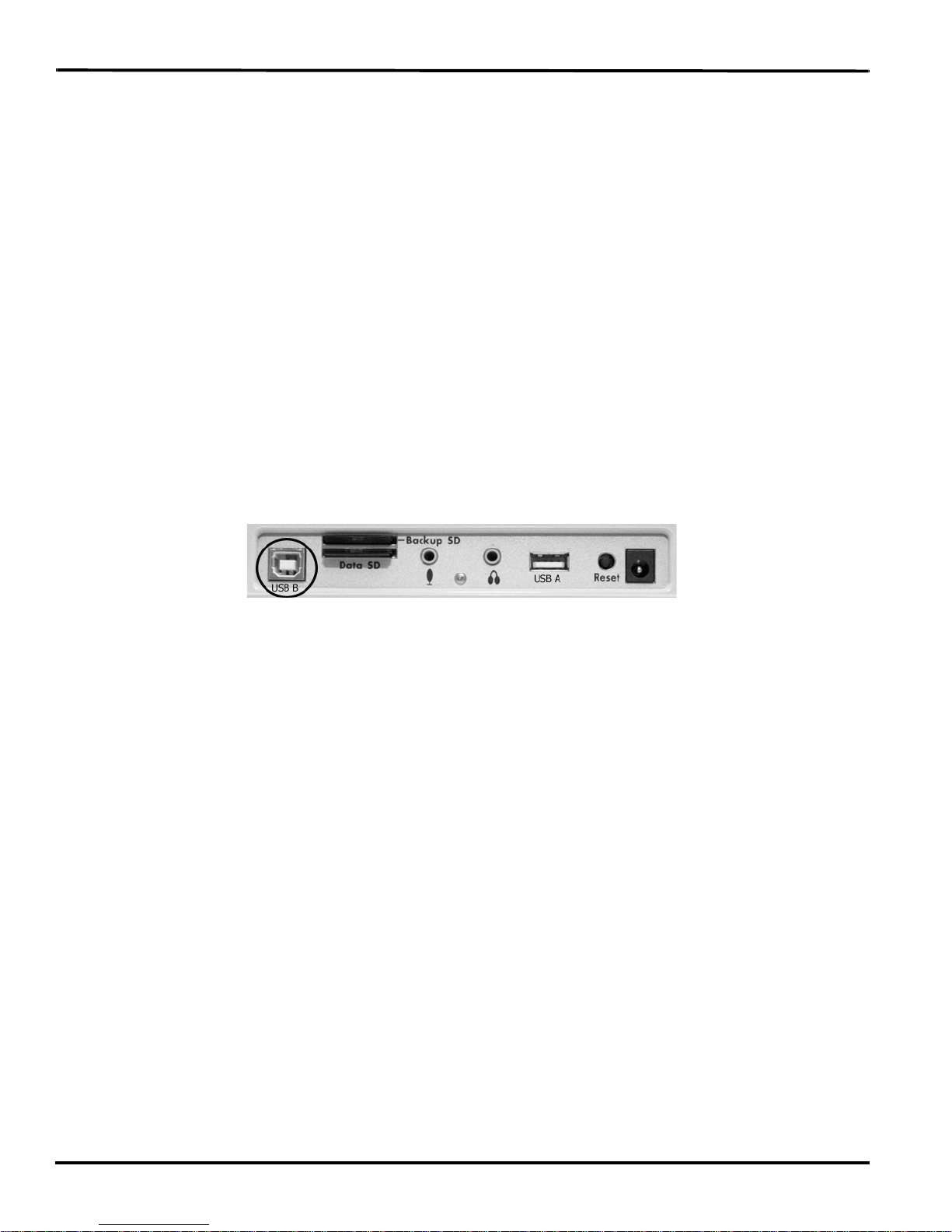

There are two types of USB ports on your Diamante. The standard USB A (host) port allows you to insert a thumb drive to copy files from the memory or from the Data SD card. The small USB-B (client) port provides connection access for the USB realtime cable between the writing machine and the computer. To use the USB cable connection, it is necessary to install the Diamante USB drivers.

Install the Diamante USB Drivers

The Diamante USB driver must be installed on your computer in order to write realtime with a USB cable, load dictionaries and install updates. The USB driver installation also installs the USB driver that creates a virtual serial port. If your CAT vendor does not support a USB realtime connection, this driver allows for serial communication between the Diamante and CAT software. See USB Virtual Serial Port

Communication on page 21 for details.

You can use the USB Realtime and Read communications with USB compatible CAT software such as Case CATalyst version 4.096 or higher.

The Diamante USB drivers are located on the Diamante with your Diamante. They are also available for download from the Stenograph website at

www.stenograph.com. Download instructions are included on the website.

Complete the following steps to install the USB drivers from the CD:

1. Turn your computer On. Ensure that it is fully booted.

2. Insert the Diamante computer. If the AutoPlay dialog box displays, click Run autorun.exe.

3. The Diamante - Wave Utility dialog box displays. Click Install USB Drivers. If the User Account Control message box may displays, click Continue.

4. The “Installing” screen displays during driver installation.

5. When the completion screen displays, click Finish.

/Wave™ Utilities and Tutorial CD into the CD-ROM/DVD drive on your

/Wave™ Utilities and Tutorial CD, which comes

Chapter 2: Hardware

Powering With the USB Cable

When the Diamante is connected to your computer for realtime via a USB cable, the main battery continues to power the writing machine. In most situations, the USB port can power the Diamante when the main battery is not charged or you want to run on USB power without the battery. It is not necessary to remove an uncharged battery to run on USB power.

When the main battery becomes low while using a USB connection, low battery messages display on the Diamante, but all features continue to operate. The USB port provides power to run all the Diamante components except WiFi and Bluetooth communications. When powered by the USB port, the Diamante Tilting screen displays at about half of the Backlight brightness setting.

To use the USB cable, you must install the Diamante USB driver on your computer. See Install the

Diamante USB Drivers on page 18 for instructions on loading the driver.

Updating With the USB Cable

Software updates for your Diamante, when available, can be easily downloaded from the Stenograph web site. Once downloaded onto your computer, you can load the software update onto your Diamante over a USB cable. See Updating Diamante Software on page 103 for more information about updating the Diamante.

Connect for Realtime Writing

To connect your Diamante to your computer for realtime writing, you must have one of the following:

• a USB cable connection which requires using a USB compatible CAT software, such as Case CATalyst V4.096 or higher. A USB cable is included with your Diamante. Check with your CAT software vendor for compatibility information.

• a virtual serial port connection via USB cable. The virtual serial port connection is compatible with any CAT software that accepts a serial connection and Stentura protocol. See USB Virtual Serial

Port Communication on page 21.

• a wireless kit. Stenograph provides technical support for Diamante wireless communication when the Diamante Wireless Communication kit is used. Technical support for other wireless adapters are not supported.

Diamante User Guide

USB Cable Communications

You must be using USB compatible CAT software and have installed the Diamante USB driver on your computer. See Install the Diamante USB Drivers on page 18 for instructions on loading the driver.

1. Ensure your Diamante and computer are turned On and are fully booted.

2. Each end of the USB cable has a different connection plug. Insert the appropriate end of the USB cable into the USB B (client) port on the back of the Diamante and the other end into a USB port on the computer.

Windows

Insert the USB cable into the computer USB port on which you loaded the Diamante USB driver.

3. Start your CAT software.

4. Set your realtime options. In Case CATalyst V10 and higher, select Diamante - USB on the Translate Realtime tab. In Case CATalyst V4.096 - V9, select élan - USB.

This is a USB connection. COM port settings do

not apply.

5. Write a few strokes on the Diamante before starting realtime. If you loaded a dictionary onto your Diamante, the translated steno displays on the Tilting screen.

If the USB realtime connection is active when you take a break, the realtime screen may not display new steno strokes when you resume writing. This may happen when the USB port becomes inactive after remaining idle for a period of time. If this occurs, disconnect the USB cable from the back of the Diamante and reconnect it. The realtime file is not affected. Reconnect the cable to display the new steno strokes on the realtime screen. See Troubleshooting on page 97 for details on disabling USB port power saving features to avoid an inactive connection.

6. When you are finished writing realtime using a USB cable, it is important that you complete the following steps in order. This ensures your computer shuts down properly.

a. Press End on the Diamante to close the file. b. Close and save the realtime file. c. Unplug the Diamante USB cable from your computer and the Diamante.

Chapter 2: Hardware

USB Virtual Serial Port Communication

You must have installed the Diamante virtual serial port driver on your computer. The virtual serial port driver installs when you install the USB driver. The virtual serial port uses Stentura protocol for realtime communications and reading notes. See Install the Diamante USB Drivers on page 18 for instructions on loading the driver.

If you leave the USB realtime connection active when you take a break, the realtime screen may not display the new steno strokes when you resume writing. This is a function of the computer USB port becoming inactive when it remains idle for a period of time. To avoid an inactive connection when using the virtual serial port communications via a USB cable, it is important to check the power management settings to ensure the USB port does not turn off when idle. See Troubleshooting on page 97.

Virtual serial port communications via USB cable does not allow you to disconnect and reconnect the USB cable and maintain the realtime connection. For example, you disconnect from

the virtual serial port connection to report a bench conference and then reconnect when finished. To establish USB virtual serial port communication:

1. Ensure your Diamante and computer are turned On and are fully booted.

Windows XP

Insert the USB cable into the computer USB port on which you loaded the Diamante USB driver.

3. Start your CAT software.

4. Set your realtime options. This is a virtual serial port communication via the USB cable. Ensure the appropriate COM port is selected. Depending on your CAT software, it may be necessary to select Stentura as the realtime writing machine.

5. Write a few strokes on the Diamante before starting realtime. If you loaded a dictionary onto your Diamante, the translated steno displays on the Tilting screen.

6. When you are finished writing realtime using the virtual serial port connection, it is important that you complete the following steps in order. This ensures your computer shuts down properly.

a. Press End on the Diamante to close the file. If the op tion, Promp t to confirm ending job is active,

press End again at the prompt. b. Close and save the realtime file. c. Unplug the Diamante USB cable from your computer and the Diamante.

Diamante User Guide

Wireless Communication

Stenograph provides two optional wireless communication choices for realtime writing. Wireless communication is available using either a WiFi or Bluetooth wireless connection.

WiFi Wireless Communication

The Stenograph optional Diamante WiFi hardware component and router kit allows realtime communication between Case CATalyst and the Diamante when using Diamante version 1.12 or higher, and Case CATalyst version 8.05 or higher. The ability to export Case CATalyst dictionaries to the Diamante and the option to send TrueStroke Data via WiFi are available features when using Diamante version 1.13 or higher and Case CATalyst version 12.50 or higher. All Diamante WiFi wireless features

require that Case CATalyst is loaded on a computer with Windows Your computer must be wireless enabled or have a network interface card (NIC). See the Diamante WiFi

Wireless Communications Guide included on the Diamante

information about Diamante WiFi wireless setup, configuration and use. You can also download the guide from the Utilities and Links download page at www.stenograph.com.

Stenograph provides WiFi wireless support only when you are using the Diamante WiFi router kit. Other WiFi routers may work but are not supported by Stenograph.

7/Windows Vista®/Windows XP.

/Wave™ Utilities and Tutorial CD for

Bluetooth Wireless Communication

Bluetooth wireless communication is available for the Diamante. The Stenograph optional Diamante Bluetooth wireless realtime kit allows wireless communication between the Diamante and Case

CATalyst or a Windows based 32-bit or 64-bit CAT system on your Windows Windows

XP notebook computer. The kit includes the necessary Diamante Bluetooth adapter and the

7/Windows Vista®/

Bluetooth software, drivers and adapter for your computer. See the Diamante Bluetooth Wireless Communication guide included in the kit for information on Bluetooth wireless communication set up, configuration and use.

Stenograph provides Diamante wireless support when the Diamante Bluetooth Wireless Communication kit is used. Other wireless adapters and software may work but are not supported by Stenograph.

Chapter 2: Hardware

Function Buttons

On either side of the Status LCD are three soft gray function buttons. The far left button turns the Diamante On.

Each button serves a specific purpose, or function, on the different menus. The menu bar is located at the bottom of the Tilting screen. Press the associated button, just below a function on the menu bar, to perform the action. For example, on the Opening menu, the word Off displays above the left most button. Pressing Off turns the Diamante Off. Again, on the Opening Menu, press the Dict button to select a job dictionary. When you press Dict, another menu displays, listing more menu choices related to using dictionaries. From this menu, press Select to display a list of job dictionaries from which you can choose.

Diamante User Guide

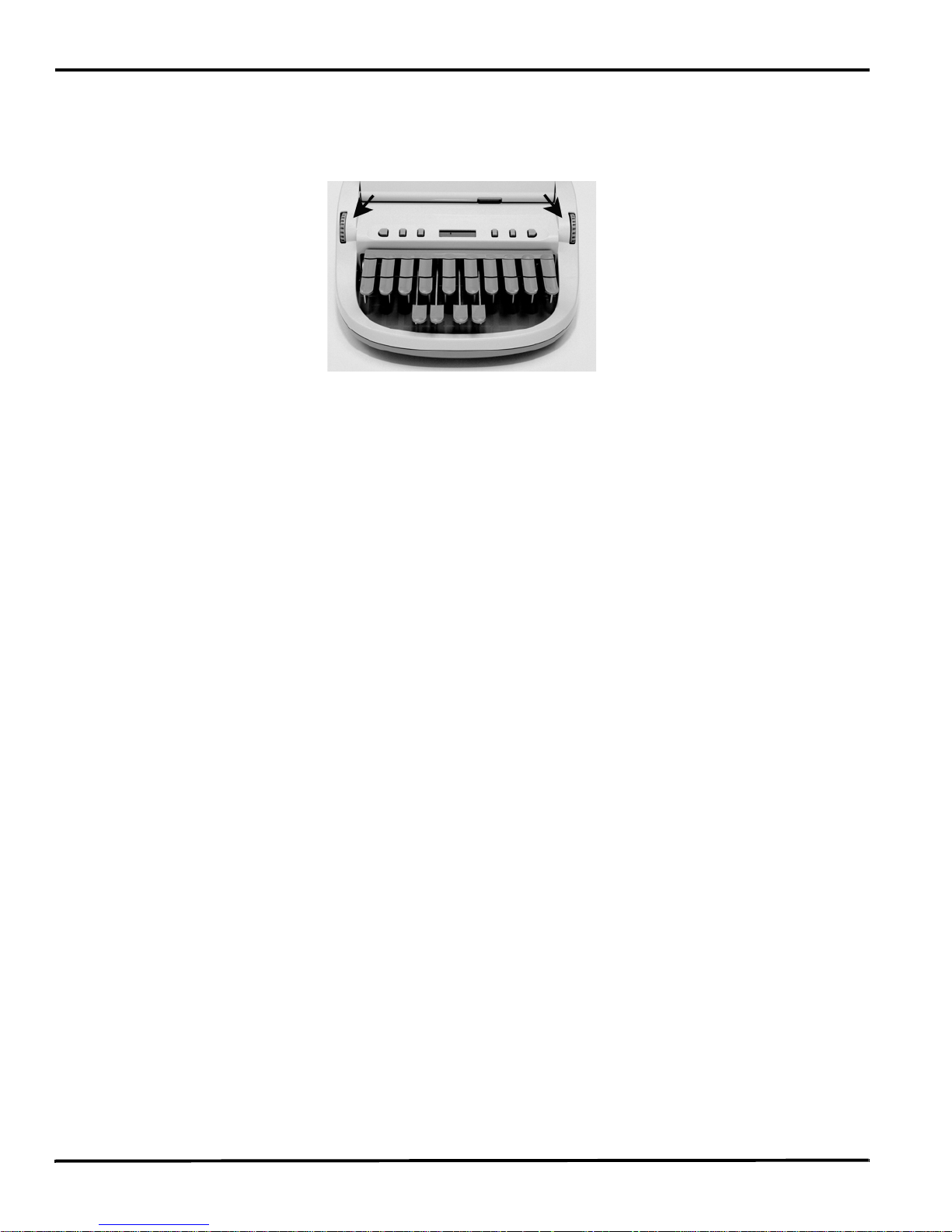

Keyboard Depth and Tension Controls

There are two thumbwheels on the Diamante, one on each side of the keyboard, that control the keyboard depth and keyboard tension.

The depth of stroke adjustment wheel, on the left, determines the height of the number bar and all the steno keys. This affects how far the keys go down when you press them.

The keyboard tension adjustment wheel, on the right, controls how soft or firm the keys feel. The extensive range, between the top and bottom stopping positions on the wheel, allows you to customize the tension to your particular writing touch. Do not force the wheel past either stopping position.

Adjust Depth of Stroke

To adjust the depth of stroke:

1. Face the front of the Diamante.

2. Do one of the following:

• To shorten the stroke depth, roll the left thumbwheel toward the front of the Diamante.

• To lengthen the stroke depth, roll the left thumbwheel toward the back of the Diamante.

Adjust Keyboard Tension

To adjust the keyboard tension:

1. Face the front of the Diamante.

2. Do one of the following:

• To decrease keyboard tension for a softer touch, roll the right thumbwheel toward the front of the

Diamante.

• To increase keyboard tension for a firmer touch, roll the right thumbwheel toward the back of the

Diamante.

Chapter 2: Hardware

Reset

The Reset button is a small, recessed button located on the back of the Diamante to the left of the AC Adapter/Charger port.

Like other computer equipment, the Diamante can seem unresponsive when it receives a series of commands it does not recognize. If the Diamante appears unresponsive, press the Reset button on the back of the Diamante. When you press the Reset button, the Diamante reboots and is then ready to use.

If you had a file open before pressing Reset, the Diamante ends the job and the file closes. A message displays about the recovered file. Press OK to continue. Start writing to append to the previous job.

Diamante User Guide

Secure Digital Cards

A Secure Digital (SD) card is a memory card that can hold large amounts of data. The Diamante uses two SD cards, a Data SD card and a Backup SD card. The Data and Backup SD cards are located on the back of the Diamante. The Backup SD card is recessed and must be in the Backup SD card slot in order to use the Diamante.

The Diamante requires a minimum 1GB Data SD card, supporting SD cards from 1 to 2 GB and Secure Data High Density (SDHC) cards from 4 to 32 GB. The Data SD card stores steno notes, timestamps, job dictionaries and audio files.

The Diamante requires a minimum 1 GB Backup SD card, supporting SD cards from 1 to 2 GB and SDHC cards from 4 to 32 GB. The Backup SD card must an SD card into the Backup SD slot on the Diamante, you are prompted to format the card if it has not previously been formatted in the writing machine.

The Backup SD card serves as a backup storage for steno notes, timestamps and audio files. It is necessary to insert a Backup SD card into the Diamante in order to operate the writing machine. If the Backup SD card in the Diamante Backup SD card slot is write protected, a message displays. Writing is not possible until you unlock the card. The Backup SD card is designed as a backup and is not intended for archiving steno notes.

be formatted in the Diamante. When you insert

Stenograph recommends you carry at least one additional SD card in the event the Data SD card becomes full or in a rare instance that an SD card in the Diamante becomes unusable. The Diamante is inoperable without a Backup SD card. See Writing on the Diamante on page 33 for more information about using Data SD and Backup SD cards.

SD Card Care

Stenograph recommends SimpleTech

, Kingston® or SanDisk® SD cards, although any high quality SD

card is acceptable. SD cards are fast and durable yet still require basic handing care:

• Avoid excessive heat, cold, and moisture. Although the SD card is vulnerable to static, airport security should not damage a card.

• Always insert your card properly. SD cards are “keyed” so that they can only be inserted in one direction. If you cannot easily insert the card into the slot, reposition the card and try again.

• Do not attempt to remove a card while it is in use. SD cards are fast but still require a second or two to complete operations. Using or removing a card while the Diamante is on may corrupt the

data on the card. Stenograph strongly recommends turning off the Diamante before removing either a Data SD or Backup SD card.

Chapter 2: Hardware

Enable Writing on a SD Card

SD cards have a write protect slide on the side of the card. If the write protect slide is moved to the protected position, no data is written on the SD card. If you insert a write protected SD card, a message displays on the Diamante indicating the SD card is write protected.

To allow data to be written to the SD card:

1. Hold the SD card with the notched side up.

2. Move the write protect slide to the Up position.

Remove and Insert a SD Card

SD cards are “keyed” so that they can only be inserted in one direction. When inserted properly, the SD card easily moves in and out of the slot. Attempting to force a SD card into the slot on your Diamante or USB SD Flash Drive reader could damage the card.

Remove a Data or Backup SD card

1. Use your index finger to gently push the SD card and then release your finger. You should feel the SD card release from the slot.

2. Remove the card from the slot. You should be able to easily remove the card from the slot. If you cannot easily remove the card, it is not released. Repeat Step 1.

Insert a Data or Backup SD card

1. Hold the card with the notched edge facing the Diamante and the metal strip facing down. Position the card in front of the SD slot without any angling.

2. Gently push the card into the SD slot on the Diamante or a USB SD Flash Drive reader on your computer. You may hear a soft click as you insert the card, indicating correct placement. If the card does not easily insert into the slot, do not force it. Remove the card and reinsert it.

If the Backup SD card in the Diamante Backup SD card slot is write protected, a message displays. Writing is not possible until you unlock the card.

Diamante User Guide

USB SD Flash Drive Reader

A USB SD Flash Drive reader comes with your Diamante. The USB SD Flash Drive reader plugs into a USB port on your computer and holds the Data SD and Backup SD cards. This allows you to read steno notes, job dictionaries and audio files.

If you have an SD slot built into your computer, insert the Data SD card directly into the slot. You may not need the USB SD Flash Drive reader for all read functions.

It is necessary to read the Backup SD card using the USB SD Flash Drive reader that came with your Diamante or another reliable USB based external SD card reader. A built-in SD card slot reader on your computer cannot

read the Backup SD card.

Sample USB SD Flash Drive Reader

Chapter 2: Hardware

Status LCD

Located between the gray function buttons is a small rectangular LCD screen. The Status LCD displays icons that indicate specific operations of the Diamante. When battery power is low enough to turn off the Tilting screen, the Status LCD continues to show information, indicating the writing machine is still working.

The Status LCD provides the following information:

• A black dot ( ) displays in the lower right corner of the screen indicating the Diamante is On.

• The file open ( ) icon displays when you begin writing on the Diamante, indicating a file is open.

• The wireless communication icon ( ) displays when the Diamante is connected to a CAT system using wireless connection. The icon only displays when there is an active realt ime connection. When you end realtime, the icon does not display.

• The realtime indicator ( ) displays when the Diamante is connected to a CAT system with a USB connection or virtual serial port connection using a USB cable for writing. The icon only displays when there is an active realtime connection. When you end realtime or disconnect the cable, the icon does not display.

• The battery ( ) icon displays when the backup battery is charging. The backup battery is automatically maintained when charging the main battery. This icon does not display if the backup battery does not need to be charged.

A row of rectangular black blocks ( ) display in running sequence from left to right when the main battery is charging. When the Diamante is finished charging, the bars move from each side to the middle of the screen in a “clapping” motion. If you leave the AC adapter/charger plugged in for a long time, the “clapping” motion stops, however the battery is fully charged.

• A single black rectangular block ( ) displays when you press a key. There is a corresponding block for each letter on the keyboard. Which block displays depends on the key stroked. A block displays for each key in the following order:

# S T K P W H R A O * E U F R P B L G T S D Z

Stroking the number bar along with a key displays the # sign on the left-most side o f the Statu s LCD and the single black rectangular block for the key pressed.

Diamante User Guide

Tilting Color Screen

The Diamante tilting color screen is a high resolution, WVGA display. The “non-glare finish” reduces glare from overhead lights. The display folds flat for storage or transport and opens with a tilt range to accommodate your personal viewing preference.

To use the Tilting screen, gently pull up on the display and adjust the tilt as necessary. Gently pull down on the display to fold it flat. When the Diamante is On and the display is folded flat, the display remains On.

You can adjust the brightness, text color and font size on th e Tilting screen. Adjusting the brightness can reduce battery usage. See Writing on the Diamante on page 33 for more information about brightness, text color and font size settings.

Depending on the selected function, the Tilting screen shows:

• the title bar with a battery icon, battery gauge reflecting the approximate main battery level, audio recording status when audio is active, the number of steno strokes for the open file and the estimated number of pages for the open file.

• the transcript text, steno, or file number messages.

• menu bar from which you select options or perform an action.

• warning messages, such as “Low Battery.”

Cleaning the Tilting Screen

1. Turn the Diamante Off. It is easier to see the areas that are dirty when the screen is dark.

2. Very gently wipe the screen using the cleaning cloth that came with your Diamante or a microfiber cloth available in computer, camera and eyeglass stores.

not use materials such as paper towels, tissue paper or your shirt sleeve. These non-ultrasoft

Do materials can easily scratch the screen.

not press hard on the screen. Pushing directly on the Tilting screen can cause pixels to burn out.

3. If the cloth does not completely remove the dirty areas, dampen the cloth with the optical-quality spray cleaner that came with your Diamante or a cleaner designed for flat screen monitors or eyeglasses, and very gently wipe the screen.

not spray the display screen directly. Liquid can run along the inside the edge of the screen and

Do cause damage.

use cleaning products that contain ammonia, ethyl alcohol, acetone, toluene, ethyl acid, or

Never methyl chloride. These chemicals can react with the materials in the display screen and cause damage.

4. Clean the plastic edge that surrounds the screen with any multipurpose cleaner using a soft cloth. Avoid contacting the screen itself with the cleaner.

Chapter 2: Hardware

Tripod

The Diamante uses only the EasyLock Z12 tripod designed with three straight legs and constructed of high gauge aluminum to provide a lightweight but strong and stable stand for your Diamante. When folded, the tripod is 12 inches long.

To use a different tripod with the Diamante, it is necessary to remove the bottom plate on the tripod interface. Removing the bottom plate, also removes the tilting mechanism. Please visit the Stenograph Help Desk at www.stenograph.com for instructions on removing the Diamante plate.

Attaching the Tripod

On the bottom of the Diamante is a positive locking mechanism that looks like a large, round keyhole. The top of the EasyLock Z12 tripod fits like a key into the recessed tilt mechanism.

To attach the tripod, follow these steps:

1. Fully extend each leg of the tripod, making sure the braces lock.

2. Set the tripod on the floor.

3. Loosen the thumb-lock knob on the tripod base.

4. Extend the inner tripod tube to a comfortable height.

5. Turn the tripod head so that one of the flat sides of the tripod head is facing you and tighten the thumb-lock knob.

EasyLock Z12 Tripod Head

6. On the bottom of the Diamante, locate the positive locking mechanism that looks like a large, round keyhole. The top of the EasyLock Z12 tripod fits like a key into the recessed tilt mechanism.

7. Lift the Diamante on two sides of the machine and lower it evenly onto the top of the tripod with one of the flat sides of the writing machine facing you.

8. Grasp the inner tripod tube with one hand and with the other hand, rotate the machine clockwise until you hear a solid click. Ensure the Diamante is firmly attached to the tripod tube.

Diamante User Guide

Adjusting the Tripod Height

1. Grasp the tripod tube firmly, directly beneath the Diamante with one hand.

2. Using your other hand, loosen the thumb-lock knob on the tripod. As you loosen the thumb-lock, support the weight of the Diamante with your hand.

3. Adjust the Diamante to the desired height.

4. Tighten the thumb-lock knob.

Tilting the Diamante

The Diamante is constructed with a built-in recessed tilt mechanism. Once the Diamante is secured on the tripod, tilt the writing machine forward or backward within 10 degrees to a position comfortable for your writing style.

To tilt the Diamante:

1. Open the Tilting screen before adjusting the tilt position of the Diamante.

2. Position one hand on the back of the Diamante behind the Tilting screen and the other hand on the front of the machine under the vowel keys.

3. Gently lift up or push down to the desired position. The movement of the Tilting mechanism is stiff to ensure the position of the desired tilt is secure while writing.

Removing the Tripod

To remove the tripod, follow these steps:

1. Position the tripod firmly on the floor.

2. Locate the quick release lever on the left underside of the Diamante.

3. Push the quick release lever towards the back of the Diamante and then rotate the Diamante counterclockwise one quarter of a turn.

4. Lift the Diamante from the tripod.

Chapter 3

Writing on the Diamante

Chapter 3, Writing on the Diamante, provides an overview of the Diamante menus and details Diamante features. Some of the detailed features include loading dictionaries, setting audio options, viewing SD card directories, creating J-Defines and searching steno and text on the Tilting screen.

Diamante Setup

Installing the Diamante USB drivers on your computer is necessary in order to write realtime with a USB cable, load dictionaries and install updates. The Diamante USB drivers are located on the

Diamante

USB Drivers on page 18.

Before writing on your Diamante, ensure there is a Data SD and Backup SD in the appropriate SD slots and charge the battery. The Diamante uses a Data SD card to store steno notes, timestamps, audio files when the audio option is selected and the associated job dictionary when J-Defines are created for the job.

The Backup Secure Data (SD) card that comes with your Diamante is used as a backup for your steno notes, timestamps and audio. This card is formatted at the Stenograph factory. If you insert a different SD card in the Backup SD slot, it must be formatted in the Diamante before you can begin writing. The Diamante requires a Backup SD card in order to operate.

/Wave™ Utilities and Tutorial CD, which comes with your Diamante. See Install the Diamante

Although you can use the Diamante with the AC adapter/charger, Stenograph recommends that you charge the battery in your Diamante before using it for the first time. See Batteries on page 14 for detailed information about charging your battery.

Tutorial Clips

The Diamante in learning about select Diamante features. See Introduction on page 7.

/Wave™ Utilities and Tutorial CD contains short videos with audio designed to assist you

Diamante User Guide

Accessing Diamante Features

When you turn the Diamante On, the Opening menu displays. The Opening menu is the first of two main menus accessible when not writing on the Diamante.

Opening Menu

The Opening menu provides access to features that allow you to:

• view Data and Backup SD card, memory and thumb drive directories.

• format Data and Backup SD cards.

• copy files from memory.

• reopen a file to append further testimony and playback audio.

• set audio, display, translate and general Diamante options.

• manage wireless settings.

• make adjustments to Keyboard Settings and load keyboard profiles.

• start test mode.

• create j-defines.

• open the second menu.

Second Menu

Pressing More on the Opening menu displays the second menu.

Second Menu

The second menu provides access to features that allow you to:

• display Diamante software version, free space on the Data SD card and wireless information.

• display job data such job size, number of pages and the use of audio and a job dictionary.

• display the approximate minimum, maximum and average strokes per minute for the job along with a graphical representation of the varying number of strokes per minute throughout the job.

• display the total number of strokes for all jobs taken.

• perform diagnostics.

• display battery status information.

• clear files from memory.

• return to the Opening menu.

Chapter 3: Writing on the Diamante

Writing Menus

Once you begin writing on the steno keyboard, the first of two Writing menus replace the Opening menu.

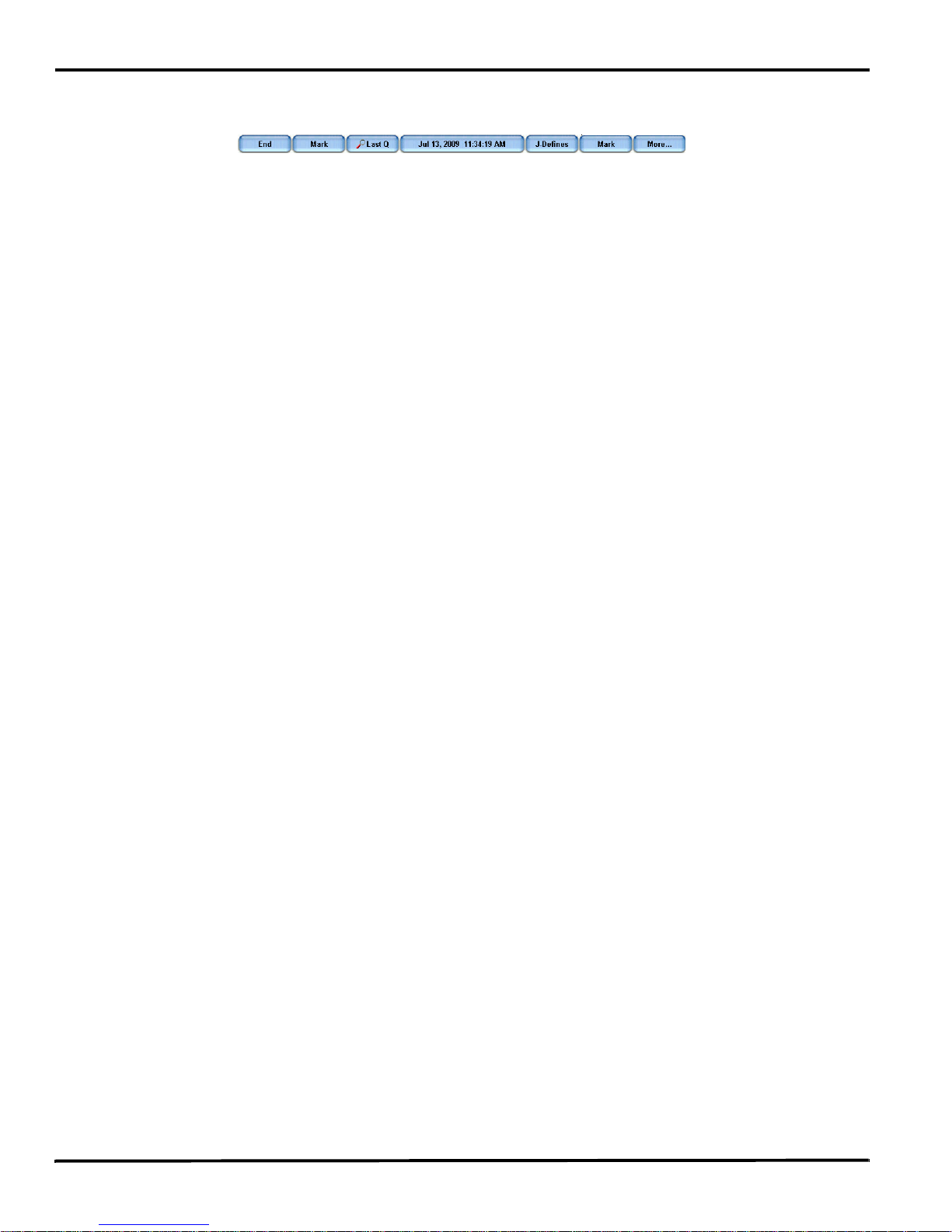

First Writing Menu

The First Writing menu includes features that allow you to:

• close the file.

• insert electronic marks.

• search for the last question.

• create J-Defines.

• access the second Writing menu.

Second Writing Menu

Pressing More on the First Writing menu displays the second Writing menu.

Second Writing Menu

The second Writing menu includes features that allow you to:

• toggle the Tilting screen display between steno only, text only, text with vertical notes or text and Brief It when Brief It is active.

• scroll through the steno or text on the Tilting screen.

• search for the last Q, A, untranslate, StenoMark, and steno on the Tilting screen.

• display status information about the Diamante.

• set audio options.

• change Tilting screen text color, font size and backlight level.

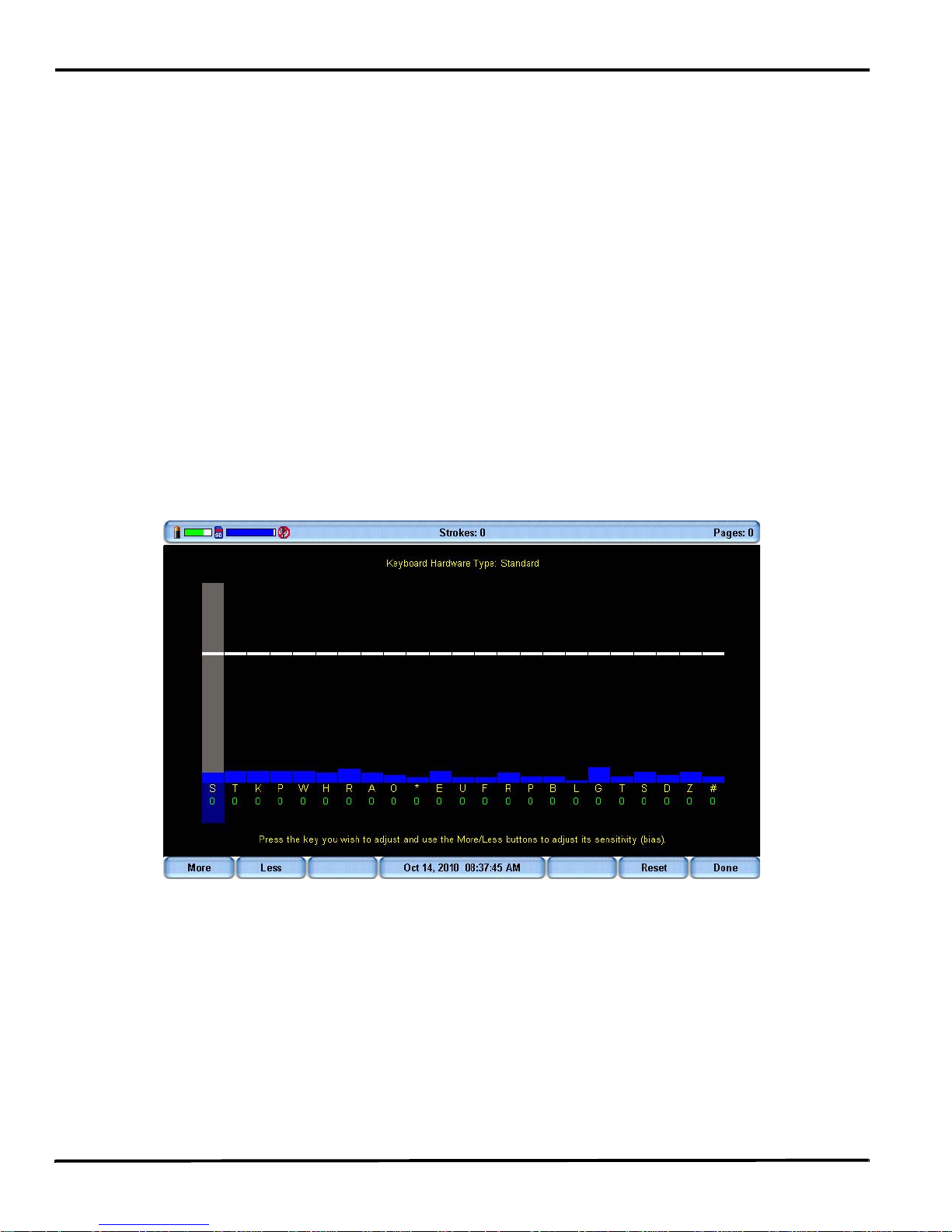

• perform keyboard adjustments, save profiles and load profiles.

• playback audio.

• access a third menu to display the Brief It pane and create briefs, when Brief It is active.

• access the First Writing menu.

Diamante User Guide

Return to First Writing Menu

Continue writing, pressing More on the second Writing menu or pressing Quit on the Brief It menu returns you to the First Writing menu.

Return to Opening Menu

Pressing End on the First Writing menu automatically closes the current job and returns you to the Opening menu. If the Prompt to End Job option is active, you are prompted with a confirmation message to close the job each time you press the End button.

Chapter 3: Writing on the Diamante

Writing Jobs

The Diamante stores steno notes, timestamps, job dictionaries, audio files and J-Defines on the Data SD card. The Diamante also saves steno notes, timestamps and audio files to the Backup SD card; and saves steno notes and timestamps to memory.

The Backup SD card is not designed to be removed from the Diamante unless, in a rare occurrence, it is necessary to locate a job that cannot be found in memory or on the Data SD card. The Backup SD card must

be in the Diamante in order for the steno machine to operate. Never remove the Backup SD card

while the Diamante is On. To begin writing:

1. Turn the Diamante On. Press the first function button on the left.

2. The Diamante logo displays briefly on the Tilting screen followed by the title bar across the top of the screen and the Opening menu at the bottom.

3. The Title Bar shows the following information:

• —the approximate amount of charge remaining for the main battery. When the gauge is

completely green, the battery is fully charged. As the battery level changes or the Diamante is charging, the gauge changes. See Batteries on page 14 for more information about Diamante batteries.

• —the approximate amount of space remaining on the Data SD card. See Data SD

Card on page 52.

• —the microphone gauge displays when you begin writing and indicates the

audio is recording. The gauge shows the sound level for the recording input. The default for audio recording is set to Off. See Audio on page 40 to turn audio recording On.

• —the double bars display when writing and the audio is paused by the

Diamante Auto Pause Resume feature or by a realtime Pause Audio dictionary definition. See

Audio on page 40 for more information about audio recording.

• —the no microphone icon displays when no audio is recording while writing. See Audio

Hardware Setup on page 40 for more information about audio setup.

• Strokes—the number of steno strokes written for the open file.

• SPM—the average number of strokes written per minute.

• Pages—the estimated number of text pages in the open file.

4. Diamante menus allow you to perform a function or select to display another menu. The Opening menu is the first of two setup menus used to select options prior to writing.

Diamante User Guide

5. When you write a steno stroke, the Diamante opens a new file and replaces the Opening menu with the first of two writing menus.

6. To close the job when finished writing, press End. The Diamante finishes writing the steno and audio to the Data SD card and closes the current file.

If the option, Prompt to confirm ending job is active, a confirmation prompt displays. Press End to close the job or continue writing to cancel the message. See Prompt to End a Job Option on page 78 for information about the Prompt to confirm ending job option.

The Diamante names files using a year, month, date and time format. For example: 20090716-142341 (July 16, 2009 at 2:23:41 p.m.). Job files are stored in folders identified by year and month. For example, 200907. By default, the newest file is listed first.

7. To turn the Diamante Off, press the Off button on the Opening menu. Use the Reopen feature to reopen an existing file and append same day testimony. You can search,

readback and play audio in reopened files. See Reopen on page 79 for details on reopening a job.

Chapter 3: Writing on the Diamante

A/An Resolution

A/An resolution automatically selects the correct word, “a” or “an” based on the word that follows. The steno translates as “a” before consonants and as “an” before vowels and the numeral 8.

The steno, A, must be defined as "a" (no quotes) in your dictionary in order for the A/An Resolution feature to work. If the dictionary entry is defined as a conflict, this feature does not work as described.

To turn A/An resolution Off or On:

1. From the Opening Menu, press Setup, Trans. Opt. The current status of the A/An option displays on the screen.

2. Press the Up/Down buttons as necessary to highlight the A/An option.

3. Press the On/Off button to toggle the A/An option On or Off.

4. To display the Opening menu, press OK, More, Quit.

Diamante User Guide

Audio

The Diamante allows you to record an audio file that is automatically synchronized to your written steno notes. To record, you must enable the Diamante audio option, Record Audio During Job and connect a microphone to the Diamante. Stenograph recommends using a battery powered microphone.

The Diamante saves the audio files to the Backup SD and Data SD cards. Audio files take up additional space on the SD cards. When the Record Audio During Job option is enabled, the additional space is always used regardless of whether or not you have a microphone connected to the Diamante and are recording. The amount of additional space is determined by the audio option, Audio Format.

When there is less than 75MB available on the Data SD card, you can begin writing a job but no audio records regardless of the audio options selected. The following message displays when there is insufficient space to record: Space is TOO Low. Audio Will Not Be Recorded To Data SD Card.

While writing a job and there is only 12MB available on the Data SD card, the audio stops recording. The following message displays: Space is Low. Audio Has Stopped Recording To Data SD Card. See Data

SD Card on page 52 to change the Data SD card while writing.

Diamante audio options enable you to listen to the recording live. You can connect a headset or speakers to the Diamante for audio playback. See Audio Playback on page 42 for more information about audio playback.

Audio Hardware Setup

To prepare for audio recording:

1. Plug the microphone into the pink microphone jack on the back of the Diamante.

2. Confirm the Data SD card is properly inserted in the Diamante.

3. If you are using headphones or speakers to listen to the live recording or for playback, plug the headphones into the green headphone jack on the back of the Diamante.

4. The placement of the microphone directly affects the quality of the audio file. Position the microphone away from audio playback devices, such as speakers.

5. Set necessary Audio options. Ensure the option, Record Audio During Job is set to On. See Audio

Options on page 40 for audio option details.

Audio Options

The options Record Audio During Job and Audio Format must be set before opening a job on the Diamante. All other audio options are accessible while writing.

To set audio options:

1. From the Opening or First Writing menu, press Setup, Audio.

Chapter 3: Writing on the Diamante

2. Use the Up and Down buttons to move the pointer (>>) to identify a feature for selection.

• Microphone Gain—indicates the current gain setting for the microphone, 0 - 200%. If your

microphone is battery powered, set the gain lower. A suggested starting point is 110 - 115%. If the microphone is not battery powered, set the gain higher. A suggested starting point is 145 - 155%. Setting this gain too high, may cause audio feedback.

Press the + and - buttons as necessary to set the percent. A graphic bar indicates the selected level. Test the quality and adjust the gain as necessary. You can adjust the gain during a job.

• HeadPhone Volume—indicates the current volume level for the audio playback through

headphones, 0 - 100%. A suggested setting is 65%. The audio is amplified when monitoring live audio and may require a lower setting when the Monitor Live Audio option is active.

Use the Quieter and Louder buttons to adjust the volume. A graphic bar indicates the selected level. During a job, you can playback the audio and adjust this option as necessary.

• Record Audio During Job—indicates the audio recording status. Press the On/Off button to

toggle your selection. The default is set to Off. This option cannot be changed once you open a job.

• Monitor Live Audio—allows you to listen to the recording live with some amplification through

headphones or a headset attached to the Diamante. Press the On/Off button to toggle your selection. During a job, you can playback the audio.

When monitoring live audio during the job the audio is amplified. Check the HeadPhone Volume setting for an appropriate level.

• Auto Pause Resume—allows you to automatically pause the recording after a specific period of

time, when no new steno is being input from the steno machine. Audio recording automatically resumes when you begin writing. Using this feature can help conserve SD card space when recording audio on jobs where long or frequent pauses occur. Use the + and - buttons to set the wait time before pausing the audio. The range is between 5 seconds and 15 minutes. Settings from 5 seconds to 2 minutes are made in increments of one second; 2 - 5 minutes in 15 second increments; and 5 - 15 minutes in one minute increments. You can adjust this option during a job.

When using Case CATalyst, you can use existing Case CATalyst dictionary definitions {Pause Audio} and {Resume Audio} to manually pause and resume the audio. It is necessary to place these definitions into your dictionary before loading the dictionary onto the Diamante. When you manually pause the audio using a steno stroke on the Diamante, you must resume the audio with a steno stroke, regardless of the setting for the Auto Pause Resume option.

• If you are not using Case CATalyst, please check with your CAT vendor to verify that your

software recognizes pause and resume commands. If pause and resume commands are not recognized, it is recommended that you do not use the Auto Pause Resume option.

• Audio Format—allows you to set the audio compression format for recording. A higher

compression rate, ADPCM (14.7 MB/hour), produces a better audio quality and requires more space on the Data SD card.

A lower compression rate, GSM (5.8 MB/hour), produces a slightly lower audio recording quality and requires less space. Press the Change button to toggle your selection. Audio recorded to the Backup SD card is recorded at the GSM format regardless of this option setting.

This option cannot be changed once you open a file.

3. To display the Opening or First Writing menu, press OK, More,

Quit.

Diamante User Guide

Audio Playback

The Play feature becomes available when you use a Search feature while writing a job. Play allows you to playback the audio portion of the file from the point of the highlighted text forward in the file. The Diamante highlights the corresponding steno and text on the Tilting screen during the audio playback. You can stop the playback at any time. A set of external speakers or headset is required for audio playback.

To play audio while writing a job:

1. Using a Search feature, look for any of the following: Last Q, Last A, Last Mark, Steno or Unt ranslate. See Search on page 81 for information about searching.

2. When you identify the position in the file from which you want to playback the audio, press the Play button. The Diamante begins the playback and simultaneously highlights the corresponding text and steno.

3. Use the Quieter and Louder buttons to adjust the playback volume. If applicable, you may also need to adjust the volume control on your headset or speakers.

4. Press Stop when finished.

Chapter 3: Writing on the Diamante

Auto-Conflict Resolution

Auto-Conflict Resolution, when turned On, automatically selects the first choice of the conflict. This prevents the display of conflicts on the Diamante screen for easier r eadback. This option d oes not affect the realtime output when writing realtime to a computer.

To turn Auto-Conflict On or Off:

1. From the Opening Menu, press Setup, Trans. Opt. The current status of the Auto-Conflict Resolution option displays on the screen.

2. Press the Up and Down buttons as necessary to highlight the Auto-Conflict Resolution option.

3. Press the On/Off button to toggle the Auto-Conflict Resolution option On or Off.

4. To display the Opening menu, press OK, More, Quit.

Diamante User Guide

Backup SD Card

The Backup SD card stores steno notes, timestamps and audio files as a backup to the Data SD card. In a situation where there is no main battery, not enough charge in the main battery or no AC adapter/ charger power, the Diamante uses the backup battery to save the steno notes, timestamps and audio files to the Backup SD card.

It is necessary to insert a Backup SD card into the Diamante in order to operate the writing machine. If you remove the Backup SD card while the writing machine is On, the Diamante beeps and displays the message: Backup SD Card Missing!!! Insert Card or Turn Off. You must reinsert the card to use the Diamante.

You can view files on the Backup SD card when working on the Diamante. The Backup SD card is designed as a backup and is not intended for archiving steno notes. Once the Backup SD card is full, the new files overwrite the oldest file or files. Stenograph recommends carrying an extra SD card.

be formatted in the Diamante. When you insert

In the rare event it is necessary to retrieve a file from the Backup SD card, you can use the Backup Card Reader utility. The Backup SD card must be removed from the Diamante and inserted into a SD Flash Card Reader that connects to your computer. A built-in SD card slot reader on your computer cannot read the Backup SD card. Ensure you reinsert the Backup SD card into the Diamante when finished. The Diamante requires that a Backup SD card is in the steno machine in order to operate. See

Backup SD Card Reader on page 113 for more information on the Backup Card Reader.

Format the Backup SD Card

The Backup SD card must be formatted in the Diamante. The card is verified when inserted into the Backup SD slot on the Diamante. You are prompted to format the card if it has not been formatted in the writing machine.

Formatting a Backup SD card erases all the files and data stored on the Backup SD card. Confirm that all the files on the card are no longer necessary. See Format a Data SD Card on page 52 for instructions on formatting a Data SD card.

To format the Backup SD card:

1. Hold the Backup SD card straight without angling and gently insert it into the Backup SD slot on the Diamante until you hear a soft click. If the card does not easily insert, do not force it. Remove the card and reinsert it.

2. Turn the Diamante On.

3. From the Opening menu, press Storage, Backup, SG Format. A message prompts you to continue.

4. Press Yes to format the Backup SD card. A preparation message, along with a statu s bar displays as the Diamante formats the Backup Card. Press No to cancel the format.

Chapter 3: Writing on the Diamante

5. When the Backup cards finishes formatting, the Diamante displays a completion message.

6. To display the Opening menu, press OK twice.

View Files on the Backup SD Card

The Diamante names job files using a year, month, date format followed by the time. For example: 20090716-142341 (July 16, 2009 2:23:41 p.m.) The newest file is listed first. File size accompanies each file name.

To view the Backup SD card directory:

1. From the Opening menu, press Storage, Backup, Files.

2. Press the Up and Down buttons to scroll through the list of files.

3. To display the Opening menu, press Quit, OK.

Diamante User Guide

Beeper Volume

The Diamante has a beeper to alert you to specific messages on the Tilting screen, such as Low Battery. To adjust the beeper volume:

1. From the Opening menu, press Setup, More, Options.

2. Press the Up and Down buttons as necessary to highlight the Beeper Volume option.

3. Press the Change button to toggle the Beeper volume between Soft and Loud. The Diamant e emits a softer or louder tone indicating the volume level selected.

4. To display the Opening menu, press OK, More, Quit.

Chapter 3: Writing on the Diamante

Brief It

Brief It is a translation feature, on the Diamante V2.0 or higher, that suggests conflict free brief forms for words and phrases that you write during a realtime job. When you write the same three or more steno strokes more than once, the Diamante generates a brief form and displays it in the Brief It pane.

The Diamante Brief It feature is designed for use when not in a realtime situation writing to CAT software. If you use Brief It on the Diamante and on your CAT system, the Suggested briefs may not match. Stenograph recommends against using the Diamante Brief It feature during realtime.

There are two types of briefs, Suggested and Reminder. Suggested briefs are generated during realtime when three or more steno strokes are written for the same text more than once and no brief exists in a dictionary currently used for translation. To use the Suggested brief, write steno for the brief twice, the default, to accept it. Accepted briefs are stored in the dictionary within memory and the current job dictionary. When you write the same steno of a used brief in a subsequent job, the Diamante provides a Reminder brief. You can also suggest a new brief or reject a brief. See Managing Briefs on page 48.

The Diamante Translate Option, Use Brief It, must be set to Yes before beginning a job for the Brief It feature to be active and available during a realtime. When Brief It is active, the Diamante defaults to the Brief It view when you begin writing. Text shows on the left side of the scr een and the Brief It pane on the right. The most recent brief always displays at the bottom of the Brief It list.

Brief It automatically creates a J-Define the first time you use a Suggested brief. J-Defines made for the current job are placed into a job dictionary on the Diamante that uses the same date/time name as the job. The job dictionary is stored on the Data SD card as a subfile of the job. If you are writing realtime using Case CATalyst V13 or higher, the definition is also sent to the global table of the Case CATalyst realtime file. All J-defines stored in the dictionary within memory are automatically used on subsequent jobs. If you do not want to use the J-Defines in another job, it is necessary to clear them from the dictionary within memory. See J-Defines on page 60 for more information.

Diamante Suggested and Reminder briefs along with used briefs display in the Brief It pane on the right side of the screen, in a color coded background. The newest Suggested or last used brief display at the bottom of the list. Suggested briefs have a yellow background, Reminder briefs a green background and used briefs a gray background. When you write a Suggested brief, the background color for the brief turns gray, moves to the bottom of the list and the J-Define is created. You can reject a Suggested brief or request a new one. See Managing Briefs on page 48 for more information.

Briefs are not Suggested when an entry exists in a dictionary currently used for translation. For example, during the job you write AB/OT/HRAB/TOERS for the name "Abbott Laboratories." A job dictionary currently used for translation contains the entry A*L defined as "Mr. Allen." Brief It does not suggest A*L for the Abbott Laboratories brief but creates and suggests a brief that does not conflict, such as A*LT.

If you write a steno outline that matches the steno stroke for a Suggested brief or do not want to use the brief, you can write the {Delete} command to remove the steno and text from the transcript. Using the Delete command does not remove the define from the dictionary. You may want to use the Brief It option, Write Twice to Define. See Brief It Options on page 50 for more information.

Case CATalyst V13 or Higher

The Diamante Brief It feature is designed for situations in which you are not writing realtime to your CAT system. If you are using Case CATalyst V13 or higher, defines are exchanged between Case CATalyst and the Diamante 2.0 or higher while writing realtime. It is strongly feature on your Diamante or Case CATalyst but not both locations.

recommended to only use the Brief It

Diamante User Guide

If you are using the Brief It feature on your Diamante with Case CATalyst V13 or higher, selecting to Undo a global, Undo Last Global or delete a global in Case CATalyst does not remove the d efinition from dictionary in Diamante memory or the job dictionary for the file on the Diamante. To remove J-Defines from the Diamante, it is necessary to clear them from the dictionary stored in memory. See J-Defines on page 60 for more information.

Managing Briefs

Diamante Suggested and Reminder briefs along with used briefs display in the Brief It pane in a color coded background. The newest and last used briefs display at the bottom of the list. Suggested briefs have a yellow background, used briefs a gray background and Reminder briefs a green background.

To manage briefs during a job, press More, More, Brief It. The title bar of the Brief It pane turns blue, indicating it has cursor focus. Use the Scroll Up and Scroll Dwn buttons to position the cursor on the desired brief. The cursor location is indicated with a dark grey color on the edge of the Brief It pane.

Chapter 3: Writing on the Diamante

Use the following options as necessary:

Add the Suggested brief to the job dictionary and turns the background of the Suggested brief gray. During a job, a Suggested brief is automatically accepted and added to the job dictionary when you write it. If writing realtime to CATalyst V13 or higher, the accepted brief is sent to the global table of the Case CATalyst realtime file.

Suggest New

Strike out the current suggestion and suggest a new brief at the bottom of the list.

Reject

Strike out the current suggestion.

Quit

Save the changes and closes the Brief It management screen.

Use Brief It

The Diamante Translate Option, Use Brief It, must be set to Yes before beginning a job for Brief It to be available on the Diamante. By default, this option is set to No. When Brief It is active, the Diamante defaults to the Brief It view when you begin writing. Text shows on the left side of the screen and the Brief It pane on the right. Changing the font size for the screen also changes the size of the Brief It pane and the text within it. You can change the View to not show the Brief It pane, but unless you turn Brief It Off, Suggested briefs continue to be provided. If you turn Brief It off during a job, when you return to writing the job, the View shows text on the left and vertical notes on the right.

When Use Brief It is set to Yes, two Brief It Options are available. The options, Write Twice to Define an d Only Suggest One Stroke Briefs, allow you to customize how you use Brief It.

Turn Brief It On or Off Before a Job

1. From the Opening Menu, press Setup, Trans. Opt.

2. Press the Up/Down buttons as necessary to highlight the Use Brief It option.

3. Press the On/Off button to toggle the Brief It option On or Off.

4. To display the Opening menu, press OK, More, Quit.

Turn Brief It Off During a Job

Once a file is open, you can turn the Use Brief It option Off but you cannot turn it On. Once the option is turned off while a file is open, you cannot turn it back on until you close the current job.

To turn Brief It Off while writing a job:

1. From the first Writing menu, select More, Setup, Trans. Opt.

2. The cursor points to the Use Brief It option. Press the Off button. If you press OK without changing the option, the status of the option does not change.

Diamante User Guide

Brief It Options

Write Twice to Define

Brief It, by default, automatically creates a J-Define the first time you use a Suggested brief. When this option is active, you must consecutively write a brief twice before Brief It creates a J-Define. All subsequent uses of the brief only need to be written once. For example, Brief It suggests, S*F, for “State Family Insurance.” You want to use the brief so you write, S*F/S*F, which places the words “State Family Insurance” in your transcript and puts the definition, S*F = State Family Insurance, in your job dictionary. To use the brief again, write, S*F.

You may want to use this option to try a Suggested brief before making it a definition or to prevent a possible misstroke in accepting a brief. The default is Yes.

Only Suggest One Stroke Briefs

Brief It, by default, always suggests a one stroke brief with the asterisk before suggesting a two stroke brief. When this option is active, Brief It suggests only one stroke briefs.

Chapter 3: Writing on the Diamante

Copy Log

In the rare instance your Diamante experiences an error or an exception, Copy Log automatically saves the information to a log file. Technical Support may ask you to send the information to Stenograph for analysis.

To copy the error information:

1. From the Opening Menu, press More, Diag, Copy Log. The Diamante copies all the appro priate log information to the Data SD card, placing it in the Support Info Files folder.

2. To return to the Opening menu, press Quit, More.

3. Insert the Data SD card into the USB SD Flash Drive reader or into a built-in SD slot on your computer.

4. Send the files in the Support Info Files folder on the Data SD card to Stenograph as an e-mail attachment.

Diamante User Guide

Data SD Card

The Diamante uses a Data SD card to store steno notes, timestamps, audio files when the audio option is selected and the associated job dictionary when J-Defines are created for the job. The Diamante comes with a 4 GB Data SD card.

The actual number of files a Data SD card holds varies according to the size of the SD card and the size of each steno note, timestamp and audio files. For example, a 1 GB Data SD card holds approximate 600,000 pages without audio files. Depending on the audio compression option selected, a 1 GB Data SD card holds approximately 170 hours of audio at the lower GMS compression rate and 70 hours at the higher ADPCM compression rate.

The SD card icon on the title bar of the Tilting screen provides a general indication of the remaining space on the Data SD card. When the gauge is completely blue, the entire card is available. If no SD card icon displays, there is no SD card in the Data SD slot or the Diamante does not recognize the Data SD card.

If the Data SD card is corrupt, full or missing from the Data SD slot, the Diamante displays warning messages but allows you to continue writing. Steno notes continue to be saved to memory and the steno, timestamps and audio continue to be saved to the Backup SD card. Stenograph recommends carrying an extra SD card.

Format a Data SD Card

You may want to format a previously used Data SD card for use in the Diamante. For example, you have archived all the files on the Data SD card and want to start with a clean Data SD card.

To format a Data SD card:

1. Gently insert a Data SD card into the Data SD slot on the Diamante until you hear a soft click. If the card does not insert easily, do not force it. Remove the card and reinsert it, ensuring it is straight without angling.

2. From the Opening menu, press Storage, SD Card, Format. A message prompts you to continue.

3. Press Yes to format the Data SD card. A message box displays, indicating the progress of the format. To abort the format, press No.

4. A message displays confirming format completion.

5. To display the Opening menu, press OK, Quit, OK.

Manage Data SD Card Space

You can check the amount of free space left on a Data SD card. As the Data SD card reaches capacity while writing a job, the Diamante beeps and a series of prompts warn that the Data SD card is almost full. If you are recording audio while writing, a series of prompts warn that recording will stop soon. When the Data SD card reaches only 12 MB, a message displays indicating that audio is no longer recorded to the Data SD card. If you start a job and there is 75MB or less available on the Data SD card, audio is not recorded to the Data SD card.

Once a Data SD card is full, steno, timestamps and audio are no longer saved to the Data SD card but continue to be saved to the Backup SD card. Steno and timestamps also continue to be saved to memory.

Chapter 3: Writing on the Diamante

You can change the Data SD card any time during the writing process by first closing the open file and turning Off the Diamante. When you insert a new Data SD card and turn the Diamante On, a new file is created as you begin writing. Files cannot span Data SD cards. You can merge the files toge ther later on your CAT system.

Check the Data SD Space

1. From the Opening menu, press Storage, SD Card, Information.

2. To display the Opening menu, press OK, Quit, OK.

Change the Data SD Card

To change the Data SD card while writing:

1. On the First Writing menu, press End to close the open file.

2. Turn the Diamante Off and remove the current Data SD card from the Data SD card slot. The message, Disk in use -- Put it Back! displays when you attempt to remove the Data SD card

without closing the file by pressing End; or you attempt to remove the Data SD card before the Diamante has finished writing information to it.

3. Gently insert a new formatted Data SD card until you hear a soft click. If the card does not easily insert, do not force it. Remove the card and reinsert it, ensuring it is straight without angling.

4. Turn the Diamante On and continue writing.

View and Copy Data SD Card Files

The Diamante names job file using a year, month, date and time format. For example: 20090716-142341 (July 16, 2009 2:23:41 p.m.) Job files are stored in folders identified by year and month. For example,

200907. By default, the newest file is listed first.

Each job file contains subfiles that include: steno notes with timestamps, an associated audio file when audio is recorded, audio pause and resume information and an associated job dictionary when a job dictionary is used.

Only the file name for your job displays on the Data SD card. The individual subfiles display on the destination drive when you read the job into your CAT system or use the DateTimeToStentura program.

When copying, the Diamante automatically copies your selected files from the Data SD card to a USB storage device inserted into the Diamante USB A (host) port. Be sure to insert your thumb drive before copying files.

To view and copy files on the Data SD card:

1. From the Opening menu, press Storage, SD Card, Files.

Diamante User Guide

2. Job files are organized in folders by year and month, with the newest folder first. Press the Up and Down buttons to highlight a folder. Use Date Sort to toggle folders between ascending and

descending order. An additional folder, Support Info Files, may be visible along with the job folders. If an error occurs,

the Diamante writes error information to this folder. Stenograph uses the information to research and improve the software. See Copy Log on page 51 for more information.

Steno notes copied from memory to the Data SD card display at the root of the card in date order and are identified with the .sgstn file name extension. Although memory stores other file information in addition to the steno note file, only the steno note file is available for copy. See Memory on page 74 for more information.

3. Press Folder to display the job files for the selected folder. Job files display in date order, newest files first, with the following subfile information: the file size in megabytes, the estimated number of transcript pages, an indicator when there is an associated Audio file and an indicator when there is an associated job dictionary.

Use Date Sort to toggle the display of files in ascending and descending order.

4. To copy files, press the Up or Down buttons to highlight the desired files. When finished, press Select to highlight the files.

5. Ensure there is a thumb drive in the Diamante USB A (host) port and press Copy. The Diamante automatically copies the selected files to the thumb drive. The Opening menu displays when the copy is complete.

Chapter 3: Writing on the Diamante

Dictionaries

The Diamante uses Case CATalyst converted dictionaries or an RTF/CRE dictionary converted by the Rtf2Writer Dictionary Conversion program. Valid dictionaries include your personal dictionary, any job dictionary and the Case CATalyst Power Define dictionary. You can also export the Case CATalyst Spell Check Wordlist and Prefixsuffixrules.ini file when using Case CATalyst 8.05 or higher. See Convert RTF/

CRE Dictionaries on page 110 for more information about the Rtf2Writer Dictionary Conversion.

The Diamante can hold approximately 900,000 dictionary entries, depending on the size of the entries. The total number of combined personal and job dictionary entries cannot exceed 900,000.

Load Dictionaries onto the Diamante

The Diamante loads Case CATalyst dictionaries from your computer via USB cable or WiFi. In order to export your Case CATalyst dictionaries via USB cable you must have installed the Diaman te USB driver on your computer. See Install the Diamante USB Drivers on page 18 for instructions on loading the driver. To export dictionaries via WiFi, you must have Case CATalyst version 12.5 or higher and a WiFi enabled Diamante version 1.13 or higher.

Each time you load dictionaries, the newly loaded dictionaries overwrite all other dictionaries on the Diamante. Dictionaries remain on your Diamante until you load dictionaries again. When loading dictionaries, J-Defines held in the dictionary within the Diamante memory are not previous J-Defines made on the Diamante from applying to future jobs, you must manually clear them. See Clear All J-Defines on page 63.

cleared. To prevent

To export Case CATalyst dictionaries to the Diamante:

1. Ensure your Diamante and computer are turned On and fully booted.

2. Start Case CATalyst.

3. Do one of the following:

USB Connection

Each end of the USB cable has a different connection plug. Connect the appropriate end of the USB cable to the USB B (client) port on back of the Diamante and the other end to the USB port on the computer.

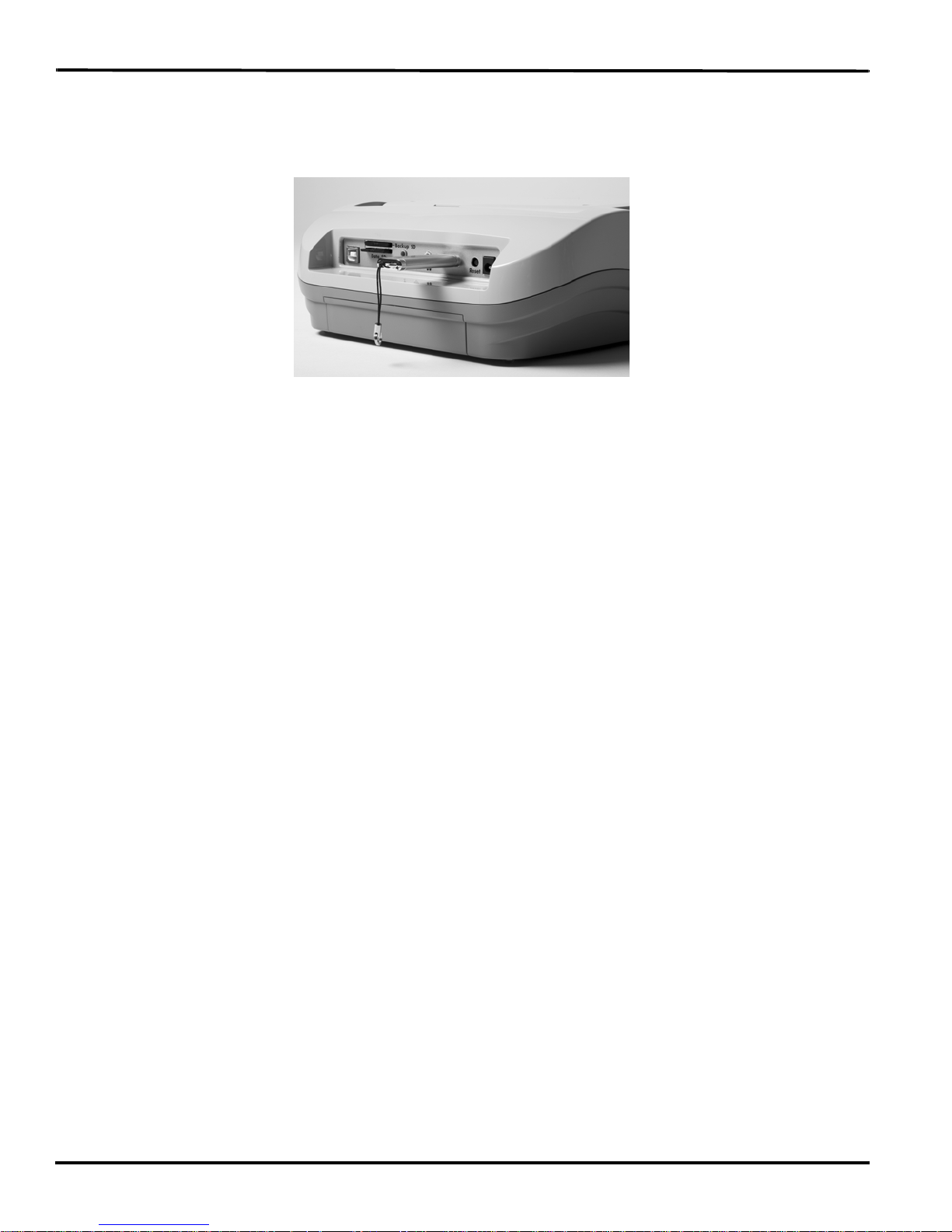

Diamante Back Port Panel

WiFi Connection

Ensure the Diamante WiFi option is On and you are connected to the same network as the Case CATalyst computer.

4. In Case CATalyst, open the Export function and select the élan/Fusion/Diamante tab. In Case CATalyst V10.04 or earlier, select the élan/Fusion tab.

Diamante User Guide

5. Select the dictionaries you want to load onto your Diamante. The Personal Dictionary is selected by default to ensure the most recent version on your Diamante.

You can also select the Case CATalyst Power Define dictionary. See J-Defines on page 60 for additional information about using Case CATalyst Power Define dictionary.

To load the Spell Check Wordlist and the Prefixsuffixrules.ini file, if applicable, check the appropriate box for each option. You must be using Case CATalyst V8.05 or higher. See Suffix Handling on page 87 for more information.

6. Do one of the following:

USB Connection

Click the radio button USB (All)

WiFi Connection

Click the radio button WiFi (Diamante)

7. Click Export. The Diamante beeps and briefly displays a progress bar along with a series of messages as the dictionaries load.

8. When the Diamante finishes loading the dictionaries, it reboots, displaying the Opening menu. A verifying dictionary message may display. Depending on your Case CATalyst setting, the message, Export Complete, may display.

Using Job Dictionaries

In addition to your main (personal) dictionary, you can use Case CATalyst exported job dictionaries for translation when writing on the Diamante. You must load Case CATalyst job dictionaries onto the Diamante in order to select them for translation.

When using the Rtf2Writer program, you can load up to seven job dictionaries on the Diamante. See

Convert RTF/CRE Dictionaries on page 110 for more information.

You can set job dictionary priority on the Diamante. When a stroke appears in more than one dictionary with a different definition, the job dictionary with the highest priority is used to translate the stroke. All selected job dictionaries have a higher priority than the main dictionary and the J-Defines in the dictionary within the Diamante memory.

To set dictionary priorities:

1. From the Opening menu, press Dict.

2. From the Dictionary menu, press Select. The Job dictionaries display in the order they were loaded onto the Diamante.

The following information displays for each dictionary:

• Priority—the translation priority for the dictionary. One is the highest and ten is the lowest when

dictionaries are selected.

• Job Dictionary Name—the file name of the job dictionary.

• Date/Time—the date and time the job dictionary was loaded on the Diamante.

• Size—the size of the job dictionary.

Chapter 3: Writing on the Diamante

3. Select job dictionaries to use for translation and set the priority. Use the Up and Down buttons to move the pointer (>>) to the desired job dictionary and press Select. The dictionary priority is set in the order you select the dictionaries. To reorder the priority, press Clear to deselect all the dictionaries so that you can reselect the dictionaries in the desired priority order.

When the Case CATalyst Power Define dictionary is loa ded, the Diamante automatically selects it for use when making a J-Define. The Power Define dictionary takes priority over all other dictionaries when creating a J-Define. It does not display in the dictionary list.

4. Do one of the following:

•Press Accept to save the selections. The Dictionary menu displays.

•Press Quit to exit without making changes to the existing job d ictionary pr iorit ies. The Diction ary

menu displays.

5. To display the Opening menu, press Quit.

Diamante User Guide

Display Set Strokes Per Minute (SPM)

This option allows the average number of strokes per minute to display on the Title bar and Status screen. The Title bar shows the approximate number of strokes per minute, SPM, while writing. The Status screen shows strokes per minute data for the most recent job. While writing, the Status screen shows strokes per minute data for the current job.

1. From the Opening menu, press Setup, More, Options.

2. Press the Up and Down buttons as necessary to highlight the Display Strokes per minute (SPM) option.

3. Press the Change button to toggle the option between Yes and No. Yes is the default.

4. To display the Opening menu, press OK, More, Quit.

Chapter 3: Writing on the Diamante

Electronic Marks

Use the Mark function to electronically mark locations in your steno notes. You can use the Search feature to locate the Marks in the file.

To mark your steno notes:

1. From the First Writing menu, press either Mark button. When no dictionary definition exists for the Mark, the symbol /! displays in the Text an d in the Vertical

Notes on the Tilting screen. If you have defined the Mark in your dictionary, the symbol, ! , disp lays in the Vertical Notes and the text definition displays in the text.

2. Continue writing.

Diamante User Guide

J-Defines

J-Defines are steno-based words or phrases that are specific to a job, such as names and technical terms. You can create J-Defines on the Diamante before beginning or during a job. The Diamante automatically uses the J-Defines, along with any other selected job dictionaries, when you write a job. J-Defines created during a job apply from the point you define them and do not apply to text you have already written.

If you are using Case CATalyst V13 or higher and the Diamante V2.0 or higher, J-Defines made on the Diamante, including used briefs, are automatically sent to Case CATalyst when writing realtime via USB or WiFi connection. The defines are sent to the global table of the Case CATalyst realtime file. Any dictionary definitions made in the Case CATalyst file, including D-Defines, J-Defines, K-Defines and Other Defines, are automatically sent to the Diamante. The exchanged definitions apply from the point of creation forward to all new realtime steno written.

J-Defines made for the current job are placed into a job dictionary on the Diamante that uses the same date/time name as the job. The job dictionary is stored on the Data SD card as a subfile of the job. Case CATalyst automatically transfers the associated job dictionary to the computer when reading the steno notes from the Data SD card.

All J-Defines created on the Diamante are stored in the dictionary within the Diamante memory and remain in there until you clear them. The file can hold approximately 100,000 J-Defines. J-defines from the dictionary in memory are automatically used on subsequent jobs. If you do not want to use the J-Defines in another job, it is necessary to manually clear them. See Clear All J-Defines on page 63.

You can save all the J-Defines from the dictionary within the Diamante memory to a dictionary file, jdefines.sgdct, on the Data SD and use the file in Case CATalyst as you would any job dictionary. For example, you can use the file in translations or merge the file into your personal dictionary. See Write All J-Defines to a Data SD Card on page 63 for information about copying the J-Defines.

You can export J-Defines from Case CATalyst to your Diamante. You can also export the Case CATalyst Power Define dictionary and use Power Defines commands when creating J-Defines on the Diamante. See Dictionaries on page 55 for more information about loading job dictionaries.

Create J-Defines

When creating J-Defines on the Diamante, you can fingerspell the text or you can stroke defined steno outlines to enter the text portion of a J-Define. The Diamante’s Spell Mode allows you to use steno stroke equivalents for each letter to enter the text portion of a J-Define. When stroking defined steno outlines in the J-Define Text field, the Diamante automatically enters the text portion of an existing definition from your dictionary. For example, you have STKPWHR defined in your dictionary as<Question>. To define a misstroke for a question bank, yo u write STKPW R in the J-Define Steno field and press OK. In the J-Define Text field you write STKPWHR. The Diamante automatically inserts <Question>. If you are using Case CATalyst V13 or higher and the Diamante V2.0 or higher when writing realtime via USB or WiFi connection, the definition is sent to the global table of the Case CATalyst realtime file.

Chapter 3: Writing on the Diamante

When an entry in your dictionary conflicts with a steno outline used by the Spell Mode feat ure, the steno outline in the Spell Mode feature takes priority. It is necessary to fingerspell the definition for any entry that conflicts with the Spell Mode feature. For example, you want to J-Define the misstroke for TKELG as “Dell.” You write the steno stroke TKELG in the J-Define Steno field and TKEL in the J-Define Text field. Since the Spell Mode feature uses TKEL for <Delete Space>, the Diamante automatically enters <Delete Space> in the J-Define Text field. It is necessary to fingerspell Dell in order to define TKELG as “Dell.”

The exception to Spell Mode priority is for the #*. The #* is internally defined in the Diamante as Delete. If a dictionary used for translation contains another definition, the definition in dictionary takes priority.

When you use Power Define commands from a Case CATalyst Power Define dictionary loaded onto the Diamante to create J-Defines, the Spell Mode feature is disabled and the Power Define dictionary takes the highest priority over other dictionaries in the J-Define feature.

Create J-Defines Using Power Defines

You can use Power Define commands from a Case CATalyst Power Define dictionary loaded onto the Diamante, in lieu of Spell Mode, to create J-Defines. The Power Define diction ary allows t he use of your customized entries to fingerspell, write format commands and navigate within the J-Define feature. When you load your Case CATalyst Power Define dictionary onto your Diamante, the Spell Mode feature is disabled and the Power Define dictionary takes the highest priority over other dictionaries in the J-Define feature. If you are using Case CATalyst V13 or higher and the Diamante V2.0 or higher when writing realtime via USB or WiFi connection, the definition is sent to the global table of the Case CATalyst realtime file.

When creating a J-Define, the Power Define dictionary loads into the dictionary priority list but does not display in the list of Job Dictionaries. A Power Define entry takes priority if it conflicts with another dictionary entry. When finished creating J-Defines, the Power Define dictionary is removed from the dictionary priority list.

Since the Spell Mode feature is disabled, you may want to put specific format symbols definitions in your Case CATalyst Power Define dictionary to use with the J-Define feature. For example, you use the Colloquy format symbol in your J-defines for speaker identifications. In your Power Define dictionary, you insert an entry using the steno, KOL, with the <Colloquy> format symbol entered in the Text of the definition. You export the Power Define dictionary along with any other dictionaries to the Diamante. When writing a job, you stroke “KOL” in the Text field of the J-Define feature to insert the <Colloquy> format symbol followed by a speaker name. See Format Symbols on page 66 for Spell Mode format symbol definitions. See the Case CATalyst Help for information on creating Power Define dictionary entries in Case CATalyst.

You may want to review the Spell Mode entries for Punctuation on page 66 and Format Symbols on page 66 before exporting your Power Define dictionary. To remove the Power Define dictionary from your Diamante and use the Diamante default Spell Mode entries for J-Defines, export your dictionaries into the Diamante without selecting the Power Define dictionary. See Dictionaries on page 55 for information about loading dictionaries.

Diamante User Guide

Create J-Defines Using Spell Mode

1. Do one of the following:

• From the Opening Menu, press Dict, J-Defines, Add.

• From the First Writing Menu, press J-Defines.

2. The Add to J-Define screen displays. The total number of J-Defines entries and the amount of remaining space for J-Defines shows on the right side of the screen.

3. In the J-Define Steno field, write the steno strokes for the J-Define. If you make a mistake, press the * (asterisk) to delete the previous stroke or press Clear to delete all the strokes.

4. When finished entering steno outlines, do one of the following:

•Press OK.

• If using the Power Define dictionary, write the stroke defined as Tab or Enter.

5. In the J-Define Text field, write text for the J-Define. Use uppercase and lowercase letter letters, punctuation and format symbols as defined in Spell Mode on page 64; or write steno defined in you r dictionary as the word or format symbol you are defining. Do any of the following:

• Write a stroke that is defined in a dictionary, such as <Question>.

• Write a stroke that is defined in a dictionary and use the Spell Mode letters to complete the word.

For example, write the stroke for Peter and fingerspell "s" "e" "n" to make Petersen.

• Use the Spell Mode letters to create a word that is not in the dictionary, such as “Kurkowski.”

• If you make a mistake, press the * (asterisk) to delete the previous character or press Clear to

delete the entire entry.

6. When finished, do one of the following:

•Press OK to complete the definition.

• If using the Power Define dictionary, write the stroke defined as Enter.

7. Repeat the previous steps to create additional J-Defines. When finished creating J-Defines, do one of the following:

• When creating J-Defines before beginning a job, press Quit twice to return to t he Opening menu .

• When creating J-Defines while writing, press Quit. Continue writing.

Chapter 3: Writing on the Diamante

Write All J-Defines to a Data SD Card

You can copy all the J-Defines from dictionary in the Diamante memory to a dictionary file, jdefines.sgdct, on the Data SD card for use in Case CATalyst. You can then use Windows My Computer, to copy the file from the Data SD card to your Case CATalyst user name.

To copy the J-Defines to the Data SD card:

1. From the Opening Menu, press Dict, J-Defines.

2. From the J-Define menu, press Write. The following message displays prompting you to confirm the copy: Ready to Write All J-Defines to Data SD card. Are You Sure?

3. Press Yes. If you want to cancel the copy, press No.

4. While the Diamante copies the J-Defines to the Data SD card, the following message displays:

Writing J-Defines to Data SD Card.

5. To display the Opening Menu, press Quit twice.

Clear All J-Defines

To delete all the J-Defines from dictionary in the Diamante memory:

1. From the Opening Menu, press Dict, J-Defines, Clear.

2. The following message displays prompting you to confirm the deletion: Ready to Delete All

J-Defines. Are You Sure?

3. Press Yes to clear all J-Defines from the Diamante. If you want to cancel the deletion, press No.

4. The Diamante deletes the J-Defines and displays the message: All J-Defines Deleted.

5. To display the Opening Menu, press Quit twice.

Diamante User Guide

Spell Mode

Use Spell Mode to create J-defines on the Diamante, type a keyboard profile name or WiFi password entering text using the following steno stroke equivalents. Case CATalyst Power Define dictionary entries on the Diamante take priority.

Lower Case Letters

a /ARBGS or /AEURBGS or /A or /AEU b /PW-RBGS or /PW or /-B c /KR-RBGS or /KR or /-BG d /TK-RBGS or /TK or /-D e /ERBGS or /AOERBGS or /E f /TP-RBGS or /TP or /-F g /TKPW-RGBS or /TKPW or /-G h /H-RBGS or /H i /EURBGS or /AOEURBGS or /EU or /AOEU j /SKWR-RBGS or /SKWR or /-PBLG k /K-RBGS or /K l /HR-RBGS or /HR or /-L m /PH-RBGS or /PH or/-PL n /TPH-RBGS or /TPH or /-PB o /ORBGS or /OERBGS or /O or /OE p /P-RBGS or /P or /-P q /KW-RBGS or /KW r /R-RBGS or /R or /-R s /S-RBGS or /S or /-S t /T-RBGS or /T or /-T u /URBGS or /AOURBGS or /U or /AOU v /SR-RBGS or /SR w/W-RBGS x /KP-RBGS or /KP or /-BGS y /KWR-RBGS or /KWR z /STKPWHR or /SAOE-RBGS or /SE-RBGS or /SAOE or

/SOE or /SE or /-Z

Upper Case Letters

A /AFPLT or /AEUFPLT B /PW-FPLT C /KR-FPLT D/TK-FPLT E /EFPLT or /AOEFPLT F/TP-FLPT G /TKPW-FPLT H /H-FPLT I /EUFPLT or /AOEUFPLT J /SKWR-FPLT K /K-FPLT L /HR-FPLT M /PH-FPLT

Chapter 3: Writing on the Diamante

N /TPH-FPLT O /OFPLT or /OEFPLT P /P-FPLT Q /KW-FPLT R /R-FPLT S /S-FPLT T/T-FPLT U /UFPLT or /AOUFPLT V /SR-FPLT W/W-FPLT X /KP-FPLT Y /KWR-FPLT Z /STKPWHR-FPLT or /SAOE-FPLT or /SOE-FPLT

or /SE-FPLT

Diamante User Guide

Punctuation

? (interrog) /STPH . (period) /-FPLT : (colon) /-FPLT/-FPLT ; (semicolon) /-FPLT/-RBGS ... (ellipses) /-FPLT/-FPLT/-FPLT ,(comma) /RBGS

- (dash) /TK-RB

‘ (apostrophe) /AE or /AOE “ (double quote) /KW-T or /KWOET ( (left parenthesis) /STPH-FPLT ) (right parenthesis)/STPH-FPLT/STPH-FPLT $ (dollar sign) /-D or /-D# ^ (caret) /KA or /KAR & (ampersand) /APBD or /AFRP or /APL * (asterisk) /AS + (plus sign) /P-LS / (slash) /SHR-RB or /SHRARB Space /SPAEUS

Format Symbols

Question /STKPWHR or /KWE or /KWEU Answer /-FRPBLGTS or /APB or /APBS Colloquy /KOL Paragraph /*P or /PAR or /PRAF or /PAUER Delete Space /TKEL or /TKHRET Sticky Space /KEP or /KAOEP Tab /TAB New Line /HRAOEUPB Glue /TKPWHRAOU or /TKPWHRU Cap Next /KAP Cap Previous /PRE or /PRAOE Uncap Next /KA*P or KAUP

Numbers

1/S-# 2/T-# 3/P-# 4/H-# 5/A-# 6/-F# 7/-P# 8/-L# 9/-T# 0/O-#

Chapter 3: Writing on the Diamante

Diamante User Guide

Job Statistics

Job statistics displays data for each job that includes the job size in bytes, the number of estimated pages, audio use, whether or not there is a job dictionary associated with the file and strokes per minute information. Strokes per minute, SPM, information displays on a separate screen in numeric and graphic format. The numeric information includes the minimum, maximum and average strokes per minute for the selected job. The graph shows the varying speed of strokes throughout the job. The strokes per minute graph is only visible in Job Statistics when the job is closed.

When the Display Strokes Per Minute option is active, the Title bar and Status screen display strokes per minute (SPM) data. While writing, the Title bar shows the approximate number of SPM and the Status screen shows SPM data for the current job. When no job is active, the Status screen shows strokes per minute data for the most recent job. See Display Set Strokes Per Minute (SPM) on page 58

View Job Statistics

1. From the Opening menu, press More, Job Stats.

2. Steno note folders display by year and month with the newest folder first. Use Date Sort to toggle folders between ascending and descending order.

3. Press the Up and Down buttons to move to the desired folder and press Folder to view job file data contained in the folder.

4. To view strokes per minute and the graph for a specific job, press the Up and Down buttons to move to the desired file and press Select. The Job Statistics graph displays.

5. Use the options as necessary:

• Scroll—Use the Scroll buttons to move graph detail horizontally on the screen.

• Zoom—Use the Zoom buttons to examine details of the graph in closer context or in a more

distant overview.

6. Press Quit to return to the Second Setup screen.

7. Do one of the following:

• View job statistics for another file, press Job Stats.

• Return to the Opening menu, press More.

Chapter 3: Writing on the Diamante

Keyboard Layout

Keyboard Layout is designed for international use of the Diamante. Changes to the Keyboard Layout should only be made when your steno keyboard layout uses a specific language steno theory.

1. From the Opening menu, press Setup, More, Options.

2. Press the Up and Down buttons as necessary to highlight the Keyboard Layout option.

3. Press the Change button to cycle through the available keyboard.

4. To display the Opening menu, press OK, More, Quit.

Diamante User Guide

Keyboard Settings

The majority of Diamante users successfully adjust their keyboard accuracy using the depth of stroke and the tension control adjustment wheels. See Keyboard Depth and Tension Controls on page 24. Occasionally, when a very short depth of stroke is used or after adjusting the tension control and depth of stroke, you may continue to experience stacking or splitting. The Keyboard Settings allow you to further customize the keystroke interaction to your writing style.

You can save changed Keyboard Settings to a keyboard profile. You can load the saved profile at another time to quickly apply the settings. You may want to create different profiles for situations when your writing varies. For example, you are in a situation where several people are using the Diamante or you write differently first thing in the morning and late in the afternoon. You make adjustments to the Keyboard Settings and save them to a profile. The next time you write, you load the desired profile to have the Diamante automatically apply the saved Keyboard Settings with your personalized adjustments.

Keyboard Adjustments

1. Make adjustments to the keyboard depth of stroke and tension control settings. See Keyboard Depth

and Tension Controls on page 24 for details.

2. Turn on CNN or the equivalent and write against the broadcast for 20 - 30 minutes.

3. If you continue to experience keystroke issues, make further adjustments using the Keyboard Options. From the Opening Menu, press Setup, More, Keyboard, Adjust. If you need to make adjustments during a job, press More, Setup, Keyboard, Adjust.

4. Perform the adjustments according to the following priority list to ensure optimal keystroke performance. Use the Up/Down buttons to highlight an option.

a. Keyboard Sensitivity—Adjust the overall keyboard sensitivity. This may be particularly

necessary when your depth of stroke is very shallow. It is strongly the first available setting and assess the change. Turn on CNN or the equivalent and write against the broadcast for 20 - 30 minutes.

The default setting is Balanced. Use the + and - buttons to select one of the following:

• Less Sensitive—A key or keys show that you do not want in your steno outlines (shadowing).

• More Sensitive—A key or keys you want are not in your steno outlines (missed or dropped).

b. Split/Stack Adjustment - When you experience splitting steno outlines or multiple steno outlines

becoming one, adjust the Split/Stack Adjustment setting. It is strongly select the first available setting and assess the change. Turn on CNN or the equivalent and write against the broadcast for 20 - 30 minutes.

recommended that you select

recommended that you

The default setting is Balanced. Use the + and - buttons to select one of the following:

• Less Splitting 1—Multiple steno outlines show in your steno notes that are intended to be one stroke.

• Less Stacking 1—Single steno outlines show in your steno notes that are intended to be two strokes.

Chapter 3: Writing on the Diamante

c. Transition Time—T ransition time is the number of milliseconds that p ass between the release of

a key stroke and when the Diamante recognizes the next key stroke. This can af fect the st acking or splitting of steno outlines. If you experience stacking or splitting steno outlines, adjust the Split/Stack Adjustment option first

If the Split/Stack Adjustment settings do not resolve the splitting or stacking of steno outlines, set the Split/Stack Adjustment option to “Balanced” before strongly

recommended that you select a small increment and assess the change. Turn on CNN

changing the Transition Time setting. It is

or the equivalent and write against the broadcast for 20 - 30 minutes. The default setting is 8 milliseconds. Use the + and - buttons to choose a number between 2 and

66.

• Increase the transition time setting—Split steno outlines continue to show in your steno notes. Split steno outlines indicates that the transition time is too slow. Increase the transition time setting in small increments.

• Lower the transition time setting—Stacked steno outlines continue to show your steno notes. Stacked steno outlines indicates that the transition time is too fast. Decrease the transition time setting in small increments.

d. Return to Factory Default Settings—Return all the keyboard options to the default factory

settings. Use the + or - button to select Yes. If you made changes in Adjust Keys, you will not prompted to save the settings as indicated in the next step.

5. Press OK. You are prompted to save the settings to a profile. While writing, you are prompted after you End the job. No prompting occurs if you selected to Reset all the key settings to the factory default.

6. Select one of the following:

Yes

Apply the settings and display the Keyboard Profiles screen. Do the following: a. Use the Up/Down buttons to highlight an empty profile or profile name and press Save. b. Type a profile name using uppercase and lowercase letter letters, punctuation and format

symbols as defined in Spell Mode on page 64; or write steno defined in your dictionary as the word. The maximum number of characters is 32.

c. Press Accept. See Load a Profile on page 73 to apply a saved Keyboard Profile. Press Cancel

to return to the Keyboard Profiles screen without saving the profile.

Apply the settings, which are remembered until changed. They are not

saved to a profile. To return to

the Opening menu, press Quit twice.

Diamante User Guide

Individual Key Adjustments

Adjust an individual key when it consistently drags or drops. If you are experiencing multiple keys that drag or drop, first carefully follow all the steps in Keyboard Adjustments on page 70 before making individual key adjustments.

If you press three or more keys five consecutive times while making individual key adjustments, the Diamante automatically exits the screen. When you are in a job, you are returned to the realtime screen. Any adjustments made prior to the five consecutive strokes are remembered but you are not prompted at any time to save the changes to a profile.

To adjust an individual key:

1. Ensure the depth of stroke is customized to your writing style. See Keyboard Depth and Tension

Controls on page 24 for details.

2. Access the Adjust Keys option. Do one of the following:

• Before writing, press Setup, More, Keyboard, Adjust, Adjust Keys.

• During a job, press More, Setup, Keyboard, Adjust, Adjust Keys.

3. The Keyboard Hardware Type screen displays.

Keyboard at rest with the deepest depth of stroke setting.

The line of white bars at the top of the screen represents the bottom of the keyboa rd. The h orizontal position of the line varies depending on the depth of stroke setting. For example, a deeper depth of stroke places the line closer to the top of the screen. Each individual bar indicates the point the key must reach or move slightly past in order to register as a stroke. The number below each key is the current setting. Zero is the factory default.

4. Press the key you want to adjust with enough pressure to move it past the white bar and then release it. The gray vertical bar highlights the key selected for adjustment.

Chapter 3: Writing on the Diamante

5. Perform one of the following adjustments:

• More—Increase the key sensitivity when the key is not showing in the steno notes and you want

it to register. Increase the sensitivity using increments of 5. It is strongly make the first incremental setting and assess the change. Turn on CNN or the equivalent and write against the broadcast for 20 - 30 minutes.

• Less—Decrease the key sensitivity when the key is showing in the steno notes and is not

wanted. Decrease the sensitivity using increments of 5. It is strongly make the first incremental setting and assess the change. Turn on CNN or the equivalent and write against the broadcast for 20 - 30 minutes.

• Reset—Return all the key settings to the factory default.

6. When finished, press Done. You are prompted to save the settings to a profile. While writ ing, you are prompted after you End the job. No prompting occurs if you selected to Reset all the key settings to the factory default.

recommended that you

Keyboard Profiles

A keyboard profile is a group of Keyboard Settings saved to a file. When you load a saved Keyboard profile, the Diamante automatically applies the saved Keyboard Settings. You can have up to ten different profiles. See Keyboard Adjustments on page 70 and follow the steps to make changes to your Keyboard Settings and save them to a profile.

Load a Profile

1. Do one of the following:

• Before writing, press Setup, More, Keyboard, Profiles.

• During a job, press More, Setup, Keyboard, Profiles.

2. Use the Up /Down buttons to select a profile.

3. Press Load.

4. Do one of the following:

• Before writing, press Quit twice.

• During a job, continue writing.

Diamante User Guide

Memory

The Diamante uses memory to store steno notes and timestamp files as additional backup to the Data SD and Backup SD cards. Steno note files stored in memory remain even when you turn the Diamante Off. You can save individual or multiple steno note files that are stored in memory to a Data SD card or thumb drive in the rare instance you need to retrieve a file.

There is 64 MB of memory on the Diamante or approximately 36,000 pa ges. If the memory becomes full, the Diamante overwrites the oldest files to make room for the newest files.

View and Copy Memory Files

The memory screen displays the list of files in a year, month, date and time format: 20090716-142341 (July 16, 2009 2:23:41 p.m.). By default, the newest file is listed first. The file size and the estimated number of transcript pages shows for each file.

Files in memory can be copied to the Data SD card or to a thumb drive. Files are automatically copied to the root directory of the destination drive. When copying to a thumb drive, be sure to insert your device before copying files.

Timestamp files are part of the steno note file. They are not visible in the list. To view and copy memory files:

1. From the Opening menu, press Storage, Memory.

2. Steno note files display with the newest folder first. Use Date Sort to toggle files between ascending and descending order.

3. Press the Up and Down buttons to move to the desired file and press Select. You can select to copy any or all of the files in memory.

4. When finished selecting files, press Copy. The Diamante prompts you to copy to the Data SD card or a thumb drive. When copying to a thumb drive, ensure you insert the thumb drive into USB A (host) port before copying.

5. Press one of the following:

• Data Card

• Thumb Drv

6. Files are copied to the root of the storage destination.

7. The Opening menu displays.

Chapter 3: Writing on the Diamante

Clear Memory

It is not necessary to clear the memory. If the memory becomes full, the Diamante overwrites the oldest files to make room for the newest files. It may be necessary, however, to clear the memory if you are working in a secure environment where you cannot remove your Diamante from the location with existing files.

The Clear Memory command does not To clear memory:

1. From the Opening menu, press More, Diag, Clear Mem.

2. The Diamante prompts you with a confirmation message to delete all the files in memory.

3. Do one of the following:

•Press Yes to clear all the files. When the Diamante completes clearing the memory files, press

OK to return to the Opening menu.

• To keep the current files, press No. To return to the Opening menu, press Quit, More.

clear the J-defines held in the dictionary within memory.

Diamante User Guide

New View

The New View feature allows you to change the Tilting screen view. The display cycles between steno only, text only, text with vertical notes and text with the Brief It pane. The message Brief It (Disabled) displays in the cycling view when Brief It is Off. You can change the Tilting screen view any time while writing a job.

To change the Tilting screen view:

1. From the First Writing menu, press More, New View.

2. Press New View until the desired selection displays.

3. Continue writing.

Chapter 3: Writing on the Diamante

Options

Options allow you to switch the USB communication between Standard and élan Mira® emulation, select keyboard layout language, adjust Beeper Volume, view strokes per minute job statistics, select a prompt when ending a job and change the save setting for TrueStroke files.

To access Options:

1. From the Opening Menu, press Setup, More, Options.

2. For details about each option, see the appropriate topic in this chapter:

• “Beeper Volume”

• “Display Strokes Per Minute (SPM)”

• “Keyboard Layout”

• “Prompt to End a Job”

• “Serial Protocol”

•“TrueStroke”

• “USB Communication”

Diamante User Guide

Prompt to End a Job Option

The Diamante can optionally prompt you with a confirmation message each time you press the End button to close a job. When the message displays, you can continue to close the job by selecting End again. Pressing Cancel or continuing to write cancels the message and the job remains open.

To set the end job confirmation prompt option:

1. From the Opening menu, press Setup, More, Options.

2. Press the Up and Down buttons as necessary to highlight the Prompt to end job option.

3. Press the Change button to toggle the option between Yes and No. No is the default.

4. To display the Opening menu, press OK, More, Quit.

Chapter 3: Writing on the Diamante

Reopen

Using the Reopen feature, you can open an existing file for searching and readback purposes. You can search, scroll and playback audio in a reopened file.

The Diamante stores files for reopen on the Data SD card. It is necessary to have the Data SD card in the Diamante in order to reopen files. When you resume writing, the new text is appended to the reopened file and is a single file on the Date SD card. New text shows on the screen following the heading, Reopened Section. The Diamante creates a new Reopened Section each time you reopen a file. J-Defines created in the reopened file apply only to the appended portion and are the only J-Defines stored with the file. J-Define created during previously reopened sections are available by saving all J-Defines to the J-Defines.job dictionary.

You can only reopen a job with audio when you reopen it on the same day it was created. For example, you write a job in the morning and record audio. When you break for lunch, you end the file. You can only reopen and append to the job later the same day. If a job selected for reopen has audio and your options are currently set to not record audio, you can only open and append to the job by changing your audio settings to record audio. If the job selected for reopen does not have audio and your options are currently set to record audio, you can only open and append to the job by chang ing your audio settin g to not record audio.

The original and appended steno notes, timestamps, audio and all new J-Defines are stored in the same file on the Data SD card. The original and appended files are saved in separate files in memory and on the Backup SD card.

To reopen and append a file:

1. From the Opening menu, press Reopen.

2. Job files are organized into folders by year and month, with the newest folder first. Press the Up and Down buttons to highlight to the desired folder. Use Date Sort to toggle folders between ascending and descending order.

3. Press Folder to display the job files for the selected folder. Job files display in date order, newest files first, with the following subfile information: the file size in

megabytes, the estimated number of transcript pages, an indicator when there is an associated Audio file and an indicator when there is an associated job dictionary.

4. Press the Up and Down buttons to highlight the desired file for reopen.

5. Press Open. The Diamante loads the file. The new translation displays on the Tilting screen under the Reopened Section.

6. Write a stroke on the writer. Once you write a steno outline, you can play back any audio from the current or reopened file.

Diamante User Guide

Scroll

Using the Scroll function, you can review testimony by moving up or down the Tilting screen one line at a time. When you resume writing, the Diamante returns to the current spot in the testimony.

1. From the First Writing menu, press More, Scroll.

2. Use any of the following menu options:

• New View—change the view on the Tilting screen.

• Play—playback the audio.

• Up—move to a previous line.

• Down—move to the following line.

3. To exit the Scroll menu, continue writing or press Quit.

Chapter 3: Writing on the Diamante

The Diamante allows you to search and scroll through a job using information from the Data SD card. Ensure the Data SD card is inserted into the Data SD slot on the Diamante to effectively use search.

When you select to search for an item, the Diamante highlights the located item on the screen. You can search for the last question, answer, untranslate or electronic Mark. You can also search for one or more specific steno strokes.

Search for the Last Question

1. From the First Writing menu, press Last Q. The Diamante highlights the last Q. If a question is not found or you reach the beginning of the file, the search sto ps with the cursor positione d at the top of the file.

Use any of the following menu options:

• New View—change the view on the Tilting screen.

• Play—playback the audio.

• Prev. Q—search backward in the file for previous question.

• Up—scroll backward in the file.

• Down—scroll forward in the file.

2. Continue writing or press Quit. The First Writing menu and your current writing position display.

Search for the Last Answer

1. From the First Writing menu, press More, Search, Last A. The Diamante highlights the last A. If an answer is not found or you reach the beginning of the file, the search stops with the curso r positioned at the top of the file.

Use any of the following menu options:

• New View—change the view on the Tilting screen.

• Play—playback the audio.

• Prev. A—search backward in the file for the previous answer.

• Up—scroll backward in the file.

• Down—scroll forward in the file.

2. Continue writing or press Quit. The First Writing menu and your current writing position displays.

Diamante User Guide

Search for the Last Mark

An undefined electronic Mark displays as ! in the Vertical Notes on the Tilting screen.

1. From the First Writing menu, press More, Search, Last Mark. If the Mark is not found or you reach the beginning of the file, the search stops with the cursor positioned at the beginning of the file.

Use any of the following menu options:

• New View—change the view on the Tilting screen.

• Play—playback the audio.

• Previous—search backward in the file for the previous electronic Mark.

• Up—scroll backward in the file.

• Down—scroll forward in the file.

2. Continue writing or press Quit. The First Writing menu and your current writing position display.

Search for Steno Strokes

1. From the First Writing menu, press More, Search, Steno. The Enter Steno To Search For field displays.

2. Write the steno strokes on which to search. If you make a mistake, press Clear and write the new strokes.

3. Press OK. The Diamante highlights the text for the steno outlines. If the steno ou tlines a re not found or you reach the beginning of the file, the search stops with the cursor positioned at the top of the file.

Use any of the following menu options:

• New View—change the view on the Tilting screen.

• Play—playback the audio.

• Previous—search backward in the file for the previous occurrence of the steno outlines.

• Up—scroll backward in the file.

• Down—scroll forward in the file.

4. Continue writing or press Quit. The First Writing menu and your current writing position displays.

Chapter 3: Writing on the Diamante

Search for the Last Untranslate

Searching for the last untranslate can be an easy way to identify the steno for a J-Define.

1. From the First Writing menu, press More, Search, Untranslate. The Diamante highlights the last untranslate. If an untranslate is not found or you reach the beginning of the file, the search stops with the cursor positioned at the top of the file.

Use any of the following menu options:

• New View—change the view on the Tilting screen.

• Play—playback the audio.

• Previous—search backward in the file for the previous untranslate.

• Up—scroll backward in the file.

• Down—scroll forward in the file.

2. Continue writing or press Quit. The First Writing menu and your current writing position displays.

Diamante User Guide

Serial Protocol

The Serial Protocol option is a fixed option that displays the Diamante communication protocol when using the Virtual Serial Port driver provided by Stenograph. Select Stentura as the writer in your CAT system if you are using the serial protocol with a CAT system not compatible with the Diamante USB protocol.

Chapter 3: Writing on the Diamante

Status

Status displays information about the Diamante. The status screen indicates:

• Software version.

• When a job is opened, the name of the job.

• The approximate number of strokes per minute including the minimum, maximum and average for the job along with a graphical representation of the varying number of strokes per minute throughout the job.

• The total number of strokes to date for all jobs taken.

• Keyboard type and Serial Protocol.

• The amount of space left on the Data SD card and whether or not the card is write enabled.

• When the AC adapter/charger is charging.

• The Bluetooth target computer numeric ID, computer name and the Passkey, when applicable.

• Main Battery status. See Batteries on page 14 for more information.

Check Status Information

To check status information:

1. From the Opening or First Writing menu, press More, Status.

2. To return to the initial menu, Opening or First Writing menu, press OK, More.

Diamante User Guide

Steno Test

The Steno Test feature puts the Diamante in writing mode and simulates steno strokes for diagnostic purposes. This feature is generally used at the request of a Stenograph Technical Support Representative to test the Read and Writing features of the Diamante.

To activate Steno Test:

1. From the Opening menu, press More, Diag, Steno Test.

2. Writing any steno stroke exits the Steno Test mode but keeps the file open. To close the file, press End.

If the option, Prompt to confirm ending job is active, a confirmation prompt displays. Press End to close the job or continue writing to cancel the message.

Chapter 3: Writing on the Diamante

Suffix Handling

The Suffix Handling feature attaches properly defined suffixes to the previous word. This provides for easier readback on the Diamante screen when using suffixes.

If you have exported your Case CATalyst Spell Check Wordlist and Prefixsuffixrules.ini file, the suffix handling feature attaches the suffix to the previous word and spell checks it against the wordlist and prefixsuffixrules file. You need Case CATalyst v8.05 or higher to export the wordlist and prefixsuffixrules file.

To export the Case CATalyst Spell Check Wordlist and the Prefixsuffixrules.ini files, you must have installed the Diamante USB driver on your computer. See Install the Diamante USB Drivers on page 18 for instructions on loading the driver.

To export the files:

1. Ensure your Diamante and computer are turned On and fully booted.

2. Start Case CATalyst.

3. Connect your Diamante to your computer via USB cable. Each end of the USB cable has a different connection plug. Connect the appropriate end of the USB cable to the USB B (client) port on back of the Diamante and the other end to the USB port on the computer.

Diamante Back Port Panel

4. In Case CATalyst, select Export.

5. From the Export dialog box, select the élan/Fusion/Diamante tab. In Case CATalyst V10.04 or earlier, select the élan/Fusion tab.

6. Check the box, Export Spell Check Wordlist. If applicable, check the box Export Prefixsuffixrules.ini File. When the Export to

Prefixsuffixrules.ini File option is grayed out, there is no Prefixsuffixrules.ini file in your System Files Case indicating you do not use it. A Prefixsuffixrules.ini file is not necessary to use the Suffix Handling feature.

Case CATalyst remembers the status of these checkboxes.

7. Select any dictionaries to export. The Personal Dictionary is automatically selected.

8. Select Export. The Diamante beeps and briefly displays a progress bar.

9. When the Diamante finishes loading the selected files, it reboots, displaying the Opening menu. Depending on your Case CATalyst settings, the message, Export Complete displays.

10. Remove the USB cable.

Diamante User Guide

Test Mode

Test Mode is designed for situations where you are taking a test or writing in a secure location that restricts you from leaving the environment with any copy of the procee dings. In Test Mode, the Diamante writes only to the Data SD card, regardless of your settings. In Test Mode, no files are written to memory or the Backup SD card and all audio recording features are disabled.

To turn Test Mode On or Off:

1. From the Opening Menu, press Setup, More, Test Mode. The current status of Test Mode displays on the screen.

2. Do one of the following:

•Press On to use Test Mode. The Status and Menu bars display in red. The Diamante rema ins in

Test Mode until you turn the feature Off or turn the Diamante Off.

•Press Off to disable Test Mode. The Status and Menu bars return to the normal blue display

color.

3. To display the Opening menu, press OK, More, Quit.

Chapter 3: Writing on the Diamante

Thumb Drive

If you have a thumb drive plugged into the USB A (host) port on the back of the Diamante, you can view files on the thumb drive.

You can copy files from the Data SD card and the Diamante memory to a thumb drive. See View and

Copy Data SD Card Files on page 53 and View and Copy Memory Files on page 74 to copy files.

To view the contents of a thumb drive:

1. Insert the thumb drive into the USB A (host) port on the back of the Diamante.

2. From the Opening Menu, press Storage, Thumb.

3. Do either of the following:

• To view information about the Thumb drive, press Information.

• To view the contents of the Thumb drive, press Files.

Diamante User Guide

Tilting Screen Appearance

You can adjust the text color, font size and backlight level from the Opening Menu or while writing a job.

Set Tilting Screen Text Colors

The Diamante Tilting screen can display text in several different colors. You can set separate colors for untranslates, question symbol, answer symbol, text, and conflicts.

To change the Tilting screen text colors:

1. Do one of the following:

• From the Opening menu, press Setup, Display.

• From the First Writing menu, press More, Setup, Display.

2. From the Display menu, select Color. The Color menu displays sample text showing the current color assignment for each text type.

3. Move the pointer (>>) using the Up and Down buttons to the item you want to change.

4. Cycle through the available colors using the Color and Color buttons. The item displays in the selected color under the New Color Assignment column. Some colors are less noticeable due to their subtle differences.

5. Repeat steps 3 and 4 to change the color for other items.

6. When finished selecting colors, press Accept. To exit the Color screen without changing the color, press Quit.

7. The Display menu reappears. The color selection remains until you change them.

8. Do one of the following:

• When changing colors before beginning a job, return to the Opening Menu by pressing OK,

More, Quit.

• When changing colors while writing, continue writing. The First Writing menu redisplays.

Select Tilting Screen Font Size

The Diamante can display text in five different font sizes. Using a smaller font allows you to display more text on the Tilting screen and using a larger font allows for easier viewing. The default font size setting is #3.

To change the Tilting screen font size:

1. Do one of the following:

• From the Opening menu, press Setup, Display.

• From the First Writing menu, press More, Setup, Display.

2. On the Display menu, press Font.

3. Move the pointer (>>) using the Font and Font buttons to select one of the font sizes.

Chapter 3: Writing on the Diamante

4. When finished with your selection, press Quit. The Display menu reappears. The selected font size remains until changed.

5. Do one of the following:

• When changing font size before writing a job, return to the Opening Menu by pressing OK, More,

Quit.

• When changing font size while writing, continue writing. The First Writing menu redisplays.

Set the Tilting Screen Backlight Level

Adjust the brightness of the Backlight on the Tilting screen to accommodate your viewing preference. Decreasing the brightness reduces the amount of the power required to display the screen which can reduce battery consumption. Optionally, setting the Backlight to automatically dim after a period of inactivity also reduces battery consumption. Dimming options allow you to customize automatic dimming when selected.

To customize the Tilting screen Backlight levels:

1. Do one of the following:

• From the Opening menu, press Setup, Display, Backlight.

• From the First Writing menu, press More, Setup, Display, Backlight.

2. Press the Up and Down buttons to highlight an option. Use the + and - buttons to make changes.

• Backlight Bright Level—Increase or decrease the Backlight level. The brightness is based on a

percentage. 100% is the default. The screen reflects your selection.

• Backlight Dim Level—Set the Backlight dimming level when the Auto Dim After option is active.

The brightness level is based on a percentage. The screen reflects your selection.

• Auto Dim After—Select the period of inactivity that must pass on the Diamante before Backlight

dimming occurs. Choose a number between 1-90 seconds or Never.

• Auto Bright When—select the action that must be taken to resume regular Backlight brightness

after dimming. Choose Steno or Function Key.

3. When finished with your selections, press OK. The Display menu reappears.

4. Do one of the following:

• With no open job, return to the Opening Menu by pressing OK, More, Quit.

• During a job, continue writing. The First Writing menu redisplays.

Diamante User Guide

Time and Date

The Time function allows you to change the time and date on your Diamante. It is important to maintain date and time accuracy in the event you need to locate a file in memory, on the Data SD card or on the Backup SD card.

1. From the Opening menu, press Setup, Time. The Time and Date screen displays.

2. Press the Next button to select the unit of time or date you want to change.

• Month

•Day

• Year

• Hour

• Minutes

•AM/PM

3. Do one of the following:

• To increase the unit of time or date, press +.

• To decrease the unit of time or date, press -.

4. Repeat the previous steps for each unit of time or date you want to change.

5. To apply your selection, press Accept.

6. To display the Opening menu, press Quit, More, Quit.

Chapter 3: Writing on the Diamante

Translate Options

The Diamante has five translate options, A/An, Auto-Conflict and three Brief It. Using the Trans. Opt. menu, you can turn these options On and Off. See A/An Resolution on page 39, Auto-Conflict Resolution on page 43 and Brief It on page 47 for details about each option.

To access Translate Options:

1. From the Opening Menu, press Setup, Trans. Opt.

Diamante User Guide

TrueStroke

TrueStroke technology is a sophisticated algorithm that tracks the direction and velocity of keystrokes. By default, the Diamante writes TrueStroke data, the.sgxr2 subfile, to the Data SD card along with the steno note file. When you read the steno note file into Case CATalyst 10.07 or higher, the TrueStroke data is automatically copied to the job subfile, Steno X-ray2. When writing realtime via USB cable to Case CATalyst Version 10.07 or higher, the TrueStroke data is written to Data SD card and the Case CATalyst version 10.07 or higher realtime job subfile, Steno X-ray2.

To view TrueStroke information in Case CATalyst, display the vertical notes for the realtime job and double click the steno outline for the TrueStroke data you want to view. See the Case CATalyst Help

more information about TrueStroke data. The free, downloadable TrueView CATalyst V10.06 or earlier and other CAT software users to view the TrueStroke data.

To change the TrueStroke setting:

1. From the Opening Menu, press Setup, More, Options.

2. Use the Up/Down buttons to highlight the Save TrueStroke Files to Data SD card field.

3. Press Change to select Yes or No.

utility allows Case

4. To display the Opening menu, press OK, More, Quit.

Chapter 3: Writing on the Diamante

USB Communication

The Diamante uses the same realtime USB protocol as the élan Mira®; however, some CAT systems look specifically for the writer model instead of the USB protocol. The USB Communication option allows you to switch the USB protocol from Standard to élan Mira, enabling you to connect your CAT system to the Diamante via USB cable for realtime communication.

The USB Communication option only affects realtime communication via USB. Virtual USB serial port communication is not available. It does not affect exporting an RTF/CRE dictionary to the Diamante via USB cable.

To change the USB Communications option:

1. From the Opening Menu, press Setup, More, Options.

2. Use the Up/Down buttons to highlight the USB Communication (Writer will Reset if Changed): field.

3. Press Change to switch to Mira Emulation or Standard. Standard is the default selection. A USB Communication message displays indicating that changing the setting requires the writer to restart.

4. Do one of following:

•Press Accept to change the setting. The Diamante automatically resets and displays the

Opening menu.

•Press Cancel to retain the current setting and return to the Options screen.

Diamante User Guide

Wireless

Stenograph provides two optional wireless communication choices for realtime writing. Wireless communication is available using a WiFi wireless connection or Bluetooth Technology.

WiFi Wireless Communication

require that Case CATalyst is loaded on a computer with Windows Your computer must be wireless enabled or have a network interface card (NIC). See the Diamante WiFi

Wireless Communications Guide included on the Diamante

information about Diamante WiFi wireless setup, configuration and use. You can also download the guide from the Utilities and Links download page at www.stenograph.com.

Stenograph provides WiFi wireless support only when you are using the Diamante WiFi router kit. Other WiFi routers may work but are not supported by Stenograph.

7/Windows Vista®/Windows XP.

/Wave™ Utilities and Tutorial CD for

Bluetooth Wireless Communication

Bluetooth wireless communication is available for the Diamante. The Stenograph optional Diamante Bluetooth wireless realtime kit allows wireless communication between the Diamante and Case

CATalyst or a Windows based 32-bit or 64-bit CAT system on your Windows Windows

XP notebook computer. The kit includes the necessary Diamante Bluetooth adapter and the

7/Windows Vista®/

Stenograph provides Diamante wireless support when the Diamante Bluetooth Wireless Communication kit is used. Other wireless adapters and software may work but are not supported by Stenograph.

Chapter 4

Troubleshooting

Chapter 4, Troubleshooting, suggests possible solutions to some common situations encountered when using the Diamante. Most users can remedy the following situations themselves. For more troubleshooting information, check Stenograph's web site, www.stenograph.com. If a problem persists, call Stenograph Technical Support at 1.800.323.4247 or 1.630.532.5100.

Troubleshooting Tips

The following troubleshooting tips can assist you in quickly solving some common errors you may encounter. Additional Help topics are available at www.stenograph.com. Click Support, Help Desk.

Audio - Does Not Resume After Pause

If you wrote a steno outline to pause the audio, you must stroke a steno outline to resume audio, regardless of the setting for the Auto Pause Resume option.

Audio - Feedback or “Squealing”

If audio feedback or “squealing” noises occur, check the following:

• If you are using a powered microphone, set the Microphone Gain lower. See Audio Options on page 40 for more information.

• The microphone may be located too close to the speakers or headphones. Move the microphone further from the speakers or headphones.

• The playback volume setting may be set too high. Try a lower playback setting.

Backup/Data SD Card - Write Protected

SD cards have a write protect slide on the side card. If the slide is moved to the Locked position, no data can be written to the card. When a Locked Data SD card is inserted into the Diamante, a message displays indicating the card is write protected. No writing can occur until you unlock the Backup SD card.

To enable writing on an SD card: Remove the appropriate SD card from the Diamante. The Backup SD card is recessed.

1. Hold the SD card with the notched side up.

2. Move the write protect slide to the Up position.

3. Reinsert the SD card into the Diamante.

Diamante User Guide

Backup SD Card - Error Message

The error message, No Files were found in x:\???Backup.BIN, displays when attempting to retrieve a file from the Backup SD card using the BackupCard Utility. The x in the above message represents the actual drive letter assigned to the SD card reader.

• It is necessary to read the Backup SD card using the USB SD Flash Drive reader that came with your Diamante or another reliable USB based external SD card reader. A built-in SD card slot reader on your computer cannot

read the Backup SD card.

• Windows 7 and Windows Vista require the BackupCard Utility to run as Administrator. See Utility - Run BackupCard Utility as Administrator on page 100.

Backup SD Card - No Files

To be able to read Diamante files on the Backup SD card, you must be using Case CATalyst version

10.06 or higher; and use the BackupCard Utility. See Backup SD Card Reader on page 113.

Data SD Card - No Files

To be able to read Diamante files on the Data SD card, you must be using Case CATalyst version 7.02 or higher. If you are not using Case CATalyst version 7.02 or higher, or are using another CAT system, use the DateTimeToStentura utility program. See Convert Date/Time to Stentura Format on page 108.

Dictionary - Encountered Problem Reading Dictionary

The message, “Encountered problems reading dictionary(s) Please retry exporting/loading dictionary(s).” displays when the Diamante cannot validate a dictionary being loaded. It also displays when a valid dictionary is not found on the Diamante.

If you experience this message while loading dictionaries:

1. Review the dictionaries selected for export from Case CATalyst, if applicable, and try reloading the dictionaries into the Diamante.

2. Review the dictionary on your CAT system and then export it to RTF/CRE. Use the Rtf2Writer Dictionary Conversion utility to load the dictionary onto the Diamante.

3. If this message displays when you are not loading dictionaries: a. Verify that dictionaries are currently loaded on your Diamante. b. Reload the necessary dictionaries.

Reset - Diamante Appears Unresponsive

If the Diamante appears to be unresponsive, press the Reset button on the back of the Diamante. If you have an open file at the time you press the Reset button, the current file closes. The Diamante reboots and a recovery complete message displays. Press OK and continue writing. The previously opened file displays.

TrueView Error Messages

TrueView troubleshooting solutions are located in the Diamante Utilities appendix.

Chapter 4: Troubleshooting

USB - Cannot Update Software

• A file cannot be opened while updating software. Close the open file on the Diamante.

• To load a Diamante software update, you must first install the Diamante USB driver on your

computer. The Diamante USB driver, on the Diamante

/Wave™ Utilities and Tutorial CD, comes with

your Diamante. See Install the Diamante USB Drivers on page 18 to load the Diamante USB driver.

USB - Realtime Connection Appears Unresponsive

If you leave the USB realtime connection active when you take a break, the realtime screen on the CAT system may not display the new steno strokes when you resume writing. This is a function of the computer USB port power management settings when it remains idle for a period of time.

Power management settings determine if the USB ports turn off when not in use for a specified amount of time. When using the virtual serial port communications via a USB cable, it is important to check the power management settings for your computer USB Root Hubs to ensure the USB port does not turn off when idle.

Regardless of the power management settings, virtual serial port communications via USB cable

not allow you to disconnect and reconnect the USB cable and maintain the realtime

does

connection. For example, you disconnect from the virtual serial port connection to report a bench conference and then reconnect when finished.

To modify the USB power management settings, complete the following inst ructions appropriate for your operating system. For additional information, check Stenograph’s Help Desk or consult your Windows documentation about Device Manager.

Windows 7

1. Click the Start menu on your computer and in the Search programs and files text field, type:

power settings.

2. A list displays. Under the Control Panel section, click Change battery settings.

3. Power Options for your computer display in a dialog box.

4. On your currently selected power plan, click Change plan settings.

5. The Edit power settings dialog box displays. Click Change advanced power settings.

6. The Power Options Advanced tab displays. Click the plus sign, , next to USB settings.

7. Click the plus sign, , next to USB selective suspend settings.

8. Do the following:

•Click On Battery and from the drop down list select, Disable.

•Click Plugged In and from the drop down list select Disable.

9. Click Apply to save the changes.

10. Click OK and then close the Edit power settings dialog box.

Diamante User Guide

Windows Vista & Windows XP

1. On your computer, from the Start menu right click on Computer or My Computer.

2. Select Properties.

3. Depending on your operating system, do one of the following:

• In Windows Vista, select Device Manager. If the UAC dialog box displays, click Continue.

• In Windows XP, select the Hardware tab and then select Device Manager.

4. Scroll down to Universal Serial Bus Controllers and click the plus mark on the left.

5. Right click the first

USB Root Hub listed and select Properties.

6. Click the Power Management tab.

7. Verify the option, Allow the computer to turn off this device to save power is unchecked and click

OK.

8. Repeat the previous step for each USB Root Hub in the list, verifying the option is unchecked.

9. When finished, close the Device Manager.

USB - Unknown Device Message on Computer

1. Make sure the USB driver is loaded on the computer. See Install the Diamante USB Drivers on page 18 for more information.

2. Make sure the Diamante is turned On before attaching the USB cable to the Diamante and the computer.

Utility - Run BackupCard Utility as Administrator

To run the BackupCard Utility as an Administrator on Windows 7 and Windows Vista, change the Compatibility properties for the program:

1. Right click the BackupCard.exe shortcut and select Properties in the drop down menu. The BackupCard.exe Properties dialog box displays.

2. Select the Compatibility tab.

3. Under Privilege Level, check the option, Run this program as an administrator.

4. Click OK to apply the change close the BackupCard.exe Properties dialog box.

100

Stenograph Diamante User Manual

Specifications and Main Features

Frequently Asked Questions

User Manual
